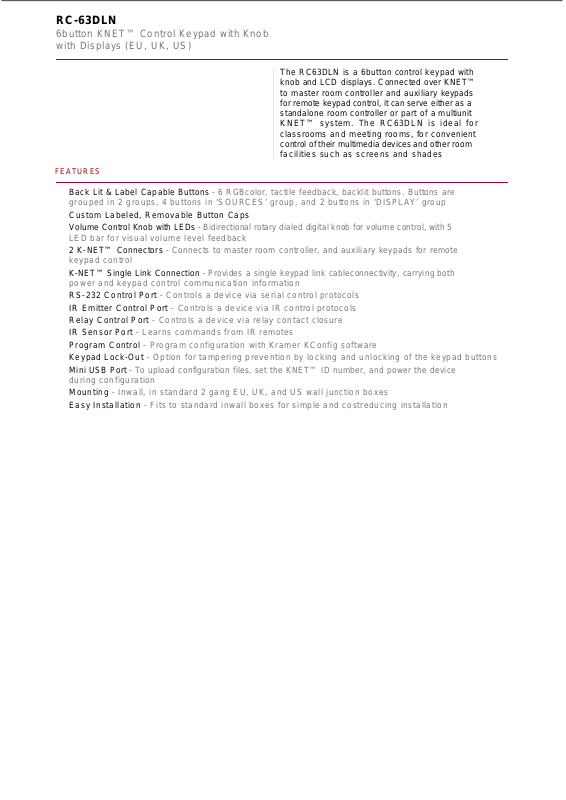

Kramer RC-63DLN(W) Data Sheet

RC-63DLN

6button KNET™ Control Keypad with Knob
with Displays (EU, UK, US)

The RC63DLN is a 6button control keypad with
knob and LCD displays. Connected over KNET™
to master room controller and auxiliary keypads
for remote keypad control, it can serve either as a
standalone room controller or part of a multiunit
KNET™ system. The RC63DLN is ideal for
classrooms and meeting rooms, for convenient
control of their multimedia devices and other room
facilities such as screens and shades

FEATURES

Back Lit & Label Capable Buttons - 6 RGBcolor, tactile feedback, backlit buttons. Buttons are

grouped in 2 groups, 4 buttons in ‘SOURCES’ group, and 2 buttons in ‘DISPLAY’ group

Custom Labeled, Removable Button Caps
Volume Control Knob with LEDs - Bidirectional rotary dialed digital knob for volume control, with 5

LED bar for visual volume level feedback

2 K-NET™ Connectors - Connects to master room controller, and auxiliary keypads for remote

keypad control

K-NET™ Single Link Connection - Provides a single keypad link cableconnectivity, carrying both

power and keypad control communication information

RS-232 Control Port - Controls a device via serial control protocols
IR Emitter Control Port - Controls a device via IR control protocols
Relay Control Port - Controls a device via relay contact closure
IR Sensor Port - Learns commands from IR remotes
Program Control - Program configuration with Kramer KConfig software
Keypad Lock-Out - Option for tampering prevention by locking and unlocking of the keypad buttons
Mini USB Port - To upload configuration files, set the KNET™ ID number, and power the device

during configuration

Mounting - Inwall, in standard 2 gang EU, UK, and US wall junction boxes
Easy Installation - Fits to standard inwall boxes for simple and costreducing installation

TECHNICAL SPECIFICATIONS

PORTS:

OUTPUT:

POWER
CONSUMPTION:

FUSE:

ADAPTER:

OPERATING
TEMPERATURE:

STORAGE
TEMPERATURE:

HUMIDITY:

PRODUCT
DIMENSION:

PRODUCT WEIGHT:

SHIPPING
DIMENSION:

1 RS232 on terminal block connectors, 2 KNET on terminal block connectors, 1
mini USB for programming

2 Relays on terminal block connectors (36V AC or DC, 2A, 60V AC maximum on
noninductive load), 1 IR emitter on terminal block connectors

12V DC, 100mA

500mA, FSMD 2920
12V, 500mA
0° to +40°C (32° to 104°F)

40° to +70°C (40° to 158°F)

10% to 90%, RHL noncondensing

11.43cm x 2.50cm x 11.43cm (4.50" x 0.98" x 4.50" ) W, D, H

0.1kg (0.2lbs) approx

23.20cm x 13.60cm x 10.00cm (9.13" x 5.35" x 3.94" ) W, D, H

SHIPPING WEIGHT:

INCLUDED
ACCESSORIES:

OPTIONS:

0.4kg (0.9lbs) approx
Power supply, label set, screwdriver

RK121WP 19" rack adapter
