RC-206/306-EU-PANEL-SET Quick Start
(P/N: 2900-301051QS REV 1)
P/N:
2900- 301051QS
Rev:
1
Scan for full manual
RC-206/306-EU-PANEL-SET Quick Start Guide
This guide helps you install and use your RC-206/306-EU-PANEL-SET for the first time.
Step 1: Check what’s in the box
1 faceplate
1 UK frame
1 EU frame
1 Quick start guide
Step 2: Install the RC-206/306-EU-PANEL-SET
After mounting the device (see www.kramerav.com/downloads/RC-206/306-EU-PANEL-SET) attach the frame to the device and

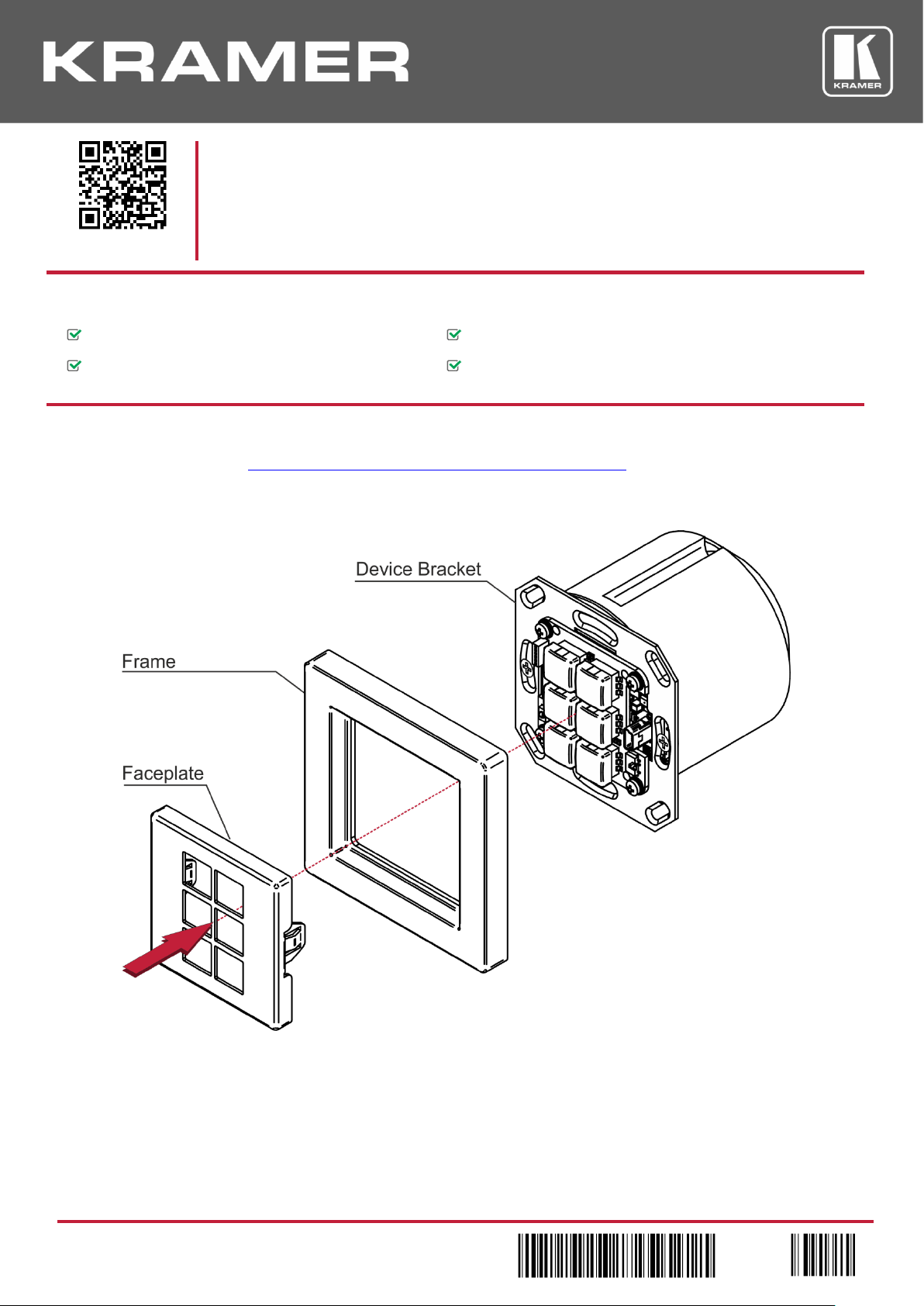

then click in the faceplate as shown in the illustration below:
European Version
We recommend that you use any of the following standard 1 Gang in-wall junction boxes (or their equivalent):
• EU: 1 Gang in-wall junction box, with a cut-hole diameter of 68mm and depth that can fit in both the device and the connected
cables (DIN 49073).
• UK: 1 Gang in-wall junction box, 75x75mm (W, H), and depth that can fit in both the device and the connected cables
(BS 4662).
