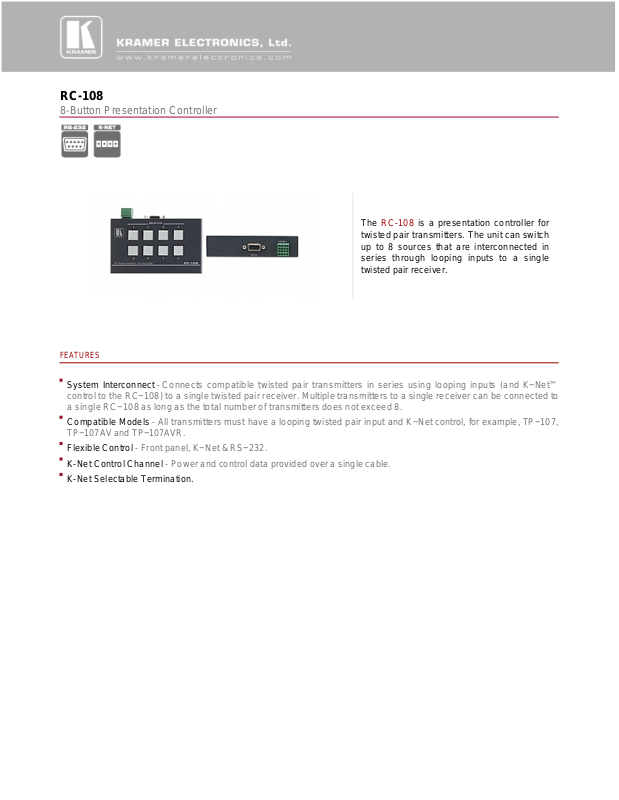

Kramer RC-108 Datasheet

RC-108

8-Button Presentation Controller

The RC-108 is a presentation controller for
twisted pair transmitters. The unit can switch
up to 8 sources that are interconnected in
series through looping inputs to a single
twisted pair receiver.

System Interconnect - Connects compatible twisted pair transmitters in series using looping inputs (and K−Net™

control to the RC−108) to a single twisted pair receiver. Multiple transmitters to a single receiver can be connected to
a single RC−108 as long as the total number of transmitters does not exceed 8.

Compatible Models - All transmitters must have a looping twisted pair input and K−Net control, for example, TP−107,

TP

−107AV and TP−

107AVR.

Flexible Control - Front panel, K−Net & RS−232.
K-Net Control Channel - Power and control data provided over a single cable.
K-Net Selectable Termination.

FEATURES

RC-108

TECHNICAL SPECIFICATIONS

CONTROLS:

RS−485, RS−232.

DIMENSIONS:

12cm x 7.0cm x 2.4cm (4.7" x 2.7" x 1.0") W, D, H.

WEIGHT:

0.3kg (0.66lbs) approx.
