The IRD-1 Modulator/Demodulator
The IRD-1 is bidirectional IR modulator/demodulator. It is designed to be part of a chain of signal transmission where an IR signal must be modulated or demodulated to accommodate devices that require either
a modulated or a demodulated signal, such as the TP-574, TP-573, other Kramer IR extender transmitter/receiver, or a Kramer RC series room controller.
The IRD-1 is powered externally by a compatible device, for example, the TP-573. Power is received via the 3.5mm mini jack sockets on the IRD-1.
Connecting the IRD-1 Modulator/Demodulator

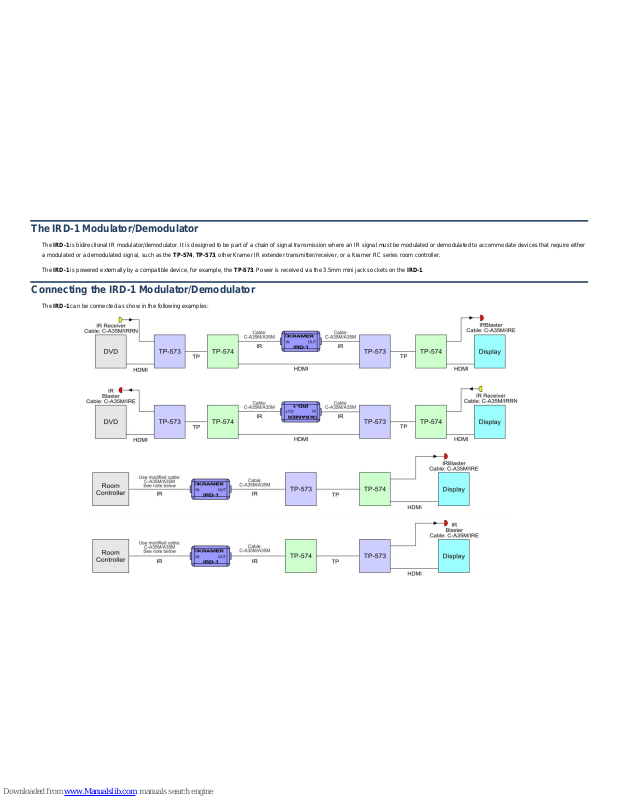

The IRD-1 can be connected as show in the following examples:
Compatibility
The IRD-1 is compatible with Kramer range extenders that have IR in/out (including Kramer modular
matrices) and room controllers of SL, RC and PL series that have IR out.
Modifying a Cable to Connect to a Room Controller
Connecting to a room controller with a terminal block connection requires a custom cable.
To connect to a room controller using the IRD-1:
1. Cut the male 3.5mm mini jack connector from a C-A35M/A35M cable.
2. Separate the two wires and strip approximately 7mm of insulation from the two wires.
3. Connect the wire with the stripe to the IR OUT terminal block on the Room Controller.
4. Connect the wire with no stripe to the GND terminal block on the Room Controller.
Technical Specifications
INPUTS/OUTPUTS:
2 3.3mm mini jacks (F)
FREQUENCY:
38kHz
POWER CONSUMPTION:
3.3V DC, 25mA
OPERATING TEMPERATURE:
0° to +40°C (32° to 104°F)
STORAGE TEMPERATURE:
–40° to +70°C (–40° to 158°F)
HUMIDITY:
10% to 90%, RHL non-condensing
DIMENSIONS:
1.5cm x 2.8cm x 1.3cm (0.6” x 1.1” x 0.5”) W, D, H
WEIGHT:
0.028kg (1oz) approx.
OPTIONS:
C-A35M/IRRN—IR Receiver cable 3ft and 50ft
C-A35M/IRE—IR Emitter cable 10ft
C-A35M/A35M—Extension cable 50ft
KRAME R E L E C T R O N I C S L T D .
Installation
Instructions
IRD-1
Modulator/Demodulator
Installatio n In st ru ct io ns
For the l atest information on our products and a list of Kramer
distributors, visit our Web site where updates to these installation
instructions may be found
We welcome your questions, comments,
and feedback.
Web site: www.kramerelectronics.com
E-mail: info@kramerel.com
For more detailed
information
regarding this
product scan the
QR code
P/N : 2 900 -3005 13 Rev 2
