Galil 6-C – Contents
i
Contents
1 Introduction 1 2 Getting Started 2
2.1 Achieving the Best Performance 2
2.2 Recycling Kramer Products 3
3 Overview 4 4 Your Galil 6-C Closed-back Ceiling Speakers 5 5 Installing the Galil 6-C Closed-back Ceiling Speakers 7
5.1 Choosing the Best Location 7
5.2 Cutting the Ceiling Tile 7
5.3 Mounting the Speakers 8
5.4 Setting up an Array Installation 11
5.5 Painting the Speaker 14
6 Technical Specifications 15
Figures
Figure 1: Galil 6-C in a Boardroom Setup 4 Figure 2: Galil 6-C Closed-back Ceiling Speaker 5 Figure 3: Galil 6-C Schematic Diagram 6 Figure 4: Mounting the Galil 6-C 9 Figure 5: Plugging and Securing the Cable 10 Figure 6: Tighten the Mounting Tabs 10 Figure 7: Adjust Tap Selector 11 Figure 8: Square Layout 12 Figure 9: Hexagonal Layout 12 Figure 10: Square Layout Parallel Wiring 13
Galil 6-C - Introduction
1
1
1 Introduction
Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been providing a world of unique, creative, and affordable solutions to the vast range of problems that confront video, audio, presentation, and broadcasting professionals on a daily basis. In recent years, we have redesigned and upgraded most of our line, making the best even better!
Our 1,000-plus different models now appear in 11 groups that are clearly defined by function: GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Routers; GROUP 3: Control Systems; GROUP 4: Format/Standards Converters; GROUP 5: Range Extenders and Repeaters; GROUP 6: Specialty AV Products; GROUP 7: Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9: Room Connectivity; GROUP 10: Accessories and Rack Adapters and GROUP 11: Sierra Products.
Congratulations on purchasing your Kramer Galil 6-C Closed-back Ceiling Speakers, which are ideal for the following typical applications:
Hotel lobbies and conference rooms Boardrooms, meeting rooms and presentation venues Classrooms and training rooms
Galil 6-C is designed for indoor dry locations and is suitable for use in air handling spaces (plenum spaces).
i
2
Galil 6-C - Getting Started
2 Getting Started
We recommend that you:
Unpack the equipment carefully and save the original box and packaging
materials for possible future shipment
Review the contents of this user manual
Go to http://www.kramerelectronics.com/support/product_downloads.asp to check for up-to-date user manuals, application programs, and to check if firmware upgrades are available (where appropriate).
2.1 Achieving the Best Performance
To achieve the best performance:
Use only good quality connection cables (we recommend Kramer high-
performance, high-resolution cables) to avoid interference, deterioration in signal quality due to poor matching, and elevated noise levels (often associated with low quality cables)
Do not secure the cables in tight bundles or roll the slack into tight coils Avoid interference from neighboring electrical appliances that may adversely
influence signal quality
Position your Kramer Speakers away from moisture, excessive sunlight and
dust
This equipment is to be used only inside a building. It may only be connected to other equipment that is installed inside a building.
Do not open the housing of the speaker; doing so may reduce the quality of the sound.
UL2043 Fire Test for Heat and Visible Smoke Release for Discrete Products and their Accessories Installed in Air-Handling Spaces.
i
!
i
Galil 6-C - Getting Started
3
3
2.2 Recycling Kramer Products
The Waste Electrical and Electronic Equipment (WEEE) Directive 2002/96/EC aims to reduce the amount of WEEE sent for disposal to landfill or incineration by requiring it to be collected and recycled. To comply with the WEEE Directive, Kramer Electronics has made arrangements with the European Advanced Recycling Network (EARN) and will cover any costs of treatment, recycling and recovery of waste Kramer Electronics branded equipment on arrival at the EARN facility. For details of Kramer’s recycling arrangements in your particular country go to our recycling pages at http://www.kramerelectronics.com/support/recycling/.
4
Galil 6-C - Overview
3 Overview
The Galil 6-C consists of a pair of high performance closed back speakers.
Mount your Galil 6-C speakers to the ceiling in one of two ways: either directly onto the ceiling or, for added protection, secure the speakers safely, using our ceiling mounting kit that is provided free (see Section 5.3).
The Galil 6-C speakers feature a multi-tap power transformer for selecting 8Ω (bypassing the transformer) or 70V/100V power settings that are suitable for an array installation. Figure 1 shows an example of how the Galil 6-C can be installed in a boardroom setup:
Figure 1: Galil 6-C in a Boardroom Setup
Galil 6-C - Your Galil 6-C Closed-back Ceiling Speakers
5
5
4 Your Galil 6-C Closed-back Ceiling Speakers

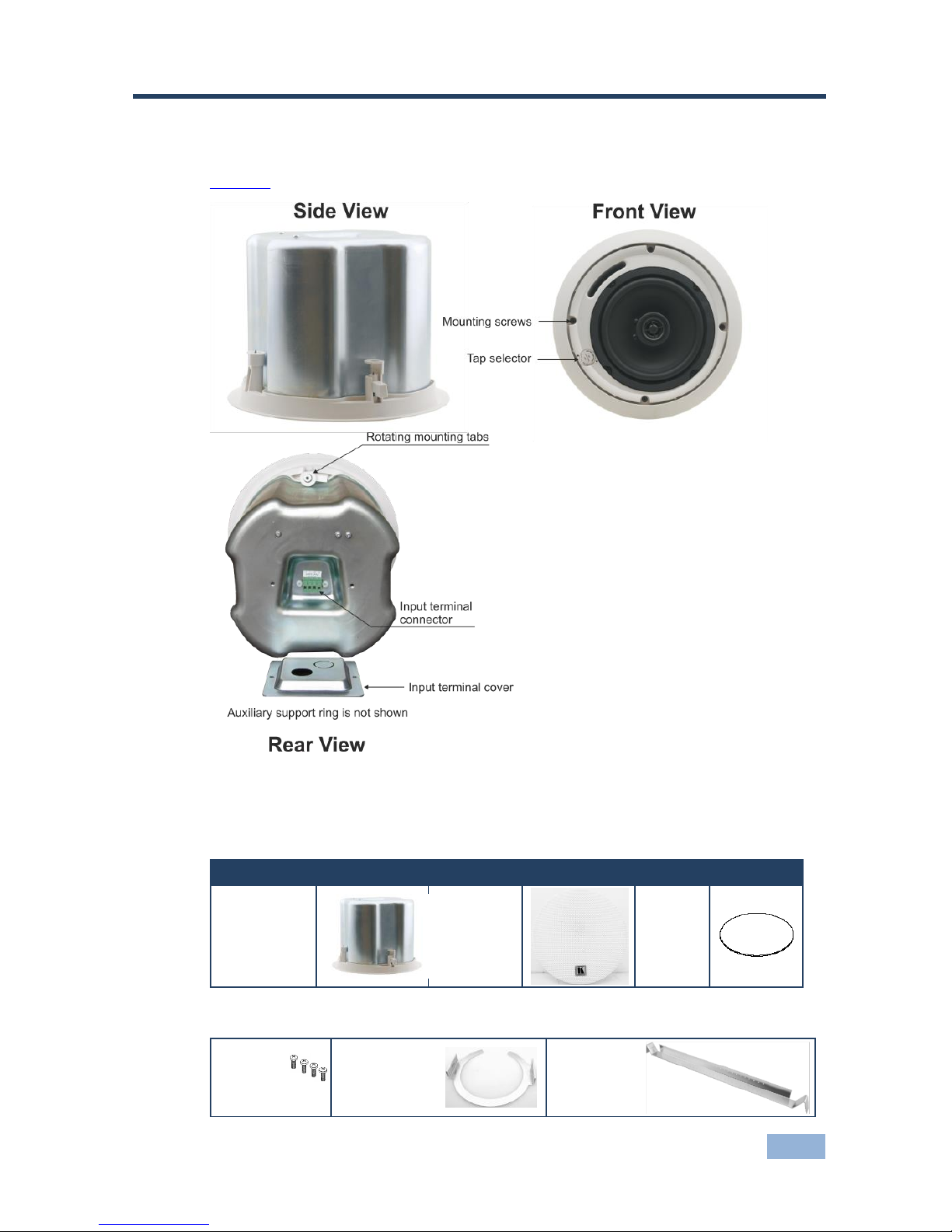

Figure 2 defines the Galil 6-C:
Figure 2: Galil 6-C Closed-back Ceiling Speaker
The following table defines the Galil 6-C hardware items (per speaker pair) for each model in the series:
Description
A pair of ceiling speakers
(one shown)
Two grilles (one shown)
Cutout template
This table defines the ceiling mounting kit items:
Four support ring screws
Two ceiling support rings (C-ring) – one shown
Two pairs of tile rails – one of a pair shown
6
Galil 6-C - Your Galil 6-C Closed-back Ceiling Speakers
Each Closed-back Ceiling speaker is supported by a C-ring and two tile rails. The tile rails prevent the speakers from falling if the tile itself comes out or falls apart, as their ends catch onto the T-grid. When mounting onto the ceiling tiles, use both supports. When mounting onto a sheetrock ceiling, the C-ring alone is used to reinforce the ceiling material.
Be sure that the tiles can support the speaker. Smaller sized tiles or fiberglass-type tiles cannot support the weight of the speakers. When this is the case, the speakers will need additional support.
Figure 3 shows a schematic diagram of the Galil 6-C:
Figure 3: Galil 6-C Schematic Diagram
i
Galil 6-C - Installing the Galil 6-C Closed-back Ceiling Speakers
7
7
5 Installing the Galil 6-C Closed-back Ceiling
Speakers
This section explains how to install the Galil 6-C, that is:
Choosing the best place to locate your speakers (see Section 5.1) Cutting the ceiling tile (see Section 5.2) Mounting the Speakers (see Section 5.3) Setting up an array installation (see Section 5.4) Painting the speakers (see Section 5.4)
5.1 Choosing the Best Location
Ideally, locate the speakers above the main listening area. Before doing so, be sure that:
The desired location is free of obstructions, such as electrical piping, AC
ducts or water lines, and so on
There is enough space behind the mounting surface for the speakers The rear side of the speaker is not blocked by wall studs or other objects
5.2 Cutting the Ceiling Tile
To cut the ceiling tile, do the following:
1. Remove the circle in the supplied template.
Keep this template for later use as a mask, as you may want to paint the speakers (see
Section 5.4)
2. Mark the opening in the correct location by tracing the hole in the template.
3. Cut out the hole according to the template or with a circular cutter set to the appropriate cutout size.
Initially, you can cut a smaller area inside the marked hole just to be sure that the space above the speakers is clear
8
Galil 6-C - Installing the Galil 6-C Closed-back Ceiling Speakers
4. Route the wiring from the amplifier to the speakers’ cutout holes, taking care not to place them next to electrical wires or at least at a distance of about two feet from an AC line.
Do not nail or staple the speaker wires.
If you are mounting the speakers onto a ceiling tile, remove the ceiling tiles where you plan to install the speakers. Use the template to trace and then cutout the speaker hole over an empty box.
The closed-back ceiling speakers are supported by the ceiling mounting kit (two C-rings and two pairs of tile rails; the tile rails prevent the speakers from falling if the tile itself comes out or falls apart, as their ends catch onto the T-grid). When mounting onto the ceiling tiles, use both supports.
Be sure that the tiles can support the speaker. Smaller sized tiles or fiberglass-type tiles cannot support the weight of the speakers. When this is the case, the speakers will need additional support.
When mounting onto a sheetrock ceiling, the C-ring alone is used to reinforce the ceiling material.
5.3 Mounting the Speakers
To mount the Galil 6-C, do the following:
1. Place the C-ring over the hole cut in the ceiling tile (on the “ceiling” side). Place it around the hole so that the tabs are located in parallel to the tile edges.
!
i
Galil 6-C - Installing the Galil 6-C Closed-back Ceiling Speakers
9
9
Figure 4: Mounting the Galil 6-C
2. Place the tile rails on the tile and snap them into the two tabs on the C-ring. Align the rails so that the ends extend over the T-channel grid.
3. Insert a screw through each tab on the C-ring to secure the rails.
4. Connect the speaker wires to the appropriate connector terminals:
PIN 1 and PIN 2 are connected internally and are positive (+) PIN 3 and PIN 4 are connected internally and are negative (-)
Screw the hold-down screws on the connector until tight, using a small screwdriver. You can connect the speakers in the two following possible layouts:
Wiring in parallel: connect the wire pair of the subsequent speaker to
PIN 2 and PIN 3. When one input connector is removed, subsequent speakers will remain connected (see Figure 3)
Daisy-chaining: connect the wire pair of the subsequent speaker to
PIN 1 and PIN 4. When one input connector is removed, subsequent speakers will be disconnected (see Figure 3)
5. Plug the connector into the socket in the terminal cup of the speaker (see
Figure 5).
6. Run the wires through the wires’ opening in the input terminal cover plug and then into the terminal block connector of the speaker.
T-channel Grid
Support Ring Screws
Ceiling Tile
Tile Rails
C-ring
10
Galil 6-C - Installing the Galil 6-C Closed-back Ceiling Speakers
Figure 5: Plugging and Securing the Cable
7. Push the speaker into the ceiling hole until the front baffle rim is leveled with the ceiling.
8. Tighten the mounting tabs by turning the screw counter clockwise (see
Figure 6).
Turning one quarter of a circle rotates the tab outwards; after that the screw is turned to tighten the tabs to the rear side of the ceiling surface
When tightening the mounting tabs, the tabs automatically turn outward, thus clamping the speaker to the wall from its rear side.
Do not over-tighten the screws. It may cause damage to both the speakers and the surface.
Figure 6: Tighten the Mounting Tabs
9. If required, you can further secure the speaker by connecting the speaker support ring to an independent secure anchor point.
10. Adjust each speaker to the appropriate tap setting before installing the grille (see Figure 7).
i
Galil 6-C - Installing the Galil 6-C Closed-back Ceiling Speakers
11
11
Figure 7: Adjust Tap Selector
11. Install the grilles to the speakers:
Push the grille fastener into the hole in front of the baffle Press the grille into place until the front of the grille is flush with the rim
of the baffle
Check that the grille is securely seated
To remove the grille, insert two bent paper clips into the holes in the grille and carefully pull it down. Repeat this around the perimeter of the grille until it is completely removed.
5.4 Setting up an Array Installation
When installing Galil 6-C in an array installation layout, you have to define the distance between speakers as well as the layout pattern (square or hexagonal).
The distance between speakers is set according to the speakers’ dispersion
angle, the uniformity of the coverage desired and the budget.
The coverage angle of the speaker determines the coverage area and the number of speakers required in the array installation. Two patterns are usually used for array installations, square (see Figure 8) or hexagonal (see Figure 9), depending on the shape of the installation area. The speakers are positioned according to their coverage area.
i
12
Galil 6-C - Installing the Galil 6-C Closed-back Ceiling Speakers
Figure 8: Square Layout
Figure 9: Hexagonal Layout
You can set the power on each speaker to get the desired power level in different installation areas.
Figure 10 shows an example of parallel wiring in a square array installation:
Galil 6-C - Installing the Galil 6-C Closed-back Ceiling Speakers
13
13
Figure 10: Square Layout Parallel Wiring
14
Galil 6-C - Installing the Galil 6-C Closed-back Ceiling Speakers
5.5 Painting the Speaker
You can paint the speakers before or after they are installed.
When painting before installation:
Clean the rim and grille with mineral spirits or other light solvent that is
unlikely to damage the surface
Spray with color by holding the spray can at an angle of 45
When spraying the grille, take care not to clog the holes in the grille as this will greatly reduce the sound quality of the speakers.
When painting after installation:
Use the circle that you cut out of the template as a paint mask After you finish painting, remove the paint mask
i
Galil 6-C - Technical Specifications
15
15
6 Technical Specifications
Galil 6-C
Audio and Power
DESCRIPTION:
2−Way closed-back ceiling speakers
FREQUENCY RESPONSE:
80Hz to 20kHz @ -10dB 95Hz to 20kHz @ ±3dB
WOOFER:
6.5” (165mm) polypropylene with rubber surround
TWEETER:
0.5” (13mm) Mylar dome
IMPEDANCE:
8Ω (transformer tap in off position)
TRANSFORMER TAPS:
70V – 3.7W / 7.5W / 15W / 30W / Off (Lo-Z) 100V – 7.5W / 15W / 30W / Off (Lo-Z)
SENSITIVITY:
87dB SPL, 1W@1m
MAX SPL:
Continuous: 100.7dB Peak: 103.7dB
POWER HANDLING:
30W RMS 80W continuous program
CROSSOVER FREQUENCY:
9.2kHz
DIRECTIVITY FACTOR (Q):
7.5, averaged 1kHz to 10kHz
DIRECTIVITY INDEX (DI):
8.6dB averaged 1kHz to 10kHz
INPUT CONNECTOR:
Terminal block
Shipping and Installation
MATERIALS:
ABS bezel, aluminum grill, metal back can
OPERATING TEMPERATURE:
0° to +40°C (32° to 104°F)
STORAGE TEMPERATURE:
-40° to +70°C (-40° to 158°F)
HUMIDITY:
10% to 90%, RHL non-condensing
WEIGHT PER SINGLE SPEAKER:
2.85kg (6.28lbs) approx.
SHIPPING WEIGHT (FOR PAIR):
8kg (17.64lbs) approx.
DIMENSIONS:
External diameter: 25.1cm (9.88"); cutout diameter:
22.4cm (8.82")
INSTALLATION CLEARANCE:
Mounting depth: 19.6cm (7.72")
ACCESSORIES:
Installation bracket, safety cord attached to grill, ceiling mounting kit, cutout template
COLORS:
Available in white
Specifications are within a 10% tolerance and are subject to change without notice at
http://www.kramerelectronics.com
For the latest information on our products and a list of Kramer distributors, visit our Web site where updates to this user manual may be found.
We welcome your questions, comments, and feedback.
Web site: www.kramerelectronics.com E-mail: info@kramerel.com
P/N:
2900-300368
Rev:
2
!
