Kramer FC-50 User manual

Kramer Electronics, Ltd.
Preliminary
USER MANUAL
Model:
FC-50
Contents
Contents
1 Introduction 1 2 Getting Started 1
2.1 Quick Start 2
3 Overview 3
3.1 About the Power Connect Feature 3
3.2 Shielded Twisted Pair (STP) / Unshielded Twisted Pair (UTP) 3
3.3 Recommendations for Achieving the Best Performance 4
4 Your FC-50 RS-232 Range Extender 4 5 Connecting the FC-50 RS-232 Range Extender 6
5.1 Wiring the CAT 5 LINE IN / LINE OUT RJ-45 Connectors 7
6 Technical Specifications 7
Figures
Figure 1: FC-50 RS-232 Range Extender 4 Figure 2: FC-50 RS-232 Range Extender Underside 5 Figure 3: Connecting the FC-50 RS-232 Range Extender 6 Figure 4: CAT 5 PINOUT 7
Tables
Table 1: FC-50 RS-232 Range Extender Features 5 Table 2: FC-50 RS-232 Range Extender Underside Features 5 Table 3: CAT 5 PINOUT 7 Table 4: Technical Specifications of the FC-50 7
i
Introduction

1 Introduction

Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been providing a world of unique, creative, and affordable solution s to the vast range of problems that confront the video, audio, presentation, and broadcasting professional on a daily basis. In recent years, we have redesigned and upgraded most of our line, making the best even better! Our 1,000-plus different models now appear in 11 groups
1
that are clearly
defined by function. Thank you for purchasing the FC-50 RS-232 Range Extender, which is
ideal for controlling a single matrix switcher or other controllable device from long distance.
The package includes the following items:
Two FC-50 RS-232 Range Extender units
Power supply (12V DC)
This user manual
2

2 Getting Started

We recommend that you:
Unpack the equipment carefully and save the original box and
packaging materials for possible future shipment
Review the contents of this user manual
Use Kramer high-performance high-resolution cables
3
1 GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Matrix Switchers; GROUP 3: Control Systems; GROUP 4: Format/Standards Converters; GROUP 5: Range Extenders and Repeaters; GROUP 6: Specialt y AV Products; GROUP 7: Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9: Room Connectivity; GROUP 10: Accessories and Rack Adapters; GROUP 11: Sierra Products 2 Download up-to-date Kramer user manuals from our Web site at http://www.kramerelectronics.com 3 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com
1
Getting Started

2.1 Quick Start

This quick start chart summarizes the basic setup and operation steps.
2
KRAMER: SIMPLE CREATIVE TECHNOLOGY
Overview

3 Overview

The high-quality Kramer MultiTOOLS FC-50 RS-232 Range Extender can connect either to a PC or to a device (for example, a switcher). By connecting two units via a CAT 5 cable, the PC can control the switcher over a range of up to 1000 meters (3300 feet).
In particular, the FC-50 features:
Bidirectional RS-232 operation
The Power Connect feature
A CONNECTION switch to select between a crossed and a
straight connection
A PC/DEVICE pushbutton that is pressed or released if a device
or a PC, respectively, are connected to the RS-232 port
12V DC power

3.1 About the Power Connect Feature

Power Connect feature applies as long as the cable can carry power.
The This feature is available when using STP cable, and the distance does not exceed 50m on standard CAT 5 cable. For longer distances, heavy gauge cable should be used make sure that the shield of the STP cable is connected to the metal casing of the connectors on both ends of the cable. For units which are connected via terminal block connectors, the shield of the STP cable must be connected to a ground terminal on the units at both ends (use the ground terminal of the power supply connection if necessary).
1
. For units which are connected via RJ-45 connectors,
For a CAT 5 cable exceeding a distance of 50m, separate power suppli es should be connected to the transmitter and to the receiver simultaneously.

3.2 Shielded Twisted Pair (STP) / Unshielded Twisted Pair (UTP)

recommend that you use Shielded Twisted Pair (STP) cable. There are
We different levels of STP cable available, and we advise you to use the best quality STP cable that you can afford. Our non-skew-free cable, Kramer BC-STP is intended for analog signals where skewing is not an issue. For cases where there is skewing, our UTP skew-free cable, Kramer BC-XTP, may be used. Bear in mind, though, that we advise using STP cables where possible, since the compliance to electromagnetic interference was tested using those cables.
1 CAT 5 cable is still suitable for the video/audio transmission, but not for feeding the power at these distances
3
Your FC-50 RS-232 Range Extender
Although Unshielded Twisted Pair (UTP) cable might be preferred for long range applications, the UTP cable should be installed far away from electric cables, motors and so on, which are prone to cre ate electrical interference. However, since the use of UTP cable might cause inconform ity to electromagnetic standards, Kramer does not commit to meeting the standa rd with UTP cable.

3.3 Recommendations for Achieving the Best Perfor mance

hieve the best performance:
To ac
Use only good quality connection cables
1
to avoid interference, deterioration in signal quality due to poor matching, and elevated noise levels (often associated with low quality cables).
Avoid interference from neighboring electrical appliances that may
adversely influence signal quality and position your Kramer FC-50 away from moisture, excessive sunlight and dust

4 Your FC-50 RS-232 Range Extender

Figure 1 and Table 1 define the FC-50 RS-232 Range Extender:
Figure 1 : FC- 50 RS-232 Range Extender
1 Available from Kramer Electronics on our Web site at http://www.kramerelectronics.com
4
KRAMER: SIMPLE CREATIVE TECHNOLOGY
Your FC-50 RS-232 Range Extender
Table 1: FC-50 RS-232 Range Extender Features
# Feature Function
1
12V DC
2 CAT 5 RJ-45 Connector Connect to1 the CAT 5 RJ-45 connector on the other FC-50 unit 3 PC / DEVICE Button Press when a device is connected to the RS-232 port
RS-232 9-pin D-sub
4
Connector
5
GREEN=PC RED=DEVICE
LED
+12V DC connector for powering the unit
Release when a PC is connected to the RS-232 port Connects to either a PC or a device
PINs 2, 3 and 5 are passed through the device Lights in green when the PC/DEVICE button is released and in red
when the PC/DEVICE button is pressed
Figure 2 and Table 2 define the FC-50 underside:
Table 2: FC-50 RS-232 Range Extender Underside Features
Feature Function
CROSSED / STRAIGHT CONNECTION Switch
Set to CROSSED for a crossed wire connection the PC/device Set to STRAGHT for a straight wire connection between the RS-232 port and the PC/device
2
between the RS-232 port and
Figure 2: FC-50 RS-232
Rang e E x t e n d e r Underside
1 Using a UTP CAT 5 cable with RJ-45 connectors at both ends (the PINOUT is defined in Table 3 and Figure 4) 2 PINs 2 and 3 (Rx and Tx) are crossed in the wiring between the 9-pin D-sub connectors
5
Connecting the FC-50 RS-232 Range Extender

5 Connecting the FC-50 RS-232 Range Extender

To connect two FC-50 units, as illustrated in the example in Figure 3, do the following:
1. Connect a PC to the RS-232 port of the first FC-50 unit and release the
PC/DEVICE button.
2. Connect the RS-232 port of the second FC-50 unit to a device (for example,
a switcher) and push in the PC/ DEVICE button .
3. Connect the CAT 5 RJ-45 connector of the first unit to the CAT 5 RJ-45
connector of the second FC-50 unit via UTP cabling.
4. Set the CONNECTION switch independently on both units as follows:
STRAIGHT for a straight wire connection
RS-232 port and the PC/device
CROSSED for a crossed wire connection
port and the PC/device
5. Connect the 12V DC power adapter to the power socket on the FC-50 and
connect the adapter to the mains electricity (not illustrated in Figure 3
1
between the
2
between the RS-232
).

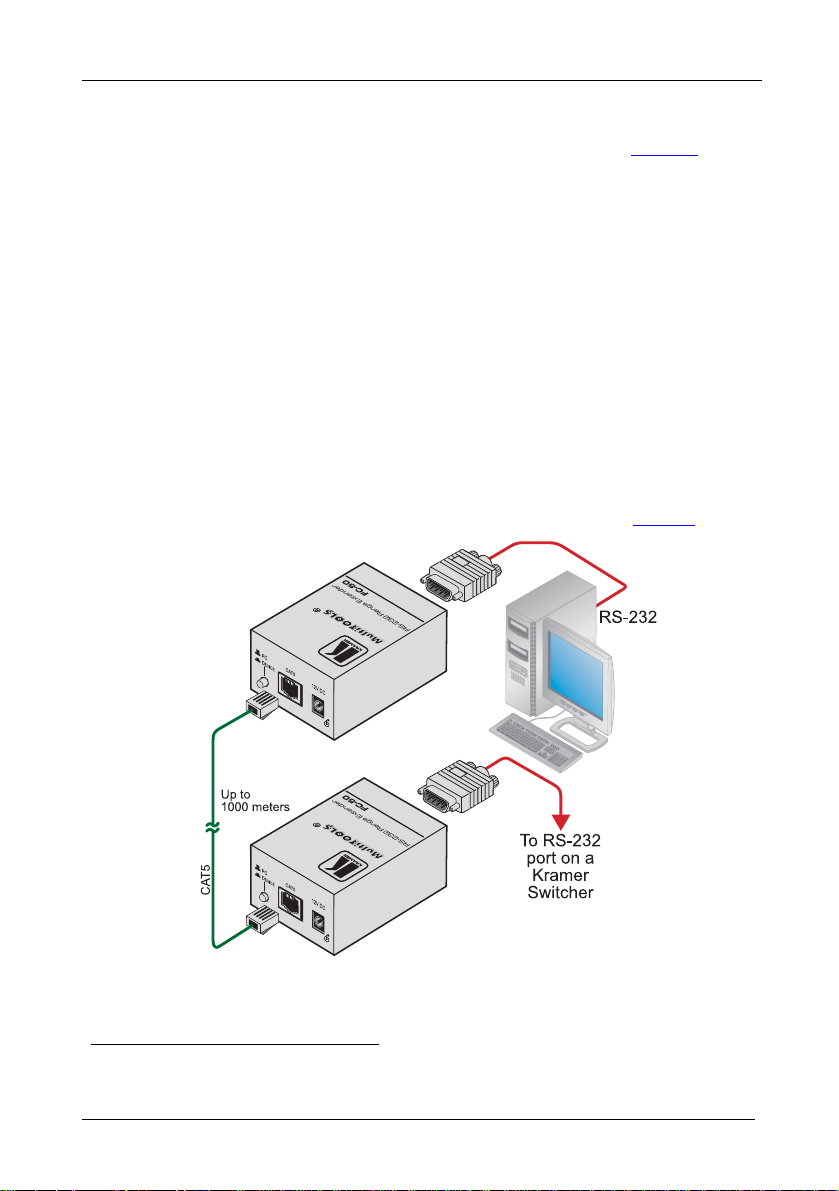

Figure 3: Connecting the FC-50 RS-232 Range Extender
1 For example, flat cable 2 Null modem
6
KRAMER: SIMPLE CREATIVE TECHNOLOGY
Technical Specifications

5.1 Wiring the CAT 5 LINE IN / LINE OUT RJ-45 Connectors

Table 3
and Figure 4 define the UTP CAT 5 PINOUT, using a straight pin
to pin cable with RJ-45 connectors:
Table 3: CAT 5 PINOUT
EIA /TIA 568A EIA /TIA 56 8B
PIN Wire Color PIN Wire Color
1 Green / White 1 Orange / White 2 Green 2 Orange 3 Orange / White 3 Green / White 4 Blue 4 Blue 5 Blue / White 5 Blue / White 6 Orange 6 Green 7 Brown / White 7 Brown / White 8 Brown 8 Brown
Pair 1 4 and 5 Pair 1 4 and 5 Pair 2 3 and 6 Pair 2 1 and 2 Pair 3 1 and 2 Pair 3 3 and 6 Pair 4 7 and 8 Pair 4 7 and 8
Figure 4: CAT 5 PINOUT

6 Technical Specifications

The FC-50 technical specifications are shown in Table 4:
Table 4: Technical Specifications1 of the FC-50
PORTS: RS-232 on a 9-pin D-sub connector2, 1 CAT 5 RJ-45 connector BAUD RATES: Up to 115.2kbaud DISPLAY: GREEN=PC/RED=DEVICE LED DIMENSIONS: 5.32cm x 7.25cm x 4.2cm (2.09" x 2.85" x 1.65"), W, D, H POWER SOURCE: 12V DC, 42mA WEIGHT: 0.3kg (0.67lbs) approx.
1 Specifications are subject to change without notice 2 Only PINs 2, 3, 5 on the RS-232 cable are valid
7
LIMITED WARRANTY
Kramer Electronics (hereafter ) warrants this product free from defects in material and workmanship under the following terms.
HOW LONG IS THE W ARRANTY
Labor and parts are warranted for seven years from the date of the first customer purchase.
WHO IS PROTECTED?
Only the first purchase customer may enforce this warranty.
WHAT IS COVERED AND WHAT IS NOT COVERED
Except as below, this warranty covers all defects in material or workmanship in this product. The following are not covered by the warranty:
1. Any product which is not distributed by Kramer, or which is not purchased from an authorized Kramer dealer. If you are uncertain as to whether a dealer is authorized, please contact Kramer at one of the agents listed in the Web site www.kramerelectronics.com.
2. Any product, on which the serial number has been defaced, modified or removed, or on which the WARRANTY VOID
TAMPERED sticker has been torn,
IF reattached, removed or otherwise interfered with.
3. Damage, dete rioration o r malfun ction r esulting from: i) Accident, misuse, abuse, neglect, fire, water , lightning or other acts of nature ii) Pro duct mo dification , or failu re to follow instructi ons sup plied with t he produc t iii) Repair or attempted repair by a nyone n ot authori zed by Kram er iv) Any ship ment o f the p roduct (clai ms mus t be pre sente d to th e carri er) v) Remova l or install ation of th e produc t vi) Any other cau se, which does not relate to a pr oduct d efect vii) Cartons, equipment enclosures, cables or accessories used in conjunction with the product
WHAT WE WILL PA Y FOR AND WHA T WE WILL NOT PA Y FOR
W e will pay l abor and m aterial e xpenses for cove red items. W e wi ll not pay f or the foll owing:
1. Rem oval or inst allatio ns c har ges.
2. Costs of initial technical adjustments (set-up), including adjustment of user controls or programming. These costs are the
responsi bility of the Kram er deal er from wh om the pro duct w as purcha sed.
3. Shipping charges.
HOW YOU CAN GET WARRANTY SERVICE
1. To obtain service on you product, you must take or ship it prepaid to any authorized Kramer service center.
2. Whenever warranty service is required, the original dated invoice (or a copy) must be presented as proof of warranty
coverage, and should be included in any shipment of the product. Please also include in any mailing a contact name, company, address, and a description of the problem(s).
3. For the name of the nearest Kramer authorized service center, consult your authorized dealer.
LIMITATION OF IMPLIED WARRANTIES
All implied warranties, including warranties of merchantability and fitness for a particular purpose, are limited in duration to the length of this warranty.
EXCLUSION OF DAMAGES
The li abil ity o f K rame r for an y ef fec tive pr oduc ts is lim ite d to the repa ir or repl ac eme nt of the pro du ct at ou r o ptio n. Kra mer shall not be liabl e for:
1. Damage to other prop erty cau sed by defe cts in th is product , damages based upo n inconven ience , loss of use of the pro duct, los s
of time, commercial loss; or:
2. Any othe r da mages , w hethe r inc iden tal, conse quen tial o r o ther wise. Som e co untri es ma y n ot all ow limit ation s on how lon g an
implied warranty lasts and/or do not allow the exclusion or limitation of incidental or consequential damages, so the above limitati ons and ex clusio ns may no t apply to you.
This warranty gives you specific legal rights, and you may al so have other rights, which vary from place to place.
NOTE:
All products re turned t o Krame r for ser vice mus t have pri or approv al. Th is may b e obtaine d from you r deale r.
This equipment has been tested to determine compliance with the requirements of:
EN-50081: "Electromagnetic compatibility (EMC);
Residential, commercial and light industry" EN-50082: "Electromagnetic compatibility (EMC) generic immunity standard.
CFR-47: FCC* Rules and Regulations:
CAUTION!
generic em ission standar d. Part 1:
Part 1: Residential, commercial and light industry environment".
Part 15: “Radio freque ncy devices Subpart B Unintentional radiators”
Servicing the machines can only be done by an authorized Kramer technician. Any user who makes changes or
modifications to the unit without the expressed approval of the manufacturer will void user authority to operate the
equipment. Use the supplied DC power supply to feed power to the machine. Please use recommended interconnection cables to connect the machine to other components. * FCC and CE approved u sing STP c able (for tw isted pair products)
