KRAMER
This guide helps you install and use your product for the first time. For more detailed information, g
to download the latest manual or scan the QR code on the left.
o to
http://www.kramerav.com/manual/DIP-20
Step 1: Check what’s in the box
DIP-20 Automatic Video Switcher
Power adapter (48V)
Step 2: Install the DIP-20
Mount the device in a rack (using the optional RK-T2B rack adapter available for purchase) or attach the rubber feet and place the
device on a shelf.
Step 3: Connect inputs and outputs
Always switch off the power to all devices before connecting it to your .
For best results, we recommend that you always use Kramer high-performance cables to connect AV equipment to the DIP-20.
DIP-20
1 ADC-DPM/HF
DisplayPort (M) to HDMI (F) Adapter Cable
1 Quick start guide
4 Rubber feet

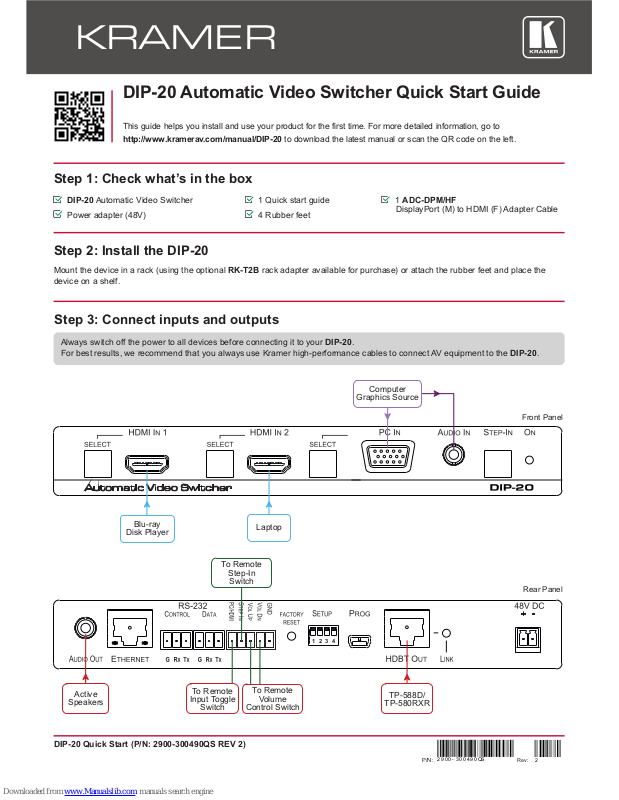

DIP-20 Automatic Video Switcher Quick Start Guide
Rear Panel
1 2 3 4
Front Panel
Active
Speakers
TP-588D/
TP-580RXR
To Remote
Input Toggle
Switch
To Remote
Volume
Control Switch
To Remote
Step-In
Switch
Computer
Graphics Source
Blu-ray
Disk Player
Laptop
DIP-20 Quick Start (P/N: 2900-300490QS REV 2)
2 90 0- 3 00 49 0QS
2
P/N:
Rev:
Page 2
Step 4: Set the DIP-switches
WWW.KRAMERAV.COM
Step 5: Connect the power
Connect the power adapter to the DIP-20, and plug the adapter into the mains power. Power on
all attached devices.
#
Feature
Function
Switch State
1
Video Input
Selection Mode
Selects manual or auto input selection
On—Manual switching
Off—Auto switching
2
Video Auto Selection
Mode
Selects priority or last connected mode
On—Priority mode, (HDMI, VGA)
Off—Last connected
3
Audio Selection
Mode
Selects manual or auto audio
switching mode
On—Manual switching
Off—Auto switching
4
Audio Input Priority
Sets the audio signal selection priority
On
DIP-switch 3 On: Analog audio input
DIP-switch 3 Off: HDMI>Analog priority
Off
DIP-switch 3 On: HDMI audio input
DIP-switch 3 Off: Analog>HDMI priority
DIP-switch 2 Status
DIP-switch 1 Auto Switching
DIP-switch 1 Manual Switching (On)
Off—Last connected
When two sources are connected the
last one connected gets priority
Manual video input selection
On—Priority
When two sources are connected the
active source is selected according to
the predefined priority
Manual video input selection
Step 6: Operate the DIP-20
To Operate the DIP-20:
³ Press the Step-In button to activate the input.
³ Press the required Select button to switch to that input.
