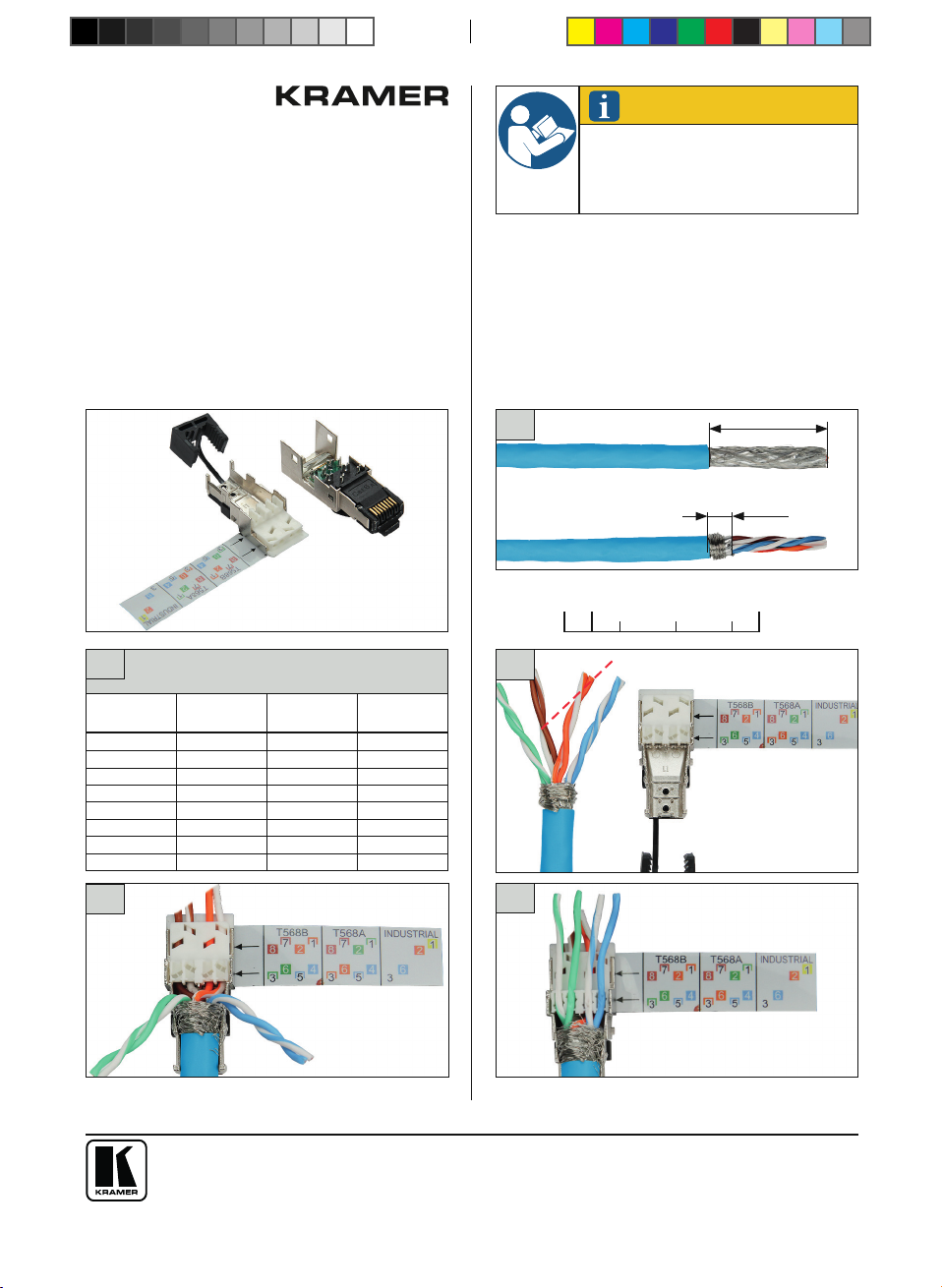

Kramer CON-FIELD User Manual [EN]

CON-FIELD

CAT6A RJ45 Field plug

AWG 26/1 - 22/1, AWG 27/7 - 22/7

Mounting note for the installer

NOTE

Avoid connection errors!

Read installation instructions carefully
before connecting!

899351-05

2

PIN Nr. / No. /

contact no.

PIN assignments

T568A T568B

1 WH-GN WH-OG YE
2 GN OG OG
3 WH-OG WH-GN WH
4 BU BU ­5 WH-BU WH-BU ­6 OG GN BU
7 WH-BN WH-BN ­8 BN BN -

4

INDUSTRIAL

(Profinet)

1

5 mm

0.19 7 i n.

3

cut

35 mm

1.378 in .

5 mm

0.19 7 in .

35 mm

1.378 in.

5

KRAMER ELECTRONICS, Ltd.
Address: 3 Am VeOlamo St., Jerusalem, Israel
Tel: [phone] Fax: [phone]
E-mail: [e-mail] Web: www.KramerAV.com

CON-FIELD | AWG 26/1 - 22/1, AWG 27/7 - 22/7 | CAT6A RJ45 Field plug

Mounting note for the installer

6 7

cut flush

click

8

Disassembly

1

9

press area

1110

click

2
