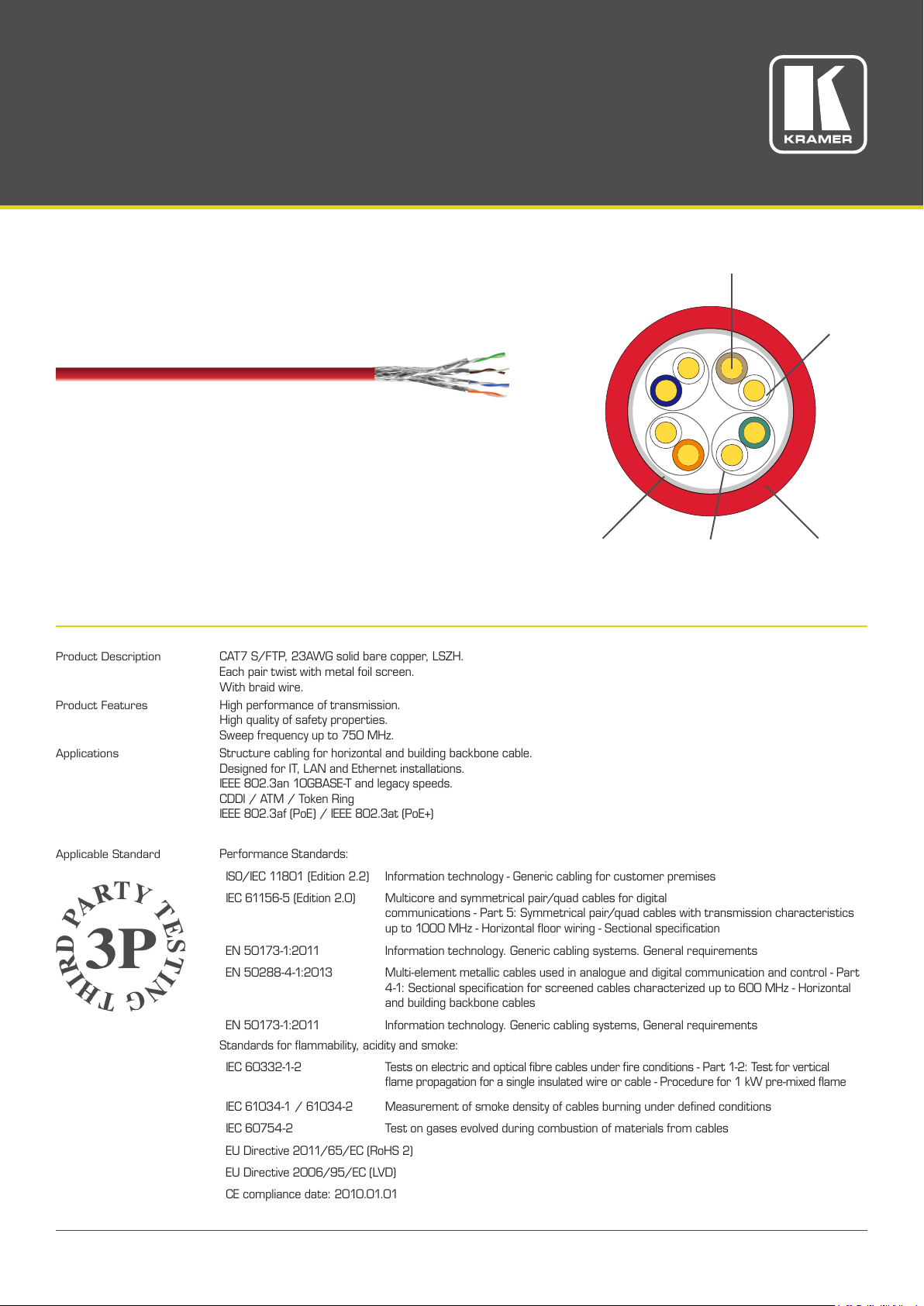

KRAMER
Product Description
CAT 7 S/F TP, 23AWG solid bare copper, LSZH.
Each pair twist with metal foil screen.
With braid wire.
Product Features
High performance of transmission.
High quality of safet y properties.
Sweep frequency up to 750 MHz.
Applications
Structure cabling for horizontal and building backbone cable.
Designed for IT, LAN and Ethernet installations.
IEEE 802.3an 10GBASE-T and legacy speeds.
CDDI / ATM / Token Ring
IEEE 802.3af (PoE) / IEEE 802.3at (PoE+)
Applicable Standard
Performance Standards:
ISO/IEC 11801 (Edition 2.2) Information technology - Generic cabling for customer premises
IE C 6 115 6-5 (Edit io n 2.0) Multicore and symmetrical pair/q uad cables for digit al
communications - Part 5: Symmetrical pair/quad cables with transmission characteristics
up to 1000 MHz - Horizontal floor wiring - Sectional specification
EN 5 017 3-1:2 0 11 Information technology. Generic cabling systems. General requirements
EN 50288-4-1:2 0 13 Multi-element metallic cables used in analogue and digital communication and control - Part
4-1: Sectional specification for screened cables characterized up to 600 MHz - Horizontal
and building backbone cables
EN 5 017 3-1:2 0 11 Information technology. Generic cabling systems, General requirements
Standards for flammability, acidity and smoke:
IEC 60332 -1-2 Tests on electric and optical fibre cables under fire conditions - Par t 1-2: Test for vertical
flame propagation for a single insulated wire or cable - Procedure for 1 kW pre-mixed flame
IE C 610 34-1 / 610 3 4-2 Measurement of smoke density of cables burning under defined conditions
IEC 60754-2 Test on gases evolved during combustion of materials from cables
EU Directive 2011/65/ E C (RoHS 2)
EU Directive 2006/95/E C (LV D)
CE compliance date: 2010.01.01
WELL CONNECTED WITH KRAMER
BCLS-45RD-5
CAT7 S/FTP LSZH Cable
Kramer’s BCLS-45RD is a high performance CAT7 S/FTP cable
designed for IT, LAN and Ethernet installations.
Constructed with 23AWG solid bare copper conductors where
each pair is individually shielded with metal foil screen and
the entire cable is shielded with a tinned copper braid in a
LSZH jacket with sequential markings every meter and packed
on a fumigated plywood reel make this cable exceed CAT7
specifications to provide additional performance and bandwidth
over the basic standard
Conductor
Insulation
Braid JacketAl-Mylar
© 2015 KRAMER ELECTRONICS, Ltd. All rights reserved. Reproduction in whole or in part without written permission is prohibited. 1/4
MATERIAL AND CONSTRUCTION
Conductor Material 23AWG solid bare copper
Material Polyolefin (PO)
Blue & white 1.33 ± 0.02 mm
Insulation
Color code & diameter
Orange & white 1.30 ± 0.02 mm
Green & white 1.33 ± 0.02 mm
Brown & white 1.30 ± 0.02 mm
Twisted Description Left hand direction
Shield
Material Al Mylar tape
Description 100 % coverage and aluminum side facing out
Assembly Description Left hand direction
Braid
Material Tinned copper
Description ˃ 30 % coverage
Material Low smoke zero halogen (LSZH)
Jacket
Diameter 7.70 ± 0.2 mm
Thickness 0.50 ± 0.05 mm
Color Red [Pantone 1797C]
USAGE & ENVIRONMENTAL CONDITION
Storage & shipping -20°C to 60°C
Temperature range
Minimum bending radius ≥ 4 times of overall diameter
Maximum pulling tension ≤ 110 N
Installation 0°C to 60°C
Operation -20°C to 60°C
PHYSICAL & ELECTRICAL CHARACTERISTICS (AT 20°C)
Temperature & voltage rating 60°C / 300V
Spark test 2.5 KV DC
AC leakage current through overall jacket ≤ 10mA (1.5KV AC)
Cable cold bend -20°C for 4 hr
Conductor DC resistance ≤ 9.5 Ω/100m
Resistance unbalance ≤ 5%
Dielectric strength 1.5 KV ac for 2 s
Insulation resistance ≥ 5000 MΩ•m
Mutual capacitance ≤ 5.6 nF/100m
Capacitance unbalance pair-to-ground ≤ 160 pF/100m
Characteristic Impedance @1~100MHz,100±15 Ohm
Insulation Tensile Strength 2400 PSI MIN. (1.69 Kg/m2)
NVP 73%
TRANSMISSION PERFORMA NCE (AT 20°C)
Freq.
MHz
4 3.74 78.00 75.00 74.26 71.26 78.00 75.00 23.01 552.00
8 5.24 78.00 75.00 72.76 69.76 75.94 72.94 24.52 546.73
10 5.86 78.00 75.00 72.14 69.14 74.00 71.00 25.00 545.38
16 7.41 78.00 75.00 70.59 67.59 69.92 66.92 25.00 543.00
20 8.29 78.00 75.00 69.71 66.71 67.98 64.98 25.00 542.05
25 9.29 78.00 75.00 68.71 65.71 66.04 63.04 24.32 541.20
31.25 10.41 78.00 75.00 67.59 64.59 64.10 61.10 23.64 540.44
62.5 14.88 75.46 72.46 60.58 57.58 58.08 55.08 21.54 538.55
100 19.02 72.40 69.40 53.38 50.38 54.00 51.00 20.11 537.60
150 23.56 69.76 66.76 46.20 43.20 50.48 47.48 18.87 536.94
200 27.47 67.88 64.88 40.41 37.41 47.98 44.98 18.00 536.55
250 30.97 66.43 63.43 35.46 32.46 46.04 43.04 17.32 536.28
300 34.19 65.24 62.24 31.05 28.05 44.46 41.46 17.30 536.08
350 37.19 64.24 61.24 27.05 24.05 43.12 40.12 17.30 535.92
400 40.01 63.37 60.37 23.36 20.36 41.96 38.96 17.30 535.80
450 42.69 62.60 59.60 19.91 16.91 40.94 37.94 17.30 535.70
500 45.26 61.92 58.92 16.66 13.66 40.02 37.02 17.30 535.61
550 47.72 61.29 58.29 13.57 10.57 39.19 36.19 17.30 535.54
600 50.10 60.73 57.73 10.63 7.63 38.44 35.44 17.30 535.47
700 54.63 59.72 56.72 5.09 2.09 37.10 34.10 16.63 535.36
750 56.80 59.27 56.27 2.47 N.A. 36.50 33.50 16.33 535.31
*Values above 600 MHz are for information only
IL NEXT PS NEXT ACR PS ACR ACR-F PS ACR-F RL
Max.
dB/100m
Min.
dB/100m
Min.
dB/100m
Min.
dB/100m
Min.
dB/100m
Min.
dB/100m
Min.
dB/100m
Min.
dB/100m
Propagation
Delay
Max.
ns/100m
Delay Skew
Max.
ns/100m
25.00
© 2015 KRAMER ELECTRONICS, Ltd. All rights reserved. Reproduction in whole or in part without written permission is prohibited. 2/4

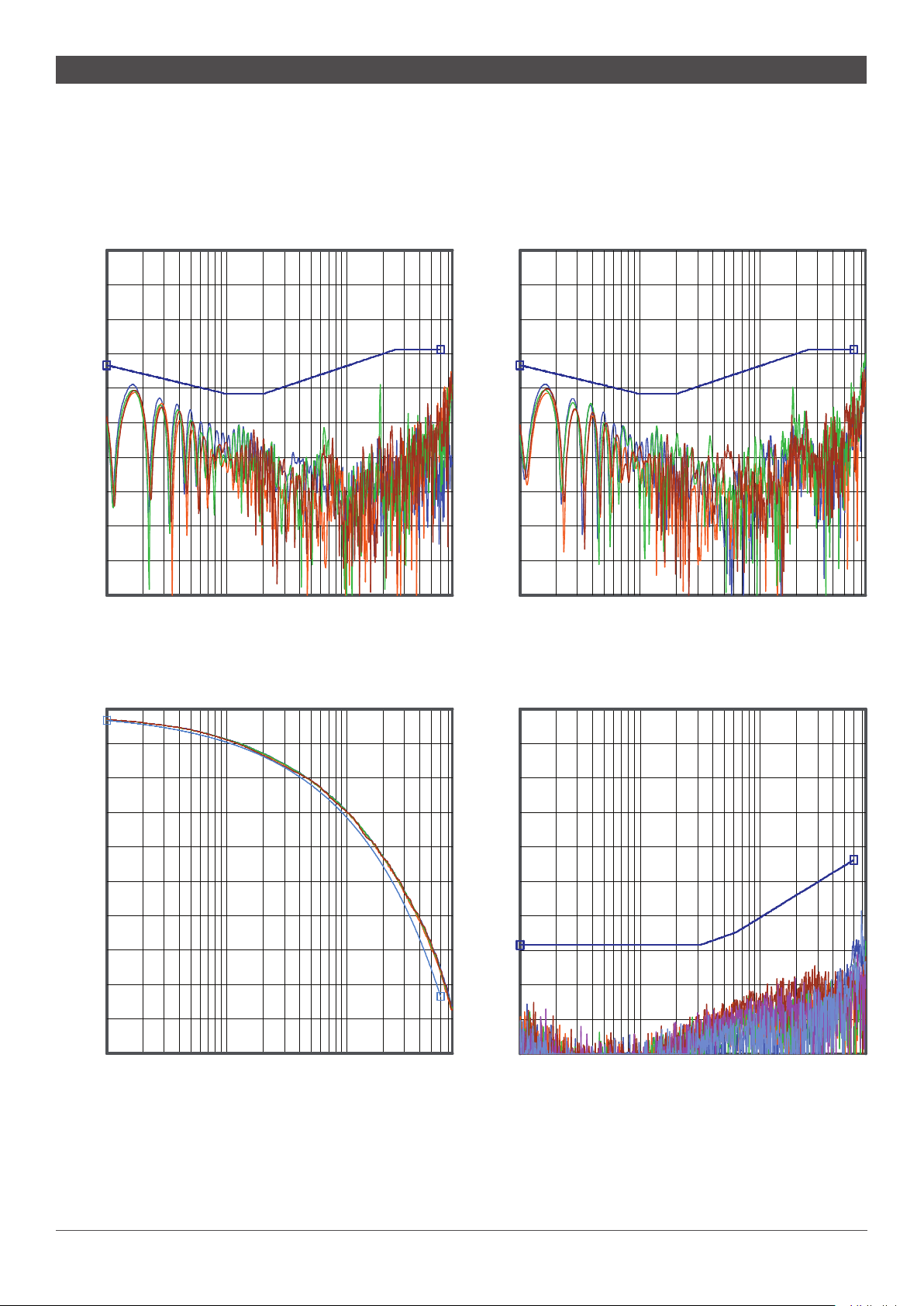

TEST REPORT ( L eng t h 10 0m)
RL (NE)(dB)
IL (dB)
0.0
-6.0
-12.0
-18.0
-24.0
-30.0
-36.0
-42.0
-48.0
-54.0
-60.0
RL (NE) vs. Frequency
Max. Graph Point: -21.1 at 733.96 MHz
Min. Graph Point: -68.5 at 98.27 MHz
2 3 4 5 10 20 30 40 100 200 300 500
Frequency(1 - 750 MHz; 801 scan points)
Pair 1 Pair 2 Pair 3 Pair 4
0.0
-6.0
-12.0
-18.0
-24.0
-30.0
RL (FE)(dB)
-36.0
-42.0
-48.0
-54.0
-60.0
RL (FE) vs. Frequency
Max. Graph Point: -18.1 at 750.00 MHz
Min. Graph Point: -63.6 at 72.35 MHz
2 3 4 5 10 20 30 40 100 200 300 500
Frequency (1 - 750 MHz; 801 scan points)
Pair 4
Pair 3
Pair 2
Pair 1
0.0
-6.0
-12.0
-18.0
-24.0
-30.0
-36.0
-42.0
-48.0
-54.0
-60.0
IL vs. Frequency
Max. Graph Point: -1.80 at 1.00 MHz
Min. Graph Point: -52.55 at 750.00 MHz
2 3 4 5 10 20 30 40 100 200 300 500
Frequency (1 - 750 MHz; 801 scan points)
Pair 4
Pair 3
Pair 2
Pair 1
-30.0
-37.0
-44.0
-51.0
-58.0
-65.0
NEXT (dB)
-72.0
-79.0
-86.0
-93.0
-100.0
NEXT vs. Frequency
Max. Graph Point: -71.1 at 696.54 MHz
Min. Graph Point: -138.7 at 1.48 MHz
2 3 4 5 10 20 30 40 100 200 300 500
Frequency (1 - 750 MHz; 801 scan points)
Pair1-2 Pair1-3 Pair1-4 Pair2-3 Pair2-4 Pair3-4
© 2015 KRAMER ELECTRONICS, Ltd. All rights reserved. Reproduction in whole or in part without written permission is prohibited. 3/4
TEST REPORT ( L eng t h 10 0m)
PS NEXT
-30.0
-37.0
-44.0
-51.0
-58.0
-65.0
NEXT (FE)(dB)
-72.0
-79.0
-86.0
-93.0
-100.0
NEXT (FE) vs. Frequency
Max. Graph Point: -70.1 at 707.23 MHz
Min. Graph Point: -130.2 at 16.71 MHz
2 300 500
3 4 5 10 20 30 40 100 200
Frequency (1 - 750 MHz; 801 scan points)
Pair1-2 Pair1-3 Pair1-4 Pair2-3 Pair2-4 Pair3-4
0.0
-6.0
-12.0
-18.0
-24.0
-30.0
ELFEXT (dB)
-36.0
-42.0
-48.0
-54.0
-60.0
ELFEXT vs. Frequency
Max. Graph Point: -29.6 at 707.23 MHz
Min. Graph Point: -136.6 at 4.68 MHz
2 3 4 5 10 20 30 40 100 200 300 500
Frequency (1 - 750 MHz; 801 scan points)
Pair1-2 Pair1-3 Pair1-4 Pair2-3 Pair2-4 Pair3-4
-30.0
-37.0
-44.0
-51.0
-58.0
-65.0
-72.0
-79.0
-86.0
-93.0
-100.0
PS NEXT vs. Frequency
Max. Graph Point: -70.7 at 696.54 MHz
Min. Graph Point: -109.9 at 3.99 MHz
3 4 5 10 20 30 40 100 200 300 500
2
Frequency (1 - 750 MHz; 801 scan points)
Pair1-2 Pair1-3 Pair1-4 Pair2-3 Pair2-4 Pair3-4
-30.0
-37.0
-44.0
-51.0
-58.0
-65.0
-72.0
PS NEXT (FE) (dB)
-79.0
-86.0
-93.0
-100.0
PS NEXT (FE) vs. Frequency
Max. Graph Point: -69.1 at 707.23 MHz
Min. Graph Point: -109.6 at 3.22 MHz
2 300 500 3 4 5 10 20 30 40 100 200
Frequency (1 - 750 MHz; 801 scan points)
Pair 1 Pair 2 Pair 3 Pair 4
© 2015 KRAMER ELECTRONICS, Ltd. All rights reserved. Reproduction in whole or in part without written permission is prohibited. 3/4
TEST REPORT ( L eng t h 10 0m)
PS ELFEXT vs. Frequency
Max. Graph Point: -27.6 at 717.92 MHz
-10.0
-19.0
-28.0
-37.0
-46.0
-55.0
PS ELFEXT (dB)
-64.0
-73.0
Min. Graph Point: -105.3 at 3.37 MHz
-82.0
-91.0
-100.0
2 300 500
3 4 5 10 20 30 40 100 200
Frequency (1 - 750 MHz; 801 scan points)
Pair 1 Pair 2 Pair 3 Pair 4
SHIPPING INFORMATION:
Item
KRAMER ELECTRONICS
E-mail: info@kramerel.com
Web: www.KramerAV.com
© 2015 KRAMER ELECTRONICS, Ltd. All rights reserved. Reproduction in whole or in part without written permission is prohibited.
Cable 500 m
Plywood reel D450 x d220 x H330 x h300 mm
Pallet 1150 x1150 x120 mm
Dimension
Nominal net weight
27.68 kg (61.02 lb)
3.9 kg
14.1 kg
D
hH
d
