Product Description
CAT 6 F/ U TP, 23AWG solid bare copper, LSZH.
With cross filler.
Overall metal foil screen with drain wire.
Product Features
High performance of transmission.
High quality of safety properties.
Sweep frequency up to 400 MHz.
Applications
Structure cabling for horizontal and building backbone cable.
Designed for IT, LAN and Ethernet installations.
IEEE 802.3ab 1000BASE-T, 1000BASE-T X and legacy speeds.
CDDI / ATM / Token Ring
IEEE 802.3af (PoE) / IEEE 802.3at (PoE+)
Applicable Standard
Performance Standards:
ANSI/T IA-568-C.2 (2 009) Balanced Twisted-Pair Telecommunications Cabling and Components Standards
ISO/IEC 11801 (Edition 2.2) Information technology - Generic cabling for customer premises
IEC 61156-5 (Edit ion 2.0) Multicore and symmetrical pair/q uad cables for digital
communications - Part 5: Symmetrical pair/quad cables with transmission characteristics
up to 1000 MHz - Horizontal floor wiring - Sectional specification
EN 50173-1:2 011 Information technology. Generic cabling systems. General requirements
EN 50288-5-1:2 013 Multi-element metallic cables used in analogue and digital communication and control - Part
5-1: Sectional specification for screened cables characterized up to 250 MHz - Horizontal
and building backbone cables
Standards for flammability, acidity and smoke:
IEC 60332 -1-2 Tests on electric and optical fibre cables under fire conditions - Part 1-2: Test for vertical
flame propagation for a single insulated wire or cable - Procedure for 1 kW pre-mixed flame
IE C 610 34 -1 / 6103 4-2 Measurement of smoke density of cables burning under defined conditions
IEC 60754-2 Test on gases evolved during combustion of materials from cables
EU Directive 2011/6 5/ EC (RoHS 2)
EU Directive 2006/95/ EC ( LVD)
CE compliance date: 2010.01.01
KRAMER
WELL CONNECTED WITH KRAMER
BCLS-23GR-5
CAT6 F/UTP LSZH Cable
Kramer’s BCLS-23GR is a high performance CAT6 F/UTP cable
designed for IT, LAN and Ethernet installations.
Constructed with 23AWG solid bare copper conductors with a
cross filler and overall metal foil screen with a drain wire in a
LSZH jacket with sequential markings every meter and packed
on a fumigated plywood reel make this cable exceed CAT6
specifications to provide additional performance and bandwidth
over the basic standard
Al-Mylar
Conductor
Drain Wire
Insulation Jacket
Mylar
Filler
© 2015 KRAMER ELECTRONICS, Ltd. All rights reserved. Reproduction in whole or in part without written permission is prohibited. 1/3
MATERIAL AND CONSTRUCTION
Conductor Material 23AWG solid bare copper
Material Polyolefin (PO)
Blue & white/blue Stripe 1.08 ± 0.02 mm
Insulation
Color code & diameter
Orange & white/orange stripe 1.05 ± 0.02 mm
Green & white/green stripe 1.08 ± 0.02 mm
Brown & white/brown stripe 1.05 ± 0.02 mm
Twisted Description Left hand direction
Filler Material Polyolefin (PO)
Assembly Description Left hand direction
Rip Shield Material Mylar tape
Drain wire Material 24AWG solid tinned copper
Shield
Material Al mylar tape
Description 100% coverage and mylar side facing out
Material Low smoke zero halogen (LSZH)
Jacket
Diameter 7.20 ± 0.2 mm
Thickness 0.45 ± 0.05 mm
Color Green [Pantone 7732C]
USAGE & ENVIRONMENTAL CONDITION
Storage & shipping -20°C to 60°C
Temperature range
Minimum bending radius ≥ 4 times of overall diameter
Maximum pulling tension ≤ 110 N
Installation 0°C to 60°C
Operation -20°C to 60°C
PHYSICAL & ELECTRICAL CH ARACTERISTICS (AT 20°C)
Temperature & voltage rating 60°C / 300V
Spark test 2.5 KV DC
AC leakage current through overall jacket ≤ 10mA (1.5KV AC)
Cable cold bend -20°C for 4 hr
Conductor DC resistance ≤ 9.38 Ω/100m
Resistance unbalance ≤ 5%
Dielectric strength 1.5 KV ac for 2 s
Insulation resistance ≥ 5000 MΩ•m
Mutual capacitance ≤ 5.6 nF/100m
Capacitance unbalance pair-to-ground ≤ 330 pF/100m
Characteristic Impedance @1~100MHz,100±15 Ohm
Coupling Attenuation AT 30 MHz ≤ 55dB; AT 250 MHz ≤ 47 dB
Insulation Tensile Strength 2400 PSI MIN. (1.69 Kg/m2)
NVP 69%
TRANSMISSION PERFORMANCE (AT 20°C)
Freq.
MHz
1 2.03 77.30 75.30 75.28 73.28 70.80 67.80 20.00 570.00
4 3.78 68.27 66.27 64.49 62.49 58.76 55.76 23.01 552.00
8 5.32 63.75 61.75 58.43 56.43 52.74 49.74 24.52 546.73
10 5.95 62.30 60.30 56.35 54.35 50.80 47.80 25.00 545.38
16 7.55 59.24 57.24 51.68 49.68 46.72 43.72 25.00 543.00
20 8.47 57.78 55.78 49.31 47.31 44.78 41.78 25.00 542.05
25 9.51 56.33 54.33 46.83 44.83 42.84 39.84 24.32 541.20
31.25 10.67 54.88 52.88 44.20 42.20 40.90 37.90 23.64 540.44
62.5 15.38 50.36 48.36 34.98 32.98 34.88 31.88 21.54 538.55
100 19.80 47.30 45.30 27.50 25.50 30.80 27.80 20.11 537.60
150 24.71 44.66 42.66 19.95 17.95 27.28 24.28 18.87 536.94
200 28.98 42.78 40.78 13.80 11.80 24.78 21.78 18.00 536.55
250 32.85 41.33 39.33 8.48 6.48 22.84 19.84 17.32 536.28
300 36.43 40.14 38.14 3.72 1.72 21.26 18.26 16.77 536.08
350 39.79 39.14 37.14 N.A. N.A. 19.92 16.92 16.30 535.92
400 42.97 38.27 36.27 N.A. N.A. 18.76 15.76 15.89 535.80
*Values above 250MHz are for information only
IL NEXT PS NEXT ACR PS ACR ACR-F PS ACR-F RL Propagation
Max.
dB/100m
Min.
dB/100m
Min.
dB/100m
Min.
dB/100m
Min.
dB/100m
Min.
dB/100m
Min.
dB/100m
Min.
dB/100m
Delay
Max.
ns/100m
Delay Skew
Max.
ns/100m
45.00
© 2015 KRAMER ELECTRONICS, Ltd. All rights reserved. Reproduction in whole or in part without written permission is prohibited. 2/3

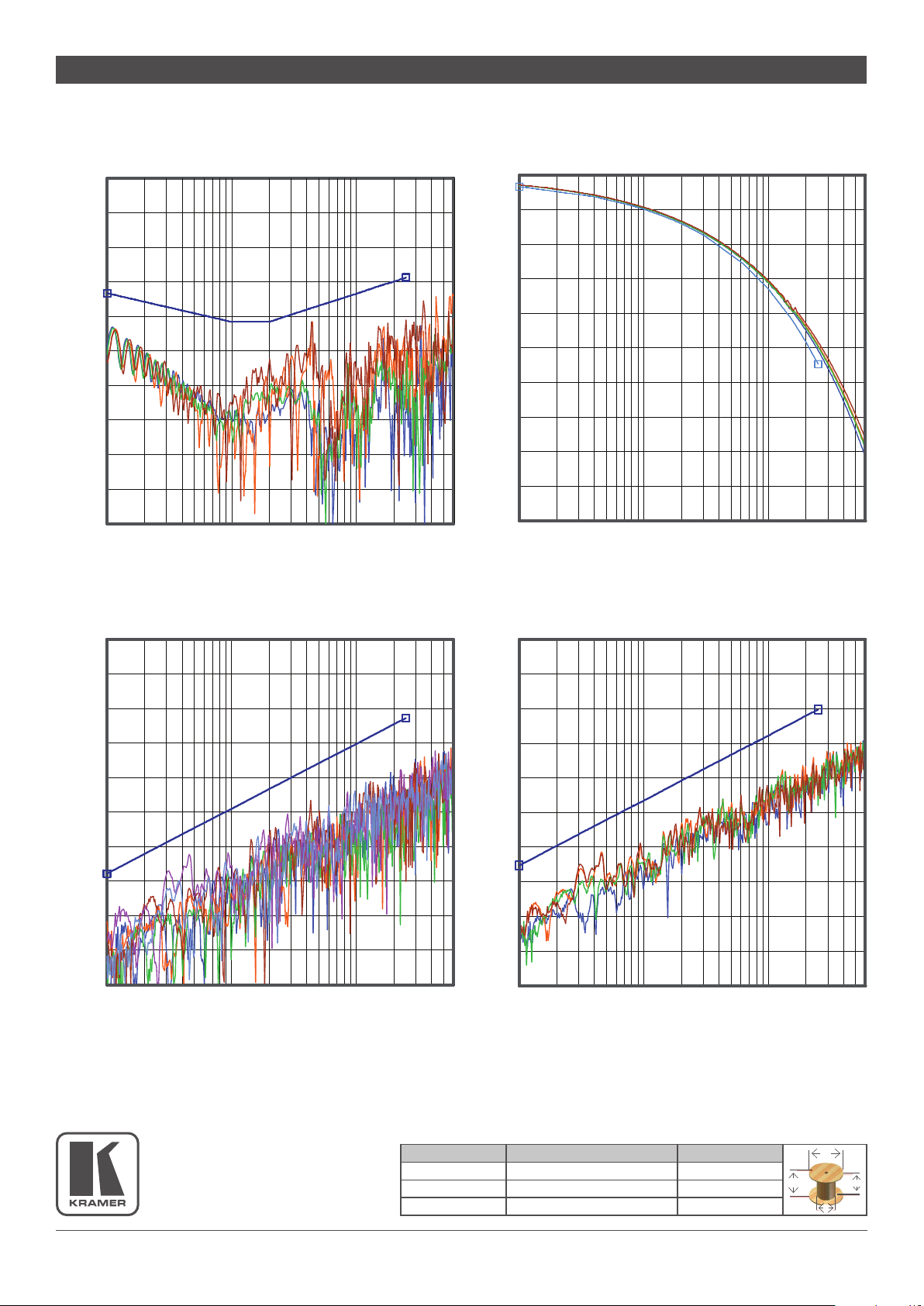

TEST REPORT ( L eng th 10 0m)
RL (dB)NEXT (dB)
0.0
-6.0
-12.0
-18.0
-24.0
-30.0
-36.0
-42.0
-48.0
-54.0
-60.0
RL vs. Frequency
Max. Graph Point: -20.12 at 591.73 MHz
Min. Graph Point: -65.48 at 56.89 MHz
2 3 4 5 10 20 30 40 100 200 300 500
Frequency (1 - 600 MHz; 401 scan points)
Pair 1 Pair 2 Pair 3 Pair 4
-12.0
-18.0
-24.0
-30.0
IL (dB)
-36.0
-42.0
-48.0
-54.0
-60.0
0.0
-6.0
IL vs. Frequency
Max. Graph Point: -1.72 at 1.00 MHz
Min. Graph Point: -48.98 at 600.00 MHz
2 3 4 5 10 20 30 40 100 200 300 500
Frequency(1 - 600 MHz; 401 scan points)
Pair 4
Pair 3
Pair 2
Pair 1
-20.0
-28.0
-36.0
-44.5
-52.0
-60.0
-68.0
-76.0
-84.0
-92.0
-100.0
NEXT vs. frequency
Max. Graph Point: -45.04 at 591.73 MHz
Min. Graph Point: -113.32 at 1.07 MHz
2 3 4 5 10 20 30 40 100 200 300 500
Frequency (1 - 600 MHz; 401 scan points)
Pair1-2 Pair1-3 Pair1-4 Pair2-3 Pair2-4 Pair3-4
-20.0
-28.0
-36.0
-44.0
-52.0
-60.0
PS NEXT (dB)
-68.0
-76.0
-84.0
-92.0
-100.0
PS NEXT vs. Frequency
Max. Graph Point: -42.69 at 591.73 MHz
Min. Graph Point: -95.26 at 1.15 MHz
2 3 4 5 10 20 30 40 100 200 300 500
Frequency (1 - 600 MHz; 401 scan points)
Pair 4
Pair 3
Pair 2
Pair 1
SHIPPING INFORMATION:
Item
KRAMER ELECTRONICS
E-mail: info@kramerel.com
Web: www.KramerAV.com
© 2015 KRAMER ELECTRONICS, Ltd. All rights reserved. Reproduction in whole or in part without written permission is prohibited.
Cable 500 m
Plywood reel D450 x d220 x H330 x h300mm
Pallet 1150 x1150 x120 mm
Dimension
Nominal net weight
25.26 kg (55.68 lb)
3.9 kg
14.1 kg
D
H h
d
3/3
