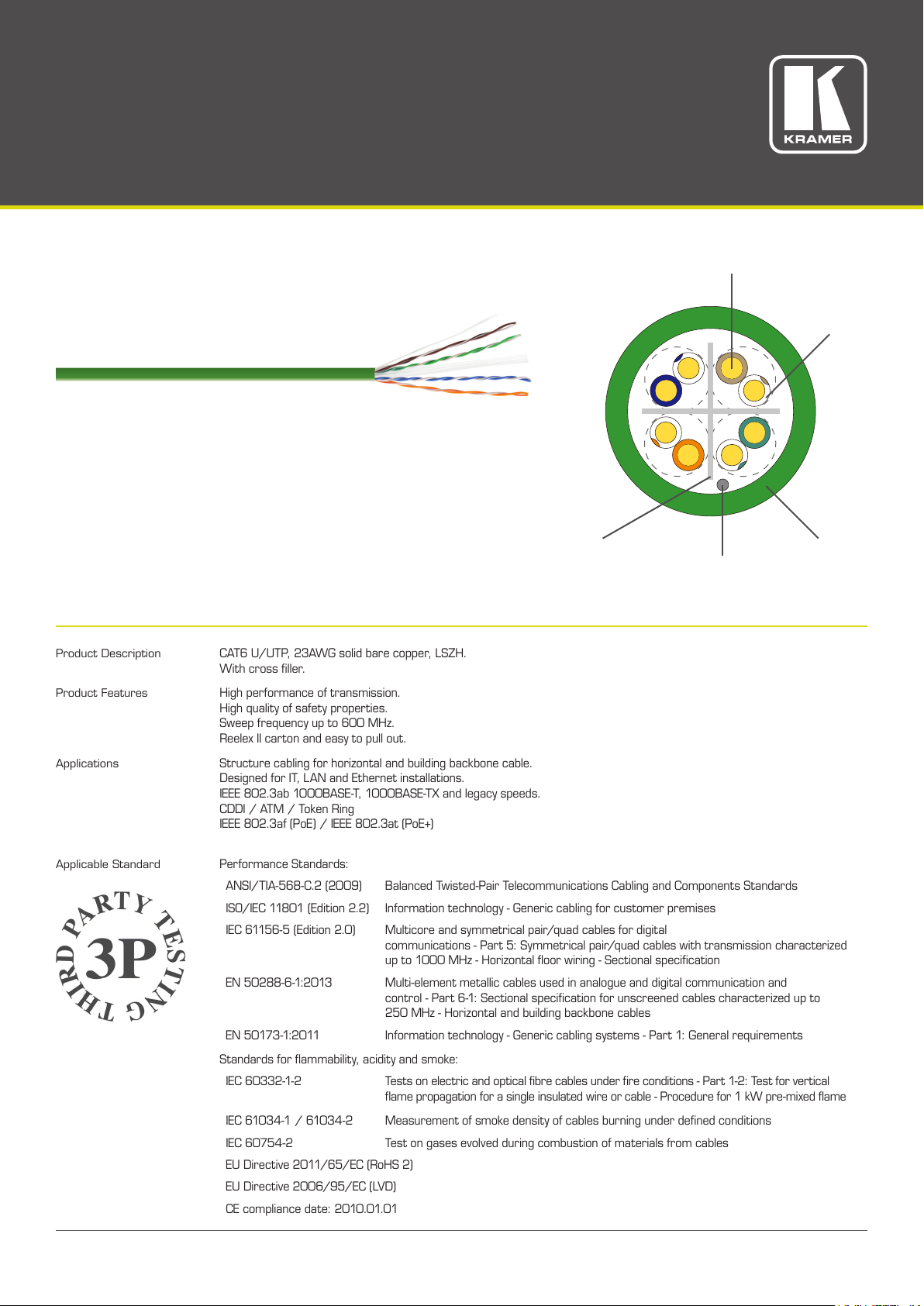

Product Description
CAT 6 U/UTP, 23AWG solid bare copper, LSZH.
With cross filler.
Product Features
High performance of transmission.
High quality of safety properties.
Sweep frequency up to 600 MHz.
Reelex II carton and easy to pull out.
Applications
Structure cabling for horizontal and building backbone cable.
Designed for IT, LAN and Ethernet installations.
IEEE 802.3ab 1000BASE-T, 1000BASE-T X and legacy speeds.
CDDI / ATM / Token Ring
IEEE 802.3af (PoE) / IEEE 802.3at (PoE+)
Applicable Standard
Performance Standards:
ANSI/T IA-568-C.2 (2009) Balanced Twisted-Pair Telecommunications Cabling and Components Standards
ISO/IEC 11801 (Edition 2.2) Information technology - Generic cabling for customer premises
IEC 61156-5 (Edit ion 2.0) Multicore and symmetrical pair/q uad cables for digital
communications - Part 5: Symmetrical pair/quad cables with transmission characterized
up to 1000 MHz - Horizontal floor wiring - Sectional specification
EN 50288-6-1:2 013 Multi-element metallic cables used in analogue and digital communication and
control - Par t 6-1: Sectional specification for unscreened cables characterized up to
250 MHz - Horizontal and building backbone cables
EN 50173-1:2 011 Information technology - Generic cabling systems - Par t 1: General requirements
Standards for flammability, acidity and smoke:
IEC 60332 -1-2 Tests on electric and optical fibre cables under fire conditions - Part 1-2: Test for vertical
flame propagation for a single insulated wire or cable - Procedure for 1 kW pre-mixed flame
IE C 610 34 -1 / 6103 4-2 Measurement of smoke density of cables burning under defined conditions
IEC 60754-2 Test on gases evolved during combustion of materials from cables
EU Directive 2011/6 5/ EC (RoHS 2)
EU Directive 2006/95/ EC ( LVD)
CE compliance date: 2010.01.01

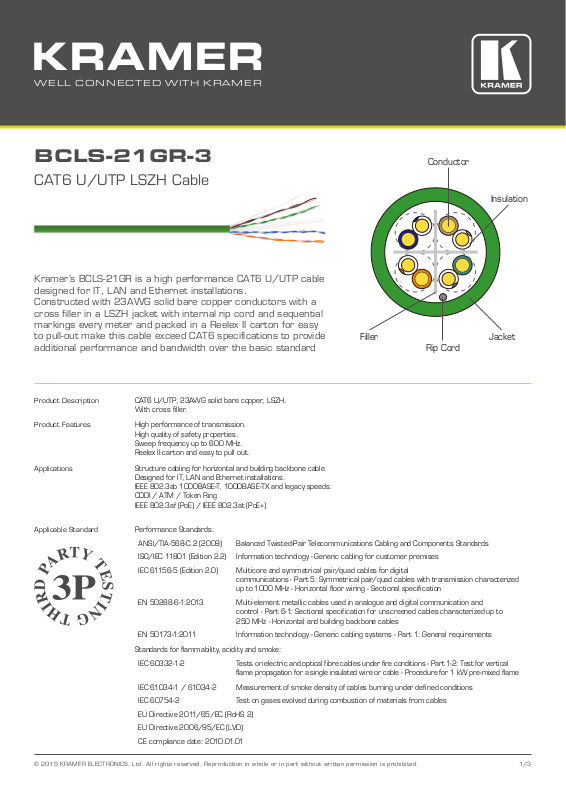

KRAMER
WELL CONNECTED WITH KRAMER
BCLS-21GR-3
CAT6 U/UTP LSZH Cable
Kramer’s BCLS-21GR is a high performance CAT6 U/UTP cable
designed for IT, LAN and Ethernet installations.
Constructed with 23AWG solid bare copper conductors with a
cross filler in a LSZH jacket with internal rip cord and sequential
markings every meter and packed in a Reelex II carton for easy
to pull-out make this cable exceed CAT6 specifications to provide
additional performance and bandwidth over the basic standard
Conductor
Insulation
JacketFiller
Rip Cord
© 2015 KRAMER ELECTRONICS, Ltd. All rights reserved. Reproduction in whole or in part without written permission is prohibited. 1/3
MATERIAL AND CONSTRUCTION
Conductor Material 23AWG solid bare copper
Material Polyolefin (PO)
Blue & white/blue Stripe 0.97 ± 0.02 mm
Insulation
Color code & diameter
Orange & white/orange stripe 0.93 ± 0.02 mm
Green & white/green stripe 0.96 ± 0.02 mm
Brown & white/brown stripe 0.93 ± 0.02 mm
Twisted Description Left hand direction
Filler Material Polyolefin (PO)
Assembly Description Left hand direction
Rip cord Material Polyester multi-yarn
Material Low smoke zero halogen (LSZH)
Jacket
Diameter 6.0 ± 0.2 mm
Thickness 0.50 ± 0.05 mm
Color Green[Pantone 363C]
USAGE & ENVIRONMENTAL CONDITION
Storage & shipping -20°C to 60°C
Temperature range
Installation 0°C to 60°C
Operation -20°C to 60°C
Minimum bending radius ≥ 4 times of overall diameter
Maximum pulling tension ≤ 110 N
PHYSICAL & ELECTRICAL CH ARACTERISTICS (AT 20°C)
Temperature & voltage rating 60°C / 300V
Spark test 2.5 KV DC
AC leakage current through overall jacket
≤ 10mA (1.5KV AC)
Cable cold bend -20°C for 4 hr
Conductor DC resistance ≤ 9.38 Ω/100m
Resistance unbalance ≤ 5%
Dielectric strength 1.5 KV ac for 2 s
Insulation resistance ≥ 5000 MΩ•m
Mutual capacitance ≤ 5.6 nF/100m
Capacitance unbalance pair-to-ground ≤ 330 pF/100m
Characteristic Impedance
@1~100MHz,100±15 Ohm
Coupling Attenuation AT 30 MHz ≤ 55dB; AT 250 MHz ≤ 47 dB
Insulation Tensile Strength 2400 PSI MIN. (1.69 Kg/m2)
NVP 69%
TRANSMISSION PERFORMANCE (AT 20°C)
Freq.
MHz
1 2.03 80.30 78.30 78.28 76.28 73.80 70.80 20.00 570.00
4 3.78 71.27 69.27 67.49 65.49 61.76 58.76 23.01 552.00
8 5.32 66.75 64.75 61.43 59.43 55.74 52.74 24.52 546.73
10 5.95 65.30 63.30 59.35 57.35 53.80 50.80 25.00 545.38
16 7.55 62.24 60.24 54.68 52.68 49.72 46.72 25.00 543.00
20 8.47 60.78 58.78 52.31 50.31 47.78 44.78 25.00 542.05
25 9.51 59.33 57.33 49.83 47.83 45.84 42.84 24.32 541.20
31.25 10.67 57.88 55.88 47.20 45.20 43.90 40.90 23.64 540.44
62.5 15.38 53.36 51.36 37.98 35.98 37.88 34.88 21.54 538.55
100 19.80 50.30 48.30 30.50 28.50 33.80 30.80 20.11 537.60
150 24.71 47.66 45.66 22.95 20.95 30.28 27.28 18.87 536.94
200 28.98 45.78 43.78 16.80 14.80 27.78 24.78 18.00 536.55
250 32.85 44.33 42.33 11.48 9.48 25.84 22.84 17.32 536.28
300 36.43 43.14 41.14 6.72 4.72 24.26 21.26 16.77 536.08
350 39.79 42.14 40.14 2.35 0.35 22.92 19.92 16.30 535.92
400 42.97 41.27 39.27 N.A. N.A. 21.76 18.76 15.89 535.80
450 46.01 40.50 38.50 N.A. N.A. 20.74 17.74 15.53 535.70
500 48.94 39.82 37.82 N.A. N.A. 19.82 16.82 15.21 535.61
550 51.76 39.19 37.19 N.A. N.A. 18.99 15.99 14.92 535.54
600 54.49 38.63 36.63 N.A. N.A. 18.24 15.24 14.66 535.47
*Values above 250 MHz are for information only
IL NEXT PS NEXT ACR PS ACR ACR-F PS ACR-F RL Propagation
Max.
dB/100m
Min.
dB/100m
Min.
dB/100m
Min.
dB/100m
Min.
dB/100m
Min.
dB/100m
Min.
dB/100m
Min.
dB/100m
Delay
Max.
ns/100m
Delay Skew
Max.
ns/100m
45.00
© 2015 KRAMER ELECTRONICS, Ltd. All rights reserved. Reproduction in whole or in part without written permission is prohibited. 2/3

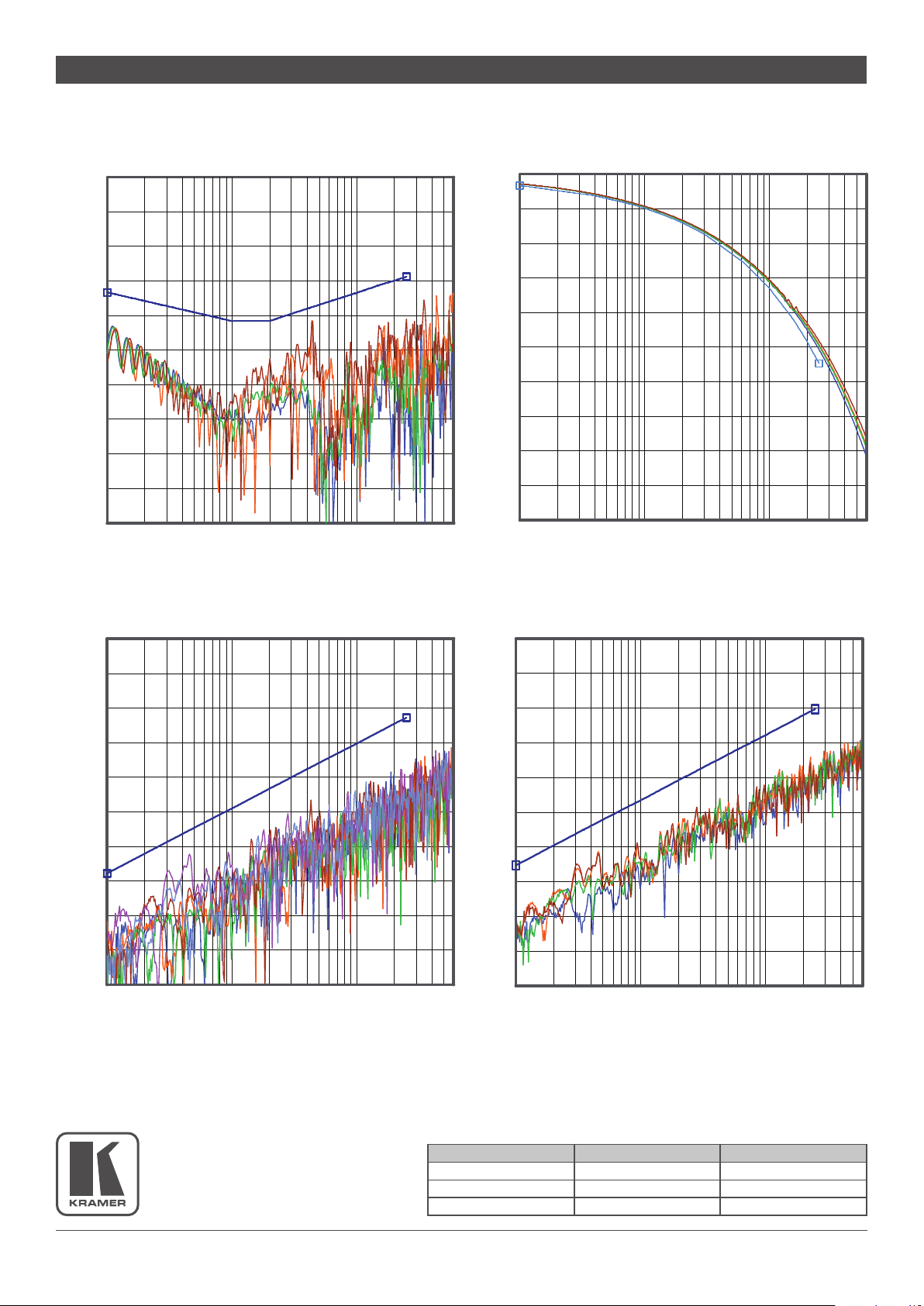

TEST REPORT (Length 305m)
RL (dB)NEXT (dB)
0.0
-6.0
-12.0
-18.0
-24.0
-30.0
-36.0
-42.0
-48.0
-54.0
-60.0
RL vs. Frequency
Max. Graph Point: -20.12 at 591.73 MHz
Min. Graph Point: -65.48 at 56.89 MHz
2 3 4 5 10 20 30 40 100 200 300 500
Frequency (1 - 600 MHz; 401 scan points)
Pair 1 Pair 2 Pair 3 Pair 4
0.0
-6.0
-12.0
-18.0
-24.0
-30.0
IL (dB/100m)
-36.0
-42.0
-48.0
-54.0
-60.0
IL vs. Frequency
Max. Graph Point: -1.72 at 1.00 MHz
Min. Graph Point: -48.98 at 600.00 MHz
2 3 4 5 10 20 30 40 100 200 300 500
Frequency (1 - 600 MHz; 401 scan points)
Pair 4
Pair 3
Pair 2
Pair 1
-20.0
-28.0
-36.0
-44.5
-52.0
-60.0
-68.0
-76.0
-84.0
-92.0
-100.0
NEXT vs. Frequency
Max. Graph Point: -45.04 at 591.73 MHz
Min. Graph Point: -113.32 at 1.07 MHz
2 3 4 5 10 20 30 40 100 200 300 500
Frequency (1 - 600 MHz; 401 scan points)
Pair1-2 Pair1-3 Pair1-4 Pair2-3 Pair2-4 Pair3-4
-20.0
-28.0
-36.0
-44.0
-52.0
-60.0
PS NEXT
-68.0
-76.0
-84.0
-92.0
-100.0
PS NEXT vs. Frequency
Max. Graph Point: -42.69 at 591.73 MHz
Min. Graph Point: -95.26 at 1.15 MHz
2 3 4 5 10 20 30 40 100 200 300 500
Frequency (1 - 600 MHz; 401 scan points)
Pair 4
Pair 3
Pair 2
Pair 1
SHIPPING INFORMATION:
Item
KRAMER ELECTRONICS
E-mail: info@kramerel.com
Web: www.KramerAV.com
© 2015 KRAMER ELECTRONICS, Ltd. All rights reserved. Reproduction in whole or in part without written permission is prohibited.
Cable 305 m
Reelex II Carton L395 x W270 x H380 mm
Pallet 1150 x1150 x120 mm
Dimension
Nominal net weight
11.92 kg (26.27 lb)
1200 g
14.1 kg
3/3
