Kramer Electronics, Ltd.
USER MANUAL
Models:
103AV, 1:3 Audio-Stereo / Video DA
104M, 1:4 Microphone Amplifier
105A, 1:5 Stereo Audio DA
105S, 1:5 High Resolution s-Video DA
105V, 1:5 High Resolution Video DA
105VB, 1:5 High Resolution Video DA
Contents
i
Contents
1 Introduction 1
2 Getting Started 1
2.1 Quick Start 1
3 Overview 3
3.1 Recommendations for Achieving the Best Performance 3
4 Your 103AV, 1:3 Audio-Stereo / Video Distributor 4
4.1 Connecting the 103AV 1:3 Audio-Stereo / Video DA 5
4.2 Technical Specifications 6
5 Your 104M, 1:4 Microphone Amplifier 7
5.1 Connecting the 104M 1:4 Microphone Amplifier 8
5.2 Technical Specifications 9
6 Your 105A, 1:5 Stereo Audio DA 10
6.1 Connecting the 105A 1:5 Stereo Audio DA 11
6.2 Technical Specifications 12
7 Your 105S, 1:5 High Resolution s-Video DA 13
7.1 Connecting the 105S 1:5 High Resolution s-Video DA 14
7.2 Technical Specifications 15
8 The 105V, 1:5 High Resolution Video DA 16
8.1 Connecting the 105V 1:5 High Resolution Video DA 17
8.2 Technical Specifications 18
9 The 105VB, 1:5 High Resolution Video DA 19
9.1 Connecting the 105VB 1:5 High Resolution Video DA 20
9.2 Technical Specifications 21
Figures
Figure 1: 103AV Audio-Stereo / Video DA 4
Figure 2: Connecting the 103AV 1:3 Audio-Stereo / Video DA 5
Figure 3: 104M Microphone Amplifier 7
Figure 4: Connecting the 104M 1:4 Microphone Amplifier 8

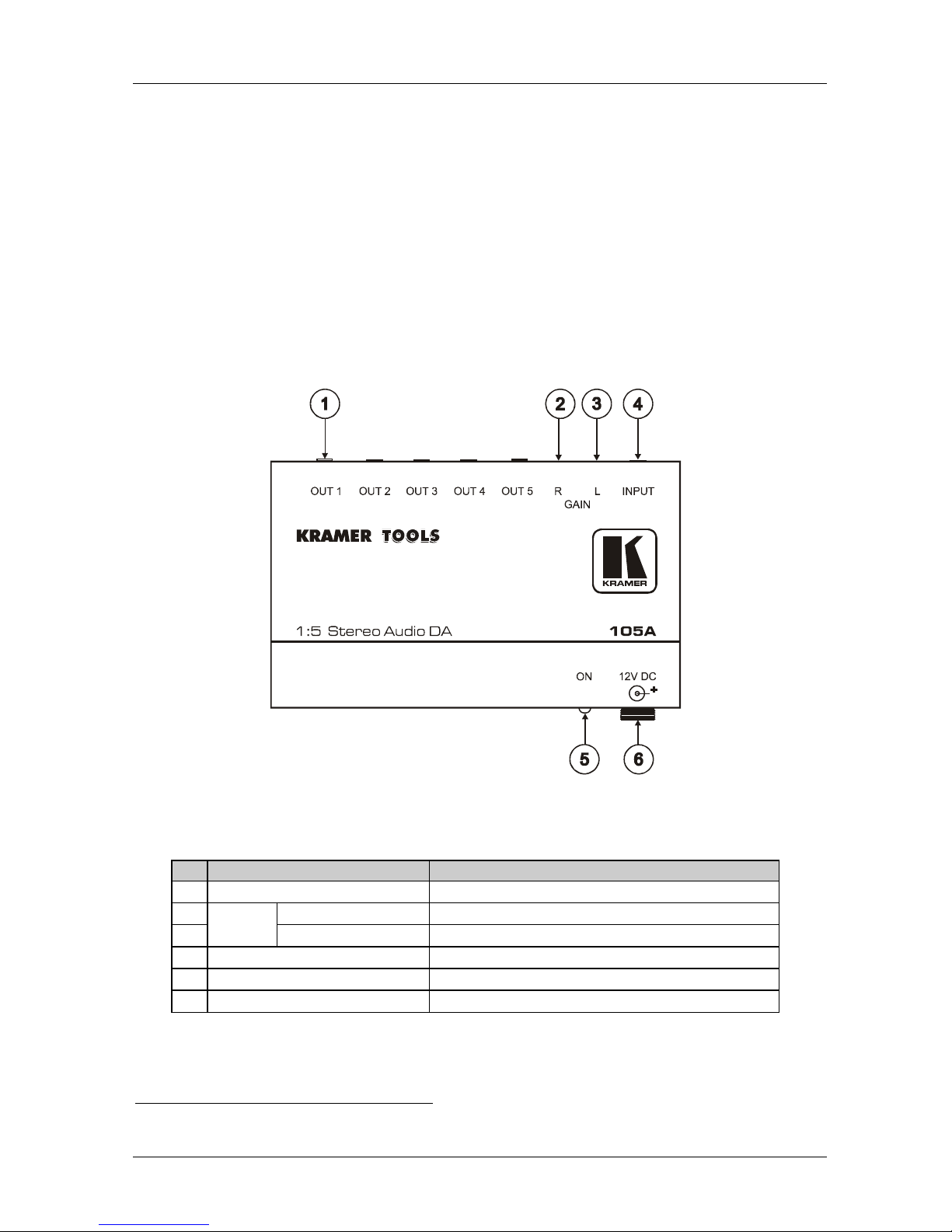

Figure 5: 105A 1:5 Stereo Audio DA 10
Figure 6: Connecting the 105A 1:5 Stereo Audio DA 11
Figure 7: 105S 1:5 High Resolution s-Video DA 13
Figure 8: 105S 1:5 High Resolution s-Video DA Underside 14
Figure 9: Connecting the 105S 1:5 High Resolution s-Video DA 15
Figure 10: 105V 1:5 High Resolution Video DA 16
Figure 11: Connecting the 105V 1:5 High Resolution Video DA 17
Figure 12: 105VB 1:5 High Resolution Video DA 19

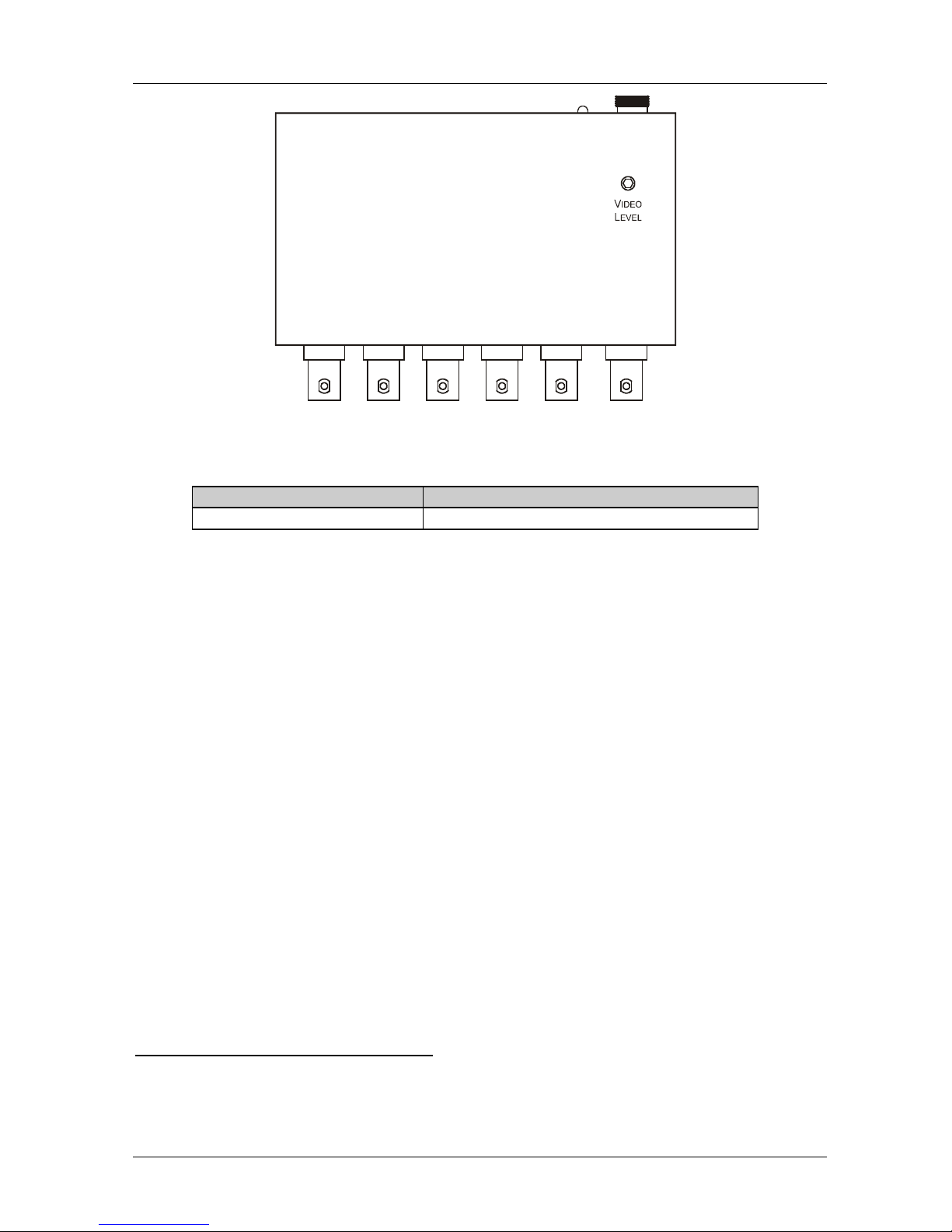

Figure 13: 105VB 1:5 High Resolution Video DA Rear Panel 20
Figure 14: Connecting the 105VB 1:5 High Resolution Video DA 21
KRAMER: SIMPLE CREATIVE TECHNOLOGY
Contents
ii
Tables
Table 1: Features and Functions of the 103AV Audio-Stereo / Video DA 4
Table 2: Technical Specifications of the 103AV 1:3 Audio-Stereo / Video DA 6
Table 3: Features and Functions of the 104M Microphone Amplifier 7
Table 4: Technical Specifications of the 104M 1:4 Microphone Amplifier 9
Table 5: Features and Functions of the 105A 1:5 Stereo Audio DA 10
Table 6: Technical Specifications of the 105A 1:5 Stereo Audio DA 12
Table 7: Features and Functions of the 105S 1:5 High Resolution s-Video DA 13
Table 8: Features and Functions of the 105S 1:5 High Resolution s-Video DA Underside 14
Table 9: Technical Specifications of the 105S 1:5 High Resolution s-Video DA 15
Table 10: Features and Functions of the 105V 1:5 High Resolution Video DA 16
Table 11: Technical Specifications of the 105V 1:5 High Resolution Video DA 18
Table 12: Features and Functions of the 105VB 1:5 High Resolution Video DA 19
Table 13: Features and Functions of the 105VB Rear Panel 20
Table 14: Technical Specifications of the 105VB 1:5 High Resolution Video DA 21
Introduction
1 1
1 Introduction
Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been
providing a world of unique, creative, and affordable solutions to the vast
range of problems that confront the video, audio, presentation, and
broadcasting professional on a daily basis. In recent years, we have redesigned
and upgraded most of our line, making the best even better! Our 1,000-plus
different models now appear in 11 groups
1
Congratulations on purchasing one or more of the following Kramer TOOLS:
103AV, 1:3 Audio-Stereo / Video DA, 104M, 1:4 Microphone Amplifier,
105A, 1:5 Stereo Audio DA, 105S, 1:5 High Resolution s-Video DA, 105V,
1:5 High Resolution Video DA and 105VB, 1:5 High Resolution Video DA
that are clearly defined by function.
They are ideal for:
• Duplication and other studio applications requiring multiple outputs of
identical quality
• Professional presentation and display systems, CCTV and home theater
applications and field production applications
The package includes the following items:
• 103AV, and/or 104M, and/or 105A, and/or 105S, and/or 105V, and/or
105VB
• Power adapter (12V DC Input)
• This user manual
2
2 Getting Started
We recommend that you:
• Unpack the equipment carefully and save the original box and packaging
materials for possible future shipment
• Review the contents of this user manual
• Use Kramer high performance high resolution cables
3
2.1 Quick Start
This quick start chart summarizes the basic setup and operation steps.
1 GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Matrix Switchers; GROUP 3: Control Systems;
GROUP 4: Format/Standards Converters; GROUP 5: Range Extenders and Repeaters; GROUP 6: Specialty AV Products;
GROUP 7: Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9: Room Connectivity;
GROUP 10: Accessories and Rack Adapters; GROUP 11: Sierra Products
2 Download up-to-date Kramer user manuals from the Internet at this URL: http://www.kramerelectronics.com
3 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com
KRAMER: SIMPLE CREATIVE TECHNOLOGY
Getting Started
2
Overview
3 3
3 Overview
The following sections describe the:
• 103AV, 1:3 Audio-Stereo / Video DA, which accepts one audio input and
one video input, provides correct buffering and isolation, and distributes
these signals to three identical audio and video outputs (see section 4)
• 104M, 1:4 Microphone Amplifier, which accepts a single Mic input that is
amplified and distributes it to four identical outputs (see section 5)
• 105A, 1:5 Stereo Audio DA, which accepts one stereo audio input and
distributes it to five identical outputs (see section 6)
• 105S, 1:5 High Resolution s-Video DA, which accepts one s-Video signal
and distributes it to five identical outputs (see section 7)
• 105V, 1:5 High Resolution Video DA, which accepts one video input and
distributes it to five identical outputs (see section 8)
• 105VB, 1:5 High Resolution Video DA, which accepts one video input
and distributes it to five identical outputs (see section 9)
3.1 Recommendations for Achieving the Best Performance
To achieve the best performance:
• Connect only good quality connection cables, thus avoiding interference,
deterioration in signal quality due to poor matching, and elevated noiselevels (often associated with low quality cables)
• Avoid interference from neighboring electrical appliances and position your
Kramer machines away from moisture, excessive sunlight and dust
Caution – No operator-serviceable parts inside unit.
Warning – Use only the Kramer Electronics input power
wall adapter that is provided with this unit
1
.
Warning – Disconnect power and unplug unit from wall
before installing or removing device or servicing unit.
1 For example: model number AD2512C, part number 2535-000251
KRAMER: SIMPLE CREATIVE TECHNOLOGY
Your 103AV, 1:3 Audio-Stereo / Video Distributor
4
4 Your 103AV, 1:3 Audio-Stereo / Video Distributor
The 103AV is a compact distribution amplifier for composite video and
unbalanced stereo audio signals. It will take one input, provide correct
buffering and isolation, and distribute the signal to three identical outputs. The
103AV:
• Has a high video bandwidth of 320MHz to ensure transparent operation
even in the most critical applications
• Uses RCA connectors for composite video, and 3.5mm mini connectors
for the unbalanced stereo audio
• Includes audio and video level (gain) controls
• Is 12V DC fed
Figure 1 and Table 1 define the 103AV
1:3 Audio-Stereo / Video DA:
Figure 1: 103AV Audio-Stereo / Video DA
Table 1: Features and Functions of the 103AV Audio-Stereo / Video DA
#
Feature
Function
1 VIDEO OUT 1 RCA Connector Connects to the video acceptor 1
2 OUT 2 RCA Connector Connects to the video acceptor 2
3 OUT 3 RCA Connector Connects to the video acceptor 3
4 AUDIO OUT 1 3.5mm Mini Connector Connects to the unbalanced stereo audio acceptor 1
5 OUT 2 3.5mm Mini Connector Connects to the unbalanced stereo audio acceptor 2
6 OUT 3 3.5mm Mini Connector Connects to the unbalanced stereo audio acceptor 3
7 12V DC +12V DC connector for powering the unit
8 AUDIO
LEVEL
LEFT Trimmer
1
Adjusts the left channel audio gain
9 RIGHT Trimmer1 Adjusts the right channel audio gain
10 AUDIO IN Mini Connector Connects to the unbalanced stereo audio source
11 VIDEO LEVEL Trimmer Adjusts the gain of the video outputs
12 VIDEO IN RCA Connector Connects to the video source
13 ON LED Illuminates when the machine is powered
1 Insert a screwdriver into the small hole and carefully rotate it to adjust the audio level
Your 103AV, 1:3 Audio-Stereo / Video Distributor
5 5
4.1 Connecting the 103AV 1:3 Audio-Stereo / Video DA
To connect the 103AV 1:3 Audio-Stereo / Video DA, as the example in Figure
2 illustrates, do the following:
1. Connect a video and audio source (for example, a video player) to the VIDEO
IN RCA and AUDIO IN mini connectors, respectively.
2. Connect the VIDEO OUT RCA connectors and the AUDIO OUT mini
connectors to up to 3 video and audio acceptors
1
3. Connect the power adapter to the power socket, and connect the adapter to the
mains electricity.
, respectively (for example,
video recorders).
4. If required, adjust the level trimmers
2
.
Figure 2: Connecting the 103AV 1:3 Audio-Stereo / Video DA
1 You do not have to connect all the outputs
2 Insert a screwdriver into the small hole and carefully rotate it to adjust the level
KRAMER: SIMPLE CREATIVE TECHNOLOGY
Your 103AV, 1:3 Audio-Stereo / Video Distributor
6
4.2 Technical Specifications
Table 2 includes the technical specifications
1
Table 2: Technical Specifications of the 103AV 1:3 Audio-Stereo / Video DA
:
INPUT:
1 composite video, 1Vpp/75 Ω on an RCA connector
1 audio stereo, 1Vpp/33kΩ on 3.5mm mini connector
OUTPUT:
3 composite video, 1Vpp/75 Ω on RCA connectors
3 audio stereo, 1Vpp/150Ω on 3.5mm mini connectors
MAX. VIDEO OUTPUT: 2Vpp
VIDEO BANDWIDTH (-3dB): 320MHz
AUDIO BANDWIDTH (-3dB): 20kHz
DIFF. GAIN: 0.1%
DIFF. PHASE: 0.16Deg.
K-FACTOR: <0.05%
VIDEO S/N RATIO: 72dB
AUDIO S/N RATIO: 85dB unweighted
CROSSTALK: -70dB @20kHz
VIDEO COUPLING: AC
AUDIO THD+NOISE: 0.02%
POWER SOURCE: 12V DC, 50mA
DIMENSIONS: 12cm x 7.5cm x 2.5cm (4.7” x 2.95” x 0.98”) W, D, H
WEIGHT: 0.28kg (0.62lbs) approx.
ACCESSORIES: Power supply, mounting bracket
OPTIONS: RK-3T 19" rack adapter
1 Specifications are subject to change without notice
Your 104M, 1:4 Microphone Amplifier
7 7
5 Your 104M, 1:4 Microphone Amplifier
The 104M is a high quality distribution amplifier for dynamic microphone
signals. It accepts a microphone input and distributes the signal to four
identical line-level outputs.
The 104M:
• Includes audio level (Gain) control
• Has an S/N ratio of 78dB
• Is 12V DC fed
Figure 3 and Table 3 define the 104M
1:4 Microphone Amplifier
Figure 3: 104M Microphone Amplifier
Table 3: Features and Functions of the 104M Microphone Amplifier
#
Feature
Function
1 OUT 6.5mm Phone Connector Connects to the audio acceptors (from 1 to 4)
2 GAIN Trimmer
1
Controls the audio output level
3 INPUT 6.5mm Phone Connector Connects to the mono microphone audio source
4 ON LED Illuminates when the machine is powered
5 12V DC +12V DC connector for powering the unit
1 Insert a screwdriver into the small hole and carefully rotate it to adjust the audio level
KRAMER: SIMPLE CREATIVE TECHNOLOGY
Your 104M, 1:4 Microphone Amplifier
8
5.1 Connecting the 104M 1:4 Microphone Amplifier
To connect the 104M Microphone Amplifier, as the example in Figure 4
illustrates, do the following:
1. Connect an audio source (for example, a microphone) to the INPUT 6.5 phone
connector.
2. Connect the OUT 6.5 phone connectors to up to 4 audio acceptors (for
example, power amplifiers with speakers)
1
3. Connect the power adapter to the power socket, and connect the adapter to the
mains electricity.
.
4. If required, adjust the level trimmer
2
.
Figure 4: Connecting the 104M 1:4 Microphone Amplifier
1 You do not have to connect all the outputs
2 Insert a screwdriver into the small hole and carefully rotate it to adjust the level
Your 104M, 1:4 Microphone Amplifier
9 9
5.2 Technical Specifications
Table 4 includes the technical specifications
1
Table 4: Technical Specifications of the 104M 1:4 Microphone Amplifier
:
INPUT: One mono microphone 5mVpp/10k Ω on a 6.5mm phone connector
OUTPUTS: 4 mono line level 1Vpp/150 Ω on 6.5mm phone connectors
MAX. OUTPUT LEVEL: 4.8Vpp
AUDIO BANDWIDTH (-3dB): 37kHz
GAIN CONTROL: 5dB to 54dB
S/N RATIO: 78dB
THD @1kHz: 0.1%
POWER SOURCE: 12V DC, 20mA
DIMENSIONS: 12cm x 7.5cm x 2.5cm (4.7” x 2.95” x 0.98”) W, D, H
WEIGHT: 0.28kg (0.62lbs) approx.
ACCESSORIES: Power supply, mounting bracket
OPTIONS: RK-3T 19" Rack adapter
1 Specifications are subject to change without notice
KRAMER: SIMPLE CREATIVE TECHNOLOGY
Your 105A, 1:5 Stereo Audio DA
10
6 Your 105A, 1:5 Stereo Audio DA
The 105A is a high performance distribution amplifier for unbalanced stereo
audio signals using 3.5mm mini connectors. It accepts one stereo input and
distributes the signal to five identical stereo outputs.
The 105A:
• Includes audio left and right level (Gain) controls
• Has an S/N ratio of 80dB (unweighted)
• Is 12V DC fed
Figure 5 and Table 5 define the 105A
1:5 Stereo Audio DA
Figure 5: 105A 1:5 Stereo Audio DA
Table 5: Features and Functions of the 105A 1:5 Stereo Audio DA
#
Feature
Function
1 OUT Mini Connector Connects to the audio acceptors (from 1 to 5)
2 GAIN R Trimmer
1
Adjusts the right channel audio gain
3 L Trimmer1 Adjusts the left channel audio gain
4 INPUT Mini Connector Connects to the stereo/balanced mono audio source
5 ON LED Illuminates when the machine is powered
6 12V DC +12V DC connector for powering the unit
1 Insert a screwdriver into the small hole and carefully rotate it to adjust the audio level
Your 105A, 1:5 Stereo Audio DA
11 11
6.1 Connecting the 105A 1:5 Stereo Audio DA
To connect the 105A 1:5 Stereo Audio DA, as the example in Figure 6
illustrates, do the following:
1. Connect a stereo/balanced mono audio source (for example, an audio
player) to the INPUT mini connector.
2. Connect the OUT mini connectors to up to 5 audio acceptors (for example,
audio recorders)
1
3. Connect the power adapter to the power socket, and connect the adapter to the
mains electricity.
.
4. If required, adjust the left and right level trimmers
2
.
Figure 6: Connecting the 105A 1:5 Stereo Audio DA
1 You do not have to connect all the outputs
2 Insert a screwdriver into the small hole and carefully rotate it to adjust the level
KRAMER: SIMPLE CREATIVE TECHNOLOGY
Your 105A, 1:5 Stereo Audio DA
12
6.2 Technical Specifications
Table 6 includes the technical specifications
1
Table 6: Technical Specifications of the 105A 1:5 Stereo Audio DA
:
INPUT: 1 audio stereo/balanced mono,1Vpp/33k Ω on a 3.5mm mini connector
OUTPUTS: 5 audio stereo/balanced mono 1Vpp/50 Ω on 3.5mm mini connectors
MAX. OUTPUT: 5Vpp (> +4dBu)
AUDIO BANDWIDTH (-3dB): 20kHz
S/N RATIO: 80dB unweighted
CONTROL: Left and right gain rear trimmers (0/+3.5dB range)
COUPLING: AC
THD: 0.03% (2nd harmonic)
POWER SOURCE: 12V DC, 100mA
DIMENSIONS: 12cm x 7.5cm x 2.5cm (4.7” x 2.95” x 0.98”) W, D, H
WEIGHT: 0.28kg (0.62lbs) approx.
ACCESSORIES: Power supply, mounting bracket
OPTIONS: RK-3T 19" rack adapters
1 Specifications are subject to change without notice
Your 105S, 1:5 High Resolution s-Video DA
13 13
7 Your 105S, 1:5 High Resolution s-Video DA
The 105S is a high performance s-Video (Y/C) distribution amplifier. It
accepts one input, provides correct buffering and isolation, and distributes the
signal to five identical outputs using 4-pin s-Video connectors.
The 105S:
• Includes chroma (C) and luma (Y) gain controls
• Has a bandwidth (Y) of 230MHz to ensure transparent operation even in
the most critical applications
• Is 12V DC fed
Figure 7 and Table 7 define the 105S
1:5 High Resolution s-Video DA:
Figure 7: 105S 1:5 High Resolution s-Video DA
Table 7: Features and Functions of the 105S 1:5 High Resolution s-Video DA
#
Feature
Function
1 OUT 4-pin Connectors Connects to the s-Video acceptors (from 1 to 5)
2 INPUT 4-pin Connector Connects to the s-Video source
3 ON LED Illuminates when the machine is powered
4 12V DC +12V DC connector for powering the unit
KRAMER: SIMPLE CREATIVE TECHNOLOGY
Your 105S, 1:5 High Resolution s-Video DA
14
Figure 8 and Table 8 define the underside of the 105S 1:5 High Resolution
s-Video DA:
Figure 8: 105S 1:5 High Resolution s-Video DA Underside
Table 8: Features and Functions of the 105S 1:5 High Resolution s-Video DA Underside
#
Feature
Function
1 CHROMA (C) Trimmer1Adjust the chroma level of the output
2 LUMA (Y) Trimmer1 Adjust the luma level of the output
7.1 Connecting the 105S 1:5 High Resolution s-Video DA
To connect your 105S 1:5 High Resolution DA, as illustrated in Figure 9, do
the following:
1. Connect an s-Video source (for example, an s-Video player) to the INPUT
4-pin connector.
2. Connect the OUT 4-pin connectors to up to 5 s-Video acceptors (for example,
s-Video recorders)
2
3. Connect the power adapter to the power socket, and connect the adapter to the
mains electricity.
.
4. If required, adjust the underside chroma and luma level trimmers
3
1 Insert a screwdriver into the small hole and carefully rotate it to adjust the audio level
.
2 You do not have to connect all the outputs
3 Insert a screwdriver into the small hole and carefully rotate it to adjust the level
Your 105S, 1:5 High Resolution s-Video DA
15 15
Figure 9: Connecting the 105S 1:5 High Resolution s-Video DA
7.2 Technical Specifications
Table 9 includes the technical specifications
1
Table 9: Technical Specifications of the 105S 1:5 High Resolution s-Video DA
:
INPUT: 1 s-Video: 1Vpp/75 Ω (Y), 0.3Vpp/75Ω (C), on a 4-pin connector
OUTPUTS: 5 s-Video: 1Vpp/75 Ω (Y), 0.3Vpp/75Ω (C), on 4-pin connectors
MAX. VIDEO OUTPUT: 2Vpp (Y)
VIDEO BANDWIDTH (-3dB): 230MHz (Y)
DIFF. GAIN: 0.08%
DIFF. PHASE: 0.12Deg
K-FACTOR: <0.05%
S/N RATIO: 72dB
CONTROL: Luma (Y) Level: -4.5dB to +1.8dB, Chroma (C) Level: -3.5dB to +18dB
COUPLING: AC
POWER SOURCE: 12V DC, 100mA
DIMENSIONS: 12cm x 7.5cm x 2.5cm (4.7” x 2.95” x 0.98”) W, D, H
WEIGHT: 0.28kg (0.62lbs) approx.
ACCESSORIES: Power supply, mounting bracket
OPTIONS: RK-3T 19" rack adapter
1 Specifications are subject to change without notice
KRAMER: SIMPLE CREATIVE TECHNOLOGY
The 105V, 1:5 High Resolution Video DA
16
8 The 105V, 1:5 High Resolution Video DA
The 105V is a high performance distribution amplifier for composite video
signals. It accepts one input, provides correct buffering and isolation and
distributes the signal to five identical outputs.
In particular, the 105V:
• Has a bandwidth of 400MHz to ensure transparent operation even in the
most critical applications
• Has RCA connectors
• Has video level (Gain) control
• Is 12V DC fed
Figure 10 and Table 10 define the 105V
1:5 High Resolution Video DA
Figure 10: 105V 1:5 High Resolution Video DA
Table 10: Features and Functions of the 105V 1:5 High Resolution Video DA
#
Feature
Function
1 VIDEO IN RCA Connector Connect to the composite video source
2 GAIN Trimmer
1
Control the gain of the video outputs
3 VIDEO OUTPUT
RCA Connectors
OUT 1 Connect to composite video acceptor 1
4 OUT 2 Connect to composite video acceptor 2
5 OUT 3 Connect to composite video acceptor 3
6 OUT 4 Connect to composite video acceptor 4
7 OUT 5 Connect to composite video acceptor 5
8 12V DC +12V DC connector for powering the unit
9 ON LED Illuminates when the machine is powered
1 Insert a screwdriver into the small hole and carefully rotate it to adjust the audio level
The 105V, 1:5 High Resolution Video DA
17 17
8.1 Connecting the 105V 1:5 High Resolution Video DA
To connect your 105V 1:5 High Resolution Video DA, as illustrated in Figure
11, do the following:
1. Connect a composite video source (for example, a composite video player) to
the VIDEO IN RCA connector.
2. Connect the VIDEO OUTPUT RCA connectors to up to 5 composite video
acceptors (for example, composite video recorders)
1
3. Connect the power adapter to the power socket, and connect the adapter to the
mains electricity.
.
4. If required, adjust the GAIN level trimmer
2
.
Figure 11: Connecting the 105V 1:5 High Resolution Video DA
1 You do not have to connect all the outputs
2 Insert a screwdriver into the small hole and carefully rotate it to adjust the level
KRAMER: SIMPLE CREATIVE TECHNOLOGY
The 105V, 1:5 High Resolution Video DA
18
8.2 Technical Specifications
Table 11 includes the technical specifications
1
Table 11: Technical Specifications of the 105V 1:5 High Resolution Video DA
:
INPUT: 1 video, 1Vpp/75 Ω on an RCA connector
OUTPUTS: 5 video, 1Vpp/75 Ω on RCA connectors
MAX. VIDEO OUTPUT: 2Vpp
VIDEO BANDWIDTH (-3dB): 400MHz
DIFF. GAIN: 0.1%
DIFF. PHASE: 0.15Deg.
K-FACTOR: <0.05%
S/N RATIO: 75dB
CONTROL: Up to +6dB
COUPLING: AC
POWER SOURCE: 12V DC, 100mA
DIMENSIONS: 12cm x 7.5cm x 2.5cm (4.7” x 2.95” x 0.98”) W, D, H
WEIGHT: 0.28kg (0.62lbs) approx.
ACCESSORIES: Power supply, mounting bracket
OPTIONS: RK-3T 19" rack adapter
1 Specifications are subject to change without notice
The 105VB, 1:5 High Resolution Video DA
19 19
9 The 105VB, 1:5 High Resolution Video DA
The 105VB is a high performance distribution amplifier for composite video
signals. It accepts one input, provides correct buffering and isolation and
distributes the signal to five identical outputs.
In particular, the 105VB:
• Has a bandwidth of 400MHz to ensure transparent operation even in the
most critical applications
• Has BNC connectors
• Includes video level (Gain) control
• Is 12V DC fed
Figure 12 and Table 12 define the 105VB
1:5 High Resolution Video DA
Figure 12: 105VB 1:5 High Resolution Video DA
Table 12: Features and Functions of the 105VB 1:5 High Resolution Video DA
# Feature Function
1 INPUT BNC Connector Connects to the composite video source
2 OUT BNC Connectors Connect to the composite video acceptors (from 1 to 5)
3 ON LED Illuminates when the machine is powered
4 12V DC +12V DC connector for powering the unit
Figure 13 and Table 13 define the 105VB rear panel:
KRAMER: SIMPLE CREATIVE TECHNOLOGY
The 105VB, 1:5 High Resolution Video DA
20
Figure 13: 105VB 1:5 High Resolution Video DA Rear Panel
Table 13: Features and Functions of the 105VB Rear Panel
Feature
Function
VIDEO LEVEL Trimmer
1
Controls the gain of the video outputs
9.1 Connecting the 105VB 1:5 High Resolution Video DA
To connect your 105VB 1:5 High Resolution Video DA, as illustrated in
Figure 14, do the following:
1. Connect a composite video source (for example, a composite video player) to
the INPUT BNC connector.
2. Connect the OUT BNC connectors to up to 5 composite video acceptors (for
example, composite video recorders)
2
3. Connect the power adapter to the power socket, and connect the adapter to the
mains electricity.
.
4. If required, adjust the underside VIDEO LEVEL trimmer
3
1 Insert a screwdriver into the small hole and carefully rotate it to adjust the audio level
.
2 You do not have to connect all the outputs
3 Insert a screwdriver into the small hole and carefully rotate it to adjust the level
The 105VB, 1:5 High Resolution Video DA
21 21
Figure 14: Connecting the 105VB 1:5 High Resolution Video DA
9.2 Technical Specifications
Table 14 includes the technical specifications
1
Table 14: Technical Specifications of the 105VB 1:5 High Resolution Video DA
:
INPUT: 1 video, 1Vpp/75 Ω on a BNC connector.
OUTPUTS: 5 video, 1Vpp/75 Ω on BNC connectors.
MAX. VIDEO OUTPUT: 2Vpp.
VIDEO BANDWIDTH (-3dB): 400MHz.
DIFF. GAIN: 0.1%.
DIFF. PHASE: 0.1 Deg.
K-FACTOR: <0.05%
S/N RATIO: 80dB
CONTROL: Up to +6dB
COUPLING: AC
POWER SOURCE: 12V DC, 100mA
DIMENSIONS: 12cm x 7.5cm x 2.5cm (4.7” x 2.95” x 0.98”) W, D, H
WEIGHT: 0.3kg (0.6lbs) approx.
ACCESSORIES: Power supply, mounting bracket
OPTIONS: RK-3T 19” rack adapter
1 Specifications are subject to change without notice
KRAMER: SIMPLE CREATIVE TECHNOLOGY
22
LIMITED WARRANTY
WHO IS PROTECTED?
WHAT IS COVERED AND WHAT IS NOT COVERED
WHAT WE WILL PAY FOR AND WHAT WE WILL NOT PAY FOR
HOW YOU CAN GET WARRANTY SERVICE
LIMITATION OF IMPLIED WARRANTIES
EXCLUSION OF DAMAGES
CAUTION!
Kramer Electronics (hereafter ) warrants this product free from defects in material and workmanship under the
following terms .
Kramer
HOW LONG IS THE WARRANTY
Labor and parts are warranted for seven years from the date of the first customer purchase.
Only the first purchase customer may enforce this warranty.
We will pay labor and material expenses for covered items. We will not pay for the following:
The liability of Kramer for any effective products is limited to the repair or replacement of the product at our option. Kramer shall
not be liable for:
This warranty gives you specific legal rights, and you may also have other rights, which vary from place to place.
All products returned to Kramer for service must have prior approval. This may be obtained from your dealer.
This equipment has been tested to determine compliance with the requirements of:
EN-50081: "Electromagnetic compatibility (EMC);
generic emission standard.
Residential, commercial and light industry"
EN-50082: "Electromagnetic compatibility (EMC) generic immunity standard.
Part 1: Residential, commercial and light industry environment".
CFR-47: FCC* Rules and Regulations:
Part 15: “Radio frequency devices
Subpart B Unintentional radiators”
Except as below, this warranty covers all defects in material or workmanship in this product. The following are not covered
by the warrant y:
1. Any product which is not distributed by Kramer, or which is not purchased from an authorized Kramer dealer. If you are
uncertain as to whether a dealer is authorized, please contact Kramer at one of the agents listed in the Web site
www.kramerelectronics.com.
2. Any product, on which the serial number has been defaced, modified or removed, or on which the WARRANTY VOID
TAMPERED sticker has been torn,
3. Damage, deterioration or malfunction resulting from:
i) Accident, misuse, abuse, neglect, fire, water, lightning or other acts of nature
ii) Product modification, or failure to follow instructions supplied with the product
iii) Repair or attempted repair by anyone not authorized by Kramer
iv) Any shipment of the product (claims must be presented to the carrier)
v) R emoval or installation of the product
vi) An y other cause, which does not relate to a product defect
vii) Cartons, equipment enclosures, cables or accessories used in conjunction with the product
1. Removal or installations charges.
2. Costs of initial technical adjustments (set-up), including adjustment of user controls or programming. These costs are the
responsibility of the Kramer dealer from whom the product was purchased.
3. Shipping charges.
1. To obtain service on you product, you must take or ship it prepaid to any authorized Kramer service center.
2. Whenever warranty service is required, the original dated invoice (or a copy) must be presented as proof of warranty
coverage, and should be included in any shipment of the product. Please also include in any mailing a contact name,
company, address, and a description of the problem(s).
3. For the name of the nearest Kramer authorized service center, consult your authorized dealer.
All implied warranties, including warranties of merchantability and fitness for a particular purpose, are limited in duration to
the length of this warranty.
1. Damage to other property caused by defects in this product, damages based upon inconvenience, loss of use of the product, loss
of time, commercial loss; or:
2. Any other damages, whether incidental, consequential or otherwise. Some countries may not allow limitations on how long an
implied warranty lasts and/or do not allow the exclusion or limitation of incidental or consequential damages, so the above
limitations and exclusions may not apply to you.
Servicing the machines can only be done by an authorized Kramer technician. Any user who makes changes or
modifications to the unit without the expressed approval of the manufacturer will void user authority to operate the
equipment.
Use the supplied DC power supply to feed power to the machine.
Please use recommended interconnection cables to connect the machine to other components.
IF reattached, removed or otherwise interfered with.
* FCC and CE approved using STP cable (for twisted pair products)
NOTE:
Part 1:
Kramer Electronics, Ltd.
Web site: www.kramerelectronics.com
E-mail: info@kramerel.com
P/N: 2900-009001 REV 4
For the latest information on our products and a list of Kramer
distributors, visit our Web site: www.kramerelectronics.com,
where updates to this user manual may be found.
We welcome your questions, comments and feedback.
Caution
Safety Warning:
Disconnect the unit from the power supply before
opening/servicing.
P/N:
2900-009001
Rev:
4
Loading...
