Kraken RC VEKTA.5 Instruction Manual

KRAKEN VEKTA.5 ARTR KV7001/2 INSTRUCTION MANUALKRAKEN VEKTA.5 ARTR KV7001/2 INSTRUCTION MANUAL

1

www.krakenrc.com

DISCLAIMER

All information on this document is subject to change at the sole discretion of Kraken RC, Inc. For up-to-date product information, please visit krakenrc.com for the latest updates.

ATTENTION: Please read this manual in its entirety and observe applicable suggestions and recommendations. Failure to operate the product correctly may result in damage to the product, personal property and cause serious injury.

WARNING: VEKTA.5 is recommended only for professional or advanced RC drivers.

CAUTION: Making modications to your car not specied in this manual may void the warranty

and cause your vehicle to malfunction.

VEKTA.5 is a remote control vehicle operated by radio frequencies. Please be aware of radio interference in your area or you may lose reception. Always be aware of your surroundings while driving VEKTA.5. We highly recommend using a Kill Switch which can be purchased from Davesmotors.com. A Kill Switch will allow you to "kill" your engine remotely should you lose control

of the vehicle.

• Never run your vehicle on the street where people are present

• Exercise common sense when using gasoline. Keep away from children

• Invest in a Kill Switch.

• VEKTA.5 battery box is not waterproof, avoid running in water

• Never run your vehicle with low transmitter batteries

• Invest in a high quality radio transmitter and batteries

• Always turn off engine rst, then receiver, then transmitter

• Inspect your vehicle after each run and perform maintenance on the vehicle when necessary

KV7701/2

VEKTA.5 uses a 2 stroke high-capacity engine. Please be advised that the engine may be hot

during its operation and all caution should be exercised for safety reasons.

Failure to follow all instructions can lead to damage to your vehicle, property damage and

bodily injury or death.

KRAKEN VEKTA.5 ARTR KV7001/2 INSTRUCTION MANUALKRAKEN VEKTA.5 ARTR KV7001/2 INSTRUCTION MANUAL

2

KRAKEN RC LIMITED WARRANTY (USA)

VEKTA.5 is warranted to be free of defects in material and workmanship. This warranty does not cover damage due to normal wear and tear, user error of assembly, installation, user modications and after-market hop ups used. This warranty is not transferable. Kraken RC will, at our discretion, repair or replace products or parts, provided our inspection indicates that an original defect exists. Kraken RC reserves the right to replace any product or part which is no longer available with a

product of comparable value and function. If Kraken RC determines that the repairs or replacements

are not covered under warranty guidelines, there could be a charge applied for repair and return

shipping charges.

International Customers Warranty

Please return product to your local dealer where the purchase was made. Kraken RC assumes no

responsibility for Kraken RC products sold internationally by online retailers.

THANK YOU!

Kraken RC would like to thank you for purchasing the VEKTA.5. Only through hard work, great investments, and time were we able to bring this vehicle into reality. The VEKTA.5 is the product of our passion and joy for our RC hobby and we are so grateful to be able to share our dream with you. We wish you many hours of fun and hope that the VEKTA.5 brings you miles of smiles.

Happy Bashing! Team Kraken

Warranty and Disclaimer

KV7701/2

KRAKEN VEKTA.5 ARTR KV7001/2 INSTRUCTION MANUAL

3

TABLE OF CONTENTS

PARTS LIST

27 . 28 . 29

EXPLODED VIEW

27 . 28 . 29

ADJUSTING THE SLIPPER CLUTCH

22

FRONT AND REAR DIFFERENTIAL GEAR MAINTENANCE 19 . 20 . 21

ADJUSTING REAR SOLID AXLE TOE IN AND CAMBER

18

ADJUSTING FRONT TOE IN AND CAMBER

17

SHOCKS MAINTENANCE

14 . 15 . 16

BASIC MAINTENANCE

13

PRE-RUN CHECK UP

12

HOW TO START THE CAR

11

FUEL MIXTURE AND FUELING

10

ADJUSTING STEERING AND THROTTLE TRIMS

9

BATTERY & RECEIVER INSTALLATION

8

INTRODUCTION 5

HOW TO INSTALL ENGINE

6 .7

KRAKEN VEKTA.5 ARTR KV7001/2 INSTRUCTION MANUAL

4

NOTES

KRAKEN VEKTA.5 ARTR KV7001/2 INSTRUCTION MANUAL

5

The VEKTA.5 comes in 2 ARTR iterations with 2

servos. You will need a radio transmitter and a

battery to complete it. If you choose the KV7701,

we recommend using the Zenoah G320RC

engine for optimal power and torque.

Parts needed to complete:

KV7701

Engine, Radio and Battery.

KV7702

Radio and Battery.

We highly recommend using a 7.4/2s

Lipo for our servos.

On/Off Switch

Battery

Radio

1.5

2.0

2.5

3.0

4.0

5.0

Spark plug tool

Multi rod end/Wheel hex tool

Radio

Engine

INTRODUCTION

KRAKEN VEKTA.5 ARTR KV7001/2 INSTRUCTION MANUAL

6

1

2

4 5

3

HOW TO INSTALL ENGINE

KRAKEN VEKTA.5 ARTR KV7001/2 INSTRUCTION MANUAL

7

1. Remove roll cage and body from chassis.

2. Install supplied air filter onto the carburetor. Do NOT over tighten screws.

3. Align carburetor in a way that the throttle linkage can be inserted into the hole before bolting down engine. 4-6. Use provided screws to finish installing engine using diagrams.

Locate the fuel lines that extend from the fuel tank. The black fuel line and the yellow choke line connect to the bottom and top of the carburetor, respectively. Use diagram for additional help.

6 7

KRAKEN VEKTA.5 ARTR KV7001/2 INSTRUCTION MANUAL

8

BATTERY & RECEIVER INSTALLATION

Install your receiver and battery into the battery compartment. Please find an appropriate battery that will fit into the battery compartment. Make sure that your battery is freshly charged. Refer to your battery instruction manual as to how to fully charge your battery.Kraken TS-555HV Servos operation voltage is between 6V-7.4V. To fully take advantage of the TS-555HV Servos,please use a 7.4V 2S LIPO battery.Battery compartment dimension is - L: 120mm W: 51mm H: 47.5mm

Use the supplied grommet for the battery box to secure the servos' wires. Securely fasten the battery compartment using the clip. Please note that the battery compartment is not waterproof. Avoid driving in wet conditions.

Prop your vehicle on a platform. Turn on the transmitter and receiver. Check to see if the front wheels respond to the steering servo and are centered.

KRAKEN VEKTA.5 ARTR KV7001/2 INSTRUCTION MANUAL

9

Center the tires by adjusting the steering trim. Use subtrim if necessary (see your transmitter's instruction manualfor further direction). If steering is not in the desired neutral position after binding and steering cannot be centered using trim and subtrim, please follow these tips.

1. Reset trim and subtrim are set to its neutral factory settings.

2. Remove the servo horn and reinstall.

3. Retrim as needed.

Make sure your receiver and servo are turned on and check that they are in neutral position. Use the diagram above as aguide for the position of the throttle/brake horn. Adjust the throttle linkage as needed to ensure that they are not binding. The brake linkage knob can be adjusted to improve braking conditions. Use your transmitter trim and subtrims to fine tune the adjustments.

ADJUSTING STEERING AND THROTTLE TRIMS

KRAKEN VEKTA.5 ARTR KV7001/2 INSTRUCTION MANUAL

10

FUEL MIXTURE Please use 2 Cycle Engine Oil for your fuel mixture. We recommend a gas to oil ratio of 25:1 for the stock Zenoah G320RC. If you are using after market engines, be sure to contact your manufacturer on the correct mix ratio.

BASIC FUEL GUIDELINES Never operate your vehicle near open flames. Never smoke while operating your vehicle or while handling fuel. Always use caution when handing gasoline. Always run your engine in a well ventilated area. Model engines produce harmful carbon monoxide fumes.

Locate the fuel tank on the back of the vehicle, remove the gas cap and safely pour gas into your fuel tank. Do not overfill and avoid spilling gas onto your vehicle. When you are done securely attach your gas cap onto your fuel tank.

PRECAUTIONS AND GUIDELINE FOR FUEL STORAGE

Always observe all warnings and instructions supplied by the fuel provider. Only use gasoline mixed with 2 cycle engine oil. Only use premix 2 cycle engine oil. Do NOT use any other kind of oil. Always mix fuel in a resealable water resistant container made specifically for gasoline. Always drain your engine after you have finished running your vehicle. Do NOT store your vehicle with fuel in the gas tank. Never handle model engines until they have had time to cool. They are extremely hot when in use. Always store fuel in a clearly marked container well away from the reach of children. Never allow fuel to come into contact with eyes or mouth. Gasoline and other fuels are poisonous.

25:1

FUEL MIXTURE AND FUELING

KRAKEN VEKTA.5 ARTR KV7001/2 INSTRUCTION MANUAL

11

1

2 3

1. Locate your carburetor and prime the bulb

2. Locate the choke lever

3. Activate the choke lever by pushing it to the down position

Slowly engage the pullstart and give it a couple of pulls until you hear a "pop" sound. Stop and return the choke lever to it's neutral position. Give it a couple more pulls and your engine should fire and start. Note: Avoid drastic and erratic pulling on your pullstart as you may break your pullstart.

WARNING: The break-in procedures for the 2 stroke motor is extremely important. Please follow the procedures correctly. Failure to do so may cause your engine to fail. Please research professional break-in procedures.

HOW TO START THE CAR

KRAKEN VEKTA.5 ARTR KV7001/2 INSTRUCTION MANUAL

12

While your vehicle is still on the platform, make sure that your 4WD drivetrain is working properly and there is no binding. Check your brakes and make sure that they are working . If you feel that the vehicle is not operating correctly, do not run the vehicle. Stop the engine and inspect the vehicle.

When you feel that your vehicle is ready, you can now go for a test drive. Observe the break in procedures for your engine. Break in the engine by driving slowly for the first half tank of fuel (about 25 minutes).

PRE-RUN CHECK UP

KRAKEN VEKTA.5 ARTR KV7001/2 INSTRUCTION MANUAL

13

BASIC MAINTENANCE

KRAKEN VEKTA.5 ARTR KV7001/2 INSTRUCTION MANUAL

14

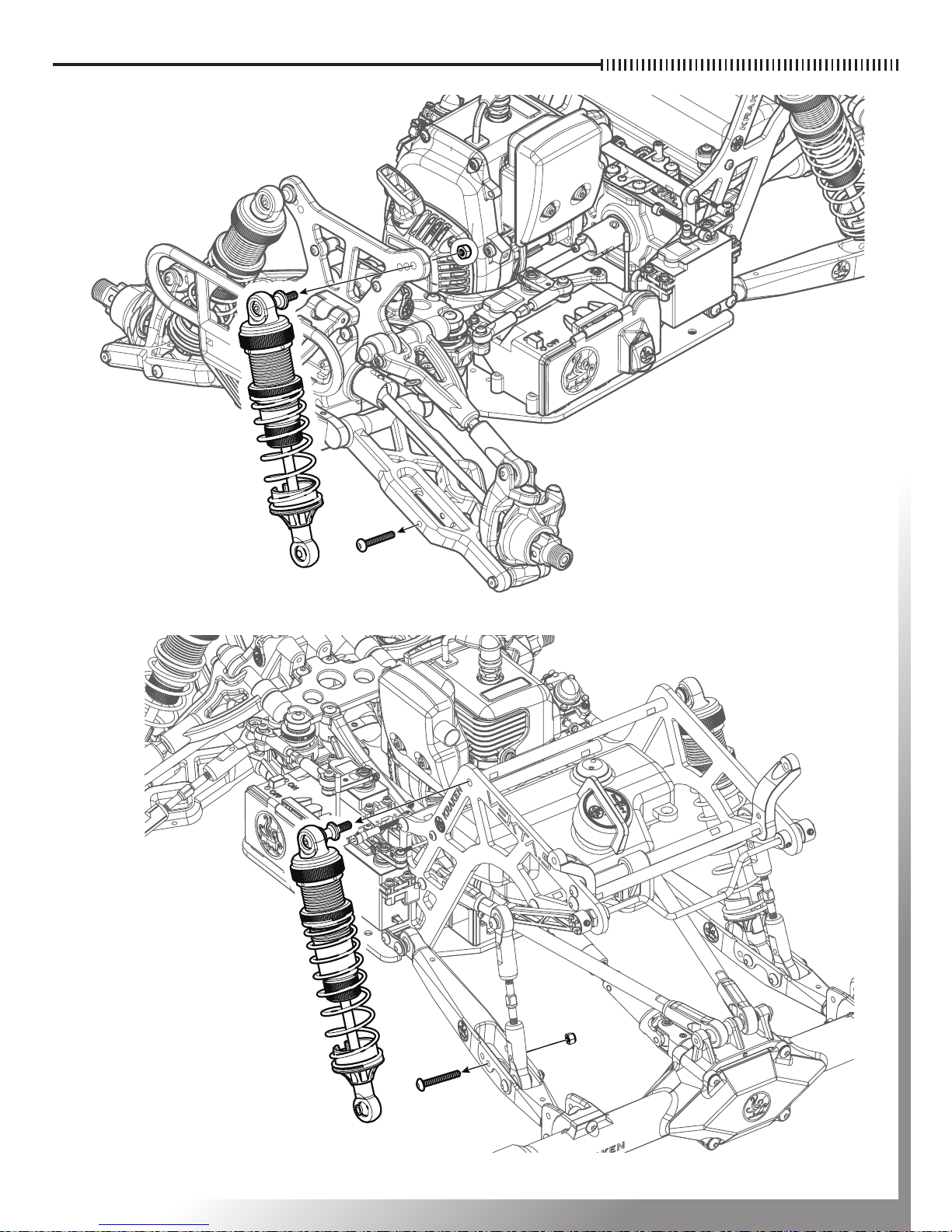

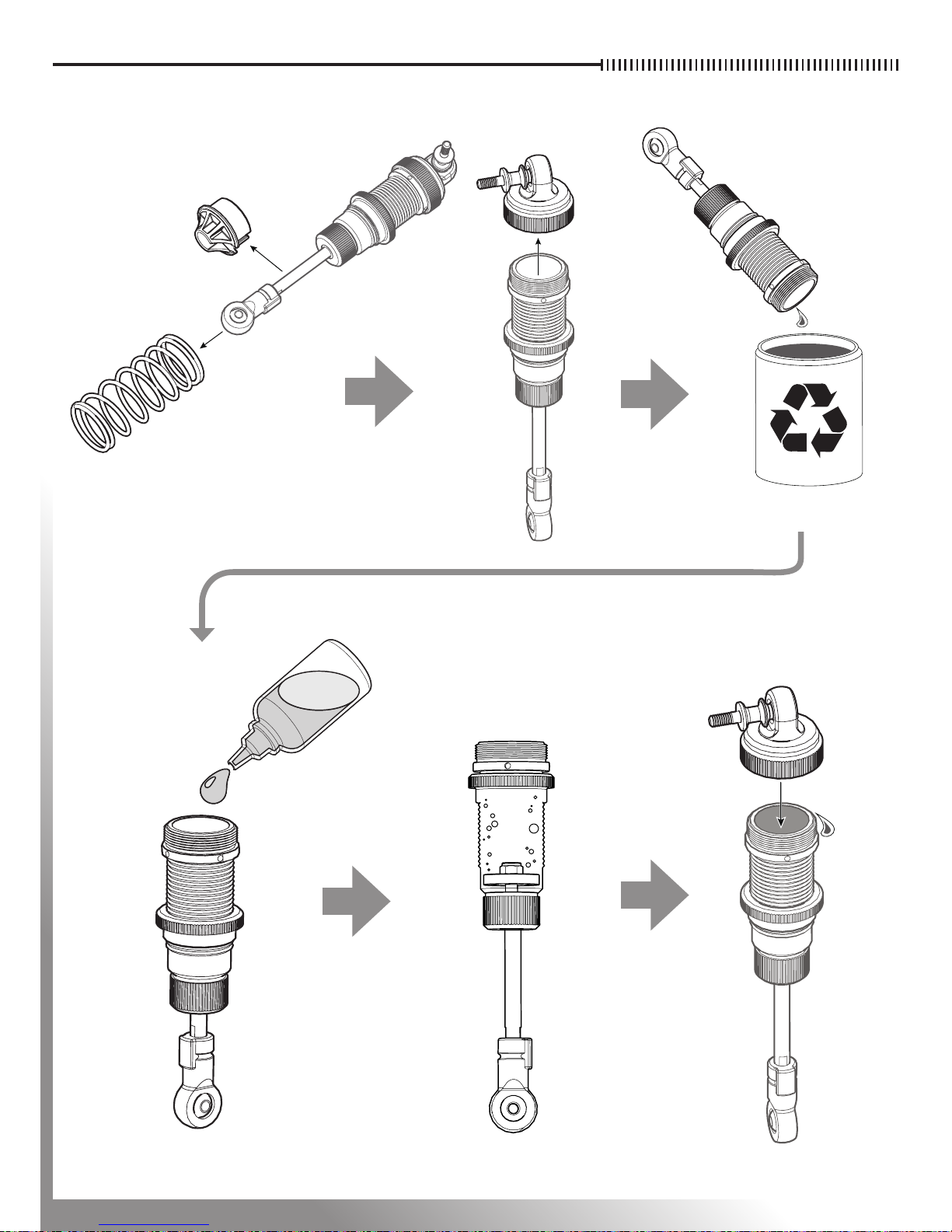

SHOCKS MAINTENANCE

KRAKEN VEKTA.5 ARTR KV7001/2 INSTRUCTION MANUAL

15

KRAKEN VEKTA.5 ARTR KV7001/2 INSTRUCTION MANUAL

16

FRONT ASSEMBLY

KVT16

KV5548

KV4433

KV5555

KV5560

KV5561

KV3302

KVT16

KV3334

KV5508

KV5509

KVT16

KV5557

KVT16

KV3303

KV5559

KV5556

KV5562

KV5589

KV5558

KVT16

KV5548

KV4433

KV5560

KV3302

KVT16

REAR ASSEMBLY

KV3334

KV5509

KVT16

KV3303

KV5559

KRAKEN VEKTA.5 ARTR KV7001/2 INSTRUCTION MANUAL

17

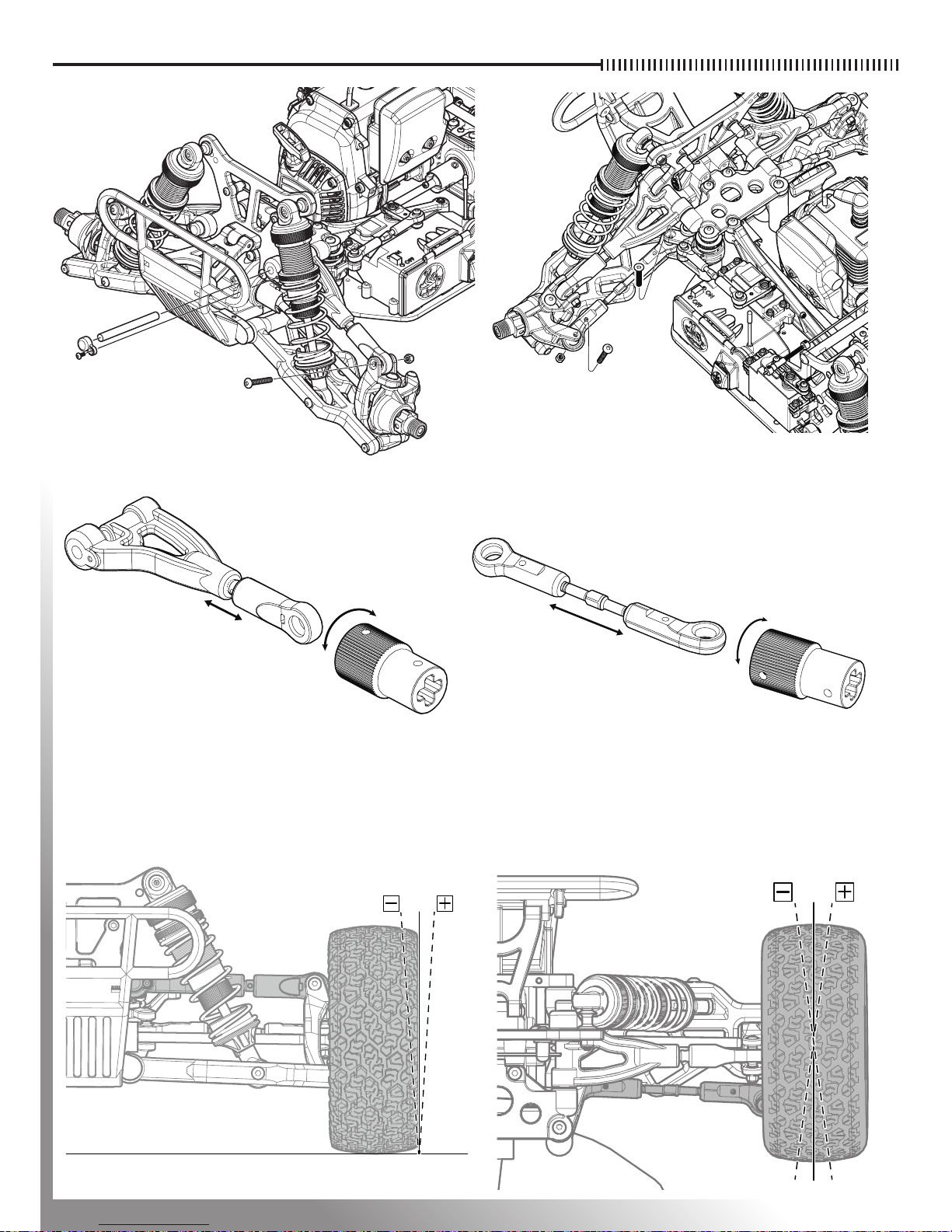

ADJUSTING FRONT TOE IN AND CAMBER

KRAKEN VEKTA.5 ARTR KV7001/2 INSTRUCTION MANUAL

18

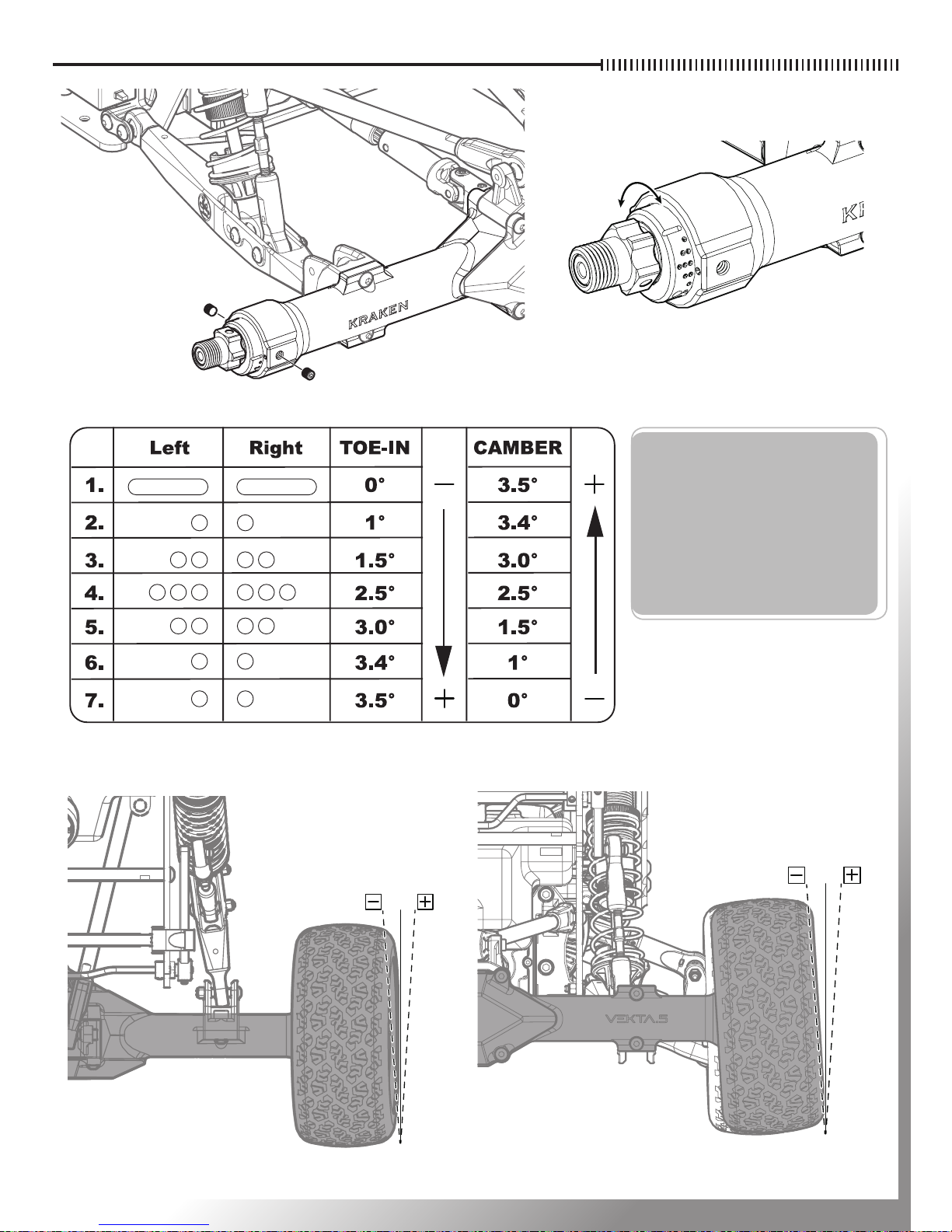

The VEKTA.5's rear solid axle offers a unique type of adjustments. Unlike other rear solid axle which is fixed, the VEKTA.5 enables you to adjust your toe-ins and camber all at the same time. Please observe the chart above to adjust the settings.

ADJUSTING REAR SOLID AXLE TOE IN AND CAMBER

KRAKEN VEKTA.5 ARTR KV7001/2 INSTRUCTION MANUAL

19

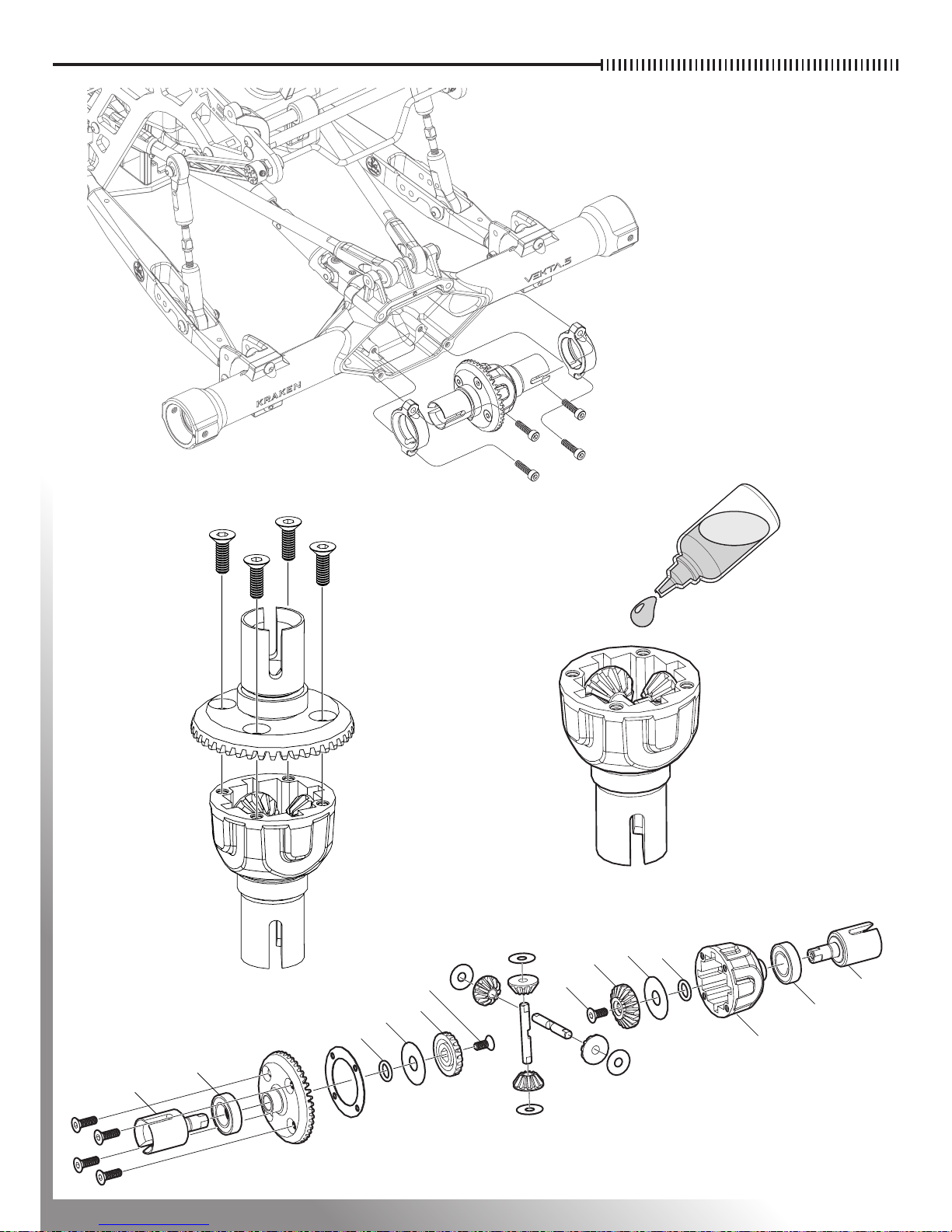

FRONT AND REAR DIFFERENTIAL GEAR MAINTENANCE

KRAKEN VEKTA.5 ARTR KV7001/2 INSTRUCTION MANUAL

20

KRAKEN VEKTA.5 ARTR KV7001/2 INSTRUCTION MANUAL

21

KV3366

KV5547

KV3317

KV5544

KV4427

KV4429

KV4426

KV5546

KV3304

KV4436

KV3317

KV5547

KV4428

KV4425

KV3365

KRAKEN VEKTA.5 ARTR KV7001/2 INSTRUCTION MANUAL

22

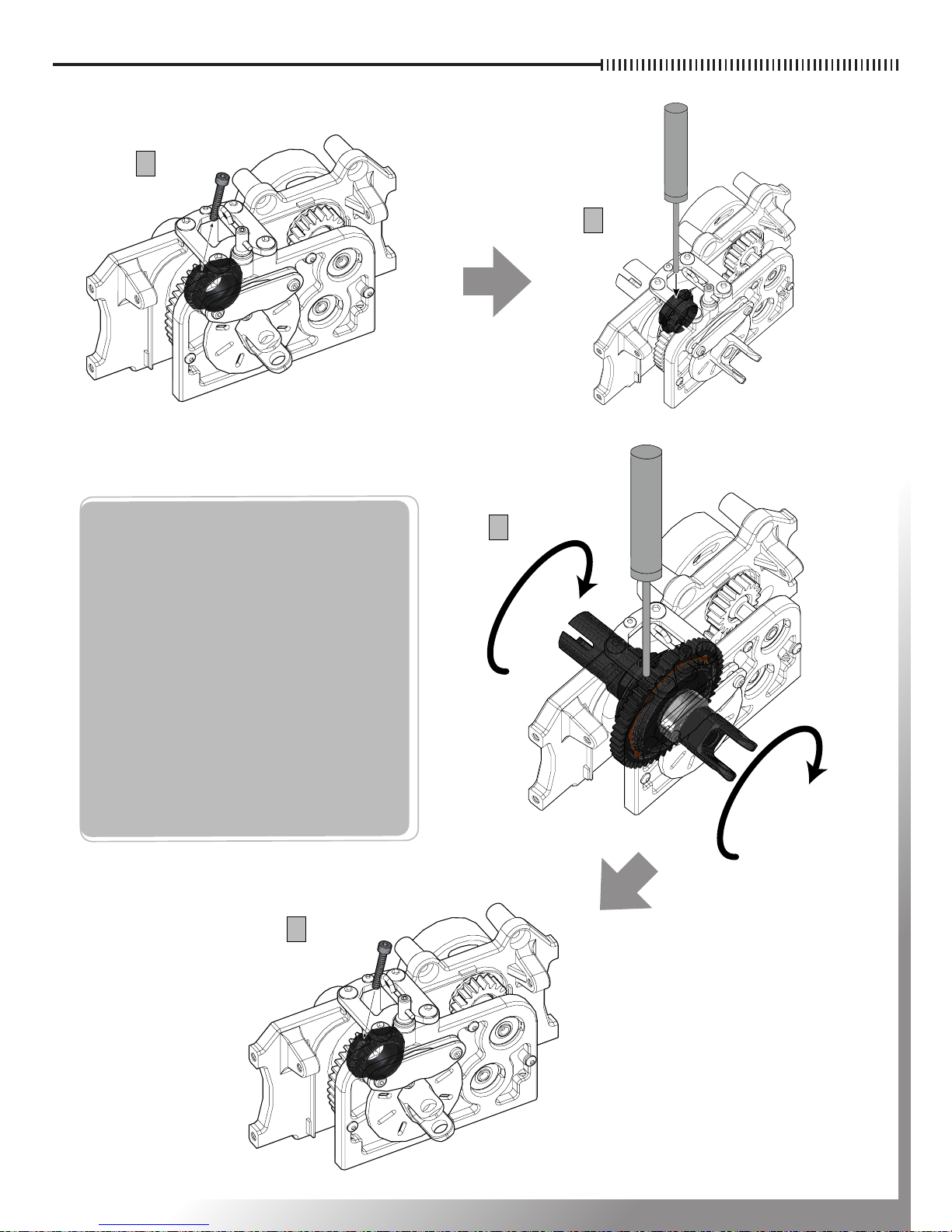

ADJUSTING THE SLIPPER CLUTCH

1.Remove or loosen the retainer screw.

2. Locate the the jam hole on the other side of the adjusting nut. Use a 4mm driver to secure the nut. (Caution: Do not jam into the threaded hole where you just removed the screw from!)

3. While the adjusting nut is secured, rotate accordingly to loosen or tighten the slipper assembly.

4. When done, apply some blue threadlock and screw back in the retainer screw until snug. Be careful not to overtighten as you may strip it. Tip: Alternatively, you can remove the entire Spur/Slipper assembly and adjust the nut using a wrench.

1

2

4

3

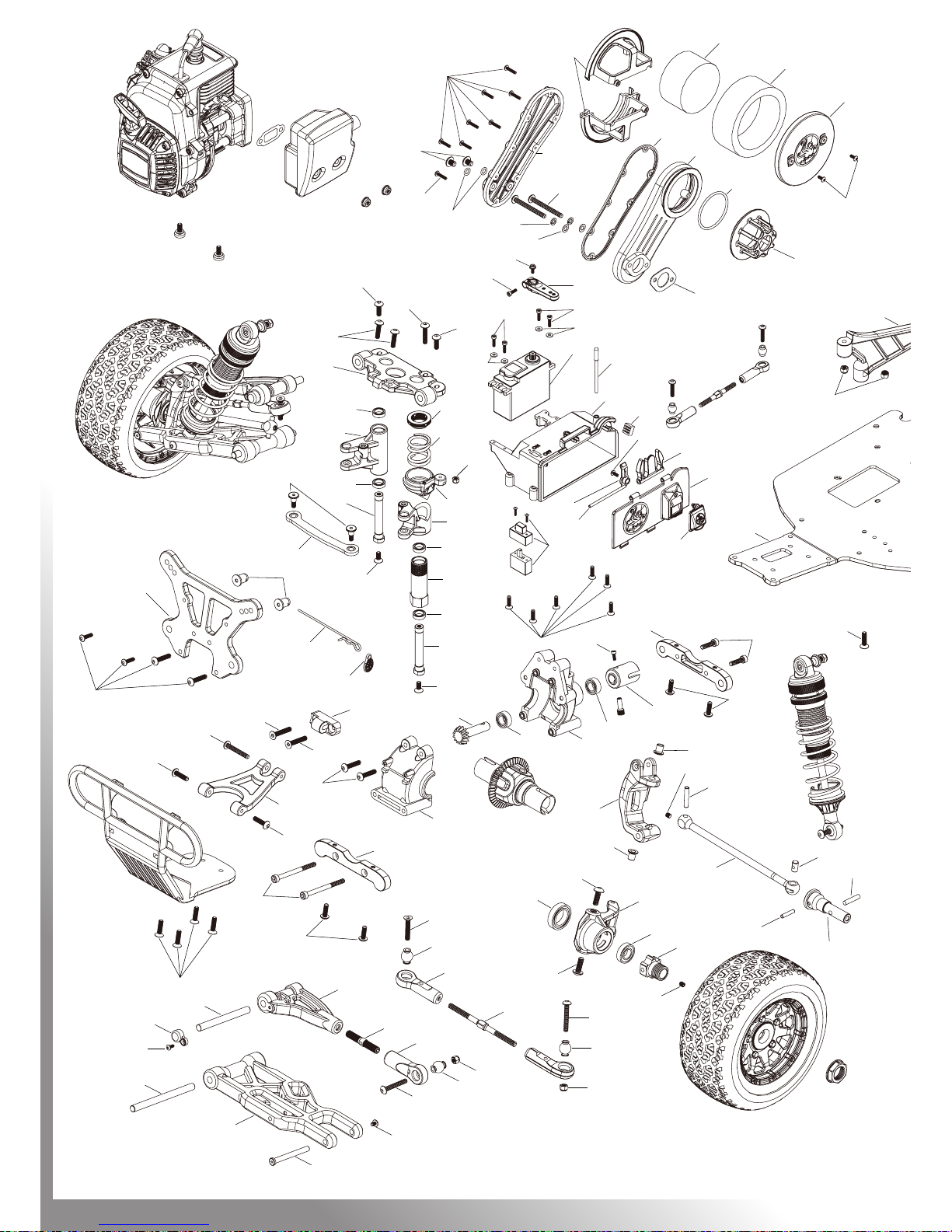

KRAKEN VEKTA.5 ARTR KV7001/2 INSTRUCTION MANUALKRAKEN VEKTA.5 ARTR KV7001/2 INSTRUCTION MANUAL

23

KV4430

KV8823

KV5506

KV4440

KV3345

KV4415

KV5507

KV3313

KV3365

KV3332

KV3323

KV3356

KV3401

KV4441

KV3355

KV3403

KV3328

KV8837

KV8838

KV4434

KV8830

KV5576

KV4420

KV3364

KV4403

KV8831

KV3338

KV8803

KV3367

KV8805

KV3345

KV3347

KV8804

KV3369

KV8847

KV8846

KV3346

KV5545

KV3314

KV5533

KV5553

KV3390

KV5553

KV3344

KV3357

KV3396

KV3344

KV5549

KV4438

KV3392

KV3315

KV8809

KV3351

KV3318

KV8828

KV5521

KV5518

KV5519

KV3392

KV5520

KV5503

KV5522

KV5504

KV3356

KV8835

KV8834

KV5539

KV5585

KV5572

KV8836

KV5538

KV3344

KV3346

KV8807

KV5582

KV8821

KV5589

KV3333

KV3347

KV5523

KV8806

KV8808

KV5554

KV5505

KV3416

KV3333

KV8818

KV8817

KV5589

KV3369

KV3367

KV3347

KV5524

KV3338

KV3301

KV3338

KV8849

KV8848

KV4431

KV4401

KV3348

KV3336

KV3385

KV3387

KV3336

KV3353

KV3305

KV4406

KV4432

KV4424

KV8859

KV8861

KV8858

KVT05

KV3333

KV4419

KV3367

KV5531

KV3393

KV5573

KV3373

KV5574

KV3373

KV3356

KV3401

KV5564

KV3347

KV3344

KRAKEN VEKTA.5 ARTR KV7001/2 INSTRUCTION MANUALKRAKEN VEKTA.5 ARTR KV7001/2 INSTRUCTION MANUAL

24

KV3333

KV4404

KV4405

KV5513

KV8825

KV5563

KV3372

KV8832

KV4419

KV3347

KV8817

KV4418

KV3393

KV5581

KV5540

KV4423

KV8839

KV8841

KV8842

KV4402

KV3339

KV3380

KV3367

KV8857

KV3396

KV8871

KV5589

KV5543

KV3398

KV3347

KV5584

KV3344

KV4439

KV3357

KV5549

KV5583

KV5569-L

KV5570-R

KV4438

KV5504

KV3378

KV5515

KV5503

KV5520

KV5518

KV3378

KV3315

KV3318

KV5522

KV3392

KV3346

KV5545

KV3314

KV5530

KV5566

KV3390

KV5519

KV5525

KV5517

KV5532

KV5516

KV5531

KV5565

KV3393

KV5510

KV8870

KV5589

KV3347

KV3333

KV5573

KV3330

KV8845

KV5550

KV3373

KV8844

KV3336

KV5551

KV3402

KV5574

KV3373

KV5574

KV3373

KV3355

KV3403

KV3336

KV3323

KV3356

KV3401

KV5502

KV4442

KV8843

KV3333

KV3352

KV5564

KV8858

KV3348

KV5580

KV3392

KV5589

KV5577

KV3346

KV3347

KV3344

KV3350

KV3339

KV3391

KV3340

KRAKEN VEKTA.5 ARTR KV7001/2 INSTRUCTION MANUALKRAKEN VEKTA.5 ARTR KV7001/2 INSTRUCTION MANUAL

25

KV3308

KV3337

KV4435

KV3388

KV5514

KV5517

KV3392

KV4421

KV4410

KV3372

KV3361

KV3362

KV5526

KV5537

KV3318

KV3383

KV3319

KV5571

KV5528

KV3374

KV5590

KV5552

KV5568

KV3307

KV3338

KV4411

KV5530

KV5566

KV5529

KV3316

KV5536

KV3389

KV5534

KV5533

KVT16

KV5556

KV5558

KV5562

KV5589

KV3366

KV5547

KV3317

KV5544

KV3304

KV4436

KV4427

KV4428

KV4425

KV3365

KV4426

KV5546

KV4429

KV5555

KV5560

KV5561

KV3302

KVT16

KV5508

KV5509

FRONT ASSEMBLY

REAR ASSEMBLY

KV5548

KV4433

KVT16

KV3334

KV5509

KVT16

KV5557

KV5560

KV3302

KVT16

KV5559

KV3303

KV5535

KV4414

KV3306

KV3347

KV3333

KV3381

KV3334

KV3390

KV5527

KV4412

KV4407

KV4428

KV4425

KV4433

KV3334

KVT16

KV3381

KV5559

KV3304

KV3365

KV4410

KV5548

KVT16

KV3303

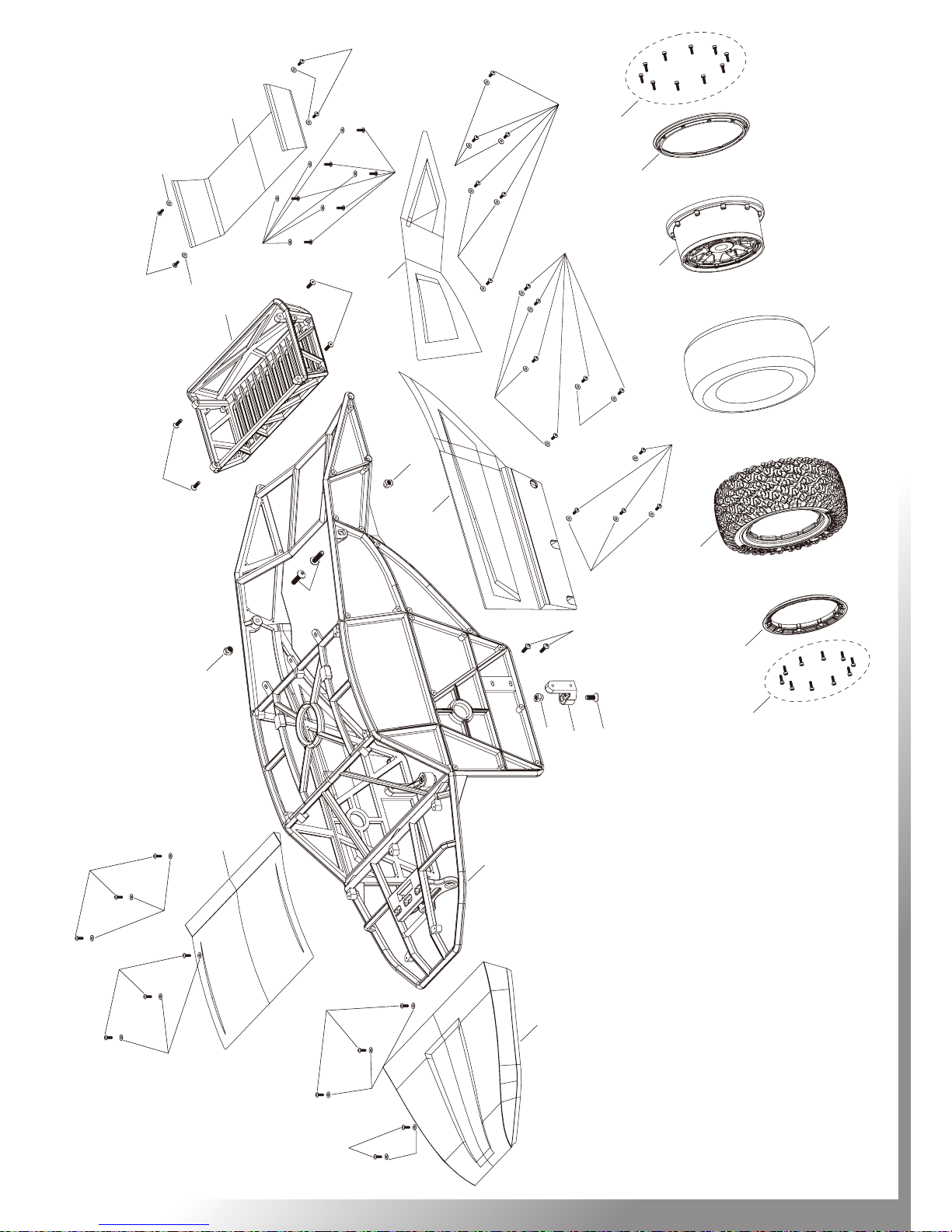

KRAKEN VEKTA.5 ARTR KV7001/2 INSTRUCTION MANUALKRAKEN VEKTA.5 ARTR KV7001/2 INSTRUCTION MANUAL

26

KV2262

KV8801

KV8802

KV5579

KV3352

KV3364

KV8824

KV3372

KV3340

KV4408

KV8813

KV3355

KV8814

KV8811

KV4409

KV3379

KV3343

KV3379

KRAKEN VEKTA.5 ARTR KV7001/2 INSTRUCTION MANUAL

27

PARTS LIST

KV7701 KV5 ARTR NO ENGINE KV7702 KV5 ARTR WITH ENGINE KV8801 KV5 Roll Cage KV8802 KV5 Roll Cage Rear Basket KVT01 KV5 Front Bumper Set KV8803 KV5 Front Bumper KV8804 KV5 Front Bumper Support Mount KV8805 KV5 Front Bumper Support Brace KVT02 KV5 Front Arms Set KV8806 KV5 Front Lower Arm KV8807 KV5 Front Upper Arm KV8808 KV5 Front Upper Arm Shaft Retainer KVT03 KV5 Spindle Set KV8809 KV5 Spindle Left KV8810 KV5 Spindle Right KV8811 KV5 Wheel (set of 2) KV8812 KV5 Hex KVT04 KV5 Wheel Beadlock (set of 2) KV8813 KV5 Outer Wheel Beadlock (Set of 4) KV8814 KV5 Inner Wheel Beadlock (Set 4) KVT05 KV5 Brace Set KV8815 KV5 Steering Upper Brace KV8816 KV5 Chassis Brace KVT06 KV5 Rod Ends Set KV8817 KV5 Ball End 13.8x50x6 KV8818 KV5 OffSet Ball End 13.8x50x6 KV8819 KV5 Ball End 9.8x35x5 KV8820 KV5 Ball End 9.8x20x5 KV8821 KV5 Ball End 13.8x50x8 KV8870 KV5 Ball End B13.8x50x6,B KV8871 KV5 Ball End B13.8x50x6,C KVT07

KV5 Roll Cage Brackets/Rear Sway Bar Mounts

KV8822 KV5 Front Cage Support 2a KV8823 KV5 Front Cage Support 2b KV8824 KV5 Cage Mount 3 KV8825 KV5 Cage Mount 4 KV8826 KV5 Front Sway Rod KV8827 KV5 Front Sway Bar Holder KVT08 KV5 Front Spindle Carriet Set KV8828 KV5 Front Spindle Carrier, Left KV8829 KV5 Front Spindle Carrier, Right KVT09 KV5 Servo & Battery Mounts KV8830 KV5 Radio Tray Clip KV8831 KV5 Radio Tray Connector Mount KV8832 KV5 Ch2 Sx Mount (Throttle Brackets [2]) KV8833 KV5 Ch1 Sx Mount (Steering Bracket) KVT10 KV5 Steering Horn Assembly KV8834 KV5 Steering Horn A KV8835 KV5 Steering Horn B KV8836 KV5 St Horn C KV8837 KV5 Radio Tray Box KV8838 KV5 Radio Tray Cover KV8839 KV5 Fuel Tank Cover

KV8840 KV5 Fuel Tank Air Room KVT13 KV5 Fuel Tank Mounts KV8841 KV5 Fuel Tank Mount 01 KV8842 KV5 Fuel Tank Mount 02 KV8843 KV5 Throttle Pivot KV8844 KV5 Brake Pivot KV8845 KV5 Brake Pivot Washer KVT14 KV5 Front Transmission Case KV8846 KV5 Front Bulk, Inner KV8847 KV5 Front Bulk, Outer KVT15 KV5 Air Filter Plenum KV8848 KV5 Air Filter Manifold Cover KV8849 KV5 Air Filter Manifold Base KVT16 KV5 Shocks Plastic Assembly Set KV8850 KV5 Shock Spring Perch KV8851 KV5 Shock Piston KV8852 KV5 Shock Back-Up Ring KV8853 KV5 Shock Shaft Guide KV8854 KV5 Shock Shaft End KV8855 KV5 Shock Top End KV8856 KV5 Shock Shaft Guide A KVT17 KV5 4 Link Suspension Bracket Set KV8857 KV5 4 Link Upper Mount KV8858 KV5 4 Link Lower Mount KVT18 KV5 Air Filter Housing KV8859 KV5 Air Filter Cover KV8860 KV5 Air Filter Inner Cage KV8861 KV5 Air Filter Clamp KV8862 KV5 Air Filter Inner Plan KV5501 KV5 Collar 5x10x7, ZenoAH KV5502 KV5 L5-Ch2 Throttle Spring KV5503 KV5 Pin 4x19.8 KV5504 KV5 Pin 5x23.4 KV5505 KV5 Hinge Pin 59 KV5506 KV5 R-Pin, 10 Long Leg KV5507 KV5 Steering Drag Link Bolt (set of 2) KV5508 KV5 Ball 13.8x5 (set of 2) KV5509 KV5 Shock Stand (set of 2) KV5510 KV5 Rear Full Trailing Arm KV5511 KV5 Collar 5.3x10x10, KS KV5512 KV5 FlangeBushing 6x10 (Set of 2) KV5513 KV5 Frame Rods (Set of 4) KV5514 KV5 Center Drive Shaft B17x200 KV5515 KV5 Uni Drive Shaft KV5516 KV5 Pin 5x18 KV5517 KV5 Pin 5x23.5 KV5518 KV5 Pin 5x26.5 KV5519 KV5 Uni Hub Pin 9x24x5 KV5520 KV5 Uni Hub Pin 7x12.5x4 KV5521 KV5 King Pin Bushing (set of 4) KV5522 KV5 Uni Wheel Axle KV5523 KV5 Front Upper Arm Shaft KV5524 KV5 Steering turnbuckle (set of 2)

Part # PRODUCT DESCRIPTION

KRAKEN VEKTA.5 ARTR KV7001/2 INSTRUCTION MANUAL

28

PARTS LIST

KV5525 KV5 Uni Hub KV5526 KV5 Clutch Bolt KV5527 KV5 Brake Pad Bolt KV5528 KV5 Brake Cam Shaft KV5529 KV5 Slipper Shaft KV5530 KV5 Uni Yoke Joint, Brake KV5531 KV5 Uni Yoke Joint, TS-Hollow KV5532 KV5 Uni Yoke Joint, TS-Shaft KV5533 KV5 Drive Cup KV5534 KV5 Transmission Spur Gear KV5535 KV5 Slipper Disc (set of 2) KV5536 KV5 Adjusting Nut KV5537 KV5 19T Transmission Pinion Gear KV5538 KV5 Steering Post KV5539 KV5 Steering Tube KV5540 KV5 Rear Sway Bar KV5541 KV5 Front Sway Bar KV5542 KV5 Sway Bar Pivot Ball, B9.8 KV5543 KV5 Rear Upper Link Rod (set of 2) KV5544 KV5 Diff Ring Gear KV5545 KV5 F/R Differential Pinion Gear, 13T KV5546 KV5 Diff Cross Pin KV5547 KV5 Diff out drive set (set of 2) KV5548 KV5 Shock Caps (set of 2) KV5549 KV5 Wheel Nuts (set of 4) KV5550 KV5 Ch2 Brake Rod KV5551 KV5 Ch2 Throttle Rod KV5552 KV5 Brake Cam Block KV5553 KV5 Aluminum Front Lower Arm Brace KV5554 KV5 Front Lower Arm Shaft KV5555 KV5 Aluminum Front Shock Body (set of 2) KV5556 KV5 Aluminum Rear Shock Body (set of 2) KV5557 KV5 Front Shock Shaft KV5558 KV5 Rear Shock Shaft KV5559 KV5 Aluminum Shock Seal Cap KV5560 KV5 Shock Spring Adjusting Ring KV5561 KV5 Front Shock Spring (set of 2) KV5562 KV5 Rear Shock Spring (set of 2) KV5563 KV5 Front Mount for Verticle Frames (set of 2) KV5564 KV5 TS-Hollow KV5565 KV5 TS-Shaft KV5566 KV5 Screw Pin 8x5x22 KV5567 KV5 King Pin Nut KV5568 KV5 T19-22 Transmission Step Gears KV5569 KV5 Rear Wheel Hub, L KV5570 KV5 Rear Wheel Hub- R KV5571 KV5 Brake Cam Shaft Bushing KV5572 KV5 St Spring Adj Ring KV5573 KV5 Rod Adjusting Collar KV5574 KV5 Rod Stopper 2.8 KV5575 KV5 Engine Washer FH5 (set of 4) KV5576 KV5 Pin 3x60 KV5577 KV5 Rear Sway Bar Turnbuckles Set (set of 2)

KV5578 KV5 King Pin Nut A KV5579 KV5 Metal Roll Cage Inserts (set of 4) KV5580 KV5 Rear Sway Bar Holder KV5581 KV5 Lock Alum Nut M10 KV5582

KV5 Turnbuckle Set for Front Upper Arms (set of 2) KV5583 KV5 Billet Alum. Rear Solid Axle Housing KV5584 KV5 Rear Solid Axle Billet Alum. Cover KV5585 KV5 Steering Torsion Spring KV5586 KV5 Turnbuckle M5x30 KV5587 KV5 Turnbuckle M5x40 KV5588 KV5 B9.8x12x4 (Rod End Ball) (set of 4) KV5589 KV5 B13.8x17x5 (Rod End Balls) (set of 4) KV5590 KV5 Brake Lever KV5591 KV5 Front Cage Support Pin KV4401 KV5 Air Filter Manifold Paper Gasket KV4402 KV5 Fuel Tank Rubber Damper KV4403 KV5 Switch Boot KV4404 KV5 Verticle Chassis Frame, Left KV4405 KV5 Verticle Chassis Frame, Right KV4406 KV5 Main Chassis KV4407 KV5 Main Gear Plate B KV4408 KV5 Kraken ATD Tires (set of 2) KV4409 KV5 Inner Sponge (set of 2) KV4410 KV5 Main Gear Plate A KV4411 KV5 Brake Pad KV4412 KV5 Brake Disc KV4413 KV5 Fuel Tank Air Bubble KV4414 KV5 Slipper Pad (set of 2) KV4415 KV5 Steering Drag Linkage KV4416 KV5 StSxUpper Bar KV4417 KV5 Fuel Tank Rubber Diaphragm KV4418 KV5 Rear Sway Bar Lever KV4419 KV5 Rear Lower Link Mount (set of 2) KV4420 KV5 Wire Grommet KV4421 KV5 Clutch Bell KV4422 KV5 Clutch Shaft KV4423 KV5 Fuel Tank KV4424 KV5 Air Filter Outer Sponge KV4425 KV5 Diff Bevel Sun Gear KV4426 KV5 Diff Bevel Planet Gear KV4427 KV5 Diff Gasket KV4428 KV5 Diff Washer 10x30x03 KV4429 KV5 Diff Washer 6x18x03 KV4430 KV5 Front Shock Tower KV4431 KV5 Air Filter Manifold Rubber Seal KV4432 KV5 Air Filter Inner Sponge KV4433 KV5 Shock Diaphragm KV4434 KV5 Charge Boot KV4435 KV5 Center Upper Plate KV4436 KV5 Diff Case KV4437 KV5 Diff Case Bushing KV4438 KV5 Wheel Hex Driver 24 KV4439

KV5 Diff Bearing Bracket for rear solid axle (set of 2)

Part # PRODUCT DESCRIPTION

KRAKEN VEKTA.5 ARTR KV7001/2 INSTRUCTION MANUAL

29

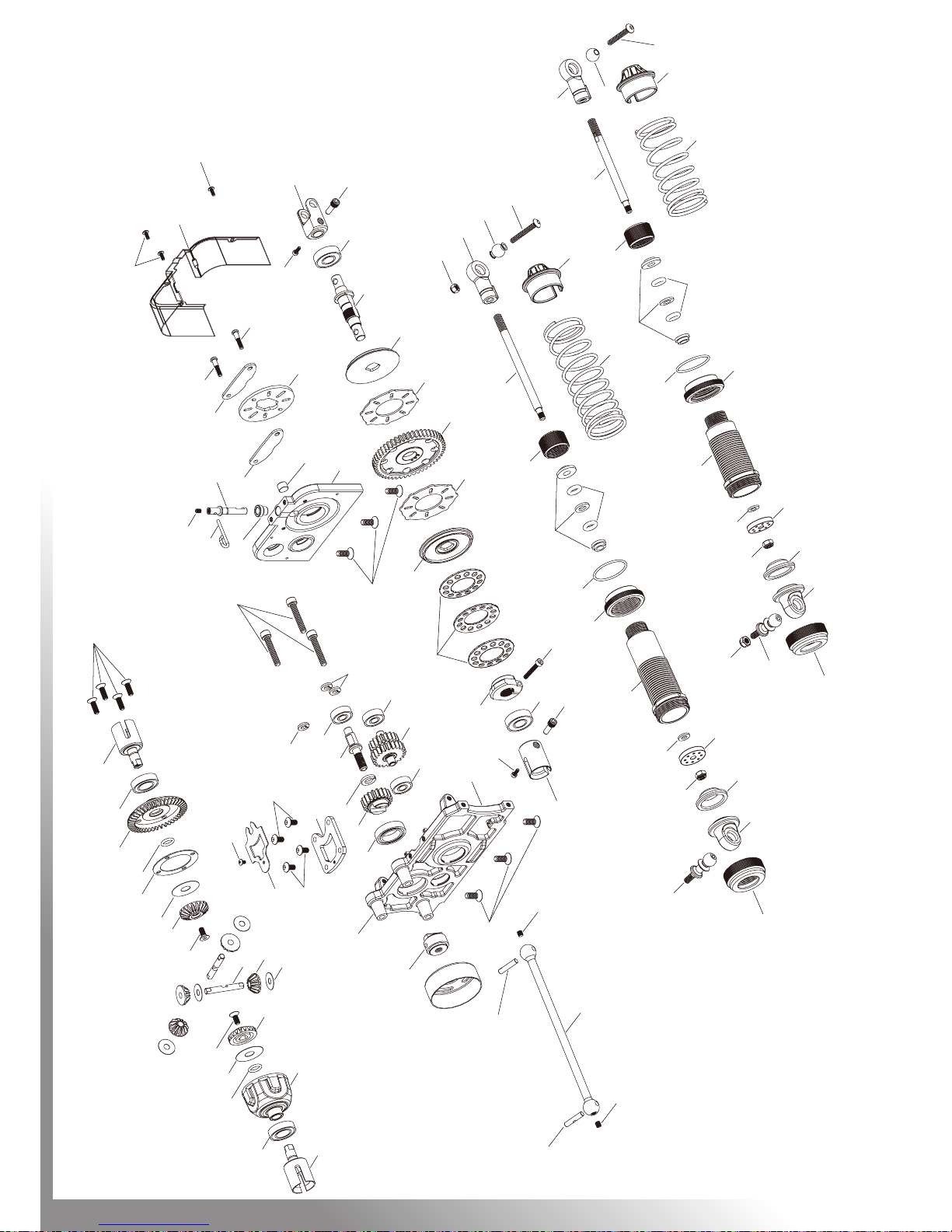

PARTS LIST

Part # PRODUCT DESCRIPTION

KV4440 KV5 Pull Tabs for Hook Pin (set of 4) KV4441 KV5 Ch1 Sx Horn, 25T KV4442 KV5 Ch2 Sx Horn, 25T KV3301 KV5 ORing 44.12x2.62 KV3302 KV5 ORing 33.5x2 KV3303 KV5 ORing 8x4 KV3304 KV5 ORing 9.8x2.4 KV3305 KV5 ORing 5.8x1.9 KV3306 KV5 Disk Spring 25.4x50x2 (set of 3) KV3307

KV5 Gear Cover A, 0.8 (Transmission Cover) KV3308 KV5 Gear Cover B, 0.8 KV3309 KV5 (2702167) L5 Fuel Filter Stone KV3310 KV5 (2702164) L5 Fuel Tank Rubber Plug KV3311 KV5 Black Fuel LIne KV3312 KV5 Yellow Carb Fuel Line KV3313 KV5 Bearing 10x15x4 KV3314 KV5 Bearing 10x19x7 KV3315 KV5 Bearing 12x24x6 KV3316 KV5 Bearing 12x28x8 KV3317 KV5 Bearing 15x28x7 KV3318 KV5 Bearing 20x32x7 KV3319 KV5 Bearing 8x22x7 KV3320 KV5 BxSet5x1 KV3321 KV5 BxSet Connector-Plug KV3322 KV5 BxSet Connector-Socket KV3323

KV5 Kraken TS-555HV Digital Torque Servo KV3324 KV5 Servo Grommet KV3325 KV5 Switch KV3326 KV5 Lipo Bat, Light System, Sample Only KV3327 KV5 Screw BH2x10 KV3328 KV5 RC-Ax Straw (avail in kit only) KV3329 KV5 RC-Ax Straw Cap (avail in kit only) KV3330 KV5 Ch2 Brake Crush Tube KV3331 KV5 Lock Nut 3 KV3332 KV5 Lock Nut 4 KV3333 KV5 Lock Nut 5 KV3334 KV5 Lock Nut 6 KV3335 KV5 ScrewBH3x10 KV3336 KV5 ScrewBH3x15 KV3337 KV5 ScrewBH3x5 KV3338 KV5 ScrewBH3x8 KV3339 KV5 ScrewBH4x12 KV3340 KV5 ScrewBH4x16 KV3341 KV5 ScrewBH4x20 KV3342 KV5 ScrewBH4x30 KV3343 KV5 ScrewBH5x12 KV3344 KV5 ScrewBH5x16 KV3345 KV5 ScrewBH5x20 KV3346 KV5 ScrewBH5x25 KV3347 KV5 ScrewBH5x35 KV3348 KV5 ScrewBH5x50 KV3349 KV5 ScrewBH5x8 KV3350 KV5 ScrewBH6x12

KV3351 KV5 ScrewBH6x18 KV3352 KV5 ScrewBH6x25 KV3353 KV5 ScrewBH6x8 KV3354 KV5 ScrewCap3x8 KV3355 KV5 ScrewCap3x10 KV3356 KV5 ScrewCap3x12 KV3357 KV5 ScrewCap5x20 KV3358 KV5 ScrewCap5x52 KV3359 KV5 Washer5x10x1 KV3360 KV5 WasherS5x10x1.5 KV3361 KV5 ScrewCap6x35 KV3362 KV5 WasherS6x12x1.9(SW6) KV3363 KV5 ScrewFH3x12 KV3364 KV5 ScrewFH4x16 KV3365 KV5 ScrewFH5x12 KV3366 KV5 ScrewFH5x15 KV3367 KV5 ScrewFH5x20 KV3368 KV5 ScrewFH5x25 KV3369 KV5 ScrewFH5x30 KV3370 KV5 ScrewFH5x60 KV3371 KV5 ScrewFH5x70 KV3372 KV5 ScrewFH6x16 KV3373 KV5 ScrewSS3x4 KV3374 KV5 ScrewSS4x5 KV3375 KV5 ScrewSS5x6 KV3376 KV5 ScrewSS5x8 KV3377 KV5 ScrewSS6x35 KV3378 KV5 ScrewSS6x8(Taper) KV3379 KV5 Washer3x8x0.5 KV3380 KV5 Washer4x10x0.8 KV3381 KV5 Washer6x12x1.6 KV3382 KV5 WasherS3x6x1 KV3383 KV5 WasherS8x15.6x2.5 KV3384 KV5 KS Racing 29cc Engine KV3385 KV5 Washer5x10x0.8 KV3386 KV5 WasherS5x10x1.3 KV5 Lock Washer, S5x8.6x1.2 KV5 Screw BH 5x10 KV5 Screw Cap 4x25 KV5 Screw FH 3x8 KV5 Screw FH 4x12 KV5 Screw SS 5x5 KV5 Screw SS 5x10
