Kovarson ADAX 25, ADAX, ADAX 20, ADAX 30, ADAX 35 Installation And Servicing Instructions

Code
Condensing wall mounted boiler
ADAX
INSTALLATION AND SERVICING INSTRUCTIONS
EN
6322893 - 02/2015 - R0
SAFETY WARNINGS AND REGULATIONS
RESTRICTIONS
WARNINGS
– After having removed the packaging make sure that
the product supplied is integral and complete in all its parts. If this is not the case, please contact the Dealer who sold the appliance.
– The appliance must be used as intended by
KOVARSON
caused to persons, animals or things, improper installation, adjustment, maintenance and improper use of the appliance.
– In the event of water leaks, disconnect the appliance
from the mains power supply, close the water mains and promptly inform professionally qualified personnel.
– Periodically check that the operating pressure of
the water heating system when cold is this is not the case, increase the pressure or contact professionally qualified personnel.
– If the appliance is not used for a long period of time,
at least one of the following operations must be carried out:
set the main system switch to "OFF";
-
-
close the gas and water valves for the water heating system.
– In order to ensure optimal appliance operations
KOVARSON
checks are carried out
who is not responsible for any damage
1-1.2 bar
recommends that maintenance and
ONCE A YEAR
.
. If
d
IT IS FORBIDDEN
– The appliance is not to be used by children or
unassisted disabled persons.
– Do not use electrical devices or appliances such as
switches, electrical appliances etc if you can smell fuel. If this should happen:
open the doors and windows to air the room;
-
-
close the gas isolation device;
-
promptly call for professional assistance.
– Do not touch the appliance with bare feet or with any
wet part of the body.
– Do not carry out any technical intervention or
cleaning operation before having disconnected the appliance from the mains power by setting the main switch to "OFF", and closing the gas supply.
– Do not modify the safety or adjustment devices
without authorization and instructions from the
manufacturer. – Do not block the condensate drain (if present). – Do not pull, detach or twist the electrical cables
coming out of the appliance even if the appliance is
disconnected from the mains power supply. – Do not expose the boiler to atmospheric agents.
These boilers can also be installed in partially
covered areas, as per EN 15502, with a maximum
ambient temperature of 60°C and a minimum
ambient temperature of - 5°C. It is recommended
that the boiler is installed below weathered roofs,
on the balcony or in a protected niche, to protect it
from exposure to weathering agents (rain, hail and
snow). The boiler is equipped as standard with an
antifreeze function. – Do not block or reduce the size of the ventilation
openings of the room where the appliance is
installed, if present. – Remove the mains power and gas supply from the
appliance if the external temperature could fall
below ZERO (risk of freezing). – Do not leave containers with flammable substances
in the room where the appliance is installed. – Do not leave packaging material around since it
could be dangerous. Therefore dispose of it as
prescribed by legislation in force.
2
WARNINGS
It is recommended that all operators
carefully in order to use the appliance in a safe and rational manner.
This manual
must therefore be kept for future reference and must always accompany the appliance in the event the appliance is transferred or sold to another Owner or User or is installed on another system.
Installation and maintenance
must be carried out by a qualified company or by a professionally qualified technician in accordance with the instructions contained in the manual. The company or technician will, at the end of installation operations, issue a statement of compliance with national and local Technical Standards and Legislation in force
is an integral part of the appliance. It
read this manual
of this appliance
RANGE
1312
CONTENTS
MODEL CODE
ADAX 20 - (G20) 8114280 ADAX 25 - (G20) 8114282 ADAX 30 - (G20) 8114284 ADAX 35 - (G20) 8114286
CONFORMITY
ADAX
boilers comply with: – Directive 2009/142/EC - Gas Appliances – Boiler Efficiency Directive 92/42/EEC – Low Voltage Directive 2006/95/EC – Electromagnetic Compatibility Directive 2004/108/EC – Thermal Efficiency – Classified as "Condensing" – Class NOx 5 (< 70 mg/kWh)
Please refer to the technical data plate for the serial number and year of manufacture.
EC DECLARATION OF CONFORMITY
In accordance with "Gas Appliances" Directive 2009/142/EC, "Electromagnetic Compatibility" Directive 2004/108/EC, "Boiler Efficiency" Directive 92/42/EC and "Low Voltage" Directive 2006/95/EC, the manufacturer KOVARSON s.r.o., via Garbo 27, 37045 Legnago (VR), comply with the European Directives.
The Technical Manager (Franco Macchi)
DECLARES THAT
the boiler models
ADAX
SYMBOLS
a
f
d m
DANGER
To indicate actions which, if not carried out correctly, can result in injury of a general nature or may damage or cause the appliance to malfunction; these actions therefore require particular caution and adequate preparation.
DANGER
To indicate actions which, if not carried out correctly, could lead to injury of an electrical nature; these actions therefore require particular caution and adequate preparation.
IT IS FORBIDDEN
To indicate actions which MUST NOT BE carried out.
CAUTION
To indicate particularly important and useful information.
1 DESCRIPTION OF THE APPLIANCE 4
1.1 Characteristics .................................4
1.2 Check and safety devices .........................4
1.3 Identification ...................................4
1.3.1 Data label ............................ 5
1.4 Structure ......................................6
1.5 Technical features ...............................7
1.6 Main water circuit ...............................8
1.7 Sensors........................................8
1.8 Expansion tank .................................9
1.9 Circulation pump ................................9
1.9.1 Pump equipped with LED................ 9
1.10 Control panel ..................................10
1.11 Wiring diagram ................................11
2 INSTALLATION 12
2.1 Unpacking the product ..........................12
2.2 Dimensions and weight..........................12
2.3 Handling......................................12
2.4 Installation room ...............................12
2.5 New installation or installation of a replacement
appliance .....................................13
2.6 Cleaning the system ............................13
2.7 Water system treatment.........................13

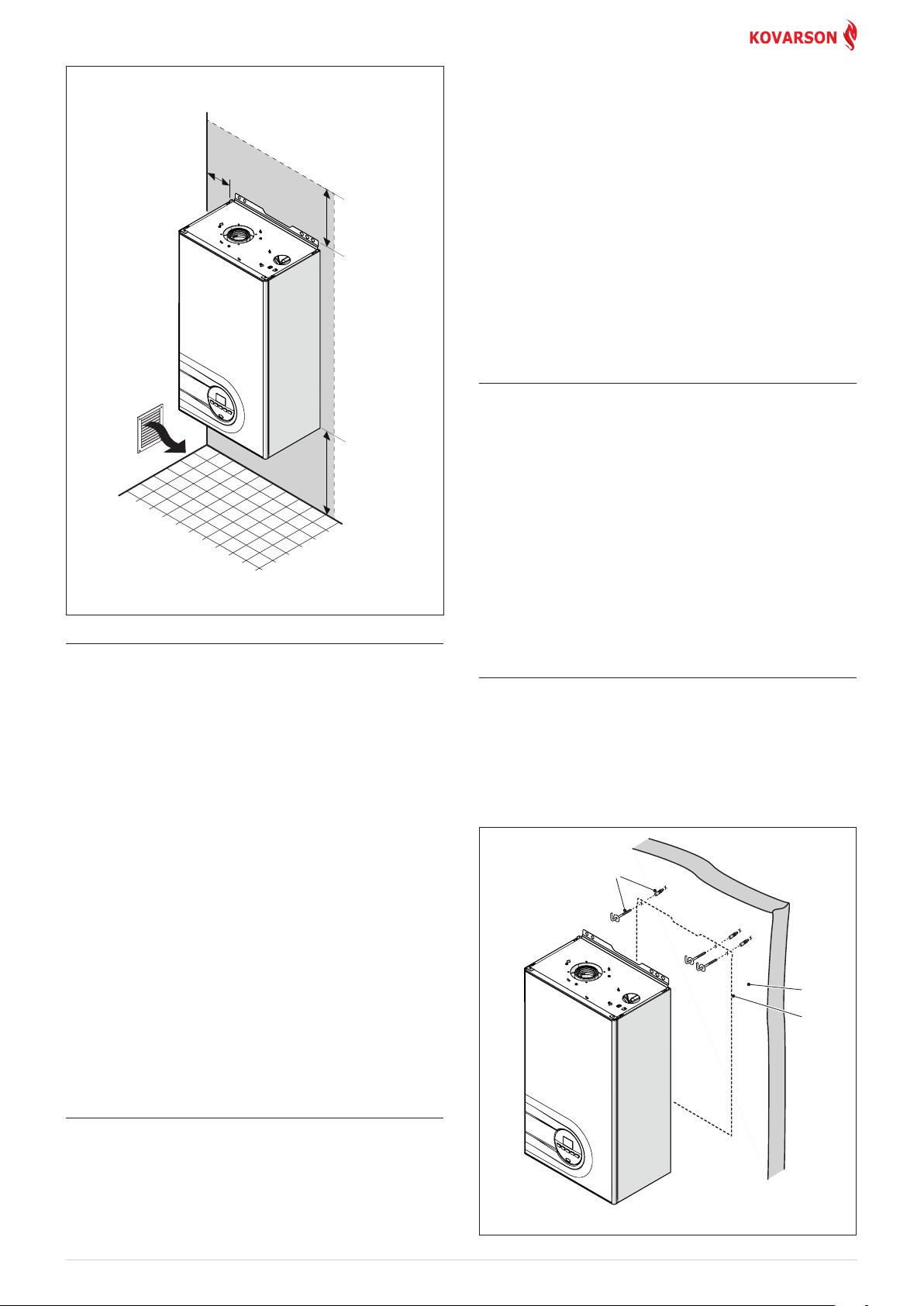

2.8 Boiler installation ..............................13
2.9 Hydraulic connections...........................14
2.9.1 Plumbing accessories (optional) ......... 14
2.10 Condensate outlet/collection .....................14
2.11 Gas supply ....................................14
2.12 Smoke outlet and combustion air inlet .............15

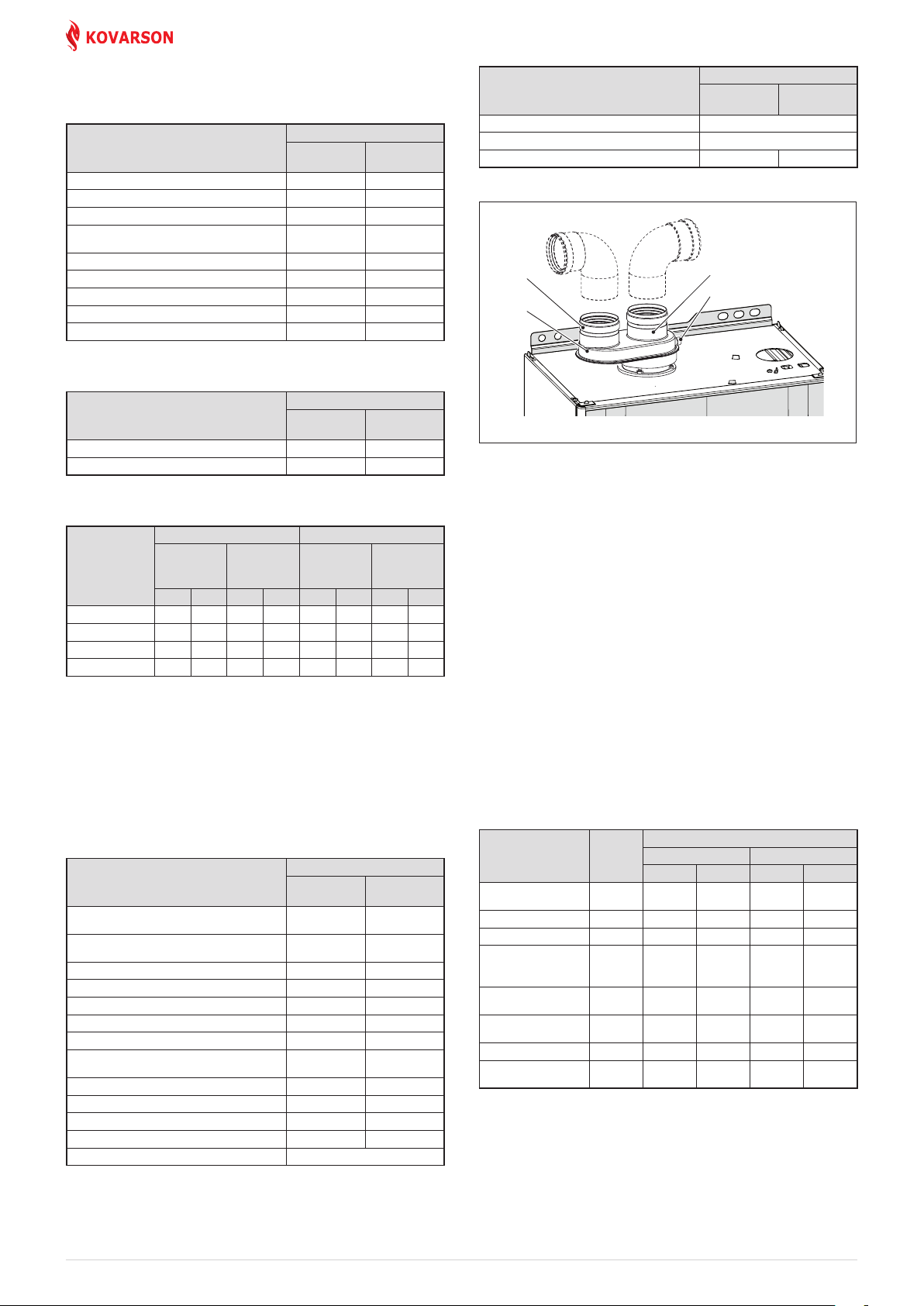

2.12.1 Coaxial duct (Ø 60/100mm and Ø 80/125mm) 16

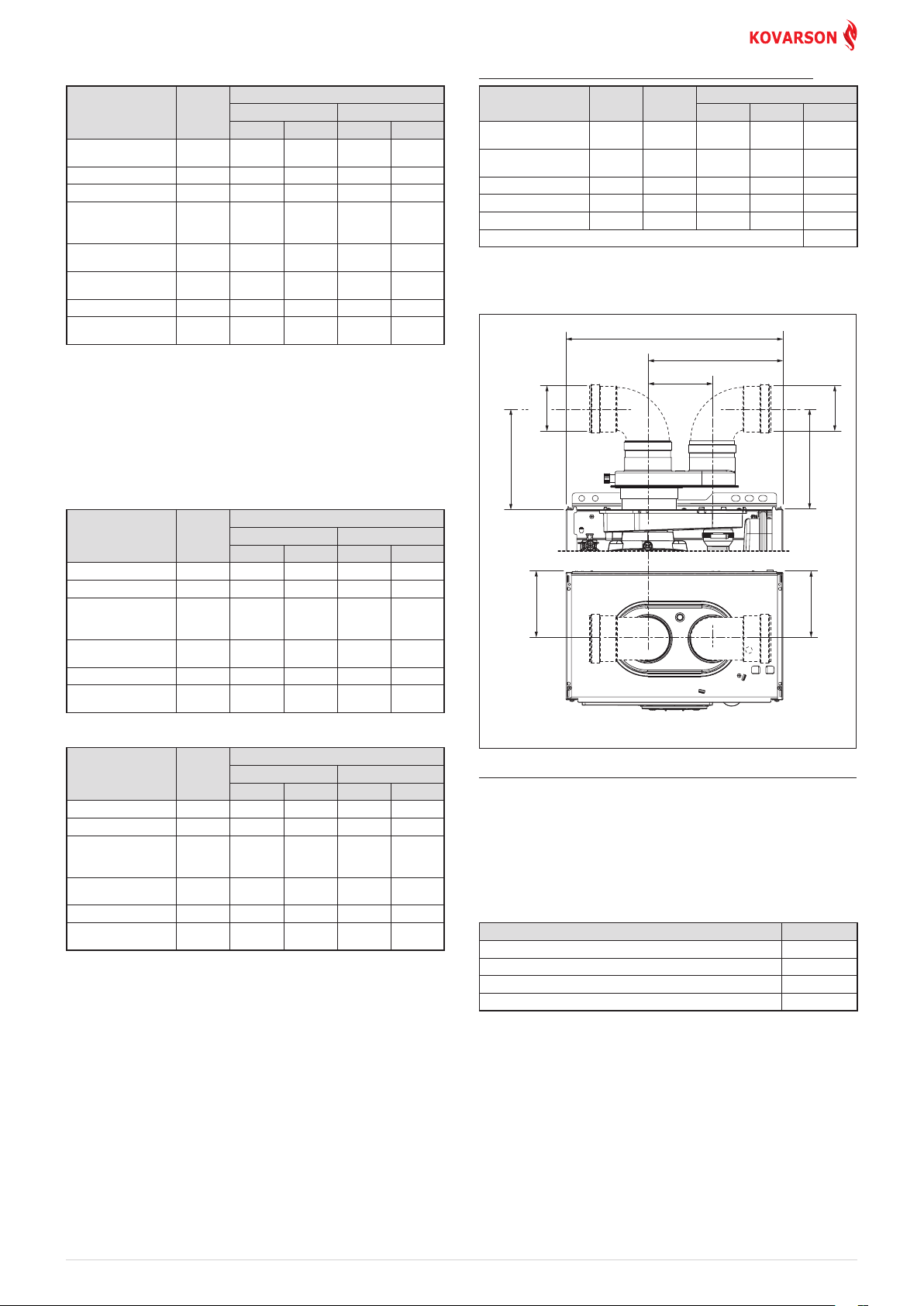

2.12.2 Separate ducts (Ø 60mm and Ø 80mm) ... 16
2.13 Electrical connections...........................17
2.13.1 Outdoor sensor ....................... 19
2.13.2 Chrono-thermostat or Air Thermostat .... 19
2.13.3 EXAMPLE of use of the command/control
2.14 Refilling or emptying............................20
3 PUTTING INTO SERVICE 21
3.1 Preliminary operations ..........................21
3.2 Before commissioning ..........................21

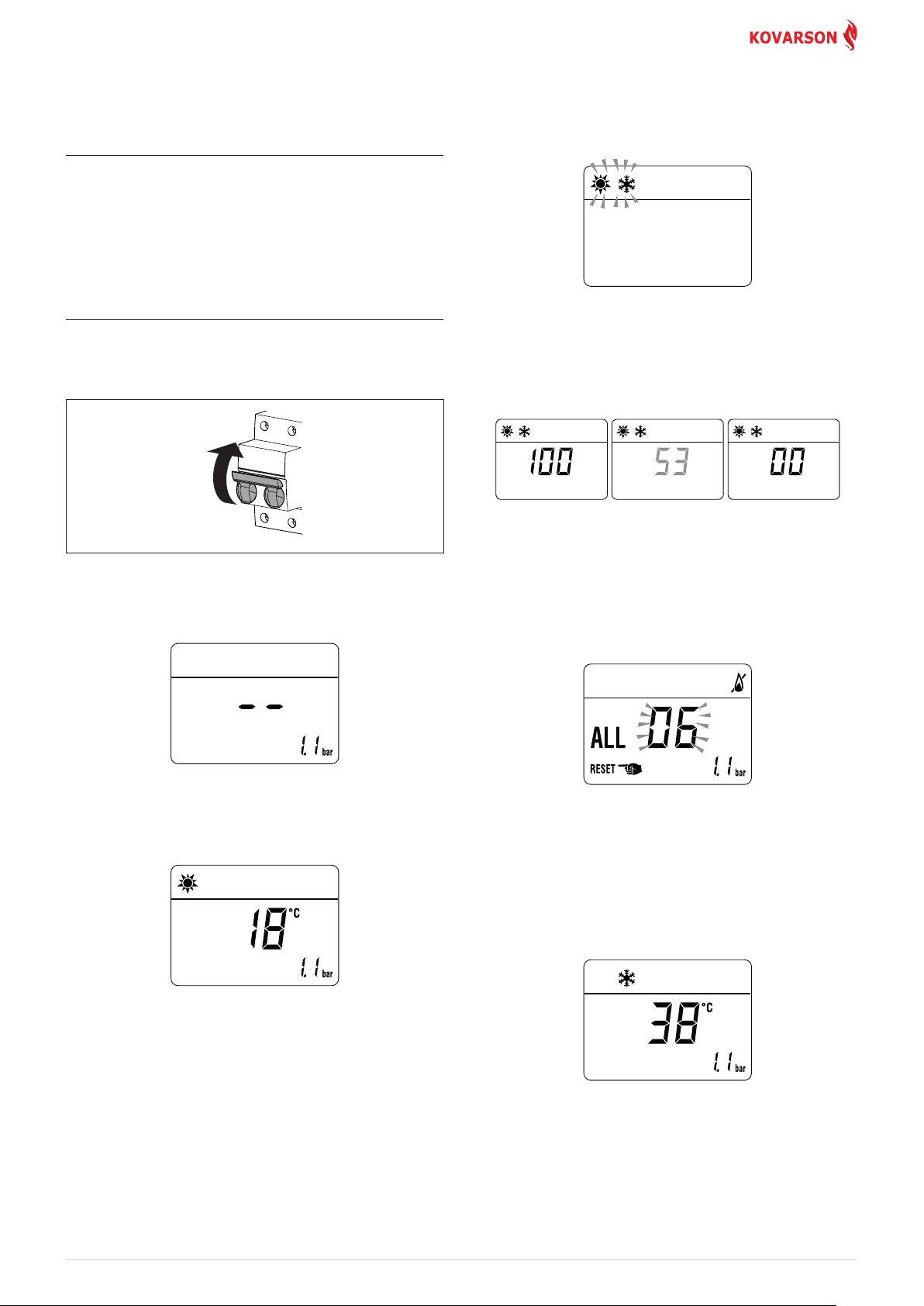

3.3 Parameter setting and display ....................22

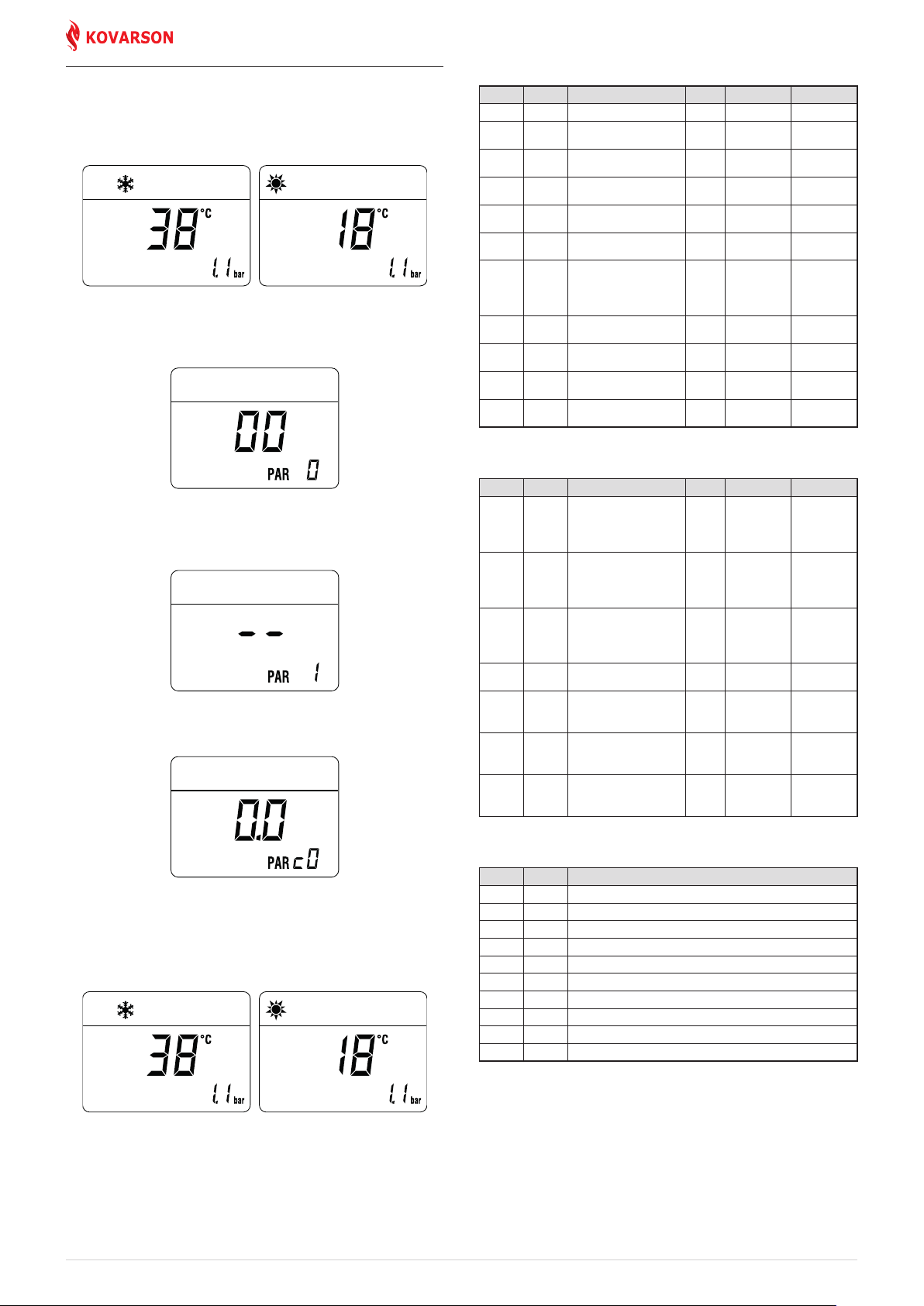

3.4 List of parameters..............................22
3.5 Fault / malfunction codes........................23
3.6 Display of operating data and counters.............24
3.7 Checks .......................................25
3.8 Domestic hot water comfort function (preheating) ...26
3.9 Gas conversion.................................26
4 MAINTENANCE 27
4.1 Adjustments...................................27
4.2 External cleaning...............................27
4.3 Cleaning the inside of the appliance ...............27
4.4 Checks .......................................28
4.5 Unscheduled maintenance .......................29
4.6 Troubleshooting................................29
4.7 Any pump faults and possible solutions ............30
device on some types of heating systems.. 19
2.14.1 REFILL operations .................... 20
2.14.2 EMPTYING operations ................. 20
3.2.1 Self-calibrating procedure .............. 21
3.7.1 Chimney sweep function ............... 25
4.2.1 Cleaning the cladding.................. 27
4.3.1 Removing components................. 27
4.3.2 Cleaning the burner and the combustion
chamber ............................ 28
4.3.3 Checking the ignition/detection electrode . 28
4.3.4 Final operations ...................... 28
4.4.1 Checking the smoke duct............... 28
4.4.2 Checking the expansion vessel pressure .. 28
3
1 DESCRIPTION OF THE APPLIANCE
Cod. 6244745
1.1 Characteristics
ADAX
are last generation condensing wall mounted boilers
KOVARSON
which water production. The main design choices made by
ADAX
for the – the total pre-mix microflame burner combined with a steel
heat exchanger for heating and a rapid heat exchanger for DHW
– the sealed combustion chamber which can be classified
"Type C" or "Type B" in relation to the room where the boiler is installed, depending on the smoke outlet configuration adopted during installation
– the command and control microprocessor electronic board
provides efficient management of both heating and hot water production. It can also be connected to a remote control with an Open Therm protocol or to room thermostat and/or external sensor. If connected to an external sensor, the boiler temperature varies on the basis of the external temperature according to a selected optimal climatic curve providing
significant energy and economic savings. Other special features of the – the anti-freeze function which activates automatically if the
temperature of the water inside the boiler falls below the
threshold of the value set at parameter "PAR 10" and , if there
is an external sensor, if the external temperature falls below
the threshold of the value set at parameter "PAR 11" – the anti-blocking function of the pump and diverter valve. This
activates automatically every 24 hours if no request for heat
has been made – the chimney sweep function lasts 15 minutes and makes the
job of the qualified technician easier when measuring the
parameters and combustion efficiency – domestic hot water comfort function which allows the time
necessary for the hot water to become available to be reduced
and ensures that the temperature is stable – screen display of the operating and self-diagnostic
parameters with error code display when the fault occurs.
This makes repair interventions easier and allows appliance
operation to be restored correctly.
has produced for heating and domestic hot
boilers are:
ADAX
boilers are:
KOVARSON
1.3 Identification
The
ADAX
boilers can be identified by means of:
1 Packaging label:
packaging and provides a code, the serial number of the boiler and the bar code
2 Energy Efficiency Label:
of the packaging to notify the User of the level of energy savings and reduced environmental pollution produced by the appliance
3 Data plate:
boiler and provides the technical specification, appliance performance and any other information required by law.
1
2
I II
++
A
A
+
A
B
A
C
B
D
C D
E
E
F
F
G
G
kW
dB
2015 811/2013
3
this is located on the outside of the
this is positioned on the outside
this is located inside the front panel of the
1
2
1.2 Check and safety devices
The
ADAX
boilers are equipped with the following check and safety devices: – thermal safety thermostat 100°C – 3 bar relief valve – heating water pressure transducer – delivery sensor – DHW sensor – smoke probe.
d
a
4
IT IS FORBIDDEN
to commission the appliance with safety devices which do not work or which have been tampered with.
DANGER
Safety device may only be replaced by professional qualified personnel using parts.
KOVARSON
original spare
KEY:
1
Packaging label
2
Energy Efficiency Label
3
Data plate
3
Fig. 1
1.3.1 Data label
NAME
SERIAL NUMBER
YEAR OF MANUFACTURE
WATER CONTENT IN BOILER
MAX HEAT INPUT MAX USEFUL OUTPUT (80-60°C) MAX USEFUL OUTPUT (50-30°C)
MAX OPERATING PRESSURE
D.H.W. CONTENT
MAX HEAT INPUT
MAX OPERATING PRESSURE
FLOW RATE
ELECTRICAL SUPPLY
MAXIMUM ABSORBED POWER
COUNTRY OF INTENDED
INSTALLTION
APPLIANCE CATEGORY
APPLIANCE TYPE
CODE REFERENCE DIRECTIVE
PIN NO.
MIN HEAT INPUT MIN USEFUL OUTPUT (80-60°C) MIN USEFUL INPUT (50-30°C) MAX OPERATING TEMPERATURE
MIN HEAT INPUT MAX D.H.W. TEMPERATURE
ELECTRICAL PROTECTION DEGREE NOx CLASS GAS COUNCIL NUMBER CODE (UK) WRAS CERTIFICATION (UK)
TYPE OF GAS SUPPLY PRESSURE
APPLIANCE CLASSIFICATION
Fig. 2
CAUTION
Tampering with, removing or failing to display the identification plate or carrying out any other operation which does not allow safe identification of the product or which may hinder installation and maintenance operations.
5
1.4 Structure
28
15 16 17
11
12
13
14
10
2930
1
2
3
4
27
26
5
25
6
7
24
8
9
23
22
21
19
18
20
1
Heat exchanger bleed point
2
Heat exchanger
3
Combustion chamber door
4
Oversleeve
5
Flame inspection window
6
Ignition/detection electrode
7
Return probe
8
Heat safety thermostat
9
Flow probe
10
Fan
11
Condensate siphon
12
Diverter valve
13
System filling unit
14
Domestic hot water sensor
15
Control panel
16
Domestic hot water heat exchanger
6
17
Gas valve
18
Domestic hot water filter
19
System safety valve
20
Boiler drain
21
System pump
22
Water pressure transducer
23
Automatic vent valve
24
Air-gas mixer
25
Expansion vessel
26
Air inlet pipe
27
Air-smoke chamber
28
Exhaust flue probe
29
Air inlet
30
Smoke outlet
Fig. 3
1.5 Technical features
DESCRIPTION
20 25 30 35
CERTIFICATIONS
Country of intended installation IT – ES – PT – GR – SI Fuel G20 / G31 PIN number 1312CP5936 Category II2H3P Appliance classification B23P - B33P - B53P - C13 - C33 - C43 - C53 - C63 - C83 NO
x
class 5 (< 70 mg/kWh)
HEATING PERFORMANCE HEAT INPUT (*) Nominal flow (Q Minimum flow (Q
n
max) kW 20 24 30 35
nw
min) kW 4 4,8 6 7
HEAT OUTPUT Nominal (80-60°C) (P Nominal (50-30°C) (P Minimum G20 (80-60°C) (P Minimum G20 (50-30°C) (P Minimum G31 (80-60°C) (P Minimum G31 (50-30°C) (P
n
max) kW 19,7 23,6 29,5 34,5
n
max) kW 21,4 25,7 32,2 37,5
n
min) kW 3,9 4,7 5,9 6,9
n
min) kW 4,3 5,1 6,5 7,5
n
min) kW 3,9 4,7 5,9 6,9
n
min) kW 4,3 5,1 6,5 7,5
EFFICIENCY Max useful efficiency (80-60°C) % 98,5 98,3 98,3 98,6 Min useful efficiency (80-60°C) % 97,5 97,9 98,3 98,6 Max useful efficiency (50-30°C) % 107 107,1 107,3 107,1 Min useful efficiency (50-30°C) % 107,5 106,3 108,3 107,1 Useful efficiency at 30% of load (40-30°C) % 107,0 107,0 107,0 107,0 Thermal efficiency (EEC 92/42) Losses after shutdown at 50°C W 84 88 88 92
DOMESTIC HOT WATER PERFORMANCE Nominal heat input (Q Minimum heat input (Q
nw
max) kW 24 28 34,8 40
nw
min) kW 4 4,8 6 7 Specific D.H.W. flow rate ∆t 30°C (EN 13203) l/min 11,2 12,9 16,5 19,4 Continuous D.H.W. flow rate (∆t 25°C / ∆t 35°C) l/min 13,6 / 9,7 16,1 / 11,5 20 / 14,3 22,9 / 16,4 Minimum D.H.W. flow rate l/min 2 2 2 2
Max (PMW) / Min Pressure
bar 7 / 0,5 7 / 0,5 7 / 0,5 7 / 0,7
kpa 700 / 50 700 / 50 700 / 50 700 / 70
ENERGY PERFORMANCE
HEATING Heating seasonal energy efficiency class A A A A Heating seasonal energy efficiency % 90 90 90 91 Sound power db(A) 59 61 58 60 DOMESTIC HOT WATER Domestic hot water energy efficiency class A A A B Domestic hot water energy efficiency % 81 80 80 81 Stated domestic hot water profile load XL XL XL XXL
ELECTRICAL SPECIFICATIONS
Power supply voltage V 230 Frequency Hz 50 Absorbed electrical power (Q Absorbed electrical power at (Q
n
max) W 70 85 92 111
n
min) W 52 52 57 58 Absorbed electrical power in stand-by W 3,6 3,6 3,6 3,6 Electric degree of protection IP X5D
COMBUSTION DATA
Smoke temperature at Max/Min flow (80-60°C) °C 82 / 66 89 / 71 77 / 67 75 / 62 Smoke temperature at Max/Min flow (50-30°C) °C 59 / 45 71 / 51 58 / 49 54 / 39 Maximum smoke flow Min/Max g/s 11,2 / 1,9 13,1 / 2,2 16,3 / 2,8 18,6 / 3,3 CO
2
at Max/Min flow rate (G20) % 9,0 / 9,0 9,0 / 9,0 9,0 / 9,0 9,0 / 9,0
CO
2
at Max/Min flow rate (G31) % 10,0 /10,0 10,0 /10,0 10,0 / 10,0 10,0 / 10,0
NOx measured mg/kWh 39 41 37 65
NOZZLES  GAS
Number of nozzles 1 1 1 1
ADAX
7
18
M U G E RSc S
TR
DESCRIPTION
Nozzle diameter (G20-G31) mm 5,3 5,3 5,3 5,3 Gas consumption at Max/Min flow rate (G20) m Gas consumption at Max/Min flow rate (G31) Kg/h 1,86 / 0,31 2,17 / 0,37 2,71 / 0,46 3,10 / 0,74
Gas supply pressure (G20/G31)
TEMPERATURE  PRESSURE
Max operating temperature (T max) °C 85 Heating adjustment range °C 20÷80 Domestic hot water adjustment range °C 10÷60
Max operating pressure (PMS)
Water content in boiler l 4,65 4,75 4,95 5,60
3
/h 2,53 / 0,42 2,96 / 0,50 3,70 / 0,63 4,23 / 0,74
mbar 20 / 37 20 / 37 20 / 37 20 / 37
kpa 2 / 3,7 2 / 3,7 2 / 3,7 2 / 3,7
bar 3
kpa 300
20 25 30 35
ADAX
(*) Heat input calculated using the lower heat output (Hi) Lower Heat Output (Hi)
G20 Hi.
9.45 kW/m3 (15°C, 1013 mbar) -
1.6 Main water circuit
1 2
3
4
5 6
12
7
G31 Hi.
12.87 kW/kg (15°C, 1013 mbar)
11
9
10
8
9
Automatic vent valve
10
Pump
11
CH expansion vessel
12
Diverter valve
13
Automatic by-pass
14
Domestic hot water sensor
15
Gas valve
16
Domestic hot water flow meter
17
Domestic hot water filter
18
Boiler drain
19
System relief valve
20
System filling cock
21
Condensate drain siphon
1.7 Sensors
The sensors installed have the following characteristics: – Dual sensor (thermal safety/output) NTC R25°C; 10kΩ β25°-
13
21
20
KEY: M System delivery R System return U Domestic hot water outlet E Domesti hot water inlet S Safety valve outlet
14
15
16
19
17
Fig. 4
85°C: 3435 – domestic hot water sensor NTC R25°C; 10kΩ β25°-85°C: 3435 – external sensor NTC R25°C; 10kΩ β25°-85°C: 3435
0°C 1°C 2°C 3°C 4°C 5°C 6°C 7°C 8°C 9°C
0°C
27279
26135
25044
24004
23014
22069
21168
20309
19489
18706
17959
17245
16563
15912
15289
14694
14126
13582
13062
8945
6247
4444
3216
2365
1766
1336
1024
12565
8622
6033
4300
3116
2296
1717
1300
998
10°C 20°C 30°C 40°C 50°C 60°C 70°C 80°C 90°C
100°C
12090
8313
5828
4161
3021
2229
1669
1266
973
11634
8016
5630
4026
2928
2164
1622
1232
11199
7731
5440
3897
2839
2101
1577
1199
10781
7458
5258
3773
2753
2040
1534
1168
10382
7196
5082
3653
2669
1982
1491
1137
9999
6944
4913
3538
2589
1925
1451
1108
9633
6702
4751
3426
2512
1870
1411
1079
9281
6470
4595
3319
2437
1817
1373
1051
G Gas supply Sc Condensate outlet
1
Condensing heat exchanger
2
Combustion chamber
3
Fan
4
Return probe
5
Thermal safety thermostat
6
Flow probe
7
Domestic hot water heat exchanger
8
Pressure transducer
Correspondence of Temperature Detected/Resistance
Examples of reading: TR=75°C → R=1925Ω TR=80°C → R=1669Ω.
Resistance R (Ω)
8
1.8 Expansion tank
0 800 1000 1200600400200
100
200
300
400
500
600
The expansion vessel installed on the boilers has the following characteristics:
Description U/M
Total capacity l 9,0 10,0
Prefilling pressure
Useful capacity l 5,0 6,0 Maximum system
content (*)
(*) Conditions of: Average maximum temperature of the system 85°C Start temperature at system filling 10°C.
CAUTION
– For systems with water content exceeding the
maximum system content (as indicated in the table) an additional expansion vessel must be prearranged.
– The difference in height between the relief valve
and the highest point of the system cannot exceed 6 metres. If the difference is greater than 6 metres, increase the prefilling pressure of the expansion vessel and the system when cold by 0.1 bar for each meter increase.
kPa 100
bar 1,0
20 25 30 35
l 124 140
ADAX
1.9 Circulation pump
The flow-head performance curve available for the heating system is shown in the graph below.
1.9.1 Pump equipped with LED
LED
Fig. 6
ADAX 30
warning lights which indicate:
For the "Any pump faults and possible solutions" see the relevant section at the end of the manual.
and
ADAX 35
LED colour Status Trouble-shooting
LED off No electrical power
Green
Red/Green Flashing
Red Flashing Permanent safety shutdown
boilers use the pump equipped with LED
Permanently
on
Normal operation "Transient safety shutdown"
Anomaly in progress
RESIDUAL HEAD (mbar)
0
CAUTION
The appliance is equipped with a by-pass which ensures water circulation in the boiler when the thermostatic valves or cocks are used in the system.
40
35
25
30
FLOW RATE (l/h)
Fig. 5
9
1.10 Control panel
21
1
FUNCTIONAL BUTTONS
If pressed once or more than once for at least 1 second
y
during normal operation, this button allows the user to change the boiler operating mode in a cyclical sequence (Stand-by – Summer – Winter). If the boiler is experiencing a fault which can be reset, it allows boiler operation to be unblocked.
During normal operation, pressing the button displays
r
the domestic hot water set point which can be between 10 and 60°C. In "parameter setting", the user can scroll through the parameter index (decreasing) by pressing this button.
During normal operation, pressing the button displays
t
the heating set point which can be between 20 and 80°C. In "parameter setting", the user can scroll through the parameter index (increasing) by pressing this button.
Fig. 7
NOTE:
pressing any one of these buttons for more than 30 seconds generates a fault on the display without preventing boiler operation. The warning disappears when normal conditions are restored.
2
DISPLAY
“SUMMER”
l
operating in "Summer" mode or if only the domestic hot water mode is enabled via the remote control. If the symbols chimney sweep function is active.
“WINTER”
n
operating in "Winter" mode or if both the domestic hot water and heating modes are enabled via the remote control. With the remote control, if no operating modes have been enabled both symbols
“RESET REQUIRED”
d
having repaired the fault, normal boiler operation can be restored by pressing the button
“DOMESTIC HOT WATER”
r
a DHW request or during the "chimney sweep function" It flashes during the selection of the domestic hot water set point.
“HEATING”
t
operation or during the "chimney sweep function It flashes during the selection of the heating set point.
“BLOCK” DUE TO NO FLAME
f
“FLAME PRESENCE”
F
“POWER LEVEL”
v
the boiler is operating.
“PARAMETER”
p
parameter setting/display, or "info" or "counter", or in "activated alarms" (history).
“ALARM”
A
number specifies the cause which generated the alarm.
“CHIMNEY SWEEP”
z
sweep function" has been activated.
. This symbol appears when the boiler is
and n are flashing, this indicates that the
l
. This symbol appears when the boiler is
and n will be off.
l
. The message indicates that after
.
y
. This symbol is present during
. This symbol lights up during heating
.
.
. This indicates the power level at which
. This indicates that the user may be in
. This indicates that a fault has occurred. The
. This indicates that the "chimney
During normal operation, pressing this button allows
<
the user to reduce the heating or DHW set point on the basis of the selection made previously. If there is a Remote Control (Open Therm), after having selected the heating button, the user can modify the incline of the climatic curve (decreasing it) by pressing the button ( In "parameter setting/display", the user can modify the parameter setting or value (decreasing) by pressing this button.
During normal operation, pressing this button allows
>
the user to increase the heating or DHW set point on the basis of the selection made previously. If there is a Remote Control (Open Therm), after having selected the heating button, the user can modify the incline of the climatic curve (increasing it) by pressing the button ( In "parameter setting/display", the user can modify the parameter setting or value (increasing) by pressing this button.
Programming connector cover plug.
c
10
-
).
+
).
1.11 Wiring diagram
BLUE
230 V - 50 Hz
PI
VD
2 3
L
N
CN11
BROWN
BLACK
BROWN
BLUE
BROWN
BLUE
BROWN
BLUE
BLUE
FLM
VCC
RED
BROWN
GND
IN
WHITE
GREEN
SF
V
4 3 2 1
BLUE
BLACK
GREEN
RED
BLUE
BLACK
BLACK
CR
TA
CN15
TA2
BLACK
BLACK
SS
RED
RED
TPA
GND
RED
5V
OUT
GREEN
ORANGE
RED
RED
SR
SE
321 4 5 6
BLUE
GREEN
GREEN
EV
CN13CN12
CN14
F
BLACK
BLACK
CN2
CN3
BLUE
BLUE
TS
EAR
CN5
CN4 CN1
SM
BLUE
BROWN
RED
GREEN
BLACK
BLUE
SR
Return Probe
TS
Safety thermostat
TFU
Thermal fuse
SF
Exhaust flue probe
FLM
Flow meter
VD
Diverter valve
TPA
Pressure transducer
TA-TA2
Air thermostat
SE
External sensor
CR
Remote control (instead of air thermostat)
TRA
L
Line
N
Neutral
F
Fuse (3.15AT)
TRA
Ignition transformer
PI
System pump
V
Fan
EAR
Ignition / Detection electrode
EV
Gas supply solenoid valve
SS
Domestic hot water sensor
SM
Flow probe
CD. 6324920
CN17
CN6
To connect the "Air Thermostat" or, alternatively the "Remote Control", remove the bridge between terminals 5-6.
CAUTION
Users must:
d
IT IS FORBIDDEN
To use water pipes for earthing the appliance.
– Use an omnipolar cut-off switch, disconnect switch
in compliance with EN Standards – Respect the connections L (Live) - N (Neutral) – Ensure that the special power cable is only replaced
with a cable ordered as a spare part and connected
by professionally qualified personnel – Connect the earth wire to an effective earthing
system. The manufacturer is not responsible for any
damage caused by failure to earth the appliance or
failure to observe the information provided in the
wiring diagrams.
TFU
Fig. 8
11
2 INSTALLATION
H
2.1 Unpacking the product
ADAX
appliances are delivered in a single unit protected by
cardboard packaging.
Fig. 9
The plastic bag found inside the packaging contains the following: – Installation, use and maintenance manual – Paper template for boiler installation – Certificate of warranty – Hydraulic test certificate – System booklet – Bag with expansion plugs
Description
L (mm) 400 D (mm) 250 250 250 300 H (mm) 700 Weight (kg) 28,5 28,5 30,0 32,5
20 25 30 35
ADAX
2.3 Handling
Once the packaging has been removed, the appliance is to be handled manually, tilting it slightly, lifting it and applying pressure in the points indicated in the figure.
Fig. 11
d
2.2 Dimensions and weight
IT IS FORBIDDEN
Do not leave packaging material around or near children since it could be dangerous. Dispose of it as prescribed by legislation in force.
d
a
IT IS FORBIDDEN
DO NOT
"solid" parts such as the base and the rear structure.
DANGER
Use suitable tools and accident protection when removing the packaging and when handling the appliance.
hold onto the appliance cladding but use the
2.4 Installation room
The room where the appliance is to be installed must comply with the Technical Regulations and Legislation in force. It must be equipped with suitably sized ventilation openings when the installation is a "TYPE B" installation. The minimum temperature of the installation room must NOT
-5 °C
be lower than
L
P
CAUTION
Remember to consider the space needed in order to access the safety/adjustment devices and to carry out maintenance interventions (see Fig. 12).
.
Fig. 10
12
APPROXIMATE MINIMUM DISTANCES
≥ 300 mm
≥ 900 mm
1
2
≥ 50 mm
Before removing an old heat generator from an existing system, it is recommended that the user: – puts a descaling additive into the water system – allows the system to work with the generator active for a few
days
– drains the dirty water from the system and flushes the system
with clean water once or more than once. If the old generator has already been removed or is not available, replace it with a pump to circulate water in the system and then proceed as described above. Once cleaning operations have been carried out and before installing the new appliance, it is recommended that a fluid is added to the water system to protect it from corrosion and deposits.
Fig. 12
2.5 New installation or installation of a replacement appliance
When
ADAX
boilers are installed on old systems or systems requiring updating, it is recommended the installer checks that: – the connecting flue pipe is suitable for the combustion
temperature of the appliance, calculated and manufactured in compliance with Standards, that it is as straight as possible, air tight, isolated, with no obstructions or restriction and that it has appropriate condensate collection and evacuation systems
– the electrical system has been manufactured in compliance
with specific Standards and by professionally qualified personnel
– the fuel delivery line and the tank (LPG) comply fully with
specific Standards
– the expansion vessel ensures total absorption of the fluid
dilation in the system
– the pump flow-head performance is sufficient for the system
characteristics
– the system is clean, free of any sludge, deposits, de aerated
and air tight. For system cleaning, please refer to the relevant paragraph.
CAUTION
For further information on the type of additive and usage, please contact the appliance manufacturer.
2.7 Water system treatment
When filling and restoring the system it is good practice to use water with: – aspect: clear if possible – pH: 6÷8 – hardness: < 25°f. If the water characteristics are different from those indicated, it is recommended that a safety filter is used on the water delivery pipe to retain impurities, and a chemical treatment system to protect against possible deposits and corrosion which could affect boiler operation. If the systems are only low temperature systems, it is recommended that a product is used to prevent the development of bacteria. In any case, please refer to and comply with Legislation and specific Technical Standards in force.
2.8 Boiler installation
ADAX
boilers leave the factory with a paper template for installation onto a solid wall. For installation: – position the paper template (1) on the wall (2) where the boiler
is to be mounted – make the holes and insert the expansion plugs (3) – hook the boiler onto the plugs.
3
CAUTION
The manufacturer declines all liability for any damage caused by an incorrect implementation of the smoke outlet.
2.6 Cleaning the system
Before installing the appliance on a newly constructed system or replacing a heat generator on an existing system, it is important that the system is thoroughly cleaned to remove sludge, slag, dirt, residue etc.
Fig. 13
13
CAUTION
– The height of the boiler is to be such that disassembly
and maintenance interventions are facilitated.
2.9 Hydraulic connections
The plumbing connections have the following characteristics and dimensions.
2.9.1 Plumbing accessories (optional)
To facilitate plumbing and gas connections to the systems, the accessories as shown in the table below are available and are to be ordered separately from the boiler.
DESCRIPTION CODE
Installation plate 8075441 Curve kit 8075418
Curve and valve kit with connections from DIN to SIME
Cocks kit 8091806 Valve kit with connections from DIN to SIME 8075442 Wall mount replacement kit for other makers 8093900 Connection protection kit (for models 25-30-35 kW) 8094530 Polyphosphate dosing kit 8101700 Dosing recharge kit 8101710 Solar kit for instant combination boilers 8105101
NOTE:
kit instructions are supplied with the accessory itself or
are to be found on the packaging.
8075443
2.10 Condensate outlet/collection
In order to collect the condensate, it is recommended that: – the appliance condensate outlets and the smoke outlet are
ducted – a neutralising device is prearranged
>3%
– the outlet incline is
.
48
Sc
65 65 65 65 ==
M
U G E R
400
Description
M - System delivery Ø 3/4" G R - System return Ø 3/4" G U - Domestic hot water output Ø 1/2" G E - Domestic hot water inlet Ø 1/2" G G - Gas supply Ø 3/4" G Sc - Condensate outlet Ø 20 mm
20 25 30 35
95
175
ADAX
Sc
Fig. 14
CAUTION
– The condensate outlet duct must be airtight,
suitably sized to that of the siphon and must not be restricted at any point.
– The condensate outlet must be constructed in full
compliance of the National or Local regulations in force.
– Before commissioning the appliance, fill the siphon
with water.
2.11 Gas supply
ADAX
boilers leave the factory prearranged for gas G20 and can
also work with G31 without the need for any type of mechanical
”03”
conversion. Simply select parameter setting and display") and set the type of gas to be used. If changing the type of gas to be used, carry out the entire appliance Boiler connection to the gas mains must be carried out in full compliance with installation Standards in force. Perform the following checks before making the connection: – check that the boiler is compatible with the type of gas supply – the pipes are clean – the gas supply pipe is the same dimension as or greater than
that of the boiler fitting (G3/4") and with a load loss less than
or equal to that contemplated between the gas mains and the
boiler.
“COMMISSIONING”
phase.
(see “Parameter
a
14
DANGER
Once installation has been completed, check that the joints are air tight as indicated in the installation Standards.
CAUTION
It is recommended that the gas line has a suitable filter.
2.12 Smoke outlet and combustion air inlet
max 0,5 m
ADAX
boilers must be equipped with appropriate smoke flue ducts and combustion air inlet ducts. These ducts are considered an integral part of the boiler and are provided by of the type permitted and the system requirements.
Permitted outlets
KOVARSON
as an accessory kit, to be ordered separately from the appliance on the basis
B33P
C53
C83
B23P B53P
B23P-B53P
Combustion air inlet into the atmosphere and smoke outlet to open air.
B33P
Combustion air inlet into the atmosphere and smoke outlet into single flue.
NOTE:
opening for combustion air (6 cm2 x kW).
C13
Concentric wall smoke outlet The pipes can start from the boiler but the outlets must be concentric or close together (no more than 50 cm) to be subject to similar wind conditions.
C43
C43
C33
C63
Same type as C42 but with outlet and inlet made from pipes which are sold and certified separately.
C53
Separate wall or roof inlet and outlet in different pressure areas.
NOTE:
the inlet and outlet must never be positioned on
opposing walls.
C83
Outlet in single or shared flue or with inlet on wall.
C33
C13
C13
max 0,5 m
C33
Concentric roof smoke outlet The pipes can start from the boiler but the outlets must be concentric or close together (no more than 50 cm) to be subject to similar wind conditions.
C43
Outlet and inlet in shared or separate flue pipes but subjected to similar wind conditions.
P:
smoke outlet system designed to operate with
positive pressure.
Fig. 15
WARNINGS
– The smoke flue and the connection to the flue pipe must be in compliance with the national and local Standards and
Legislation in force. – The use of rigid ducts which are resistant to temperature, condensate, mechanical stress and are air-tight is compulsory. – Outlet ducts which are not isolated are a risk of danger.
15
2.12.1 Coaxial duct (Ø 60/100mm and Ø 80/125mm)
Coaxial accessories
Description
Coaxial duct kit 8096250 8096253 Extension W. 1000 mm 8096150 8096171 Extension W. 500 mm 8096151 8096170
Vertical extension W. 140 mm with smoke analysis take-off point
Adapter for Ø 80/125 mm - 8093150 Additional 90° curve 8095850 8095870 Additional 45° curve 8095950 8095970 Tile with joint 8091300 8091300 Roof outlet terminal W. 1284 mm 8091205 8091205
Ø 60/100 mmØ 80/125
8086950 -
Code
mm
Load loss - Equivalent lengths
Model
90° curve 1,5 2 45° curve 1 1
Leq (linear metres)
Ø 60/100 mmØ 80/125
mm
Minimum-Maximum Lengths
Duct Length Ø 60/100 Duct Length Ø 80/125
Model
ADAX 20 ADAX 25 ADAX 30 ADAX 35
W
Horizontal
(m)
Min.
- 6 1,3 8 - 12 1,2 15
- 6 1,3 7 - 10 1,2 13
- 4 1,3 6 - 10 1,2 13
- 4 1,3 6 - 10 1,2 13
Max.
H Vertical
(m)
Min.
Max.
W
Horizontal
(m)
Min.
Max.
H Vertical
(m)
Min.
Max.
2.12.2 Separate ducts (Ø 60mm and Ø 80mm)
Constructing outlets for separate ducts indicates the use of the "air-smoke split pipe system". This is to be ordered separately from the boiler and when connected to the other accessories, from those listed in the table below, completes the smoke­outlet/ combustion air inlet assembly.
Separate accessories
Description
Air-smoke split pipe system (without take-off point) Air-smoke split pipe system (with take­off point)
90° curve M-F (6 pieces) 8089921 8077450 90° curve M-F (with take-off point) 8089924 ­M-F 80/60 reduction 8089923 ­Extension W. 1000 mm (6 pieces) 8089920 8077351 Extension W. 500 mm (6 pieces) - 8077350
Extension W. 135 mm (with take-off point)
Wall outlet terminal 8089541 8089501 Internal and external ring nut kit 8091510 8091500 Inlet terminal 8089540 8089500 45° curve M-F (6 pieces) 8089922 8077451 Collector 8091400
Diameter Ø
60 (mm)
8093060 -
Code
Diameter Ø
80 (mm)
- 8093050
- 8077304
Description
Tile with joint 8091300 Roof outlet terminal W. 1390 mm 8091204 Inlet/outlet fitting Ø 80/125 mm - 8091210
Diameter Ø
60 (mm)
Code
Diameter Ø
80 (mm)
Split pipe system
2
3 4
1
Fig. 16
KEY:
1
Split pipe system with take-off point
2
Air inlet
3
Smoke outlet
4
Flue gas analysis socket
CAUTION
The maximum total length of the ducts
, obtained by adding the lengths of the inlet and outlet pipes, is determined by the load losses of the individual accessories used and
For all boiler versions, the total extension
must not exceed 15 mm H2O
must not in
.
any case exceed 25 m (inlet) + 25 m (outlet) for ducts Ø 80 mm. |b|The total extension must not in any case exceed 6 m (inlet) + 6 m (outlet) for ducts Ø 60mm for models
ADAX 20
m (outlet) for models
and
ADAX 30
ADAX 25
and
, and 4 m (inlet) + 4
ADAX 35
, even if the total load loss is less than the maximum which can be applied.
Load loss accessory Ø 60 mm
Load loss (mm H2O)
Description Code
Air/smoke split pipe system
90° curve MF 8089921 0,4 0,9 0,5 1,1 45° curve MF 8089922 0,35 0,7 0,45 0,9
Horizontal extension W. 1000 mm8089920 0,4 0,9 0,5 1,1
Vertical extension W. 1000 mm Wall outlet terminal
Wall inlet terminal 8089540 0,5 _ 0,8 _ Roof outlet
terminal (*)
8093060 2,5 0,5 2,5 0,5
8089920 0,4 0,6 0,5 0,7
8089541 _ 1,2 _ 1,4
8091204 0,8 0,1 1,1 0,15
ADAX 20 ADAX 25
Inlet
Drain
Inlet
Drain
(*) The losses of the roof outlet terminal at inlet include the manifold code 8091400.
16
Load loss accessory Ø 60 mm
185
400
Load loss (mm H2O)
Description Code
Air/smoke split pipe system
90° curve MF 8089921 0,6 1,4 0,6 1,4 45° curve MF 8089922 0,55 1,2 0,55 1,2
Horizontal extension W. 1000 mm8089920 0,6 1,4 0,6 1,4
Vertical extension W. 1000 mm Wall outlet terminal
Wall inlet terminal 8089540 1,1 _ 1,1 _ Roof outlet
terminal (*)
8093060 2,5 0,5 2,5 0,5
8089920 0,6 0,8 0,6 0,8
8089541 _ 1,6 _ 1,6
8091204 1,5 0,2 1,5 0,2
ADAX 30 ADAX 35
Inlet
Drain
Inlet
Drain
(*) The losses of the roof outlet terminal at inlet include the manifold code 8091400.
NOTE:
for the boiler to operate correctly it is necessary that a minimum distance of 0.50 m of the duct is respected with a 90° inlet curve.
Load loss accessory Ø 80 mm
Load loss (mm H2O)
Description Code
90° curve MF 8077450 0,20 0,25 0,25 0,30 45° curve MF 8077451 0,15 0,15 0,20 0,20
Horizontal extension W. 1000 mm8077351 0,15 0,15 0,20 0,20
ADAX 20 ADAX 25
Inlet
Drain
Inlet
Drain
Example: calculation of the load loss of a
Accessories Ø 80 mm
Extension W. 1000 mm (horizontal) Extension W. 1000 mm (horizontal)
90° curve 8077450 2 2 x 0,20 - 0,40 90° curve 8077450 2 - 2 x 0,25 0,50 Wall terminal 8089501 2 0,10 0,25 0,35
TOTAL 3,35
8077351 7 7 x 0,15 - 1,05
8077351 7 - 7 x 0,15 1,05
Code
Quantity
ADAX 20
Load loss (mm H2O)
Inlet
boiler.
Drain Total
(installation permitted since the total of the load loss of the accessories used is less than
15 mm H2O
).
250
120
Ø 80
Ø 80
185
169
169
Vertical extension W. 1000 mm
Wall terminal 8089501 0,10 0,25 0,10 0,35 Roof outlet
terminal (*)
8077351 0,15 0,15 0,20 0,20
8091204 0,80 0,10 1,10 0,15
Load loss accessory Ø 80 mm
Load loss (mm H2O)
Description Code
90° curve MF 8077450 0,30 0,4 0,30 0,4 45° curve MF 8077451 0,25 0,25 0,25 0,25
Horizontal extension W. 1000 mm8077351 0,25 0,25 0,25 0,25
Vertical extension W. 1000 mm
Wall terminal 8089501 0,15 0,50 0,15 0,50 Roof outlet
terminal (*)
8077351 0,25 0,25 0,25 0,25
8091204 1,5 0,2 1,5 0,2
ADAX 30 ADAX 35
Inlet
Drain
Inlet
Drain
(*) The losses of the roof outlet terminal at inlet include the manifold code 8091400.
NOTE:
for the boiler to operate correctly it is necessary that a minimum distance of 0.50 m of the duct is respected with a 90° inlet curve.
Fig. 17
2.13 Electrical connections
The boiler is equipped with a ready wired power cable which is to be connected to a 230V~50 Hz network. If this cable needs to be replaced, an original spare must be requested from
KOVARSON
Therefore only the connections of the original components as shown in the table are needed. These are to be ordered separately from the boiler.
DESCRIPTION CODE
External sensor kit (ß=3435, NTC 10KOhm at 25°C) 8094101 Power cable (dedicated) 6323875 Remote control HOME (open therm) 8092280 Remote control HOME PLUS (open therm) 8092281
CAUTION
The maintenance interventions described must ONLY be carried out the professionally qualified personnel.
.
17
a
OFF
To facilitate introduction of the connection wires of the optional components into the boiler: – remove the two screws (1), pull the front panel (2) forwards
DANGER
Before carrying out any interventions described: – set the main system switch to "OFF" – close the gas valve – make sure that no hot parts inside the appliance are
touched.
Fig. 18
and release it from the top by lifting it
– insert the connection wires into the cable gland (6) and the
opening (7) on the control panel
6
7
Fig. 21
– bring the control panel (4) to the original position and secure
it with the screws (3) which were removed previously
– connect the component wires to the terminal board (8)
following the indications provided on the data plate (9).
2
1
Fig. 19
– remove the screws (3) securing the control panel (4) – move the panel (4) upwards (a) but keeping it in the side
guides (5) to the end of travel
– bring it forwards and down (b) until it is horizontal
4
4
9
8
TA
SE
6 5 4 3 2 1
3
Fig. 22
CAUTION
The following is mandatory: – to use an omnipolar cut-off switch, disconnect
switch in compliance with EN Standards
– if the power cable is to be replaced, that ONLY
a special cable is used with a factory produced re-wired connector, ordered as a spare part and connected by a professionally qualified person
– to connect the earth wire to an effective earthing
system (*)
– that before any intervention on the boiler, the mains
power is disconnected by setting the main system switch to "OFF".
b
3
a
18
5
Fig. 20
(*) The manufacturer is not responsible for any damage caused
by failure to earth the appliance or failure to observe the information provided in the wiring diagrams.
d
20 15 10 5 0 -10 -15-5 -20
°C
CR
SE
SE
IT IS FORBIDDEN
To use water pipes for earthing the appliance.
2.13.1 Outdoor sensor
The boiler is prearranged for connection to an external air temperature sensor and can operate with a sliding temperature. This means that the delivery temperature sent to the boiler can vary on the basis of the external temperature depending on the climatic curve selected from those shown in the diagram (Fig.
23). When fitting the sensor on the outside of the building, follow the instructions provided on the packaging of the product itself.
Climatic curve
ONE DIRECT ZONE system , external sensor and air thermostat.
SE
M
R
TA
CH flow temperature
90
80
70
60
50
40
30
20
K=9 K=6 K=4,5 K=3
CAUTION
If there is an external sensor, in order to select the optimal climatic curve for the system and therefore the delivery temperature based on the external temperature:
– press the button – press buttons
been selected (within the range
K=2,2
K=1,5
K=0,75
°C
Outdoor temperature
Fig. 23
for 1 second
t
or < until the required curve K has
>
K=0.0 - K=9.0
).
Fig. 24
MULTI ZONE system - with pump, air thermostat and external sensor.
TA1
TA
M
MULTI ZONE system - with zone valve, air thermostat and external sensor.
RL1
R
SP
TA2
RL2 RL3
TA3
P2P1
P3
Fig. 25
2.13.2 Chrono-thermostat or Air Thermostat
The electrical connection of the chrono-thermostat or air thermostat has already been described. When fitting the component in the room where the readings are to be taken, follow the instructions provided on the packaging of the product itself.
2.13.3 EXAMPLE of use of the command/control
TA
TA1
M
R
VZ1 VZ2 VZ3
TA2 TA 3
device on some types of heating systems
KEY M System delivery R System return CR Remote control SE Outdoor sensor TA÷TA3 Air thermostat for the zone VZ1-VZ3 Zone valves RL1-RL3 Zone relays P1-P3 Zone pump SP Hydraulic separator
CAUTION
Set the parameter "tS 17 = DELAY SYSTEM PUMP ACTIVATION to allow the opening of zone valve Vz.
Fig. 26
19
2.14 Refilling or emptying
1
4
Before carrying out the operations described below, make sure that the main system switch is set to "ON" in order for the display to show the pressure level in the system during refilling.
Make sure that the operating mode is set to "Stand-by";
the case, press the button mode has been selected.
ON
for at least 1 second until this
y
if this is not
3
Fig. 27
2.14.1 REFILL operations
Remove the front panel:
– remove the two screws (1), pull the front panel (2) forwards
and release it from the top by lifting it.
2
Fig. 28
Domestic hot water circuit:
– open the isolation valves of the domestic hot water circuit (if
present)
– open one or more than one hot water valve to fill and bleed the
domestic hot water circuit
– once bleeding has been completed, close the hot water valves.
4
Fig. 29
NOTE:
to completely remove all air from the system, it is
recommended that this operation is repeated a number of times.
– check the pressure on the display and if necessary top up until
the correct pressure reading appears – close the automatic bleed valve (3) – fill the siphon disconnecting it from the pipe or using (by
means of) the smoke take-off point.
Refit the front panel of the boiler hooking it on at the top, pushing it forwards and securing it with the screw (1) which was removed previously.
2.14.2 EMPTYING operations
Domestic hot water circuit:
– close the domestic hot water circuit isolation valve
(prearranged in installation) – open one or more than one hot water valve to fill and bleed the
domestic hot water circuit.
Boiler:
– loosen the automatic bleed valve (3) – close the heating circuit isolation valves (prearranged in
installation) – check that the filling valve (4) is closed – connect a rubber hose to the boiler drain valve (7) and open it – when it has fully emptied, close the drain valve (7) – close the automatic bleed valve (3).
Heating circuit:
– open the isolation and air bleeding valves in the highest points
of the system – loosen the automatic bleed valve (3) – open the isolation valves of the heating circuit (if present) – open the filling valve (4) and fill the heating system until a
pressure of – close the filling valve (4) – check that there is no air in the system by bleeding all the
radiators and the circuit on the high points of the system
20
1-1.2 bar
is shown on the display
3
7
Fig. 30
3 PUTTING INTO SERVICE
3.1 Preliminary operations
Before commissioning the appliance, check that: – the type of gas is correct for the appliance – the gas isolation valves for the heating system and the water
system are open – the pump impeller rotates freely – the siphon has been filled.
3.2 Before commissioning
After having carried out the preliminary operations, perform the following to start the boiler: – set the main system switch to "ON"
ON
– as soon as the symbols begin to flash, release the buttons <
and press the button y,
and
>
– the "Automatic self-calibrating procedure" starts
open one or more than one hot water tap
– – the values flash on the display:
followed by an "intermediate value" and finally value)
within 3 seconds
“100”
(maximum value),
“00”
(minimum
Fig. 31
– the type of gas for which the boiler has been calibrated,
“LG”
(methane) or
After this the correct representation of the symbols will be
checked and finally
– check that the system pressure as shown on the pressure
gauge when the system is cold , is between – press the button Y once for at least 1 second to select "SUMMER
mode"
l
moment will appear on the display
(LPG,) will appear followed by the power.
“- -”
will appear on the display
1 and 1.2 bar
. the value of the delivery sensor detected at that
“nG”
The operator must wait for approximately 15 minutes for the "self-calibrating procedure" to end and the message "SUMMER mode" terminated: – close the taps opened previously and check that the appliance
shuts down. if there is a fault, the message the fault code (eg.
d
– press the button
mode"
detected at that moment will appear on the display
to reappear on the display Once the procedure has
l
“ALL”
will appear on the display,
“06”
- no flame detected) and the message
.
CAUTION
To restore the start conditions press and hold the button can be performed up to a maximum of 6 times without the "self-calibrating procedure" being interrupted.
. The value of the heating water temperature
n
for more than 3 seconds. This operation
y
once for at least 1 second to select "WINTER
Y
3.2.1 Self-calibrating procedure
Carry out the "Automatic self-calibrating procedure" as follows: – press button
maximum using the button
– press and hold down the buttons < and > at the same time for
approximately 10 seconds until the flashing symbols
appear on the display
n
and set the DOMESTIC HOT WATER SET to
r
>
l
and
– adjust the air thermostat and check that the boiler starts and
operates correctly – carry out the procedure"Chimney sweep function", to check
the mains gas pressure, detect the combustion parameters
and to measure the combustion efficiency required by
legislation in force.
21
3.3 Parameter setting and display
To go into the parameter menu: – from the selected mode (eg. WINTER)
– once the required parameter has been reached, press the
buttons
or <to modify the value within the permitted range.
>
The modifications are stored automatically.
– press the buttons r and t (for approximately 5 seconds) at
the same time until
“PAR 01”
(parameter number) and the
value set (0÷4) appears on the display
When all the parameter modifications have been made, exit the parameter menu by pressing and holding down the buttons
all at the same time
and
t
for at least 5 seconds until the initial
screen is displayed.
– press the button t to scroll up the list of parameters and
to scroll down the list
then
r
NOTE:
holding the buttons r or t increases the speed of the
scrolling movement.
3.4 List of parameters
Type Nr. Description Range U/M Step Default
CONFIGURATION
PAR 01
PAR 02
PAR 03
PAR 04 PAR 08 External sensor value correction -5 .. +5 °C 1 0
PAR 09 Ignition fan speed 80 .. 160 RPMx25 1 128
PAR 10 Boiler Antifreeze Threshold 0 .. +10 °C 1 3 PAR 11 PAR 12 Heating Curve Incline 0 .. 80 - 1 20
PAR 13 Minimum Heating Temperature Adjustment 20 .. PAR 14 °C 1 20 PAR 14 Maximum Heating Temperature Adjustment PAR 13 .. 80 °C 1 80 PAR 15 Maximum power heating 0 .. 100 % 1 100
PAR 16 Heating Post-Circulation Time 0 .. 99
PAR 17 Heating Pump Activation Delay 0 .. 60 PAR 18 Re-ignition Delay 0 .. 60 Min 1 3
PAR 19
PAR 20 Maximum power domestic hot water 0 .. 100 % 1 100 PAR 21 Minimum power heating/domestic hot water (premixed) 0 .. 100 % 1 0
PAR 22
PAR 23
22
Index showing boiler power in kW 1 = 20; 2 = 25; 3 = 30; 4 = 35 Hydraulic configuration 0 = rapid 1 = storage tank with thermostat or heating only 2 = hot water tank with sensor 3 = two programmer 4=instant with solar power input 5 = open vent Gas Type Configuration 0 = G20; 1 = G31 Combustion configuration 0 = sealed chamber with combustion control
DOMESTIC HOT WATER - HEATING
External Sensor Antifreeze Threshold
-- = Disabled
Domestic Hot Water Modulation with Flow meter 0 = Disabled 1 = Enabled
Domestic hot water preheating enabling 0 = OFF; 1 = ON External relay 1 function 0 = not used; 1 = remote alarm NO; 2 = remote alarm NC; 3 = zone valve; 4 = automatic filling; 5 = external request; 6 = recirculation pump; 7 = zone valve with OT; 8 = relaunch pump
1 .. 4 - 1
0 .. 5 - 1 0
0 .. 1 - 1 0
- - - 0
-9 .. +5 °C 1 -2
seconds
x 10
seconds
x 10
0 .. 1 - 1 1
0 .. 1 - 1 0
0 .. 8 - - 0
1 3
1 0
r
1 or 2 or 3
or 4
Type Nr. Description Range U/M Step Default
OFF
CONFIGURATION
External relay 2 function
PAR 24
PAR 25
PAR 26 Zone Valve / Pump Relaunch Delay 0 .. 99 Min 1 1 PAR 28 DHW activation delay with solar power 0 .. 30 Min 1 0
PAR 29 PAR 30 Maximum domestic hot water temperature 35 .. 67 °C 1 60
PAR 35
PAR 40 Modulating Pump Speed
PAR 41 ∆T Modulating pump delivery/Return 10 .. 40 % 1 20
PAR 47
PAR 48 INST Parameter set to default 0 .. 1 - - 0
0 = not used; 1 = remote alarm NO; 2 = remote alarm NC; 3 = zone valve; 4 = automatic filling; 5 = external request; 6 = recirculation pump; 7 = zone valve with OT; 8 = relaunch pump Auxiliary TA function 0 = according to TA 1 = TA Antifreeze 2= domestic hot water disabled
Anti-legionella Function (Only hot water tank)
-- = Disabled
Digital / analogue Pressure switch 0 = water pressure switch 1 = water pressure transducer 2 = water pressure transducer (only pressure displayed)
System pump forcing (only in winter mode) 0 = Disabled 1 = Enabled
RESET
0 .. 8 - - 0
0 .. 2 - 1 0
50 .. 80 - 1 --
0 .. 2 - 1 1
-- = No modulation AU = Automatic 30
.. 100
0 .. 1 - 1 0
% 10 AU
In the event of a fault/malfunction the message on the display with the alarm number eg.
“ALL”
“ALL 04”
will appear
(Domestic
Hot Water Sensor Fault).
Before repairing the fault: – disconnect the appliance from the mains power by setting the
main switch to "OFF"
Fig. 32
– as a precautionary measure, close the gas isolation valve.
Repair the fault and start-up the boiler again.
NOTE:
after having repaired the fault, when the alarm number appears on the display together with the message (see figure), press the button
for approximately 3 seconds
y
d
to start the appliance up again.
3.5 Fault / malfunction codes
Type Nr. Description
ALL 02 Low water pressure in system ALL 03 High water pressure in system ALL 04 Domestic hot water sensor fault ALL 05 Delivery sensor fault ALL 06 No flame detection ALL 07 Safety thermostat intervention ALL 08 Fault in the flame detection circuit ALL 09 No water circulating in the system ALL 10 Auxiliary sensor fault ALL 11 Gas valve modulator disconnected ALL 12 Incorrect configuration of the open /sealed chamber ALL 13 Flue gas thermostat tripped ALL 14 Smoke probe fault ALL 15 Fan check cable disconnected ALL 18 Condensate level fault ALL 28 Maximum number of consecutive releases ALL 37 Fault due to low network voltage ALL 40 Incorrect network frequency detected ALL 41 Flame loss more than 6 consecutive times ALL 42 Button fault ALL 43 Open Therm communication fault ALL 62 Self-calibrating procedure is required ALL 72 Incorrect positioning of the delivery sensor ALL 81 Block due combustion during start-up ALL 83 Irregular combustion (temporary error) ALL 96 Block due to clogging in smoke outlet
23
3.6 Display of operating data and counters
Once the boiler is operating a qualified technician can view the operating data and the counters as follows: – from the operating screen in the mode enabled at that
moment (WINTER
– go into
same time
“DISPLAY”
for more than 3 seconds until the following screen
appears
From this point, the technician has 2 options: – scroll through the list of
(PARc)”
by pressing the button t. Scrolling will be in sequence
– display the
the button
“activated alarms”
r
or SUMMER l)
n
by pressing the buttons r and <
“information (PAR)”
and
“counters
(no more than 10) by pressing
at the
TABLE OF INFORMATION DISPLAYED
Type Nr. Description
PAR 00 SW version PAR 01 External sensor
PAR 02
PAR 03 Smoke probe
PAR 04
PAR 05 AUX auxiliary sensor
PAR 06
PAR 07 Power level
PAR 08 Flow meter rate
PAR 09
PAR 10
Delivery sensor temperature
Domestic hot water sensor temperature
Actual heating SET temperature
Water pressure transducer reading Display of current fan revolutions
TABLE OF COUNTER DISPLAYED
Type Nr. Description
PAR c0
PAR c1
PAR c2
PAR c3 total no. faults
PAR c4
PAR c5
PAR c6
total no. of boiler operating hours
total no. of burner operating hours
total no. of burner ignitions
total no. of times installer parameters "ALL"accessed total no. of times OEM parameters accessed time unitl next maintenance intervention
Range
- 9 .. 99
- 9 .. 99
- 9 .. 99
- 9 .. 99
- 9 .. 99
Pa r.
13 …
Pa r.
14
0 ..
99
0 ..
99
0 ..
99
0 ..
RPM x 100 1
99
Range
0 ..
h x 1000
99
0 ..
h x 1000
99
0 ..
h x 1000
99
0 ..
99
0 ..
99
0 ..
99
1 ..
months 1
199
U/M Step
°C 1
°C 1
°C 1
°C 1
°C 1
°C 1
% 1
l/min 0.1
bar 0.1
U/M Step
0.1; from
0.0 to 9.9; 1; from 10
to 99
0.1; from
0.0 to 9.9; 1; from 10
to 99
0.1; from
0.0 to 9.9; 1; from 10
to 99
x 1 1
x 1 1
x 1 1
– Once in this section, proceed with button t or r.
When all the values have been displayed, exit the menu by pressing and holding down the button yfor approximately 5 seconds until the initial screen is displayed.
24
TABLE OF ACTIVATED ALARMS/FAULTS
Type Nr. Description
PAR A0 Last activated alarm/fault PAR A1 Last but one activated alarm/fault PAR A2 Third from last activated alarm/fault PAR A3 Previous activated alarm/fault PAR A4 Previous activated alarm/fault PAR A5 Previous activated alarm/fault PAR A6 Previous activated alarm/fault PAR A7 Previous activated alarm/fault PAR A8 Previous activated alarm/fault PAR A9 Previous activated alarm/fault
3.7 Checks
3
3.7.1 Chimney sweep function
The chimney sweep function is used by the qualified maintenance technician to check the mains gas pressure, detect the combustion parameters and to measure the combustion efficiency required by legislation in force.
This function lasts 15 minutes and is activated by proceeding as follows: – if the panel (2) has not already been removed, remove the
two screws (1), pull the front panel (2) forwards and release it from the top by lifting it
6
Fig. 35
2
1
Fig. 33
– remove the screws (3) securing the control panel (4) – move the panel (4) upwards (a) but keeping it in the side
guides (5) to the end of travel
– bring it forwards and down (b) until it is horizontal
4
b
a
5
– open the gas valve – power the boiler by setting the main switch to "ON"
ON
Fig. 36
– press the button y for at least 1 second until "SUMMER"
mode
– press and hold down the buttons
for approximately 10 seconds until the message “Hi” appears on the display together with the flashing symbols
– press the button > to make the boiler operate at maximum
power "Hi" and check that the mains gas pressure value on the pressure gauge is correct. Take a reading of the combustion data and measure the combustion efficiency.
– press the button
power "Lo". The message together with the flashing symbols
has been selected
l
<
and > at the same time
<
and
l
to make the boiler operate at minimum
“Lo”
will appear on the display
and
l
n
n
Fig. 34
– close the gas valve – loosen the screw of the "mains pressure" point (6) and connect
a pressure gauge
25
– take the combustion data reading – press the button
The boiler water delivery temperature will appear on the display
– disconnect the pressure gauge, carefully close the pressure
point (6), put the control panel back to the original position and refit the front panel (2).
Gas supply pressure
Type of gas G20 G31
Pressure (mbar) 20 37
to exit the "Chimney sweep Procedure”.
y
3.9 Gas conversion
ADAX
models can work with G20 or G31 without the need for any mechanical conversion. Simply select parameter (see "Parameter setting and display") and set the type of gas to be used.
If changing the type of gas to be used, carry out the entire appliance
“COMMISSIONING”
phase.
”PAR 03”
3.8 Domestic hot water comfort function (preheating)
ADAX
models have a "domestic hot water comfort" function which ensures the best performance in terms of domestic hot water, reducing the time necessary for the hot water to become available and ensuring that the temperature is stable.
To activate the function: – select parameter
display") and set it to
– exit parameter settings and press button > for approximately
5 seconds until the symbol and begins to flash indicating that the function has been activated.
To deactivate the function: – press button
symbols indicating that the function has been deactivated.
r
”PAR 22”
again for approximately 5 seconds until the
>
and R appear on the display and begin to flash
(see "Parameter setting and
a 1
and R appears on the display
r
26
4 MAINTENANCE
OFF
4.1 Adjustments
For the appliance to operate correctly and efficiently it is recommended that the User calls upon the services of a Professionally Qualified Technician to carry out maintenance.
a
CAUTION
The maintenance interventions described must ONLY be carried out the professionally qualified personnel.
DANGER
Before carrying out any interventions described: – set the main system switch to "OFF" – close the gas valve – make sure that no hot parts inside the appliance are
touched.
ANNUAL
Fig. 37
4.3 Cleaning the inside of the appliance
4.3.1 Removing components
To access the internal parts of the boiler: – remove the two screws (1), pull the front panel (2) forwards
and release it from the top by lifting it
2
4.2 External cleaning
4.2.1 Cleaning the cladding
When cleaning the cladding, use a cloth dampened with soap and water or alcohol for stubborn marks.
d
IT IS FORBIDDEN
to use abrasive products.
1
Fig. 38
– remove the screws (3) securing the control panel (4) – move the panel (4) upwards (a) but keeping it in the side
guides (5) to the end of travel
– bring it forwards and down (b) until it is horizontal
4
b
3
a
5
Fig. 39
27
– loosen the clips (6) and extract the air inlet pipe (7)
6
10
6
7
8
– unscrew the swivel joint (8) – extract the connectors (9) from the fan and disconnect the
electrode cable (10)
CAUTION
Work carefully when removing the assembly (13) to prevent any damage occurring to the internal insulation of the combustion chamber and the door seal.
4.3.2 Cleaning the burner and the combustion chamber
The combustion chamber and the burner do not require any particular maintenance. Simply brush them with a soft brush.
4.3.3 Checking the ignition/detection electrode
Check the state of the ignition/detection electrode and replace if necessary. Check the measurements as per the drawing whether the ignition/detection electrode is replaced or not.
+0,5
6
+0,5
-0,5
4,5
-0,5
9
Fig. 40
– Unscrew the four nuts (11) securing the combustion chamber
door (12)
– pull the fan-sleeve-door assembly (13) forwards and remove
it.
12
11
Fig. 42
4.3.4 Final operations
After having cleaned the combustion chamber and the burner: – remove any carbon residue – check that the seal and the insulation of the door (12) to the
combustion chamber are integral. Replace if necessary
– refit the assembly by carrying out the same operations for
removal but in the reverse order and tighten the screws (11) of the door to the combustion chamber
– reconnect the connections to the fan and the electrode.
4.4 Checks
4.4.1 Checking the smoke duct
It is recommended that the user checks that the combustion air inlet duct and smoke outlet duct are integral and airtight.
4.4.2 Checking the expansion vessel pressure
It is recommended that the expansion vessel on the water side is drained and that the prefilling pressure is not less than If this is not the case, pressurize it to the correct value (see sectionExpansion tank".
Once the checks described above have been completed: – refill the boiler as described in section "REFILL operations" – check that the siphon has been filled correctly – activate the "Chimney sweep function" and carry out a smoke
analysis and/or measure the combustion efficiency
– refit the front panel securing it with the two screws which
were removed previously.
1 bar
.
11
13
28
Fig. 41
4.5 Unscheduled maintenance
If replacing the parameters as indicated in the table.
Type
Nr. Description
PAR 01
PAR 02
PAR 03
To enter "Parameter setting and display"refer to the indications provided in the specific section. Once the parameters in the table have been set, you must carry out the entire phase of "Self-calibrating procedure" described in the specific section.
gas cock
If the
burner
, and/or the the entire phase of "Self-calibrating procedure" described in the specific section.
electronic board
Index showing boiler power in kW 1 = 20; 2 = 25; 3 = 30; 4 = 35 Hydraulic configuration 0 = rapid 1 = storage tank with thermostat or heating only 2 = hot water tank with sensor 3 = two programmer 4=instant with solar power input 5 = open vent Gas Type Configuration 0 = G20; 1 = G31
and/or the
ignition/detection electrode
fan
are replaced, the user must still carry out
, the user MUST set the
Setting for
20 25 30 35
1 2 3 4
ADAX
0
0 or 1
, and/or the
4.6 Troubleshooting
LIST OF MALFUNCTION/FAULT ALARMS
Type Nr. Fault Solution
ALL 02
ALL 03
ALL 04
ALL 05 Delivery sensor fault
ALL 06 No flame detection
ALL 07
ALL 08
Low water pressure in system
High water pressure in system
Domestic hot water sensor fault
Sensor or safety thermostat intervenes
Fault in the flame detection circuit
- Restore pressure
- Check for any leaks in the system
- Empty the system via the drain valve on the hydraulic assembly and bring the pressure to approximately 1.2 bar
- Check connections
- Replace the sensor
- Check connections
- Replace the sensor
- Check the integrity of the electrode and check that it is not grounded
- Check gas availability and pressure
- Check the integrity of the gas valve and the card
- Check the sensor or thermostat connections
- Deaerate the system
- Check the bleed valve
- Replace the sensor or the thermostat
- Check that the pump impeller is not blocked
- Check the integrity of the electrode and check that it is not grounded
- Check gas availability and pressure
- Check the integrity of the gas valve and the card
Type Nr. Fault Solution
- Check the rotation
ALL 09
ALL 10 Auxiliary sensor fault
ALL 11
ALL 12
ALL 13
ALL 14 Smoke probe fault
ALL 15
ALL 18 Condensate level fault
ALL 28
ALL 37
ALL 40
ALL 41
ALL 42 Button fault
ALL 43
ALL 62
ALL 72
ALL 81
ALL 83
ALL 96
- -
- -
No water circulating in the system
Gas valve modulator disconnected Incorrect configuration of the open /sealed chamber
Flue gas thermostat tripped
Fan check cable disconnected
Maximum number of consecutive resets reached
Fault due to low network voltage.
Incorrect network frequency detected
Flame loss more than 6 consecutive times
Open Therm communication fault
Self-calibrating procedure is required
Incorrect positioning of the delivery sensor
Block due to combustion during start-up
Irregular combustion (temporary error) Block due to clogging in smoke outlet Frequent relief valve intervention
Limited production of domestic hot water
of the system pump impeller
- Check the electrical connections
- Replace the pump
- Check PAR 02 "hydraulic configuration"
- Check the electrical connection
- Check the electrical connection
- Set the parameter PAR 04 (Combustion configuration) to 0
- Replace the smoke probe
- Contact the Technical Assistance Centre
- Replace the smoke probe
- Check the electrical connection of the smoke probe, if the problem is not resolved, contact the Assistance Centre
- Check the connection cable between the fan and the board
- Check for any clogging in the pipe which takes the condensate to the siphon
- Check that the siphon is not clogged
- Contact the Technical Assistance Centre
- Check with tester
- Contact network provider (ENEL)
- Contact network provider (ENEL)
- Check the detection electrode
- Check the gas supply (open valve)
- Check mains gas pressure
- Check that buttons are working
- Check the electrical connection of the remote control
- Carry out the self­calibrating procedure (see the specific section)
- Check that the delivery sensor is attached to the delivery pipe
- Check for blockage in chimney
- Bleed the air from the gas circuit
- Check for blockage in chimney
- Check for blockage in chimney
- Check circuit pressure
- Check expansion vessel
- Check the diverter valve
- Check that plate heat exchanger is clean
- Check domestic hot water circuit valve
29
4.7 Any pump faults and possible solutions
LED colour Pump status Fault Possible solution
"Transient safety shutdown"; Anomaly
Red-Green
flashing
Flashing red "Permanent safety shutdown"
LED off Stationary
After eliminating the anomaly, the pump
in progress
restarts automatically
Network voltage too high or too low; (160V > Vn > 280V) Motor overload; rotor friction or blockage due to the presence of debris Excessive speed; the pump rotor is actuated by an external factor and is rotating at a speed exceeding the maximum permitted speed Overcurrent; stator winding is in short circuit due to water The temperature inside the motor is too high The pump is obstructed by an external flow (> 1200l/h) in the opposite direction
Pump blocked due to debris in the system Fault in the electronic board and/or the
motor No electrical power - Check the electrical power connection
LED faulty - Check if the pump can operate
Electronic board faulty - REPLACE THE PUMP
- Check network voltage
- Check the characteristics of the system water; clean the system of any debris
- Check that there is no external flow in the system (no other pump in operation)
- Check for leaks in the system
- Check the water temperature in relation to ambient temperature
- Eliminate or reduce the external flow (< 1200l/h)
- Remove and reconnect the electrical power supply (OFF - ON)
- If the "red LED" continues to flash:
- REPLACE THE PUMP
30
31
KOVARSON s.r.o.
Lhota u Vsetína 4
755 01, Vsetín tel. ČR: +420 571 420 926 tel. SR: +421 949 176 717
email: info@kovarson.com
Loading...
