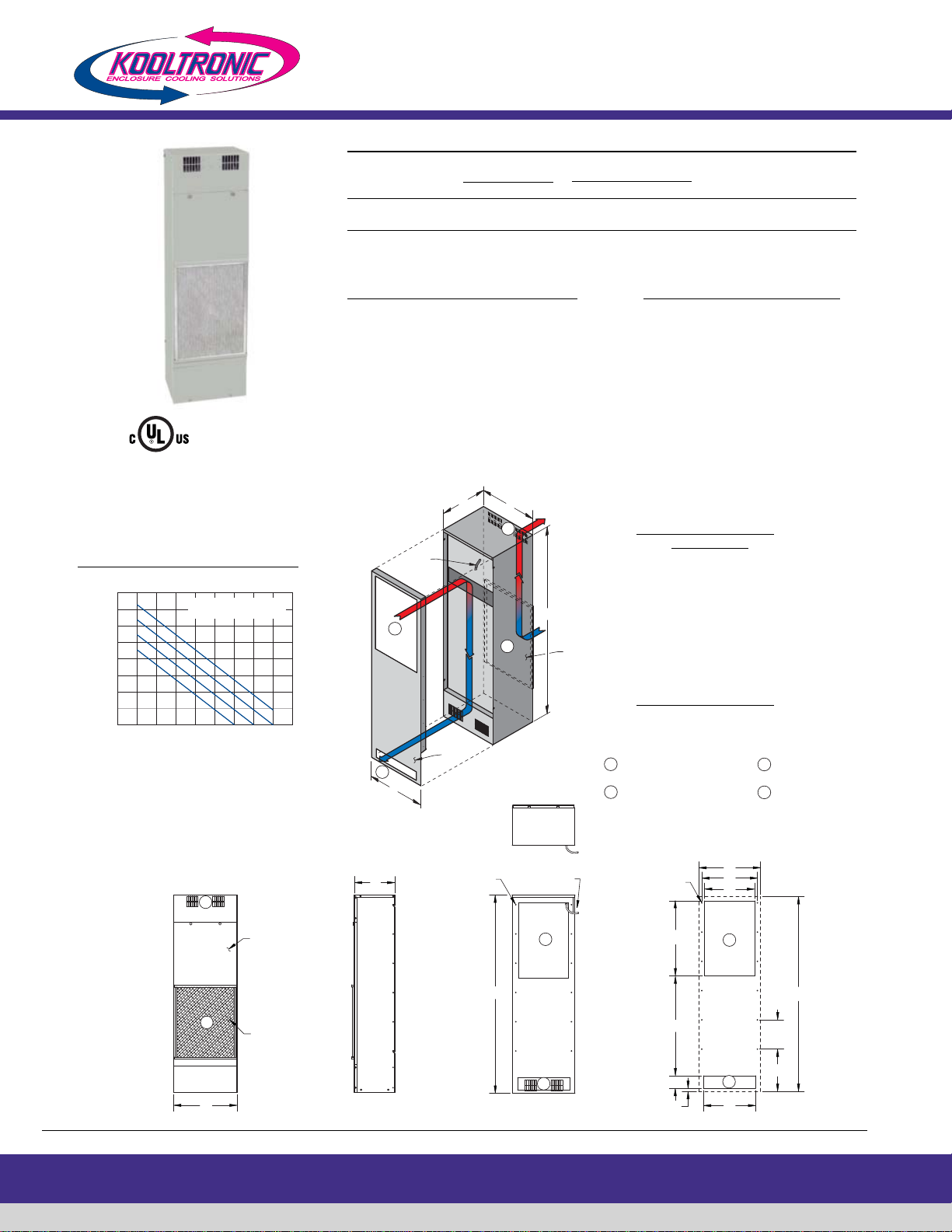

KXNP59 TRIMLINE AIR-TO-AIR
PANEL-MOUNTED HEAT EXCHANGERS
Dimensions, inches [mm], are for reference only and subject to change.
* 60 Hz. operation. For 50 Hz. operation, consult Kooltronic.
kxnp59.qxd 10/18/11
NEMA
TYPE 12
MAINTAINED
MOUNTING PLAN
R
ACCESSORIES
AND OPTIONS
Filter Recoating Adhesive
Lifting Eyes
Low Airflow Detector
Other voltages and frequencies
Replacement Filters
Special materials or finishes
Special motors, line cords or
connectors
Stainless or Aluminum Shell
Temperature Alarm
Weather Protection Kit
STANDARD FEATURES
Closed-Loop Near-Ambient Cooling
Convoluted Aluminum Element
Epoxy-coated element
Filter
Heavy-duty Steel Shell
NEMA 12 Rating Maintained (UL50)
Removable Element Access Panel
UL/CUL Listed
DIMENSIONS
KXNP59
A 59.56 [1512.8]
B 17.13 [435.1]
C 13.75 [349.3]
D 16.75 [425.5]
E 7.50 [191.0]
F 2.94 [74.7]
G 15.25 [387.4]
H 27.88 [708.2]
J 20.00 [508.0]
K 14.00 [355.6]
L 14.69 [373.1]
M 11.00 [279.4]
N 6.69 [169.9]
P16
PERFORMANCE*
TECHNICAL DATA*
Maximum Performance Approx.
Power Temperature ºF Watts/ºF Weight
Model Volts Amps Watts Enclosure Ambient (Air In) (lbs.)
KXNP59 115 7.20 665 160 -20 to 131 91 130
K2XNP59 230 3.35 665 160 -20 to 131 91 130
8000
130
7000
120
6000
110
5000
100
4000
3000
2000
Cooling Capacity (Watts)
1000
0
40
50 60
KXNP59
Maximum enclosure
air temperature ºF
70 80 90 100 110 120 130
Ambient Tem
perature (ºF)
2
REMOVABLE
ACCESS PANEL
C
POWER
CORD
3
M/TAB
4
D
B
2
A
1
FILTE
FILTERED CONDENSER
1
AIR INLET (Ambient Air In)
CONDENSER OUTLET
2
(Warm Ambient Air Out)
WARM AIR RETURN FROM
3
ENCLOSURE
COOL AIR OUTLET
4
TO ENCLOSURE
B
C
(P) .250 [6.4]
DIA. HOLES
POWER
CORD
3
(P) .312 [7.9]
DIA. HOLES
J
L
K
3
1
B
FILTER
A
H
4
F
E
4
G
N
TYP.
M
A
