Kooltronic Advantage RT Top Mount, K2A4C3RTL, KA3C6RTL, K2A3C6RTL, KA4C3RTL Operator's Manual

Keep This Manual

With Air Conditioner

AIR CONDITIONER

OPERATOR'S MANUAL

CAUTION

BEFORE INSTALLING AND

USING THIS AIR CONDITIONER,

IT IS IMPORTANT THAT THIS

MANUAL BE READ AND

UNDERSTOOD THOROUGHLY

KOOLTRONIC, INC.

30 Pennington-Hopewell Road

Pennington, NJ 08534

609•466-3400

FAX: 609• 466-1114

www.kooltronic.com

900-037-03 (1/19)
(CDR: 20131)

ADVANTAGE

RT TOP MOUNT

SERIES

Find additional information on this
model at kooltronic.com, or use the
Technical Documents QR code
below.

Technical

Documents

2

TABLE OF CONTENTS

Page

I. Introduction 2

II. Incoming Inspection 3

III. Product Handling 3

IV. Product Identification and Nameplate 4

V. Principles of Operation 5 - 6

VI. Pre-Installation Testing 6

VII. Specific Model Data 7 - 9

Mounting

Drawings and Dimensions

Technical Data

Major Component Replacements

Standard Features

VIII. Maintenance 10 - 11

IX. Trouble Shooting 12

X. Warranty 13

NOTE: Wiring Schematics are available on the specific model page of the Kooltronic website.

I. Introduction

Kooltronic Air Conditioners are designed to provide a cool, dehumidified environment for your electronic
components. There are models to fit virtually all sizes and shapes of electronics enclosures, in
capacities ranging from 1,000 to 30,000 BTU/H. Our "closed-loop" design also ensures that your
components will not be exposed to hot, dirty operating conditions.

This Manual provides you with the necessary general information for properly installing and operating
standard Kooltronic Air Conditioners. Technical data and mounting instructions are presented on pages
7 through 9.

3

II. Incoming Inspection

Kooltronic Air Conditioners are designed, built and packaged to withstand the shock and vibration normally
associated with shipment by common carriers. Occasionally improper handling during shipping causes damage.
Such handling could include unbanding of palletized shipments, failing to respect "This Side Up" arrows, rough
handling, falling off conveyors, excessive vibration, crushing, etc. Therefore, a thorough inspection should be
done upon receipt of all shipments. Any carton tears, dents, scratches, loose articles or evidence of oil are signs
of damage and should be noted on the Freight Bill. Cartons should be opened promptly and the units inspected
for CONCEALED DAMAGE. Kooltronic Air Conditioners must be delivered in the proper mounting position to
assure that damage to the compressor has not occurred during shipping. Any Kooltronic Air Conditioner that is
delivered removed from the banded pallet, lying down or double stacked should be refused.

An immediate claim MUST be filed with the freight carrier and an inspection requested. Retain all packing
materials. Kooltronic cannot assume responsibility for Consignee's failure to file a timely freight claim.

III. Product Handling:

1) Do not attempt to operate your Kooltronic Air Conditioner until you read and thoroughly understand this
Manual. See section VI PRE-INSTALLATION TESTING.

2) Before operating the Kooltronic Air Conditioner be certain that it is placed in its correct mounting position.
This Air Conditioner is designed to operate in a horizontal position only. This placement must be done
a minimum of 5 minutes prior to operating in order to allow the compressor oil to drain to the compressor
sump area.

CAUTION

3) Before operating this unit, all electrical wiring must be checked to assure the proper connection to the
correct power source. Minimum circuit ampacity should be at least 125% of the amperage found on the
nameplate for the corresponding voltage. Do not exceed the maximum fuse size found on the nameplate.

4) We do not recommend that Air Conditioners be shipped to their final destination attached to an enclosure.
In the event that the Air Conditioner needs to be shipped attached to an enclosure it is strongly
recommended that proper support be provided for the Air Conditioner. Excessive vibration can occur if Air
Conditioners are not properly supported when shipped on enclosures, increasing the potential for internal
damage and voiding the warranty.

5)

PROCEDURE FOR PROPER PACKING AND SHIPMENT OF KOOLTRONIC AIR
CONDITIONERS:

■

Keep Air Conditioner in proper upright position indicated by arrow markers.

■

Pack Air Conditioner in an appropriate carton (preferably original carton if possible), with
adequate internal protective packaging, making sure carton is marked and is kept in correct
upright position.

■

For local, controlled transportation, strap carton to a secure part of truck to prevent falling or
sliding, minimize vibration, etc.

■

For common carrier shipment, band unit(s) securely to a pallet. Unpalleted shipment risks
severe damage which voids the warranty.

Kooltronic Air Conditioners must be operated in their proper mounting position. If attempts are

made to operate a unit that is not in its designed mounting position, permanent compressor

damage will occur. This action will void the warranty. To avoid compressor damage do not tip the

unit more than 45° from its proper mounting position.

4

IV. Product Identification and Nameplate

Each Kooltronic Air Conditioner includes an identification nameplate. This nameplate provides:

q

Model Number

w

Serial Number

e

Electrical power characteristics

r

Maximum and minimum ambient operating temperatures

t

Cooling capacity

y

Type and amount of refrigerant required for recharging

u

Design Pressure

i

Maximum Fuse Size

o

Manufacturing Order Number

a

Filter Part Number

s

Underwriters Laboratories Inc. Listed or Recognized Marks and NEMA ratings

We recommend you copy this information from your unit.

qwo When ordering parts, specify the Model Number, Serial Number & MFG. Order Number.

e Before operating, be sure that the power source matches these requirements.

y Use of incorrect type or amount of refrigerant will adversely affect performance and may damage the unit.

r Make sure that these parameters are met. Failure to do so may result in permanent damage to the unit.

eeee rr

ty

qw

uu i

a

s

o

Air Conditioner

SERIAL NUMBERMODEL NUMBER

F.L . A.PH.FREQ.VOLTS

AMBIENT TEMP.COOLING

MAX.°FMIN.°F

COOLING BTU

DESIGN PRESSURE P.S.I.G.

HIGHLOW

MAX.

FUSE SIZE

MFG. ORDER NO.

FILTER P/N

SPECIAL PURPOSE AIR CONDITIONER
NEMA/EEMAC/UL50 BY UNDERWRITERS LABORATORIES, INC.
TYPE 3R & 12 INTERFACE TO THE ELECTRICAL ENCLOSURE ONLY

NEMA/EEMAC/UL50 BY UNDERWRITERS LABORATORIES, INC.
TYPE 1 SPECIAL PURPOSE AIR CONDITIONER EQUIPMENT
COMPARTMENT ONLY
OUTDOOR USE

SERVICE AIR FILTER REGULARLY
ALLOW 5 MIN. BEFORE RESTARTING AFTER SHUTDOWN

UNAUTHORIZED SERVICE OR MODIFICATION
VIOLATES WARRANTY

ALL MOTORS ARE THERMALLY PROTECTED

MANUFACTURED BY:

KOOLTRONIC, INC. PENNINGTON, NJ

Oz.REFRIGERANT

LISTED 84H7

SPECIAL PURPOSE

AIR CONDITIONER

5

V. Principles of Operation

Kooltronic Air Conditioners are required when the
equipment operating temperature must be kept
near or lower than the ambient room temperature,
and/or the cabinet must be sealed from dust,
fumes, oil, corrosives and other contaminants.
These Air Conditioners utilize a "Closed-Loop
Cooling System" to ensure optimum performance
of the installed components.

Closed-Loop cooling seals the electronic enclosure
from hostile elements in the environment. Two
separate circulation systems are employed. The
internal system cools and dehumidifies the air
inside the cabinet, totally isolating the sensitive
electronics and other components from the
environment. The external system uses circulating
ambient air or water to discharge the heat removed
from the electronics. The heat is dissipated from the
enclosure by means of the vapor compression
refrigeration cycle. This takes place in a
hermetically-sealed refrigeration system, utilizing
either an air-cooled or water-cooled condenser
heat exchanger. The warm air inside the enclosure
is drawn through the evaporator coil where it is cooled, dehumidified and returned.

Any enclosure moisture accumulated on the evaporator coil is collected in the condensate tray and removed
through the drain tube to the condensate evaporator. Condensate evaporates in the condensate evaporator and is
released to the ambient air by the condenser impeller.

The heat removed through the evaporator coil is transferred by the compressed refrigerant to the condenser coil.
Ambient air is then passed through the condenser coil, where it absorbs the heat and is then discharged to the
environment.

This unit is equipped with a Low Temperature Thermostat to prevent the evaporator coil from freezing. In conditions
of low ambient temperature and low enclosure load, the thermostat regulates the return air temperature from
75°F to 86°F. The standard set point of the Low Temperature Thermostat is 75°F. The set point can be
changed to 70°F or to 79°F by changing the location of the thermostat jumper (see illustrations below).

The Low Temperature Thermostat has a test start relay. When the air conditioner is turned on it will run constantly
for the first 15 minutes regardless of external temperatures. Afterwards, if the entering evaporator air temperature
is lower than the thermostat set point, the compressor and condenser blower will stop, and the thermostat will begin
to control the air conditioner.

The crankcase compressor heater allows the unit to start with an ambient temperature of 0

o

F. In applications having

frequent voluntary heat load fluctuations, an optional Compressor Short Cycle Protector is recommended.

CONDENSER
AIR OUT

SUPPLY
AIR OUT

RETURN
AIR IN

CONDENSER
AIR IN

RT TOP MOUNT

Thermostat Jumper

ELECTRONIC

THERMOSTAT

CONTROL

Electronic Thermostat Control

Dimensions, inches [mm], are for reference only
and are subject to change.

RELAY
CONTACTS
N.O.

120 VAC

240 VAC

.17

[4.3]

6

7

8

9

10

2.06

[52.3]

2.60

[66.0]

J1

3
2
1

CG

5

TEMPERATURE
SENSOR

4

Mounting Holes (4)

3

.156 [3.9] DIA.

2

1

4

J2

3

1

2

ADJUSTING
PINS

3

1

2

70ºF - Connect 1 and 2

75ºF - Connect 1 and 3

79ºF - Connect 1 and 4

4

6

VI. Pre-Installation Testing

Before mounting the air conditioner to the enclosure, test for proper operation. This will verify the shipping
integrity of the system. Please follow the steps below prior to installation.

CAUTION

1. The unit must sit in an upright position at a minimum room temperature of 65°F to allow the system to

warm-up. This is particularly important during winter months.

2. Refer to the nameplate for proper electrical voltage and current requirements. Connect the power cord
to a properly grounded and fused electrical supply, leaving electrical power to the unit turned off.

3. Elevate the unit approximately 3" above the floor to ensure proper evaporator airflow. Do not block
evaporator air inlet on bottom of unit.

4. Note the factory thermostat setting which is 75

o

F.

5. Turn the electrical power on.

6. Verify that the evaporator blower or fan is running.

7. Verify that the condenser blower or fan is running. Note: The start of the condenser fan or blower will
be delayed until the system pressures rise.

8. Operate the air conditioner for approximately ten (10) minutes. During this period no unusual noise or
vibration should be evident. Both the evaporator and condenser fans or blowers should be delivering
air through their respective discharge ports. The cool air discharged should be less than 70°F when the
room temperature is between 70°F and 80°F.

9. Turn off the electrical power and disconnect the air conditioner from the power source.

10. If any cover plug was removed to adjust the unit, be sure to replace it in order to maintain the integrity
of the closed-loop airflow system.

NOTE: Before shipment all Kooltronic Air Conditioners are subjected to a performance test.

The temperature of the returning air to the air conditioner is displayed on the exterior

panel of the unit. This is considered the maximum temperature within the enclosure

and not the temperature of the air supplied to the enclosure.

When the Kooltronic Air Conditioner is properly sized it should operate constantly and maintain 75oF to 115oF
enclosure temperatures, depending on the ambient temperatures.

IMPORTANT NOTE

The air conditioner must be standing in its proper mounting position for a minimum of five

(5) minutes prior to testing. Failure to follow this procedure will cause permanent damage to

the compressor. To avoid compressor damage do not tip the unit more than 45° from its

proper mounting position.

VII. Specific Model Data

Mounting

Kooltronic Air Conditioners have been engineered to be installed easily. To avoid damaging your Air
Conditioner, please read the following information before installation

.

• Top-Mounted Air Conditioners for external top installation contain weld-nuts.

• Refer to Figure 1 above for the location of all mounting holes and cutouts.

• Make sure the cutouts don't interfere with components inside your cabinet.

• Proper alignment of all air inlets and outlets is essential for optimum performance of the Air

Conditioner.

• All externally-mounted Air Conditioners must be fully gasketed to ensure proper sealing. This seal is

necessary to maintain the integrity of the closed loop system. See Gasket Placement, Figure 2, above.

• Use all existing mounting holes to insure stability and a tight seal.

• High strength mounting screws are recommended.

• The external drain hose must not be elevated above the exit port. Improper mounting will impede the

flow of condensate and may cause internal malfunctions.

CAUTION

7

When unmounting the unit from the cabinet, make certain

to keep the unit level to avoid spilling any water

that may be in the condensate pan.

Dimensions, inches [metric], are for reference only and are subject to change.

Dimensions, inches [metric], are for reference only and are subject to change.

FIGURE 1

FIGURE 2

MOUNTING PLAN

GASKET PLACEMENT

13.38

[340.0]

1.90

[48.2]

9.00

[228.6]

TYP.

12.00

[304.8]

3.70

[94.0]

2.59

[54.8]

6.00

[152.4]

6.00

[152.4]

14.12

[358.6]

2.50

[63.5]

2.83

[72.0]

(6) .312 [7.9]

DIA. HOLES

2.06

[52.3]

1.19

[30.2]

TYP.

(6) MOUNTING HOLES

.50

[12.7]

.50

[12.7]

.50

[12.7]

.50

[12.7]

4.19

[106.4]

GASKET 1/4" x 1/2"
KOOLTRONIC P/N 0639-55

START AND END GASKET
MATERIAL HERE.
USE ONE CONTINUOUS
PIECE OF GASKET.
BEND GASKET AROUND
THE CORNERS, DO NOT
STRETCH THE MATERIAL.

APPLY (3) SEPARATE
PIECES OF GASKET
BETWEEN THE
PERIMETER GASKET
AS SHOWN.

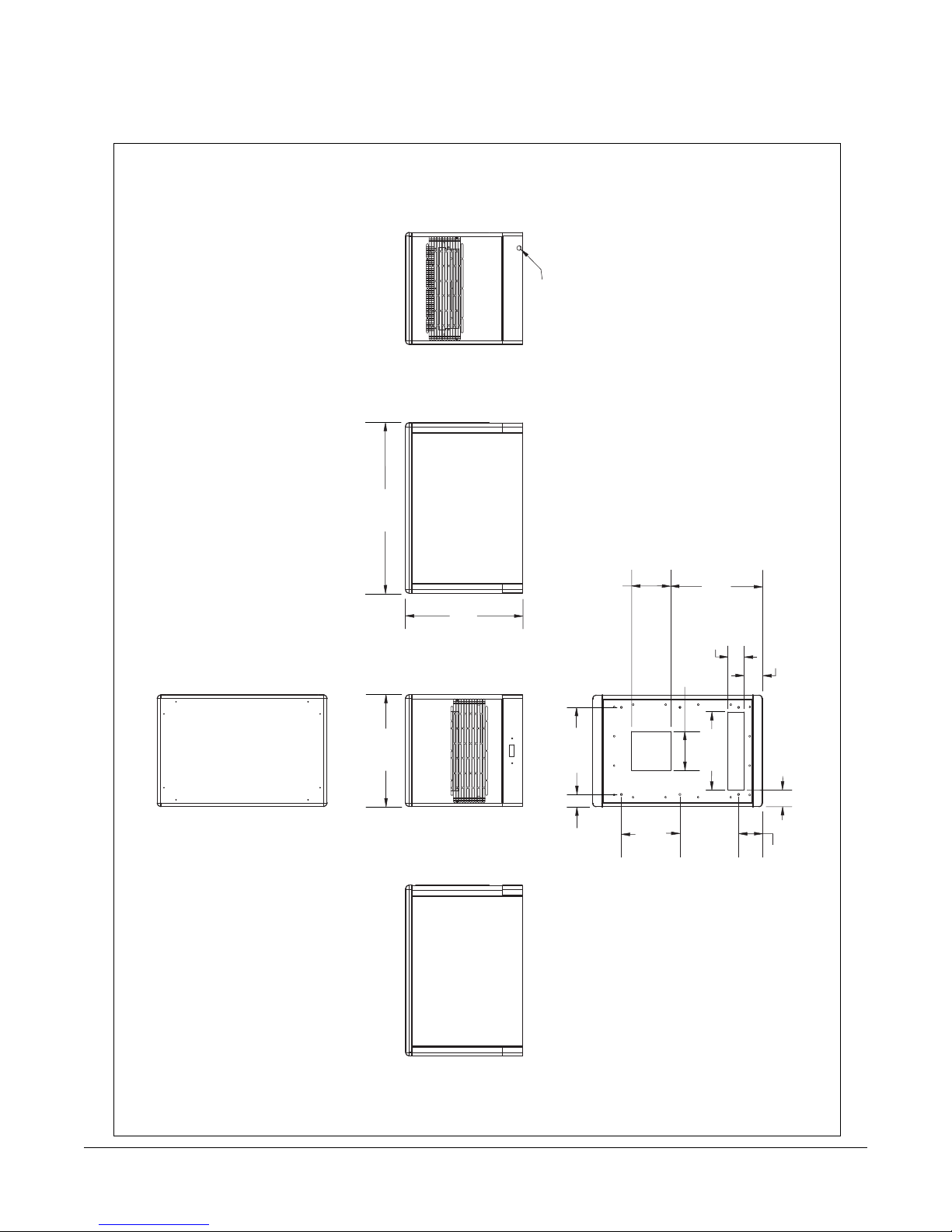

Drawings and Dimensions

KA__C__RTL

Dimensions, inches [metric], are for reference only and are subject to change.

8

GA00425A-Rev. D

26.14

[664.0]

.625 [15.8]

DIA. DRAIN

17.18

[436.4]

18.00
[457.2]

13.38

1.90

[340.0]

[48.2]

6.00
[152.4]

9.00
[228.6]

TYP.

6.00
[152.4]

14.12

[358.6]

2.50

[63.5]

12.00

[304.8]

2.83

[72.0]

2.59

3.70

[94.0]

[54.8]

9

Technical Data

KA4C3RTL 3000 125 0 115 60/50 12.5/12.0 6.0/5.7 125
K2A4C3RTL 3000 125 0 230 60/50 6.0/5.7 4.0/7.5 125

KA3C6RTL 6000 120 0 115 60/50 13.5/13.3 8.0/14.6 131
K2A3C6RTL 6000 120 0 230 60/50 6.0/5.7 4.0/7.5 131

KA3C12RTL 12000 120 0 115 60/50 18.0/19.0 8.0/14.6 140
K2A3C12RTL 12000 120 0 230 60/50 9.0/9.2 4.0/7.5 140

KA4C6RTL 6000 125 0 115/100 60/50 14.6/14.3 8.0/14.6 131
K2A4C6RTL 6000 120 0 230/208 60 6.3/7.0 4.0/7.5 131

120 0

220/200 50 5.6/6.0 4.0/7.5

KA4C12RTL 12000 120 0 115/100 60/50 17.6/18.7 8.0/14.6 140
K2A4C12RTL 12000 125 0 230/208 60 8.7/9.3 4.0/7.5 140

125 0 200 50 8.5 4.0/7.5

Ambient Ambient

* ** Approximate

BTU/H Temp. °F Temp. °F Cooling Heating Weight

Model Rating Max. Min. Volts Hz Amps Amps (lbs.)

* Rating shown is for operation at maximum ambient temperature.

**

Optional Single Enclosure Heater/Double Enclosure Heaters.

Major Component Replacements

KA4C3RTL KA3C6RTL KA3C12RTL KA4C6RTL KA4C12RTL

Part Part Number Part Number Part Number Part Number Part Number

Compressor 0665-116 0665-71 0665-76 0665-119 0665-131
Compressor Capacitor N/A 0452-54 0452-54 0452-32 0452-52
Condenser Blower Motor 0261-287 0261-287 0261-287 0261-287 0261-287
Condenser Blower Capacitor 0452-03 0452-03 0452-03 0452-03 0452-03
Evaporator Blower Motor 0265-03 0194-76 0194-14 0194-76 0194-14
Evaporator Blower Capacitor N/A 0452-65 0452-65 0452-65 0452-65
Evaporator Coil 0667-45 0666-27 0666-27 0666-27 0666-27
Condenser Coil 0666-27 0666-30 0666-30 0666-30 0666-30
Filter 10871F 10871F 10871F 10871F 10871F

K2A4C3RTL K2A3C6RTL K2A3C12RTL K2A4C6RTL K2A4C12RTL

Part Part Number Part Number Part Number Part Number Part Number

Compressor 0665-107 0665-72 0665-77 0665-120 0665-125
Compressor Capacitor N/A 0452-12 0452-14 0452-32 0452-32
Condenser Blower Motor 0261-288 0261-288 0261-288 0261-288 0261-288
Condenser Blower Capacitor 0452-03 0452-03 0452-03 0452-03 0452-03
Evaporator Blower Motor 0265-06 0194-101 0194-15 0194-101 0194-15
Evaporator Blower Capacitor N/A 0452-64 0452-64 0452-64 0452-64
Evaporator Coil 0667-45 0666-27 0666-27 0666-27 0666-27
Condenser Coil 0667-27 0666-30 0667-30 0666-30 0667-30
Filter 10871F 10871F 10871F 10871F 10871F

Units in BOLD are current standard products. Other units are prior product offerings and shown for reference only.

Standard Features

CFC-Free Refrigerant Low Temperature Control Thermostat
Digital Temperature Display NEMA 12 & 3R Ratings Maintained (UL50)
Filter Painted Metal Grille
Head Pressure Control UL/CUL Listed
Low Ambient Kit

10

VIII. Maintenance

Kooltronic Air-Cooled Air Conditioners require routine cleaning of the condenser coil (if necessary) and the
air filters to assure unimpeded airflow through the condenser heat exchanger. It is not possible to recommend
specific condenser coil or filter cleaning intervals, since the level and the nature of airborne particulate matter
differs widely with each installation. It is generally sufficient to clean the condenser coil and/or the aluminum
mesh filter when the outer surfaces appear covered with a thin layer of dust, lint or other foreign matter. The
condenser coil can be blown out with air, or washed, depending on the foreign matter involved. Disconnect
power and remove air conditioner from cabinet before using liquids to clean the unit. (see below - Filter and
condenser coil service). The aluminum mesh filter can be washed with warm water. Appropriate
disposable replacement filters are available from Kooltronic.

If routine condenser coil or filter service is neglected or delayed, the air conditioner will not perform at its
design capacity. The first indication of an excessively clogged condenser coil or air filter is usually a gradual
increase of temperature within the equipment cabinet. If operation is continued under these conditions, the
compressor will be shut off by the thermal overload device. The compressor will restart when its external
temperature drops below the protector threshold setting and the compressor will continue to cycle on and off.
Continued operation under these conditions will cause damage, shorten compressor life and void the warranty.

A. Filter and condenser coil service

Kooltronic RT Top Mount Air Conditioners feature an easily removable inlet filter to facilitate
necessary cleaning. To access the filter, loosen the torx screws and remove the front grille. Push the
filter upward and pull the bottom edge forward to remove. After removal, the filters should be flushed
under warm running water with clean side up. If the accumulated dirt is oily, washing in a detergent
bath is recommended, followed by a warm water wash as above. To reinstall the filter, insert the filter
into the filter holder and push the filter back into position. Reinstall the front grille using the torx
screws.

The condenser coil must be cleaned using pressurized air. If liquid cleaning solutions are used, it is
necessary that the air conditioner be removed from the cabinet to avoid liquids draining into the
electronics. Disconnect power before performing this type of operation.

CAUTION

B. Blowers

The design life of the blowers employed in all Kooltronic Air Conditioners is substantially in excess of
20,000 hours. All Kooltronic condenser and evaporator blowers are equipped with UL/CSA
permanently-lubricated precision ball-bearing motors, with automatic-reset thermal overload protectors.
If field replacement of a blower motor is necessary, most blower assemblies, including the mounting
plate, are readily removable. Each of the blower mounting plates is held to the air conditioner cabinet
structure by screws and nuts. For installation of the replacement blower, electrical connections may
be broken at the terminal block, or power leads may be cut and appropriately spliced together.

Do not operate the air conditioner for extended periods of time with the filter removed.

The condenser coil may become clogged with dust or lint from the air entering the face.

A clogged condenser coil is not readily detected and will give the same reaction as a

clogged filter. A clean filter is the best protection.

11

CAUTION

C. Compressor

All Kooltronic compressors are approved by UL and CSA, and require no maintenance. They are
hermetically sealed and charged at the factory, and equipped with automatic-reset thermal overload
protectors.

If the compressor or the hot gas bypass valve fails, it is strongly recommended that the air conditioner
be returned to Kooltronic for service.

D. Refrigerant Loss

Kooltronic Air Conditioners are subjected to a series of tests to detect refrigerant leaks, during and
after manufacture. It is possible that shipping or other damage, or microscopic leaks over a long
period, may result in the need for replenishment of refrigerant charge. When it has been verified by

a Certified EPA Technician that a refrigerant shortage does exist, the leak must be repaired.
Then the unit may be evacuated and recharged in the field by a Certified EPA Technician only.

CAUTION

E. Relocation

If your Kooltronic Air Conditioner has to be moved to another location by truck, the following
precautions should be taken:

■

De-mount the air conditioner from the equipment, controller or enclosure.

■

Conform to the applicable provisions of PROCEDURE FOR PROPER PACKING AND
SHIPMENT OF KOOLTRONIC AIR CONDITIONERS in this manual under

Section III.

"PRODUCT HANDLING".

Before opening the air conditioner, disconnect all power.

Refer to the data on the unit nameplate which specifies the type of

refrigerant and the amount of charge in ounces.

12

.

IX. Trouble-Shooting

Each Kooltronic Air Conditioner is engineered for performance and built for reliability. They are designed to
require only routine maintenance. If your air conditioner should require service, we have compiled a
trouble-shooting chart to assist your service personnel. If additional assistance is required contact
Kooltronic at [phone]

.

Problem Cause Solution

Unit not Cooling No Power Check Power Source and

Electrical Connections

Loss of Refrigerant Locate and repair leak

Evaporator or Condenser Replace Motor, Capacitor or
Blower not operating entire Assembly

Filter clogged Clean or replace Filter

Clogged Evaporator or Clean Coil
Condenser Coil

Low Temperature Control Lower setting until unit starts
(Thermostat) improperly set

Low Temperature Control Replace Thermostat or Relay
(Thermostat) defective when applicable

Failed Compressor Replace Compressor

Ice on Evaporator Coil Insufficient Heat Load or Unit Contact Kooltronic

Oversized for Application

Failed Evaporator Blower Replace Evaporator Blower

Motor or Assembly

Clogged Evaporator Coil Clean Coil

Condensate draining Enclosure not properly sealed Check and seal all openings
continuously

Excessive opening of Enclosure Eliminate the frequency of

door opening

Excessive vibration Defective Motor in Blower Replace Motor

Defective Wheel in Blower Replace Wheel

Compressor Loose Tighten Mounting Bolts

Compressor Inoperative Low line Voltage Check Nameplate Voltage

against supply

Loss of Compressor Oil Replace Compressor

Loss of Refrigerant Locate and repair leak

Failed Compressor Capacitor Replace Capacitor

Thermal Overload Contact Kooltronic

Power interruptions Allow Compressor time to reset

Refrigerant or Oil leaks Crack or pin hole in tubing or Replace tubing or rebraze joint

brazed joint

Condensate on the outside Insufficient Heat Load or Unit Contact Kooltronic
surface of the Enclosure oversized for application

X. Standard Warranty

THIS WARRANTY CONSTITUTES THE ENTIRE WARRANTY WITH RESPECT TO THE PRODUCT AND IS IN
LIEU OF ALL OTHERS, EXPRESSED OR IMPLIED, INCLUDING ANY WARRANTY OF MERCHANTABILITY
AND WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE AND IN NO EVENT IS KOOLTRONIC
RESPONSIBLE FOR ANY CONSEQUENTIAL DAMAGES OF ANY NATURE WHATSOEVER.

RETURN AUTHORIZATION (RA) PROCEDURE

KOOLTRONIC products are warranted to be free of defects
in workmanship, materials and components. The following
warranty periods apply from date of shipment:

■

Air moving devices/components and hermetic system
components: 1 year

■

Spare parts, except filters: 90 days

The above warranty applies when the equipment is operated
under the following conditions:

■

Ambient temperature not in excess of 125°F (52°C) in
normal atmosphere or as stated on product nameplate

■

Voltage variation no greater than ± 10% from nameplate
rating

■

Frequency variation no greater than ±3Hz from nameplate
rating

■

Maximum cooling load no higher than air conditioner
nameplate rating

■

Waiting five minutes before restarting air conditioner after
intentional or accidental shutoff

■

Compliance to all other installation, maintenance and
operating instructions, as supplied

■

The purchaser assumes the responsibility of grounding
the unit and installing it in accordance with local electrical
and safety codes, as well as the National Electric Code
(NEC) and OSHA

KOOLTRONIC cannot assume responsibility for
mis-application of its products or the erroneous
selection of an inappropriate product by a non­authorized KOOLTRONIC representative. Our
applications engineers will gladly assist in the
selection of the proper product, provided all
required details of the application are furnished.

■

All returns require a Return Authorization number whether
the return is for warranty or non-warranty repair, rotation of
stock, damage or any other reason. Returns without an RA
number will be refused.

■

Customer must call KOOLTRONIC After Sale Kare (ASK),
Pennington, New Jersey (609 • 466 • 3400) to obtain an RA
number, or email [e-mail].

■

The following information is required when an RA is
requested:

- Original customer Purchase Order number and date

- Date product was received by customer

- Number of parts to be returned

- Product description, model and serial number

- Reason for return

- Action requested

- Contact name, telephone, FAX numbers and e-mail address

■

Pack unit in a suitable container for shipment, preferably the

original packaging if available. All Air Conditioners must be
returned in an upright position properly secured to a pallet.
Improper packaging may void warranty claim. If an Air
Conditioner is received laying down or shipped via UPS or
similar small parcel service the warranty will be void.

■

Mark carton prominently with KOOLTRONIC’s Return
Authorization Number.

■

Enclose all pertinent documents.

■

Freight charges on all products returned to KOOLTRONIC
shall be paid by the customer. Unauthorized collect shipments
will be refused.

■

If a unit is repaired under Warranty, KOOLTRONIC will pay
the freight charges both ways within the Continental USA
at KOOLTRONIC’s negotiated rates. Warranty repaired
units will be returned to customer at KOOLTRONIC expense
only within the Continental USA.

■

All authorized returns are subject to a restocking fee.

KOOLTRONIC assumes no liability beyond the repair or
replacement of its own product. This Warranty does not
cover:

■

Labor or reimbursement of labor for evaluation, removal,
installation, repair, or cost of any warranted part, unless
authorized in writing by KOOLTRONIC

■

Use of equipment for other than its designed purpose or
operating conditions

■

Operation in harsh, oily, corrosive or other abnormal
environmental conditions, without the proper filtration,
sealing, protective coatings and/or weather protection

■

Damage to hermetic system resulting from continuous
operation with dirty or clogged air filters or improper or
negligent maintenance

■

Use of refrigerant other than designated

■

Customer modification or abuse

■

Shipping damage or other accident (Claims for shipping
damage are the responsibility of the customer. Timely
claims must be filed by the customer with the freight carrier)

■

Cracked or broken hermetic tubing, brazed joints or other
internal damage caused by shipping or mishandling

■

Damage caused by shipping units attached to an
enclosure

■

Any and all conditions resulting from noncompliance with
the preceding operating conditions

■

Returned freight must be paid by customer

■

This standard warranty does not apply to custom
products. Consult your KOOLTRONIC representative
for limitations

13
