Kontron Embedded Computers PCI-760 User Manual

PCI-760 Board

User’s Manual
Version 1.00

Kontron Embedded Computers GmbH

0-0096-4163

1. Table of Contents

PCI-760 – User’s Manual (V1.00) 1

1. Table of Contents

1. Table of Contents ..........................................................................................................................................................1

2. Introduction....................................................................................................................................................................3

2.1. Symbols used in this Manual........................................................................................................................................4

3. Safety Instructions ........................................................................................................................................................5

3.1. Safety Instructions for the Lithium Battery....................................................................................................................5

3.2. Basic Safety and EMC Compatibility ............................................................................................................................5

4. Important Instructions...................................................................................................................................................6

4.1. Electrostatic Discharge (ESD) ......................................................................................................................................6

4.2. Note on the Warranty....................................................................................................................................................6

4.3. Exclusion of Accident Liability Obligation......................................................................................................................6

4.4. Liability Limitation / Exemption from the Warranty Obligation.......................................................................................6

4.5. General Instruction on Usage.......................................................................................................................................6

5. Scope of Delivery...........................................................................................................................................................7

5.1. Labeling Information.....................................................................................................................................................7

6. Features..........................................................................................................................................................................8

7. Functional Diagram.....................................................................................................................................................13

8. Memory Installation.....................................................................................................................................................14

9. Jumpers and Connectors Overview...........................................................................................................................15

9.1.1. Connectors located on Slot Bracket....................................................................................................................18

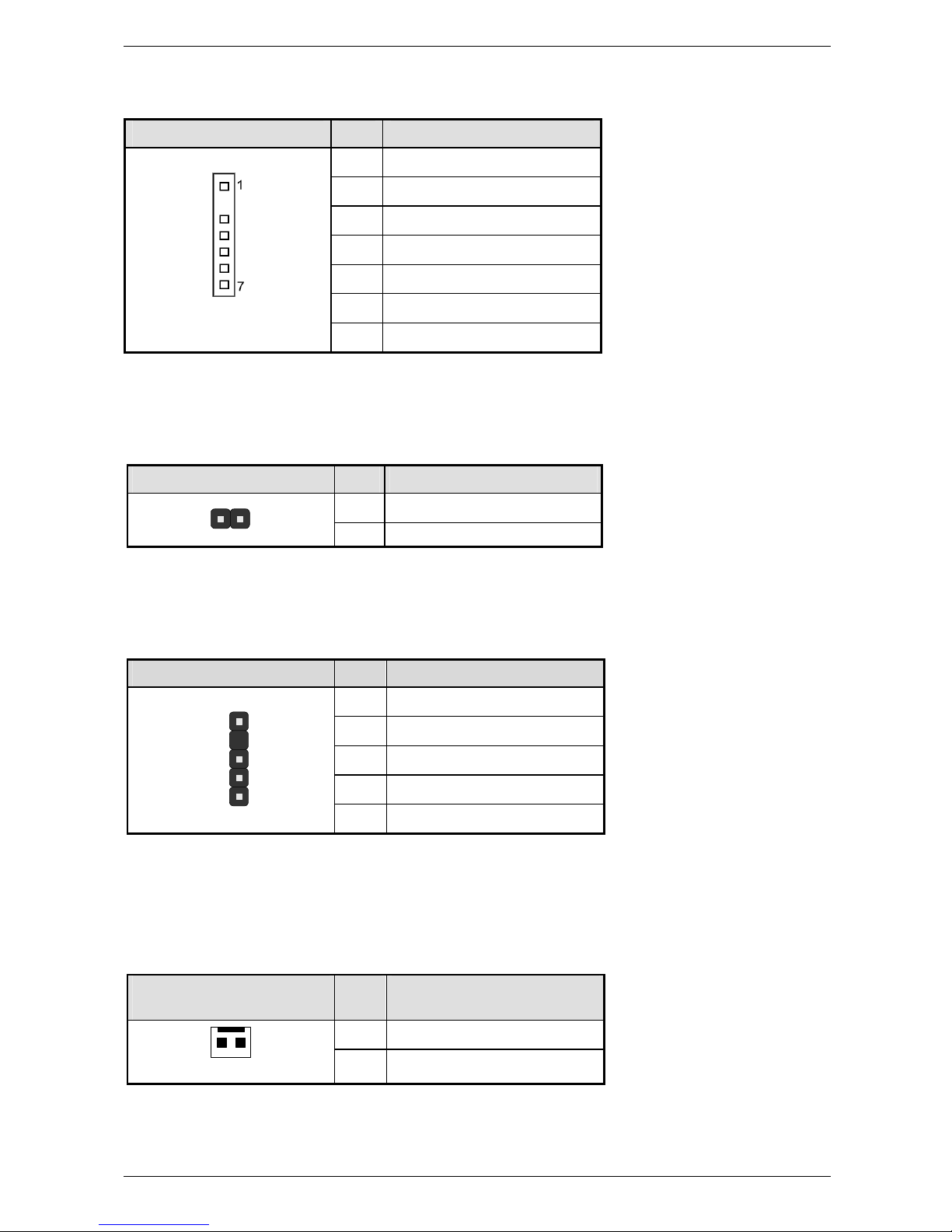

9.1.2. Jumpers on the PCI-760 .....................................................................................................................................20

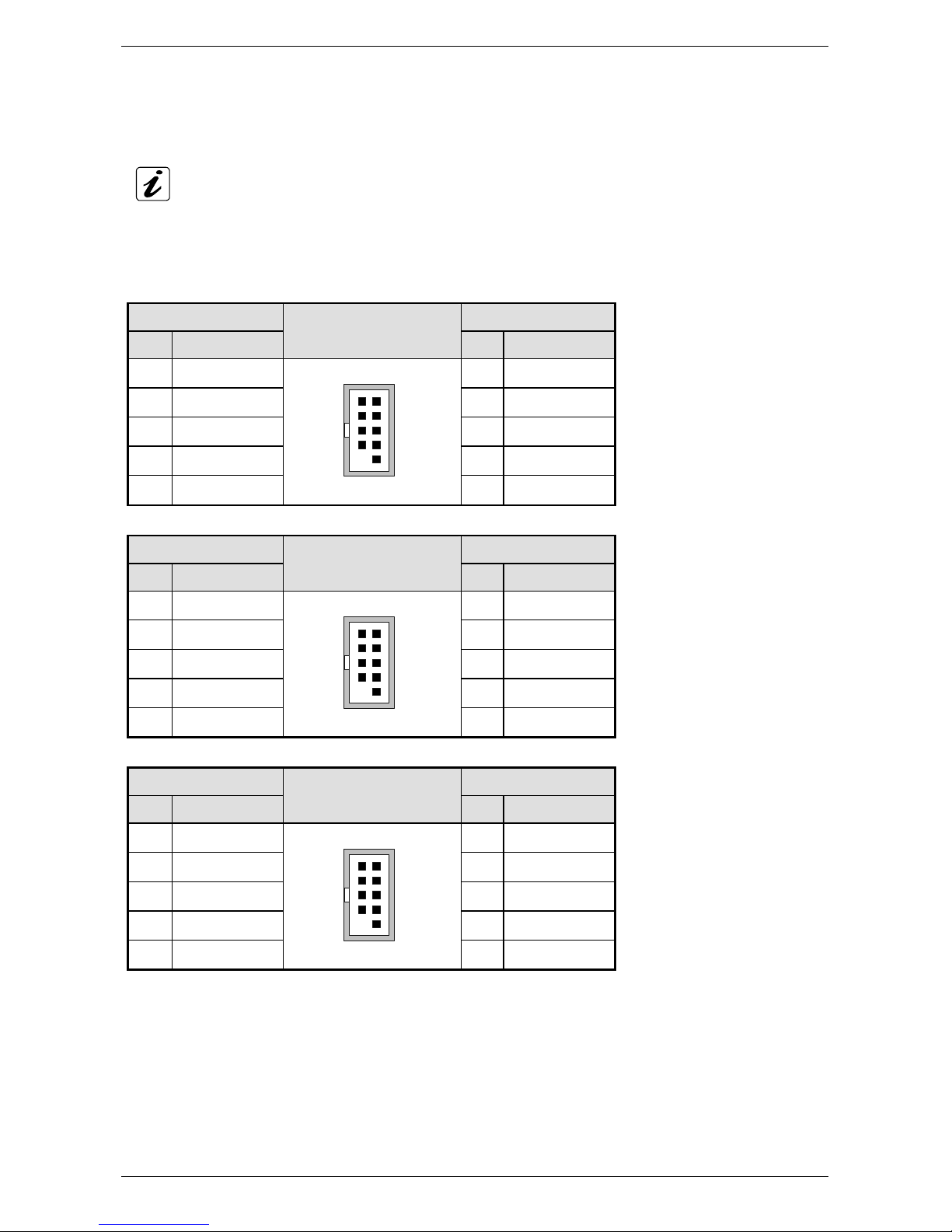

9.1.3. Connectors On-Board .........................................................................................................................................22

9.1.4. PICMG 1.3 Connector (Edge Connector) PCI Express and PCI(-X) Interfaces ..................................................32

9.1.5. Lithium Battery....................................................................................................................................................36

10. AMI BIOS Configuration............................................................................................................................................37

10.1. BIOS Setup...............................................................................................................................................................37

10.1.1. Navigation.........................................................................................................................................................37

10.2. Main..........................................................................................................................................................................38

10.2.1. System Time / System Date..............................................................................................................................38

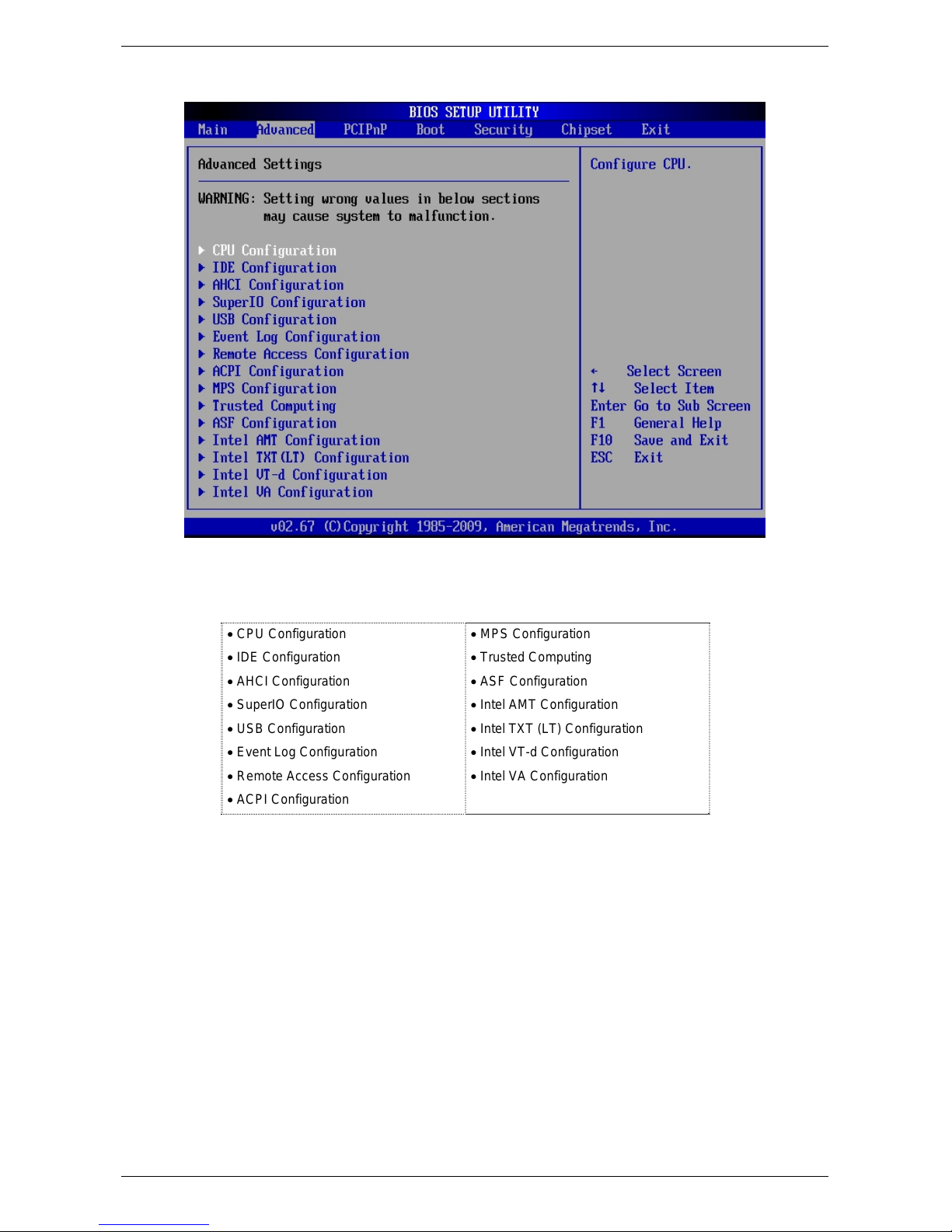

10.3. Advanced..................................................................................................................................................................40

10.3.1. CPU Configuration (Configure advanced CPU settings) ...................................................................................41

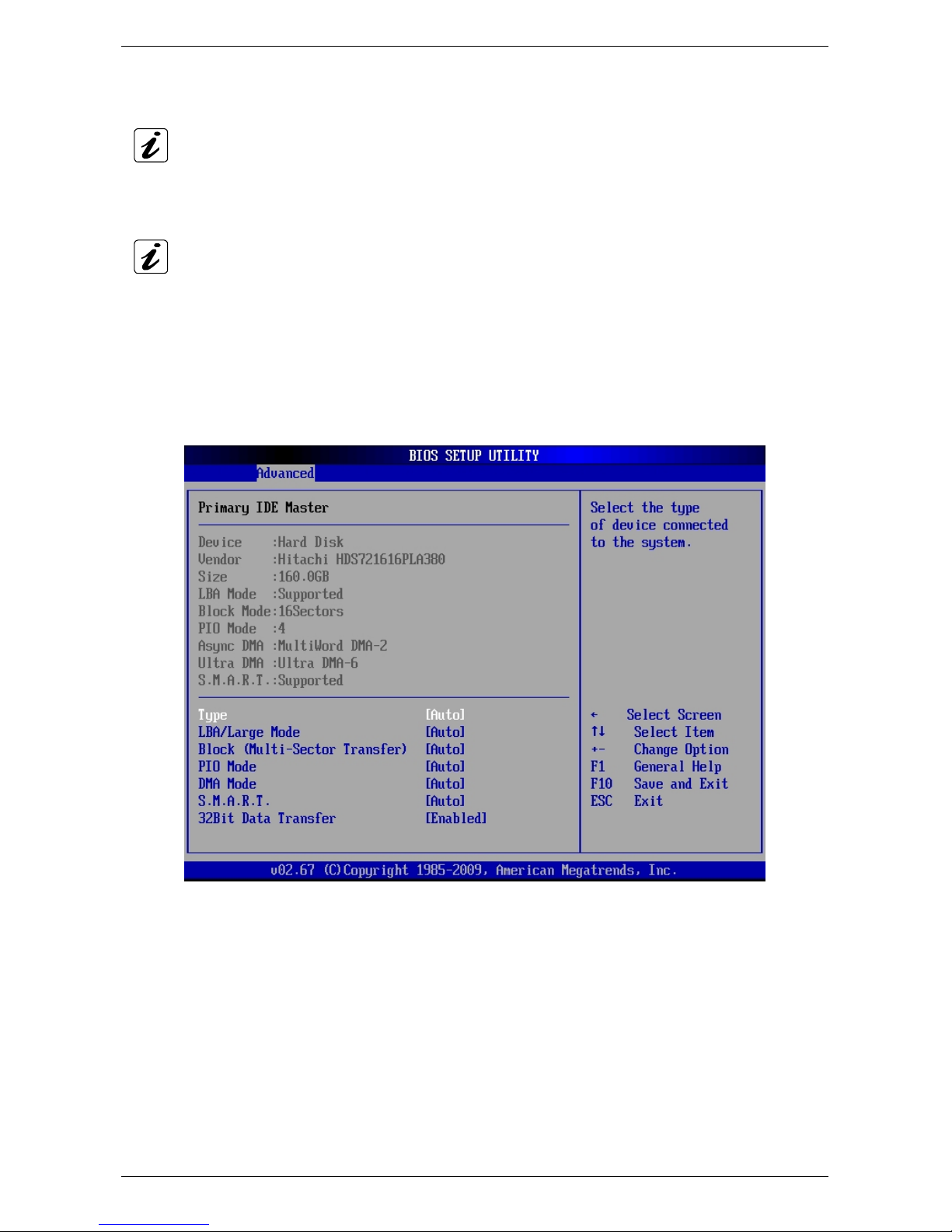

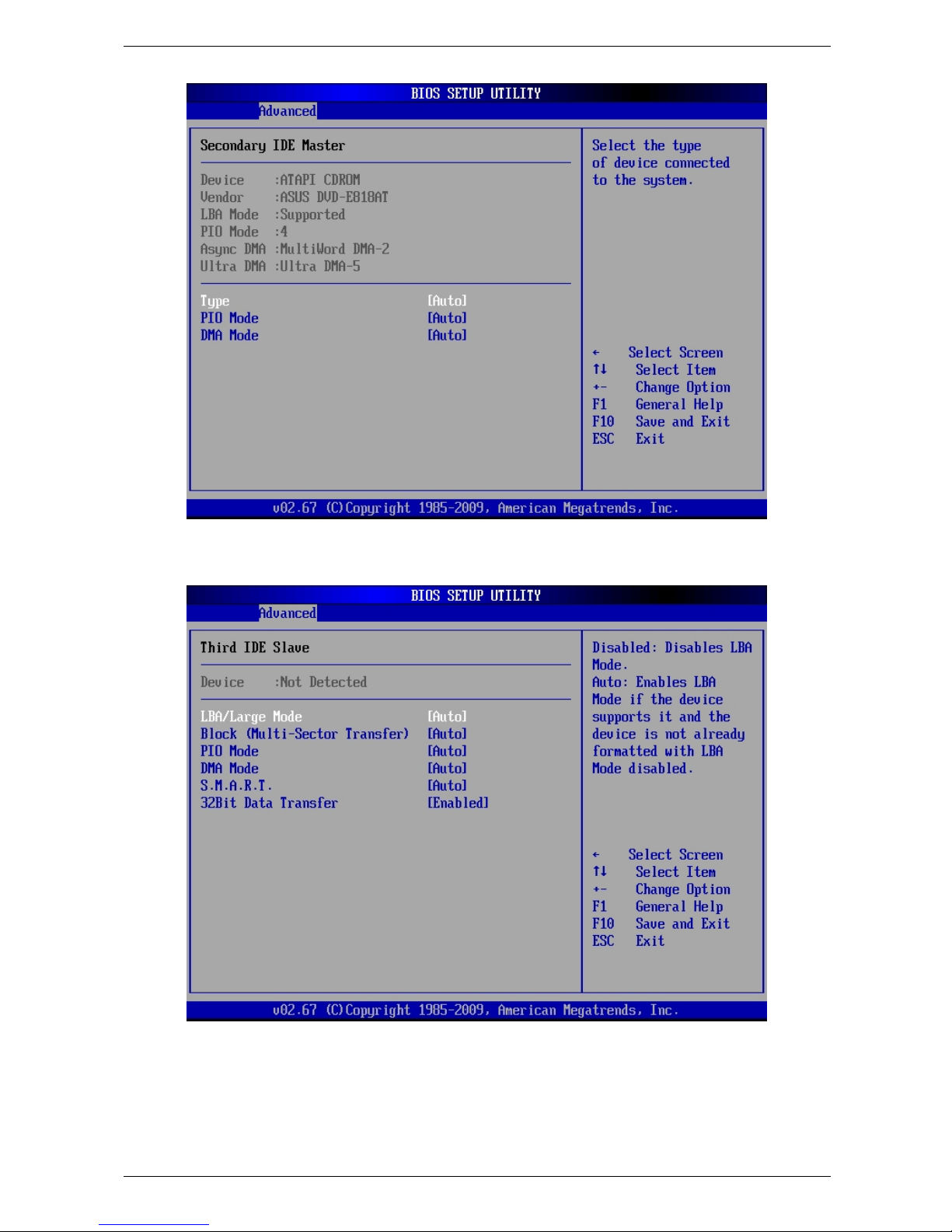

10.3.2. IDE Configuration..............................................................................................................................................42

10.3.3. AHCI Configuration (AHCI Settings)..................................................................................................................48

10.3.4. Super IO Configuration (Configure Win627 Super IO Chipset) .........................................................................49

10.3.5. USB Configuration.............................................................................................................................................51

10.3.6. Event Log Configuration (Event Logging details) ..............................................................................................53

10.3.7. Remote Access Configuration (Configure Remote Access type and parameters) ............................................54

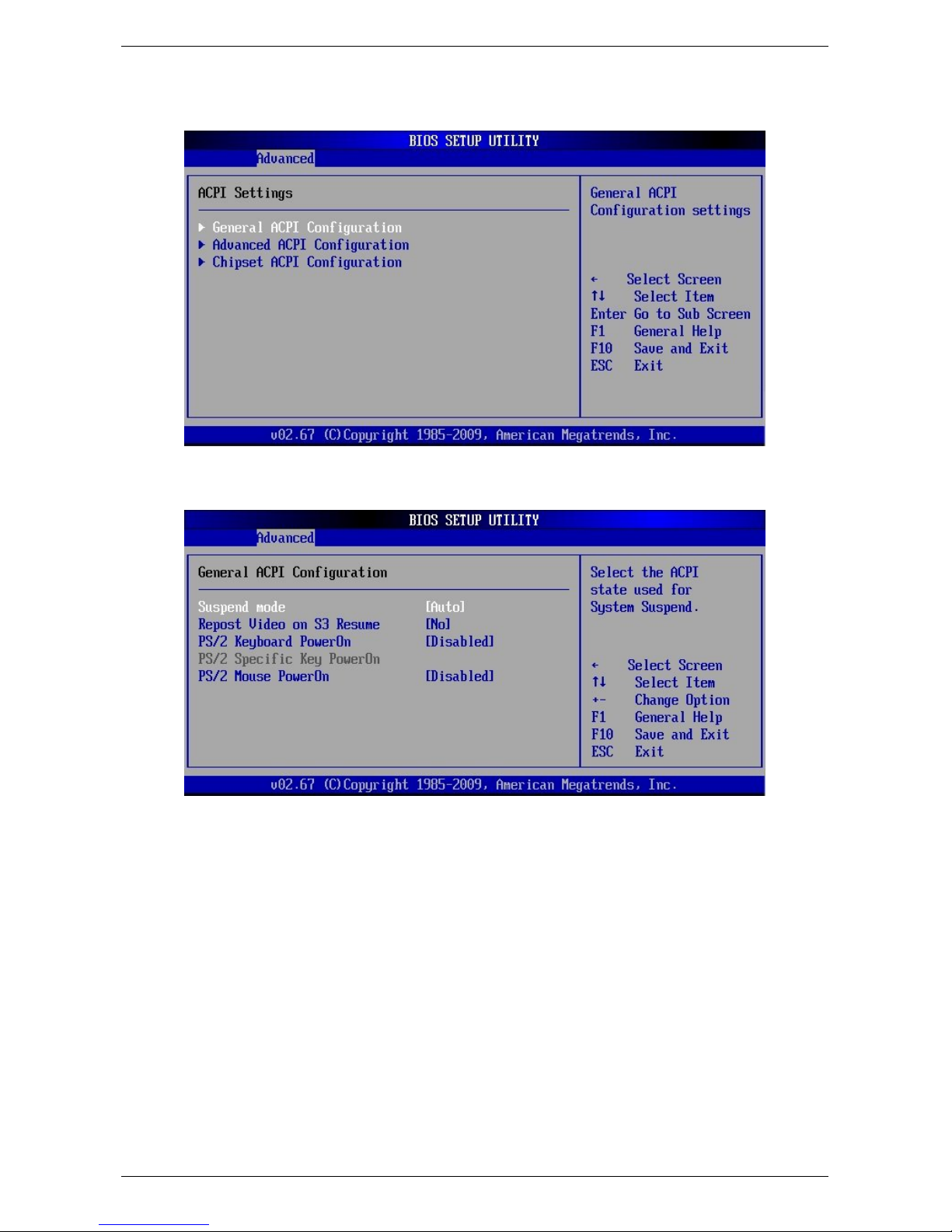

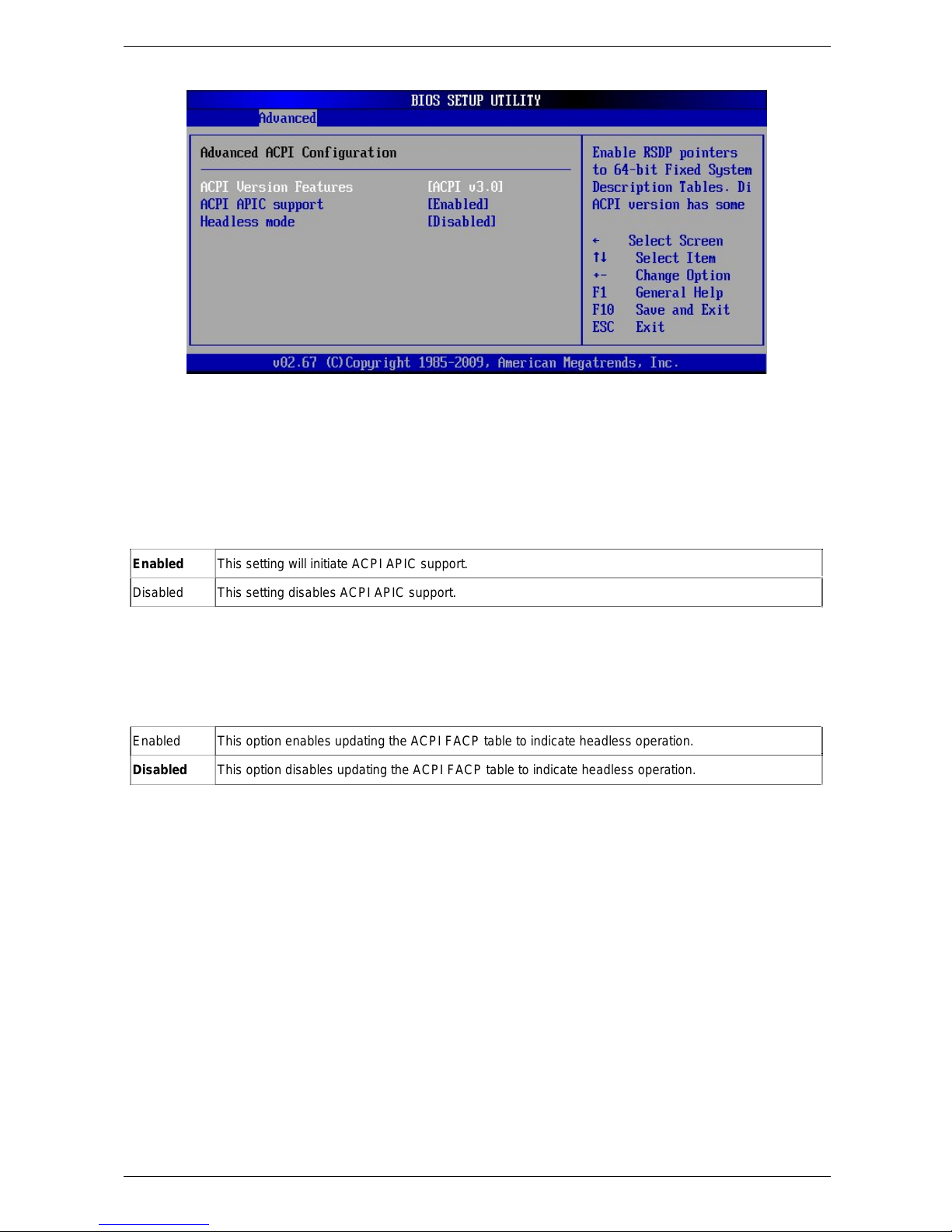

10.3.8. ACPI Configuration............................................................................................................................................56

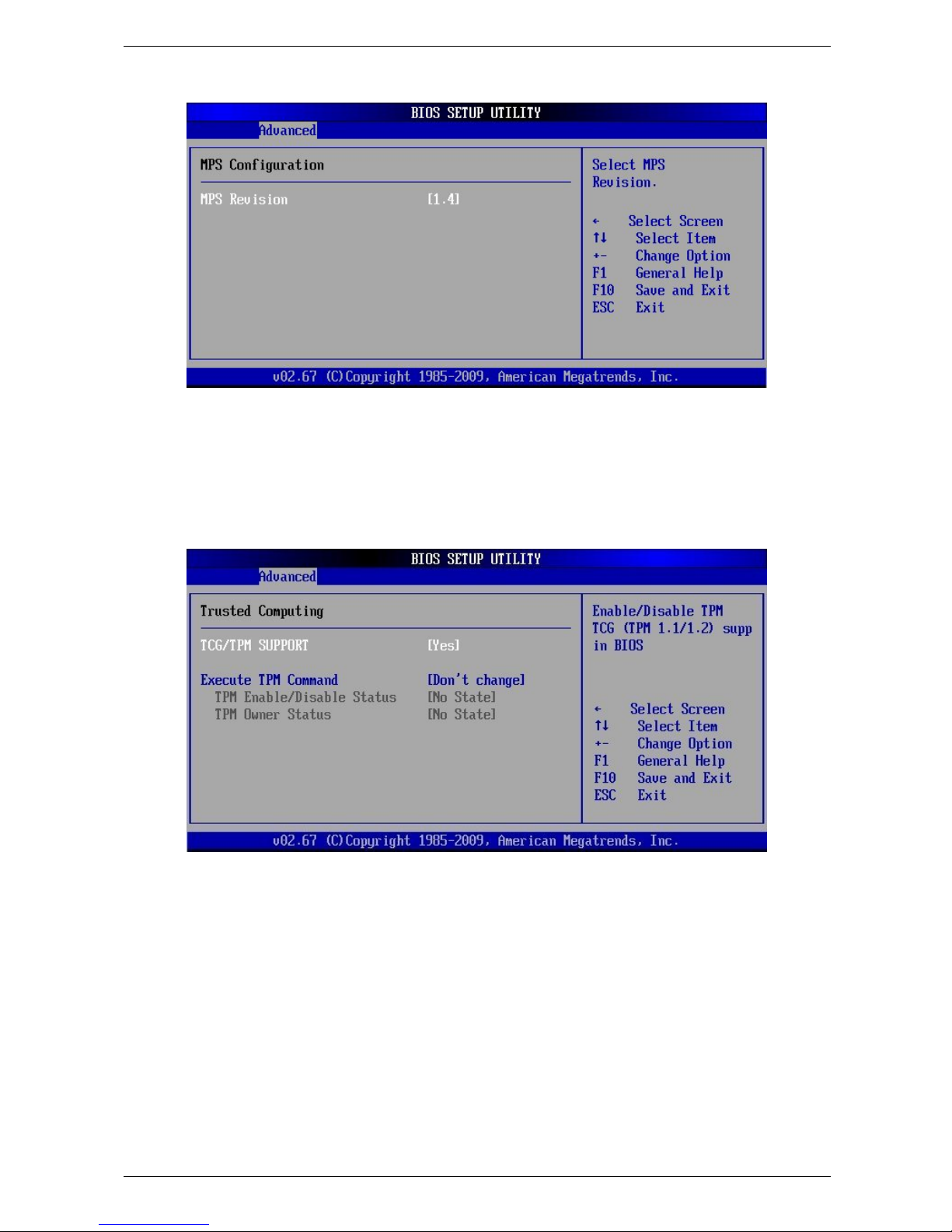

10.3.9. MPS Configuration............................................................................................................................................59

10.3.10. Trusted Computing..........................................................................................................................................59

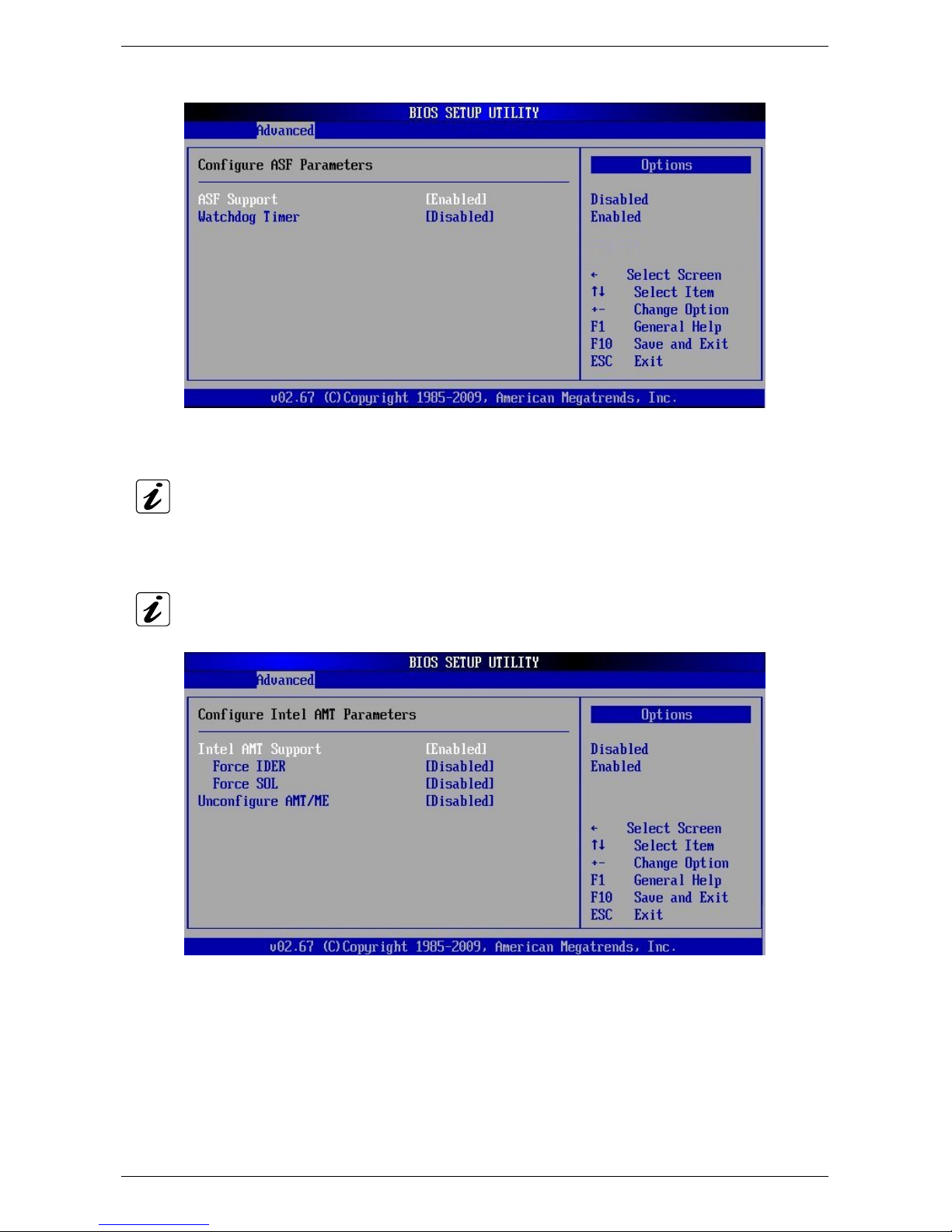

10.3.11. ASF Configuration...........................................................................................................................................60

10.3.12. Intel AMT Configuration [Configure Intel AMT Parameters)............................................................................60

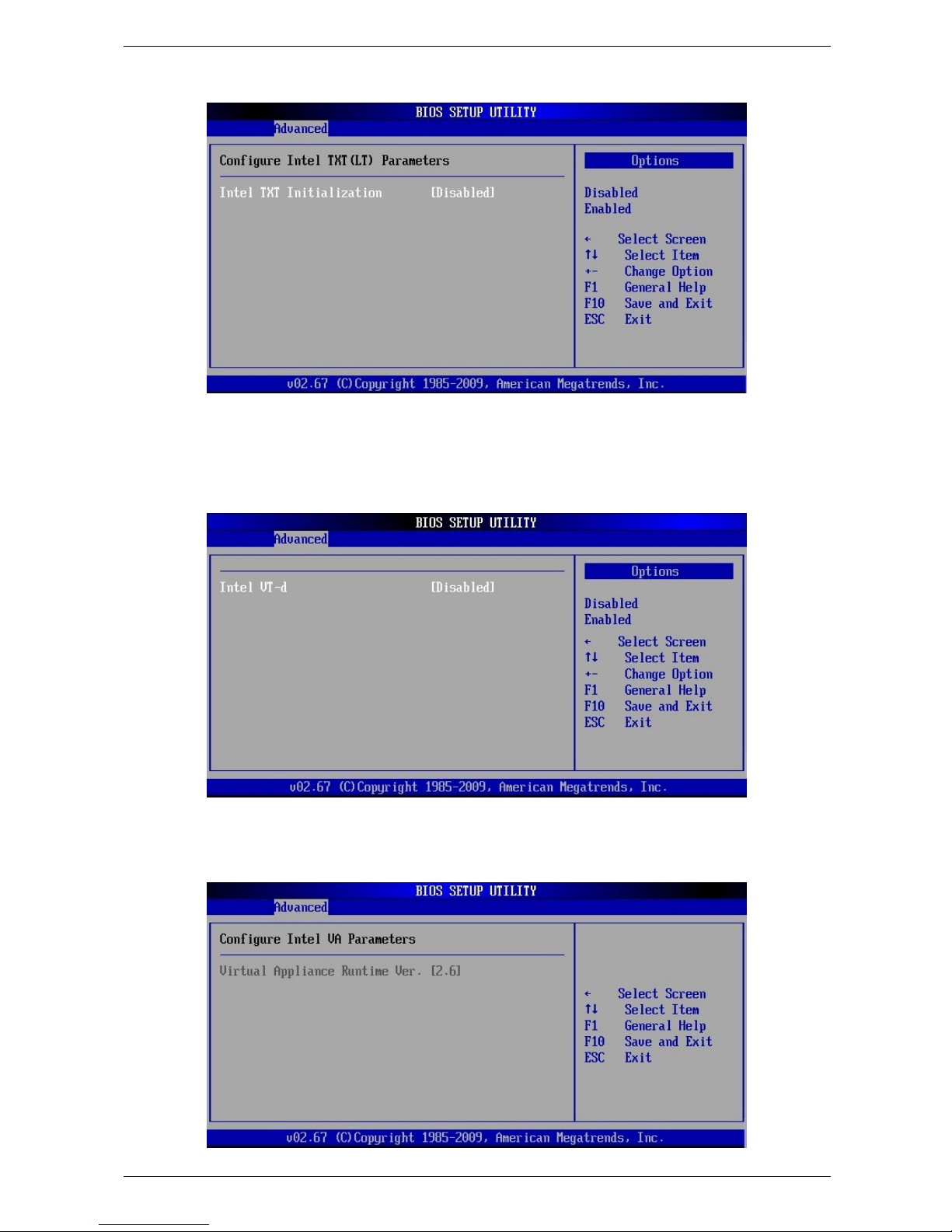

10.3.13. Intel TXT (LT) Configuration [Configure Intel TXT (LT) Parameters]...............................................................61

10.3.14. Intel VT-d Configuration ..................................................................................................................................61

10.3.15. Intel VA Configuration (Configure Intel VA Parameters)..................................................................................61

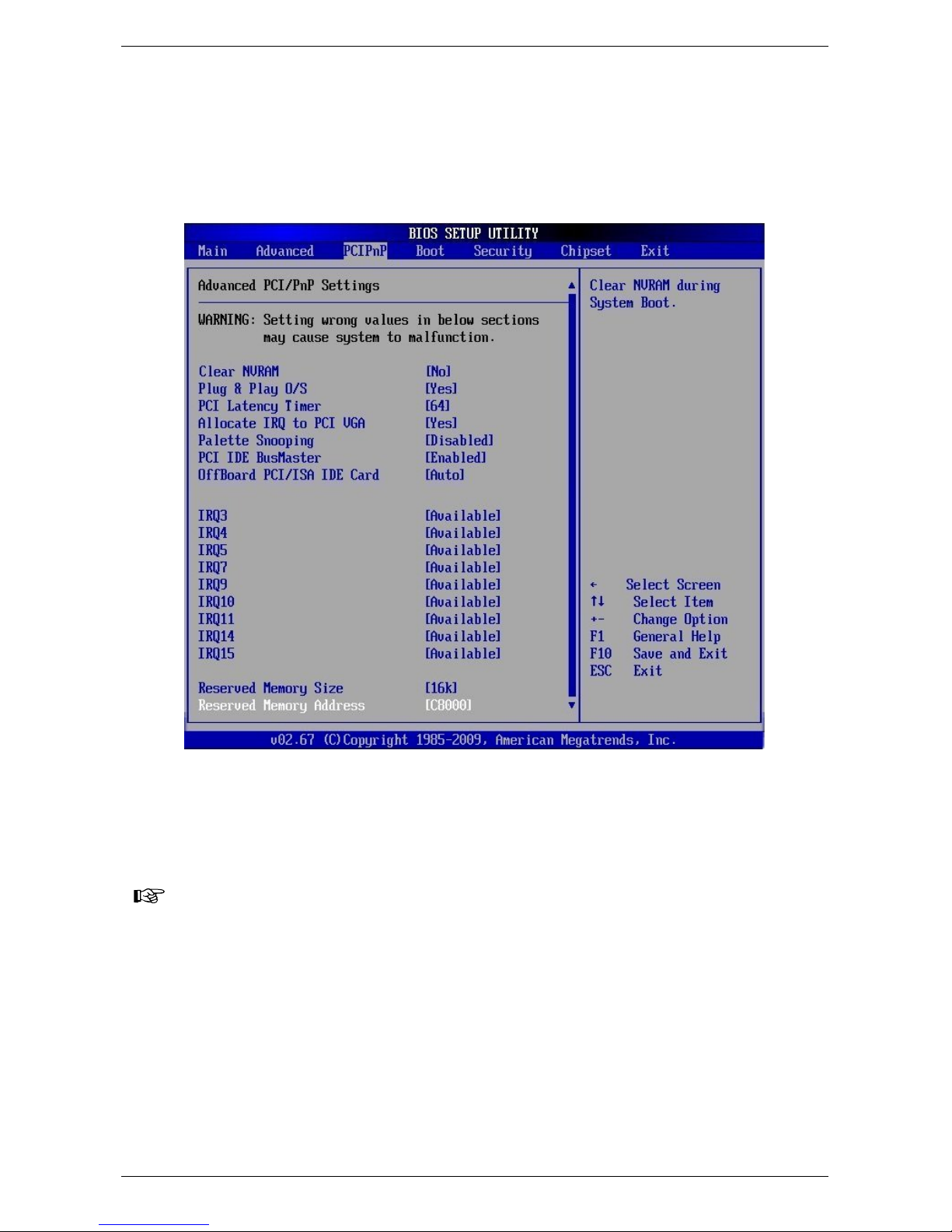

10.4. PCIPnP.....................................................................................................................................................................62

10.5. Boot..........................................................................................................................................................................65

10.6. Security.....................................................................................................................................................................69

10.6.1. Supervisor Password ........................................................................................................................................69

1. Table of Contents

2 PCI-760 – User’s Manual (V1.00)

10.6.2. User Password ................................................................................................................................................. 69

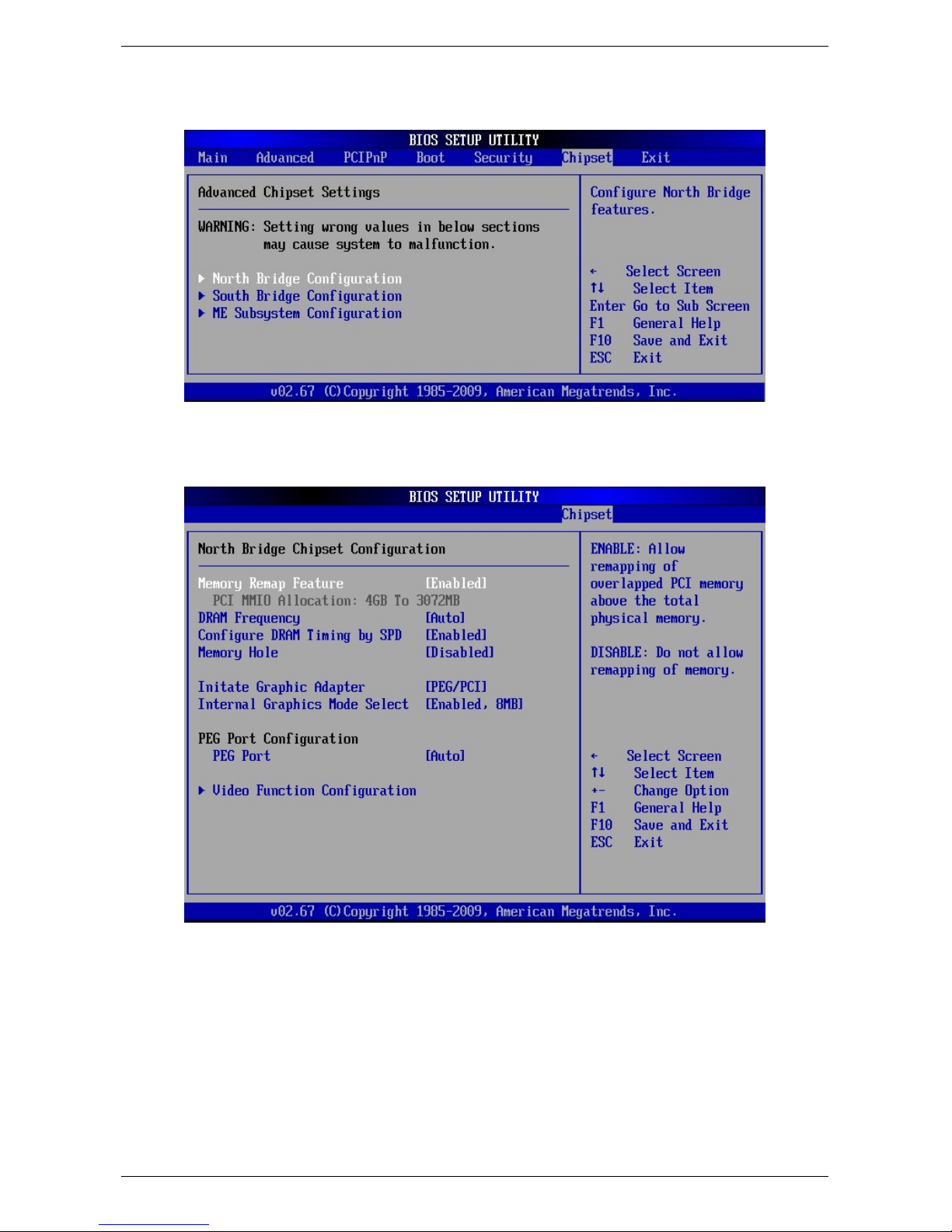

10.7. Chipset..................................................................................................................................................................... 72

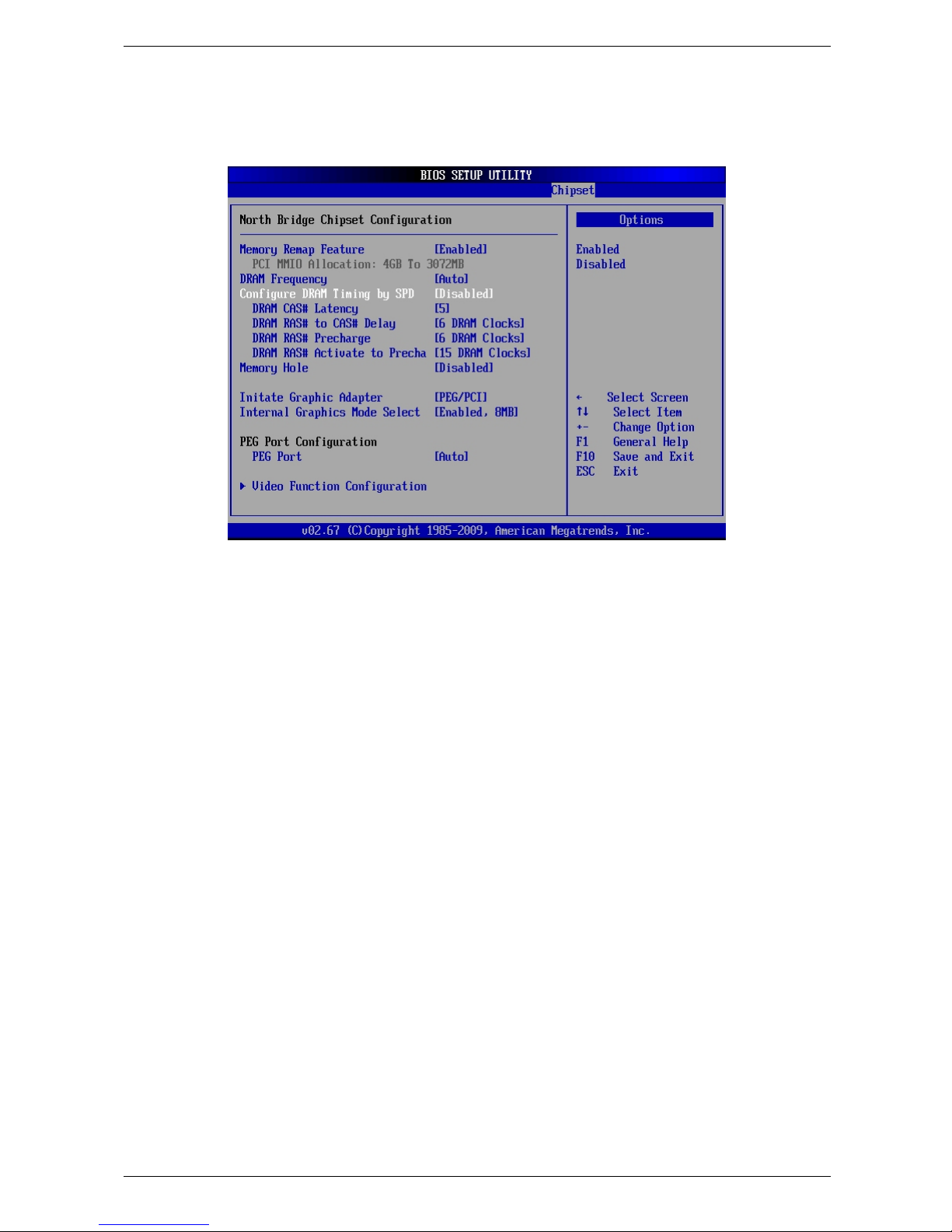

10.7.1. North Bridge Chipset Configuration .................................................................................................................. 72

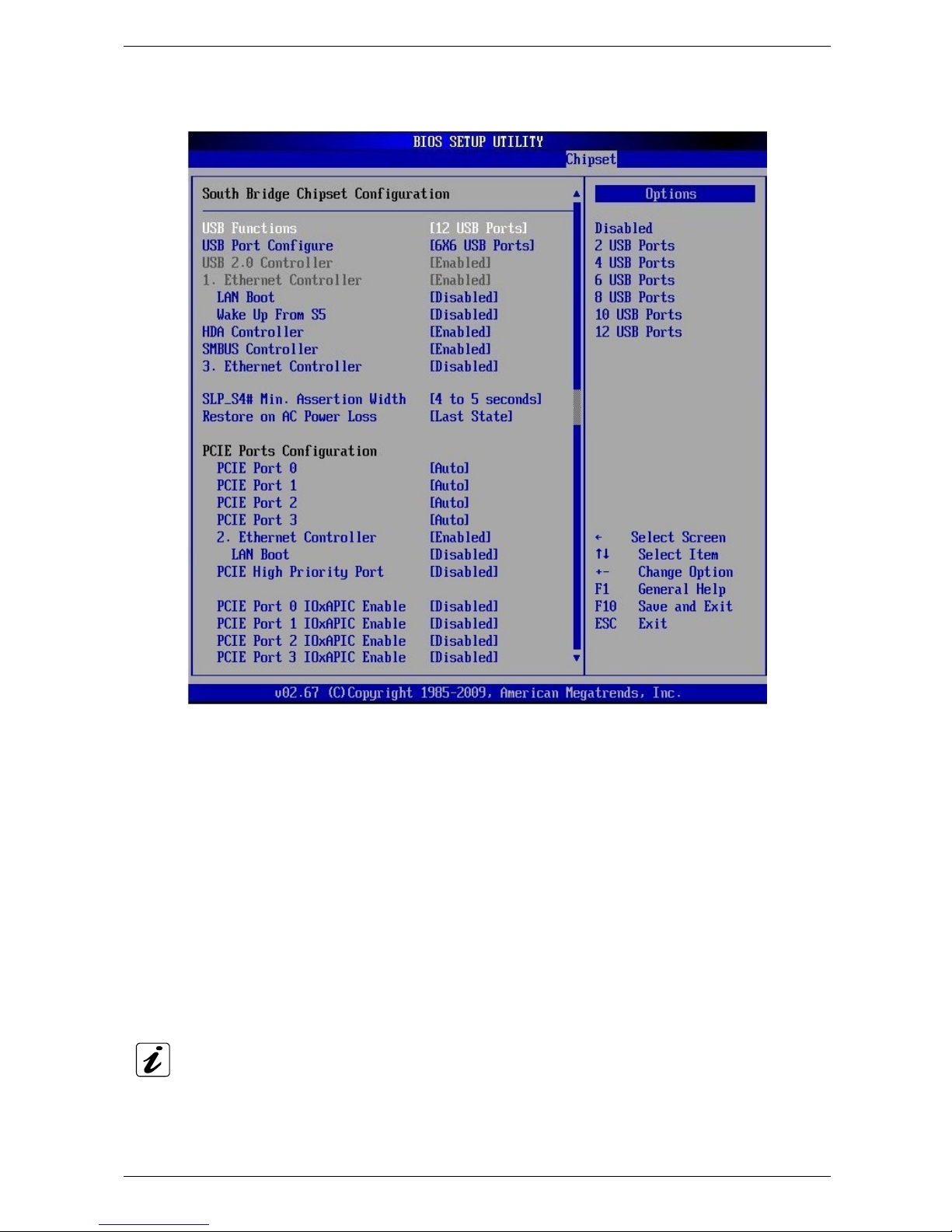

10.7.2. South Bridge Chipset Configuration.................................................................................................................. 75

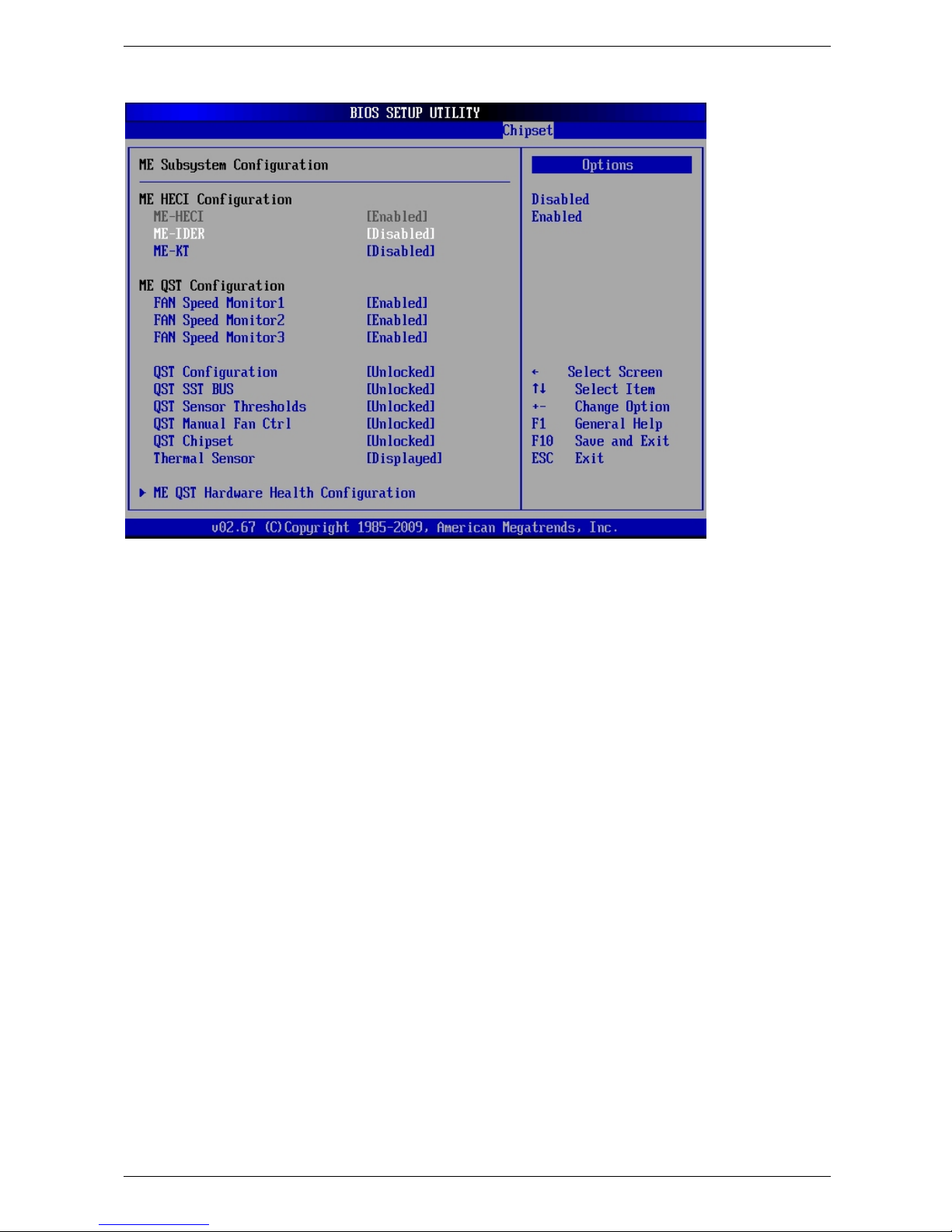

10.7.3. ME Subsystem Configuration ........................................................................................................................... 77

10.8. Exit...........................................................................................................................................................................79

10.8.1. Save Changes and Exit .................................................................................................................................... 79

10.8.2. Discard Changes and Exit ................................................................................................................................ 79

10.8.3. Discard Changes ..............................................................................................................................................79

10.8.4. Load Optimal Defaults ......................................................................................................................................79

10.8.5. Load Failsafe Defaults......................................................................................................................................79

11. Technical Data........................................................................................................................................................... 80

11.1. Electrical Specifications............................................................................................................................................ 81

11.2. Mechanical Specifications........................................................................................................................................81

11.3. Environmental Specifications ................................................................................................................................... 81

11.4. CE Directives ........................................................................................................................................................... 81

12. Technical Support..................................................................................................................................................... 82

12.1. Returning Defective Merchandise ............................................................................................................................ 82

2. Introduction

PCI-760 – User’s Manual (V1.00) 3

2. Introduction

Kontron Embedded Computers would like to point out that the information contained in this manual may be subject to
technical changes, particularly as a result of continuous upgrades.

The attached documentation does not entail any guarantee on the part of Kontron Embedded Computers with respect to
technical processes described in the manual or any product characteristics set out in the manual. Kontron Embedded
Computers does not accept any liability for any printing errors or other inaccuracies in the manual unless it can be
proven that Kontron Embedded Computers is aware of such errors or inaccuracies or that Kontron Embedded
Computers is unaware of these as a result of gross negligence and Kontron Embedded Computers has failed to
eliminate these errors or inaccuracies for this reason.

Kontron Embedded Computers expressly informs the user that this manual only contains a general description of
technical processes and instructions which may not be applicable in every individual case. In cases of doubt, please
contact Kontron Embedded Computers.

This manual is protected by copyright. All rights are reserved by Kontron Embedded Computers. Copies of all or part of
this manual or translations into a different language may only be made with the prior written consent of Kontron
Embedded Computers. Kontron Embedded Computers points out that the information contained in this manual is
continuously being updated in line with the technical alterations and improvements made by Kontron Embedded
Computers to the products and thus this manual only reflects the technical status of the products at the time of printing.
Updated versions are available on the Kontron web page:

www.kontron.com.

© 2009 by Kontron Embedded Computers
Printing and duplication, even of sections, is only permissible with the express approval of
Kontron Embedded Computers GmbH

Oskar-von-Miller-Str. 1
85386 Eching

Germany

2. Introduction

4 PCI-760 – User’s Manual (V1.00)

2.1. Symbols used in this Manual

Symbol Meaning

This symbol indicates the danger of injury to the user or the risk of damage to the product if the
corresponding warning notices are not observed.

This symbol indicates that the product or parts thereof may be damaged if the corresponding warning
notices are not observed.

This symbol refers to general information on the device and manual.

This symbol comes before useful information and tips for routine operation.

format a: Commands are printed in Courier.

® Microsoft, MS-DOS, Windows and Windows NT are registered trademarks of the Microsoft Corporation.
® IBM, PC-AT, OS/2 and PS/2 are registered trademarks of the International Business Machines Corporation.
® Intel and Pentium are registered trademarks of Intel Corporation.
® AMI is a registered trademark of American Megatrends, Inc.
Other product names cited in this manual may also be trademarks and are used here solely for identification purposes.

3. Safety Instructions

PCI-760 – User’s Manual (V1.00) 5

3. Safety Instructions

3.1. Safety Instructions for the Lithium Battery

The PCI-760 board is equipped with a Lithium battery. For the replacing of this battery please observe the instructions
described in the chapter

9.1.5.1 ”Replacing the Lithium Battery”.

Caution!

Danger of explosion when replaced with wrong type of battery. Replace the battery only with UL listed
Lithium battery that has the same or equivalent type recommended by Kontron.

Do not dispose of lithium batteries in domestic waste. Dispose of the battery according to the local
regulations dealing with the disposal of these special materials (e.g. to the collecting points for the
disposal of batteries).

3.2. Basic Safety and EMC Compatibility

The PCI-760 board is a fixed component that shall be installed into a stationary system by applying good engineering
practices and respecting the information on the intended use of the components with a view to meeting the protection
requirements [refer to (a) and (b)].

The PCI-760 board was designed and manufactured, having regard to the state of the art, as to ensure that:
(a) the electromagnetic disturbance generated does not exceed the level above which radio and telecommunications

equipment or other equipment cannot operate as intended;
(b) it has a level of immunity to the electromagnetic disturbance to be expected in its intended use which allows it to

operate without unacceptable degradation of its intended use.
The PCI-760 board was designed, manufactured and checked according to the basic safety requirements in the scope of

the low-voltage (LVD) directive.

4. Important Instructions

6 PCI-760 – User’s Manual (V1.00)

4. Important Instructions

The manufacturer’s instructions provide useful information on your PCI-760 board.

4.1. Electrostatic Discharge (ESD)

The components on the board are sensitive to static electricity. Care must therefore be exercised at all times during
handling and inspection of the PCI-760 board, in order to ensure the product integrity.
❏ Do not handle this product while it is outside its protective enclosure, while it is not used for operational purposes,

unless it is otherwise anti-static protected.

❏ Unpack or install this product only at EOS/ESD safe workstations. When safe work station are not guaranteed, it is

important for the user to be electrically discharged before touching the PCI-760 board with his/her hands or tools.
This is most easily done by touching a metal part of your system housing.

❏ Only hold the assemblies at the edge.
❏ Do not touch any connection pins or conductors on the assembly.

4.2. Note on the Warranty

Due to their limited service life, parts which, by their nature, are especially subject to wear (wearing parts) are not
included in the guarantee beyond the legal stipulations. This applies to the batteries, for example.

4.3. Exclusion of Accident Liability Obligation

Kontron Embedded Computers shall be exempted from the statutory accident liability obligation if the user fails to
observe the safety instructions.

4.4. Liability Limitation / Exemption from the Warranty Obligation

In the event of damage to the device caused by failure to observe the hints in this manual and eventually on the device
(especially the safety instructions), Kontron Embedded Computers shall not be required to honor the warranty even
during the warranty period and shall be exempted from the statutory accident liability obligation.

4.5. General Instruction on Usage

In order to ensure safe operation, the user must observe the instructions and warnings contained in this manual.

❏ The PCI-760 board must be used in accordance with the instructions for use.
❏ The PCI-760 board is designed to be built-in to a system, which fulfill all necessary technical and environmental

requirements.

❏ When installing the board into a system, ensure that the system is switched off and the systems power cord is

disconnected from the power source. Disconnect all cable connections of peripheral devices from the system.

❏ Ensure that the DC operating voltages adheres to the specification given in the “

Electrical Specifications”.

❏ Only devices and components which fulfill the requirements of a SELV circuit (security extra low voltage) in

accordance with IEC / EN 60950-1 may be connected to the interfaces of the PCI-760 board.

❏ If extensions are made to the PCI-760 board, the legal stipulations and the board specifications must be observed.

5. Scope of Delivery

PCI-760 – User’s Manual (V1.00) 7

5. Scope of Delivery

Please check that your package is complete, and contains the items below (according to the ordered unit configuration).
If you discover damaged or missing items, please contact your dealer.

❏ 1x PCI-760 Board PICMG 1.0 (full-size)

Fig. 1: PCI-760 board

Optional

❏ 1x Cable Set (Accessories)
❏ Option: USB-Flash-Module-Intel® Z-U130

For more information refer to:

www.intel.com

5.1. Labeling Information

Two types of printed labels on the PCI-760 board must show the following information:

1. Board identification label that has implemented: Board Designation/Serial Number/Part Number/Product

Revision/QM-Field/Bar Code/Datamatrix Code

2. 4x MAC-Address Label

6. Features

8 PCI-760 – User’s Manual (V1.00)

6. Features

Form Factor:

• Full size SHB PICMG 1.3 form factor (13.33 x 4.98 inch).

Processor (CPU):
Intel® Core™ 2 Duo/Quad, 65 nm (Desktop)

• 800/1066/1333 MHz FSB (Front Side BUS)

• LGA775

• 2MB/4MB/8MB, L2 Cache (depending on the installed CPU)

Processor Socket: LGA 775 (using LGA 771 heat sink)
Memory

• Dual-Channel DDR2 memory architecture, un-buffered, non-ECC

• 4x DDR2 DIMM 240-pin slots for up to 8GB 667/800 MHz DDR2 SDRAM

(use please: PC2-5300 and/or PC2-6400)

• Memory type: 512Mb, 1Gb DDR2 DRAM technologies

Chipset: Intel® ICH9DO + Q35 GMCH (Graphics Memory Controller Hub)
I/O Controller Hub: Intel® 82801IO [ICH9 Digital Office (ICH9DO)]

• PCI Express: 5 PCI Express (PCIe) root ports (PCI Express specification
Rev. 1.1)

• Integrated Serial ATA Host Controller: up to six SATA ports; Data transfer rates up to 3.0 Gb/s (300 MB/s)

• External SATA support including eSATA port multiplier

• Intel® Matrix Storage Technology

- Configures the SATA controller as a RAID controller (RAID 0/1/5/10)

• USB 2.0

- Six UHCI Host Controllers, supporting up to twelve external ports

- Two EHCI Host Controllers, supporting up to twelve external ports

- Two Configuration Options for EHCI Controllers 6+6 and 8+4

- Per-Port-Disable Capability

- Includes up to two USB 2.0 High-speed Debug Ports

- Supports wake-up from sleeping states S1–S5

- Supports legacy Keyboard/Mouse software

• Intel® Active Management Technology with System Defense

For Information refer to Intel® Active Management Technology.

❏ Features and Benefits Out-of-band system access
❏ Remote trouble-shooting and recovery
❏ Hardware-based agent presence checking
❏ Proactive alerting
❏ Remote hardware and software asset tracking

“Intel® Active Management Technology (Intel® AMT) requires the computer system to have an
Intel® AMT-enabled chipset, network hardware and software, as well as connection with a
power source and a corporate network connection. Setup requires configuration by the
purchaser and may require scripting with the management console or further integration into
existing security frameworks to enable certain functionality. It may also require modifications
of implementation of new business processes.”

6. Features

PCI-760 – User’s Manual (V1.00) 9

• Intel® I/O Virtualization (VT-d) support

• Intel® Trusted Execution Technology support

• Power Management Logic

- Supports ACPI 3.0b

- ACPI-defined power states C1, C2, S1, S3–S5 for Desktop

• Enhanced DMA Controller

• SMBus

- Faster speed, up to 100 kbps

- Supports SMBus 2.0 Specification

• High Precision Event Timers

• Timers Based on 82C54

• Real-Time Clock

- 256-byte battery-backed CMOS RAM

• System TCO Reduction Circuits

Internal Graphics: Intel® GMA 3100 (Graphics Media Accelerator)

• Max memory allocation support based on total system memory

• 400-MHz integrated RAMDAC that can drive a standard progressive scan analog monitor with a resolution of up to

2048x1536 pixel (QXGA)

• Dedicated CRT interface with data-interface control: (15-pin D-SUB connector on I/O panel)

Integrated Audio:

• Integrated HDA (High Definition Audio) controller (ICH9DO) with ALC882
Codec

- Meets performance requirements for audio on PC2001 systems

- 10 DAC channels support 16/20/24-bit PCM format for 7.1 sound playback

- DACs (Digital-to-Analog Converter) support 44.1k/48k/96k/192kHz

- ADCs (Analog-to-Digital Converter) support 44.1k/48k/96kHz

- 16/20/24-bit S/PDIF-OUT supports 44.1k/48k/96k/192kHz sample rate

- 16/20/24-bit S/PDIF-IN supports 44.1k/48k/96k/192kHz sample rate

- Backward compatibility with AC'97

- Built-in headphone amplifiers

- Meets Microsoft WHQL/WLP 2.0 audio requirements

- EAX™ 1.0 & 2.0 compatible

- Direct Sound 3D™ compatible

- Microphone Acoustic Echo Cancellation (AEC),

- Noise Suppression (NS) technology for voice application

• On board audio ports:

- Line-In, Line-Out and Microphone-In available on boxed header on board

- Surround L/R, Side Surround L/R and Center/LFE available on boxed header on board

- SPDIF-In and SPDIF-Out header on board for coaxial and/or optical fiber connection via an adapter cable with
slot mounting bracket (not included)

6. Features

10 PCI-760 – User’s Manual (V1.00)

Networking:

• Intel® 82566DM (ICH9DO) Ethernet controller that supports the LAN1
interface [RJ45 connector on I/O panel with integrated LEDs (LED with three signal outputs)]

- Compliant with IEEE 802.3ab

- LAN Connect Interface (LCI) and Gigabit LAN Connect Interface (GLCI)

- 10/100/1000 Mbps Ethernet Support

- Jumbo Frame Support

- Automatic MDI Crossover

- Wake-on-LAN

- supports Teaming

• Realtek RTL8111B PCI Express Controller (via internal PCIe x1 Link of ICH9DO) that supports the LAN2 (RJ45
connector on I/O panel with integrated LEDs)

- Compliant with IEEE 802.3u, IEEE 802.3ab

- 10/100/1000 Mbps Ethernet Support

- Crossover Detection & Auto-Correction

- Configurable 48 KB deep buffer

- Wake-on LAN (WOL)

• Realtek 8110SC Gigabit Ethernet Controller for PCI 32bit, 33MHz

- Compliant with IEEE 802.3u, IEEE 802.3ab

- Routed to the PICMG1.3 edge connector

- 10/100/1000 Mbps Ethernet Support

- Crossover Detection & Auto-Correction

- Wake-on-LAN (WOL)

Super-I/O

• Winbond W83627HF with integrated hardware monitor

- Compliant with Microsoft PC98/PC99 Hardware Design Guide

- LPC-based Super-I/O

- On board ports: 2x COM, 1x LPT, PS/2-Keyboard, PS/2 Keyb.-Lock and PS2-Mouse, Watchdog,
Hardware-Monitoring, Suspend-LED

Hardware Monitor, Temperature Monitor

• Chassis Intruder, via ICH9DO

• Monitoring of 3 fan tachometer outputs

• Fan control outputs, maximum current: 750mA each

• Monitoring of two board temperatures (core voltage regulator and DDR2-DIMM sockets)

• Remote diode temperature sense for the CPU temperature

• Voltage sense for +5V, +12V, +3.3V, +1.8 V, CPU coreA/B (1.05V), VBAT, +5VSB, +3.3VSB

Serial ATA (SATAII)

• Four 7-pin connectors (lockable connectors) on board and two interface connections routed to the PICMG1.3 edge
connector.

• Data transfer rate up to 300 Mbps on each port

• RAID 0/1/5/10 functionality with ICH9DO

6. Features

PCI-760 – User’s Manual (V1.00) 11

USB Ports

Twelve USB 2.0 Port (USB0 – USB11):

• Two ports on the I/O slot bracket,

• Six ports on board

• Four USB signals routed to the PICMG1.3 edge connector

- Maximum continuous load current per port: 500mA

- Typical short-circuit current at 25°C: 900mA

- Overcurrent indicators

- Wake-up capability on the USB ports; The USB devices are supplied with standby power.

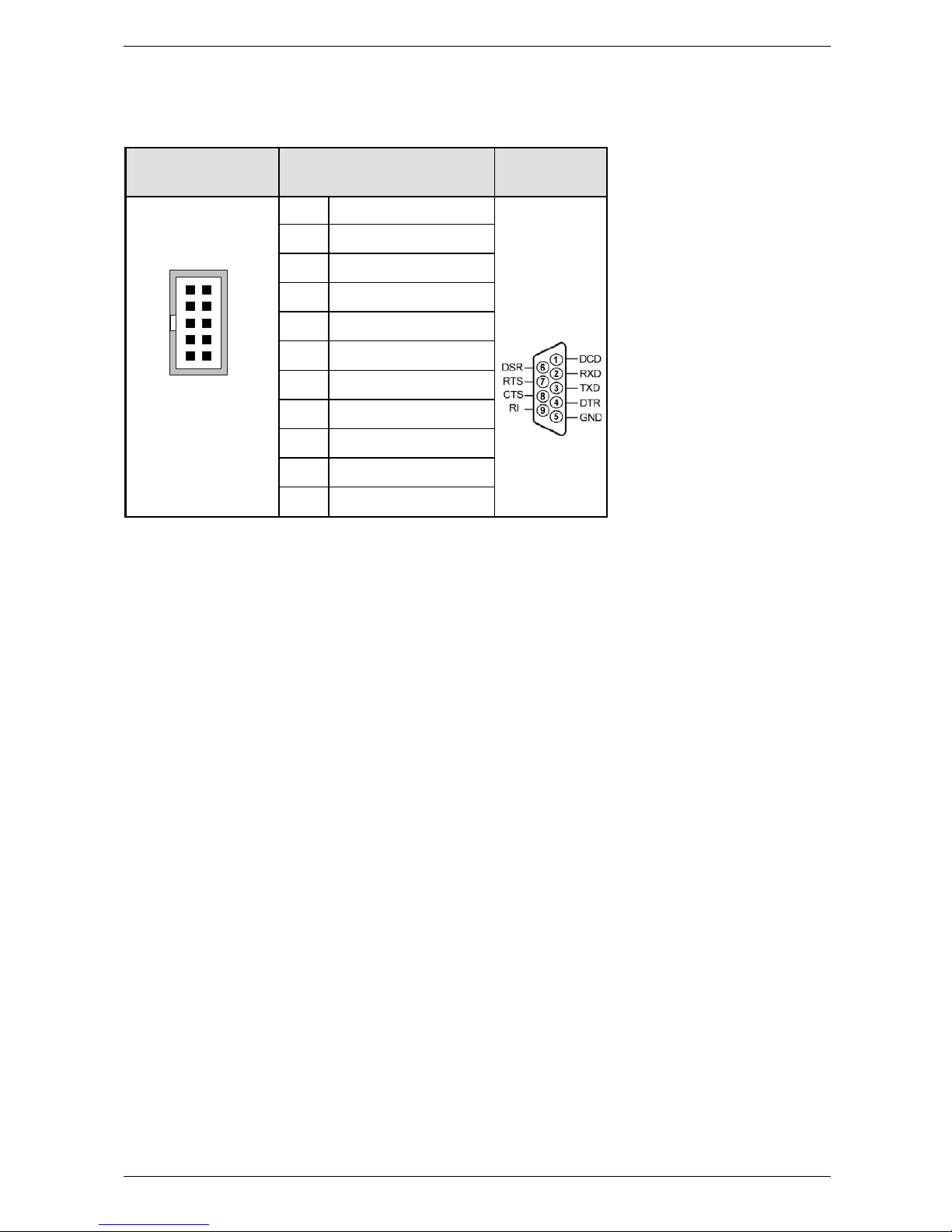

Serial Communication Ports

Two high-speed 16550 compatible UARTs with 16-byte send/receive FIFOs

• The serial ports support RS232 (COM1, COM2); COM2 is configurable RS422, RS485

• Fully programmable serial-interface characteristics

• Programmable baudrate up to 115kbit/s

• The pin 10 of the serial ports delivers 12V fused

• The serial ports have wake-up capability from any sleep state.

Parallel Port

One bi-directional LPT port, which is configurable for standard LPT

• Support Enhanced Parallel Port (EPP) - Compatible with IEEE 1284 specification

• Support Extended Capabilities Port (ECP) - Compatible with IEEE 1284 specification

Keyboard and Mouse

Interfaces (7-pin header on board) to standard AT keyboard and PS/2 mouse

• 8042 based with F/W from AMIKKEY

• Fast Gate A20 and Hardware Keyboard Reset

• Support port 92

• Keyboard Wake-up by programmable keys

• Mouse Wake-up by programmable buttons

PS/2 Keyboard Lock

2-pin row on board for PS/2 keyboard lock

Multifunction Connector

• One hard drive activity LED for all HDD devices

• Power LED

• PS/2 Keyboard & PS/2 Mouse

• Reset

Connector for Power Buttons

• 2-pin connector for additional power button

Power Button Control:

If an ATX power supply is used, the SBC can control it either through:

❏ the backplane via PICMG 1.3 edge connector or
❏ its additional power button connector (J34) or
❏ the hardware monitor connector (J7) power button (PWRBT#) input.

6. Features

12 PCI-760 – User’s Manual (V1.00)

PCI -Support

• up to five PCI-Masters, 32-bit/33 MHz according to PCI Specification v2.3 for:

- one PCI-Master on board: optional single MiniPCI connector, type IIIA; signaling 3.3 V (installed Mini PCI card
must be 5 V tolerant)

Hint for the optional MiniPCI connector: the additional USB signals on reserved pins for e. g. bluetooth

are not supported.

- up to four PCI-Masters routed to the PICMG 1.3 edge connector
Supports 5V PCI backplanes

• PCI Express routed to the PICMG 1.3 edge connector

- 4x PCIe x1 or 1x PCIe x4

- 1x PCIe x16

Real Time Clock (RTC)

Motorola MC146818B-compatible RTC with 256 bytes of battery-backed RAM

• RTC supports a date alarm that allows for scheduling a wake-up event up to 30 days in advance

• A coin-cell battery (CR2032) powers the real-time clock and CMOS memory

• A battery socket eases replacing empty batteries

• Battery backup time > 5 years

• Accuracy better than 50ppm (max. deviation 4s/24 hours) within the whole temperature range

BIOS

The BIOS is based on the AMI BIOS Core Release 8.00.14.

• 4 MB (32MBit), Flash BIOS-ROM connected to the SPI-Bus

• Upgradeable via Flash updating tool

• PXE-Boot

• Legacy USB Support including USB 2.0

• Support of Serial Ports (RS232, serial console redirection); COM2 configurable as RS422 and RS485

• Support of VGA (CRT)

• ACPI Support

• Hardware Monitoring

Power and System Management

• BIOS-support for CPU-Internal temperature-sensor/s

• Power management according to ACPI 3.0

• Three Fan controls, additional four FAN-Tacho inputs available on Hardware Monitor Connector

• Supports Full-on (S0), Suspend (S1), Suspend-To-RAM (S3), Suspend-To-Disk (S4) and Soft-Off (S5).

• Wake-up events

• Optional customized logo in boot-screen feature

7. Functional Diagram

PCI-760 – User’s Manual (V1.00) 13

7. Functional Diagram

LPC

Super I/O

2x USB

DDR2 SDRAM DIMM

BIOS Flash

Battery

HD Audio

Line-In

Line-Out

Mic-In

LAN

Controller

LAN2

1Gbps

LAN1

1Gbps

AMT LAN

Controller

M

i

n

i

P

C

I

1x VGA

1x PCIe x16

1x PCIe x1

1x PCIe x1

1x PCIe x1

1x PCIe x1

PCI 32 bit @ 33MHz

4x USB

Memory

Controller

Intel ICH9DO

Intel

Q35

Graphics

Controller

PCIe x16

PCI Express 5

PCI Express 3
PCI Express 2
PCI Express 1

PCI Express 4

4x USB

P

I

C
M
G

1.3

FSB

800/1066/1333 MHz

HW Monitor

1x intruder

1x SPDIF-In
1x SPDIF-out

2x USB

Ext.

Battery

1x SATA
1x SATA

1x Keyboard

and Mouse

1x Parallel
COM1 (RS232)

COM2
(RS232/422/485)

1x Suspend LED

DDR2 SDRAM DIMM
DDR2 SDRAM DIMM
DDR2 SDRAM DIMM

0. SATA

1. SATA

2. SATA

3. SATA

4. SATA

5. SATA

Legend:

External interfaces

On board connectors

2x USB
2x USB

Surround
LFE,Cen

Sidesurr

TPM

SPI

LAN

Controller

1x KBLock

Fan2

CPU Fan

Fan1

Multifunction

Connector

Intel Core 2

Intel Core 2 Duo

E

D
G

E

C
O

N

N

E

C

T
O

R

Option

Fig. 2: PCI-760 – Functional diagram

8. Memory Installation

14 PCI-760 – User’s Manual (V1.00)

8. Memory Installation

The PCI-760 board supports four DDR2 DIMM sockets (240-pin) for up to a total memory of up to 8GB DDR2 SDRAM.
The single/double sided memory modules can be user-defined combined in sizes of 256MB, 512MB up to max. 2GB per
DDR2 DIMM-socket.

The majority of systems supporting dual-channel memory can be configured in either single-channel or
dual-channel memory mode.

The speed used in all channels is the speed of the slowest DIMM in the system.
Only around a memory of 3.5 GB is usable for most of 32 bit operating systems.
DIMM0 (nearest positioned to the CPU) must be fitted first for AMT and QST feature.

For the best dual-channel memory performance on boards with the Intel dual-channel DDR2 chipsets must be used
identically paired memory modules in channel A and B.

We recommend installing into the board DDR2 DIMM sockets a dual channel kit (identically manufacturer, capacity,
speed, number of chips and modules).

Prerequisites for dual-channel memory configuration:

1. Both modules are the same capacity (e.g. both are 256MB or 512MB)

2. Both modules are the same speed (e.g. both are PC2700 or PC3200)

3. Both have the same number of chips and module sides (e.g. both have the same number of chips on the module,

and both are either single-sided or double-sided).

If other memory configuration is used, the system will revert to the single-channel memory mode (lower­performing mode).

The speed of the bus clock and the timing of the memory access for the whole main memory (RAM) are
given by the slowest DDR2 DIMM Module built-in the system.

9. Jumpers and Connectors Overview

PCI-760 – User’s Manual (V1.00) 15

9. Jumpers and Connectors Overview

The jumpers and connectors of the PCI-760 board will be described in detail below.

Signals suffixed by a pound (#) are active-low.
All headers will have a pitch of 0.100" (2.54mm), otherwise noted different.

Connectors on the I/O Panel

J36 VGA Connector
J25 LAN1 Connector
J26 LAN2 Connector
J29 USB7 Connector
J30 USB6 Connector

On-Board Jumpers

JP1 COM2 (RS422) Enable Termination Resistors
JP2 COM2 (RS485/422) Enable Termination Resistors
JP3 Conn. for Ext. Temp. Sensor (not supported)
JP4

Always POWER ON (not supported)
JP5 RTC Reset (Clear CMOS)
JP6 Disable Backup Restore Function
JP7 TPM Physical presence (reserved)
JP8 Image Flash; BIOS programming (before BIOS update contact our Technical Support Department)
JP9 Reset Management Engine (reserved)

On-Board Connectors

J1, J4, J24 12V Fan Connectors (3-pin)

J31 12V ATX Power Connector (4-pin)
J14 Multifunctional Connector (16-pin)
J15 Serial Connector COM1 (10-pin)
J16 Serial Connector COM2 (10-pin)

J8 Parallel Connector LPT (26-pin)
J22 SPDIF-IN&-Out Connector (5-pin)
J32 Keyboard Lock Connector (2-pin)
J33 Suspend-LED (2-pin)
J34 Additional Power Button Connector (2-pin)
J20 Audio Connector (10-pin) (Line-in, Line-out, Mic.)
J23 Audio Connector (10-pin) (Surround L/R, Side surround L/R, Center/LFE)
J13 USB header (USB4+USB5) (9-pin+key)
J19 USB header (USB8+USB9) (9-pin+key)
J10 USB header (USB10+USB11) (9-pin+key)

J5 SATA0 Connector
J11 SATA1 Connector

J6 SATA2 Connector
J12 SATA3 Connector
J28 MiniPCI Connector (124-pin)

J3 DDR2 DIMM Connector (240-pin) Channel B Bank 1

J9 DDR2 DIMM Connector (240-pin) Channel B Bank 0
J17 DDR2 DIMM Connector (240-pin) Channel A Bank 1
J18 DDR2 DIMM Connector (240-pin) Channel A Bank 0

BAT1 Lithium Battery Socket

J35 Ext Battery Connector (option)
J21 Keyboard&Mouse Connector

J7 Hardware Monitor Connector (20-pin)

J2 Extended Debug Port (XDP) Connector (reserved) [is located on the bottom side]
J27 CPU Socket
J41 Connector for Temp. Sensor (factory fitted with Temperature Sensor)

9. Jumpers and Connectors Overview

16 PCI-760 – User’s Manual (V1.00)

J31

12V ATX

Power

PICMG 1.3_D

(J37)

PICMG 1.3_C

(J38)

PICMG 1.3_B

(J39)

PICMG 1.3_A

(J40)

VGA

(J36)

USB6

(J30)

USB6

(J29)

LAN2

(J26)

LAN1

(J25)

FAN3 (J24)

JP1

JP2

COM1 (J15) COM2 (J16)

Audio (J23)

Audio (J20)

Multifunction

(J14)

LPT (J8)

Hardware Monitor

(J7)

SATA0

SATA1

SATA2

SATA3

USB (J10)

Option: MiniPCI (J26)

DDR2-DIMM (J3) Channel B Bank 1

DDR2-DIMM (J9) Channel B Bank 0

DDR2-DIMM (J17) Channel A Bank 1

DDR2-DIMM (J18) Channel A Bank 0

USB (J13)

USB (J19)

KB&M (J21) SPDIF (J22)

FAN1 (J1)

FAN2 (J4)

Fig. 3: PCI-760- Jumpers and connectors location

Option

USB

Flash Module

Mounting hole for USB Flash Module

Refer to detail

(Fig

. 4)

Temp Sens. (J41)

9. Jumpers and Connectors Overview

PCI-760 – User’s Manual (V1.00) 17

Fig. 4: PCI-760 - Detail for jumpers and connectors location

Clear CMOS (JP5)

External battery connector (J35)

Additional power button (J34)

Ke

y

board Lock (J32

)

Suspend LED (J33

)

Disable backup restore function (JP6)

Reserved

(

JP7

)

Conn. for ext. temp. sensor (JP3); (not supported)

Always Power ON (JP4); (not
Image Flash; BIOS programming (JP8); (reserved for manufacturer)
Reset Management Engine (JP9)

9. Jumpers and Connectors Overview

18 PCI-760 – User’s Manual (V1.00)

9.1.1. Connectors located on Slot Bracket

Fig. 5

Fig. 6: PCI-760 – Slot Interfaces

9.1.1.1. J29 and J30 USB Connectors

The slot bracket of the PCI-760 board provides two external USB 2.0/1.1 interfaces (USB6 and USB7). These
connectors allow connection of USB-compatible devices to the PCI-760 board (slot bracket).

Pin Signal Name 4-pin USB Socket

Type A Version 2.0/1.1

1 VCC, fused
2 Data­3 Data+
4 GND

9.1.1.2. J36: VGA Connector

An external (analog) monitor can be plugged into this interface which is provided as a 15-pin D-SUB socket.

Pin Signal Name 15-pin D-SUB Socket (female)

1 Analog red output
2 Analog green output
3 Analog blue output
4 NC
5–8 GND
9 VCC, fused for DDC
10 GND
11 NC
12 SDA (DDC)
13 TTL HSync
14 TTL VSync
15 SCL (DDC)

J36

2x USB

VGA

LAN2

LAN1

9. Jumpers and Connectors Overview

PCI-760 – User’s Manual (V1.00) 19

9.1.1.3. J25 and J26: Gigabit LAN Connectors

The slot bracket of the PCI-760 board is equipped with two LAN connectors. These interface connectors are provided as
RJ45-sockets with integrated LEDs. The data transfer rate for the LAN communication is up to 10/100/1000Mbps.

Only the LAN1 interface (via LAN controller Intel 82566DM) provides the Intel® AMT (Active Management Technology).
For more information about advanced features of AMT refer to “Intel® Active Management Technology”.

Pin# Signal Name J25: LAN1 [RJ45 (female)]

1 MDI0+
2 MDI0­3 MDI1+
4 MDI2+
5 MDI2­6 MDI1­7 MDI3+
8 MDI3-

18

right LEDleft LED

LAN1: LED Indicators

LED left

Speed
(Mbps)

LINK ACTIVE

LED right

10 on orange on (blinking) off
100 on orange on (blinking) green
1000 on orange on (blinking) orange

Pin# Signal Name J26: LAN2 [RJ45 (female)]

1 MDI0+
2 MDI0­3 MDI1+
4 MDI2+
5 MDI2­6 MDI1­7 MDI3+
8 MDI3-

18

right LEDleft LED

LAN2: LED Indicators

LED left

Speed
(Mbps)

LINK ACTIVE

LED right

10 off orange on (blinking) off
100 off orange on (blinking) green
1000 off orange on (blinking) orange

9. Jumpers and Connectors Overview

20 PCI-760 – User’s Manual (V1.00)

9.1.2. Jumpers on the PCI-760

The jumpers on the PCI-760 allow you to configure your CPU card according to the needs of your applications.

In order to change a jumper setting, turn off the computer using the ATX-power supply switch.
If your power supply has no On/Off switch, disconnect the main power source. The board otherwise
could be damaged.

The following examples show the conventions used in this section.

21

Jumper Open

21

Jumper Closed

9.1.2.1. JP1 and JP2: Jumpers for COM2 Configuration as RS422 or RS485

The serial port COM2 (RS232 default setting) can be configured in the BIOS setup RS422 or RS485.
The jumpers JP1 and JP2 allow you to connect or disconnect the termination resistors (120 ohm) on / from the serial port
COM2, when the operation mode in the BIOS is set to RS422 or RS485.

When installing the board at one end of the network, JP1 and JP2 jumper caps must be installed to
connect the 120 ohm termination resistors.

In RS422 mode, both jumper caps (JP1 and JP2) must be installed to connect the 120 ohm line
termination resistors.

JP1:-Pin Row, DIP 2-pin Setting Function COM2 (RS422)

21

Pin 1-2
Short/Closed

RS422 with connected termination resistor

21

Pin 1-2
Open (Default)

RS422 without connected termination resistor

JP2:-Pin Row, DIP 2-pin Setting Function COM2 (RS485 or RS422)

21

Pin 1-2
Short/Closed

RS485 or RS422 with connected termination resistor

21

Pin 1-2
Open (Default)

RS485 without connected termination resistor

The serial port COM2 (RS232 default setting) can be configured in the BIOS setup RS422 or RS485.
Refer to BIOS settings for COM2 configuration as RS422 and RS485.

9. Jumpers and Connectors Overview

PCI-760 – User’s Manual (V1.00) 21

9.1.2.2. JP5: Jumper for RTC Reset (Clear CMOS Content)

This jumper allows you to clear the data (such as system password, date, time, and system setup parameters) in CMOS.

In order to change a jumper setting, please turn off the computer and unplug the power source to the
board. Otherwise, the board could be damaged.

The board might not start with this jumper in “closed” position.

JP5: Pin Row,
DIP 2-pin

Setting Function

21

Pin 1-2
Open (Default)

Normal Operation

21

Pin 1-2
Short/Closed

Clear CMOS
Content

For clearing of content, please wait 10 sec.

9.1.2.3. JP6: Disable CMOS Backup Restore Function

This jumper prevents the use of CMOS backup (in the case that the CMOS data are invalid). Set jumper (JP6) prevents,
that wrong settings of the backup are loading. The system boots using the “power on defaults” from onboard RAM.

In order to change a jumper setting, please turn off the computer and unplug the power source to the
board. Otherwise, the board could be damaged.

JP6: Pin Row,
DIP 2-pin

Setting Function

21

Pin 1-2
Open (Default)

CMOS Backup-Function is enabled

21

Pin 1-2
Short/Closed

CMOS Backup-Function is disabled

9.1.2.4. JP8: Image Flash; BIOS Programming

Before update the BIOS you have to contact our technical Support Department. Otherwise, the board
could be damaged.

9. Jumpers and Connectors Overview

22 PCI-760 – User’s Manual (V1.00)

9.1.3. Connectors On-Board

9.1.3.1. J31: +12V ATX Power Connector

The ATX connector is used to connect the +12V ATX power supply to the board in order to provide power to the CPU.

J31: 4-pin Connector Pin Signal Name

1 GND
2 GND
3 +12V
4 +12V

9.1.3.2. J14: Multifunctional Connector

A system chassis can be equipped with components, that provide acoustical or/and light indication of the computer
activities, and switches to change the computer status. J14 is a 16-pin box header that provides following connections:

Signal Name Pin # J14: Boxed Header,

DIP 16-pin

Pin # Signal Name

KBCKL 1 2 GND
KBDATA 3 4 GND
VCC5V fused 5 6 PWRLED+
Speaker 7 8 VCC5V fused
MCKL 9 10 GND
MDATA 11 12 GND
PBRES# 13 14 GND
HDLED- 15

1

15

2

16

Multifunctional

16 HDLED+

The multifunctional connector (J5) provides an interface:

❏ for a PS/2 keyboard and a PS/2 mouse connector
❏ to a speaker for audio tone generation
❏ to connect the Power LED
❏ to connect the hard drive activity LED
❏ to connect the reset button

Power LED: pins 4 and 6

These-pins allow the connection of the power LED.

Reset Button: pins 13 and 14

To these pins can be connected a reset button. The reset button is used to restart the system without turning the main
power switch off and on again.

Depending on the software and operating system, some data may be lost if the reset button is activated.

9. Jumpers and Connectors Overview

PCI-760 – User’s Manual (V1.00) 23

Hard Disk Drive LED: pins 15 and 16

To these pins can be connected a hard drive activity LED. This LED will flash when the HDD is being accessed.

Speaker:-pins 7 and 8

These-pins provide an interface to connect a speaker for audio tone generation. An 8-ohm speaker is recommended.

Keyboard:-pins 1, 2, 3, and 5

These-pins can be used to connect the cable connection for an external
PS/2 keyboard connector.

Mouse:-pins 9, 10, 11, and 5

These-pins can be used to connect the cable connection for an external
PS/2 mouse connector.

9.1.3.3. J34: Additional Power Button Connector

This connection allows you to attach an external ATX power button.

J34: 2-pin Row Pin # Signal Name

1 2

1 GND

9.1.3.4. J1: CPU Fan Power Connector

It is a 4-pin header that allows the connection of the CPU fan. The CPU fan must be a 12V f an (max. 750 mA).

J1: 4-pin Molex Connector (friction lock) Pin # Signal Name

1 CTRL (PWM)
2 Rotation
3 +12V

14

4 GND

9.1.3.5. J4: Chassis Fan1 Power Connector

It is a 4-pin header that allows the connection of a chassis fan. The chassis fan must be a 12V fan (max. 750 mA).

J4:- 4-pin Molex Connector (friction lock) Pin # Signal Name

1 CTRL (PWM)
2 Rotation
3 +12V

14

4 GND

9.1.3.6. J24: Chassis Fan2 Power Connector

It is a 4-pin header that allows the connection of a chassis fan. The chassis fan must be a 12V fan (max. 750 mA).

J24: 4-pin Molex Connector (friction lock) Pin # Signal Name

1 CTRL (PWM)
2 Rotation
3 +12V

14

4 GND

Also a 3-pin FAN connector cable can be can be connected to each of J1, J4 or J24. In this case the
corresponding fan is operating with full speed.

9. Jumpers and Connectors Overview

24 PCI-760 – User’s Manual (V1.00)

9.1.3.7. J5, J6, J11, and J12: Serial ATA Connectors

These connectors allow you to connect Serial-ATA devices. (Each of the SATA interfaces supports one Serial-ATA
device).

The PCI-760 board supports up to six Serial ATA ports. Two of the SATA ports (SATA4 and SATA5)
are routed to the backplane via the PICMG 1.3 edge connector.

J5, J6, J11, and J12:Serial ATA: High Speed Headers

Molex 67800-8001, Locking Latch)

Pin # Signal Name

1 GND
2 TX+
3 TX­4 GND
5 RX­6 RX-

SATA

7 GND

9.1.3.8. J8: Parallel Port Connector (LPT)

LPT is an IEEE1284 compatible interface and supports Normal/EPP/ECP mode.
This port is provided as a 26-pin boxed header.

Signal Name Pin # J8: Boxed Header,

DIP 26-pin

Pin # Signal Name

Strobe# 1 2 AutoFeed#
PD0, Data 0 3 4 Error#
PD1, Data 1 5 6 Initialize#
PD2, Data 2 7 8 SLIN
PD3, Data 3 9 10 GND
PD4, Data 4 11 12 GND
PD5, Data 5 13 14 GND
PD6, Data 6 15 16 GND
PD7, Data 7 17 18 GND
Acknowledge# 19 20 GND
Busy 21 22 GND
Paper empty 23 24 GND
SLCT 25

25

1

26

2

LPT

26 NC
