Kontron KTH81-mITX User Manual

KTH81/mITX

KTQ87/Flex

KTH81/Flex

KTQ87/mITX

KTD-N0882-H

The pulse of innovation

KTD-N0882-H Page 2 Table of Contents

» Table of Contents «

1 Introduction ........................................................................................... 9

2 Installation Procedure ............................................................................ 10

2.1 Installing the Board ............................................................................................................... 10

2.2 Requirements IEC60950 .......................................................................................................... 11

3 System Specifications ............................................................................. 12

3.1 Component main data ............................................................................................................. 12

3.2 System overview .................................................................................................................... 16

3.3 Processor Support Table .......................................................................................................... 17

3.4 System Memory support .......................................................................................................... 19

3.5 KTQ87/KTH81 Graphics Subsystem ............................................................................................. 20

Intel® HD Graphics 4600 ........................................................................................................................... 20

Display Configurations: ............................................................................................................................. 21

Graphics Adapters .................................................................................................................................... 21

3.6 Power Consumption ................................................................................................................ 22

mITX, Total System power example ............................................................................................................... 23

Flex, Total System power example ................................................................................................................ 26

4 Connector Locations ............................................................................... 30

4.1 KTQ87/mITX (KTH81/mITX) - frontside ....................................................................................... 30

4.2 KTQ87/Flex (KTH81/Flex) - frontside .......................................................................................... 31

5 Connector Definition .............................................................................. 32

6 IO-Area Connectors ................................................................................ 33

6.1 DP Connectors (DP0, DP1, DP2) ................................................................................................. 33

6.2 Ethernet Connectors ............................................................................................................... 34

6.3 USB Connectors (IO Area) ........................................................................................................ 35

USB Connector 0/1 (USB0/1) ..................................................................................................................... 36

USB Connector 2/3 (USB2/3) ..................................................................................................................... 37

6.4 Audio Jack Connector Stack (Audio) ........................................................................................... 38

7 Internal Connectors ................................................................................ 39

7.1 Power Connector (ATX24P) ....................................................................................................... 39

7.2 Power Connector (ATX4p) ........................................................................................................ 39

7.3 Fan Connectors (CPU_Fan, SYS_Fan1, SYS_Fan2) .......................................................................... 40

7.4 PS/2 Keyboard and Mouse connector (KBD/MSE) (PS2) .................................................................. 41

7.5 LVDS Flat Panel Connector (LVDS) .............................................................................................. 42

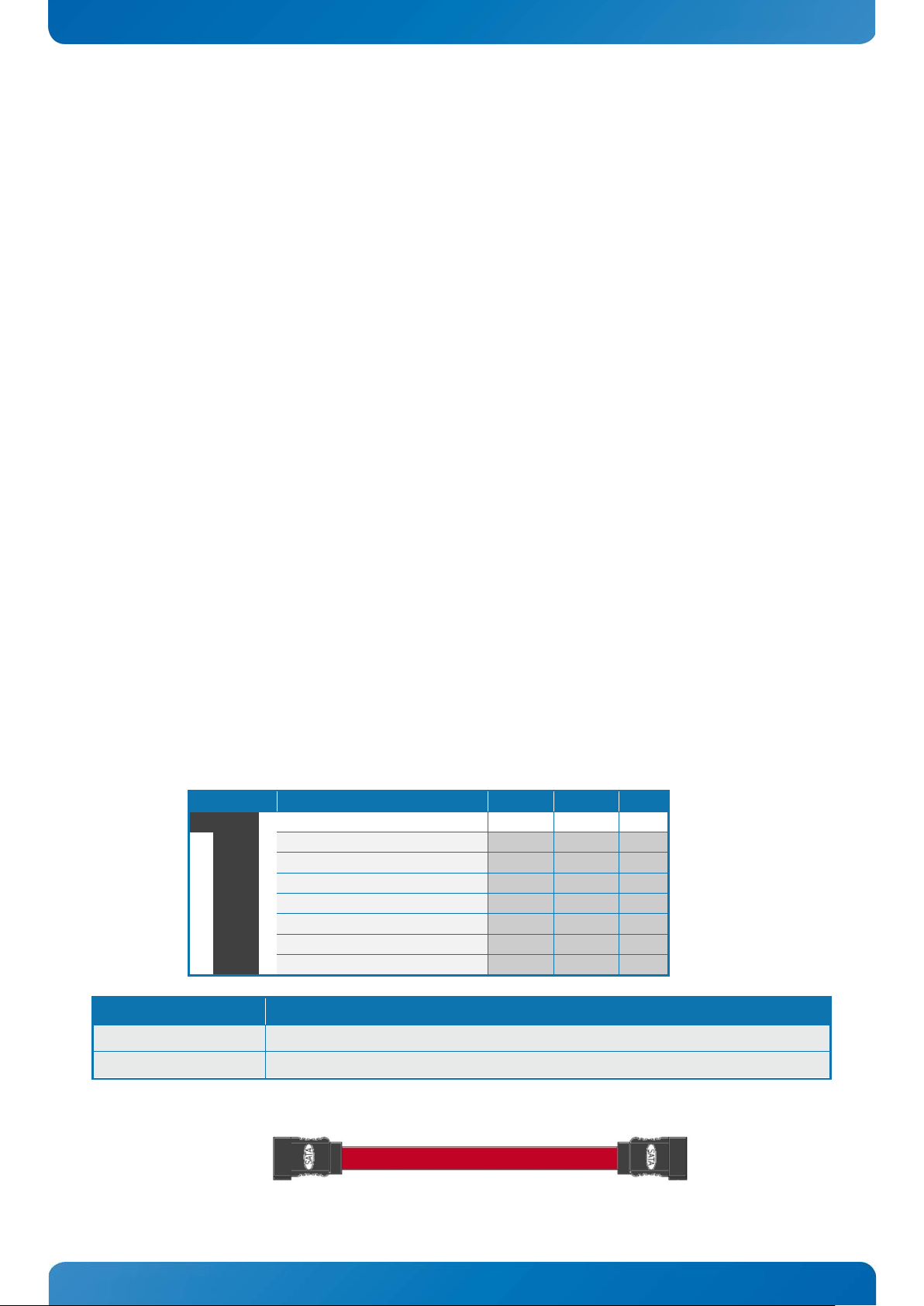

7.6 SATA (Serial ATA) Disk interface ................................................................................................ 43

7.7 USB Connectors (USB) ............................................................................................................ 44

USB 4 & 5 (USB4/5) (USB1) ....................................................................................................................... 45

KTQ87/KTH81 Users Guide

KTD-N0882-H Page 3 Table of Contents

USB 6 & 7 (USB6/7) (USB2) ....................................................................................................................... 45

USB 8 & 9 (USB8/9) (USB3) ....................................................................................................................... 45

7.8 Serial COM1 – COM2 Ports (COM1, COM2) ..................................................................................... 46

7.9 Audio Connectors .................................................................................................................. 47

Headphone and Mic2 ................................................................................................................................. 47

Front Speakers (LINEOUT) .......................................................................................................................... 47

SPDIF (SP-DIF) ......................................................................................................................................... 47

7.10 Front Panel Connector (FRONTPNL) (J2) ...................................................................................... 48

7.11 Feature Connector (Feature) (J1) .............................................................................................. 49

7.12 “Load Default BIOS Settings” (Load default) (CMOS) ...................................................................... 51

7.13 “Always On” (Always On) (A_ON) ............................................................................................... 52

7.14 SPI Connector (SPI_HEAD) ....................................................................................................... 53

7.15 LPC Connector (J30) ............................................................................................................... 53

7.16 XDP_CPU (Debug Port for CPU) (XDP_CPU) ................................................................................... 54

7.17 XDP_PCH (Debug Port for Chipset) (XDP_PCH) .............................................................................. 55

8 Slot Connectors (PCIe, mPCIe, mSATA, PCI) ................................................. 56

8.1 PCIe Connectors .................................................................................................................... 56

PCI-Express x16 Connector (PCIex16) (SLOT1_16X) ......................................................................................... 56

PCI-Express x2 Connector (PCIex2) in x16 slot (PCIE2) ..................................................................................... 58

PCI-Express x1 Connector (PCIex1) (PCIE3) ................................................................................................... 59

miniPCI-Express mPCIe (MPCIE)................................................................................................................... 60

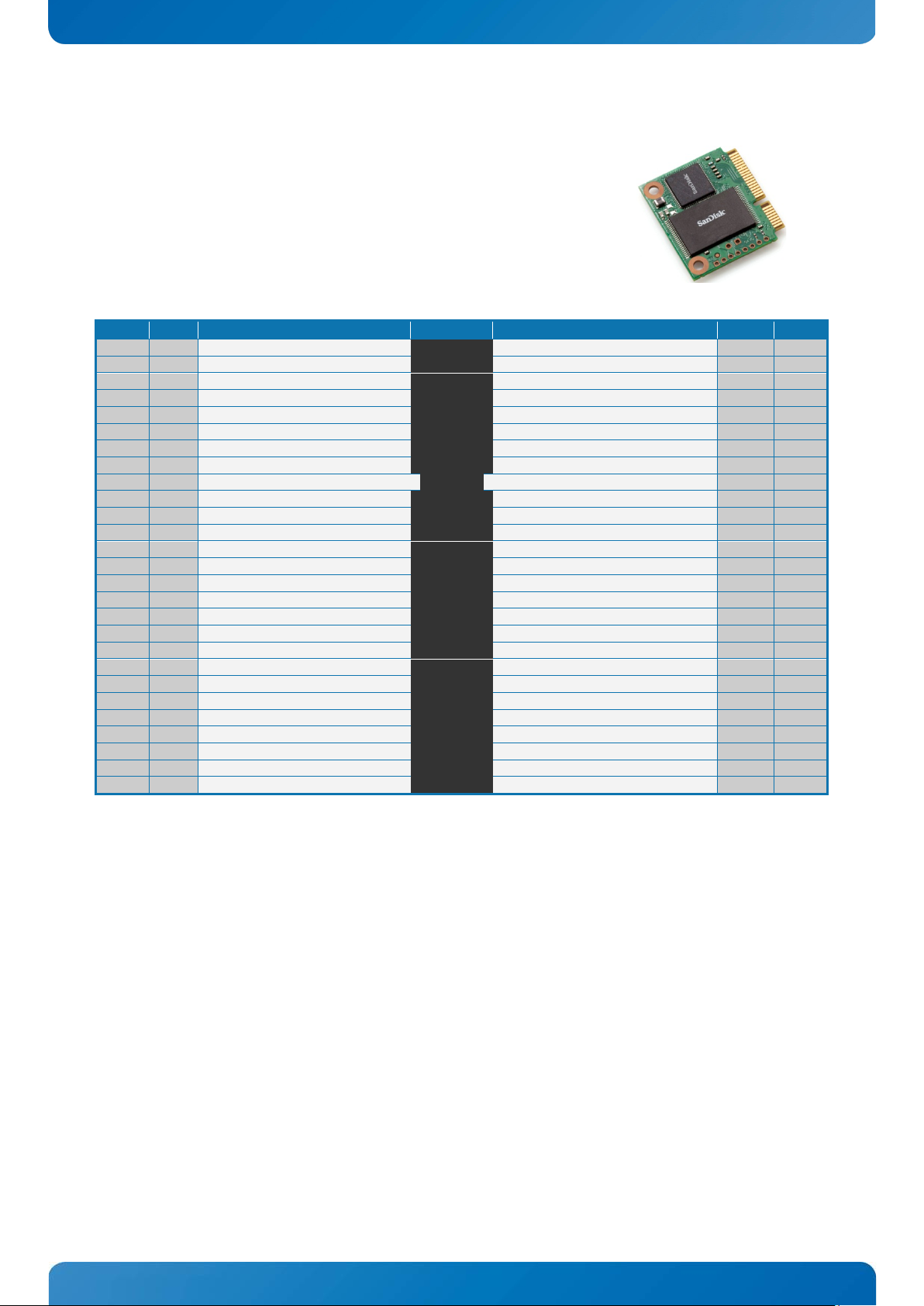

8.2 mSATA (MSATA) ..................................................................................................................... 61

8.3 PCI Slot Connector ................................................................................................................. 62

Signal Description – PCI Slot Connector ........................................................................................................ 63

KTQ81/Flex & KTH81/Flex PCI IRQ & INT routing ............................................................................................. 64

9 On-board - & mating connector types ......................................................... 65

10 BIOS .................................................................................................... 66

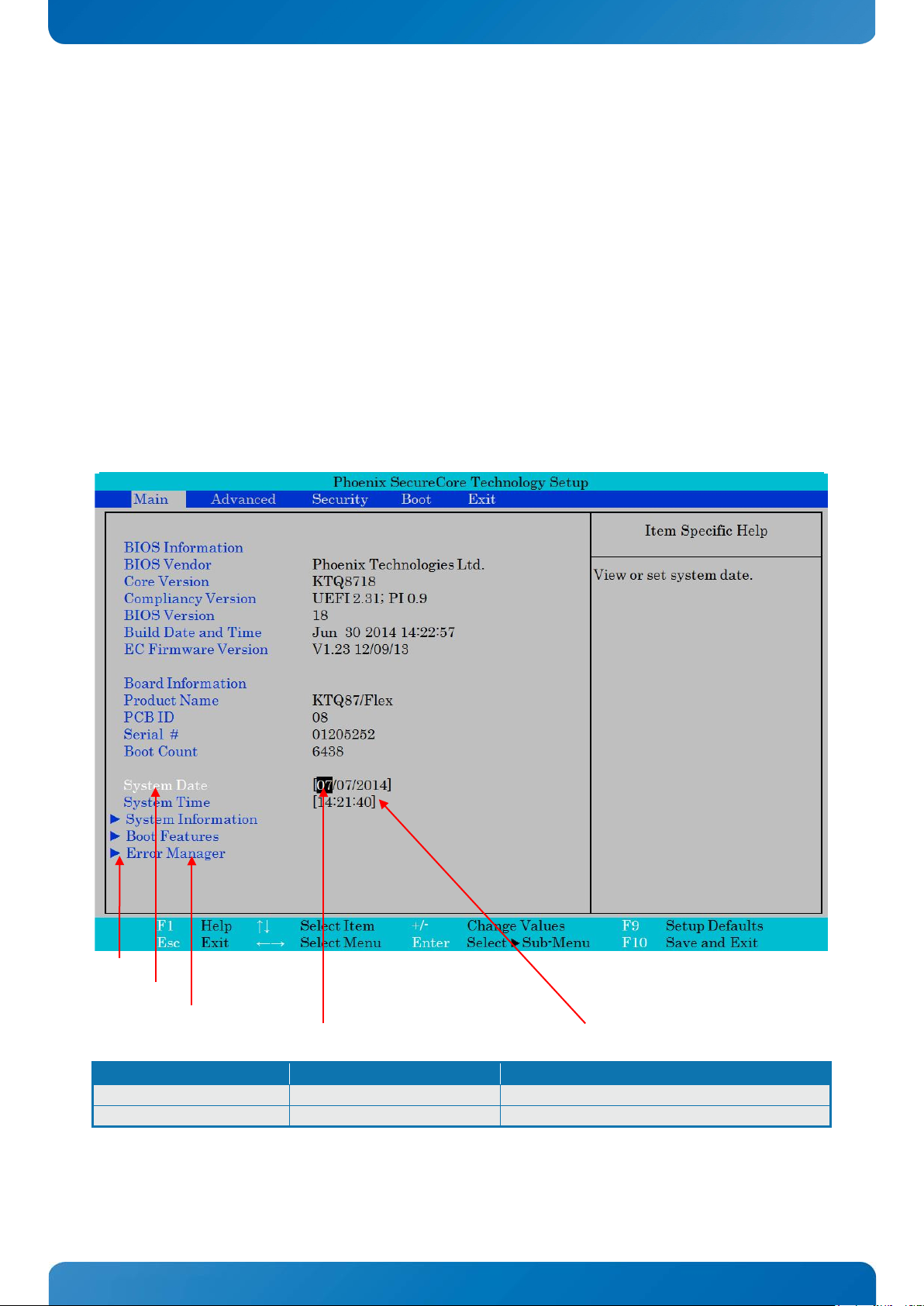

10.1 Main ................................................................................................................................... 66

System Information .................................................................................................................................. 67

Boot Features .......................................................................................................................................... 68

Error Manager .......................................................................................................................................... 69

10.2 Advanced ............................................................................................................................. 70

Silicon Information ................................................................................................................................... 71

Processor Configuration ............................................................................................................................. 72

HDD Configuration .................................................................................................................................... 73

System Agent (SA) Configuration................................................................................................................. 74

South Bridge Configuration ........................................................................................................................ 79

LAN Configuration .................................................................................................................................... 84

PCI bridge Configuration ............................................................................................................................ 85

Hardware Health Configuration ................................................................................................................... 87

SMBIOS Event Log .................................................................................................................................... 89

AMT Configuration .................................................................................................................................... 90

ME Configuration ...................................................................................................................................... 93

Intel ® Rapid Start Technology ................................................................................................................... 94

KTQ87/KTH81 Users Guide

KTD-N0882-H Page 4 Table of Contents

10.3 Security ............................................................................................................................... 95

TPM Configuration .................................................................................................................................... 96

10.4 Boot ................................................................................................................................... 97

10.5 Exit ..................................................................................................................................... 98

KTQ87/KTH81 Users Guide

KTD-N0882-H Page 5 Document Details

Top text correction. Improved cooler information. Feature connector

Document Revision History

Revision Date By Comment

H July 16th 2014 MLA

G May 27th 2014 MLA Display configuration table improved. BIOS part added.

F Feb. 26th 2014 MLA

E Sep. 23rd 2013

D July 3rd 2013 JS Audio section update, page 30. CPU table updated. Picture update.

C May 24th 2013 JS Entire document revised

B May 24th 2013 JS Section 2.5 revised

A May 15th 2013 JS Feature port revised (FAN3/4 not supported)

0 April 14th 2013 JS Preliminary version

JS

MLA

corrections. BIOS part upgraded.

Mating connector list updated. Pentium data added. Added KTH81/Flex and KTQ87/Flex. Updated document layout. CPU table updated, Graphics data, FAN3 & 4 not supported. Audio Connector description correction. KTH81 included. Connector list updated.

KTQ87/KTH81 Users Guide

KTD-N0882-H Page 6 Document Details

Copyright Notice

No part of this document may be reproduced or transmitted in any form or by any means, electronically or mechanically, for any purpose without the express written permission of KONTRON Technology A/S.

Trademark Acknowledgement

Brand and product names are trademarks or registered trademarks of their respective owners.

Disclaimer

KONTRON Technology A/S reserves the right to make changes without notice to any product, including circuits and/or software described or contained in this manual in order to improve design and/or performance. Specifications listed in this manual are subject to change without notice. KONTRON Technology assumes no responsibility or liability for the use of the described product(s), conveys no license or title under any patent, copyright or mask work rights to these products and makes no representations or warranties that these products are free from patent, copyright or mask work right infringement unless otherwise specified. Applications that are described in this manual are for illustration purposes only. KONTRON Technology A/S makes no representation or warranty that such application will be suitable for the specified use without further testing or modification.

KTQ87/KTH81 Users Guide

KTD-N0882-H Page 7 Document Details

Life Support Policy

KONTRON Technology’s PRODUCTS ARE NOT FOR USE AS CRITICAL COMPONENTS IN LIFE SUPPORT DEVICES OR SYSTEMS WITHOUT EXPRESS WRITTEN APPROVAL OF THE GENERAL MANAGER OF KONTRON Technology A/S.

As used herein: Life support devices or systems are devices or systems which (a) are intended for surgical implant into body or (b) support or sustain life and whose failure to perform when properly used in accordance with instructions for use provided in the labelling can be reasonably expected to result in significant injury to the user. A critical component is any component of a life support device or system whose failure to perform can be reasonably expected to cause the failure of the life support device or system or to affect its safety or effectiveness.

Warranty

KONTRON Technology warrants its products to be free from defects in material and workmanship during the warranty period. If a product proves to be defective in material or workmanship during the warranty period KONTRON Technology will, at its sole option, repair or replace the product with a similar product. Replacement Product or parts may include remanufactured or refurbished parts or components.

The warranty does not cover:

1. Damage, deterioration or malfunction resulting from: A. Accident, misuse, neglect, fire, water, lightning or other acts of nature, unauthorized

product modification or failure to follow instructions supplied with the product.

B. Repair or attempted repair by anyone not authorized by KONTRON Technology. C. Causes external to the product, such as electric power fluctuations or failure. D. Normal wear and tear. E. Any other causes which does not relate to a product defect.

2. Removal, installation and set-up service charges.

Exclusion of damages:

KONTRON TECHNOLOGY LIABILITY IS LIMITED TO THE COST OF REPAIR OR REPLACEMENT OF THE PRODUCT. KONTRON TECHNOLOGY SHALL NOT BE LIABLE FOR:

1. DAMAGE TO OTHER PROPERTY CAUSED BY ANY DEFECTS IN THE PRODUCT, DAMAGES BASED UPON

INCONVENIENCE, LOSS OF USE OF THE PRODUCT, LOSS OF TIME, LOSS OF PROFITS, LOSS OF BUSINESS OPPORTUNITY, LOSS OF GOODWILL, INTERFERENCE WITH BUSINESS RELATIONSHIPS OR OTHER COMMERCIAL LOSS, EVEN IF ADVISED OF THEIR POSSIBILITY OF SUCH DAMAGES.

2. ANY OTHER DAMAGES, WHETHER INCIDENTAL, CONSEQUENTIAL OR OTHERWISE.

3. ANY CLAIM AGAINST THE CUSTOMER BY ANY OTHER PARTY.

KTQ87/KTH81 Users Guide

KTD-N0882-H Page 8 Document Details

KONTRON Technology Technical Support and Services

If you have questions about installing or using your KONTRON Technology Product, then please notice that you will find many answers in this Users Guide. To obtain support please contact your local Distributor or Field Application Engineer (FAE).

Before Contacting Support: Please be prepared to provide as much information as possible:

 CPU Board

1. Type.

2. Part Number (find PN on label)

3. Serial Number if available (find SN on label)

 Configuration

1. DRAM Type and Size.

2. BIOS Revision (find the version info in the BIOS Setup).

3. BIOS Settings different than Default Settings (refer to the BIOS Setup section).

 System

1. O/S Make and Version.

2. Driver Version numbers (Graphics, Network, and Audio).

3. Attached Hardware: Harddisks, CD-Rom, LCD Panels etc.

If the Kontron Technology product seems to be defect and you want to return it for repair, please follow the guide lines from the following page:

http://kontron.com/services/rma-information/kontron-technology-a-s/

KTQ87/KTH81 Users Guide

KTD-N0882-H Page 9 Introduction

+ PCIex1

1 Introduction

This manual describes the KTH81/mITX, KTQ87/mITX, KTH81/Flex & KTQ87/Flex boards made by KONTRON Technology A/S. The boards will also be denoted KTQ87 & KTH81.

The KTQ87/KTH81 boards are based on the Q87/H81 chipsets supporting 4 i5 2Core and 4Core desktop processors, Haswell Dual Core Pentium and Haswell Dual Core Celeron. See “Processor Support Table” for more specific details.

The differences between the four types of boards are listed in this table:

Feature KTH81/mITX KTQ87/mITX KTH81/Flex KTQ87/Flex

Form factor mITX mITX Flex ATX Flex ATX

PCIex16 Gen2 Gen3 Gen2 Gen3

rd

generation Intel® Haswell i7 -,

Vpro - Depends on CPU - Depends on CPU

AMT - Yes - Yes

RAID - Yes - Yes

DP 2x (DP0, DP1) 3x (DP0, DP1,DP2) 2x (DP0, DP1) 3x (DP0, DP1,DP2)

LVDS - - Yes (=> no DP1) Yes (=> no DP1)

USB

2x USB3.0/2.0

8x USB2.0

4x USB3.0/2.0

6x USB2.0

2x USB3.0/2.0

8x USB2.0

4x USB3.0/2.0

8x USB2.0

LPC - - 2x10 pin row 2x10 pin row

DIMM slots 2x 2x 2x 4x

PCIe slots

PCIex16, Gen2.

mPCIe (w. USB)

PCIex16, Gen3

mPCIe (w. USB)

PCIex16, Gen2

PCIex2 (x16 slot)

PCIex16, Gen3

PCIex4 (x16 slot)

mSATA 1x (w. USB, LPC) 1x (w. USB,LPC) - -

SATA

1x Gen3 2x Gen2

5x, Gen3

2x Gen3 2x Gen2

6x, Gen3

PCI Slot - - 1x 1x

Kbd/Mse - - 6-pin row 6-pin row

Fan connectors CPU, Sys CPU, Sys CPU, Sys1, Sys2 CPU, Sys1, Sys2

Use of this Users Guide implies a basic knowledge of PC-AT hard- and software. This manual is focused on describing the KTQ87 / KTH81 board’s special features and is not intended to be a standard PC-AT textbook.

New users are recommended to study the short installation procedure stated in the following chapter before switching-on the power.

All configuration and setup of the CPU board is either done automatically or manually by the user via the BIOS setup menus. Only exceptions are the “Clear CMOS” Jumper and the “Always On” jumper.

Latest revision of this manual, datasheet, BIOS, drivers, BSP’s (Board Support Packages), Mechanical drawings (2D and 3D) can be downloaded from here: http://www.kontron.com/products/boards-and-

mezzanines/embedded-motherboards/

KTQ87/KTH81 Users Guide

KTD-N0882-H Page 10 Installation

leave the Power Connectors unconnected while configuring the board. Otherwise components

!

Note: To clear all BIOS settings, including Password protection, activate “Load Default BIOS Settings”

2 Installation Procedure

2.1 Installing the Board

To get the board running follow these steps. If the board shipped from KONTRON has already components like RAM and CPU cooler mounted, then relevant steps below can be skipped.

1. Turn off the PSU (Power Supply Unit)

Warning: Turn off PSU (Power Supply Unit) completely (no mains power connected to the PSU) or

(RAM, LAN cards etc.) might get damaged. Make sure only to use standard ATX PSU. Running the board with non-compliant ATX PSU may damage the board within minutes.

2. Insert the DDR3 DIMM 240pin DIMM module(s)

Be careful to push it in the slot(s) before locking the tabs. For a list of approved DDR3 DIMMs contact your Distributor or FAE. See also chapter “System Memory Support”.

3. Install the processor

The CPU is keyed and will only mount in the CPU socket in one way. Use finger to open/ close the CPU socket. Refer to supported processor overview for details.

4. Cooler Installation

Make sure the heat paste etc. on the cooler is intact and cover the full area of the CPU. Connect Cooler Fan electrically to the FAN_CPU connector.

5. Connecting Interfaces

Insert all external cables for hard disk, keyboard etc. A monitor must be connected in order to change BIOS settings.

6. Connect and turn on PSU

Connect PSU to the board by the ATXPWR (24pole power plug) and the ATX4p (4-pole power plug).

7. Power Button

If the board does not start by itself when switching on the ATX PSU AC mains, then follow these instructions to start the board. Install the Always On Jumper in the Always On position or toggle the PWRBTN_IN# signal (available in the FRONTPNL connector), by momentary shorting pins 16 (PWRBTN_IN#) and pin 18 (GND). A “normally open” switch is recommended.

8. BIOS Setup

Enter the BIOS setup by pressing the <F2> key during boot up. Enter “Exit Menu” and Load Setup Defaults. Refer to the “BIOS Configuration / Setup“ section of this manual for details on BIOS setup.

Jumper for ⋲10 sec (without power connected).

KTQ87/KTH81 Users Guide

KTD-N0882-H Page 11 Installation

!

Hersteller empfohlenen gleichwertigen Typ.

Eksplosionsfare ved fejlagtig

• That the enclosure of the peripheral device fulfils the fire protecting requirements of IEC60950.

9. Mounting the board in chassis

Warning: When mounting the board to chassis etc. please notice that the board contains

components on both sides of the PCB which can easily be damaged if board is handled without reasonable care. A damaged component can result in malfunction or no function at all.

When fixing the Motherboard on a chassis it is recommended using screws with integrated washer and a diameter of ⋲7mm. Do not use washers with teeth, as they can damage the PCB and cause short circuits.

2.2 Requirements IEC60950

Take care when designing chassis interface connectors in order to fulfil the IEC60950 standard.

When an interface or connector has a VCC (or other power) pin which is directly connected to a power plane like the VCC plane: To protect the external power lines of the peripheral devices the customer has to ensure:

• Wires have suitable rating to withstand the maximum available power.

Lithium battery precautions

CAUTION!

Danger of explosion if battery is incorrectly re- placed. Replace only with same or equivalent type recommended by manufacturer. Dispose of used batteries according to the manufacturer’s instruc- tions.

ATTENTION!

Risque d'explosion avec l'échange inadéquat de la batterie. Remplacement seulement par le même ou un type équivalent recommandé par le producteur. L'évacuation des batteries usagées conformément à des indications du fabricant.

ADVARSEL!

Lithiumbatteri – håndtering. Udskiftning må kun ske med batteri af samme fabrikat og type. Levér det brugte batteri tilbage til leverandøren.

VARNING!

Explosionsfara vid felaktigt batteribyte. Använd samma batterityp eller en ekvivalent typ som rekommenderas av apparattillverkaren. Kassera använt batteri enligt fabrikantens instruktion.

VORSICHT!

Explosionsgefahr bei unsachgemäßem Austausch der Batterie. Ersatz nur durch den selben oder einen vom

Entsorgung gebrauchter Batterien nach Anga- ben des Herstellers.

PRECAUCION!

Peligro de explosión si la batería se sustituye incorrectamente. Sustituya solamente por el mismo o tipo equivalente recomendado por el fabricante. Disponga las baterías usadas según las instrucciones del fabricante.

ADVARSEL!

Eksplosjonsfare ved feilaktig skifte av batteri. Benytt samme batteritype eller en tilsvarende type anbefalt av apparatfabrikanten. Brukte batterier kasseres i henhold til fabrikantens instruksjoner.

VAROITUS!

Paristo voi räjähtää, jos se on virheellisesti asennettu. Vaihda paristo ainoastaan lalteval- mistajan suosittelemaan tyyppiln. Hävitä käytetty paristo valmistajan ohjeiden mukaisesti.

KTQ87/KTH81 Users Guide

KTD-N0882-H Page 12 System Specification

3 System Specifications

3.1 Component main data

The table below summarizes the features of the KTH81/mITX, KTQ87/mITX, KTH81/Flex and KTQ87/Flex.

Form factor

Processor

Chipset

mITX (miniITX) 170,18 mm by 170,18 mm Flex (Flex-ATX) 190,5 mm by 228,6 mm Support the following 4rd Generation Intel® Core™ (Haswell Desktop) processors via LGA1150 H3 Socket (max 65W TDP)

• Intel® Core™ i7

• Intel® Core™ i5

• Intel® Core™ i3

• Intel® Pentium

• Intel® Celeron

(4x 5 GT/s point-to-point DMI interface to PCH and 2/3/4/6/8MB internal cache).

Intel Q87 PCH (Platform Controller Hub)

• Intel ® VT-d (Virtualisation Technology for Directed I/O)

• Intel ® TXT (Trusted Execution Technology)

• Intel ® vPRO

• Intel ® AMT (Active Management Technology) version 9.0

• Intel ® AT (Anti-Theft Technology)

• Intel ® HD Audio Technology

• Intel ® RST (Rapid Storage Technology)

• Intel ® RRT (Rapid Recover Technology)

• SATA (Serial ATA) 6Gb/s and 3Gb/s.

• USB revision 2.0

• USB revision 3.0

• PCI Express revision 2.0

• ACPI 3.0b compliant

• Triple Display support (Triple Graphic Pipes)

• Blue-ray HD video playback

Intel H81 PCH (Platform Controller Hub)

• Intel ® VT-d (Virtualisation Technology for Directed I/O)

• Intel ® TXT (Trusted Execution Technology)

• Intel ® Rapid storage technology: ACHI Only

• Intel ® HD Audio Technology

• SATA (Serial ATA) 6Gb/s and 3Gb/s.

• USB revision 2.0

• USB revision 3.0

• PCI Express revision 2.0

• ACPI 3.0b compliant

• Dual Display support (Two Graphic Pipes)

• Blue-ray HD video playback

KTQ87/KTH81 Users Guide

KTD-N0882-H Page 13 System Specification

Security

Memory

Management

Audio

Video

Peripheral interfaces

Intel® Integrated TPM 1.2 support

• DDR3 DIMM 240pin socket (2/4 sockets on mITX/Flex)

• Support single and dual ranks DDR3 1333/1600MT/s

(PC3-10600/PC3-12800)

• Support system memory from 1x 1GB up to 2x/4x 8GB on mITX/Flex.

Notes: Less than 4GB displayed in System Properties using 32bit OS (Shared Video Memory/PCI resources is subtracted)

• ECC not supported (PGA processors do not support ECC)

Intel® Active Management Technology (Intel® AMT) 9.0 (KTQ87 only)

Audio, 7.1 Channel High Definition Audio Codec using the VIA VT1708S codec

• Line-in

• Headphone stereo signals.

• Surround output: SIDE, LFE, CEN, BACK and FRONT

• Microphone: MIC1 and MIC2

• SPDIF-Out (electrical Interface only)

• On-board speaker (Electromagnetic Sound Generator like Hycom HY-05LF)

Intel ® i5 & i7 4rd Generation Desktop processors support Intel ® HD Graphics 4600. 2 or 3x digital display ports via the Intel® Haswell CPU.

• 2x DP (DisplayPorts), comply with DisplayPort 1.2 specification. (H81 only)

• 3x DP (DisplayPorts), comply with DisplayPort 1.2 specification. (Q87 only)

• HDMI panel support via DP to HDMI Adapter Converter.

• DVI panel support via DP to DVI Adapter Converter.

• VGA panel support via DP to VGA Adapter Converter.

• LVDS panel JEIDA/VESA up to 2x24 bit (Flex only)

• Triple independent pipes (Q87 only)

• Triple independent or cloned displays are supported from OS.

• Any 3 or 2 displays via DP0, DP1, DP2 (Q87 only) or LVDS (Flex only) can be used.

(DP1 and LVDS cannot both be active at the same time).

• 4x USB3.0 / USB2.0 on I/O area (Q87 only)

• 2x USB3.0 / USB2.0 plus 2x USB2.0 on I/O area (H81 only)

• 4x USB2.0 ports on internal pinrows (KTQM87/mITX, KTHM81/mITX, KTHM81/Flex)

• 6x USB2.0 ports on internal pinrows (KTQM87/Flex)

• 1x USB2.0 ports on internal mPCIe connector (mITX only)

• 1x USB2.0 ports on internal mSATA connector (mITX only)

• 2x Serial ports (RS232) on internal pinrows

• 1x SATA3.0, 2x SATA2.0 and 1x mSATA (SATA3.0, USB, LPC) (KTH81/mITX)

• 5x SATA3.0 and 1x mSATA (SATA3.0, USB, LPC) (KTQ87/mITX)

• 2x SATA3.0 and 2x SATA2.0 (KTH81/Flex)

• 6x SATA3.0 (KTQ87/Flex)

• RAID 0/1/5/10 support (Q87 only)

KTQ87/KTH81 Users Guide

KTD-N0882-H Page 14 System Specification

Hardware

•

LAN Support

• 1x 10/100/1000Mbits/s LAN (ETHER1):

Intel® Clarksville WGI218-LM Gigabit PHY w. AMT 9.0 (Q87 only) Intel® Clarksville WGI218-V Gigabit PHY (H81 only)

• 1x 10/100/1000Mbits/s LAN (ETHER2) Intel® Pearsonville I211AT

• PXE Netboot supported.

• Wake On LAN (WOL) supported

I/O Control

Via ITE IT8516E Embedded Controller via LPC Bus interface

Expansion Capabilities

• 1x PCIe x16 (Gen 2.0), 1x mPCIe (w. USB2.0) (KTH81/mITX)

• 1x PCIe x16 (Gen 2.0 & 3.0), 1x mPCIe (w. USB2.0) (KTQ87/mITX)

• 1x PCIe x16 (Gen 2.0), 1x PCIe x2 (x16 slot), 1x PCIe x1 (KTH81/Flex)

• 1x PCIe x16 (Gen 2.0 & 3.0), 1x PCIe x4 (x16 slot), 1x PCIe x1 (KTQ87/Flex)

• PCI (Flex only)

• SMBus, compatible with ACCES BUS and I2C BUS, (via Feature connector)

• SPI bus routed to SPI connector (BIOS Recovery module interface)

• DDC/AUX Bus routed to DP connector (Auto detect to DDC when using passive DP to

HDMI or DVI adapters)

• 18 x GPIOs (General Purpose I/Os), (via Feature connector)

• DAC, ADC, PWM and TIMER (Multiplexed), (via Feature connector)

• WAKE UP / Interrupt Inputs (Multiplexed), (via Feature connector)

• 3 Wire Bus for GPIO Expansion (up to 152 GPIOs), (via Feature connector)

• 8 bit Timer output, (via Feature connector)

Smart Fan control system, support Thermal® and Speed® cruise for two on-board

Monitor Subsystem

Fan connectors: CPU Fan (on-board) and System Fan (on-board)

• Thermal inputs: CPU Die temperature (precision +/- 3ºC), System temperature

(precision +/- 3ºC)

• Intrusion (Case Open) detect input, (via Feature connector)

• Sleep S5# Indication, (via Feature connector)

• System Powergood Signal, (via Feature connector)

Power Supply Unit

ATX/BTX (w. ATX+12V) PSU, 24-pin and 4-pin

Battery

Exchangeable 3.0V Lithium battery for on-board Real Time Clock and CMOS RAM. Manufacturer Panasonic / Part-number CR-2032L/BN, CR2032N/BN or CR-2032L/BE. Approximate 6.2 years retention. Current draw is less than 4.2µA when PSU is disconnected and 0 µA in S0 – S5.

CAUTION: Danger of explosion if the battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer’s instructions.

KTQ87/KTH81 Users Guide

KTD-N0882-H Page 15 System Specification

C operating temperature (forced cooling). It is the customer’s responsibility

to provide sufficient airflow around each of the components to keep them within

C; lower limit of storage temperature is defined by specification restriction

board CR2032 battery. Board with battery has been verified for storage

All Peripheral interfaces intended for connection to external equipment are ESD/ EMI

Product Category: Information Technology Equipment Including Electrical Business

Environmental Conditions

Operating:

0°C – 60°

allowed temperature range.

10% - 90% relative humidity (non-condensing)

Storage:

-20°C – 70°

of on-

temperature down to -40°C by Kontron.

5% - 95% relative humidity (non-condensing)

Electro Static Discharge (ESD) / Radiated Emissions (EMI):

protected. EN 61000-4-2:2000 ESD Immunity EN55022:1998 class B Generic Emission Standard.

Safety:

IEC 60950-1: 2005, 2nd Edition UL 60950-1 CSA C22.2 No. 60950-1

Equipment Product Category CCN: NWGQ2, NWGQ8 File number: E194252

Shock: IAW IEC 60068-2-27, Test Ea, shock, 18 shocks 3 per axis, 6 directions. Shock pulse 50g, 11ms halfsine.

Bump:

IAW IEC 60068-2-29, Test Eb, Bump, 3000 bumps, 500 per axis, 6 directions. Half Sine Waveform Acceleration 2g; Pulse Duration 11ms.

Vibration:

IAW IEC 60068-2-64, Test Fh, Random Vibration. 90 min per axis, 3 axes, at 1.9 grms, with PSD: 10-20 Hz: 0.05 g²/Hz and 20-500 Hz: -3dB/octave.

Theoretical MTBF:

599.559 / 398.053 hours @ 40°C / 50°C for the mITX boards.

464.021 / 329.037 hours @ 40°C / 50°C for the Flex boards.

Restriction of Hazardous Substances (RoHS):

All boards in the KTQ87 / KTH81 family are RoHS compliant.

Capacitor utilization:

No Tantalum capacitors on board

Only Japanese brand Solid capacitors rated for 100 °C used on board

KTQ87/KTH81 Users Guide

KTD-N0882-H Page 16 System Specification

TPM (Infineon)

mSATA w. LPC Debug & USB2.0

3.2 System overview

The block diagram below shows the architecture and main components of the KTQ87 / KTH81. The key component on the board is the Intel

LVDS / DP (DisplayPort 1.2): 2x DP (KTH81/mitx) 3x DP (KTQ87/mitx) DP + DP or LVDS (KTH81/Flex) 2x DP + DP or LVDS (KTQ87/Flex)

IO area Int. USB 3.0/

KTH81/mITX 2x 2x 6x KTQ87/mITX 4x - 6x KTH81/Flex 2x 2x 6x KTQ87/Flex 4x - 8x

Audio Codec VIA VT1708S: 2x3 Audio Jack SPDIF Out Line-Out Frontpanel: Line-out2 & Mic2

2.0 2.0

2.0

®

Q87/H81 (Lynx Point) Desktop Platform controller Hub

Intel Processor HASWELL

240 pins DDR3 UDIMM Dual Channel, PC3 10600/12800: 2 slots, 1-16GB total. 4 slots, 1-32GB total (KTQ87/Flex).

LGA1150

PCIe x16 (x16slot) Graphics

PCIe x2 (x16slot) (KTH81/Flex) PCIe x4 (x16slot) (KTQ87/Flex) PCIe x1 (Flex) mPCIe w. & USB2.0 (mITX)

Intel

PCH

Lynx Point

Q87/H81

SATA

3.0 KTH81/mITX 1x 2x 1x KTQ87/mITX 5x - 1x KTH81/Flex 2x 2x KTQ87/Flex 6x - -

Raid 0/1/5/10 (Q87)

SATA

2.0

mSATA

3.0

LAN1 Intel Clarkville

LAN2 Intel Pearsonville

2x COM (RS232)

6-pin PS/2 Keyboard/Mouse

Fans: CPU, System, System2 (flex)

Embedded

Controller

ITE8516

KTQ87/KTH81 Users Guide

SPI BIOS Flash (64MBit)

Feature connector:

SMBus/I2C

GPIO/DAC/ADC/PWM GPIO expansion (up to 152) Intruder detection

KTD-N0882-H Page 17 System Specification

Dual Core

3.3 Processor Support Table

KTQ87 is designed to support the following LGA1150 Desktop processors (up to 65W power consumption):

rd

4

generation Intel® Core™ i7 processor

rd

4

generation Intel® Core™ i5 processor Haswell™ Dual Core Pentium Haswell™ Duel Core Celeron

In the following list you will find all CPU’s supported by the PCH in according to Intel but also other CPU’s if successfully tested. Embedded CPU’s are indicated by green text, successfully tested CPU’s are indicated by highlighted text, successfully tested embedded CPU’s are indicated by green and highlighted text and failed CPU’s are indicated by red text. Some processors in the list are distributed from Kontron, those CPU’s are marked by an * (asterisk). However please notice that this marking is only guide line and maybe not fully updated.

Processor Brand

Clock

Speed

Turbo

Speed

[GHz] [GHz] [MHz] [MB] [ºC/W]

Cores

Threads

Bus

Speed

Cache

CPU

Number

QDF/sSpec

number

Thermal

Stepping

Core™ i7 3.1 3.9 4 8 1333/1600 8 4770S SR14H C0 71/65

4th gen. 2.5 3.7 4 8 1333/1600 8 4770T SR14N C0 71/45

2.3 3.3 4 8 1333/1600 8 4770TE SR183 C0 71/45

Core™ i5

2.0 3.0 4 8 1333/1600 8 4765T SR14Q C0 66/35

3.1 3.8 4 4 1333/1600 6 4670S SR14K C0 71/65

4th gen. 2.9 3.6 4 4 1333/1600 4 4570S SR14J C0 71/65

2.8 3.3 4 4 1333/1600 6 4440S SR14L C0 /65

2.7 3.2 4 4 1333/1600 6 4430S SR14M C0 71/65

2.3 3.3 4 4 1333/1600 6 4670T SR14P C0 71/45

2.9 3.6 2 4 1333/1600 4 4570T SR1CA C0 66/35

Core™ i3

2.7 3.3 2 4 1333/1600 4 4570TE SR17Z C0 66/35

3.6 - 2 4 1333/1600 4 4340 SR1NL C0 72/54

4th gen. 3.5 - 2 4 1333/1600 4 4330 SR1NM C0 72/54

3.4 - 2 4 1333/1600 3 4130 SR1NP C0 72/54

3.0 - 2 4 1333/1600 4 4330T SR1NK C0 72/35

2.9 - 2 4 1333/1600 3 4130T SR1NN C0 72/35

2.4 - 2 4 1333/1600 4 4330TE SR180 C0 72/35

Haswell™ 3.2 - 2 2 1333/1600 3 G3420 SR1NB C0 72/54

2.3 - 2 2 1333/1600 3 G3320TE SR181 C0 72/35

Pentium

Haswell™

2.7 - 2 2 1333 2 G1820 SR1CN C0 /53

Dual Core 2.2 - 2 2 1333 2 G1820TE SR1T6 C0 /35

Celeron

Note that ECC not supported on KTQ87 / KTH81.

Design

Power

KTQ87/KTH81 Users Guide

KTD-N0882-H Page 18 System Specification

Warning

Not all CPU even of same type support all functions ex. i7-4770S & i5-4570S supports VPRO other CPU types may not. Intel® Turbo Boost Technology 2.0 is supported by i5 and i7, as indicated in above list of processors, and is enabling overclocking of all cores, when operated within the limits of thermal design power, temperature and current.

Note: KTH81 do not support VPRO.

Sufficient cooling must be applied to the CPU in order to remove the effect as listed in above table (Thermal Guideline). The sufficient cooling is also depending on the maximum (worst-case) ambient operating temperature and the actual load of processor.

!

the cooler. Different coolers are available on the market and some is not generating any airflow or is blocking the airflow around these components, causing reduced lifetime.

: Make sure sufficient airflow is always present around the components located below

It is recommended to use a cooler like the Kontron PN 1046-6305 “KTQ77 Cooler”.

The design of this cooler makes sure airflow is always present around the components below the cooler. Even if Fan is set to be off, it is still running a minimum RPM (Rotation Per Minute).

Air sucked in to the cooler

Air blown out of the cooler

Components below the cooler

Note: The temperature of the air blown out of the cooler must be less than 60°C maximum, in order not to

overheat components near the CPU. However most CPU’s requires maximum 57,4°C, so in general, not to violate the CPU specification the temperature of the air should be maximum ~55°C. Some of the 65W CPU’s

running full load and cooled by above cooler, might start throttling at 50°C ambient air temperature.

KTQ87/KTH81 Users Guide

KTD-N0882-H Page 19 System Specification

3.4 System Memory support

The KTH81/mITX, KTQ87/mITX and KTH81/Flex have two DDR3 UDIMM sockets while the KTQ87/Flex has four DDR3 UDIMM sockets. The sockets support the following memory features:

• DDR3 1.5V/1.35V UDIMM 240-pin

• Dual-channel with 1 UDIMM per channel (2 UDIMM for KTQ87/Flex)

• Single/dual rank unbuffered 1333/1600MT/s (PC3-10600/PC3-12800)

• The supported 4

• From 1GB and up to 2x 8GB (4x 8GB for KTQ87/Flex).

o Note: Less than 4GB displayed in System Properties using 32bit OS o (Shared Video Memory/PCI resources is subtracted)

• SPD timings supported

• ECC supported

The installed DDR3 DIMM should support the Serial Presence Detect (SPD) data structure. This allows the BIOS to read and configure the memory controller for optimal performance. If non-SPD memory is used, the BIOS will attempt to configure the memory settings, but performance and reliability may be impacted.

Memory Operating Frequencies

Regardless of the DIMM type used, the memory frequency will either be equal to or less than the processor system bus frequency. For example, if DDR3 1600 memory is used with a 1333 MHz system bus frequency processor, the memory clock will operate at 167 MHz. The table below lists the resulting operating memory frequencies based on the combination of DIMMs and processor.

DIMM Type Module

DDR3 1333 PC3-10600 1333 1333 / 1600 167 10666 DDR3 1600 PC3-12800 1600 1333 167 10666 DDR3 1600 PC3-12800 1600 1600 200 12800

Notes: Kontron offers the following memory modules:

1GB DDR3 1333 PC3-10600, P/N: 1031-9872 2GB DDR3 1333 PC3-10600, P/N: 1054-3702 4GB DDR3 1333 PC3-10600, P/N: 1054-3703 8GB DDR3 1333 PC3-10600, P/N: 1054-3704

1GB DDR3 1600 PC3-12800, P/N: 1054-3706 2GB DDR3 1600 PC3-12800, P/N: 1054-3707 4GB DDR3 1600 PC3-12800, P/N: 1054-3708 8GB DDR3 1600 PC3-12800, P/N: 1052-5601

Memory modules have in general a much lower longevity than embedded motherboards, and therefor EOL of modules can be expected several times during lifetime of the motherboard. Kontron guarantees that the above P/N will be maintained so that EOL module will be replaced by other similar type of qualified module.

As a minimum it is recommend using Kontron memory modules for prototype system(s) in order to prove stability of the system and as for reference.

For volume production you might request to test and qualify other types of RAM. In order to qualify RAM it is recommend configuring 3 systems running RAM Stress Test program in heat chamber at 60⁰C for a minimum of 24 hours.

rd

Generation Core i5/i7 support 1333/1600 MT/s

name

Memory Data

transfers

[MT/s]

Processor system

bus frequency

[MHz]

Resulting memory

clock frequency

[MHz]

Peak

transfer rate

[MB/s]

KTQ87/KTH81 Users Guide

KTD-N0882-H Page 20 System Specification

3.5 KTQ87/KTH81 Graphics Subsystem

The KTQ87 / KTH81 equipped with Intel ® i5 or i7 processor supports Intel ® HD Graphics 4600.

KTQ87/KTH81 supports three/two DisplayPort directly from processor.

The DP interface supports the DisplayPort 1.2 specification. The PCH supports High-bandwidth Digital Content Protection for high definition content playback over digital interfaces. The PCH also integrates audio codecs for audio support over DP interfaces.

Up to three displays (any three display outputs: DP0, DP1 & DP2 can be activated at the same time and be used to implement independent or cloned display configuration. PCIe cards can be used to replace onboard graphics or in combination with on-board graphics.

Intel® HD Graphics 4600

Features of the Intel HD Graphics 4600 build into the i3, i5 and i7 processors, includes:

• High quality graphics engine supporting

o 3 Symmetric Pipe Support o DirectX11.1 and OpenGL 4.x compliant and lower o Open CL 1.2 and lower o Core frequency of 350 - 1250 (Turbo) MHz o Memory Bandwidth up to 25.6 GB/s o Dynamic Video Memory Technology 5.0 o DP 1.2 MST (Multi-Stream Transport) o PAVP o HDCP o Audio (Protected Content) o Full AVC/VC1/MPEG2 HW Decode and full MVC HW Decode

• DP0, DP1 & DP2

o 16/32bit colours in WQXGA 3840x2160 @ 60 Hz. o Max HDMI resolution 4096x2304 @ 24 Hz o DisplayPort standard 1.2

• LVDS supports single and dual channel, 18/24bit VESA/JEIDA panels up to a resolution of

1600x1200 or 1920x1080 and with limited frame rate up to 1920x1200.

KTQ87/KTH81 Users Guide

KTD-N0882-H Page 21 System Specification

Display Configurations:

MB LVDS

KTH81/mITX

KTQ87/mITX

KTH81/Flex

KTQ87/Flex

No

Yes

No

Yes

DP0

HDMI, DVI or DP

Yes Yes No

Yes Yes Yes

Yes Yes No

Yes No No

Yes Yes Yes

Yes No Yes

DP1

HDMI, DVI or DP

DP2

HDMI, DVI or DP

Note the maximum resolutions:

LVDS 1920 x 1200 @ 60 Hz HDMI 2560 x 1600 @ 60 Hz DVI 1920 x 1200 @ 60 Hz DP 3840 x 2160 @ 60 Hz

The HDMI and DVI limitations apply when using passive DP converter. When using Active DP converter the limitations depends on the converter, but maximum is 3840 x 2160 @ 60 Hz.

Graphics Adapters

Use of DP Adapter Converters can provide HDMI support or second VGA or DVI panel support.

The HDMI interface supports the HDMI 1.4a specification including audio codec. However limitations to the resolution apply: 1920x1080 (HDMI and DVI)

1051-7619 Cable DP Extender cable 200mm (when using two DP converters)

DP to VGA DP to HDMI DP to DVI-

PN 1045-5779 PN 1045-5781 PN 1045-5780

Notice that only the DP to VGA adapter is an “active” converter, the HDMI and DVI converters are passive and cannot be used in a triple panel configuration.

KTQ87/KTH81 Users Guide

KTD-N0882-H Page 22 System Specification

3.6 Power Consumption

In order to ensure safe operation of the board, the ATX12V power supply must monitor the supply voltage and shut down if the supplies are out of range – refer to the hardware manual for the actual power supply specification. Please note, In order to keep the power consumption to a minimal level, boards do not implement a guaranteed minimum load. In some cases, this can lead to compatibility problems with ATX power supplies, which require a minimum load to stay in regulation. The KTQ87/mITX / KTH81/mITX board must powered through the ATX4P (4-pole) and the ATX24P (24-pole) connector using standard ATX power supply.

ATX12V supply: Both ATX4P connector and ATX24P connector must be used in according to the ATX12V PSU standard.

Warning: Hot Plugging power supply is not supported. Hot plugging might damage the board.

The requirements to the supply voltages are as follows:

Supply Min Max Note

VCC3.3 3.135V 3.465V

Should be ±5% for compliance with the ATX specification

Vcc 4.75V 5.25V

Should be ±5% for compliance with the ATX specification. Should be +5/ -0% to meet the USB standard.

+12V 11.4V 12.6V

–12V –13.2V –10.8V

Should be ±5% for compliance with the ATX specification

Should be ±10% for compliance with the ATX specification

-5V -5,50V -4.5V Not required for the KTQ87 boards

5VSB 4.75V 5.25V

Should be ±5% for compliance with the ATX specification

On the following pages you will find “total system power examples” for mITX and Flex boards in different configurations:

mITX, Total System power example:

mITX, Low Power Configuration mITX, High Power Configuration

Flex, Total System power example:

Flex, Low Power Configuration Flex, Medium Power Configuration Flex, High Power Configuration

KTQ87/KTH81 Users Guide

KTD-N0882-H Page 23 System Specification

Gnd

mITX, Total System power example

The principal test system and test equipment used

1. Tektronix TDS5104B

2. Tektronix TCPA300

3. Tektronix TCP312

4. Fluke 289

5. Fluke 179

6. ATX rail switch

Note: Power consumption of PSU (power loss), Monitor and HDD are not included.

Low Power Configuration Setup KTQ87/mITX: Standard system configuration equipped with Internal graphics, 2x SATA disks, mSATA 32GB, Intel 2.0Ghz

CPU, 2x DIMM (8GB Modules), DVI Monitor, Keyboard & Mouse,1x 8GB USB Stick, 12V active cooler, 400W ATX PSU.

High Power Configuration Setup KTQ87/mITX: Standard system configuration equipped with PCIex16 graphics card, mSATA 32GB, 4x SATA disks, Intel

2.5Ghz CPU, 2x DIMM (8GB Modules), DVI Monitor, Keyboard & Mouse, 4x 1-8GB USB Sticks, 12V active cooler, 400W ATX PSU.

Note: KTH81/mITX power results are similar to KTQ87/mITX.

KTQ87/mITX

Current Probe

PSU

ATX supplies

Tektronix TDS5104B

KTQ87/KTH81 Users Guide

KTD-N0882-H Page 24 System Specification

+3V3

5VSB

418

2.140

mITX, Low Power Configuration results

DOS Idle, Mean, No external load

Supply

+12V

+12V P4

+5V

+3V3

-12V 5VSB Total

Current draw

[mA]

96 1.158

1359 16.390

638 3.228 491 1.664

21 0.236 17 0.087

Windows 7, mean 3DMARK2006 ( first scene ) + Burnin Test

Supply

+12V

+12V P4

+5V

Current draw

[mA]

102 1.230 2420 29.185 1167 5.905

494 1.675

-12V 5VSB Total

22 0.247 20 0.102

S3 Mode, Mean, No external load

Supply

Current draw

[mA]

Power consumption

[W]

22.8

Power consumption

[W]

38.3

Power consumption

[W]

Total

S4 Mode, Mean, No external load

Supply

5VSB Total

Current draw

[mA]

267 1.367

S5 Mode, Mean, No external load

Supply

5VSB Total

Current draw

[mA]

267 1.367

2.1

Power consumption

[W]

1.4

Power consumption

[W]

1.4

KTQ87/KTH81 Users Guide

KTD-N0882-H Page 25 System Specification

+12V

mITX, High Power Configuration results

DOS Idle, Mean, No external load

Supply

+12V

+12V P4

+5V

+3V3

-12V 5VSB Total

Current draw

[mA]

695 8.381

1820 21.949

902 4.564 578 1.959

22 0.247 20 0.102

Windows 7, mean 3DMARK2006 ( first scene ) +Burnin test

Supply

Current draw

[mA]

3320 40.039

+12V P4

+5V

+3V3

-12V 5VSB Total

3310 39.919 1145 5.794 1121 3.800

18 0.202 15 0.077

S3 Mode, Mean, No external load

Supply

5VSB Total

Current draw

[mA]

429 2.196

S4 Mode, Mean, No external load

Supply

5VSB Total

Current draw

[mA]

273 1.398

S5 Mode, Mean, No external load

Supply

5VSB Total

Current draw

[mA]

269 1.377

Power consumption

[W]

37.2

Power consumption

[W]

89.8

Power consumption

[W]

2.2

Power consumption

[W]

1.4

Power consumption

[W]

1.4

KTQ87/KTH81 Users Guide

KTD-N0882-H Page 26 System Specification

Power lines

Gnd

Flex, Total System power example

The principal test system and test equipment used

KTQ87/Flex ATX

PSU

1. 12V active cooler (Delta AUC0912D)

2. USB Keyboard/Mouse (Lemel)

3. Graphic Card (HD 7750)

Current

probe

Oscilloscope

4. PCI Card (Intel 82557 10/100 ethernet pci adapter)

5. PCI-e Cards (TUSB7320 DEMO EVM REV C(PCIEx1 Card)

Intel® 82575EB Gigabit Network Conection (PCIEx4 Card))

6. 3.5” HDD: WD WD500AAKX-001CA0, Seagate ST500DM002 & ST9160310AS, WD WD5000AAKX-00ERMA0

7. ATX 400W Power (GPB400S)

8. Oscilloscope (Tektronix DPO 4054)

9. Current Probe (Tektronix TCP0030 Current Probe)

10. USB Flash: Transcend JetFlash 4GB, ADATA C906 8GB, TDK 8GB, Kingston DTI/1G

11. Monitors: ASUS VS209N,ViewSonic VA1912MA-LED

12. Memory: SAMSUNG M391B1G73BH0-CK0 8GB PC3-12800E-11-11-E3

13. Intel Haswell CPU: QFZQ 2.20GHz (35W), QEEG 2.30GHz (45W), QE74 2.90GHz (65W)

Note: The power consumption of Display and HDD are not included.

Low Power Configuration Setup:

KTQ87/Flex equipped with Internal graphics, 2x SATA disks, PCI card, CPU (i5) 35W, 2x DIMM PC3-10600 (2x 2GB), 1x DP Monitor, Keyboard & Mouse. 1x 1-8GB USB Stick.

Medium Power Configuration Setup: KTQ87/Flex equipped with Internal graphics, 4x SATA disks, PCI card, PCIex4 card, CPU (i5) 45W, 4x DIMM

PC3-12800 (4x 4GB), 2x DP Monitors, Keyboard & Mouse. 2x 1-8GB USB Stick.

High Power Configuration Setup:

KTQ87/Flex equipped with PCIex16 Gen3 Graphic card, 4x SATA disks, PCI Card, PCIex1 card, PCIex4 card, CPU (i7) 65W, 4x DIMM PC3-12800 (4x 8Gb), 2x DP Monitors, Keyboard & Mouse, 4x 1-8GB USB Sticks

Note: KTH81/Flex power results are similar to KTQ87/Flex.

KTQ87/KTH81 Users Guide

KTD-N0882-H Page 27 System Specification

-12V

S3 Mode, Mean, No external load

Total 1.4

S4 Mode, Mean, No external load

Flex, Low Power Configuration results

DOS Idle, Mean, No external load

Supply

+12V

+12V P4

+5V

+3V3

-12V 5VSB Total

Current draw

[mA]

91 1.092 970 11.640 997 4.985 739 2.439

11 0.132

5 0.025

Windows 7, mean 3DMARK2006 ( first scene ) +Burnin test

Supply

+12V

+12V P4

+5V

+3V3

Current draw

[mA]

101 1.212

2048 24.576 2027 10.135

843 2.782

0 0

5VSB Total

8 0.040

Power consumption

[W]

20.3

Power consumption

[W]

38.7

Supply

5VSB

Current draw

[mA]

286 1.43

Supply

5VSB Total

Current draw

[mA]

130 0.715

S5 Mode, Mean, No external load

Supply

5VSB Total

Current draw

[mA]

123 0.677

Power consumption

[W]

Power consumption

[W]

0.7

Power consumption

[W]

0.7

KTQ87/KTH81 Users Guide

KTD-N0882-H Page 28 System Specification

DOS Idle, Mean, No external load

5VSB

Flex, Medium Power Configuration results

Supply

+12V

+12V P4

+5V

+3V3

-12V 5VSB Total

Windows 7, mean 3DMARK2006 ( first scene ) +Burnin test

Supply

+12V

+12V P4

+5V

+3V3

-12V 5VSB Total

S3 Mode, Mean, No external load

Supply

5VSB Total

S4 Mode, Mean, No external load

Supply

Total

S5 Mode, Mean, No external load

Supply

5VSB Total

Current draw

[mA]

Power consumption

[W]

154 1.848 1363 16.356 1083 5.415

856 2.825

11 0.132

8 0.040

Current draw

[mA]

Power consumption

26.6

[W]

0 TBD 0 TBD

4100 TBD 49.200 TBD

2932 14.660

867 2.861

0 0

17 0.085

Current draw

[mA]

Power consumption

66.8

[W]

296 1.480

Current draw

[mA]

Power consumption

1.5

[W]

139 0.695

Current draw

[mA]

Power consumption

0.7

[W]

134 0.670

0.7

KTQ87/KTH81 Users Guide

KTD-N0882-H Page 29 System Specification

-12V

S3 Mode, Mean, No external load

Total 1.5

S4 Mode, Mean, No external load

Flex, High Power Configuration results

DOS Idle, Mean, No external load

Supply

+12V

+12V P4

+5V

+3V3

-12V 5VSB Total

Current draw

[mA]

1285 15.420 1781 21.372 1175 5.875 1530 5.049

12 0.144

4 0.020

Windows 7, mean 3DMARK2006 ( first scene ) +Burnin test

Supply

+12V

+12V P4

+5V

+3V3

Current draw

[mA]

2790 33.480 2880 34.560 1896 9.480 1665 5.495

12 0.144

5VSB Total

10 0.050

Power consumption

[W]

47.9

Power consumption

[W]

83.2

Supply

5VSB

Current draw

[mA]

296 1.480

Supply

5VSB Total

Current draw

[mA]

168 0.840

S5 Mode, Mean, No external load

Supply

5VSB Total

Current draw

[mA]

134 0.670

Power consumption

[W]

Power consumption

[W]

0.8

Power consumption

[W]

0.7

KTQ87/KTH81 Users Guide

KTD-N0882-H Page 30 Connector Location

FRONTPNL

ATX24P

Front Speakers

PCIe x16

COM1

ATX4P

USB5

SATA0 SATA5

Load Default

DP0

USB0

USB2

SATA4 & SATA5 connectors are black colored and limited to SATA 300.

4 Connector Locations

4.1 KTQ87/mITX (KTH81/mITX) - frontside

DDR3 Slot 1

FEATURE

DDR3 Slot 2

COM2

SATA4 SATA3 SATA2

SPI

(KTQ87 only)

Always On

USB10 USB11

USB4

System temp. (U97)

mSATA

& USB9

mPCIe

& USB8

FAN_ SYS

LAN1

USB3

LAN2 USB1

DP2

(KTQ87 only)

KTH81 Notes: USB port 2 & 3 only supports USB 2.0.

KTQ87/KTH81 Users Guide

DP1

FAN_CPU

SPDIF

Audio

KTD-N0882-H Page 31 Connector Location

LPC

SPI

Feature

COM1

COM2

SATA1 SATA5 SATA3

PCI

LVDS

ATX4P

KBD/MSE

PCIex1

XDP (*)

Sys_Fan2

USB6/7

USB8/9

USB4/5

PCIex16

PCIex4

SPDIF

Load default

DIMM4/2/3/1

USB0

USB2

(*) = Not Mounted.

H81: SATA4 & SATA5 is SATA Gen.2

4.2 KTQ87/Flex (KTH81/Flex) - frontside

SATA4 SATA0 SATA2

SATA2 & SATA3 on Q87 only.

(DIMM4 & 2 only on KTQ87/Flex)

Sys_Fan1

ATX24P

FRONTPNL, USB10/11

Always On

System temp. (U97)

LAN1 USB3

LAN2

USB1

DP2

(Q87 only)

DP1 DP0

KTQ87/KTH81 Users Guide

CPU_Fan

Audio

Front Speakers

KTD-N0882-H Page 32 Connector Definition

5 Connector Definition

The following sections provide pin definitions and detailed description of all on-board connectors.

The connector definitions follow the following notation:

Column

name

Description

Shows the pin-numbers in the connector. The graphical layout of the connector definition tables is made similar to the physical connectors.

Signal

The mnemonic name of the signal at the current pin. The notation “XX#” states that the signal “XX” is active low.

Type AI: Analogue Input.

AO: Analogue Output. I: Input, TTL compatible if nothing else stated. IO: Input / Output. TTL compatible if nothing else stated. IOT: Bi-directional tristate IO pin. IS: Schmitt-trigger input, TTL compatible. IOC: Input / open-collector Output, TTL compatible. IOD: Input / Output, CMOS level Schmitt-triggered. (Open drain output) NC: Pin not connected. O: Output, TTL compatible. OC: Output, open-collector or open-drain, TTL compatible. OT: Output with tri-state capability, TTL compatible. LVDS: Low Voltage Differential Signal. PWR: Power supply or ground reference pins.

Ioh: Typical current in mA flowing out of an output pin through a grounded load, while the output voltage is > 2.4 V DC (if nothing else stated).

Iol: Typical current in mA flowing into an output pin from a VCC connected load, while the output voltage is < 0.4 V DC (if nothing else stated).

Pull U/D On-board pull-up or pull-down resistors on input pins or open-collector output pins.

Note Special remarks concerning the signal.

The abbreviation TBD is used for specifications which are not available yet or which are not sufficiently

specified by the component vendors.

KTQ87/KTH81 Users Guide

KTD-N0882-H Page 33 IO-Area Connectors

12

Lane 3 (n)

LVDS

6 IO-Area Connectors

6.1 DP Connectors (DP0, DP1, DP2)

The DP (DisplayPort) connectors are based on standard DP type Foxconn 3VD51203-H7JJ-7H or similar.

Note that DP2 only available on KTQ87.

19 17 15 13 11 9 7 5 3 1

20 18 16 14 12 10 8 6 4 2

Pin Signal Description Type Note

1 Lane 0 (p) LVDS 2 GND PWR 3 Lane 0 (n) LVDS 4 Lane 1 (p) LVDS 5 GND PWR 6 Lane 1 (n) LVDS 7 Lane 2 (p) LVDS 8 GND PWR

9 Lane 2 (n) LVDS 10 Lane 3 (p) LVDS 11 GND PWR

13 Config1

14 Config2 (Not used) O Internally connected to GND

15 Aux Ch (p)

16 GND PWR

17 Aux Ch (n)

18 Hot Plug I Internally pull down (100Kohm). 19 Return PWR Same as GND 20 3.3V PWR Fused by 1.5A resetable PTC fuse.

Aux or DDC selection

Aux Channel (+) or DDC Clk

Aux Channel (-) or DDC Data

Internally pull down (1Mohm).

I

Aux channel on pin 15/17 selected as default (when NC) DDC channel on pin 15/17, If HDMI adapter used (3.3V)

AUX (+) channel used by DP DDC Clk used by HDMI

AUX (-) channel used by DP DDC Data used by HDMI

KTQ87/KTH81 Users Guide

KTD-N0882-H Page 34 IO-Area Connectors

Flashing =>

On => 1GB link

6.2 Ethernet Connectors

The KTQ87/KTH81 supports two channels of 10/100/1000Mb Ethernet. First Ethernet connector (LAN1) is based on Intel® Clarkville i218LM/i218-V Gigabit PHY. The i218-LM (Q87) has AMT 9.0 support and the i218-V (H81) has no AMT support. Second Ethernet connector (LAN2) is based on Intel® Pearsonville i218AT PCI Express controller.

In order to achieve the specified performance of the Ethernet port, Category 5 twisted pair cables must be used with 10/100MB and Category 5E, 6 or 6E with 1Gb LAN networks.

The signals for the Ethernet ports are as follows:

Signal Description

MDI[0]+ / MDI[0]-

In MDI mode, this is the first pair in 1000Base-T, i.e. the BI_DA+/- pair, and is the transmit pair in 10Base-T and 100Base-TX.

In MDI crossover mode, this pair acts as the BI_DB+/- pair, and is the receive pair in 10Base-T and 100Base-TX.

MDI[1]+ / MDI[1]-

In MDI mode, this is the second pair in 1000Base-T, i.e. the BI_DB+/- pair, and is the receive pair in 10Base-T and 100Base-TX.

In MDI crossover mode, this pair acts as the BI_DA+/- pair, and is the transmit pair in 10Base-T and 100Base-TX.

MDI[2]+ / MDI[2]-

In MDI mode, this is the third pair in 1000Base-T, i.e. the BI_DC+/- pair. In MDI crossover mode, this pair acts as the BI_DD+/- pair.

MDI[3]+ / MDI[3]-

In MDI mode, this is the fourth pair in 1000Base-T, i.e. the BI_DD+/- pair. In MDI crossover mode, this pair acts as the BI_DC+/- pair.

Note: MDI = Media Dependent Interface.

Ethernet LAN1 is mounted together with USB Ports 2 and 3. Ethernet LAN2 is mounted together with USB Ports 0 and 1.

The pinout of the RJ45 connectors is as follows:

Signal PIN Type Ioh/Iol Note

MDI0+ MDI0MDI1+ MDI2+ MDI2MDI1MDI3+ MDI3-

communication

8 7 6 5 4 3 2 1

KTQ87/KTH81 Users Guide

KTD-N0882-H Page 35 IO-Area Connectors

6.3 USB Connectors (IO Area)

The KTQ87 board contains two EHCI (Enhanced Host Controller Interface) and one XHCI (Extensible Host Controller Interface). The two EHCI controllers, EHCI1 and EHCI2, supports up to fourteen USB 2.0 ports allowing data transfers up to 480Mb/s. The XHCI controller supports six USB 3.0 ports allowing data transfers up to 5Gb/s. The six USB 3.0 ports are shared with four of the USB 2.0 ports (USB0 – USB3) from the EHCI1.

Note: Not all USB 2.0 and USB 3.0 ports are physically connected to the board.

The KTQ87/mITX has total of 10 USB ports where four ports support USB 3.0 or USB 2.0 via Rear IO connectors. The KTH81/mITX has total of 10 USB ports where two ports support USB 3.0 or USB 2.0 via Rear IO connectors (USB port 2 & 3 in Rear IO only supports USB 2.0). The KTQ87/Flex has total of 12 USB ports where four ports support USB 3.0 or USB 2.0 via Rear IO connectors. The KTH81/mITX has total of 10 USB ports where two ports support USB 3.0 or USB 2.0 via Rear IO connectors (USB port 2 & 3 in Rear IO only supports USB 2.0).

Legacy Keyboard/Mouse and wakeup from sleep states are supported. Over-current detection on all USB ports is supported. The following USB connectors are available in the IO Area.

USB Port 0 and 1 (via EHCI1/XHCI) are supplied on the combined USB0, USB1 and LAN2 connector. USB Port 2 and 3 (via EHCI1/XHCI) are supplied on the combined USB2, USB3 and LAN1 connector.

For USB2.0 cabling it is required to use only HiSpeed USB cable, specified in USB2.0 standard:

For USB3.0 cabling it is required to use only HiSpeed USB cable, specified in USB3.0 standard:

KTQ87/KTH81 Users Guide

KTD-N0882-H Page 36 IO-Area Connectors

IO

RX0+

TX0-

IO

USB Connector 0/1 (USB0/1)

USB Ports 0 and 1 are mounted together with LAN2 port and supports USB3.0/USB2.0.

Note Type Signal PIN Signal Type Note

IO USB1- USB1+ IO

1 PWR 5V/SB5V 1 2 3 4 GND PWR

IO RX1- 5 6 7 8 9 TX1+ IO IO RX1+ TX1- IO PWR GND

IO USB0- USB0+ IO

1 PWR 5V/SB5V 1 2 3 4 GND PWR

IO RX0- 5 6 7 8 9 TX0+ IO

PWR GND

Note 1: In order to meet the requirements of USB standard, the 5V input supply must be at least 5.00V.

Signal Description

USBn+ USBn-

RXn+ RXn-

TXn+ TXn-

Differential pair works as serial differential receive/transmit data lines.

(n= 0,1)

5V/SB5V

5V supply for external devices. SB5V is supplied during power-down to allow wakeup on USB device activity. Protected by resettable 2A fuse covering both USB ports.

KTQ87/KTH81 Users Guide

KTD-N0882-H Page 37 IO-Area Connectors

IO

RX2+

TX2-

IO

USB Connector 2/3 (USB2/3)

USB Ports 2 and 3 are mounted together with LAN1 port and supports USB3.0/USB2.0.

Note Type Signal PIN Signal Type Note

IO USB3- USB3+ IO

1 PWR 5V/SB5V 1 2 3 4 GND PWR

IO RX3- 5 6 7 8 9 TX3+ IO IO RX3+ TX3- IO PWR GND

IO USB2- USB2+ IO

1 PWR 5V/SB5V 1 2 3 4 GND PWR

IO RX2- 5 6 7 8 9 TX2+ IO

PWR GND

Note 1: In order to meet the requirements of USB standard, the 5V input supply must be at least 5.00V.

Signal Description

USBn+ USBn-

RXn+ RXn-

TXn+ TXn-

Differential pair works as serial differential receive/transmit data lines.

(n= 2,3)

5V/SB5V

5V supply for external devices. SB5V is supplied during power-down to allow wakeup on USB device activity. Protected by resettable 2A fuse covering both USB ports.

KTQ87/KTH81 Users Guide

KTD-N0882-H Page 38 IO-Area Connectors

PWR

GND

SLEEVE

SLEEVE GND

PWR

6.4 Audio Jack Connector Stack (Audio)

The on-board Audio circuit implements up to 8 Channel High Definition Audio via stacked audiojack connectors and via SPDIF connector, see SPDIF description.

Interface is based on UAA (Universal Audio Architecture), featuring five 24-bit stereo DACs and three 20bit stereo ADCs. Beside 8 channels audio signal the stached audiojack connectors include Line-in (left and right) and Microphone (left and right).

Note Type Signal Signal Type Note

OA CEN-OUT TIP TIP LINE1-IN-L IA OA LFE-OUT RING RING LINE1-IN-R IA PWR GND SLEEVE SLEEVE GND PWR

OA REAR-OUT-L TIP TIP FRONT-OUT-L OA OA REAR-OUT-R RING RING FRONT-OUT-R OA

OA SIDE-OUT-L TIP TIP MIC1-L IA OA SIDE-OUT-R RING RING MIC1-R IA PWR GND SLEEVE SLEEVE GND PWR

Signal Description Note

FRONT-OUT-L Front Speakers (Speaker Out Left).

FRONT-OUT-R Front Speakers (Speaker Out Right).

REAR-OUT-L

REAR-OUT-R

SIDE-OUT-L

Rear Speakers (Surround Out Left). N/A

Rear Speakers (Surround Out Right). N/A

Side speakers (Surround Out Left) N/A

Shared w. 3-pin connector (LINEOUT)

SIDE-OUT-R Side speakers (Surround Out Right) N/A

CEN-OUT Center Speaker (Center Out channel). N/A

LFE-OUT Subwoofer Speaker (Low Freq. Effect Out). N/A

MIC1 MIC Input 1 N/A

LINE1-IN Line in 1 signals

N/A

Port 2-channel 4-channel 6-channel 8-channel

Light Blue

Lime

Pink

Audio header Audio header Audio header

Line in Line in Line in Line in

Line out Front speaker out Front speaker out Front speaker out

Mic in Mic in Mic in Mic in

- - - Side speaker out

- Rear speaker out Rear speaker out Rear speaker out

- - Center/ Subwoofer Center/ Subwoofer

KTQ87/KTH81 Users Guide

KTD-N0882-H Page 39 Internal Connectors

7 Internal Connectors

The KTQ87/KTH81 boards are designed to be supplied from a standard ATX (or BTX) power supply. Use of BTX supply is not required for operation, but may be required to drive high-power PCIe cards.

Warning: Hot plugging any of the two power connectors is not allowed. Hot plugging might damage the board. In other words, turn off main supply etc. to makesure all the power lines (+12V, 5V, SB5V, 3.3V, -5V,

-12V) are turned off when connecting to the motherboard.

Note 1: Use of both the ATX24P and the ATX4p connectors are required for operation of the KTQ87/KTH81.

7.1 Power Connector (ATX24P)

Note Type Signal PIN Signal Type Note

PWR 3V3 12 24 GND PWR PWR +12V 11 23 5V PWR PWR +12V 10 22 5V PWR PWR SB5V 9 21 5V PWR I P_OK 8 20 -5V PWR 1 PWR GND 7 19 GND PWR PWR 5V 6 18 GND PWR PWR GND 5 17 GND PWR PWR 5V 4 16 PSON# OC PWR GND 3 15 GND PWR PWR 3V3 2 14 -12V PWR PWR 3V3 1 13 3V3 PWR

See chapter “Power Consumption” regarding input tolerances on 3.3V, 5V, SB5V, +12 and -12V (also refer to ATX specification version 2.2).

Signal Description

P_OK

PS_ON#

P_OK is power good signal driven by the ATX Power Supply and indicating that the +5VDC and +3.3VDC outputs are above the undervoltage thresholds. The recommended electrical and timing characteristics of the P_OK (PWR_OK) signal are provided in the ATX12V Power SupplyDesign Guide.

It is strongly recommended to use an ATX or BTX supply, in order to provide supervision of the 5V and 3V3 supplies. These supplies are not supervised on-board.

Active low open drain signal from the board to the power supply to turn on the power supply outputs. Signal must be pulled high by the power supply.

7.2 Power Connector (ATX4p)

Note Type Signal PIN Signal Type Note

PWR GND 2 4 +12V PWR 1 PWR GND 1 3 +12V PWR 1

KTQ87/KTH81 Users Guide

KTD-N0882-H Page 40 Internal Connectors

3

12V

Power +12V

PWR

7.3 Fan Connectors (CPU_Fan, SYS_Fan1, SYS_Fan2)

The SYS_FAN1 and SYS_Fan2 can be used to power, control and monitor fans for chassis ventilation etc. The CPU_Fan is used for the connection of the FAN included in active CPU coolers.

The 4pin header is recommended to be used for driving 4-wire type Fan in order to implement FAN speed control. 3-wire Fan support is also possible, but no fan speed control is integrated.

4-pin Mode:

Header Pin Signal Description Type

1 PWM PWM output O-3.3 2 TACHO Tacho signal I

4 GND Ground PWR

3-pin Mode:

Header Pin Signal Description Type

1 Not used 2 TACHO Tacho signal I 3 12V Power +12V PWR 4 GND Ground PWR

Signal Description

PWM PWM output signal for FAN speed control.

TACHO Tacho input signal from the fan, for rotation speed supervision RPM (Rotation Per Minute). The

signal shall be generated by an open collector transistor or similar. Onboard is a pull-up resistor 4K7 to +12V. The signal has to be pulsed and onboard circuit is prepared for two pulses per rotation.

12V +12V supply for fan. A maximum of 2000mA can be supplied from this pin.

GND Power Supply GND signal

KTQ87/KTH81 Users Guide

KTD-N0882-H Page 41 Internal Connectors

5 5V/SB5V

PWR

- -

7.4 PS/2 Keyboard and Mouse connector (KBD/MSE) (PS2)

Attachment of a PS/2 keyboard/mouse can be done through the pinrow connector KBD/MSE (Flex boards only). Both interfaces utilize open-drain signalling with on-board pull-up.

The PS/2 mouse and keyboard is supplied from SB5V when in standby mode in order to enable keyboard or mouse activity to bring the system out from power saving states. The supply is provided through a 1.1A resettable fuse.

PIN Signal Type Ioh/Iol Pull U/D Note

1 KBDCLK IOD /14mA 2K7 2 KBDDAT IOD /14mA 2K7 3 MSCLK IOD /14mA 2K7 4 MSDAT IOD /14mA 2K7

6 GND PWR - -

Signal Description – Keyboard & and mouse Connector (KBDMSE).

Signal Description

MSCLK Bi-directional clock signal used to strobe data/commands from/to the PS/2 mouse.

MSDAT Bi-directional serial data line used to transfer data from or commands to the PS/2 mouse.

KDBCLK Bi-directional clock signal used to strobe data/commands from/to the PC-AT keyboard.

KBDDAT Bi-directional serial data line used to transfer data from or commands to the PC-AT keyboard.

Available cable kit:

PN 1053-2384 Bracket Cable 6-Pin to PS2-Kbd-Mse

KTQ87/KTH81 Users Guide

KTD-N0882-H Page 42 Internal Connectors

Max. 0.5A

PWR

+5V

7 8 GND

PWR

Max. 0.5A

LVDS

LVDS A0-

17

18 LVDS A0+

LVDS

LVDS A2-

21

22 LVDS A2+

LVDS

7.5 LVDS Flat Panel Connector (LVDS)

The LVDS connector (Flex boards only) is based on 40 pole connector type Samtec SHF-120-01-F-D-SM-KTR or similar.

Note Type Signal PIN Signal Type Note

Max. 0.5A PWR +12V 1 2 +12V PWR Max. 0.5A Max. 0.5A PWR +12V 3 4 +12V PWR Max. 0.5A Max. 0.5A PWR +12V 5 6 GND PWR Max. 0.5A

Max. 0.5A PWR LCDVCC 9 10 LCDVCC PWR Max. 0.5A

2K2Ω, 3.3V OT DDC CLK 11 12 DDC DATA OT 2K2Ω, 3.3V

3.3V level OT BKLTCTL 13 14 VDD ENABLE OT 3.3V level

3.3V level OT BKLTEN# 15 16 GND PWR Max. 0.5A

LVDS LVDS A1- 19 20 LVDS A1+ LVDS

LVDS LVDS ACLK- 23 24 LVDS ACLK+ LVDS LVDS LVDS A3- 25 26 LVDS A3+ LVDS Max. 0.5A PWR GND 27 28 GND PWR Max. 0.5A LVDS LVDS B0- 29 30 LVDS B0+ LVDS LVDS LVDS B1- 31 32 LVDS B1+ LVDS LVDS LVDS B2- 33 34 LVDS B2+ LVDS LVDS LVDS BCLK- 35 36 LVDS BCLK+ LVDS LVDS LVDS B3- 37 38 LVDS B3+ LVDS Max. 0.5A PWR GND 39 40 GND PWR Max. 0.5A

Note: The LVDS connector supports single and dual channel, 18/24bit SPWG panels up to a resolution of

1600x1200 or 1920x1080 and with limited frame rate up to 1920x1200.

Signal Description – LVDS Flat Panel Connector:

Signal Description

LVDS A0..A3 LVDS A Channel data

LVDS ACLK LVDS A Channel clock

LVDS B0..B3 LVDS B Channel data

LVDS BCLK LVDS B Channel clock

BKLTCTL Backlight control (1), PWM signal to implement voltage in the range 0-3.3V

BKLTEN# Backlight Enable signal (active low) (2)

VDD ENABLE Output Display Enable.

LCDVCC

DDC CLK DDC Channel Clock

Notes: Windows API will be available to operate the BKLTCTL signal. Some Inverters have a limited voltage

range 0- 2.5V for this signal: If voltage is > 2.5V the Inverter might latch up. Some Inverters generates noise on the BKLTCTL signal, causing the LVDS transmission to fail (corrupted picture on the display). By adding a 1Kohm resistor in series with this signal, mounted at the Inverter end of the cable kit, the noise is limited and the picture is stable. If the Backlight Enable is required to be active high then, check the following BIOS Chipset setting: Backlight Signal Inversion = Enabled.

VCC supply to the display. 5V or 3.3V (1A Max.) selected in BIOS setup menu. Power sequencing depends on LVDS panel selection. (Shared with eDP connector)

KTQ87/KTH81 Users Guide

KTD-N0882-H Page 43 Internal Connectors

7.6 SATA (Serial ATA) Disk interface

KTQ87 / KTH81 has integrated SATA Host controller (PCH in the Q87 / H81 chipset) which supports independent DMA operation on 6 / 4 ports. One device can be installed on each port, via point-to-point interface (SATA cable), for a maximum of 6 / 4 SATA devices. On the mITX the SATA ports are available as 5 / 3 SATA connectors + 1 mSATA connector and on the Flex the SATA ports are available as 6 / 4 SATA connectors.

All the SATA ports on the Q87 support SATA Gen3 (6.0/3.0/1.5Gb/s) are supported, while two SATA ports on the H81 supports Gen3 and the remaining two ports support Gen2 (3.0/1.5Gb/s).

Note: Before installing OS on a SATA drive make sure the drive is not a former member of a RAID system. If so some hidden data on the disk has to be erased. To do this, connect two SATA drives and select RAID in BIOS. Save settings and select <Ctrl> <I> while booting to enter the RAID setup menu. Now the hidden RAID data will be erased from the selected SATA drive.

Note: KTH81 do not support RAID.

The SATA controller supports:

2 to 6-drive RAID 0 (data striping) 2-drive RAID 1 (data mirroring) 3 to 6-drive RAID 5 (block-level striping with parity). 4-drive RAID 10 (data striping and mirroring) 2 to 6-drive matrix RAID, different parts of a single drive can be assigned to different RAID devices. AHCI (Advanced Host Controller Interface) NCQ (Native Command Queuing). NCQ is for faster data access. Swap bay support (not supported on mSATA) Intel® Rapid Recover Technology 2 – 256TB volume (Data volumes only) Capacity expansion TRIM in Windows 7 (in AHCI and RAID mode for drives not part of a RAID volume). (TRIM is for SSD data garbage handling).

Sata connector pinning: SATA0, SATA1, SATA2, SATA3, SATA4 and SATA5. (SATA1 used by mSATA on mITX)

PIN Signal Type Ioh/Iol Note

1 GND PWR - 2 SATA* TX+ 3 SATA* TX- 4 GND PWR - 5 SATA* RX- 6 SATA* RX+ 7 GND PWR -

Signal Description

SATA* RX+ / RX- Host transmitter differential signal pair

SATA* TX+ / TX-

Host receiver differential signal pair

“*” specifies 0, 1, 2, 3, 4, 5 depending on SATA port.

Available cable kit:

PN 821035 Cable SATA 500mm

KTQ87/KTH81 Users Guide

KTD-N0882-H Page 44 Internal Connectors

7.7 USB Connectors (USB)

The KTQ87 board contains two EHCI (Enhanced Host Controller Interface) host controllers (EHCI1 and EHCI2) and a XHCI (Extensible Host Controller Interface). The EHCI controllers support up to fourteen USB

2.0 ports allowing data transfers up to 480Mb/s and the XHCI controller supports up to six USB 3.0 ports allowing data transfers up to 5Gb/s. Four of the USB 3.0 ports are shared with four of the USB 2.0 ports (USB0 – USB3).

Note: Not all USB 2.0 and USB 3.0 ports are physically connected to the board.

Legacy Keyboard/Mouse and wakeup from sleep states are supported. Over-current detection on all fourteen USB ports is supported.

Notes: On KTQ87, the four USB 3.0 ports (USB0 – USB3) are shared with four of the EHCI1 USB 2.0 ports. On KTH81, the two USB 3.0 ports (USB0 – USB1) are shared with two of the EHCI1 USB 2.0 ports. KTH81 only supports two USB 3.0 ports.

See chapter “USB Connectors (IO Area)” for more information on USB0 – USB3.

The following USB ports are available on Internal Pinrows:

USB 4 & 5 (via EHCI1) are supplied on USB4/5 internal pinrow connector (USB1). USB 6 & 7 (via EHCI1) are supplied on USB6/7 internal pinrow connector (USB2). (KTQ87/Flex only). USB 8 & 9 (via EHCI2):

Flex: are supplied on the USB8/9 internal pinrow connector (USB3). mITX: USB8 is supplied on the mPCIe slot and USB9 is supplied on mSATA slot.

USB Port 10 and 11 (via EHCI2) are supplied on the USB10/11 internal pinrow FRONTPNL connector.

Note: It is required to use only HiSpeed USB cable, specified in USB2.0 standard:

KTQ87/KTH81 Users Guide

KTD-N0882-H Page 45 Internal Connectors

USB 4 & 5 (USB4/5) (USB1)

USB Ports 4 and 5 are supplied on the internal USB4/5 pinrow connector USB1.

Note Type Signal PIN Signal Type Note

1 PWR 5V/SB5V 1 2 5V/SB5V PWR 1

IO USB8- 3 4 USB9- IO IO USB8+ 5 6 USB9+ IO PWR GND 7 8 GND PWR NC KEY 9 10 NC NC

USB 6 & 7 (USB6/7) (USB2)

USB Ports 6 and 7 are supplied on the internal USB6/7 pinrow connector USB1. (KTQ87/Flex only).

Note Type Signal PIN Signal Type Note

1 PWR 5V/SB5V 1 2 5V/SB5V PWR 1

IO USB8- 3 4 USB9- IO IO USB8+ 5 6 USB9+ IO PWR GND 7 8 GND PWR NC KEY 9 10 NC NC

USB 8 & 9 (USB8/9) (USB3)

USB Ports 6 and 7 are supplied on the internal USB6/7 pinrow connector USB1. (Flex only).

Note Type Signal PIN Signal Type Note

1 PWR 5V/SB5V 1 2 5V/SB5V PWR 1

IO USB8- 3 4 USB9- IO IO USB8+ 5 6 USB9+ IO PWR GND 7 8 GND PWR NC KEY 9 10 NC NC

Note1:

Signal Description

USBx+ USBx-

5V/SB5V

In order to meet the requirements of USB standard, the 5V input supply must be at least 5.00V.

Available cable kit:

Differential pair works as Data/Address/Command Bus.

5V supply for external devices. SB5V is supplied during powerdown to allow wakeup on USB device activity. Each 5V protected by resettable 1A fuse.

PN 821401 Bracket Dual USB Cable

KTQ87/KTH81 Users Guide

KTD-N0882-H Page 46 Internal Connectors

7.8 Serial COM1 – COM2 Ports (COM1, COM2)

Two RS232 serial ports are available on the KTQ87/KTH81.

The typical definition of the signals in the COM ports is as follows:

Signal Description

TxD

Transmitted Data, sends data to the communications link. The signal is set to the marking state (12V) on hardware reset when the transmitter is empty or when loop mode operation is initiated.

RxD Received Data, receives data from the communications link.

DTR

Data Terminal Ready, indicates to the modem etc. that the on-board UART is ready to establish a communication link.

DSR Data Set Ready, indicates that the modem etc. is ready to establish a communications link.

RTS Request To Send, indicates to the modem etc. that the on-board UART is ready to exchange data.

CTS Clear To Send, indicates that the modem or data set is ready to exchange data.

DCD Data Carrier Detect, indicates that the modem or data set has detected the data carrier.

RI Ring Indicator, indicates that the modem has received a ringing signal from the telephone line.

The pinout of Serial ports COM1 (J19), COM2 (J18)

Note Ioh/Iol Type Signal PIN Signal Type Ioh/Iol Note

- I DCD 1 2 DSR I -

- I RxD 3 4 RTS O O TxD 5 6 CTS I - O DTR 7 8 RI I -

- PWR GND 9 10 5V PWR - 1

Note 1: The COM1, COM2 5V supply is fused with common 1.5A resettable fuse.

DB9 adapter cables (PN 821016 200mm long and 821017 100mm long) are available for implementing standard COM ports on chassis.

Available cable kit (DB9 adapter cables):

PN 821017 - 100 mm or PN 821016 - 200 mm

KTQ87/KTH81 Users Guide

KTD-N0882-H Page 47 Internal Connectors

7.9 Audio Connectors

The on-board Audio circuit implements 7.1+2 Channel High Definition Audio with UAA (Universal Audio Architecture), featuring five 24-bit stereo DACs and three 20-bit stereo ADCs.

The following Audio connectors are available as Internal connectors.

Headphone and Mic2

Headphone and Mic2 are accessible via Front Panel Connector, see Front Panel Connector description.

Front Speakers (LINEOUT)

The Front Speakers (Left and Right) interface is available through 3-pin connector. These outputs are shared with the Speaker Audio Jack connector (green). Up to 100 dB Signal-to-Noise Ratio (SNR).

PIN Signal Type Ioh/Iol Pull U/D Note

1 Front Speaker-R - - 2 GND PWR - - 3 Front Speaker -L - - -

SPDIF (SP-DIF)

The digital audio interface (electrical SPDIF-Out) is available through 3-pin connector and can be used to implement 8 (7.1) Channel High Definition Audio.

Circuit is based on high fidelity 8-channel HD audio codec which is compatible with Intel HD Audio specification and supports stereo 24-bit resolution and up to 192 kHz sample rate for DACs/ADCs. Up to 90 dB Signal-to-Noise Ratio (SNR).

16/20/24-bit S/PDIF TX Outputs supporting 48K/96K/44.1K/88.2 KHz sample rate

PIN Signal Type Ioh/Iol Pull U/D Note

1 5V - - 2 SPDIF-OUT - - 3 GND PWR - -

KTQ87/KTH81 Users Guide

KTD-N0882-H Page 48 Internal Connectors

AGND

Analogue Ground for Audio.

7.10 Front Panel Connector (FRONTPNL) (J2)

Pull U/D

Ioh/ Iol

Type Signal PIN Signal Type

Note

- - PWR USB10/11_5V 1 2 USB10/11_5V PWR - -

- - USB10- 3 4 USB11- - -

- - USB10+ 5 6 USB11+ - -

- - PWR GND 7 8 GND PWR - -

- - NC NC 9 10 Headphone-L - -

- - PWR +5V 11 12 +5V PWR - -

- 25/25mA O SATA_LED# 13 14 SUS_LED O 7mA -

- - PWR GND 15 16 PWRBTN_IN# I 1K1 4K7 - I RSTIN# 17 18 GND PWR - -

- - PWR SB3V3 19 20 Headphone-R - -

- - PWR AGND 21 22 AGND PWR - -

- - AI MIC2-L 23 24 MIC2-R AI - -

Signal Description

USB10/11_5V

5V supply for external devices. SB5V is supplied during powerdown to allow wakeup on

USB device activity. Protected by resettable 1.1A fuse covering both USB ports. USB10+/USB10- Universal Serial Bus Port 10 Differentials: Bus Data/Address/Command Bus. USB11+/USB11- Universal Serial Bus Port 11 Differentials: Bus Data/Address/Command Bus.

+5V

Maximum load is 1A or 2A per pin if using IDC connector flat cable or crimp terminals

respectively. SATA_LED# SATA Activity LED (active low signal). 3V3 output when passive. SUS_LED Suspend Mode LED (active high signal). Output 3.3V via 470Ω. PWRBTN_IN# Power Button In. Toggle this signal low to start the ATX / BTX PSU and boot the board.

RSTIN#

Reset Input. When pulled low for a minimum 16ms, the reset process will be initiated.

The reset process continues even though the Reset Input is kept low. Headphone Headphone stereo signals (different audio stereo channel than Front Speaker signals). MIC2 MIC2 is second stereo microphone input. SB3V3 Standby 3.3V voltage.

Ioh/ Iol

Pull U/D

Note

Available cable kit:

PN 821042 Cable Front Panel Open-End, 300 mm

KTQ87/KTH81 Users Guide

KTD-N0882-H Page 49 Internal Connectors

has been opened. This signal’s status is

PoWeR OK, signal is high if no power failures are detected. (This is not the same as the

(EXTernal BATtery) option for connecting + terminal of an external primary cell battery (2.5

terminal connected to GND). The external battery is protected against charging

5 - O FAN3OUT

7 8 FAN3IN

I - -

5

- I GPIO8

21

22 GPIO9

I -

- -

PWR

GND 43

44 S3# O 25/25mA

-

7.11 Feature Connector (Feature) (J1)

Note Pull U/D Ioh/Iol Type Signal PIN Signal Type Ioh/Iol Pull U/D Note

2 2M/ - I CASE_OPEN# 1 2 SMBC /4mA 10K/ 1

- 25/25mA O S5# 3 4 SMBD /4mA 10K/ 1

- 25/25mA O PWR_OK 5 6 EXT_BAT PWR - -

- - PWR SB3V3 9 10 SB5V PWR - -

- IOT GPIO0 11 12 GPIO1 IOT -

- IOT GPIO2 13 14 GPIO3 IOT -

- IOT GPIO4 15 16 GPIO5 IOT -

- IOT GPIO6 17 18 GPIO7 IOT -

- - PWR GND 19 20 GND PWR - -

- I GPIO10 23 24 GPIO11 I -

- I GPIO12 25 26 GPIO13 IOT - 4 - IOT GPIO14 27 28 GPIO15 IOT - 4 - IOT GPIO16 29 30 GPIO17 IOT -

- - PWR GND 31 32 GND PWR - -

- 8/8mA O EGCLK 33 34 EGCS# O 8/8mA -

- 8/8mA EGAD 35 36 TMA0 O

- PWR +12V 37 38 GND PWR - - 4 - O FAN4OUT 39 40 FAN4IN I - - 4

- - PWR GND 41 42 GND PWR - -

Notes: 1. Pull-up to +3V3Dual (+3V3 or SB3V3). 2. Pull-up to on-board Battery. 3. Pull-up to +3V3. 4. Not Available. 5. Not available on mITX, Shared with onboard FAN2 on Flex.

Signal Description

CASE_OPEN#

CASE OPEN, used to detect if the system case readable, so it may be used like a GPI when the Intruder switch is not required.

SMBC SMBus Clock signal

SMBD SMBus Data signal

S3# S3 sleep mode, active low output, optionally used to deactivate external system.

S5# S5 sleep mode, active low output, optionally used to deactivate external system.

PWR_OK

EXT_BAT

P_OK signal generated by ATX PSU).

- 4.0 V) (– and can be used with/without the on-board battery installed.

FAN3OUT FAN 3 speed control OUTput, 3.3V PWM signal can be used as Fan control voltage.

FAN3IN FAN3 Input. 0V to +3V3 amplitude Fan 3 tachometer input.

FAN4OUT FAN 4 speed control OUTput, 3.3V PWM signal can be used as Fan control voltage.

FAN4IN FAN4 Input. 0V to +3V3 amplitude Fan 3 tachometer input.

SB3V3 Max. load is 0.75A (1.5A < 1 sec.)

SB5V StandBy +5V supply.

KTQ87/KTH81 Users Guide

continues

KTD-N0882-H Page 50 Internal Connectors

GPIO0

DAC0/GPJ0

AO/IOS

GPIO13

RI1#/WUI0/GPD0

IS/IS/IOS

General Purpose Inputs / Output. These Signals may be controlled or monitored through

Signal Description

GPIO0..17

the use of the KT-API-V2 (Application Programming Interface). (GPIO14 and GPIO16 not available, used internally)

EGCLK

Extend GPIO Clock signal

EGAD Extend GPIO Address Data signal

EGCS# Extend GPIO Chip Select signal, active low

TMA0 Timer Output

+12V Max. load is 0.75A (1.5A < 1 sec.)

The GPIO’s are controlled via the ITE IT8516F Embedded Controller. Each GPIO has 100pF to ground, clamping Diode to 3V3 and has multiplexed functionality. Some pins can be DAC (Digital to Analogue Converter output), PWM (Pulse Width Modulated signal output), ADC (Analogue to Digital Converter input), TMRI (Timer Counter Input), WUI (Wake Up Input), RI (Ring Indicator Input) or some special function.

Signal IT8516F pin name Type Description

GPIO1 DAC1/GPJ1 AO/IOS GPIO2 DAC2/GPJ2 AO/IOS GPIO3 DAC3/GPJ3 AO/IOS GPIO4 PWM2/GPA2 O8/IOS GPIO5 PWM3/GPA3 O8/IOS GPIO6 PWM4/GPA4 O8/IOS GPIO7 PWM5/GPA5 O8/IOS GPIO8 ADC0/GPI0 AI/IS GPIO9 ADC1/GPI1 AI/IS GPIO10 ADC2/GPI2 AI/IS GPIO11 ADC3/GPI3 AI/IS GPIO12 ADC4/WUI28/GPI4 AI/IS/IS

GPIO14 RI2#/WUI1/GPD1 IS/IS/IOS not available (used internally) GPIO15 TMRI0/WUI2/GPC4 IS/IS/IOS GPIO16 TMRI1/WUI3/GPC6 IS/IS/IOS not available (used internally) GPIO17 L80HLAT/BAO/WUI24/GPE0 O4/O4/IS/IOS

Available cable kit and Break-Out-Board:

PN 1052-5885 Cable, Feature 44pol 1 to1, 300mm

PN 820978 Feature BOB (Break-Out-Board)

KTQ87/KTH81 Users Guide

KTD-N0882-H Page 51 Internal Connectors

mITX

Flex

!

7.12 “Load Default BIOS Settings” (Load default) (CMOS)

The “Load Default BIOS Settings” Jumper (J5) can be used to recover from incorrect BIOS settings. As an example, incorrect BIOS setting which causes the attached display not to turn on can be erased by this Jumper.

The Jumper has 3 positions: Pin 1-2, Pin2-3 (default position) and not mounted.

Warning Don’t leave the jumper in position 2-3, otherwise if power is disconnected, the

battery will fully deplete within a few weeks.

To Load Default BIOS Settings, inclusive erasing password and RTC:

1. Turn off power completely (no SB5V).

2. Remove the Jumper completely from CMOS1.

3. Insert jumper into position 2-3 (Clear CMOS data).

4. Wait for 10 sec.

5. Move the Jumper back to position 1-2 (default position).

6. Turn on power (use the Power On Button if required to boot).

7. Motherboard beeps number of times.

8. CMOS data lost message are shown.

9. Reboot and enter BIOS setup menu and select new settings.

Motherboard might automatically reboot a few times. Wait until booting is completed.

CMOS1

pin1-2 pin2-3

X - Default position

- X Load Default BIOS Settings exclusive erasing Password

- - No function. Note: may load default BIOS settings after several minutes

Load default Jumper (Shown in Default position)

Description

KTQ87/KTH81 Users Guide

KTD-N0882-H Page 52 Internal Connectors

mITX

Flex

7.13 “Always On” (Always On) (A_ON)

The “Always On” can be used to implement hardware controlled Always ON by jumper. When “Always On” is selected, then the board will power up automatically when power is connected. It doesn’t matter if “Always On” is not selected in BIOS.

The board can still be shut down by PWRBTN_IN# (power button in) activation (via Front Panel connector).

Always On

pin1-2 pin2-3

X - Always On selection

- X Default position

- - No function. Note: may load default BIOS settings after several minutes

Always ON Jumper (Shown in Default position)

Description

KTQ87/KTH81 Users Guide

KTD-N0882-H Page 53 Internal Connectors

10K/

IO

MOSI

7 8 ISOLATE#

IO 100K

output power, but when Motherboard is

SPI flash. Power Supply to the Motherboard must be turned off when

and Quad Output Fast Read modes. The signal is not used in Dual Output Fast Read mode.

LPC AD0

11

12

GND

7.14 SPI Connector (SPI_HEAD)

The SPI Connector is normally not used. If however a SPI BIOS is connected via the SPI Connector then the board will attempt to boot from it.

Note Pull U/D Ioh/Iol Type Signal PIN Signal Type Ioh/Iol Pull U/D Note

1 - CLK 1 2 SB3V3 PWR - -

- I CS0# 3 4 ADDIN IO /10K 10K/ - NC 5 6 NC - - -

- IO MISO 9 10 GND PWR - - 1K IO SPI_IO2_#WP 11 12 SPI_IO3_#HOLD IO 1K

Signal Description

CLK Serial Clock

SB3V3

3.3V Standby Voltage power line. Normally turned off then the on-board SPI Flash can be 3.3V power sourced via this pin.

CS0# CS0# Chip Select 0, active low.

ADDIN ADDIN input signal must be NC.

MOSI Master Output, Slave Input.

The ISOLATE# input, active low, is normally NC, but must be connected to GND when

ISOLATE#

programming the loading SPI flash. The pull up resistor is connected via diode to 5VSB.

MISO Master Input, Slave Output

SPI_IO2_#WP

SPI_IO3_#HOLD

SPI Data I/O: A bidirectional signal used to support Dual IO Fast Read, Quad IO Fast Read and Quad Output Fast Read modes. The signal is not used in Dual Output Fast Read mode. SPI Data I/O: A bidirectional signal used to support Dual IO Fast Read, Quad IO Fast Read

7.15 LPC Connector (J30)

The LPC connector (Flex board only) is in general unsupported. Only under special circumstances may the LPC interface be of interest.

Note

Pull

Ioh/Iol Type Signal PIN Signal Type Ioh/Iol

U/D

Pull

U/D

- - PWR LPC CLK 1 2 GND

- - PWR LPC FRAME# 3 KEY LPC RST# 5 6 +5V LPC AD3 7 8 LPC AD2 +3V3 9 10 LPC AD1

SMB_CLK 13 14 SMB_DATA SB3V3 15 16 LPC SERIRQ GND 17 18 CLKRUN# SUS_STAT# 19 20 TPM_DRQ#0

Note

KTQ87/KTH81 Users Guide

KTD-N0882-H Page 54 Internal Connectors

Note

Pull U/D

Ioh/Iol

Type

Signal

Type

Ioh/Iol

Pull U/D

Note

PWR

GND

19

20 GND

PWR

CFG6

33

34 CFG14

NC

55

56 TDI

7.16 XDP_CPU (Debug Port for CPU) (XDP_CPU)

The XDP_CPU (Intel Debug Port for CPU) connector is not mounted and not supported. XDP connector layout (pads) is located on the backside of PCB and is prepared for the Samtec BSH-030-01-F-D-A-TR.

PWR GND 1 2 GND PWR REQ 3 4 STB_0_DP RDY 5 6 STB_0_DN PWR GND 7 8 GND PWR CFG0 9 10 CFG8 CFG1 11 12 CFG9 PWR GND 13 14 GND PWR CFG2 15 16 CFG10 CFG3 17 18 CFG11

BPM#0 21 22 STB_1_DP BPM#1 23 24 STB_1_DN PWR GND 25 26 GND PWR CFG4 27 28 CFG12 CFG5 29 30 CFG13 PWR GND 31 32 GND PWR

CFG7 35 36 CFG15 PWR GND 37 38 GND PWR PWRGD 39 40 ITP_CLKP SW_ON_N 41 42 ITP_CLKN PWR CPU_VCCIO 43 44 CPU_VCCIO PWR PWR_DEBUG 45 46 RESET# CPU_HOOK3 47 48 DBR# PWR GND 49 50 GND PWR SMB_DAT 51 52 TDO SMB_CLK 53 54 TRST#

TCK 57 58 TMS PWR GND 59 60 XDP_PRESENT#

KTQ87/KTH81 Users Guide

KTD-N0882-H Page 55 Internal Connectors

XDP_1

11

12 SATA1GP

XDP_6

33

34 GPIO18

PWR

GND

59

60 GND

PWR

7.17 XDP_PCH (Debug Port for Chipset) (XDP_PCH)

The XDP_PCH (Intel Debug Port for Chipset) connector is not mounted and not supported. XDP_PCH connector layout (pads) is located on the backside of PCB (below J35 connector on mITX version) and is prepared for the Samtec BSH-030-01-F-D-A-TR.

Note Pull U/D Ioh/Iol Type Signal PIN Signal Type Ioh/Iol Pull U/D Note

PWR GND 1 2 GND PWR NC 3 4 EC_WRST# NC 5 6 2x4_PWR_DETECT PWR GND 7 8 GND PWR XDP_0 9 10 SATA0GP

PWR GND 13 14 GND PWR XDP_2 15 16 GP36 XDP_3 17 18 GP37 PWR GND 19 20 GND PWR NC 21 22 NC NC 23 24 NC PWR GND 25 26 GND PWR XDP_4 27 28 SATA4GP XDP_5 29 30 GP49 PWR GND 31 32 GND PWR

XDP_7 35 36 SMI_N PWR GND 37 38 GND PWR PWRGD 39 40 JTAG_VREF HOOK1 41 42 NC PWR 3.3V 43 44 3.3V PWR NC 45 46 RESET# NC 47 48 HOOK7 PWR GND 49 50 GND PWR SMB_DAT 51 52 JTAG_TDO SMB_CLK 53 54 JTAG_RST NC 55 56 JTAG_TDI JTAG_TCK 57 58 JTAG_TMS

KTQ87/KTH81 Users Guide

KTD-N0882-H Page 56 Slot Connectors

GND

B7

A7

NC

8 Slot Connectors (PCIe, mPCIe, mSATA, PCI)

8.1 PCIe Connectors

The mITX boards supports one PCIex16 (16-lanes), one miniPCIe and one mSATA in mPCIe slot.

The Flex boards supports one PCIex16 (16-lanes), one PCIex2 (2-lanes) in a x16 slot and one PCIex1 slot.

The PCIex16 port can be used for external PCI Express cards inclusive graphics card. (On the Flex boards it is located nearest the CPU). Maximum theoretical bandwidth depends on the chipset, Q87 / H81 support up to PCIe 3.0 / PCIe 2.0, so Q87 support 8 Gbps effectively for each lane and direction, 256 Gbps in total for 16 lanes, while the H81 support 4 Gbps effectively for each lane and direction, 128 Gbps in total for 16 lanes.

The PCIex2 (in a x16 slot) (only on Flex board) can be used for external PCI Express cards inclusive graphics card. It is located fares away from CPU. Maximum theoretical bandwidth is 4 Gbps effectively for each lane and direction, 16 Gbps in total for 2 lanes.

The PCIex1 (only on Flex board) can be used for external PCI Express cards inclusive graphics card. Maximum theoretical bandwidth is 4 Gbps effectively for each direction, 8 Gbps in total.

One miniPCIe (PCIe 2.0) port (mITX boards only) supporting mPCIe cards.

One miniPCIe (mSATA) port (mITX boards only) supporting mSATA cards.

miniPCIe slots are equipped with one USB 2.0 port. The USB connected to the mSATA slot do not support WAKE function.

PCI-Express x16 Connector (PCIex16) (SLOT1_16X)

Note Type Signal PIN Signal Type Note

+12V B1 A1 NC +12V B2 A2 +12V +12V B3 A3 +12V GND B4 A4 GND SMB_CLK B5 A5 NC SMB_DATA B6 A6 NC

+3V3 B8 A8 NC NC B9 A9 +3V3 SB3V3 B10 A10 +3V3 WAKE# B11 A11 RST#

NC B12 A12 GND GND B13 A13 PCIE_x16 CLK PEG_TXP[0] B14 A14 PCIE_x16 CLK# PEG_TXN[0] B15 A15 GND GND B16 A16 PEG_RXP[0] CLKREQ B17 A17 PEG_RXN[0] GND B18 A18 GND PEG_TXP[1] B19 A19 NC PEG_TXN[1] B20 A20 GND GND B21 A21 PEG_RXP[1] GND B22 A22 PEG_RXN[1]

KTQ87/KTH81 Users Guide

KTD-N0882-H Page 57 Slot Connectors

PEG_TXP[2]

B23

A23

GND

NC

B30

A30

PEG_RXN[3]

PEG_TXP[13]

B70

A70

GND

B77

A77

PEG_RXN[14]

PEG_TXN[2] B24 A24 GND GND B25 A25 PEG_RXP[2] GND B26 A26 PEG_RXN[2] PEG_TXP[3] B27 A27 GND PEG_TXN[3] B28 A28 GND GND B29 A29 PEG_RXP[3]

CLKREQ B31 A31 GND GND B32 A32 NC PEG_TXP[4] B33 A33 NC PEG_TXN[4] B34 A34 GND GND B35 A35 PEG_RXP[4] GND B36 A36 PEG_RXN[4] PEG_TXP[5] B37 A37 GND PEG_TXN[5] B38 A38 GND GND B39 A39 PEG_RXP[5] GND B40 A40 PEG_RXN[5] PEG_TXP[6] B41 A41 GND PEG_TXN[6] B42 A42 GND GND B43 A43 PEG_RXP[6] GND B44 A44 PEG_RXN[6] PEG_TXP[7] B45 A45 GND PEG_TXN[7] B46 A46 GND GND B47 A47 PEG_RXP[7] CLKREQ B48 A48 PEG_RXN[7] GND B49 A49 GND PEG_TXP[8] B50 A50 NC PEG_TXN[8] B51 A51 GND GND B52 A52 PEG_RXP[8] GND B53 A53 PEG_RXN[8] PEG_TXP[9] B54 A54 GND PEG_TXN[9] B55 A55 GND GND B56 A56 PEG_RXP[9] GND B57 A57 PEG_RXN[9] PEG_TXP[10] B58 A58 GND PEG_TXN[10] B59 A59 GND GND B60 A60 PEG_RXP[10] GND B61 A61 PEG_RXN[10] PEG_TXP[11] B62 A62 GND PEG_TXN[11] B63 A63 GND GND B64 A64 PEG_RXP[11] GND B65 A65 PEG_RXN[11] PEG_TXP[12] B66 A66 GND PEG_TXN[12] B67 A67 GND GND B68 A68 PEG_RXP[12] GND B69 A69 PEG_RXN[12]

PEG_TXN[13] B71 A71 GND GND B72 A72 PEG_RXP[13] GND B73 A73 PEG_RXN[13] PEG_TXP[14] B74 A74 GND PEG_TXN[14] B75 A75 GND GND B76 A76 PEG_RXP[14]

PEG_TXP[15] B78 A78 GND PEG_TXN[15] B79 A79 GND GND B80 A80 PEG_RXP[15] CLKREQ B81 A81 PEG_RXN[15] NC B82 A82 GND

KTQ87/KTH81 Users Guide

KTD-N0882-H Page 58 Slot Connectors

GND

B32

A32

NC

B38

A38

GND

B45

A45

GND

PCI-Express x2 Connector (PCIex2) in x16 slot (PCIE2)

(Flex boards only).

Note Type Signal PIN Signal Type Note

+12V B1 A1 NC +12V B2 A2 +12V +12V B3 A3 +12V GND B4 A4 GND SMB_CLK B5 A5 NC SMB_DATA B6 A6 NC GND B7 A7 NC +3V3 B8 A8 NC NC B9 A9 +3V3 SB3V3 B10 A10 +3V3 WAKE# B11 A11 RST#

NC B12 A12 GND GND B13 A13 PCIE_x16 CLK PEG_TXP[0] B14 A14 PCIE_x16 CLK# PEG_TXN[0] B15 A15 GND GND B16 A16 PEG_RXP[0] CLKREQ B17 A17 PEG_RXN[0] GND B18 A18 GND PEG_TXP[1] B19 A19 NC PEG_TXN[1] B20 A20 GND GND B21 A21 PEG_RXP[1] GND B22 A22 PEG_RXN[1] B23 A23 GND B24 A24 GND GND B25 A25 GND B26 A26 B27 A27 GND B28 A28 GND GND B29 A29 NC B30 A30 CLKREQ B31 A31 GND

B33 A33 NC B34 A34 GND GND B35 A35 GND B36 A36 B37 A37 GND

GND B39 A39 GND B40 A40 B41 A41 GND B42 A42 GND GND B43 A43 GND B44 A44

B46 A46 GND GND B47 A47 CLKREQ B48 A48 GND B49 A49 GND

KTQ87/KTH81 Users Guide

KTD-N0882-H Page 59 Slot Connectors

B50

A50

NC

GND

B57

A57

+12V

B3

A3

+12V

SB3V3

B10

A10

+3V3

PCIE_TXN

B15

A15

GND

B51 A51 GND GND B52 A52 GND B53 A53 B54 A54 GND B55 A55 GND GND B56 A56

B58 A58 GND B59 A59 GND GND B60 A60 GND B61 A61 B62 A62 GND B63 A63 GND GND B64 A64 GND B65 A65 B66 A66 GND B67 A67 GND GND B68 A68 GND B69 A69 B70 A70 GND B71 A71 GND GND B72 A72 GND B73 A73 B74 A74 GND B75 A75 GND GND B76 A76 GND B77 A77 B78 A78 GND B79 A79 GND GND B80 A80 CLKREQ B81 A81 NC B82 A82 GND

PCI-Express x1 Connector (PCIex1) (PCIE3)

Only on Flex boards.

Note Type Signal PIN# Signal Type Note

+12V B1 A1 NC +12V B2 A2 +12V

GND B4 A4 GND SMB_CLK B5 A5 NC SMB_DATA B6 A6 NC GND B7 A7 NC +3V3 B8 A8 NC NC B9 A9 +3V3

WAKE# B11 A11 RST#

NC B12 A12 GND GND B13 A13 PCIE CLK PCIE_TXP B14 A14 PCIE CLK#

GND B16 A16 PCIE_RXP NC B17 A17 PCIE_RXN GND B18 A18 GND

KTQ87/KTH81 Users Guide

KTD-N0882-H Page 60 Slot Connectors

NC

19

20

W_Disable#

2

PCIE_TXP

33

34

GND

PWR

miniPCI-Express mPCIe (MPCIE)

(mITX boards only).

The miniPCIe port supports mPCIe and USB 2.0 cards (not mSATA).

Note Type Signal PIN Signal Type Note

WAKE# 1 2 +3V3 PWR NC NC 3 4 GND PWR NC NC 5 6 +1.5V PWR

1 CLKREQ# 7 8 NC NC

PWR GND 9 10 NC NC PCIE_mini CLK# 11 12 NC NC PCIE_mini CLK 13 14 NC NC PWR GND 15 16 NC NC

NC NC 17 18 GND PWR

PWR GND 21 22 RST# PCIE_RXN 23 24 +3V3 Dual PWR PCIE_RXP 25 26 GND PWR PWR GND 27 28 +1.5V PWR PWR GND 29 30 SMB_CLK PCIE_TXN 31 32 SMB_DATA

PWR GND 35 36 U_USB8N IO PWR GND 37 38 U_USB8P IO PWR +3V3 Dual 39 40 GND PWR PWR +3V3 Dual 41 42 NC NC PWR GND 43 44 NC NC CLK_MPCIE 45 46 NC NC DATA_MPCIE 47 48 +1.5V PWR RST_MPCIE# 49 50 GND PWR

3 SEL_MSATA 51 52 +3V3 Dual PWR

Note 1: 10K ohm pull-up to 3V3. Note 2: 2K2 ohm pull-up to 3V3 Dual. Note 3: 100K ohm pull-up to 1V8 (S0 mode)

KTQ87/KTH81 Users Guide

KTD-N0882-H Page 61 Slot Connectors

PCIE_TXN

31

32

SMB_DATA

8.2 mSATA (MSATA)

(mITX boards only).

The mSATA port (in mPCIe express connector) supports mSATA and USB 2.0 cards (not PCIe cards).

Note Type Signal PIN Signal Type Note

WAKE# 1 2 +3V3 PWR NC NC 3 4 GND PWR NC NC 5 6 +1.5V PWR

1 CLKREQ# 7 8 NC NC

PWR GND 9 10 NC NC PCIE_mini CLK# 11 12 NC NC PCIE_mini CLK 13 14 NC NC PWR GND 15 16 NC NC

NC NC 17 18 GND PWR NC NC 19 20 W_Disable# 2 PWR GND 21 22 RST# PCIE_RXN 23 24 +3V3 Dual PWR PCIE_RXP 25 26 GND PWR PWR GND 27 28 +1.5V PWR PWR GND 29 30 SMB_CLK

PCIE_TXP 33 34 GND PWR PWR GND 35 36 U_USB9N IO NC NC 37 38 U_USB9P IO NC NC 39 40 GND PWR NC NC 41 42 NC NC NC NC 43 44 NC NC NC NC 45 46 NC NC NC NC 47 48 +1.5V PWR NC NC 49 50 GND PWR NC NC 51 52 +3V3 PWR

Note 1: 10K ohm pull-up to 3V3 Dual. Note 2: 2K2 ohm pull-up to 3V3 Dual.

KTQ87/KTH81 Users Guide

KTD-N0882-H Page 62 Slot Connectors

IOT

C/BE2#

F33

E33

+3.3V

PWR

IOT

LOCK#

F39

E39

+3.3V

PWR

GND

F46

E46

AD13

IOT

SOLDER SIDE

COMPONENT SIDE

IOT

AD01

F58

E58

AD00

IOT

8.3 PCI Slot Connector

Flex board only.

Note Type Signal

PWR -12V F01 E01 TRST# O O TCK F02 E02 +12V PWR PWR GND F03 E03 TMS O

NC I TDO F04 E04 TDI O

PWR +5V F05 E05 +5V PWR PWR +5V F06 E06 INTA# I I INTB# F07 E07 INTC# I

I INTD# F08 E08 +5V PWR NC - - F09 E09 - - NC NC - - F10 E10 +5V (I/O) PWR NC - - F11 E11 - - NC

PWR GND F12 E12 GND PWR

PWR GND F13 E13 GND PWR NC - - F14 E14 GNT3# OT

PWR GND F15 E15 RST# O

O CLKB F16 E16 +5V (I/O) PWR

PWR GND F17 E17 GNT0# OT

I REQ0# F18 E18 GND PWR

PWR +5V (I/O) F19 E19 PME# I

IOT AD31 F20 E20 AD30 IOT

IOT AD29 F21 E21 +3.3V PWR

PWR GND F22 E22 AD28 IOT

IOT AD27 F23 E23 AD26 IOT

IOT AD25 F24 E24 GND PWR

PWR +3.3V F25 E25 AD24 IOT

IOT C/BE3# F26 E26 GNT1# OT

IOT AD23 F27 E27 +3.3V PWR

PWR GND F28 E28 AD22 IOT

IOT AD21 F29 E29 AD20 IOT

IOT AD19 F30 E30 GND PWR

PWR +3.3V F31 E31 AD18 IOT

IOT AD17 F32 E32 AD16 IOT

Terminal

S C

Signal Type Note

PWR GND F34 E34 FRAME# IOT

IOT IRDY# F35 E35 GND PWR

PWR +3.3V F36 E36 TRDY# IOT

IOT DEVSEL# F37 E37 GND PWR

PWR GND F38 E38 STOP# IOT

IOT PERR# F40 E40 SDONE IO

PWR +3.3V F41 E41 SB0# IO

IOC SERR# F42 E42 GND PWR

PWR +3.3V F43 E43 PAR IOT

IOT C/BE1# F44 E44 AD15 IOT

IOT AD14 F45 E45 +3.3V PWR

IOT AD12 F47 E47 AD11 IOT

IOT AD10 F48 E48 GND PWR

PWR GND F49 E49 AD09 IOT

IOT AD08 F52 E52 C/BE0# IOT

IOT AD07 F53 E53 +3.3V PWR

PWR +3.3V F54 E54 AD06 IOT

IOT AD05 F55 E55 AD04 IOT

IOT AD03 F56 F56 GND PWR

PWR GND F57 E57 AD02 IOT

PWR +5V (I/O) F59 E59 +5V (I/O) PWR

IOT ACK64# F60 E60 REQ64# IOT

PWR +5V F61 E61 +5V PWR

PWR +5V F62 E62 +5V PWR

KTQ87/KTH81 Users Guide

KTD-N0882-H Page 63 Slot Connectors

SYSTEM PINS

Clock provides timing for all transactions on PCI and is an input to every PCI device. All other PCI signals, except

a device beyond the PCI sequencer is beyond the scope of this specification, except for reset states of required PCI

free edge. Except for configuration accesses, only devices that are required to boot the

The address phase is the clock cycle in which FRAME# is asserted. During the address phase AD[31::00] contain a

C/BE[3::0]# define the bus command. During the data phase C/BE[3::0]# are used as Byte Enables. The Byte Enables are valid for the entire data phase and determine which byte lanes carry meaningful data. C/BE[0]#

Parity is even parity across AD[31::00] and C/BE[3::0]#. Parity generation is required by all PCI agents. PAR is

IRDY# is asserted on a write transaction or TRDY# is asserted on a read transaction. Once PAR is valid, it remains valid until one clock after the completion of the current data phase. (PAR has the same timing as AD[31::00], but it

clock.) The master drives PAR for address and write data phases; the target drives PAR for read

Cycle Frame is driven by the current master to indicate the beginning and duration of an access. FRAME# is asserted to indicate a bus transaction is beginning. While FRAME# is asserted, data transfers continue. When

read, it indicates the master is prepared to accept data. Wait cycles are inserted until both IRDY# and TRDY# are

IRDY# are sampled asserted. During a read, TRDY# indicates that valid data is present on AD[31::00]. During a

the target is prepared to accept data. Wait cycles are inserted until both IRDY# and TRDY# are

hat may require multiple transactions to complete. When LOCK# is asserted,

GNT#. It is possible for different agents to use PCI while a single master retains ownership of LOCK#. If a device

Device Select, when actively driven, indicates the driving device has decoded its address as the target of the

Signal Description – PCI Slot Connector

CLK

PME#

RST#

ADDRESS AND DATA

AD[31::00]

RST#, INTA#, INTB#, INTC#, and INTD#, are sampled on the risingedge of CLK and all other timing parameters are defined with respect to this edge. PCI operates at 33MHz. Power Management Event interrupt signal. Wake up signal.

Reset is used to bring PCI-specific registers, sequencers, and signals to a consistent state. What effect RST# has on

configuration registers. Anytime RST# is asserted, all PCI output signals must be driven to their benign state. In general, this means they must be asynchronously tri-stated. SERR# (open drain) is floated. REQ# and GNT# must both be tri-stated (they cannot be driven low or high during reset). To prevent AD, C/BE#, and PAR signals from floating during reset, the central resource may drive these lines during reset (bus parking) but only to a logic low level–they may not be driven high. RST# may be asynchronous to CLK when asserted or deasserted. Although asynchronous, deassertion is guaranteed to be a clean, bouncesystem will respond after reset.

Address and Data are multiplexed on the same PCI pins. A bus transaction consists of an address phase followed by one or more data phases. PCI supports both read and write bursts.

physical address (32 bits). For I/O, this is a byte address; for configuration and memory, it is a DWORD address. During data phases AD[07::00] contain the least significant byte (lsb) and AD[31::24] contain the most significant byte (msb). Write data is stable and valid when IRDY# is asserted and read data is stable and valid when TRDY# is asserted. Data is transferred during those clocks where both IRDY# and TRDY# are asserted.

C/BE[3::0]#

PAR

INTERFACE CONTROL PINS

FRAME#

IRDY#

TRDY#

STOP#

LOCK#

Bus Command and Byte Enables are multiplexed on the same PCI pins. During the address phase of a transaction,

applies to byte 0 (lsb) and C/BE[3]# applies to byte 3 (msb).

stable and valid one clock after the address phase. For data phases, PAR is stable and valid one clock after either

is delayed by one data phases.

FRAME# is deasserted, the transaction is in the final data phase or has completed. Initiator Ready indicates the initiating agent’s (bus master’s) ability to complete the current data phase of the transaction. IRDY# is used in conjunction with TRDY#. A data phase is completed on any clock both IRDY# and TRDY# are sampled asserted. During a write, IRDY# indicates that valid data is present on AD[31::00]. During a

asserted together. Target Ready indicates the target agent’s (selected device’s) ability to complete the current data phase of the transaction. TRDY# is used in conjunction with IRDY#. A data phase is completed on any clock both TRDY# and

write, it indicates asserted together. Stop indicates the current target is requesting the master to stop the current transaction.

Lock indicates an atomic operation t non-exclusive transactions may proceed to an address that is not currently locked. A grant to start a transaction on PCI does not guarantee control of LOCK#. Control of LOCK# is obtained under its own protocol in conjunction with

implements Executable Memory, it should also implement LOCK# and guarantee complete access exclusion in that memory. A target of an access that supports LOCK# must provide exclusion to a minimum of 16 bytes (aligned). Host bridges that have system memory behind them should implement LOCK# as a target from the PCI bus point of view and optionally as a master.

IDSEL

DEVSEL#

Initialization Device Select is used as a chip select during configuration read and write transactions.

current access. As an input, DEVSEL# indicates whether any device on the bus has been selected.

KTQ87/KTH81 Users Guide

KTD-N0882-H Page 64 Slot Connectors

Grant indicates to the agent that access to the bus has been granted. This is a point to point signal. Every master

Parity Error is only for the reporting of data parity errors during all PCI transactions except a Special Cycle. The

data parity error is detected. The minimum duration of PERR# is one clock for each data phase that a data

parity error is detected. (If sequential data phases each have a data parity error, the PERR# signal will be asserted

state signals. There are no special conditions when a data parity error may be lost or when reporting of an error

generated, a different reporting mechanism is required. SERR# is pure open drain and is actively driven for a single

ARBITRATION PINS (BUS MASTERS ONLY)

REQ#

GNT#

ERROR REPORTING PINS.

The error reporting pins are required by all devices and maybe asserted when enabled

PERR#

SERR#

Request indicates to the arbiter that this agent desires use of the bus. This is a point to point signal. Every master has its own REQ# which must be tri-stated while RST# is asserted.

has its own GNT# which must be ignored while RST# is asserted. While RST# is asserted, the arbiter must ignore all REQ# lines since they are tri-stated and do not contain a valid request. The arbiter can only perform arbitration after RST# is deasserted. A master must ignore its GNT# while RST# is asserted. REQ# and GNT# are tri-state signals due to power sequencing requirements when 3.3V or 5.0V only add-in boards are used with add-in boards that use a universal I/O buffer.

PERR# pin is sustained tri-state and must be driven active by the agent receiving data two clocks following the data when a

for more than a single clock.) PERR# must be driven high for one clock before being tri-stated as with all sustained trimay be delayed. An agent cannot report a PERR# until it has claimed the access by asserting DEVSEL# (for a target) and completed a data phase or is the master of the current transaction. System Error is for reporting address parity errors, data parity errors on the Special Cycle command, or any other system error where the result will be catastrophic. If an agent does not want a non-maskable interrupt (NMI) to be

PCI clock by the agent reporting the error. The assertion of SERR# is synchronous to the clock and meets the setup and hold times of all bused signals. However, the restoring of SERR# to the deasserted state is accomplished by a weak pullup (same value as used for s/t/s) which is provided by the system designer and not by the 64signaling agent or central resource. This pull-up may take two to three clock periods to fully restore SERR#. The agent that reports SERR#s to the operating system does so anytime SERR# is sampled asserted.

INTERRUPT PINS (OPTIONAL).

Interrupts on PCI are optional and defined as “level sensitive,” asserted low (negative true), using open drain output drivers. The assertion and deassertion of INTx# is asynchronous to CLK. A device asserts its INTx# line when requesting attention from its device driver. Once the INTx# signal is asserted, it remains asserted until the device driver clears the pending request. When the request is cleared, the device deasserts its INTx# signal. PCI defines one interrupt line for a single function device and up to four interrupt lines for a multi-function device or connector. For a single function device, only INTA# may be used while the other three interrupt lines have no meaning.

INTA#

INTB#

INTC#

INTD#

Interrupt A is used to request an interrupt.

Interrupt B is used to request an interrupt and only has meaning on a multi-function device.

Interrupt C is used to request an interrupt and only has meaning on a multi-function device.

Interrupt D is used to request an interrupt and only has meaning on a multi-function device.

KTQ81/Flex & KTH81/Flex PCI IRQ & INT routing

REQ GNT IDSEL INTA INTB INTC INTD

REQ0 GNT0 17 INTA INTB INTC INTD

KTQ87/KTH81 Users Guide

KTD-N0882-H Page 65 On-board and Mating connectors

On-board Connectors

Mating Connectors / Cables

Molex

CVILUX

Don Connex

PINREX

510-90-24GB03

Molex

90635-1243

PN 821042 (cable)

PINREX

Don Connex

PN 1052-5885

9 On-board - & mating connector types

The Mating connector(s) / Cable Kits(s) which are fitting the On-board connectors are listed in below table. The highlighted cable kits are included in the “KTQ87 Cable & Driver Kit” PN 826602 / 0200000002. (Different quantity of each cable kit included, depending on the quantity of onboard connectors).

Connector

Manufacturer Type no. Manufacturer Type no.

CPU_FAN Foxconn HF0804E-M2 AMP 1375820-4 (4-pole) SYS_FAN1 SYS_FAN2 KBD/MSE

SATA

ATX24P

Mighty 21-013-00222-1 AMP 1375820-3 (3-pole)

22-23-2061

FOXCONN LD1807V-S5BA1DH

WINNING

WATM7DBN4B2B8UW4

Kontron PN 821035 (cable)

22-01-2065 67489-8005

CP-01324130 Molex 5557-24R

ATX4P CHERNGWEEI CR-W421S-24 Molex 39-01-2045

LVDS

SAMTEC

Hon Kon Technology inc

C44-40BSBC1-G SHF-120-01-F-DSM-K-TR

Kontron KT 910000005

HB12-220-VFS-20 Kontron KT 821515 (cable)

A32-40-C-G-B-1

Kontron KT 821155 (cable) CHERNGWEEI CHEB254010S Molex 90635-1103

COM1,2

Kontron PN 821017 (cable) Kontron PN 821016 (cable)

USB4/5 FOXCONN HC1105H-P9 Kontron

PN 821401 (cable)

USB10/11 * (FRONTPNL) - Kontron PN 821401 (cable) LPC PINREX 210-92-10GB04 - Always On

Load default Front Speaker

SPDIF

CVILUX CH11032VA00 - -

CHERNGWEEI

P101-SGN060/030-03

- -

SPI CHERNGWEEI P201-SGN-060/030-12 - FRONTPNL

Kontron

CH74442V100

A05c-44-B-G-A-1-G

FEATURE

Kontron

(Cable)

* USB10/USB11 is located in FRONTPNL connector. Depending on application KT TBD cable kit can be used.

Note: In above table, more than one connector can be listed for each type of on-board connector, if they all have same fit, form and function and are approved by Kontron as an alternative. Please notice that standard connectors like DP, PCI, PCIe, miniPCIe, Audio Jack, Ethernet and USB are not included in the list.

KTQ87/KTH81 Users Guide

KTD-N0882-H Page 66 BIOS - Main

Phoenix SecureCore Technology Setup

Main

Advanced

Security

Boot

Exit

Item Specific Help

View or set system date.

F1

Help

↑↓

Select Item

+/-

Change Values

F9

Setup Defaults

Esc

Exit

←→

Select Menu

Enter

Select ►Sub-Menu

F10

Save and Exit

10 BIOS

The BIOS Setup is used to view and configure BIOS settings for the board. The BIOS Setup is accessed by pressing the <Del> -key after the Power-On Self-Test (POST) memory test begins and before the operating system boot begins.

The BIOS settings will be loaded automatically when loading “Restore Default” see “Save & Exit” menu. In this Users Guide the default settings are indicated by bold. Please notice that “Restore User Defaults” might have different set of default values.

10.1 Main

BIOS Information

BIOS Vendor Core Version Compliancy Version BIOS Version Build Date and Time EC Firmware Version

Board Information Product Name PCB ID Serial # Boot Count

System Date System Time

► System Information ► Boot Features ► Error Manager

Sub Menu available. White text for actual selected function which can be modified. Blue text for functions (not all can be modified). Black background for actual selection. Black text actual settings.

Feature Options Description

System Date MM/DD/YYYY Set the system date. System Time HH:MM:SS Set the system time. The following table describes the changeable settings:

Phoenix Technologies Ltd. KTQ8718 UEFI 2.31; PI 0.9 18 Jun 30 2014 14:22:57 V1.23 12/09/13

KTQ87/Flex 08 01205252 6438

[07/07/2014] [14:21:40]

KTQ87/KTH81 Users Guide

KTD-N0882-H Page 67 BIOS - Main

Phoenix SecureCore Technology Setup

Main

F1

Help

↑↓

Select Item

+/-

Change Values

F9

Setup Defaults

Esc

Exit

←→

Select Menu

Enter

Select ►Sub-Menu

F10

Save and Exit

System Information

BIOS Version Build Time Processor Type Processor Speed System Memory Speed L2 Cache RAM Total Memory [1] [2] [3] [4]

ADE-606A KTQ87118 06/30/2014 Genuine Intel ® CPU 0000 @2.60GHz

2.600 GHz 1333 MHz 256 KB 4096 MB 2048 MB (DDR3-1333) @ ChannelA-DIMM0 0 MB 2048 MB (DDR3-1333) @ ChannelB-DIMM0 0 MB

KTQ87/KTH81 Users Guide

KTD-N0882-H Page 68 BIOS - Main

Phoenix SecureCore Technology Setup

Main

F1

Help

↑↓

Select Item

+/-

Change Values

F9

Setup Defaults

Esc

Exit

←→

Select Menu

Enter

Select ►Sub-Menu

F10

Save and Exit

Disabled

Boot Features

Boot Features Item Specific Help

NumLock:

Timeout CSM Support Diagnostic Splash Screen Diagnostic Summary Screen UEFI Boot Legacy Boot

[On] [ 2] [Yes] [Disabled] [Disabled] [Disabled] [Enabled]

Function Selection Description

NumLock:

Timeout 2 Note 1

CSM Support

On

Off

No

Yes

Select Power-on state for NumLock.

Number of seconds that P.O.S.T will wait for the user input before booting. Compatibility Support Module that provides backward compatibility services for legacy BIOS services, like int10/int13, dependent OS. If you select ‘Enabled’ the diagnostic splash screen

Diagnostic Splash Screen

Disabled

Enabled

always displays during boot. If you select ‘Disabled’ the diagnostic splash screen does not display unless you press HOTKEY during boot.

Diagnostic Summary Screen

Disabled

Enabled

Display the diagnostic summary screen during boot.

Select Power-on state for NumLock.

UEFI Boot

Legacy Boot

Note 1: Use either digit keys to enter value (0 – 99) or +/- keys to increase/decrease value.

Enabled Disabled Enabled

KTQ87/KTH81 Users Guide

Enable the UEFI boot.

Enable the Legacy boot.

KTD-N0882-H Page 69 BIOS - Main

Phoenix SecureCore Technology Setup

Main

F1

Help

↑↓

Select Item

+/-

Change Values

F9

Setup Defaults

Esc

Exit

←→

Select Menu

Enter

Select ►Sub-Menu

F10

Save and Exit

Error Manager

Error Manager Item Specific Help

View Error Manager Log

Clear Error Manager Log

[Enter] [Enter]

Display Error Manager Log information.

Function Selection Description

View Error Manager Log

Enter

Display Error Manager Log information.

Clear Error Manager Log Enter Clear Error Manager Log.

KTQ87/KTH81 Users Guide

KTD-N0882-H Page 70 BIOS - Advanced

Phoenix SecureCore Technology Setup

Main

Advanced

Security

Boot

Exit

Item Specific Help

Select Language.

F1

Help

↑↓

Select Item

+/-

Change Values

F9

Setup Defaults

Esc

Exit

←→

Select Menu

Enter

Select ►Sub-Menu

F10

Save and Exit

10.2 Advanced

The Advanced (main) menu contains only submenu selections which will be described in more details on the following pages.

In order to make a selection of a submenu activated the ↑↓ keys until the requested submenu becomes white color, then activate the <Enter>.

Function Selection Description

Select Language

► Silicon Information ► Processor Configuration ► HDD Configuration ► System Agent (SA) Configuration ► South Bridge Configuration ► LAN Configuration ► PCI bridge Configuration ► Hardware Health Configuration ► SMBIOS Event Log ► AMT Configuration ► MEBx Configuration ► ME Configuration ► Intel ® Rapid Start Technology

Setup Warning:

Setting items on this screen to incorrect Values may cause the system to malfunction!

English

Francais Etc.

[English]

Select Language.

KTQ87/KTH81 Users Guide

KTD-N0882-H Page 71 BIOS - Advanced

Phoenix SecureCore Technology Setup

Advanced

F1

Help

↑↓

Select Item

+/-

Change Values

F9

Setup Defaults

Esc

Exit

←→

Select Menu

Enter

Select ►Sub-Menu

F10

Save and Exit

Silicon Information

Genuine Intel ® CPU 0000 @ 2.60GHz

FAMILY MODEL CPUID CPU REV. PATCH ID CORE FREQ. L1 Cache L2 Cache L3 Cache

PCH TYPE PCH REV.

4th Gen Intel Core Processor 22nm Haswell Desktop 306C2 B0 Stepping FFFF0006

2.60GHz 64 KB 256 KB) 8192 KB

LynxPoint C2 Stepping

KTQ87/KTH81 Users Guide

KTD-N0882-H Page 72 BIOS - Advanced

Phoenix SecureCore Technology Setup

Advanced

F1

Help

↑↓

Select Item

+/-

Change Values

F9

Setup Defaults

Esc

Exit

←→

Select Menu

Enter

Select ►Sub-Menu

F10

Save and Exit

Processor Configuration

Processor Configuration Item Specific Help

Active Processor Cores

Intel ® HT Technology Enable XD Intel ® Virtualization Technology Intel ® Trusted Execution Technology ► Processor Power Management

[All]

[Enabled] [Enabled] [Enabled] [Disabled]

Number of cores to enable in each processor package.

Function Selection Description

All

Active Processor Cores

1 2

Number of cores to enable in each processor package.

3

Intel ® HT Technology

Enable XD

Intel ® Virtualization Technology

Disabled

Enabled

Disabled

Enabled

Disabled

Enabled

When Disabled only one thread per enabled core is enabled.

Enabled Execute Disabled functionality. Also known as Data Execution Prevention (DEP).

When enabled. A VMM can utilize the additional hardware capabilities. Enables utilization of additional hardware capabilities provided by Intel ® Trusted Execution Technology.

Intel ® Trusted Execution Technology

Disabled

Enabled

Changes require a full power cycle to take effect.

KTQ87/KTH81 Users Guide

KTD-N0882-H Page 73 BIOS - Advanced

Phoenix SecureCore Technology Setup

Advanced

F1

Help

↑↓

Select Item

+/-

Change Values

F9

Setup Defaults

Esc

Exit

←→

Select Menu

Enter

Select ►Sub-Menu

F10

Save and Exit

HDD Configuration

HDD Configuration Item Specific Help

SATA Device

Interface Combination

Serial ATA Port 0 Port Enable Hot Plug SATA Device Type Serial ATA Port 1 Port Enable Hot Plug SATA Device Type Serial ATA Port 2 Port Enable Hot Plug

SATA Device Type

Serial ATA Port 3 Port Enable Hot Plug SATA Device Type Serial ATA Port 4 Port Enable Hot Plug

SATA Device Type

Serial ATA Port 5 Port Enable Hot Plug SATA Device Type

[Enabled] [ACHI]

Not Installed or the port is disabled [Enabled] [Disabled] [Hard Disk Drive] Not Installed or the port is disabled [Enabled] [Disabled] [Hard Disk Drive] Not Installed or the port is disabled [Enabled] [Disabled] [Hard Disk Drive] Not Installed or the port is disabled [Enabled] [Disabled] [Hard Disk Drive] Not Installed or the port is disabled [Enabled] [Disabled] [Hard Disk Drive] Not Installed or the port is disabled [Enabled] [Disabled] [Hard Disk Drive]

Enable/Disable SATA Device.

Function Selection Description

SATA Device

Interface Combination

Serial ATA Port x (x = 0 – 5) (Device if installed)

Port Enable

Hot Plug

SATA Device Type

Disabled

Enabled

IDE

AHCI

RAID

Disabled

Enabled Disabled

Enabled

Hard Disk Drive

Solid State Drive

KTQ87/KTH81 Users Guide

Enable/Disable SATA Device.

Select the SATA controllers operation mode.

Enable/Disable this port.

Designates the port as Hot Pluggable. Note: Requires hardware support.

KTD-N0882-H Page 74 BIOS - Advanced

Phoenix SecureCore Technology Setup

Advanced

F1

Help

↑↓

Select Item

+/-

Change Values

F9

Setup Defaults

Esc

Exit

←→

Select Menu

Enter

Select ►Sub-Menu

F10

Save and Exit

System Agent (SA) Configuration

System Agent (SA) Configuration Item Specific Help

► Graphics Configuration

► PEG Port Configuration

Press Enter to access the Graphics Configuration menu.

KTQ87/KTH81 Users Guide

KTD-N0882-H Page 75 BIOS - Advanced

Phoenix SecureCore Technology Setup

Advanced

F1

Help

↑↓

Select Item

+/-

Change Values

F9

Setup Defaults

Esc

Exit

←→

Select Menu

Enter

Select ►Sub-Menu

F10

Save and Exit

Graphics Configuration

Graphics Configuration Item Specific Help

Primary Display Selection

Internal Graphics DVMT Pre-Allocated DVMT Total Gfx Mem

► LVDS Configuration ► IGD Configuration

[Auto] [Auto] [32MB] [256MB]

Function Selection Description

IGD

Primary Display Selection

PEG

Select the primary display device.

Auto

Internal Graphics

DVMT Pre-Allocated

DVMT Total Gfx Mem

Disabled Enabled

Auto 32MB

64MB 128MB 128MB

256MB

MAX

Enable/Disable the Internal Graphics Device. This has no effect if external graphics are present.

Select Pre-Allocated Graphics Memory size used by the Internal Graphics Device. This has no effect if external graphics are present.

DVMT5.0 DVMT Graphic Memory Size. This has no effect if external graphics are present.

Select the primary display device.

KTQ87/KTH81 Users Guide

KTD-N0882-H Page 76 BIOS - Advanced

Phoenix SecureCore Technology Setup

Advanced

F1

Help

↑↓

Select Item

+/-

Change Values

F9

Setup Defaults

Esc

Exit

←→

Select Menu

Enter

Select ►Sub-Menu

F10

Save and Exit

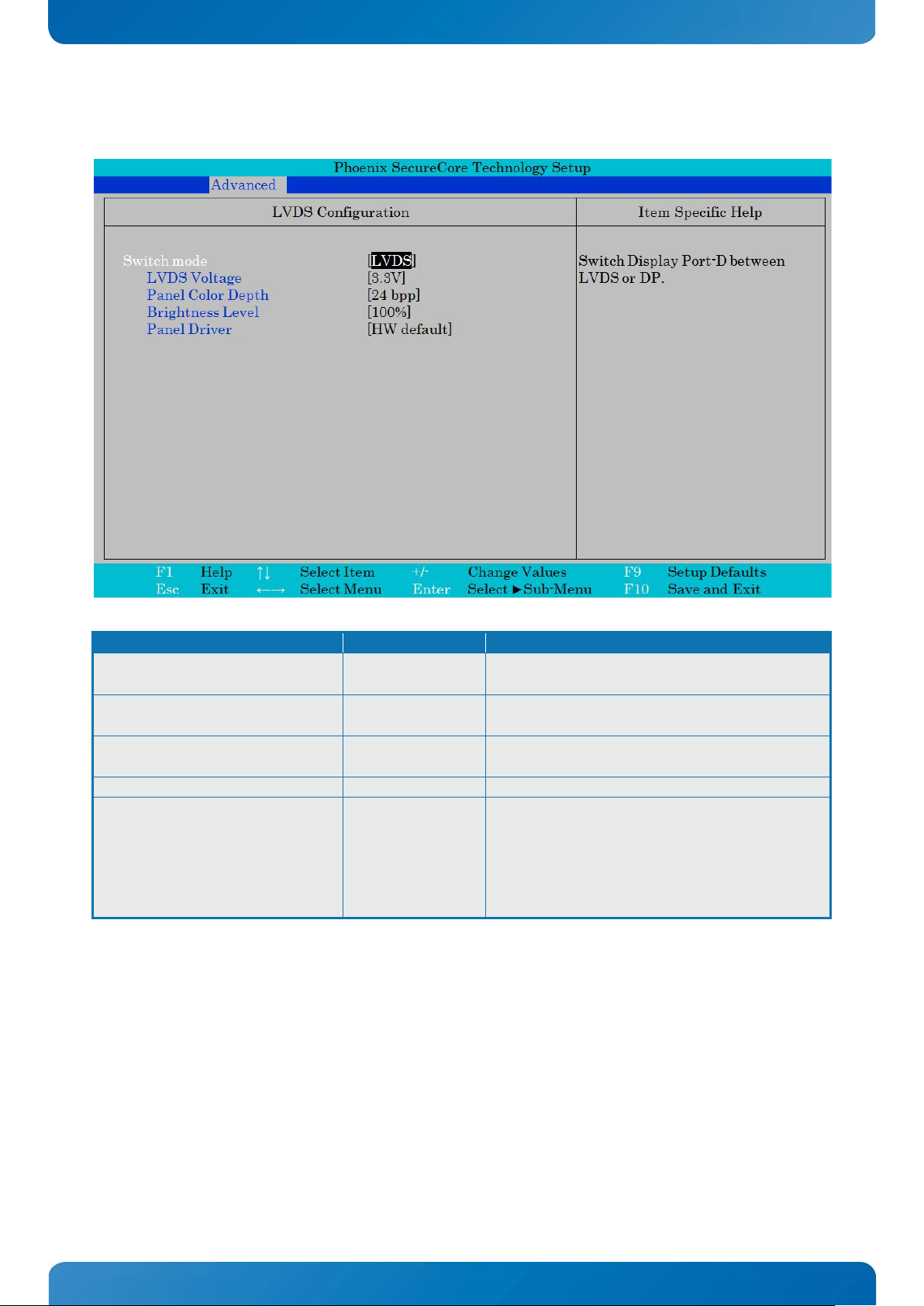

LVDS Configuration

LVDS Configuration Item Specific Help

Switch mode

LVDS Voltage Panel Color Depth Brightness Level Panel Driver

[LVDS] [3.3V] [24 bpp] [100%] [HW default]

Switch Display Port-D between LVDS or DP.

Function Selection Description

Switch mode

LVDS Voltage Note1

Panel Color Depth Note1

LVDS

DP

3.3V

5V 18 bpp

24 bpp

Switch Display Port-D between LVDS or DP.

Select the LVDS Voltage.

Select the LVDS Panel Color Depth.

Brightness Level Note1 0%, 10%, … 100% Select the LVDS Brightness Level.

HW default

LG 1600x1200

Panel Driver Note1

. .

Select the Panel (EDID)

. Test 3

Note 1, only when Switch mode = LVDS.

KTQ87/KTH81 Users Guide

KTD-N0882-H Page 77 BIOS - Advanced

Phoenix SecureCore Technology Setup

Advanced

F1

Help

↑↓

Select Item

+/-

Change Values

F9

Setup Defaults

Esc

Exit

←→

Select Menu

Enter

Select ►Sub-Menu

F10

Save and Exit

IGD Configuration

IGD Configuration Item Specific Help

IGD – Boot Type

[VBIOS Default]

Function Selection Description

IGD – Boot Type

VBIOS Default

EFP EFP3 EFP2

Select the Video Device activated during POST. This has no effect if external graphics are present.

KTQ87/KTH81 Users Guide

KTD-N0882-H Page 78 BIOS - Advanced

Phoenix SecureCore Technology Setup

Advanced

F1

Help

↑↓

Select Item

+/-

Change Values

F9

Setup Defaults

Esc

Exit

←→

Select Menu

Enter

Select ►Sub-Menu

F10

Save and Exit

PEG Port Configuration

PEG Port Configuration Item Specific Help

PEG –Gen X

PEG1 – Gen X PEG2 – Gen X

Always Enable PEG PEG ASPM De-emphasis Control

[Auto] [Auto] [Auto]

[Enabled] [Disabled] [-3.5 dB]

Configure PEG0 B0:D1:F0 Speed.

Function Selection Description

Auto

PEG –Gen X

Gen1 Gen2

Configure PEG0 B0:D1:F0 Speed.

Gen3

Auto

PEG1 – Gen X

Gen1 Gen2

Configure PEG1 B0:D1:F1 Speed.

Gen3

Auto

PEG2 – Gen X

Gen1 Gen2

Configure PEG2 B0:D1:F2 Speed.

Gen3

Always Enable PEG

Disabled

Enabled

Enable PEG.

Disabled

L0S

PEG ASPM

L1

PEG ASPM Settings. L0S And L1 Auto

De-emphasis Control

-6 dB

-3.5 dB

DeEmphasis control for PEG

KTQ87/KTH81 Users Guide

KTD-N0882-H Page 79 BIOS - Advanced

Phoenix SecureCore Technology Setup

Advanced

F1

Help

↑↓

Select Item

+/-

Change Values

F9

Setup Defaults

Esc

Exit

←→

Select Menu

Enter

Select ►Sub-Menu

F10

Save and Exit

South Bridge Configuration

South Bridge Configuration Item Specific Help

Port 80h Cycles

State After G3 PS/2 Legacy device wake

► SB PCI Express Config ► SB USB Config ► SB Azalia Config

[LPC Bus]

[State S0] [Wake from S3 Only]

Control where the Port 80h cycles are sent.

Function Selection Description

Port 80h Cycles

State After G3

LPC Bus

PCI Bus State S5

State S0

Control where the Port 80h cycles are sent.

Specify what state to switch to when power is

re-applied after a power failure (G3 state). Disabled Wake from S3 Only

PS/2 Legacy device wake

Wake from S4 Only Wake from S3 and S4

Allow wake and/or power-on with PS/2

keyboard or mouse. Wake from S5 Only Wake from S3, S4 and S5

KTQ87/KTH81 Users Guide

KTD-N0882-H Page 80 BIOS - Advanced

Phoenix SecureCore Technology Setup

Advanced

F1

Help

↑↓

Select Item

+/-

Change Values

F9

Setup Defaults

Esc

Exit

←→

Select Menu

Enter

Select ►Sub-Menu

F10

Save and Exit

SB PCI Express Config

SB PCI Express Config Item Specific Help

PCI Express Port assigned to LAN 2

► PCI Express Port 1 Config

► PCI Express Port 3 Config ► PCI Express Port 4 Config ► PCI Express Port 5 Config

Control the PCI Express Root Port.

KTQ87/KTH81 Users Guide

KTD-N0882-H Page 81 BIOS - Advanced

Phoenix SecureCore Technology Setup

Advanced

F1

Help

↑↓

Select Item

+/-

Change Values

F9

Setup Defaults

Esc

Exit

←→

Select Menu

Enter

Select ►Sub-Menu

F10

Save and Exit

PCI Express Root Port 1 (3, 4 & 5)

PCI Express Root Port 1 (3, 4 & 5) Item Specific Help

PCI Express Root Port 1 (3&4)

PCIe Speed

[Enabled] [Auto]

Function Selection Description

PCI Express Root Port x (x= 1, 3,4 or 5)

Disabled

Enabled

Control the PCI Express Root Port.

Auto

PCIe Speed

Gen1

Select PCIe Speed to Gen1 or Gen2.

Gen2

Control the PCI Express Root Port.

KTQ87/KTH81 Users Guide

KTD-N0882-H Page 82 BIOS - Advanced

Phoenix SecureCore Technology Setup

Advanced

Mode of operation of xHCI controller.

F1

Help

↑↓

Select Item

+/-

Change Values

F9

Setup Defaults

Esc

Exit

←→

Select Menu

Enter

Select ►Sub-Menu

F10

Save and Exit

SB USB Configuration

SB USB Configuration Item Specific Help

xHCI Mode

EHCI2 USB Per-Port Disable Control

[Smart Auto] [Enabled] [Disabled]

Function Selection Description

Disabled

xHCI Mode

Enabled Auto

Mode of operation of xHCI controller.

Smart Auto

EHCI2

USB Per-Port Disable Control

Disabled

Enabled Disabled

Enabled

Control the USB EHCI (USB 2.0) functions.

Control each of the USB ports (0~13) enable/disable.

KTQ87/KTH81 Users Guide

KTD-N0882-H Page 83 BIOS - Advanced

Phoenix SecureCore Technology Setup

Advanced

F1

Help

↑↓

Select Item

+/-

Change Values

F9

Setup Defaults

Esc

Exit

←→

Select Menu

Enter

Select ►Sub-Menu

F10

Save and Exit

SB Azalia Configuration

SB Azalia Configuration Item Specific Help

Azalia

[Auto]

Function Selection Description

Disabled

Azalia

Enabled

Control Detection of the Azalia device.

Auto

Control Detection of the Azalia device.

KTQ87/KTH81 Users Guide

KTD-N0882-H Page 84 BIOS - Advanced

Phoenix SecureCore Technology Setup

Advanced

F1

Help

↑↓

Select Item

+/-

Change Values

F9

Setup Defaults

Esc

Exit

←→

Select Menu

Enter

Select ►Sub-Menu

F10

Save and Exit

LAN Configuration

LAN Configuration Item Specific Help

LAN Configuration

ETH1 Configuration (Left)

Wake on LAN

MAC Address & Link status :

ETH2 Configuration (Right)

MAC Address & Link status :

[Enabled]

[Enabled] [00E0F42C4E01-] [With PXE boot] [00E0F42C4E02 -]

Control the Ethernet Devices and PXE boot.

Note: The “+” and “-“ (to the right of the MAC address) indicates respectively if link is established or not.

Function Selection Description

Disabled

ETH1 Configuration (Left)

Enabled

Control the Ethernet Devices and PXE boot.

With PXE boot

Enable or disable integrated LAN to wake the system. (The Wake On LAN cannot be disabled if ME is on at Sx state).

Wake on LAN

Disabled

Enabled

Disabled

ETH2 Configuration (Right)

Enabled

Control the Ethernet Devices and PXE boot.

With PXE boot

KTQ87/KTH81 Users Guide

KTD-N0882-H Page 85 BIOS - Advanced

Phoenix SecureCore Technology Setup

Advanced

Prefetch Agent Control

F1

Help

↑↓

Select Item

+/-

Change Values

F9

Setup Defaults

Esc

Exit

←→

Select Menu

Enter

Select ►Sub-Menu

F10

Save and Exit

PCI bridge Configuration

PCI bridge Configuration Item Specific Help

Cache Request Length Limit

Cache Request Count Limit

Cache Control

Cache Timer Transfer Limit Cache Timer Lower Limit Cache Timer Upper Limit

Read Prefetch Completion Cache Mode

[128 Bytes] [ 4]

[ 8] [ 127] [ 448]

[Enabled] [Light Caching]

Request Length Limit. Determines the number of bytes in the thread that the pre-fetchagent will read for that thread.

KTQ87/KTH81 Users Guide

KTD-N0882-H Page 86 BIOS - Advanced

64 Bytes

Function Selection Description

128 Bytes

256 Bytes 512 Bytes

Cache Request Length Limit

1Kbytes 2Kbytes 4Kbytes 8Kbytes

Cache Request Count Limit 0, 1, … 3, 4, 5, …, 15

Cache Timer Transfer Limit

Cache Timer Lower Limit

0, 1, … 7, 8, 9, …, 15

0, 1,… 127, … 4096

Cache Timer Upper Limit 0, 1,… 448, … 4096

Read Prefetch

Enabled

Disabled

No Caching

Completion Cache Mode

Light Caching

Full Caching

Request Length Limit. Determines the number of bytes in the thread that the pre-fetchagent will read for that thread.

Set the number of PCI cycle starts that have to occur without a read hit on the completion data buffer, before the cache data can be discarded. Number of PCI cycle starts that have to occur without a read hit on the completion data buffer, before the cache data can be discarded. Minimum number of clock cycles that must have passed without a read hit on the completion data buffer, before the ‘cache miss limit’ check can be triggered. Discard cache data after this number of clock cycles have passed without a read hit on the completion data buffer. Control the pre-fetch functionality on PCI memory read transactions. Determines the rules for completing the caching process.

Light caching: All remaining read completion data will be discarded after any of the data has been returned to the PCI master.

Light & Full caching: Pre-fetching is enabled. All remaining read completion data will be cached after data has been returned to the PCI master and the PCI master terminated the transfer with RETRY.

Full caching: All remaining read completion data will be cached after data has been returned to the PCI master and the PCI master terminated the transfer.

KTQ87/KTH81 Users Guide

KTD-N0882-H Page 87 BIOS - Advanced

Phoenix SecureCore Technology Setup

Advanced

F1

Help

↑↓

Select Item

+/-

Change Values

F9

Setup Defaults

Esc

Exit

←→

Select Menu

Enter

Select ►Sub-Menu

F10

Save and Exit

Hardware Health Configuration

Hardware Health Configuration Item Specific Help

Hardware Health Configuration

System Temperature System Temperature 2 CPU Temperature

System Fan Speed System Temperature Location

Fan Cruise Control

System 2 Fan Speed

System Temperature Location Fan Cruise Control

CPU Fan Speed:

Fan Cruise Control Fan Settings Fan Min limit Fan Max limit

Watchdog Function

[ 42ºC/107ºF] [ 42ºC/107ºF] [ 50.46ºC/122ºF]

[ 0 RPM]

[Onboard]

[Disabled]

[ 0 RPM] [Onboard] [Disabled]

[ 742 RPM] [Thermal] [50] [ 0] [100]

[ 0]

Use external connected sensor instead of onboard.

Note: System Temperature readout is the temperature measured by the selected sensor via System Temperature Location. Example, if using same System Temperature Location selection for both System Fan

and System 2 Fan then System Temperature and System Temperature2 readout will be identical.

KTQ87/KTH81 Users Guide

KTD-N0882-H Page 88 BIOS - Advanced

Function Selection Description

System Temperature Location

Fan Cruise Control (Note 2)

Fan Settings

Onboard

LM75 @ 0x90 (Note 1) Disabled Thermal Speed 30 – 90 (note3) 1000 – 10000 (note4)

Fan Min limit (Note 5) 0 (note6)

Fan Max limit (Note 5) 100 (note6)

Watchdog Function 0 - 255 (note7)

Note 1: When selecting LM75 @ 0x90 then the System Temperature and/or System Temperature 2 readout will only be valid if the sensor is physically connected to the Feature connector.

Note 2: Three sets of settings (Fan Cruse Control, Fan Settings, Fan Min limit, Fan Max limit), one set for System Fan, one set for System 2 Fan and one set for CPU Fan. The Fan Cruise Control is by default Disabled for System Fan and System 2 Fan and by default Thermal for CPU Fan.

Note 3: ºC (if Fan Cruise Control is Thermal) use either digit keys to enter value or +/- keys to increase/decrease value. Don’t use mix of digit keys and +/- keys.

Note 4: RPM (if Fan Cruise Control is Speed) use either digit keys to enter value or +/- keys to increase/decrease value by 100. Don’t use mix of digit keys and +/- keys.

Note 5: Only visible if Fan Cruise Control is Thermal.

Note6: Use number keys to enter value.

Note 7: Seconds, use digit keys to enter value. Value 0 means Watchdog is disabled. Refer to “KT-API-V2 User Manual” to control the Watchdog via API or refer to “KT-API-V2 User Manual DLL” how to control Watchdog via Windows DLL.

Use external connected sensor instead of

onboard.

Disabled = Full speed.

Thermal: Regulate according to specified ºC.

Speed: Regulate according to specified RPM.

Minimum PWM %, can be used to make sure

fan is always active. Make sure Min limit <

Max limit.

Maximum PWM %, can be used to limit the

fan noise. Make sure Min limit < Max limit.

0 = Disabled.

Enter the service interval in seconds before

system will reset.

KTQ87/KTH81 Users Guide

KTD-N0882-H Page 89 BIOS - Advanced

Phoenix SecureCore Technology Setup

Advanced

F1

Help

↑↓

Select Item

+/-

Change Values

F9

Setup Defaults

Esc

Exit

←→

Select Menu

Enter

Select ►Sub-Menu

F10

Save and Exit

SMBIOS Event Log

SMBIOS Event Log Item Specific Help

Event LOG Validity Event Log Capacity

Event Log

► View SMBIOS event log

Mark SMBIOS as read Clears SMBIOS events

Valid Space Available

[Enabled]

[Enter] [Enter]

Note: Entering View SMBIOS event log will show log only.

Function Selection Description

Event Log

Mark SMBIOS as read Enter

Clears SMBIOS events

Disabled

Enabled

Enter

Enable/Disable Event Log.

Mark SMBIOS events as read. Marked SMBIOS events won’t be displayed. Clears SMBIOS events.

Enable/Disable Event Log.

KTQ87/KTH81 Users Guide

KTD-N0882-H Page 90 BIOS - Advanced

Phoenix SecureCore Technology Setup

Advanced

F1

Help

↑↓

Select Item

+/-

Change Values

F9

Setup Defaults

Esc

Exit

←→

Select Menu

Enter

Select ►Sub-Menu

F10

Save and Exit

Disabled

AMT Configuration

AMT Configuration Item Specific Help

Intel ® AMT

Enter Intel ® MEBx Setup Un-Configure ME

[Enabled]

[Disabled] [Disabled]

Function Selection Description

Enable/Disable Intel ® Active Management Technology BIOS Extension.

Intel ® AMT

Disabled

Enabled

Note: iAMT H/W is always enabled. This option just controls the BIOS extension execution. If enabled this requires additional firmware in the SPI.

Enter Intel ® MEBx Setup

Disabled

Enabled

Enter Intel ® MEBx Setup on the next boot.

Enable/Disable Intel ® Active Management Technology BIOS Extension. Note: iAMT H/W is always enabled. This option just controls the BIOS extension execution. If enabled this requires additional firmware in the SPI device.

Un-Configure ME

Enabled

KTQ87/KTH81 Users Guide

Un-configure ME without a password.

KTD-N0882-H Page 91 BIOS - Advanced

Phoenix SecureCore Technology Setup

Advanced

F1

Help

↑↓

Select Item

+/-

Change Values

F9

Setup Defaults

Esc

Exit

←→

Select Menu

Enter

Select ►Sub-Menu

F10

Save and Exit

Enabled

MEBx Configuration

MEBx Configuration Item Specific Help

Enter Intel ® MEBx Setup

Un-Configure ME Hide Un-Configure ME Confirmation MEBx Debug Message output USB Provision

►MEBx Resolution Setting

[Disabled] [Disabled] [Disabled] [Disabled] [Enabled]

Function Selection Description

Enter Intel ® MEBx Setup

Un-Configure ME

Hide Un-Configure ME Confirmation

MEBx Debug Message output

USB Provision

Disabled

Enabled

Disabled

Enabled

Disabled

Enabled Disabled

Enabled

Enter Intel ® MEBx Setup on the next boot.

Un-Configure ME without a password.

Hide Un-Configure ME Confirmation without password Confirmation Prompt.

Enable/Disable MEBx Debug Message output.

Enable/Disable USB Provision function.

Enter Intel ® MEBx Setup on the next boot.

KTQ87/KTH81 Users Guide

KTD-N0882-H Page 92 BIOS - Advanced

Phoenix SecureCore Technology Setup

Advanced

F1

Help

↑↓

Select Item

+/-

Change Values

F9

Setup Defaults

Esc

Exit

←→

Select Menu

Enter

Select ►Sub-Menu

F10

Save and Exit

MEBx Resolution Setting

MEBx Resolution Setting Item Specific Help

Non-UI Text Mode resolution

UI Text Mode resolution Graphic Mode resolution

[Auto] [Auto] [Auto]

Function Selection Description

Non-UI Text Mode resolution

UI Text Mode resolution

Auto

80X25 100X31

Auto

80X25 100X31

Text Mode resolution used by MEBx for messages outside MEBx User Interface.

Text Mode resolution used by MEBx to display the User Interface forms.

Auto

Graphic Mode resolution

640X480 800X600

Graphic Mode resolution used by MEBx to display boxes like consent sprite.

1024X768

Text Mode resolution used by MEBx for messages outside MEBx User Interface.

KTQ87/KTH81 Users Guide

KTD-N0882-H Page 93 BIOS - Advanced

Phoenix SecureCore Technology Setup

Advanced

F1

Help

↑↓

Select Item

+/-

Change Values

F9

Setup Defaults

Esc

Exit

←→

Select Menu

Enter

Select ►Sub-Menu

F10

Save and Exit

ME Configuration

ME Configuration Item Specific Help

ME FW Version ME Firmware

Intel ® ME

Intel ® AT

9.1.2.1010 Intel ® ME 5MB firmware

[Enabled]

Function Selection Description

Intel ® ME

Intel ® AT

Disabled

Enabled

Disabled

Enabled

Enable/Disable Intel ® Management Engine.

Enable/Disable Intel ® Anti-Theft Technology.

Enable/Disable Intel ® Management Engine.

KTQ87/KTH81 Users Guide

KTD-N0882-H Page 94 BIOS - Advanced

Phoenix SecureCore Technology Setup

Advanced

F1

Help

↑↓

Select Item

+/-

Change Values

F9

Setup Defaults

Esc

Exit

←→

Select Menu

Enter

Select ►Sub-Menu

F10

Save and Exit

Intel ® Rapid Start Technology

Intel ® Rapid Start Technology Item Specific Help

Intel ® Rapid Start Technology Support [Disabled]

Function Selection Description

Intel ® Rapid Start Technology Support

Disabled

Enabled

Intel ® Rapid Start Technology.

KTQ87/KTH81 Users Guide

KTD-N0882-H Page 95 BIOS - Security

Phoenix SecureCore Technology Setup

Main

Advanced

Security

Boot

Exit

Item Specific Help

Set or clear the Supervisor

F1

Help

↑↓

Select Item

+/-

Change Values

F9

Setup Defaults

Esc

Exit

←→

Select Menu

Enter

Select ►Sub-Menu

F10

Save and Exit

10.3 Security

Supervisor Password is: User Password is:

Set Supervisor Password

Supervisor Hint String

Set User Password User Hint String

Min. password length

Authenticate User on Boot

HDD Security Status No HDD detected

Trusted Platform Module (TPM) TPM Support ► TPM Configuration

Cleared Cleared

[Enter] [ ]

[ 1]

[Disabled]

[Enabled]

account’s password.

Function Selection Description

Set Supervisor Password (up to 20 characters) Set or clear the Supervisor account’s password. Supervisor Hint String (up to 20 characters) Press Enter to type Supervisor Hint String.

Min. password length 1, 2, …, 20

TPM Support

Disabled

Enabled

Set the minimum number of characters for password (1-20). This is used to decide whether TPM support should be enabled or disabled.

KTQ87/KTH81 Users Guide

KTD-N0882-H Page 96 BIOS - Security

Phoenix SecureCore Technology Setup

Security

TPM Configuration

Item Specific Help

Enact TPM Action. Note: Most

F1

Help

↑↓

Select Item

+/-

Change Values

F9

Setup Defaults

Esc

Exit

←→

Select Menu

Enter

Select ►Sub-Menu

F10

Save and Exit

TPM Configuration

Current TPM State

TPM Action

Omit Boot Measurements

Function Selection Description

TPM Action

TPM Support

[Enabled and Activate] [No Change] [Disabled]

TPM actions require TPM to be Enabled to take effect.

No Change Enable Disable Activate Deactivate Clear Enable and Activate Disable and Deactivate Set Owner Install, with State=True Set Owner Install, with State=False Enable, Activate, and Set Owner Install, with State=True Disable, Deactivate, and Set Owner Install, with State=False Clear, Enable, and Activate Require PP for provisioning Do not require PP for provisioning Require PP for clear Do not require PP for clear Enable, Activate, and Clear Enable, Activate, Clear, Enable, and Activate

Disabled

Enabled

Enact TPM Action. Note: Most TPM actions require TPM to be Enabled to take effect.

Enabling this option causes the system to omit recording boot device attempts in PCR[4].

KTQ87/KTH81 Users Guide

KTD-N0882-H Page 97 BIOS - Boot

Phoenix SecureCore Technology Setup

Boot

Item Specific Help

Keys used to view or configure

F1

Help

↑↓

Select Item

+/-

Change Values

F9

Setup Defaults

Esc

Exit

←→

Select Menu

Enter

Select ►Sub-Menu

F10

Save and Exit

10.4 Boot

Boot Priority Order

1. USB HDD:

2. USB CD:

3. USB FDD:

4. ATAPI CD:

5. ATA HDD0:

6. ATA HDD1:

7. ATA HDD2:

8. ATA HDD3:

9. ATA HDD4:

10. ATA HDD5:

11. Other HDD:

12. Internal Shell

13. PCI LAN:

devices: ↑ and ↓ arrows Select a device. ‘+’ and ‘-‘ move the device up or down. ‘Shift + 1’ enables or disables a device. ‘Del’ deletes an unprotected device.

KTQ87/KTH81 Users Guide

KTD-N0882-H Page 98 BIOS - Exit

Phoenix SecureCore Technology Setup

Exit

Item Specific Help

Equal to F10, save all changes of

F1

Help

↑↓

Select Item

+/-

Change Values

F9

Setup Defaults

Esc

Exit

←→

Select Menu

Enter

Select ►Sub-Menu

F10

Save and Exit

10.5 Exit

Exit Saving Changes

Exit Discarding Changes Load Setup Defaults Discard Changes Save Changes

all menus, then exit setup configure driver. Finally resets the system automatically.

Function Description

Exit Saving Changes

Exit Discarding Changes Equal to ESC, never save changes, then exit setup configure driver. Load Setup Defaults Equal to F9. Load standard defaults values. Discard Changes Load the original value of this boot time. Not the default Setup value. Save Changes Save all changes of all menus, but do not reset system.

Equal to F10, save all changes of all menus, then exit setup configure driver. Finally resets the system automatically.

KTQ87/KTH81 Users Guide

Kontron KTH81-mITX User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

1 Introduction

2 Installation Procedure

2.1 Installing the Board

2.2 Requirements IEC60950

3 System Specifications

3.1 Component main data

3.2 System overview

3.3 Processor Support Table

3.4 System Memory support

3.5 KTQ87/KTH81 Graphics Subsystem

Intel® HD Graphics 4600

Display Configurations:

Graphics Adapters

3.6 Power Consumption

mITX, Total System power example

The principal test system and test equipment used

mITX, Low Power Configuration results

mITX, High Power Configuration results

Flex, Total System power example

The principal test system and test equipment used

Flex, Low Power Configuration results

Flex, Medium Power Configuration results

Flex, High Power Configuration results

4 Connector Locations

4.1 KTQ87/mITX (KTH81/mITX) - frontside

4.2 KTQ87/Flex (KTH81/Flex) - frontside

5 Connector Definition

6 IO-Area Connectors

6.1 DP Connectors (DP0, DP1, DP2)

6.2 Ethernet Connectors

6.3 USB Connectors (IO Area)

USB Connector 0/1 (USB0/1)

USB Connector 2/3 (USB2/3)

6.4 Audio Jack Connector Stack (Audio)

7 Internal Connectors

7.1 Power Connector (ATX24P)

7.2 Power Connector (ATX4p)

7.3 Fan Connectors (CPU_Fan, SYS_Fan1, SYS_Fan2)

7.4 PS/2 Keyboard and Mouse connector (KBD/MSE) (PS2)

7.5 LVDS Flat Panel Connector (LVDS)

7.6 SATA (Serial ATA) Disk interface

7.7 USB Connectors (USB)

USB 4 & 5 (USB4/5) (USB1)

USB 6 & 7 (USB6/7) (USB2)

USB 8 & 9 (USB8/9) (USB3)

7.8 Serial COM1 – COM2 Ports (COM1, COM2)

7.9 Audio Connectors

Headphone and Mic2

Front Speakers (LINEOUT)

SPDIF (SP-DIF)

7.10 Front Panel Connector (FRONTPNL) (J2)

7.11 Feature Connector (Feature) (J1)

7.13 “Always On” (Always On) (A_ON)

7.14 SPI Connector (SPI_HEAD)

7.15 LPC Connector (J30)

7.16 XDP_CPU (Debug Port for CPU) (XDP_CPU)

7.17 XDP_PCH (Debug Port for Chipset) (XDP_PCH)

8 Slot Connectors (PCIe, mPCIe, mSATA, PCI)

8.1 PCIe Connectors

PCI-Express x16 Connector (PCIex16) (SLOT1_16X)

PCI-Express x2 Connector (PCIex2) in x16 slot (PCIE2)

PCI-Express x1 Connector (PCIex1) (PCIE3)

miniPCI-Express mPCIe (MPCIE)

8.2 mSATA (MSATA)

8.3 PCI Slot Connector

Signal Description – PCI Slot Connector

KTQ81/Flex & KTH81/Flex PCI IRQ & INT routing

9 On-board - & mating connector types

10 BIOS

10.1 Main

System Information

Boot Features

Error Manager

10.2 Advanced

Silicon Information

Processor Configuration
