Kontron KTQ87/Flex, KTQ87/mITX, KTH81/Flex User Manual

The pulse of innovation

KTH81/mITX

KTQ87/Flex

KTH81/Flex

KTQ87/mITX

KTD-N0882-I

KTD-N0882-I Page 2 Table of Contents

KTQ87/KTH81 Users Guide

» Table of Contents «

1 Introduction ........................................................................................... 9

2 Installation Procedure ............................................................................ 10

2.1 Installing the Board ............................................................................................................... 10

2.2 Requirements IEC60950 .......................................................................................................... 11

3 System Specifications ............................................................................. 12

3.1 Component main data ............................................................................................................. 12

3.2 System overview .................................................................................................................... 16

3.3 Processor Support Table .......................................................................................................... 17

3.4 System Memory support .......................................................................................................... 19

3.5 KTQ87/KTH81 Graphics Subsystem ............................................................................................. 20

Intel® HD Graphics 4600 ........................................................................................................................... 20

Display Configurations: ............................................................................................................................. 21

Graphics Adapters .................................................................................................................................... 21

3.6 Power Consumption ................................................................................................................ 22

mITX, Total System power example ............................................................................................................... 23

Flex, Total System power example ................................................................................................................ 26

4 Connector Locations ............................................................................... 30

4.1 KTQ87/mITX (KTH81/mITX) - frontside ....................................................................................... 30

4.2 KTQ87/Flex (KTH81/Flex) - frontside .......................................................................................... 31

5 Connector Definition .............................................................................. 32

6 IO-Area Connectors ................................................................................ 33

6.1 DP Connectors (DP0, DP1, DP2) ................................................................................................. 33

6.2 Ethernet Connectors ............................................................................................................... 34

6.3 USB Connectors (IO Area) ........................................................................................................ 35

USB Connector 0/1 (USB0/1) ..................................................................................................................... 36

USB Connector 2/3 (USB2/3) ..................................................................................................................... 37

6.4 Audio Jack Connector Stack (Audio) ........................................................................................... 38

7 Internal Connectors ................................................................................ 39

7.1 Power Connector (ATX24P) ....................................................................................................... 39

7.2 Power Connector (ATX4p) ........................................................................................................ 39

7.3 Fan Connectors (CPU_Fan, SYS_Fan1, SYS_Fan2) .......................................................................... 40

7.4 PS/2 Keyboard and Mouse connector (KBD/MSE) (PS2) .................................................................. 41

7.5 LVDS Flat Panel Connector (LVDS) .............................................................................................. 42

7.6 SATA (Serial ATA) Disk interface ................................................................................................ 43

7.7 USB Connectors (USB) ............................................................................................................ 44

USB 4 & 5 (USB4/5) (USB1) ....................................................................................................................... 45

USB 6 & 7 (USB6/7) (USB2) ....................................................................................................................... 45

KTD-N0882-I Page 3 Table of Contents

KTQ87/KTH81 Users Guide

USB 8 & 9 (USB8/9) (USB3) ....................................................................................................................... 45

7.8 Serial COM1 – COM2 Ports (COM1, COM2) ..................................................................................... 46

7.9 Audio Connectors .................................................................................................................. 47

Headphone and Mic2 ................................................................................................................................. 47

Front Speakers (LINEOUT) .......................................................................................................................... 47

SPDIF (SP-DIF) ......................................................................................................................................... 47

7.10 Front Panel Connector (FRONTPNL) (J2) ...................................................................................... 48

7.11 Feature Connector (Feature) (J1) .............................................................................................. 49

7.12 “Load Default BIOS Settings” (Load default) (CMOS) ...................................................................... 51

7.13 “Always On” (Always On) (A_ON) ............................................................................................... 52

7.14 SPI Connector (SPI_HEAD) ....................................................................................................... 53

7.15 LPC Connector (J30) ............................................................................................................... 53

7.16 XDP_CPU (Debug Port for CPU) (XDP_CPU) ................................................................................... 54

7.17 XDP_PCH (Debug Port for Chipset) (XDP_PCH) .............................................................................. 55

8 Slot Connectors (PCIe, mPCIe, mSATA, PCI) ................................................. 56

8.1 PCIe Connectors .................................................................................................................... 56

PCI-Express x16 Connector (PCIex16) (SLOT1_16X) ......................................................................................... 56

PCI-Express x2 Connector (PCIex2) in x16 slot (PCIE2) ..................................................................................... 58

PCI-Express x1 Connector (PCIex1) (PCIE3) ................................................................................................... 59

miniPCI-Express mPCIe (MPCIE)................................................................................................................... 60

8.2 mSATA (MSATA) ..................................................................................................................... 61

8.3 PCI Slot Connector ................................................................................................................. 62

Signal Description – PCI Slot Connector ........................................................................................................ 63

KTQ81/Flex & KTH81/Flex PCI IRQ & INT routing ............................................................................................. 64

9 On-board - & mating connector types ......................................................... 65

10 BIOS .................................................................................................... 66

10.1 Main ................................................................................................................................... 66

System Information .................................................................................................................................. 67

Boot Features .......................................................................................................................................... 68

Error Manager .......................................................................................................................................... 69

10.2 Advanced ............................................................................................................................. 70

Silicon Information ................................................................................................................................... 71

Processor Configuration ............................................................................................................................. 72

HDD Configuration .................................................................................................................................... 73

System Agent (SA) Configuration................................................................................................................. 74

South Bridge Configuration ........................................................................................................................ 79

LAN Configuration .................................................................................................................................... 84

PCI bridge Configuration ............................................................................................................................ 85

Hardware Health Configuration ................................................................................................................... 87

SMBIOS Event Log .................................................................................................................................... 89

AMT Configuration .................................................................................................................................... 90

ME Configuration ...................................................................................................................................... 93

Intel ® Rapid Start Technology ................................................................................................................... 94

10.3 Security ............................................................................................................................... 95

KTD-N0882-I Page 4 Table of Contents

KTQ87/KTH81 Users Guide

TPM Configuration .................................................................................................................................... 96

10.4 Boot ................................................................................................................................... 97

10.5 Exit ..................................................................................................................................... 98

KTD-N0882-I Page 5 Document Details

KTQ87/KTH81 Users Guide

Document Revision History

Revision

Date

By

Comment

I March 5th 2015 MLA I7-4790S, I5-4590S added. EXT_BAT max. 3.47 V.

Always On jumper

description corrected.

H July 16th 2014 MLA

Top text correction. Improved cooler information. Feature connector corrections. BIOS part upgraded.

G May 27th 2014 MLA Display configuration table improved. BIOS part added.

F Feb. 26th 2014 MLA

Mating connector list updated. Pentium data added. Added KTH81/Flex and KTQ87/Flex. Updated document layout.

E Sep. 23rd 2013

JS

MLA

CPU table updated, Graphics data, FAN3 & 4 not supported. Audio Connector description correction. KTH81 included. Connector list updated.

D July 3rd 2013 JS Audio section update, page 30. CPU table updated. Picture update.

C May 24th 2013 JS Entire document revised

B May 24th 2013 JS Section 2.5 revised

A May 15th 2013 JS Feature port revised (FAN3/4 not supported)

0 April 14th 2013 JS Preliminary version

KTD-N0882-I Page 6 Document Details

KTQ87/KTH81 Users Guide

Copyright Notice

No part of this document may be reproduced or transmitted in any form or by any means, electronically or mechanically, for any purpose without the express written permission of KONTRON Technology A/S.

Trademark Acknowledgement

Brand and product names are trademarks or registered trademarks of their respective owners.

Disclaimer

KONTRON Technology A/S reserves the right to make changes without notice to any product, including circuits and/or software described or contained in this manual in order to improve design and/or performance. Specifications listed in this manual are subject to change without notice. KONTRON Technology assumes no responsibility or liability for the use of the described product(s), conveys no license or title under any patent, copyright or mask work rights to these products and makes no representations or warranties that these products are free from patent, copyright or mask work right infringement unless otherwise specified. Applications that are described in this manual are for illustration purposes only. KONTRON Technology A/S makes no representation or warranty that such application will be suitable for the specified use without further testing or modification.

KTD-N0882-I Page 7 Document Details

KTQ87/KTH81 Users Guide

Life Support Policy

KONTRON Technology’s PRODUCTS ARE NOT FOR USE AS CRITICAL COMPONENTS IN LIFE SUPPORT DEVICES OR SYSTEMS WITHOUT EXPRESS WRITTEN APPROVAL OF THE GENERAL MANAGER OF KONTRON Technology A/S.

As used herein: Life support devices or systems are devices or systems which (a) are intended for surgical implant into body or (b) support or sustain life and whose failure to perform when properly used in accordance with instructions for use provided in the labelling can be reasonably expected to result in significant injury to the user. A critical component is any component of a life support device or system whose failure to perform can be reasonably expected to cause the failure of the life support device or system or to affect its safety or effectiveness.

Warranty

KONTRON Technology warrants its products to be free from defects in material and workmanship during the warranty period. If a product proves to be defective in material or workmanship during the warranty period KONTRON Technology will, at its sole option, repair or replace the product with a similar product. Replacement Product or parts may include remanufactured or refurbished parts or components.

The warranty does not cover:

1. Damage, deterioration or malfunction resulting from: A. Accident, misuse, neglect, fire, water, lightning or other acts of nature, unauthorized

product modification or failure to follow instructions supplied with the product.

B. Repair or attempted repair by anyone not authorized by KONTRON Technology. C. Causes external to the product, such as electric power fluctuations or failure. D. Normal wear and tear. E. Any other causes which does not relate to a product defect.

2. Removal, installation and set-up service charges.

Exclusion of damages:

KONTRON TECHNOLOGY LIABILITY IS LIMITED TO THE COST OF REPAIR OR REPLACEMENT OF THE PRODUCT. KONTRON TECHNOLOGY SHALL NOT BE LIABLE FOR:

1. DAMAGE TO OTHER PROPERTY CAUSED BY ANY DEFECTS IN THE PRODUCT, DAMAGES BASED UPON

INCONVENIENCE, LOSS OF USE OF THE PRODUCT, LOSS OF TIME, LOSS OF PROFITS, LOSS OF BUSINESS OPPORTUNITY, LOSS OF GOODWILL, INTERFERENCE WITH BUSINESS RELATIONSHIPS OR OTHER COMMERCIAL LOSS, EVEN IF ADVISED OF THEIR POSSIBILITY OF SUCH DAMAGES.

2. ANY OTHER DAMAGES, WHETHER INCIDENTAL, CONSEQUENTIAL OR OTHERWISE.

3. ANY CLAIM AGAINST THE CUSTOMER BY ANY OTHER PARTY.

KTD-N0882-I Page 8 Document Details

KTQ87/KTH81 Users Guide

KONTRON Technology Technical Support and Services

If you have questions about installing or using your KONTRON Technology Product, then please notice that you will find many answers in this Users Guide. To obtain support please contact your local Distributor or Field Application Engineer (FAE).

Before Contacting Support: Please be prepared to provide as much information as possible:

 CPU Board

1. Type.

2. Part Number (find PN on label)

3. Serial Number if available (find SN on label)

 Configuration

1. DRAM Type and Size.

2. BIOS Revision (find the version info in the BIOS Setup).

3. BIOS Settings different than Default Settings (refer to the BIOS Setup section).

 System

1. O/S Make and Version.

2. Driver Version numbers (Graphics, Network, and Audio).

3. Attached Hardware: Harddisks, CD-Rom, LCD Panels etc.

If the Kontron Technology product seems to be defect and you want to return it for repair, please follow the guide lines from the following page:

http://kontron.com/services/rma-information/kontron-technology-a-s/

KTD-N0882-I Page 9 Introduction

KTQ87/KTH81 Users Guide

1 Introduction

This manual describes the KTH81/mITX, KTQ87/mITX, KTH81/Flex & KTQ87/Flex boards made by KONTRON Technology A/S. The boards will also be denoted KTQ87 & KTH81.

The KTQ87/KTH81 boards are based on the Q87/H81 chipsets supporting 4

rd

generation Intel® Haswell i7 -, i5 2Core and 4Core desktop processors, Haswell Dual Core Pentium and Haswell Dual Core Celeron. See “Processor Support Table” for more specific details.

The differences between the four types of boards are listed in this table:

Feature KTH81/mITX KTQ87/mITX KTH81/Flex KTQ87/Flex

Form factor mITX mITX Flex ATX Flex ATX

PCIex16 Gen2 Gen3 Gen2 Gen3

Vpro - Depends on CPU - Depends on CPU

AMT - Yes - Yes

RAID - Yes - Yes

DP 2x (DP0, DP1) 3x (DP0, DP1,DP2) 2x (DP0, DP1) 3x (DP0, DP1,DP2)

LVDS - - Yes (=> no DP1) Yes (=> no DP1)

USB

2x USB3.0/2.0

8x USB2.0

4x USB3.0/2.0

6x USB2.0

2x USB3.0/2.0

8x USB2.0

4x USB3.0/2.0

8x USB2.0

LPC - - 2x10 pin row 2x10 pin row

DIMM slots 2x 2x 2x 4x

PCIe slots

PCIex16, Gen2.

mPCIe (w. USB)

PCIex16, Gen3

mPCIe (w. USB)

PCIex16, Gen2

PCIex2 (x16 slot)

+ PCIex1

PCIex16, Gen3

PCIex4 (x16 slot)

+ PCIex1

mSATA 1x (w. USB, LPC) 1x (w. USB,LPC) - -

SATA

1x Gen3 2x Gen2

5x, Gen3

2x Gen3 2x Gen2

6x, Gen3

PCI Slot - - 1x 1x

Kbd/Mse - - 6-pin row 6-pin row

Fan connectors CPU, Sys CPU, Sys CPU, Sys1, Sys2 CPU, Sys1, Sys2

Use of this Users Guide implies a basic knowledge of PC-AT hard- and software. This manual is focused on describing the KTQ87 / KTH81 board’s special features and is not intended to be a standard PC-AT textbook.

New users are recommended to study the short installation procedure stated in the following chapter before switching-on the power.

All configuration and setup of the CPU board is either done automatically or manually by the user via the BIOS setup menus. Only exceptions are the “Clear CMOS” Jumper and the “Always On” jumper.

Latest revision of this manual, datasheet, BIOS, drivers, BSP’s (Board Support Packages), Mechanical drawings (2D and 3D) can be downloaded from here: http://www.kontron.com/products/boards-and-

mezzanines/embedded-motherboards/

KTD-N0882-H Page 10 Installation

KTQ87/KTH81 Users Guide

Warning: Turn off PSU (Power Supply Unit) completely (no mains power connected to the PSU) or leave the Power Connectors unconnected while configuring the board. Otherwise components

(RAM, LAN cards etc.) might get damaged. Make sure only to use standard ATX PSU. Running the board with non-compliant ATX PSU may damage the board within minutes.

!

2 Installation Procedure

2.1 Installing the Board

To get the board running follow these steps. If the board shipped from KONTRON has already components like RAM and CPU cooler mounted, then relevant steps below can be skipped.

1. Turn off the PSU (Power Supply Unit)

2. Insert the DDR3 DIMM 240pin DIMM module(s)

Be careful to push it in the slot(s) before locking the tabs. For a list of approved DDR3 DIMMs contact your Distributor or FAE. See also chapter “System Memory Support”.

3. Install the processor

The CPU is keyed and will only mount in the CPU socket in one way. Use finger to open/ close the CPU socket. Refer to supported processor overview for details.

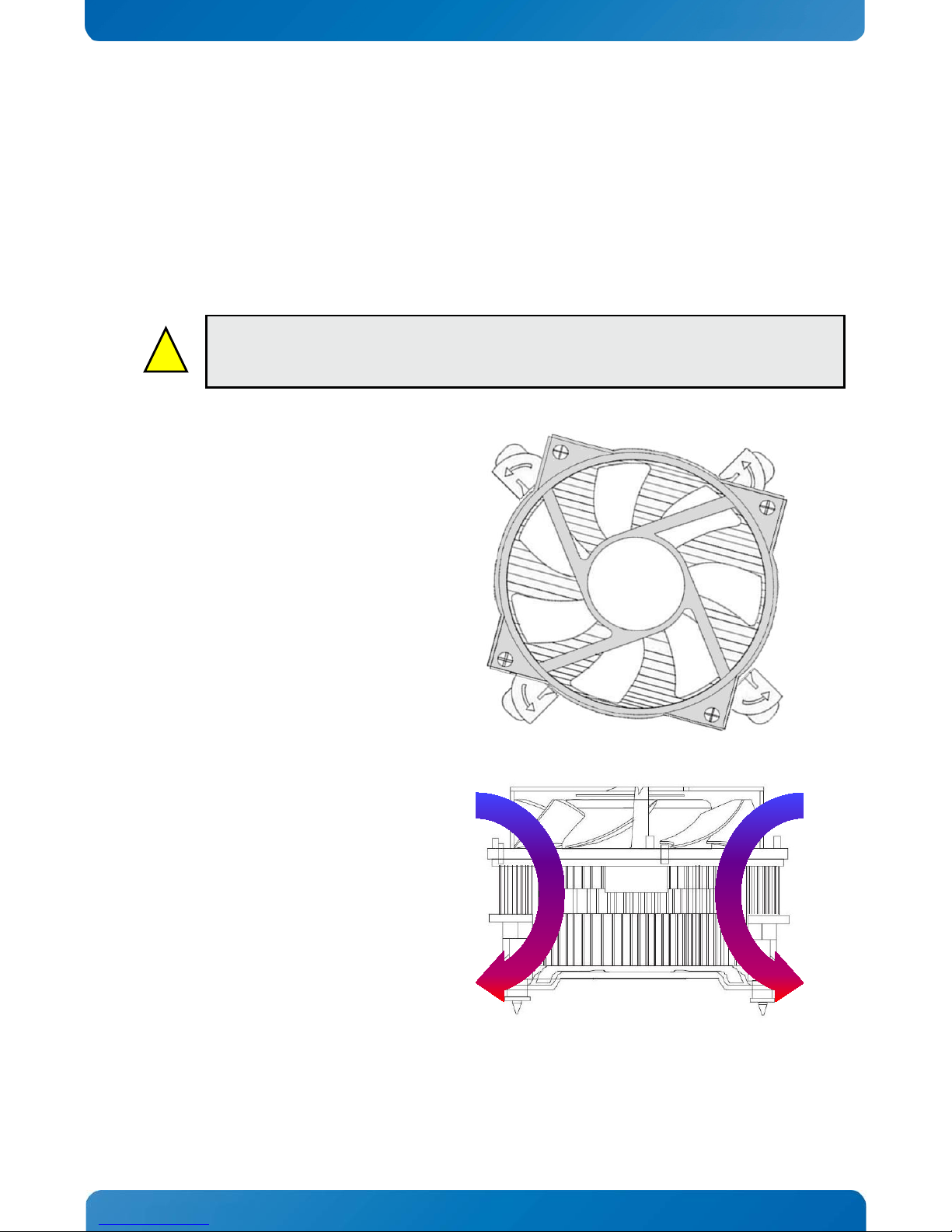

4. Cooler Installation

Make sure the heat paste etc. on the cooler is intact and cover the full area of the CPU. Connect Cooler Fan electrically to the FAN_CPU connector.

5. Connecting Interfaces

Insert all external cables for hard disk, keyboard etc. A monitor must be connected in order to change BIOS settings.

6. Connect and turn on PSU

Connect PSU to the board by the ATXPWR (24pole power plug) and the ATX4p (4-pole power plug).

7. Power Button

If the board does not start by itself when switching on the ATX PSU AC mains, then follow these instructions to start the board. Install the Always On Jumper in the Always On position or toggle the PWRBTN_IN# signal (available in the FRONTPNL connector), by momentary shorting pins 16 (PWRBTN_IN#) and pin 18 (GND). A “normally open” switch is recommended.

8. BIOS Setup

Enter the BIOS setup by pressing the <F2> key during boot up. Enter “Exit Menu” and Load Setup Defaults. Refer to the “BIOS Configuration / Setup“ section of this manual for details on BIOS setup.

Note: To clear all BIOS settings, including Password protection, activate “Load Default BIOS Settings”

Jumper for ⋲10 sec (without power connected).

KTD-N0882-H Page 11 Installation

KTQ87/KTH81 Users Guide

!

Warning: When mounting the board to chassis etc. please notice that the board contains

components on both sides of the PCB which can easily be damaged if board is handled without reasonable care. A damaged component can result in malfunction or no function at all.

9. Mounting the board in chassis

When fixing the Motherboard on a chassis it is recommended using screws with integrated washer and a diameter of ⋲7mm. Do not use washers with teeth, as they can damage the PCB and cause short circuits.

2.2 Requirements IEC60950

Take care when designing chassis interface connectors in order to fulfil the IEC60950 standard.

Lithium battery precautions

CAUTION!

Danger of explosion if battery is incorrectly re- placed. Replace only with same or equivalent type recommended by manufacturer. Dispose of used batteries according to the manufacturer’s instruc- tions.

VORSICHT!

Explosionsgefahr bei unsachgemäßem Austausch der Batterie. Ersatz nur durch den selben oder einen vom

Hersteller empfohlenen gleichwertigen Typ.

Entsorgung gebrauchter Batterien nach Anga- ben des Herstellers.

ATTENTION!

Risque d'explosion avec l'échange inadéquat de la batterie. Remplacement seulement par le même ou un type équivalent recommandé par le producteur. L'évacuation des batteries usagées conformément à des indications du fabricant.

PRECAUCION!

Peligro de explosión si la batería se sustituye incorrectamente. Sustituya solamente por el mismo o tipo equivalente recomendado por el fabricante. Disponga las baterías usadas según las instrucciones del fabricante.

ADVARSEL!

Lithiumbatteri –

Eksplosionsfare ved fejlagtig

håndtering. Udskiftning må kun ske med batteri af samme fabrikat og type. Levér det brugte batteri tilbage til leverandøren.

ADVARSEL!

Eksplosjonsfare ved feilaktig skifte av batteri. Benytt samme batteritype eller en tilsvarende type anbefalt av apparatfabrikanten. B

rukte batterier kasseres i

henhold til fabrikantens instruksjoner.

VARNING!

Explosionsfara vid felaktigt batteribyte. Använd samma batterityp eller en ekvivalent typ som rekommenderas av apparattillverkaren. Kassera använt batteri enligt fabrikantens instruktion.

VAROITUS!

Paristo voi räjähtää, jos se on virheellisesti asennettu. Vaihda paristo ainoastaan lalteval- mistajan suosittelemaan tyyppiln. Hävitä käytetty paristo valmistajan ohjeiden mukaisesti.

When an interface or connector has a VCC (or other power) pin which is directly connected to a power plane

like the VCC plane: To protect the external power lines of the peripheral devices the customer has to ensure:

• Wires have suitable rating to withstand the maximum available power.

• That the enclosure of the peripheral device fulfils the fire protecting requirements of IEC60950.

KTD-N0882-I Page 12 System Specification

KTQ87/KTH81 Users Guide

3 System Specifications

3.1 Component main data

The table below summarizes the features of the KTH81/mITX, KTQ87/mITX, KTH81/Flex and KTQ87/Flex.

Form factor

mITX (miniITX) 170,18 mm by 170,18 mm Flex (Flex-ATX) 190,5 mm by 228,6 mm

Processor

Support the following 4rd Generation Intel® Core™ (Haswell Desktop) processors via

LGA1150 H3 Socket (max 65W TDP)

• Intel® Core™ i7

• Intel® Core™ i5

• Intel® Core™ i3

• Intel® Pentium

• Intel® Celeron

(4x 5 GT/s point-to-point DMI interface to PCH and 2/3/4/6/8MB internal cache).

Chipset

Intel Q87 PCH (Platform Controller Hub)

• Intel ® VT-d (Virtualisation Technology for Directed I/O)

• Intel ® TXT (Trusted Execution Technology)

• Intel ® vPRO

• Intel ® AMT (Active Management Technology) version 9.0

• Intel ® AT (Anti-Theft Technology)

• Intel ® HD Audio Technology

• Intel ® RST (Rapid Storage Technology)

• Intel ® RRT (Rapid Recover Technology)

• SATA (Serial ATA) 6Gb/s and 3Gb/s.

• USB revision 2.0

• USB revision 3.0

• PCI Express revision 2.0

• ACPI 3.0b compliant

• Triple Display support (Triple Graphic Pipes)

• Blue-ray HD video playback

Intel H81 PCH (Platform Controller Hub)

• Intel ® VT-d (Virtualisation Technology for Directed I/O)

• Intel ® TXT (Trusted Execution Technology)

• Intel ® Rapid storage technology: ACHI Only

• Intel ® HD Audio Technology

• SATA (Serial ATA) 6Gb/s and 3Gb/s.

• USB revision 2.0

• USB revision 3.0

• PCI Express revision 2.0

• ACPI 3.0b compliant

• Dual Display support (Two Graphic Pipes)

• Blue-ray HD video playback

KTD-N0882-I Page 13 System Specification

KTQ87/KTH81 Users Guide

Security

Intel® Integrated TPM 1.2 support

Memory

•

DDR3 DIMM 240pin socket (2/4 sockets on mITX/Flex)

• Support single and dual ranks DDR3 1333/1600MT/s

(PC3-10600/PC3-12800)

• Support system memory from 1x 1GB up to 2x/4x 8GB on mITX/Flex.

Notes: Less than 4GB displayed in System Properties using 32bit OS (Shared Video Memory/PCI resources is subtracted)

• ECC not supported (PGA processors do not support ECC)

Management

Intel® Active Management Technology (Intel® AMT) 9.0 (KTQ87 only)

Audio

Audio, 7.1 Channel High Definition Audio Codec using the VIA VT1708S codec

• Line-in

• Headphone stereo signals.

• Surround output: SIDE, LFE, CEN, BACK and FRONT

• Microphone: MIC1 and MIC2

• SPDIF-Out (electrical Interface only)

• On-board speaker (Electromagnetic Sound Generator like Hycom HY-05LF)

Video

Intel ® i5 & i7 4rd Generation Desktop processors support Intel ® HD Graphics 4600.

2 or 3x digital display ports via the Intel® Haswell CPU.

• 2x DP (DisplayPorts), comply with DisplayPort 1.2 specification. (H81 only)

• 3x DP (DisplayPorts), comply with DisplayPort 1.2 specification. (Q87 only)

• HDMI panel support via DP to HDMI Adapter Converter.

• DVI panel support via DP to DVI Adapter Converter.

• VGA panel support via DP to VGA Adapter Converter.

• LVDS panel JEIDA/VESA up to 2x24 bit (Flex only)

• Triple independent pipes (Q87 only)

• Triple independent or cloned displays are supported from OS.

•

Any 3 or 2 displays via DP0, DP1, DP2 (Q87 only) or LVDS (Flex only) can be used.

(DP1 and LVDS cannot both be active at the same time).

Peripheral

interfaces

•

4x USB3.0 / USB2.0 on I/O area (Q87 only)

• 2x USB3.0 / USB2.0 plus 2x USB2.0 on I/O area (H81 only)

• 4x USB2.0 ports on internal pinrows (KTQM87/mITX, KTHM81/mITX, KTHM81/Flex)

• 6x USB2.0 ports on internal pinrows (KTQM87/Flex)

• 1x USB2.0 ports on internal mPCIe connector (mITX only)

• 1x USB2.0 ports on internal mSATA connector (mITX only)

• 2x Serial ports (RS232) on internal pinrows

• 1x SATA3.0, 2x SATA2.0 and 1x mSATA (SATA3.0, USB, LPC) (KTH81/mITX)

• 5x SATA3.0 and 1x mSATA (SATA3.0, USB, LPC) (KTQ87/mITX)

• 2x SATA3.0 and 2x SATA2.0 (KTH81/Flex)

• 6x SATA3.0 (KTQ87/Flex)

• RAID 0/1/5/10 support (Q87 only)

KTD-N0882-I Page 14 System Specification

KTQ87/KTH81 Users Guide

LAN Support

•

1x 10/100/1000Mbits/s LAN (ETHER1): Intel® Clarksville WGI218-LM Gigabit PHY w. AMT 9.0 (Q87 only) Intel® Clarksville WGI218-V Gigabit PHY (H81 only)

• 1x 10/100/1000Mbits/s LAN (ETHER2) Intel® Pearsonville I211AT

• PXE Netboot supported.

• Wake On LAN (WOL) supported

I/O Control

Via ITE IT8516E Embedded Controller via LPC Bus interface

Expansion

Capabilities

•

1x PCIe x16 (Gen 2.0), 1x mPCIe (w. USB2.0) (KTH81/mITX)

• 1x PCIe x16 (Gen 2.0 & 3.0), 1x mPCIe (w. USB2.0) (KTQ87/mITX)

• 1x PCIe x16 (Gen 2.0), 1x PCIe x2 (x16 slot), 1x PCIe x1 (KTH81/Flex)

• 1x PCIe x16 (Gen 2.0 & 3.0), 1x PCIe x4 (x16 slot), 1x PCIe x1 (KTQ87/Flex)

• PCI (Flex only)

• SMBus, compatible with ACCES BUS and I2C BUS, (via Feature connector)

• SPI bus routed to SPI connector (BIOS Recovery module interface)

• DDC/AUX Bus routed to DP connector (Auto detect to DDC when using passive DP to

HDMI or DVI adapters)

• 18 x GPIOs (General Purpose I/Os), (via Feature connector)

• DAC, ADC, PWM and TIMER (Multiplexed), (via Feature connector)

• WAKE UP / Interrupt Inputs (Multiplexed), (via Feature connector)

• 3 Wire Bus for GPIO Expansion (up to 152 GPIOs), (via Feature connector)

• 8 bit Timer output, (via Feature connector)

Hardware

Monitor Subsystem

•

Smart Fan control system, support Thermal® and Speed® cruise for two on-board Fan connectors: CPU Fan (on-board) and System Fan (on-board)

• Thermal inputs: CPU Die temperature (precision +/- 3ºC), System temperature

(precision +/- 3ºC)

• Intrusion (Case Open) detect input, (via Feature connector)

• Sleep S5# Indication, (via Feature connector)

• System Powergood Signal, (via Feature connector)

Power

Supply Unit

ATX/BTX (w. ATX+12V) PSU, 24-pin and 4-pin

Battery

Exchangeable 3.0V Lithium battery for on-board Real Time Clock and CMOS RAM. Manufacturer Panasonic / Part-number CR-2032L/BN, CR2032N/BN or CR-2032L/BE. Approximate 6.2 years retention. Current draw is less than 4.2µA when PSU is disconnected and 0 µA in S0 – S5.

CAUTION: Danger of explosion if the battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer’s instructions.

KTD-N0882-I Page 15 System Specification

KTQ87/KTH81 Users Guide

Environmental

Conditions

Operating:

0°C – 60°

C operating temperature (forced cooling). It is the customer’s responsibility

to provide sufficient airflow around each of the components to keep them within

allowed temperature range.

10% - 90% relative humidity (non-condensing)

Storage:

-20°C – 70°

C; lower limit of storage temperature is defined by specification restriction

of on-

board CR2032 battery. Board with battery has been verified for storage

temperature down to -40°C by Kontron.

5% - 95% relative humidity (non-condensing)

Electro Static Discharge (ESD) / Radiated Emissions (EMI):

All Peripheral interfaces intended for connection to external equipment are ESD/ EMI

protected. EN 61000-4-2:2000 ESD Immunity EN55022:1998 class B Generic Emission Standard.

Safety:

IEC 60950-1: 2005, 2nd Edition UL 60950-1 CSA C22.2 No. 60950-1

Product Category: Information Technology Equipment Including Electrical Business

Equipment Product Category CCN: NWGQ2, NWGQ8 File number: E194252

Shock: IAW IEC 60068-2-27, Test Ea, shock, 18 shocks 3 per axis, 6 directions. Shock pulse 50g, 11ms halfsine.

Bump:

IAW IEC 60068-2-29, Test Eb, Bump, 3000 bumps, 500 per axis, 6 directions. Half Sine Waveform Acceleration 2g; Pulse Duration 11ms.

Vibration:

IAW IEC 60068-2-64, Test Fh, Random Vibration. 90 min per axis, 3 axes, at 1.9 grms, with PSD: 10-20 Hz: 0.05 g²/Hz and 20-500 Hz: -3dB/octave.

Theoretical MTBF:

599.559 / 398.053 hours @ 40°C / 50°C for the mITX boards.

464.021 / 329.037 hours @ 40°C / 50°C for the Flex boards.

Restriction of Hazardous Substances (RoHS):

All boards in the KTQ87 / KTH81 family are RoHS compliant.

Capacitor utilization:

No Tantalum capacitors on board

Only Japanese brand Solid capacitors rated for 100 °C used on board

KTD-N0882-I Page 16 System Specification

KTQ87/KTH81 Users Guide

3.2 System overview

The block diagram below shows the architecture and main components of the KTQ87 / KTH81. The key component on the board is the Intel

®

Q87/H81 (Lynx Point) Desktop Platform controller Hub

Intel Processor HASWELL

LGA1150

240 pins DDR3 UDIMM Dual Channel,

PC3 10600/12800: 2 slots, 1-16GB total. 4 slots, 1-32GB total (KTQ87/Flex).

PCIe x16 (x16slot) Graphics

LVDS / DP (DisplayPort 1.2):

2x DP (KTH81/mitx) 3x DP (KTQ87/mitx) DP + DP or LVDS (KTH81/Flex) 2x DP + DP or LVDS (KTQ87/Flex)

Embedded

Controller

ITE8516

Intel

PCH

Lynx Point

Q87/H81

SPI BIOS Flash (64MBit)

Feature connector:

SMBus/I2C

GPIO/DAC/ADC/PWM GPIO expansion (up to 152) Intruder detection

Fans: CPU, System, System2 (flex)

6-pin PS/2 Keyboard/Mouse

2x COM (RS232)

TPM (Infineon)

LAN2 Intel Pearsonville

LAN1 Intel Clarkville

Audio Codec VIA VT1708S:

2x3 Audio Jack SPDIF Out Line-Out

Frontpanel: Line-out2 & Mic2

PCIe x2 (x16slot) (KTH81/Flex)

PCIe x4 (x16slot) (KTQ87/Flex) PCIe x1 (Flex) mPCIe w. & USB2.0 (mITX)

SATA

3.0

SATA

2.0

mSATA

3.0

KTH81/mITX

1x

2x

1x

KTQ87/mITX

5x - 1x

KTH81/Flex

2x

-

KTQ87/Flex

6x - -

Raid 0/1/5/10 (Q87)

mSATA w. LPC Debug & USB2.0

IO area

Int.

USB

3.0/

2.0

2.0 KTH81/mITX

2x

6x

KTQ87/mITX

4x - 6x

KTH81/Flex

2x

6x

KTQ87/Flex

4x - 8x

KTD-N0882-I Page 17 System Specification

KTQ87/KTH81 Users Guide

3.3 Processor Support Table

KTQ87 is designed to support the following LGA1150 Desktop processors (up to 65W power consumption):

4

rd

generation Intel® Core™ i7 processor

4

rd

generation Intel® Core™ i5 processor Haswell™ Dual Core Pentium Haswell™ Duel Core Celeron

In the following list you will find all CPU’s supported by the PCH in according to Intel but also other CPU’s if successfully tested. Embedded CPU’s are indicated by green text, successfully tested CPU’s are indicated by highlighted text, successfully tested embedded CPU’s are indicated by green and highlighted text and failed CPU’s are indicated by red text. Some processors in the list are distributed from Kontron, those CPU’s are marked by an * (asterisk). However please notice that this marking is only guide line and maybe not fully updated.

Processor Brand

Clock

Speed

Turbo

Speed

Cores

Threads

Bus

Speed

Cache

CPU

Number

QDF/sSpec

number

Stepping

Thermal

Design

Power

[GHz]

[MHz]

[MB]

[ºC/W]

Core™ i7

3.2

4.0

4 8 1333/1600

8

4790S

SR1QM

C0

71/65

4th gen.

3.1

3.9

4 8 1333/1600

8

4770S

SR14H

C0

71/65

2.5

3.7

4 8 1333/1600

8

4770T

SR14N

C0

71/45

2.3

3.3

4 8 1333/1600

8

4770TE

SR183

C0

71/45

2.0

3.0

4 8 1333/1600

8

4765T

SR14Q

C0

66/35

Core™ i5

3.1 3.8 4 4 1333/1600 6 4670S SR14K C0 71/65

4th gen.

3.0

3.7

4 4 1333/1600

4

4590S

SR1QN

C0

71/65

2.9

3.6

4 4 1333/1600

4

4570S

SR14J

C0

71/65

2.8

3.3

4 4 1333/1600

6

4440S

SR14L

C0

/65

2.7

3.2

4 4 1333/1600

6

4430S

SR14M

C0

71/65

2.3

3.3

4 4 1333/1600

6

4670T

SR14P

C0

71/45

2.9

3.6

2 4 1333/1600

4

4570T

SR1CA

C0

66/35

2.7

3.3

2 4 1333/1600

4

4570TE

SR17Z

C0

66/35

Core™ i3

3.6

- 2 4

1333/1600

4

4340

SR1NL

C0

72/54

4th gen.

3.5

- 2 4

1333/1600

4

4330

SR1NM

C0

72/54

3.4 - 2 4 1333/1600 3 4130 SR1NP C0 72/54

3.1 - 2 4 1333/1600 4 4350T SR1PA C0 66/35

3.0 - 2 4 1333/1600 4 4330T SR1NK C0 66/35

2.9 - 2 4 1333/1600 3 4130T SR1NN C0 66/35

2.4 - 2 4 1333/1600 4 4330TE SR180 C0 72/35

Haswell™

3.2 - 2 2 1333/1600 3 G3420 SR1NB C0 72/54

Dual Core

2.3

- 2 2

1333/1600

3

G3320TE

SR181

C0

72/35

Pentium

Haswell™

2.7

- 2 2

1333

2

G1820

SR1CN

C0

/53

Dual Core

2.2

- 2 2

1333

2

G1820TE

SR1T6

C0

/35

Celeron

Note that ECC not supported on KTQ87 / KTH81.

KTD-N0882-I Page 18 System Specification

KTQ87/KTH81 Users Guide

!

Warning: Make sure sufficient airflow is always present around the components located below

the cooler. Different coolers are available on the market and some is not generating any airflow or is blocking the airflow around these components, causing reduced lifetime.

Not all CPU even of same type support all functions ex. i7-4770S & i5-4570S supports VPRO other CPU types may not. Intel® Turbo Boost Technology 2.0 is supported by i5 and i7, as indicated in above list of processors, and is enabling overclocking of all cores, when operated within the limits of thermal design power, temperature and current.

Note: KTH81 do not support VPRO.

Sufficient cooling must be applied to the CPU in order to remove the effect as listed in above table (Thermal Guideline). The sufficient cooling is also depending on the maximum (worst-case) ambient operating temperature and the actual load of processor.

It is recommended to use a cooler like the Kontron

PN 1046-6305 “KTQ77 Cooler”.

The design of this cooler makes sure airflow is always present around the components below the cooler. Even if Fan is set to be off, it is still running a minimum RPM (Rotation Per Minute).

Air sucked in to the cooler

Air blown out of the cooler

Components below the cooler

Note: The temperature of the air blown out of the cooler must be less than 60°C maximum, in order not to

overheat components near the CPU. However most CPU’s requires maximum 57,4°C, so in general, not to violate the CPU specification the temperature of the air should be maximum ~55°C. Some of the 65W CPU’s

running full load and cooled by above cooler, might start throttling at 50°C ambient air temperature.

KTD-N0882-I Page 19 System Specification

KTQ87/KTH81 Users Guide

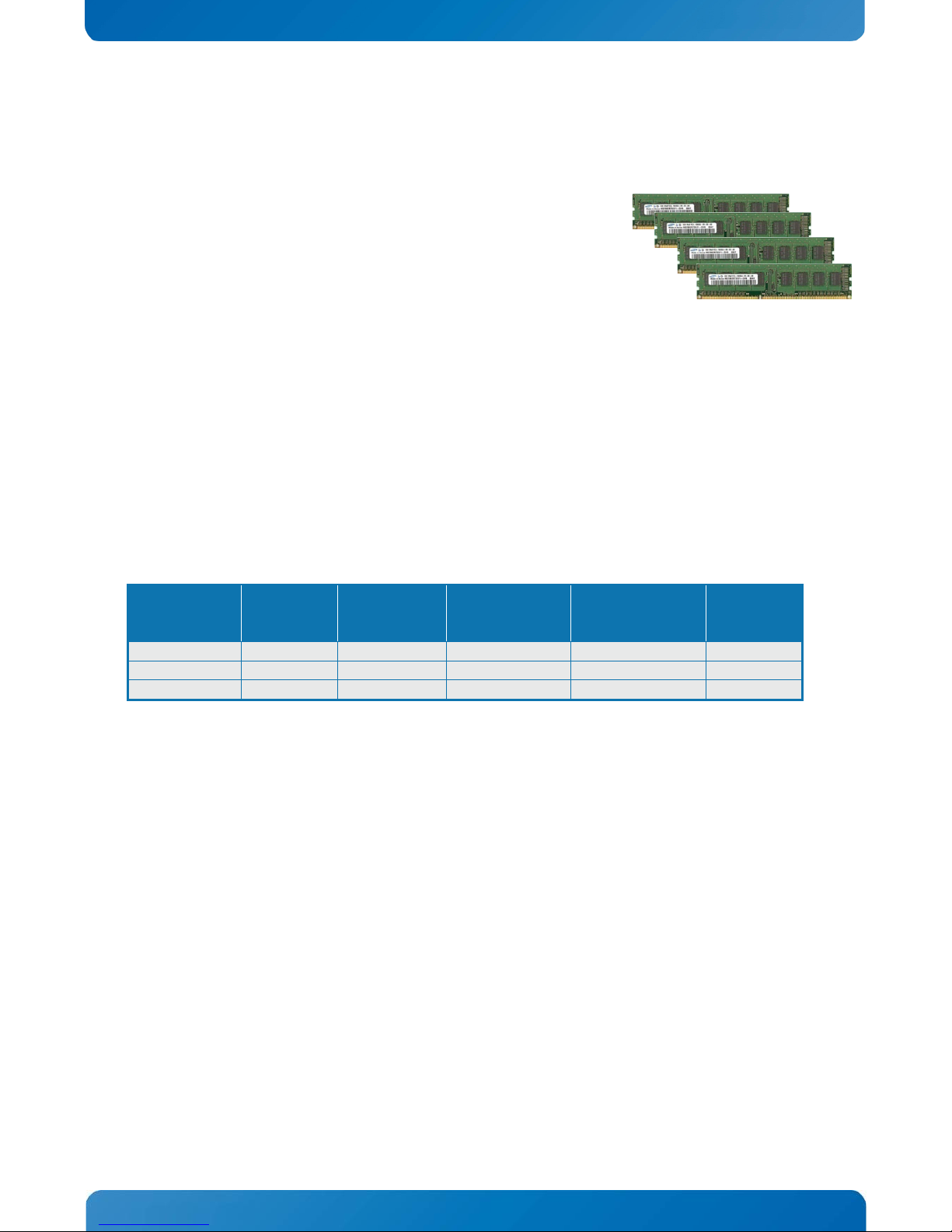

3.4 System Memory support

The KTH81/mITX, KTQ87/mITX and KTH81/Flex have two DDR3 UDIMM sockets while the KTQ87/Flex has four DDR3 UDIMM sockets. The sockets support the following memory features:

• DDR3 1.5V/1.35V UDIMM 240-pin

• Dual-channel with 1 UDIMM per channel (2 UDIMM for KTQ87/Flex)

• Single/dual rank unbuffered 1333/1600MT/s (PC3-10600/PC3-12800)

• The supported 4

rd

Generation Core i5/i7 support 1333/1600 MT/s

• From 1GB and up to 2x 8GB (4x 8GB for KTQ87/Flex).

o Note: Less than 4GB displayed in System Properties using 32bit OS o (Shared Video Memory/PCI resources is subtracted)

• SPD timings supported

• ECC supported

The installed DDR3 DIMM should support the Serial Presence Detect (SPD) data structure. This allows the BIOS to read and configure the memory controller for optimal performance. If non-SPD memory is used, the BIOS will attempt to configure the memory settings, but performance and reliability may be impacted.

Memory Operating Frequencies

Regardless of the DIMM type used, the memory frequency will either be equal to or less than the processor system bus frequency. For example, if DDR3 1600 memory is used with a 1333 MHz system bus frequency processor, the memory clock will operate at 167 MHz. The table below lists the resulting operating memory frequencies based on the combination of DIMMs and processor.

DIMM Type

Module

name

Memory Data

transfers

[MT/s]

Processor system

bus frequency

[MHz]

Resulting memory

clock frequency

[MHz]

Peak

transfer rate

[MB/s]

DDR3 1333

PC3-10600

1333

1333 / 1600

167

10666

DDR3 1600

PC3-12800

1600

1333

167

10666

DDR3 1600

PC3-12800

1600

200

12800

Notes: Kontron offers the following memory modules:

1GB DDR3 1333 PC3-10600, P/N: 1031-9872 2GB DDR3 1333 PC3-10600, P/N: 1054-3702 4GB DDR3 1333 PC3-10600, P/N: 1054-3703 8GB DDR3 1333 PC3-10600, P/N: 1054-3704

1GB DDR3 1600 PC3-12800, P/N: 1054-3706 2GB DDR3 1600 PC3-12800, P/N: 1054-3707 4GB DDR3 1600 PC3-12800, P/N: 1054-3708 8GB DDR3 1600 PC3-12800, P/N: 1052-5601

Memory modules have in general a much lower longevity than embedded motherboards, and therefor EOL of modules can be expected several times during lifetime of the motherboard. Kontron guarantees that the above P/N will be maintained so that EOL module will be replaced by other similar type of qualified module.

As a minimum it is recommend using Kontron memory modules for prototype system(s) in order to prove stability of the system and as for reference.

For volume production you might request to test and qualify other types of RAM. In order to qualify RAM it is recommend configuring 3 systems running RAM Stress Test program in heat chamber at 60⁰C for a minimum of 24 hours.

KTD-N0882-I Page 20 System Specification

KTQ87/KTH81 Users Guide

3.5 KTQ87/KTH81 Graphics Subsystem

The KTQ87 / KTH81 equipped with Intel ® i5 or i7 processor supports Intel ® HD Graphics 4600.

KTQ87/KTH81 supports three/two DisplayPort directly from processor.

The DP interface supports the DisplayPort 1.2 specification. The PCH supports High-bandwidth Digital Content Protection for high definition content playback over digital interfaces. The PCH also integrates audio codecs for audio support over DP interfaces.

Up to three displays (any three display outputs: DP0, DP1 & DP2 can be activated at the same time and be used to implement independent or cloned display configuration. PCIe cards can be used to replace onboard graphics or in combination with on-board graphics.

Intel® HD Graphics 4600

Features of the Intel HD Graphics 4600 build into the i3, i5 and i7 processors, includes:

• High quality graphics engine supporting

o 3 Symmetric Pipe Support o DirectX11.1 and OpenGL 4.x compliant and lower o Open CL 1.2 and lower o Core frequency of 350 - 1250 (Turbo) MHz o Memory Bandwidth up to 25.6 GB/s o Dynamic Video Memory Technology 5.0 o DP 1.2 MST (Multi-Stream Transport) o PAVP o HDCP o Audio (Protected Content) o Full AVC/VC1/MPEG2 HW Decode and full MVC HW Decode

• DP0, DP1 & DP2

o 16/32bit colours in WQXGA 3840x2160 @ 60 Hz. o Max HDMI resolution 4096x2304 @ 24 Hz o DisplayPort standard 1.2

• LVDS supports single and dual channel, 18/24bit VESA/JEIDA panels up to a resolution of

1600x1200 or 1920x1080 and with limited frame rate up to 1920x1200.

KTD-N0882-I Page 21 System Specification

KTQ87/KTH81 Users Guide

Display Configurations:

Note the maximum resolutions:

LVDS 1920 x 1200 @ 60 Hz HDMI 2560 x 1600 @ 60 Hz DVI 1920 x 1200 @ 60 Hz DP 3840 x 2160 @ 60 Hz

The HDMI and DVI limitations apply when using passive DP converter. When using Active DP converter the limitations depends on the converter, but maximum is 3840 x 2160 @ 60 Hz.

Graphics Adapters

Use of DP Adapter Converters can provide HDMI support or second VGA or DVI panel support.

The HDMI interface supports the HDMI 1.4a specification including audio codec. However limitations to the resolution apply: 1920x1080 (HDMI and DVI)

1051-7619 Cable DP Extender cable 200mm (when using two DP converters)

DP to VGA DP to HDMI DP to DVI-

PN 1045-5779 PN 1045-5781 PN 1045-5780

Notice that only the DP to VGA adapter is an “active” converter, the HDMI and DVI converters are passive and cannot be used in a triple panel configuration.

MB LVDS

DP0

HDMI, DVI or DP

DP1

HDMI, DVI or DP

DP2

HDMI, DVI or DP

KTH81/mITX No Yes Yes No

KTQ87/mITX No Yes Yes Yes

KTH81/Flex

No

Yes Yes No

KTH81/Flex

Yes

Yes No No

KTQ87/Flex

No

Yes Yes Yes

KTQ87/Flex

Yes

Yes No Yes

KTD-N0882-I Page 22 System Specification

KTQ87/KTH81 Users Guide

3.6 Power Consumption

In order to ensure safe operation of the board, the ATX12V power supply must monitor the supply voltage and shut down if the supplies are out of range – refer to the hardware manual for the actual power supply specification. Please note, In order to keep the power consumption to a minimal level, boards do not implement a guaranteed minimum load. In some cases, this can lead to compatibility problems with ATX power supplies, which require a minimum load to stay in regulation. The KTQ87/mITX / KTH81/mITX board must powered through the ATX4P (4-pole) and the ATX24P (24-pole) connector using standard ATX power supply.

ATX12V supply: Both ATX4P connector and ATX24P connector must be used in according to the ATX12V PSU standard.

Warning: Hot Plugging power supply is not supported. Hot plugging might damage the board.

The requirements to the supply voltages are as follows:

Supply Min Max Note

VCC3.3 3.135V 3.465V

Should be ±5% for compliance with the ATX specification

Vcc 4.75V 5.25V

Should be ±5% for compliance with the ATX specification. Should be +5/ -0% to meet the USB standard.

+12V 11.4V 12.6V

Should be ±5% for compliance with the ATX specification

–12V –13.2V –10.8V

Should be ±10% for compliance with the ATX specification

-5V -5,50V -4.5V Not required for the KTQ87 boards

5VSB 4.75V 5.25V

Should be ±5% for compliance with the ATX specification

On the following pages you will find “total system power examples” for mITX and Flex boards in different configurations:

mITX, Total System power example:

mITX, Low Power Configuration mITX, High Power Configuration

Flex, Total System power example:

Flex, Low Power Configuration Flex, Medium Power Configuration Flex, High Power Configuration

KTD-N0882-I Page 23 System Specification

KTQ87/KTH81 Users Guide

mITX, Total System power example

The principal test system and test equipment used

1. Tektronix TDS5104B

2. Tektronix TCPA300

3. Tektronix TCP312

4. Fluke 289

5. Fluke 179

6. ATX rail switch

Note: Power consumption of PSU (power loss), Monitor and HDD are not included.

Low Power Configuration Setup KTQ87/mITX: Standard system configuration equipped with Internal graphics, 2x SATA disks, mSATA 32GB, Intel 2.0Ghz

CPU, 2x DIMM (8GB Modules), DVI Monitor, Keyboard & Mouse,1x 8GB USB Stick, 12V active cooler, 400W ATX PSU.

High Power Configuration Setup KTQ87/mITX: Standard system configuration equipped with PCIex16 graphics card, mSATA 32GB, 4x SATA disks, Intel

2.5Ghz CPU, 2x DIMM (8GB Modules), DVI Monitor, Keyboard & Mouse, 4x 1-8GB USB Sticks, 12V active cooler, 400W ATX PSU.

Note: KTH81/mITX power results are similar to KTQ87/mITX.

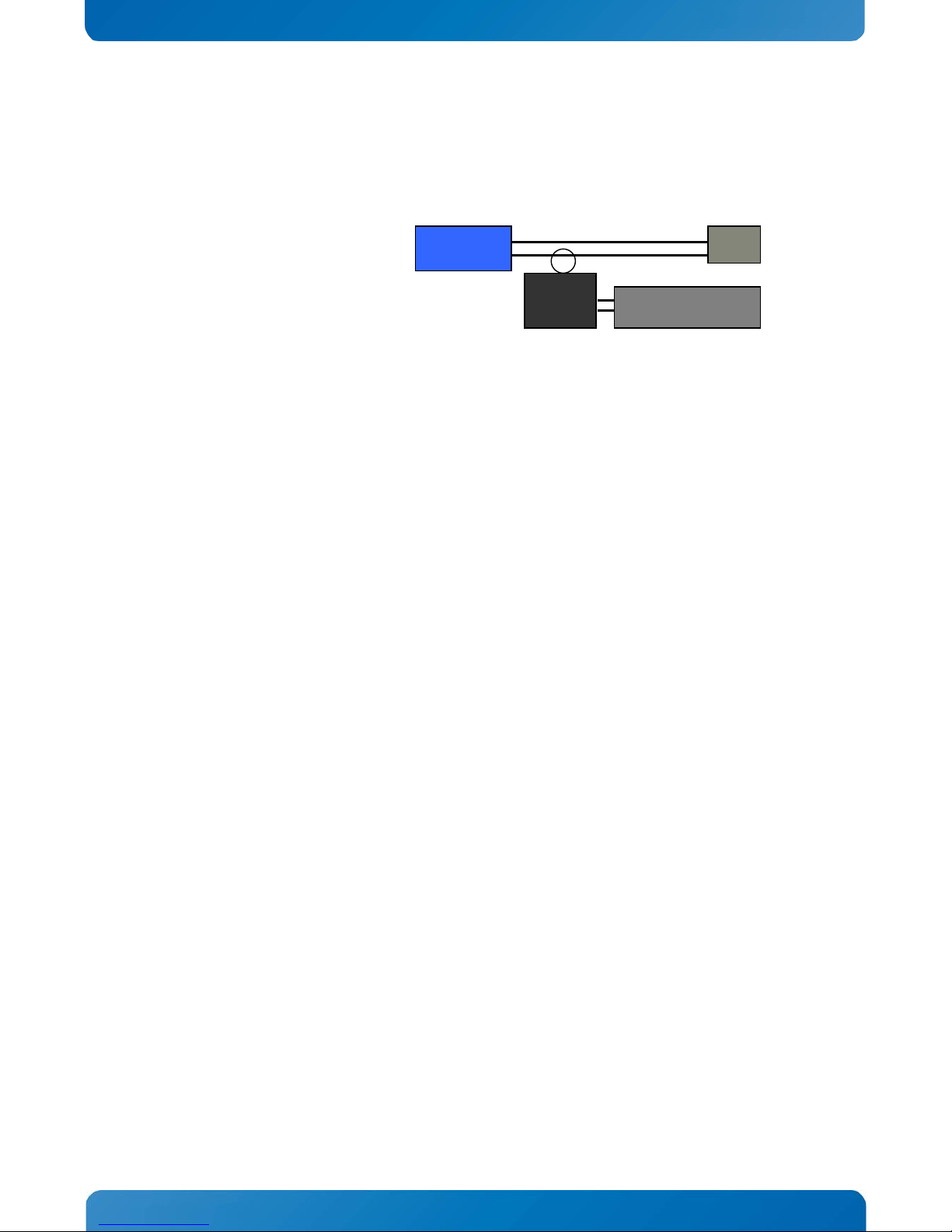

ATX supplies

KTQ87/mITX

PSU

Gnd

Current

Probe

Tektronix TDS5104B

KTD-N0882-I Page 24 System Specification

KTQ87/KTH81 Users Guide

mITX, Low Power Configuration results

DOS Idle, Mean, No external load

Supply

Current draw

[mA]

Power consumption

[W]

+12V

96

1.158

+12V P4

1359

16.390

+5V

638

3.228

+3V3

491

1.664

-12V

21

0.236

5VSB

17

0.087

Total 22.8

Windows 7, mean 3DMARK2006 ( first scene ) + Burnin Test

Supply

Current draw

[mA]

Power consumption

[W]

+12V

102

1.230

+12V P4

2420

29.185

+5V

1167

5.905

+3V3

494

1.675

-12V

22

0.247

5VSB

20

0.102

Total 38.3

S3 Mode, Mean, No external load

Supply

Current draw

[mA]

Power consumption

[W]

5VSB

418

2.140

Total 2.1

S4 Mode, Mean, No external load

Supply

Current draw

[mA]

Power consumption

[W]

5VSB

267

1.367

Total 1.4

S5 Mode, Mean, No external load

Supply

Current draw

[mA]

Power consumption

[W]

5VSB

267

1.367

Total 1.4

KTD-N0882-I Page 25 System Specification

KTQ87/KTH81 Users Guide

mITX, High Power Configuration results

DOS Idle, Mean, No external load

Supply

Current draw

[mA]

Power consumption

[W]

+12V

695

8.381

+12V P4

1820

21.949

+5V

902

4.564

+3V3

578

1.959

-12V

22

0.247

5VSB

20

0.102

Total 37.2

Windows 7, mean 3DMARK2006 ( first scene ) +Burnin test

Supply

Current draw

[mA]

Power consumption

[W]

+12V

3320

40.039

+12V P4

3310

39.919

+5V

1145

5.794

+3V3

1121

3.800

-12V

18

0.202

5VSB

15

0.077

Total 89.8

S3 Mode, Mean, No external load

Supply

Current draw

[mA]

Power consumption

[W]

5VSB

429

2.196

Total 2.2

S4 Mode, Mean, No external load

Supply

Current draw

[mA]

Power consumption

[W]

5VSB

273

1.398

Total 1.4

S5 Mode, Mean, No external load

Supply

Current draw

[mA]

Power consumption

[W]

5VSB

269

1.377

Total 1.4

KTD-N0882-I Page 26 System Specification

KTQ87/KTH81 Users Guide

Power lines

KTQ87/Flex ATX

PSU

Current

probe

Oscilloscope

Gnd

Flex, Total System power example

The principal test system and test equipment used

1. 12V active cooler (Delta AUC0912D)

2. USB Keyboard/Mouse (Lemel)

3. Graphic Card (HD 7750)

4. PCI Card (Intel 82557 10/100 ethernet pci adapter)

5. PCI-e Cards (TUSB7320 DEMO EVM REV C(PCIEx1 Card)

Intel® 82575EB Gigabit Network Conection (PCIEx4 Card))

6. 3.5” HDD: WD WD500AAKX-001CA0, Seagate ST500DM002 & ST9160310AS, WD WD5000AAKX-00ERMA0

7. ATX 400W Power (GPB400S)

8. Oscilloscope (Tektronix DPO 4054)

9. Current Probe (Tektronix TCP0030 Current Probe)

10. USB Flash: Transcend JetFlash 4GB, ADATA C906 8GB, TDK 8GB, Kingston DTI/1G

11. Monitors: ASUS VS209N,ViewSonic VA1912MA-LED

12. Memory: SAMSUNG M391B1G73BH0-CK0 8GB PC3-12800E-11-11-E3

13. Intel Haswell CPU: QFZQ 2.20GHz (35W), QEEG 2.30GHz (45W), QE74 2.90GHz (65W)

Note: The power consumption of Display and HDD are not included.

Low Power Configuration Setup:

KTQ87/Flex equipped with Internal graphics, 2x SATA disks, PCI card, CPU (i5) 35W, 2x DIMM PC3-10600 (2x 2GB), 1x DP Monitor, Keyboard & Mouse. 1x 1-8GB USB Stick.

Medium Power Configuration Setup: KTQ87/Flex equipped with Internal graphics, 4x SATA disks, PCI card, PCIex4 card, CPU (i5) 45W, 4x DIMM

PC3-12800 (4x 4GB), 2x DP Monitors, Keyboard & Mouse. 2x 1-8GB USB Stick.

High Power Configuration Setup:

KTQ87/Flex equipped with PCIex16 Gen3 Graphic card, 4x SATA disks, PCI Card, PCIex1 card, PCIex4 card, CPU (i7) 65W, 4x DIMM PC3-12800 (4x 8Gb), 2x DP Monitors, Keyboard & Mouse, 4x 1-8GB USB Sticks

Note: KTH81/Flex power results are similar to KTQ87/Flex.

KTD-N0882-I Page 27 System Specification

KTQ87/KTH81 Users Guide

Flex, Low Power Configuration results

DOS Idle, Mean, No external load

Supply

Current draw

[mA]

Power consumption

[W]

+12V

91

1.092

+12V P4

970

11.640

+5V

997

4.985

+3V3

739

2.439

-12V

11

0.132

5VSB

5

0.025

Total 20.3

Windows 7, mean 3DMARK2006 ( first scene ) +Burnin test

Supply

Current draw

[mA]

Power consumption

[W]

+12V

101

1.212

+12V P4

2048

24.576

+5V

2027

10.135

+3V3

843

2.782

-12V

0

5VSB

8

0.040

Total 38.7

S3 Mode, Mean, No external load

Supply

Current draw

[mA]

Power consumption

[W]

5VSB

286

1.43

Total 1.4

S4 Mode, Mean, No external load

Supply

Current draw

[mA]

Power consumption

[W]

5VSB

130

0.715

Total 0.7

S5 Mode, Mean, No external load

Supply

Current draw

[mA]

Power consumption

[W]

5VSB

123

0.677

Total 0.7

KTD-N0882-I Page 28 System Specification

KTQ87/KTH81 Users Guide

Flex, Medium Power Configuration results

DOS Idle, Mean, No external load

Supply

Current draw

[mA]

Power consumption

[W]

+12V

154

1.848

+12V P4

1363

16.356

+5V

1083

5.415

+3V3

856

2.825

-12V

11

0.132

5VSB

8

0.040

Total 26.6

Windows 7, mean 3DMARK2006 ( first scene ) +Burnin test

Supply

Current draw

[mA]

Power consumption

[W]

+12V

0 TBD

+12V P4

4100 TBD

49.200 TBD

+5V

2932

14.660

+3V3

867

2.861

-12V

0

5VSB

17

0.085

Total 66.8

S3 Mode, Mean, No external load

Supply

Current draw

[mA]

Power consumption

[W]

5VSB

296

1.480

Total 1.5

S4 Mode, Mean, No external load

Supply

Current draw

[mA]

Power consumption

[W]

5VSB

139

0.695

Total 0.7

S5 Mode, Mean, No external load

Supply

Current draw

[mA]

Power consumption

[W]

5VSB

134

0.670

Total 0.7

KTD-N0882-I Page 29 System Specification

KTQ87/KTH81 Users Guide

Flex, High Power Configuration results

DOS Idle, Mean, No external load

Supply

Current draw

[mA]

Power consumption

[W]

+12V

1285

15.420

+12V P4

1781

21.372

+5V

1175

5.875

+3V3

1530

5.049

-12V

12

0.144

5VSB

4

0.020

Total 47.9

Windows 7, mean 3DMARK2006 ( first scene ) +Burnin test

Supply

Current draw

[mA]

Power consumption

[W]

+12V

2790

33.480

+12V P4

2880

34.560

+5V

1896

9.480

+3V3

1665

5.495

-12V

12

0.144

5VSB

10

0.050

Total 83.2

S3 Mode, Mean, No external load

Supply

Current draw

[mA]

Power consumption

[W]

5VSB

296

1.480

Total 1.5

S4 Mode, Mean, No external load

Supply

Current draw

[mA]

Power consumption

[W]

5VSB

168

0.840

Total 0.8

S5 Mode, Mean, No external load

Supply

Current draw

[mA]

Power consumption

[W]

5VSB

134

0.670

Total 0.7

KTD-N0882-I Page 30 Connector Location

KTQ87/KTH81 Users Guide

4 Connector Locations

4.1 KTQ87/mITX (KTH81/mITX) - frontside

USB10

USB11

FRONTPNL

mPCIe

& USB8

ATX24P

Front Speakers

PCIe x16

FAN_CPU

FAN_ SYS

COM2

COM1

Audio

SPI

(KTQ87 only)

ATX4P

DP2

(KTQ87 only)

SPDIF

Always On

USB4 USB5

mSATA

& USB9

FEATURE

SATA4

SATA3 SATA2

SATA0 SATA5

Load Default

DDR3 Slot 2

DDR3 Slot 1

DP1

DP0

LAN2

USB1

USB0

LAN1

USB3

USB2

KTH81 Notes:

USB port 2 & 3 only supports USB 2.0.

SATA4 & SATA5 connectors are black colored and limited to SATA 300.

System

temp. (U97)

KTD-N0882-I Page 31 Connector Location

KTQ87/KTH81 Users Guide

Sys_Fan1

CPU_Fan

LPC

SPI

Feature

ATX24P

COM1

COM2

SATA4 SATA0 SATA2 SATA1 SATA5 SATA3

PCI

LVDS

ATX4P

KBD/MSE

PCIex1

XDP (*)

Sys_Fan2

FRONTPNL, USB10/11

USB6/7

USB8/9

USB4/5

PCIex16

PCIex4

SPDIF

Front Speakers

Load default

Always On

DIMM4/2/3/1

Audio

DP1 DP0

DP2

(Q87 only)

LAN2

USB1

USB0

LAN1

USB3

USB2

(*) = Not Mounted.

SATA2 & SATA3 on Q87 only. H81: SATA4 & SATA5 is SATA Gen.2

(DIMM4 & 2 only

on KTQ87/Flex)

System

temp. (U97)

4.2 KTQ87/Flex (KTH81/Flex) - frontside

KTD-N0882-I Page 32 Connector Definition

KTQ87/KTH81 Users Guide

5 Connector Definition

The following sections provide pin definitions and detailed description of all on-board connectors.

The connector definitions follow the following notation:

Column

name

Description

Shows the pin-numbers in the connector. The graphical layout of the connector definition tables is made similar to the physical connectors.

Signal

The mnemonic name of the signal at the current pin. The notation “XX#” states that the signal “XX” is active low.

Type AI: Analogue Input.

AO: Analogue Output. I: Input, TTL compatible if nothing else stated. IO: Input / Output. TTL compatible if nothing else stated. IOT: Bi-directional tristate IO pin. IS: Schmitt-trigger input, TTL compatible. IOC: Input / open-collector Output, TTL compatible. IOD: Input / Output, CMOS level Schmitt-triggered. (Open drain output) NC: Pin not connected. O: Output, TTL compatible. OC: Output, open-collector or open-drain, TTL compatible. OT: Output with tri-state capability, TTL compatible. LVDS: Low Voltage Differential Signal. PWR: Power supply or ground reference pins.

Ioh: Typical current in mA flowing out of an output pin through a grounded load, while the output voltage is > 2.4 V DC (if nothing else stated).

Iol: Typical current in mA flowing into an output pin from a VCC connected load, while the output voltage is < 0.4 V DC (if nothing else stated).

Pull U/D On-board pull-up or pull-down resistors on input pins or open-collector output pins.

Note Special remarks concerning the signal.

The abbreviation TBD is used for specifications which are not available yet or which are not sufficiently

specified by the component vendors.

KTD-N0882-I Page 33 IO-Area Connectors

KTQ87/KTH81 Users Guide

6 IO-Area Connectors

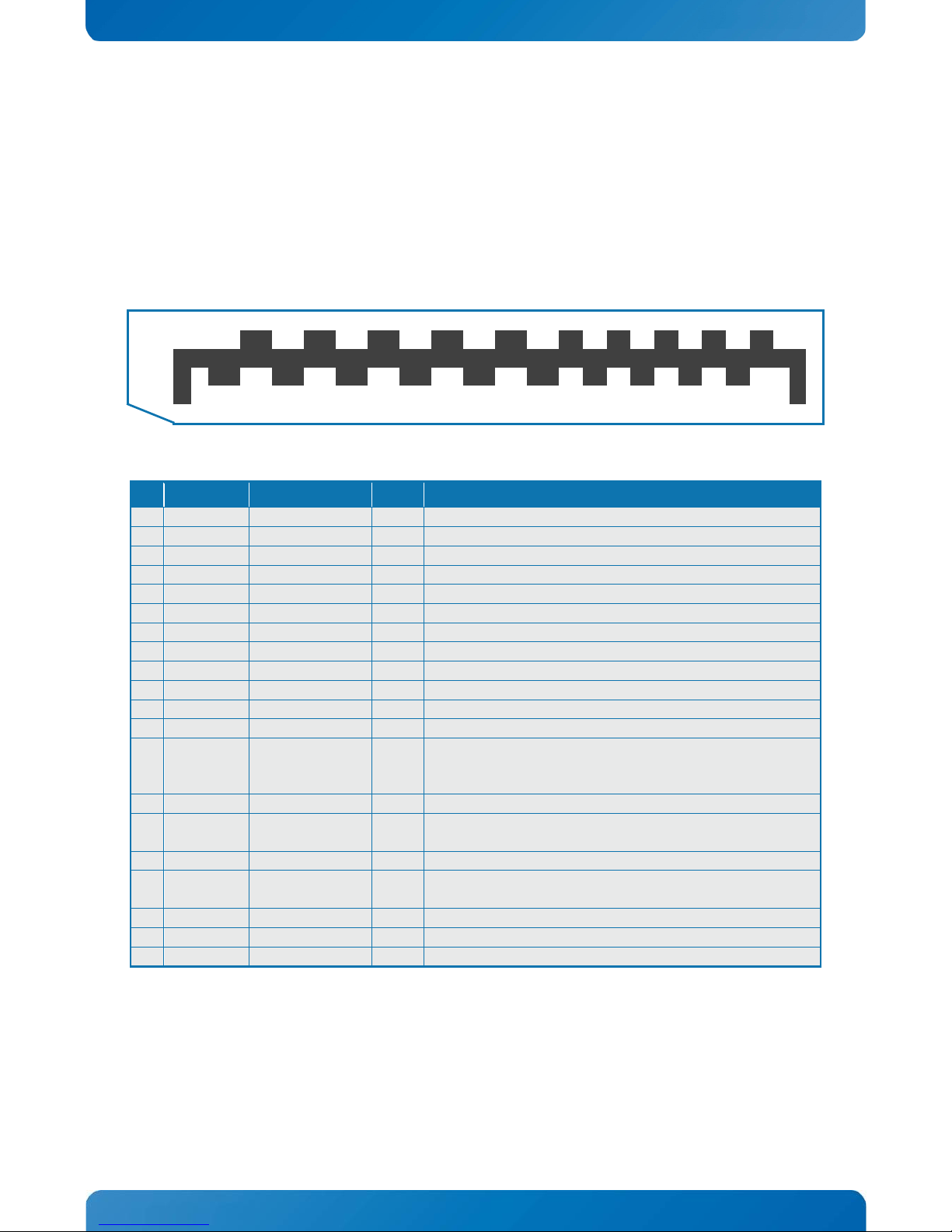

6.1 DP Connectors (DP0, DP1, DP2)

The DP (DisplayPort) connectors are based on standard DP type Foxconn 3VD51203-H7JJ-7H or similar.

Note that DP2 only available on KTQ87.

19 17 15 13 11 9 7 5 3 1

20 18 16 14 12 10 8 6 4 2

Pin Signal Description Type Note

1

Lane 0 (p)

LVDS

2 GND

PWR

3

Lane 0 (n)

LVDS

4

Lane 1 (p)

LVDS

5

GND

PWR

6

Lane 1 (n)

LVDS

7 Lane 2 (p)

LVDS

8

GND

PWR

9

Lane 2 (n)

LVDS

10

Lane 3 (p)

LVDS

11

GND

PWR

12

Lane 3 (n)

LVDS

13 Config1

Aux or DDC selection

I

Internally pull down (1Mohm).

Aux channel on pin 15/17 selected as default (when NC)

DDC channel on pin 15/17, If HDMI adapter used (3.3V)

14

Config2

(Not used)

O

Internally connected to GND

15 Aux Ch (p)

Aux Channel (+) or DDC Clk

AUX (+) channel used by DP DDC Clk used by HDMI

16

GND

PWR

17 Aux Ch (n)

Aux Channel (-) or DDC Data

AUX (-) channel used by DP DDC Data used by HDMI

18

Hot Plug

I Internally pull down (100Kohm).

19

Return

PWR

Same as GND

20

3.3V

PWR

Fused by 1.5A resetable PTC fuse.

KTD-N0882-I Page 34 IO-Area Connectors

KTQ87/KTH81 Users Guide

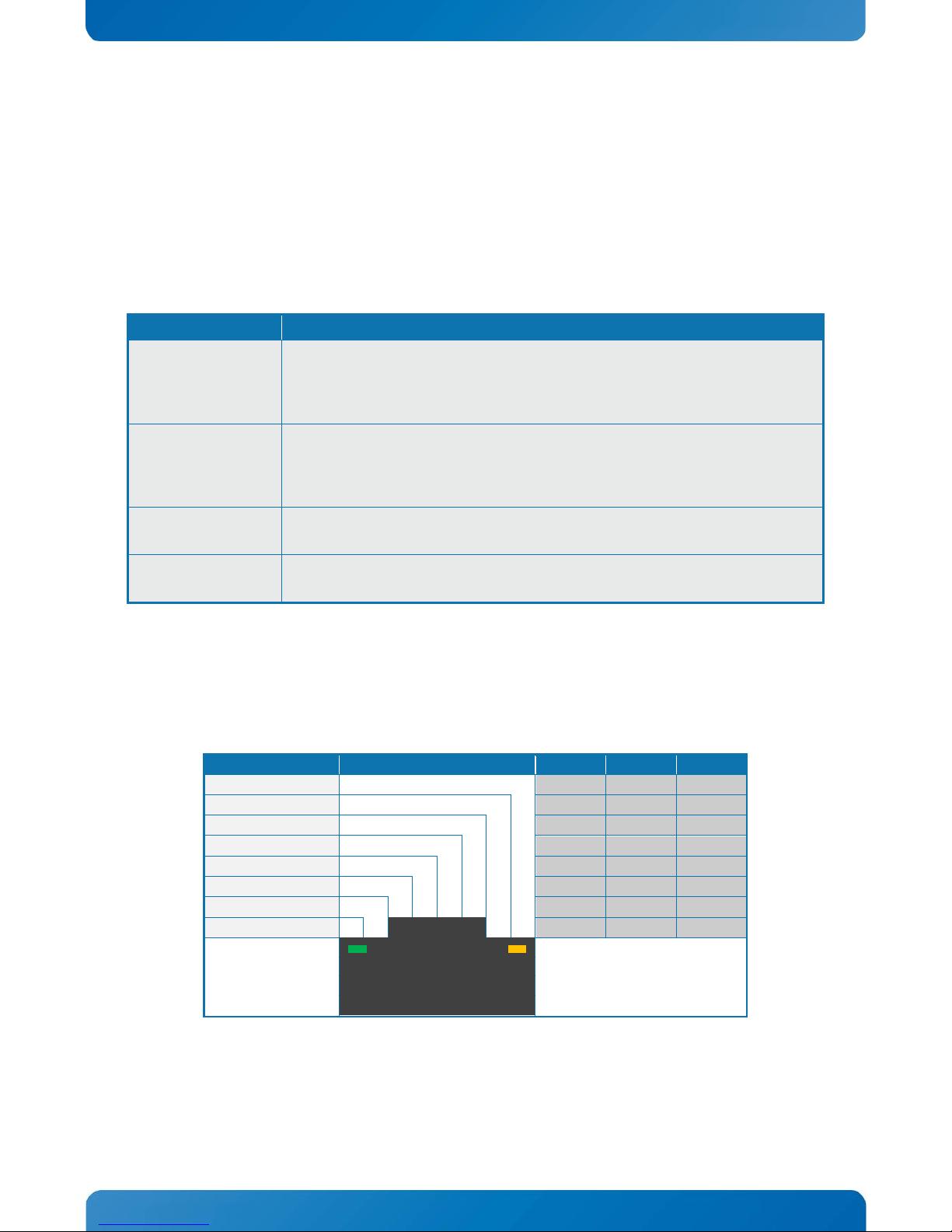

6.2 Ethernet Connectors

The KTQ87/KTH81 supports two channels of 10/100/1000Mb Ethernet. First Ethernet connector (LAN1) is based on Intel® Clarkville i218LM/i218-V Gigabit PHY. The i218-LM (Q87) has AMT 9.0 support and the i218-V (H81) has no AMT support. Second Ethernet connector (LAN2) is based on Intel® Pearsonville i218AT PCI Express controller.

In order to achieve the specified performance of the Ethernet port, Category 5 twisted pair cables must be used with 10/100MB and Category 5E, 6 or 6E with 1Gb LAN networks.

The signals for the Ethernet ports are as follows:

Signal Description

MDI[0]+ / MDI[0]-

In MDI mode, this is the first pair in 1000Base-T, i.e. the BI_DA+/- pair, and is the transmit pair in 10Base-T and 100Base-TX.

In MDI crossover mode, this pair acts as the BI_DB+/- pair, and is the receive pair in 10Base-T and 100Base-TX.

MDI[1]+ / MDI[1]-

In MDI mode, this is the second pair in 1000Base-T, i.e. the BI_DB+/- pair, and is the receive pair in 10Base-T and 100Base-TX.

In MDI crossover mode, this pair acts as the BI_DA+/- pair, and is the transmit pair in 10Base-T and 100Base-TX.

MDI[2]+ / MDI[2]-

In MDI mode, this is the third pair in 1000Base-T, i.e. the BI_DC+/- pair. In MDI crossover mode, this pair acts as the BI_DD+/- pair.

MDI[3]+ / MDI[3]-

In MDI mode, this is the fourth pair in 1000Base-T, i.e. the BI_DD+/- pair. In MDI crossover mode, this pair acts as the BI_DC+/- pair.

Note: MDI = Media Dependent Interface.

Ethernet LAN1 is mounted together with USB Ports 2 and 3. Ethernet LAN2 is mounted together with USB Ports 0 and 1.

The pinout of the RJ45 connectors is as follows:

Signal

Type

Ioh/Iol

Note

MDI0+

MDI0-

MDI1+

MDI2+

MDI2-

MDI1-

MDI3+

MDI3-

Flashing =>

communication

On => 1GB link

8 7 6 5 4 3 2

1

KTD-N0882-I Page 35 IO-Area Connectors

KTQ87/KTH81 Users Guide

6.3 USB Connectors (IO Area)

The KTQ87 board contains two EHCI (Enhanced Host Controller Interface) and one XHCI (Extensible Host Controller Interface). The two EHCI controllers, EHCI1 and EHCI2, supports up to fourteen USB 2.0 ports allowing data transfers up to 480Mb/s. The XHCI controller supports six USB 3.0 ports allowing data transfers up to 5Gb/s. The six USB 3.0 ports are shared with four of the USB 2.0 ports (USB0 – USB3) from the EHCI1.

Note: Not all USB 2.0 and USB 3.0 ports are physically connected to the board.

The KTQ87/mITX has total of 10 USB ports where four ports support USB 3.0 or USB 2.0 via Rear IO connectors. The KTH81/mITX has total of 10 USB ports where two ports support USB 3.0 or USB 2.0 via Rear IO connectors (USB port 2 & 3 in Rear IO only supports USB 2.0). The KTQ87/Flex has total of 12 USB ports where four ports support USB 3.0 or USB 2.0 via Rear IO connectors. The KTH81/mITX has total of 10 USB ports where two ports support USB 3.0 or USB 2.0 via Rear IO connectors (USB port 2 & 3 in Rear IO only supports USB 2.0).

Legacy Keyboard/Mouse and wakeup from sleep states are supported. Over-current detection on all USB ports is supported. The following USB connectors are available in the IO Area.

USB Port 0 and 1 (via EHCI1/XHCI) are supplied on the combined USB0, USB1 and LAN2 connector. USB Port 2 and 3 (via EHCI1/XHCI) are supplied on the combined USB2, USB3 and LAN1 connector.

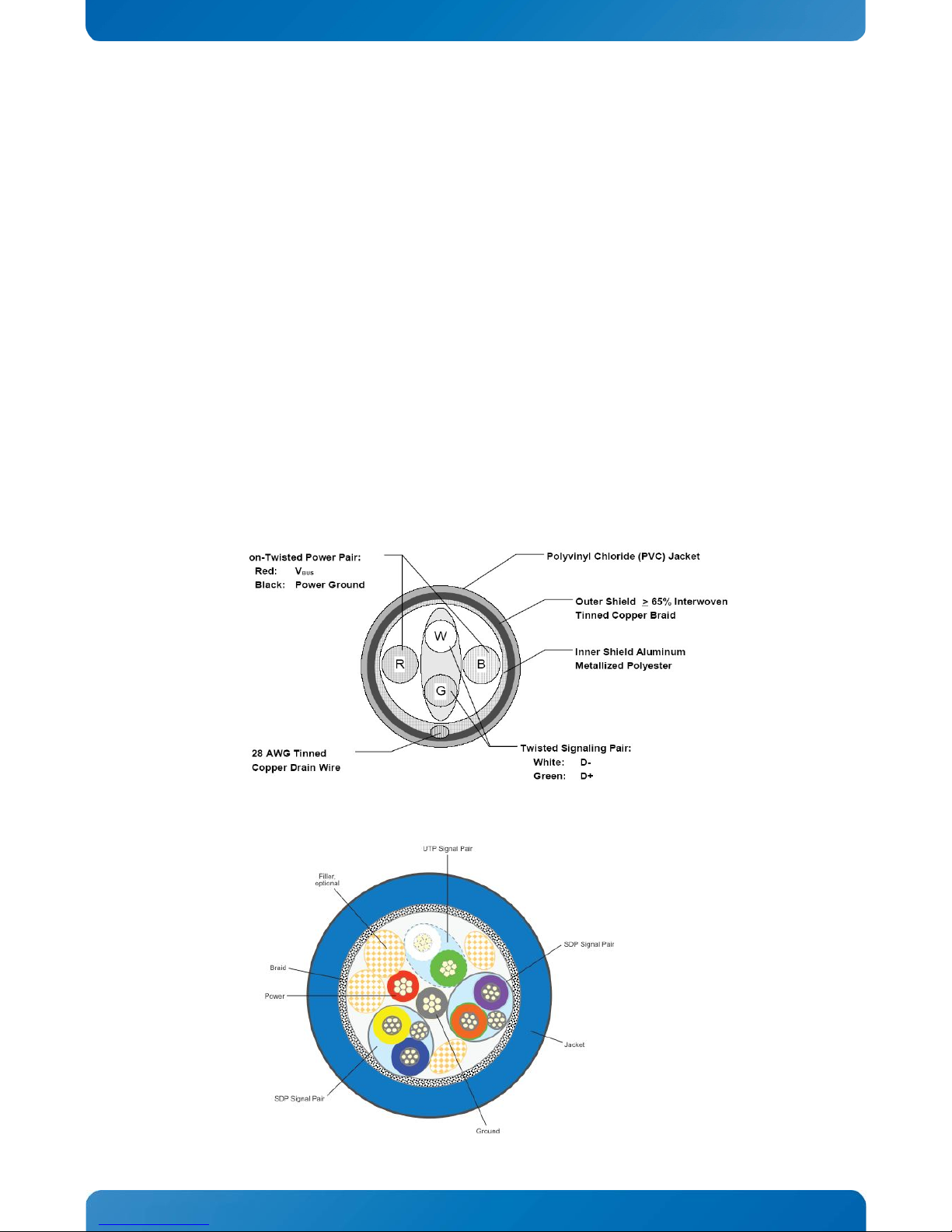

For USB2.0 cabling it is required to use only HiSpeed USB cable, specified in USB2.0 standard:

For USB3.0 cabling it is required to use only HiSpeed USB cable, specified in USB3.0 standard:

KTD-N0882-I Page 36 IO-Area Connectors

KTQ87/KTH81 Users Guide

USB Connector 0/1 (USB0/1)

USB Ports 0 and 1 are mounted together with LAN2 port and supports USB3.0/USB2.0.

Note

Type

Signal

Type

Note

IO

USB1-

USB1+

IO

1

PWR

5V/SB5V

1 2 3 4 GND

PWR

IO

RX1-

5 6 7 8 9

TX1+

IO

RX1+

TX1-

IO

PWR

GND

IO

USB0-

USB0+

IO

1

PWR

5V/SB5V

1 2 3 4 GND

PWR

IO

RX0-

5 6 7 8 9

TX0+

IO

RX0+

TX0-

IO

PWR

GND

Note 1: In order to meet the requirements of USB standard, the 5V input supply must be at least 5.00V.

Signal Description

USBn+ USBn-

RXn+ RXn-

TXn+ TXn-

(n= 0,1)

Differential pair works as serial differential receive/transmit data lines.

5V/SB5V

5V supply for external devices. SB5V is supplied during power-down to allow wakeup on USB device activity. Protected by resettable 2A fuse covering both USB ports.

KTD-N0882-I Page 37 IO-Area Connectors

KTQ87/KTH81 Users Guide

USB Connector 2/3 (USB2/3)

USB Ports 2 and 3 are mounted together with LAN1 port and supports USB3.0/USB2.0.

Note

Type

Signal

Type

Note

IO

USB3-

USB3+

IO

1

PWR

5V/SB5V

1 2 3 4 GND

PWR

IO

RX3-

5 6 7 8 9

TX3+

IO

RX3+

TX3-

IO

PWR

GND

IO

USB2-

USB2+

IO

1

PWR

5V/SB5V

1 2 3 4 GND

PWR

IO

RX2-

5 6 7 8 9

TX2+

IO

RX2+

TX2-

IO

PWR

GND

Note 1: In order to meet the requirements of USB standard, the 5V input supply must be at least 5.00V.

Signal Description

USBn+ USBn-

RXn+ RXn-

TXn+ TXn-

(n= 2,3)

Differential pair works as serial differential receive/transmit data lines.

5V/SB5V

5V supply for external devices. SB5V is supplied during power-down to allow wakeup on USB device activity. Protected by resettable 2A fuse covering both USB ports.

KTD-N0882-I Page 38 IO-Area Connectors

KTQ87/KTH81 Users Guide

6.4 Audio Jack Connector Stack (Audio)

The on-board Audio circuit implements up to 8 Channel High Definition Audio via stacked audiojack connectors and via SPDIF connector, see SPDIF description.

Interface is based on UAA (Universal Audio Architecture), featuring five 24-bit stereo DACs and three 20bit stereo ADCs. Beside 8 channels audio signal the stached audiojack connectors include Line-in (left and right) and Microphone (left and right).

Note

Type

Signal

Type

Note

OA

CEN-OUT

TIP TIP LINE1-IN-L

IA

OA

LFE-OUT

RING

LINE1-IN-R

IA

PWR

GND

SLEEVE

SLEEVE GND

PWR

OA

REAR-OUT-L

TIP TIP

FRONT-OUT-L

OA

REAR-OUT-R

RING

FRONT-OUT-R

OA

PWR

GND

SLEEVE

SLEEVE GND

PWR

OA

SIDE-OUT-L

TIP TIP MIC1-L

IA

OA

SIDE-OUT-R

RING

RING MIC1-R

IA

PWR

GND

SLEEVE

SLEEVE GND

PWR

Signal Description Note

FRONT-OUT-L Front Speakers (Speaker Out Left). Shared w. 3-pin connector (LINEOUT)

FRONT-OUT-R Front Speakers (Speaker Out Right). Shared w. 3-pin connector (LINEOUT)

REAR-OUT-L Rear Speakers (Surround Out Left). N/A

REAR-OUT-R Rear Speakers (Surround Out Right). N/A

SIDE-OUT-L

Side speakers (Surround Out Left) N/A

SIDE-OUT-R

Side speakers (Surround Out Right) N/A

CEN-OUT

Center Speaker (Center Out channel). N/A

LFE-OUT

Subwoofer Speaker (Low Freq. Effect Out). N/A

MIC1

MIC Input 1 N/A

LINE1-IN Line in 1 signals

N/A

Port 2-channel 4-channel 6-channel 8-channel

Light Blue

Line in

Lime

Line out

Front speaker out

Pink

Mic in

Audio header

- - -

Side speaker out

Audio header

-

Rear speaker out

Audio header

-

Center/ Subwoofer

KTD-N0882-I Page 39 Internal Connectors

KTQ87/KTH81 Users Guide

7 Internal Connectors

The KTQ87/KTH81 boards are designed to be supplied from a standard ATX (or BTX) power supply. Use of BTX supply is not required for operation, but may be required to drive high-power PCIe cards.

Warning: Hot plugging any of the two power connectors is not allowed. Hot plugging might damage the board. In other words, turn off main supply etc. to makesure all the power lines (+12V, 5V, SB5V, 3.3V, -5V,

-12V) are turned off when connecting to the motherboard.

Note 1: Use of both the ATX24P and the ATX4p connectors are required for operation of the KTQ87/KTH81.

7.1 Power Connector (ATX24P)

Note

Type

Signal

Type

Note

PWR

3V3

12

24 GND

PWR

+12V

11

23 5V

PWR

+12V

10

22 5V

PWR

SB5V

9

21 5V

PWR I P_OK

8

20 -5V

PWR

1

PWR

GND

7

19 GND

PWR

5V

6

18 GND

PWR

GND

5

17 GND

PWR

5V

4

16 PSON#

OC

PWR

GND

3

15 GND

PWR

3V3

2

14 -12V

PWR

3V3

1

13 3V3

PWR

See chapter “Power Consumption” regarding input tolerances on 3.3V, 5V, SB5V, +12 and -12V (also refer to ATX specification version 2.2).

7.2 Power Connector (ATX4p)

Note

Type

Signal

Type

Note

PWR

GND

2 4

+12V

PWR 1

PWR

GND

1 3

+12V

PWR

1

Signal Description

P_OK

P_OK is power good signal driven by the ATX Power Supply and indicating that the +5VDC and

+3.3VDC outputs are above the undervoltage thresholds. The recommended electrical and timing characteristics of the P_OK (PWR_OK) signal are provided in the ATX12V Power SupplyDesign Guide.

It is strongly recommended to use an ATX or BTX supply, in order to provide supervision of the 5V and 3V3 supplies. These supplies are not supervised on-board.

PS_ON#

Active low open drain signal from the board to the power supply to turn on the power supply outputs. Signal must be pulled high by the power supply.

KTD-N0882-I Page 40 Internal Connectors

KTQ87/KTH81 Users Guide

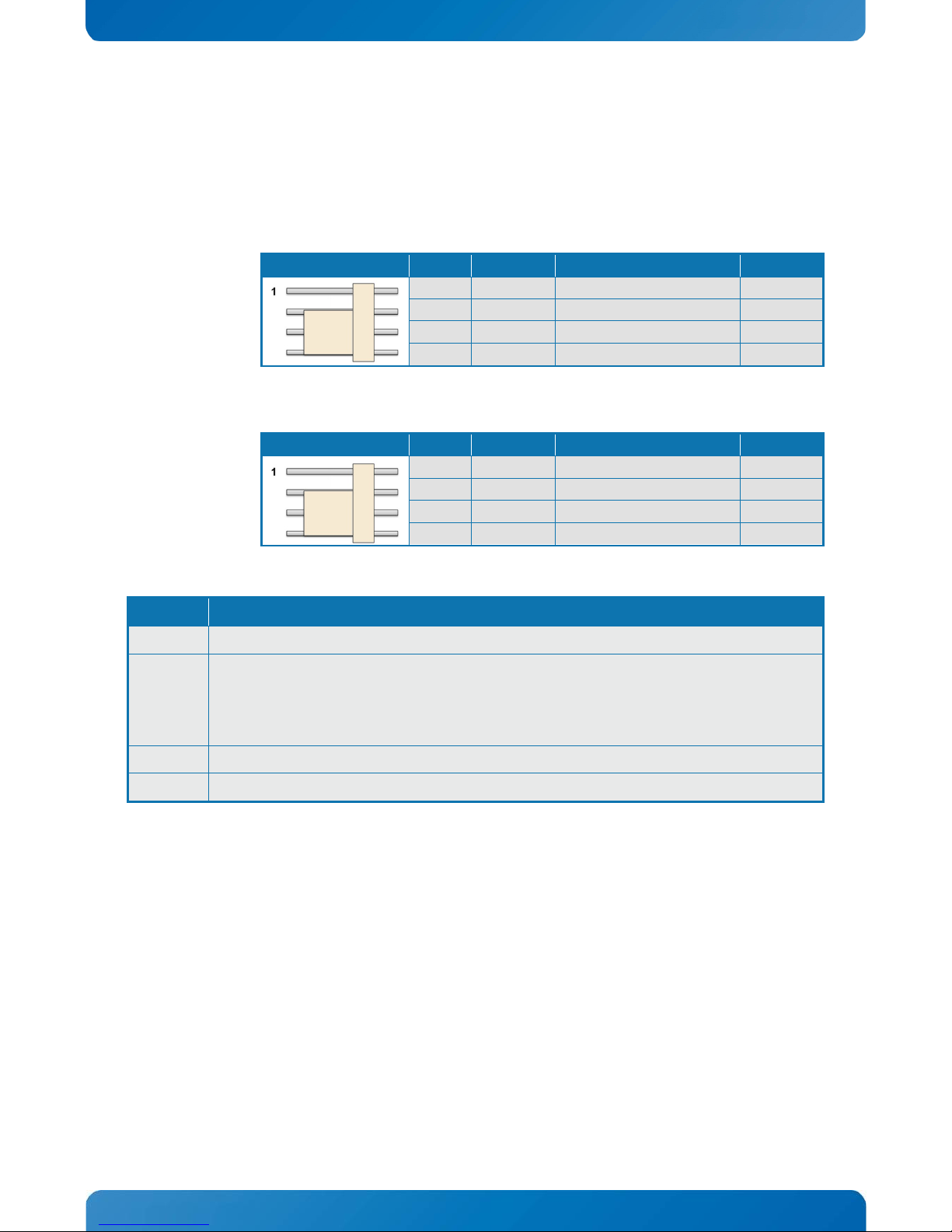

7.3 Fan Connectors (CPU_Fan, SYS_Fan1, SYS_Fan2)

The SYS_FAN1 and SYS_Fan2 can be used to power, control and monitor fans for chassis ventilation etc. The CPU_Fan is used for the connection of the FAN included in active CPU coolers.

The 4pin header is recommended to be used for driving 4-wire type Fan in order to implement FAN speed control. 3-wire Fan support is also possible, but no fan speed control is integrated.

4-pin Mode:

3-pin Mode:

Signal Description

PWM PWM output signal for FAN speed control.

TACHO Tacho input signal from the fan, for rotation speed supervision RPM (Rotation Per Minute). The

signal shall be generated by an open collector transistor or similar. Onboard is a pull-up resistor 4K7 to +12V. The signal has to be pulsed and onboard circuit is prepared for two pulses per rotation.

12V +12V supply for fan. A maximum of 2000mA can be supplied from this pin.

GND Power Supply GND signal

Header

Signal

Description

Type

1

PWM

PWM output

O-3.3

2

TACHO

Tacho signal

I

3

12V

Power +12V

PWR

4

GND

Ground

PWR

Header

Signal

Description

Type

1 Not used

2 TACHO

Tacho signal

I 3 12V

Power +12V

PWR 4 GND

Ground

PWR

KTD-N0882-I Page 41 Internal Connectors

KTQ87/KTH81 Users Guide

7.4 PS/2 Keyboard and Mouse connector (KBD/MSE) (PS2)

Attachment of a PS/2 keyboard/mouse can be done through the pinrow connector KBD/MSE (Flex boards only). Both interfaces utilize open-drain signalling with on-board pull-up.

The PS/2 mouse and keyboard is supplied from SB5V when in standby mode in order to enable keyboard or mouse activity to bring the system out from power saving states. The supply is provided through a 1.1A resettable fuse.

Signal

Type

Ioh/Iol

Pull U/D

Note

1 KBDCLK

IOD

/14mA

2K7

2 KBDDAT

IOD

/14mA

2K7

3 MSCLK

IOD

/14mA

2K7

4 MSDAT

IOD

/14mA

2K7

5 5V/SB5V

PWR - -

6

GND

PWR - -

Signal Description – Keyboard & and mouse Connector (KBDMSE).

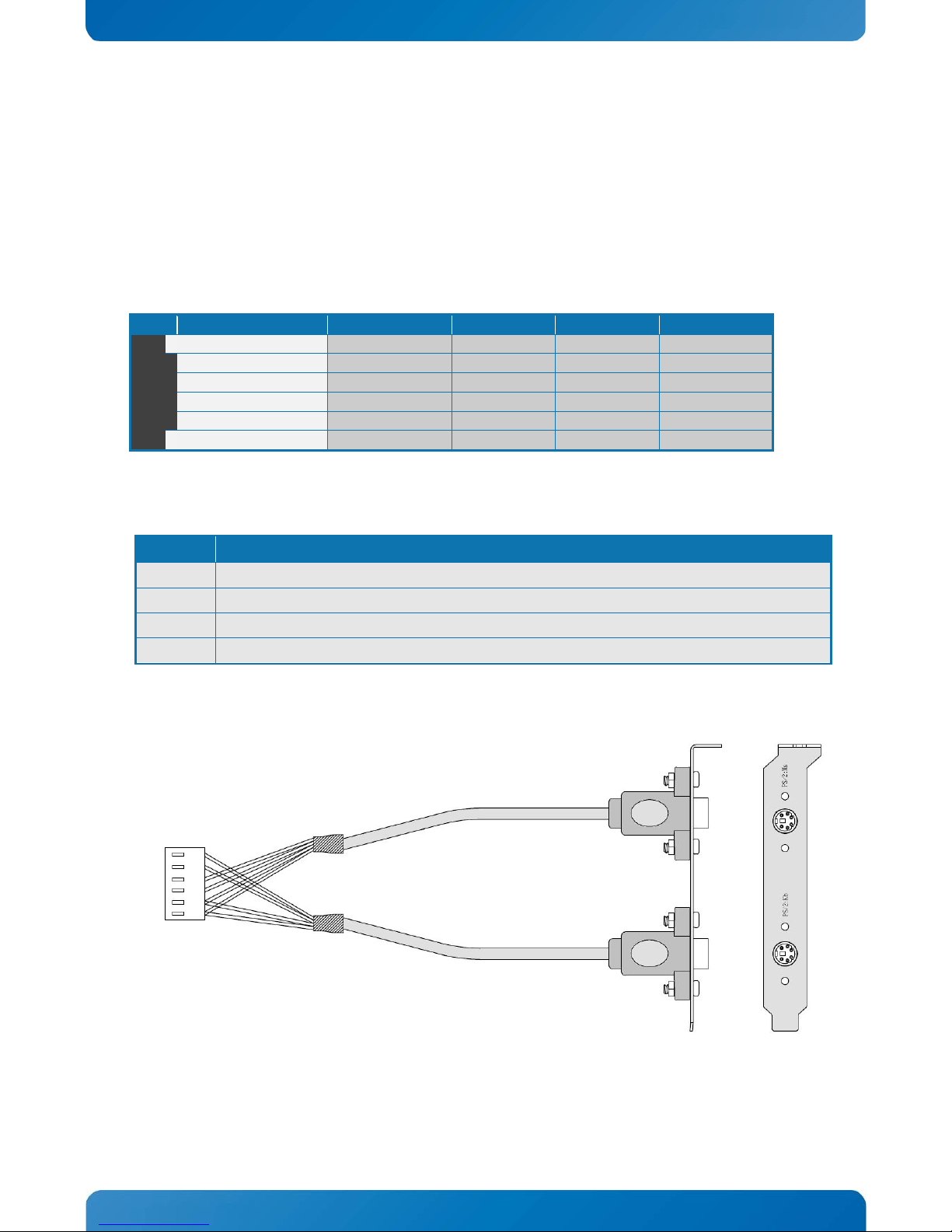

Available cable kit:

PN 1053-2384 Bracket Cable 6-Pin to PS2-Kbd-Mse

Signal Description

MSCLK Bi-directional clock signal used to strobe data/commands from/to the PS/2 mouse.

MSDAT Bi-directional serial data line used to transfer data from or commands to the PS/2 mouse.

KDBCLK Bi-directional clock signal used to strobe data/commands from/to the PC-AT keyboard.

KBDDAT Bi-directional serial data line used to transfer data from or commands to the PC-AT keyboard.

KTD-N0882-I Page 42 Internal Connectors

KTQ87/KTH81 Users Guide

7.5 LVDS Flat Panel Connector (LVDS)

The LVDS connector (Flex boards only) is based on 40 pole connector type Samtec SHF-120-01-F-D-SM-KTR or similar.

Note

Type

Signal

Type

Note

Max. 0.5A

PWR

+12V

1 2 +12V

PWR

Max. 0.5A

PWR

+12V

3 4 +12V

PWR

Max. 0.5A

PWR

+12V

5 6 GND

PWR

Max. 0.5A

PWR

+5V

7 8 GND

PWR

Max. 0.5A

PWR

LCDVCC

9 10 LCDVCC

PWR

Max. 0.5A

2K2Ω, 3.3V

OT

DDC CLK

11

12 DDC DATA

OT

2K2Ω, 3.3V

3.3V level

OT

BKLTCTL

13

14 VDD ENABLE

OT

3.3V level

OT

BKLTEN#

15

16 GND

PWR

Max. 0.5A

LVDS

LVDS A0-

17

18 LVDS A0+

LVDS

LVDS A1-

19

20 LVDS A1+

LVDS

LVDS A2-

21

22 LVDS A2+

LVDS

LVDS ACLK-

23

24 LVDS ACLK+

LVDS

LVDS A3-

25

26 LVDS A3+

LVDS

Max. 0.5A

PWR

GND

27

28 GND

PWR

Max. 0.5A

LVDS

LVDS B0-

29

30 LVDS B0+

LVDS

LVDS B1-

31

32 LVDS B1+

LVDS

LVDS B2-

33

34 LVDS B2+

LVDS

LVDS BCLK-

35

36 LVDS BCLK+

LVDS

LVDS B3-

37

38 LVDS B3+

LVDS

Max. 0.5A

PWR

GND

39

40 GND

PWR

Max. 0.5A

Note: The LVDS connector supports single and dual channel, 18/24bit SPWG panels up to a resolution of

1600x1200 or 1920x1080 and with limited frame rate up to 1920x1200.

Signal Description – LVDS Flat Panel Connector:

Signal

Description

LVDS A0..A3

LVDS A Channel data

LVDS ACLK

LVDS A Channel clock

LVDS B0..B3

LVDS B Channel data

LVDS BCLK

LVDS B Channel clock

BKLTCTL

Backlight control (1), PWM signal to implement voltage in the range 0-3.3V

BKLTEN#

Backlight Enable signal (active low) (2)

VDD ENABLE

Output Display Enable.

LCDVCC

VCC supply to the display. 5V or 3.3V (1A Max.) selected in BIOS setup menu. Power sequencing depends on LVDS panel selection. (Shared with eDP connector)

DDC CLK

DDC Channel Clock

Notes: Windows API will be available to operate the BKLTCTL signal. Some Inverters have a limited voltage

range 0- 2.5V for this signal: If voltage is > 2.5V the Inverter might latch up. Some Inverters generates noise on the BKLTCTL signal, causing the LVDS transmission to fail (corrupted picture on the display). By adding a 1Kohm resistor in series with this signal, mounted at the Inverter end of the cable kit, the noise is limited and the picture is stable. If the Backlight Enable is required to be active high then, check the following BIOS Chipset setting: Backlight Signal Inversion = Enabled.

KTD-N0882-I Page 43 Internal Connectors

KTQ87/KTH81 Users Guide

7.6 SATA (Serial ATA) Disk interface

KTQ87 / KTH81 has integrated SATA Host controller (PCH in the Q87 / H81 chipset) which supports independent DMA operation on 6 / 4 ports. One device can be installed on each port, via point-to-point interface (SATA cable), for a maximum of 6 / 4 SATA devices. On the mITX the SATA ports are available as 5 / 3 SATA connectors + 1 mSATA connector and on the Flex the SATA ports are available as 6 / 4 SATA connectors.

All the SATA ports on the Q87 support SATA Gen3 (6.0/3.0/1.5Gb/s) are supported, while two SATA ports on the H81 supports Gen3 and the remaining two ports support Gen2 (3.0/1.5Gb/s).

Note: Before installing OS on a SATA drive make sure the drive is not a former member of a RAID system. If so some hidden data on the disk has to be erased. To do this, connect two SATA drives and select RAID in BIOS. Save settings and select <Ctrl> <I> while booting to enter the RAID setup menu. Now the hidden RAID data will be erased from the selected SATA drive.

Note: KTH81 do not support RAID.

The SATA controller supports:

2 to 6-drive RAID 0 (data striping) 2-drive RAID 1 (data mirroring) 3 to 6-drive RAID 5 (block-level striping with parity). 4-drive RAID 10 (data striping and mirroring) 2 to 6-drive matrix RAID, different parts of a single drive can be assigned to different RAID devices. AHCI (Advanced Host Controller Interface) NCQ (Native Command Queuing). NCQ is for faster data access. Swap bay support (not supported on mSATA) Intel® Rapid Recover Technology 2 – 256TB volume (Data volumes only) Capacity expansion TRIM in Windows 7 (in AHCI and RAID mode for drives not part of a RAID volume). (TRIM is for SSD data garbage handling).

Sata connector pinning: SATA0, SATA1, SATA2, SATA3, SATA4 and SATA5. (SATA1 used by mSATA on mITX)

Signal

Type

Ioh/Iol

Note

1

GND

PWR - 2

SATA* TX+

3

SATA* TX-

4

GND

PWR -

5

SATA* RX-

6

SATA* RX+

7

GND

PWR -

Signal Description

SATA* RX+ / RX- Host transmitter differential signal pair

SATA* TX+ / TX-

Host receiver differential signal pair

“*” specifies 0, 1, 2, 3, 4, 5 depending on SATA port.

Available cable kit:

PN 821035 Cable SATA 500mm

KTD-N0882-I Page 44 Internal Connectors

KTQ87/KTH81 Users Guide

7.7 USB Connectors (USB)

The KTQ87 board contains two EHCI (Enhanced Host Controller Interface) host controllers (EHCI1 and EHCI2) and a XHCI (Extensible Host Controller Interface). The EHCI controllers support up to fourteen USB

2.0 ports allowing data transfers up to 480Mb/s and the XHCI controller supports up to six USB 3.0 ports allowing data transfers up to 5Gb/s. Four of the USB 3.0 ports are shared with four of the USB 2.0 ports (USB0 – USB3).

Note: Not all USB 2.0 and USB 3.0 ports are physically connected to the board.

Legacy Keyboard/Mouse and wakeup from sleep states are supported. Over-current detection on all fourteen USB ports is supported.

Notes: On KTQ87, the four USB 3.0 ports (USB0 – USB3) are shared with four of the EHCI1 USB 2.0 ports. On KTH81, the two USB 3.0 ports (USB0 – USB1) are shared with two of the EHCI1 USB 2.0 ports. KTH81 only supports two USB 3.0 ports.

See chapter “USB Connectors (IO Area)” for more information on USB0 – USB3.

The following USB ports are available on Internal Pinrows:

USB 4 & 5 (via EHCI1) are supplied on USB4/5 internal pinrow connector (USB1). USB 6 & 7 (via EHCI1) are supplied on USB6/7 internal pinrow connector (USB2). (KTQ87/Flex only). USB 8 & 9 (via EHCI2):

Flex: are supplied on the USB8/9 internal pinrow connector (USB3). mITX: USB8 is supplied on the mPCIe slot and USB9 is supplied on mSATA slot.

USB Port 10 and 11 (via EHCI2) are supplied on the USB10/11 internal pinrow FRONTPNL connector.

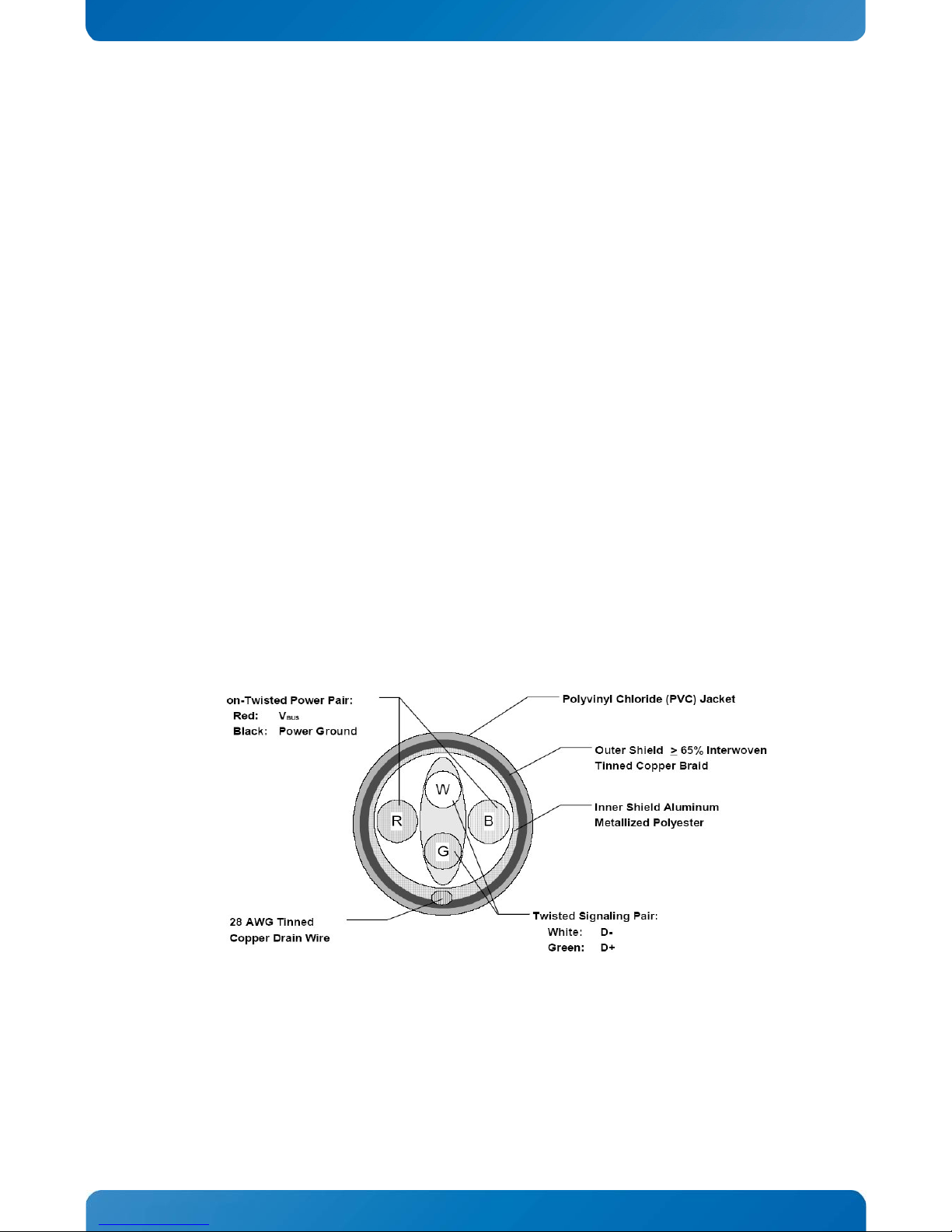

Note: It is required to use only HiSpeed USB cable, specified in USB2.0 standard:

KTD-N0882-I Page 45 Internal Connectors

KTQ87/KTH81 Users Guide

USB 4 & 5 (USB4/5) (USB1)

USB Ports 4 and 5 are supplied on the internal USB4/5 pinrow connector USB1.

Note

Type

Signal

Type

Note

1

PWR

5V/SB5V

1 2 5V/SB5V

PWR

1

IO

USB8-

3 4 USB9-

IO

USB8+

5 6 USB9+

IO

PWR

GND

7 8 GND

PWR

NC

KEY

9 10 NC

NC

USB 6 & 7 (USB6/7) (USB2)

USB Ports 6 and 7 are supplied on the internal USB6/7 pinrow connector USB1. (KTQ87/Flex only).

Note

Type

Signal

Type

Note

1

PWR

5V/SB5V

1 2 5V/SB5V

PWR

1

IO

USB8-

3 4 USB9-

IO

USB8+

5 6 USB9+

IO

PWR

GND

7 8 GND

PWR

NC

KEY

9 10 NC

NC

USB 8 & 9 (USB8/9) (USB3)

USB Ports 6 and 7 are supplied on the internal USB6/7 pinrow connector USB1. (Flex only).

Note

Type

Signal

Type

Note

1

PWR

5V/SB5V

1 2 5V/SB5V

PWR

1

IO

USB8-

3 4 USB9-

IO

USB8+

5 6 USB9+

IO

PWR

GND

7 8 GND

PWR

NC

KEY

9 10 NC

NC

Note1:

In order to meet the requirements of USB standard, the 5V input supply must be at least 5.00V.

Available cable kit:

PN 821401 Bracket Dual USB Cable

Signal Description

USBx+ USBx-

Differential pair works as Data/Address/Command Bus.

5V/SB5V

5V supply for external devices. SB5V is supplied during powerdown to allow wakeup on USB device activity. Each 5V protected by resettable 1A fuse.

KTD-N0882-I Page 46 Internal Connectors

KTQ87/KTH81 Users Guide

7.8 Serial COM1 – COM2 Ports (COM1, COM2)

Two RS232 serial ports are available on the KTQ87/KTH81.

The typical definition of the signals in the COM ports is as follows:

Signal Description

TxD

Transmitted Data, sends data to the communications link. The signal is set to the marking state (12V) on hardware reset when the transmitter is empty or when loop mode operation is initiated.

RxD Received Data, receives data from the communications link.

DTR

Data Terminal Ready, indicates to the modem etc. that the on-

board UART is ready to establish a

communication link.

DSR Data Set Ready, indicates that the modem etc. is ready to establish a communications link.

RTS Request To Send, indicates to the modem etc. that the on-board UART is ready to exchange data.

CTS Clear To Send, indicates that the modem or data set is ready to exchange data.

DCD Data Carrier Detect, indicates that the modem or data set has detected the data carrier.

RI Ring Indicator, indicates that the modem has received a ringing signal from the telephone line.

The pinout of Serial ports COM1 (J19), COM2 (J18)

Note

Ioh/Iol

Type

Signal

Type

Ioh/Iol

Note

- I

DCD 1 2

DSR I -

- I

RxD 3 4

RTS O O

TxD 5 6

CTS I -

O

DTR 7 8

RI I -

- PWR

GND 9

10 5V

PWR - 1

Note 1: The COM1, COM2 5V supply is fused with common 1.5A resettable fuse.

DB9 adapter cables (PN 821016 200mm long and 821017 100mm long) are available for implementing standard COM ports on chassis.

Available cable kit (DB9 adapter cables):

PN 821017 - 100 mm or PN 821016 - 200 mm

KTD-N0882-I Page 47 Internal Connectors

KTQ87/KTH81 Users Guide

7.9 Audio Connectors

The on-board Audio circuit implements 7.1+2 Channel High Definition Audio with UAA (Universal Audio Architecture), featuring five 24-bit stereo DACs and three 20-bit stereo ADCs.

The following Audio connectors are available as Internal connectors.

Headphone and Mic2

Headphone and Mic2 are accessible via Front Panel Connector, see Front Panel Connector description.

Front Speakers (LINEOUT)

The Front Speakers (Left and Right) interface is available through 3-pin connector. These outputs are shared with the Speaker Audio Jack connector (green). Up to 100 dB Signal-to-Noise Ratio (SNR).

Signal

Type

Ioh/Iol

Pull U/D

Note

1

Front Speaker-R

- -

2

GND

PWR - -

3

Front Speaker -L

- - -

SPDIF (SP-DIF)

The digital audio interface (electrical SPDIF-Out) is available through 3-pin connector and can be used to implement 8 (7.1) Channel High Definition Audio.

Circuit is based on high fidelity 8-channel HD audio codec which is compatible with Intel HD Audio specification and supports stereo 24-bit resolution and up to 192 kHz sample rate for DACs/ADCs. Up to 90 dB Signal-to-Noise Ratio (SNR).

16/20/24-bit S/PDIF TX Outputs supporting 48K/96K/44.1K/88.2 KHz sample rate

Signal

Type

Ioh/Iol

Pull U/D

Note

1

5V

- -

2

SPDIF-OUT

- - 3

GND

PWR - -

KTD-N0882-I Page 48 Internal Connectors

KTQ87/KTH81 Users Guide

7.10 Front Panel Connector (FRONTPNL) (J2)

Note

Pull U/D

Ioh/ Iol

Type Signal PIN Signal Type

Ioh/ Iol

Pull U/D

Note

- -

PWR

USB10/11_5V

1 2 USB10/11_5V

PWR - - - - USB10-

3 4 USB11-

- -

- - USB10+

5 6 USB11+

- -

PWR

GND 7 8

GND

PWR - -

- -

NC

NC 9

10 Headphone-L

- -

PWR

+5V 11

12 +5V

PWR - -

- 25/25mA

O

SATA_LED#

13

14 SUS_LED

O

7mA

-

- -

PWR

GND 15

16 PWRBTN_IN#

I 1K1

4K7 - I

RSTIN#

17

18 GND

PWR - -

- -

PWR

SB3V3

19

20 Headphone-R

- -

PWR

AGND

21

22 AGND

PWR - -

- -

AI

MIC2-L

23

24 MIC2-R

AI - -

Signal

Description

USB10/11_5V

5V supply for external devices. SB5V is supplied during powerdown to allow wakeup on USB device activity. Protected by resettable 1.1A fuse covering both USB ports.

USB10+/USB10-

Universal Serial Bus Port 10 Differentials: Bus Data/Address/Command Bus.

USB11+/USB11-

Universal Serial Bus Port 11 Differentials: Bus Data/Address/Command Bus.

+5V

Maximum load is 1A or 2A per pin if using IDC connector flat cable or crimp terminals respectively.

SATA_LED#

SATA Activity LED (active low signal). 3V3 output when passive.

SUS_LED

Suspend Mode LED (active high signal). Output 3.3V via 470Ω.

PWRBTN_IN#

Power Button In. Toggle this signal low to start the ATX / BTX PSU and boot the board.

RSTIN#

Reset Input. When pulled low for a minimum 16ms, the reset process will be initiated. The reset process continues even though the Reset Input is kept low.

Headphone

Headphone stereo signals (different audio stereo channel than Front Speaker signals).

MIC2

MIC2 is second stereo microphone input.

SB3V3

Standby 3.3V voltage.

AGND

Analogue Ground for Audio.

Available cable kit:

PN 821042 Cable Front Panel Open-End, 300 mm

KTD-N0882-I Page 49 Internal Connectors

KTQ87/KTH81 Users Guide

7.11 Feature Connector (Feature) (J1)

Notes: 1. Pull-up to +3V3Dual (+3V3 or SB3V3). 2. Pull-up to on-board Battery. 3. Pull-up to +3V3. 4. Not Available. 5. Not available on mITX, Shared with onboard FAN2 on Flex.

Signal Description

CASE_OPEN#

CASE OPEN, used to detect if the system case has been opened. This signal’s status is readable, so it may be used like a GPI when the Intruder switch is not required.

SMBC SMBus Clock signal

SMBD SMBus Data signal

S3#

S3 sleep mode, active low output, optionally used to deactivate external system.

S5#

S5 sleep mode, active low output, optionally used to deactivate external system.

PWR_OK

PoWeR OK, signal is high if no power failures are detected. (This is not the same as the P_OK signal generated by ATX PSU).

EXT_BAT

(EXTernal BATtery) option for connecting + terminal of an external primary cell battery (2.5

- 3.47 V) (–

terminal connected to GND). The external battery is protected against charging

and can be used with/without the on-board battery installed.

FAN3OUT FAN 3 speed control OUTput, 3.3V PWM signal can be used as Fan control voltage.

FAN3IN FAN3 Input. 0V to +3V3 amplitude Fan 3 tachometer input.

FAN4OUT FAN 4 speed control OUTput, 3.3V PWM signal can be used as Fan control voltage.

FAN4IN FAN4 Input. 0V to +3V3 amplitude Fan 3 tachometer input.

SB3V3 Max. load is 0.75A (1.5A < 1 sec.)

SB5V StandBy +5V supply.

continues

Note

Pull U/D

Ioh/Iol

Type

Signal

Type

Ioh/Iol

Pull U/D

Note

2

2M/ - I

CASE_OPEN#

1 2 SMBC

/4mA

10K/

1

- 25/25mA

O

S5# 3 4

SMBD

/4mA

10K/

1

- 25/25mA

O

PWR_OK

5 6 EXT_BAT

PWR - -

5 - O FAN3OUT

7 8 FAN3IN

I - -

5

- -

PWR

SB3V3

9 10 SB5V

PWR - -

-

IOT

GPIO0

11

12 GPIO1

IOT -

-

IOT

GPIO2

13

14 GPIO3

IOT - -

IOT

GPIO4

15

16 GPIO5

IOT -

-

IOT

GPIO6

17

18 GPIO7

IOT -

- -

PWR

GND 19

20 GND

PWR - -

- I GPIO8

21

22 GPIO9

I -

- I GPIO10

23

24 GPIO11

I - - I GPIO12

25

26 GPIO13

IOT -

4 -

IOT

GPIO14

27

28 GPIO15

IOT -

4 -

IOT

GPIO16

29

30 GPIO17

IOT -

- -

PWR

GND 31

32 GND

PWR - -

- 8/8mA

O

EGCLK

33

34 EGCS#

O

8/8mA

-

- 8/8mA

EGAD

35

36 TMA0

O

-

PWR

+12V

37

38 GND

PWR - - 4 - O FAN4OUT

39

40 FAN4IN

I - -

4

- -

PWR

GND 41

42 GND

PWR - -

- -

PWR

GND 43

44 S3# O 25/25mA

-

KTD-N0882-I Page 50 Internal Connectors

KTQ87/KTH81 Users Guide

The GPIO’s are controlled via the ITE IT8516F Embedded Controller. Each GPIO has 100pF to ground, clamping Diode to 3V3 and has multiplexed functionality. Some pins can be DAC (Digital to Analogue Converter output), PWM (Pulse Width Modulated signal output), ADC (Analogue to Digital Converter input), TMRI (Timer Counter Input), WUI (Wake Up Input), RI (Ring Indicator Input) or some special function.

Signal IT8516F pin name Type Description

GPIO0

DAC0/GPJ0

AO/IOS

GPIO1

DAC1/GPJ1

AO/IOS

GPIO2

DAC2/GPJ2

AO/IOS

GPIO3

DAC3/GPJ3

AO/IOS

GPIO4

PWM2/GPA2

O8/IOS

GPIO5

PWM3/GPA3

O8/IOS

GPIO6

PWM4/GPA4

O8/IOS

GPIO7

PWM5/GPA5

O8/IOS

GPIO8

ADC0/GPI0

AI/IS

GPIO9

ADC1/GPI1

AI/IS

GPIO10

ADC2/GPI2

AI/IS

GPIO11

ADC3/GPI3

AI/IS

GPIO12

ADC4/WUI28/GPI4

AI/IS/IS

GPIO13

RI1#/WUI0/GPD0

IS/IS/IOS

GPIO14

RI2#/WUI1/GPD1

IS/IS/IOS

not available (used internally)

GPIO15

TMRI0/WUI2/GPC4

IS/IS/IOS

GPIO16

TMRI1/WUI3/GPC6

IS/IS/IOS

not available (used internally)

GPIO17

L80HLAT/BAO/WUI24/GPE0

O4/O4/IS/IOS

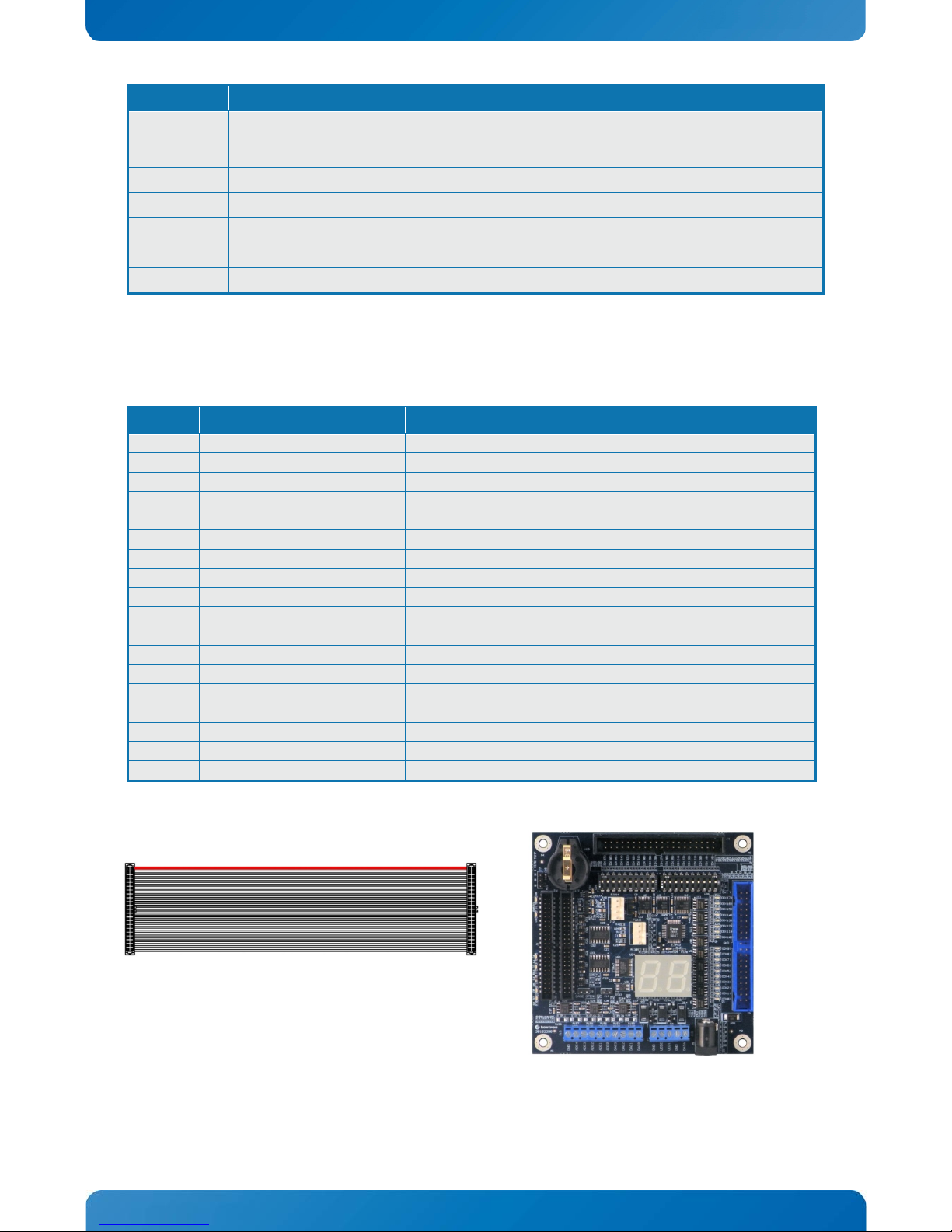

Available cable kit and Break-Out-Board:

PN 1052-5885 Cable, Feature 44pol 1 to1, 300mm

PN 820978 Feature BOB (Break-Out-Board)

Signal Description

GPIO0..17

General Purpose Inputs / Output. These Signals may be controlled or monitored through

the use of the KT-API-V2 (Application Programming Interface).

(GPIO14 and GPIO16 not

available, used internally)

EGCLK

Extend GPIO Clock signal

EGAD Extend GPIO Address Data signal

EGCS# Extend GPIO Chip Select signal, active low

TMA0 Timer Output

+12V Max. load is 0.75A (1.5A < 1 sec.)

KTD-N0882-I Page 51 Internal Connectors

KTQ87/KTH81 Users Guide

mITX

Flex

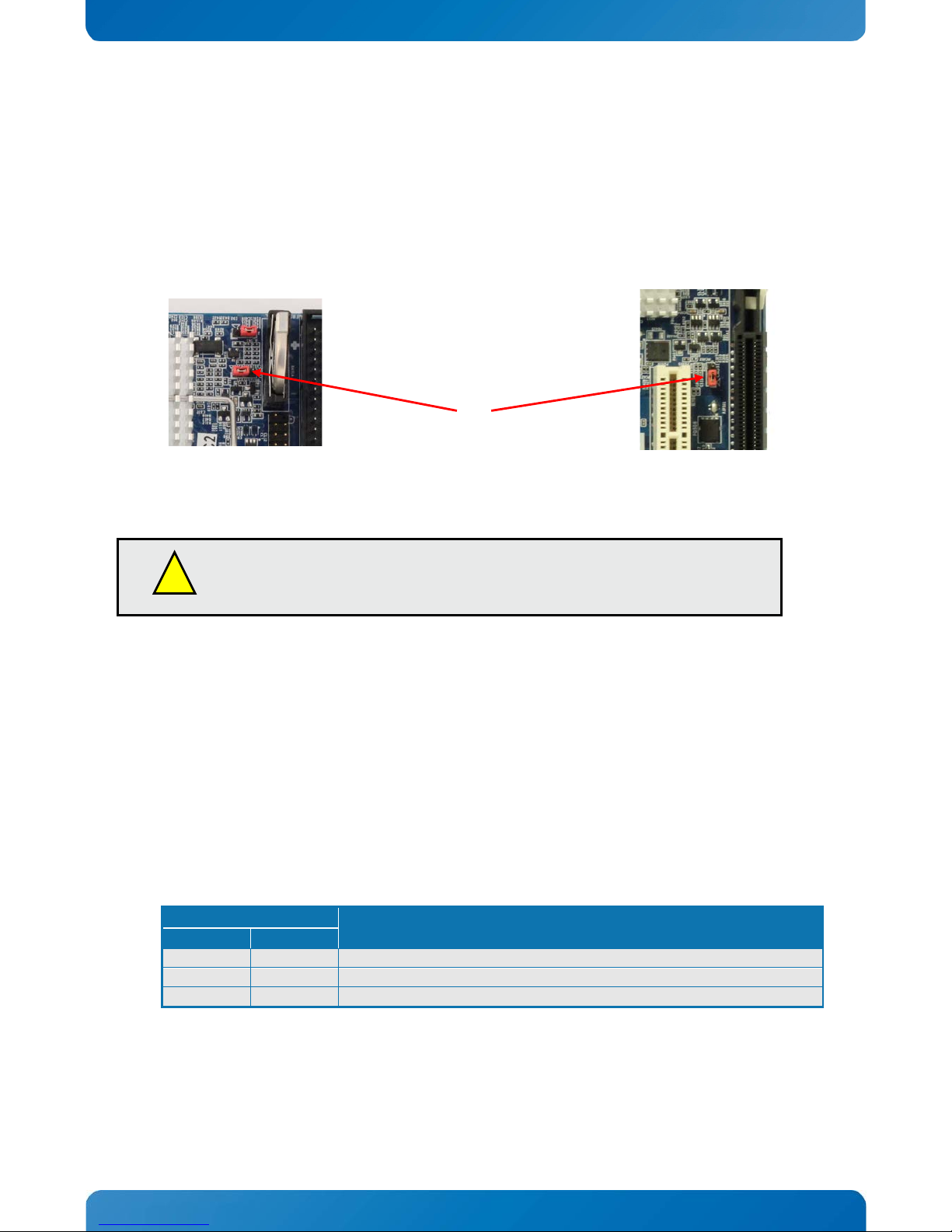

Load default Jumper

(Shown in Default position)

Warning Don’t leave the jumper in position 2-3, otherwise if power is disconnected, the

battery will fully deplete within a few weeks.

7.12 “Load Default BIOS Settings” (Load default) (CMOS)

The “Load Default BIOS Settings” Jumper (J5) can be used to recover from incorrect BIOS settings. As an example, incorrect BIOS setting which causes the attached display not to turn on can be erased by this Jumper.

The Jumper has 3 positions: Pin 1-2, Pin2-3 (default position) and not mounted.

To Load Default BIOS Settings, inclusive erasing password and RTC:

1. Turn off power completely (no SB5V).

2. Remove the Jumper completely from CMOS1.

3. Insert jumper into position 2-3 (Clear CMOS data).

4. Wait for 10 sec.

5. Move the Jumper back to position 1-2 (default position).

6. Turn on power (use the Power On Button if required to boot).

7. Motherboard beeps number of times.

8. CMOS data lost message are shown.

9. Reboot and enter BIOS setup menu and select new settings.

Motherboard might automatically reboot a few times. Wait until booting is completed.

CMOS1

Description

pin1-2

pin2-3

X

-

Default position

-

X

Load Default BIOS Settings exclusive erasing Password

-

No function. Note: may load default BIOS settings after several minutes

!

KTD-N0882-I Page 52 Internal Connectors

KTQ87/KTH81 Users Guide

mITX

Flex

Always ON Jumper

(Shown in Default position)

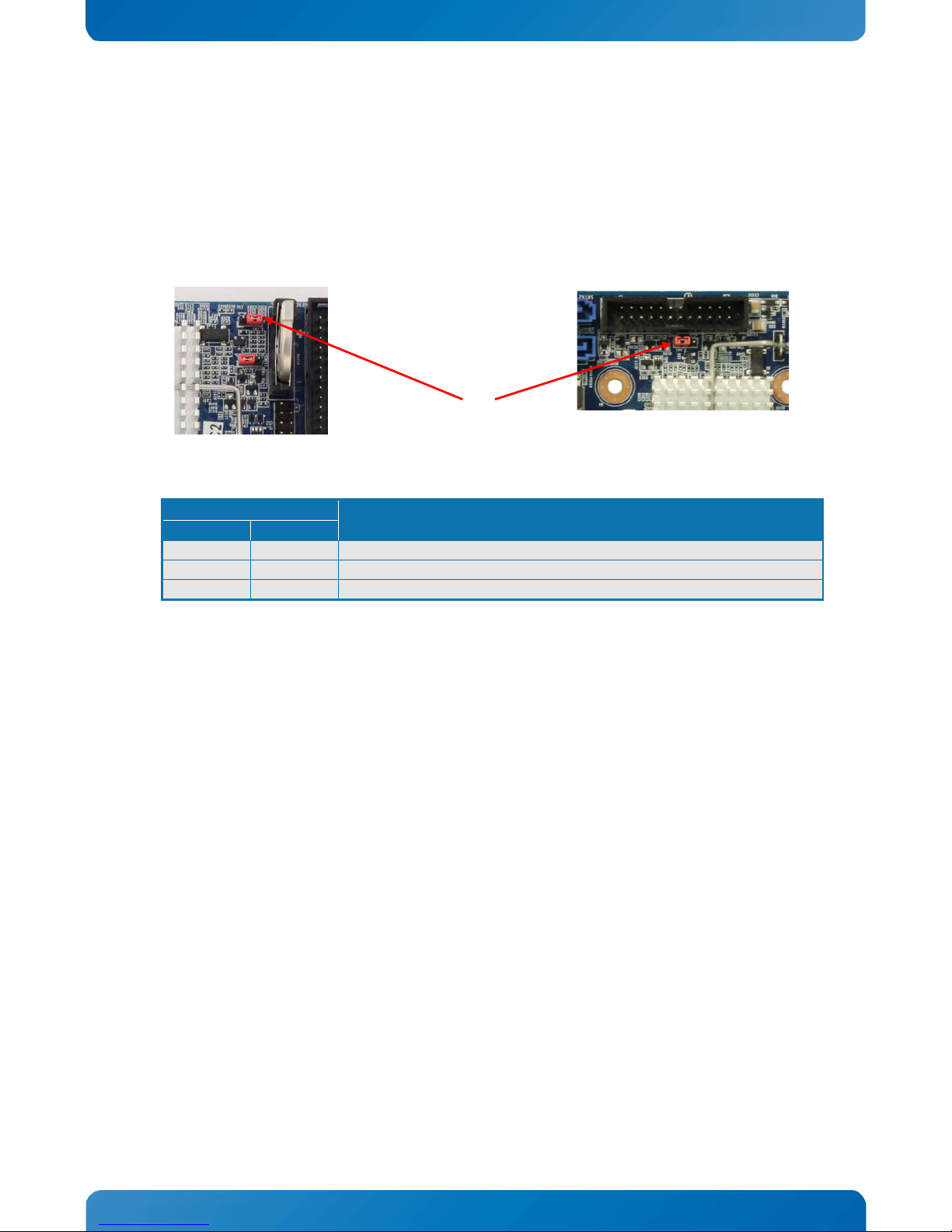

7.13 “Always On” (Always On) (A_ON)

The “Always On” can be used to implement hardware controlled Always ON by jumper. When “Always On” is selected, then the board will power up automatically when power is connected.

The board can still be shut down by PWRBTN_IN# (power button in) activation (via Front Panel connector).

Always On

Description

pin1-2

pin2-3

X

-

Always On selection

-

X

Default position

-

No function. Note: may load default BIOS settings after several minutes

KTD-N0882-I Page 53 Internal Connectors

KTQ87/KTH81 Users Guide

7.14 SPI Connector (SPI_HEAD)

The SPI Connector is normally not used. If however a SPI BIOS is connected via the SPI Connector then the board will attempt to boot from it.

Note

Pull U/D

Ioh/Iol

Type

Signal

Type

Ioh/Iol

Pull U/D

Note

1 - CLK

1 2 SB3V3

PWR - -

- I CS0#

3 4 ADDIN

IO /10K

10K/

- NC

5 6 NC

- - -

10K/

IO

MOSI

7 8 ISOLATE#

IO 100K

-

IO

MISO

9

10

GND

PWR - -

1K IO

SPI_IO2_#WP

11

12

SPI_IO3_#HOLD

IO 1K

7.15 LPC Connector (J30)

The LPC connector (Flex board only) is in general unsupported. Only under special circumstances may the LPC interface be of interest.

Signal Description

CLK

Serial Clock

SB3V3

3.3V Standby Voltage power line. Normally output power, but when Motherboard is

turned off then the on-board SPI Flash can be 3.3V power sourced via this pin.

CS0# CS0# Chip Select 0, active low.

ADDIN ADDIN input signal must be NC.

MOSI Master Output, Slave Input.

ISOLATE#

The ISOLATE# input, active low, is normally NC, but must be connected to GND when

programming the

SPI flash. Power Supply to the Motherboard must be turned off when

loading SPI flash. The pull up resistor is connected via diode to 5VSB.

MISO

Master Input, Slave Output

SPI_IO2_#WP

SPI Data I/O: A bidirectional signal used to support Dual IO Fast Read, Quad IO Fast Read and Quad Output Fast Read modes. The signal is not used in Dual Output Fast Read mode.

SPI_IO3_#HOLD

SPI Data I/O: A bidirectional signal used to support Dual IO Fast Read, Quad IO Fast Read and Quad Output Fast Read modes. The signal is not used in Dual Output Fast Read mode.

Note

Pull U/D

Ioh/Iol Type Signal PIN Signal Type Ioh/Iol

Pull U/D

Note

- -

PWR

LPC CLK

1 2 GND

- -

PWR

LPC FRAME#

3 KEY

LPC RST#

5 6 +5V

LPC AD3

7 8 LPC AD2

+3V3

9

10

LPC AD1

LPC AD0

11

12

GND

SMB_CLK

13

14

SMB_DATA

SB3V3

15

16

LPC SERIRQ

GND

17

18

CLKRUN#

SUS_STAT#

19

20

TPM_DRQ#0

KTD-N0882-I Page 54 Internal Connectors

KTQ87/KTH81 Users Guide

7.16 XDP_CPU (Debug Port for CPU) (XDP_CPU)

The XDP_CPU (Intel Debug Port for CPU) connector is not mounted and not supported. XDP connector layout (pads) is located on the backside of PCB and is prepared for the Samtec BSH-030-01-F-D-A-TR.

Note

Pull U/D

Ioh/Iol

Type

Signal

Type

Ioh/Iol

Pull U/D

Note

PWR

GND

1 2 GND

PWR REQ

3 4 STB_0_DP

RDY

5 6 STB_0_DN

PWR

GND

7 8 GND

PWR

CFG0

9 10 CFG8

CFG1

11

12 CFG9

PWR

GND

13

14 GND

PWR

CFG2

15

16 CFG10

CFG3

17

18 CFG11

PWR

GND

19

20 GND

PWR

BPM#0

21

22 STB_1_DP

BPM#1

23

24 STB_1_DN

PWR

GND

25

26 GND

PWR CFG4

27

28 CFG12

CFG5

29

30 CFG13

PWR

GND

31

32 GND

PWR

CFG6

33

34 CFG14

CFG7

35

36 CFG15

PWR

GND

37

38 GND

PWR

PWRGD

39

40 ITP_CLKP

SW_ON_N

41

42 ITP_CLKN

PWR

CPU_VCCIO

43

44 CPU_VCCIO

PWR

PWR_DEBUG

45

46 RESET#

CPU_HOOK3

47

48 DBR#

PWR

GND

49

50 GND

PWR SMB_DAT

51

52 TDO

SMB_CLK

53

54 TRST#

NC

55

56 TDI

TCK

57

58 TMS

PWR

GND

59

60 XDP_PRESENT#

KTD-N0882-I Page 55 Internal Connectors

KTQ87/KTH81 Users Guide

7.17 XDP_PCH (Debug Port for Chipset) (XDP_PCH)

The XDP_PCH (Intel Debug Port for Chipset) connector is not mounted and not supported. XDP_PCH connector layout (pads) is located on the backside of PCB (below J35 connector on mITX version) and is prepared for the Samtec BSH-030-01-F-D-A-TR.

Note

Pull U/D

Ioh/Iol

Type

Signal

Type

Ioh/Iol

Pull U/D

Note

PWR

GND

1 2 GND

PWR

NC

3 4 EC_WRST#

NC

5 6 2x4_PWR_DETECT

PWR

GND

7 8 GND

PWR

XDP_0

9 10 SATA0GP

XDP_1

11

12 SATA1GP

PWR

GND

13

14 GND

PWR XDP_2

15

16 GP36

XDP_3

17

18 GP37

PWR

GND

19

20 GND

PWR

NC

21

22 NC

NC

23

24 NC

PWR

GND

25

26 GND

PWR

XDP_4

27

28 SATA4GP

XDP_5

29

30 GP49

PWR

GND

31

32 GND

PWR

XDP_6

33

34 GPIO18

XDP_7

35

36 SMI_N

PWR

GND

37

38 GND

PWR PWRGD

39

40 JTAG_VREF

HOOK1

41

42 NC

PWR

3.3V

43

44 3.3V

PWR

NC

45

46 RESET#

NC

47

48 HOOK7

PWR

GND

49

50 GND

PWR

SMB_DAT

51

52 JTAG_TDO

SMB_CLK

53

54 JTAG_RST

NC

55

56 JTAG_TDI

JTAG_TCK

57

58 JTAG_TMS

PWR

GND

59

60 GND

PWR

KTD-N0882-I Page 56 Slot Connectors

KTQ87/KTH81 Users Guide

8 Slot Connectors (PCIe, mPCIe, mSATA, PCI)

8.1 PCIe Connectors

The mITX boards supports one PCIex16 (16-lanes), one miniPCIe and one mSATA in mPCIe slot.

The Flex boards supports one PCIex16 (16-lanes), one PCIex2 (2-lanes) in a x16 slot and one PCIex1 slot.

The PCIex16 port can be used for external PCI Express cards inclusive graphics card. (On the Flex boards it is located nearest the CPU). Maximum theoretical bandwidth depends on the chipset, Q87 / H81 support up to PCIe 3.0 / PCIe 2.0, so Q87 support 8 Gbps effectively for each lane and direction, 256 Gbps in total for 16 lanes, while the H81 support 4 Gbps effectively for each lane and direction, 128 Gbps in total for 16 lanes.

The PCIex2 (in a x16 slot) (only on Flex board) can be used for external PCI Express cards inclusive graphics card. It is located fares away from CPU. Maximum theoretical bandwidth is 4 Gbps effectively for each lane and direction, 16 Gbps in total for 2 lanes.

The PCIex1 (only on Flex board) can be used for external PCI Express cards inclusive graphics card. Maximum theoretical bandwidth is 4 Gbps effectively for each direction, 8 Gbps in total.

One miniPCIe (PCIe 2.0) port (mITX boards only) supporting mPCIe cards.

One miniPCIe (mSATA) port (mITX boards only) supporting mSATA cards.

miniPCIe slots are equipped with one USB 2.0 port. The USB connected to the mSATA slot do not support WAKE function.

PCI-Express x16 Connector (PCIex16) (SLOT1_16X)

Note

Type

Signal

Type

Note

+12V

B1

A1

NC

+12V

B2

A2

+12V

B3

A3

+12V

GND

B4

A4

GND

SMB_CLK

B5

A5

NC

SMB_DATA

B6

A6

NC

GND

B7

A7

NC

+3V3

B8

A8

NC

B9

A9

+3V3

SB3V3

B10

A10

+3V3

WAKE#

B11

A11

RST#

NC

B12

A12

GND

B13

A13

PCIE_x16 CLK

PEG_TXP[0]

B14

A14

PCIE_x16 CLK#

PEG_TXN[0]

B15

A15

GND

B16

A16

PEG_RXP[0]

CLKREQ

B17

A17

PEG_RXN[0]

GND

B18

A18

GND

PEG_TXP[1]

B19

A19

NC

PEG_TXN[1]

B20

A20

GND

B21

A21

PEG_RXP[1]

GND

B22

A22

PEG_RXN[1]

KTD-N0882-I Page 57 Slot Connectors

KTQ87/KTH81 Users Guide

PEG_TXP[2]

B23

A23

GND

PEG_TXN[2]

B24

A24

GND

B25

A25

PEG_RXP[2]

GND

B26

A26

PEG_RXN[2]

PEG_TXP[3]

B27

A27

GND

PEG_TXN[3]

B28

A28

GND

B29

A29

PEG_RXP[3]

NC

B30

A30

PEG_RXN[3]

CLKREQ

B31

A31

GND

B32

A32

NC

PEG_TXP[4]

B33

A33

NC

PEG_TXN[4]

B34

A34

GND

B35

A35

PEG_RXP[4]

GND

B36

A36

PEG_RXN[4]

PEG_TXP[5]

B37

A37

GND

PEG_TXN[5]

B38

A38

GND

B39

A39

PEG_RXP[5]

GND

B40

A40

PEG_RXN[5]

PEG_TXP[6]

B41

A41

GND

PEG_TXN[6]

B42

A42

GND

B43

A43

PEG_RXP[6]

GND

B44

A44

PEG_RXN[6]

PEG_TXP[7]

B45

A45

GND

PEG_TXN[7]

B46

A46

GND

B47

A47

PEG_RXP[7]

CLKREQ

B48

A48

PEG_RXN[7]

GND

B49

A49

GND

PEG_TXP[8]

B50

A50

NC

PEG_TXN[8]

B51

A51

GND

B52

A52

PEG_RXP[8]

GND

B53

A53

PEG_RXN[8]

PEG_TXP[9]

B54

A54

GND

PEG_TXN[9]

B55

A55

GND

B56

A56

PEG_RXP[9]

GND

B57

A57

PEG_RXN[9]

PEG_TXP[10]

B58

A58

GND

PEG_TXN[10]

B59

A59

GND

B60

A60

PEG_RXP[10]

GND

B61

A61

PEG_RXN[10]

PEG_TXP[11]

B62

A62

GND

PEG_TXN[11]

B63

A63

GND

B64

A64

PEG_RXP[11]

GND

B65

A65

PEG_RXN[11]

PEG_TXP[12]

B66

A66

GND

PEG_TXN[12]

B67

A67

GND

B68

A68

PEG_RXP[12]

GND

B69

A69

PEG_RXN[12]

PEG_TXP[13]

B70

A70

GND

PEG_TXN[13]

B71

A71

GND

B72

A72

PEG_RXP[13]

GND

B73

A73

PEG_RXN[13]

PEG_TXP[14]

B74

A74

GND

PEG_TXN[14]

B75

A75

GND

B76

A76

PEG_RXP[14]

GND

B77

A77

PEG_RXN[14]

PEG_TXP[15]

B78

A78

GND

PEG_TXN[15]

B79

A79

GND

B80

A80

PEG_RXP[15]

CLKREQ

B81

A81

PEG_RXN[15]

NC

B82

A82

GND

KTD-N0882-I Page 58 Slot Connectors

KTQ87/KTH81 Users Guide

PCI-Express x2 Connector (PCIex2) in x16 slot (PCIE2)

(Flex boards only).

Note

Type

Signal

Type

Note

+12V

B1

A1

NC

+12V

B2

A2

+12V

B3

A3

+12V

GND

B4

A4

GND

SMB_CLK

B5

A5

NC

SMB_DATA

B6

A6

NC

GND

B7

A7

NC

+3V3

B8

A8

NC

B9

A9

+3V3

SB3V3

B10

A10

+3V3

WAKE#

B11

A11

RST#

NC

B12

A12

GND

B13

A13

PCIE_x16 CLK

PEG_TXP[0]

B14

A14

PCIE_x16 CLK#

PEG_TXN[0]

B15

A15

GND

B16

A16

PEG_RXP[0]

CLKREQ

B17

A17

PEG_RXN[0]

GND

B18

A18

GND

PEG_TXP[1]

B19

A19

NC

PEG_TXN[1]

B20

A20

GND

B21

A21

PEG_RXP[1]

GND

B22

A22

PEG_RXN[1]

B23

A23

GND

B24

A24

GND

B25

A25

GND

B26

A26

B27

A27

GND

B28

A28

GND

B29

A29

NC

B30

A30

CLKREQ

B31

A31

GND

B32

A32

NC

B33

A33

NC

B34

A34

GND

B35

A35

GND

B36

A36

B37

A37

GND

B38

A38

GND

B39

A39

GND

B40

A40

B41

A41

GND

B42

A42

GND

B43

A43

GND

B44

A44

B45

A45

GND

B46

A46

GND

B47

A47

CLKREQ

B48

A48

GND

B49

A49

GND

KTD-N0882-I Page 59 Slot Connectors

KTQ87/KTH81 Users Guide

PCI-Express x1 Connector (PCIex1) (PCIE3)

Only on Flex boards.

B50

A50

NC

B51

A51

GND

B52

A52

GND

B53

A53

B54

A54

GND

B55

A55

GND

B56

A56

GND

B57

A57

B58

A58

GND

B59

A59

GND

B60

A60

GND

B61

A61

B62

A62

GND

B63

A63

GND

B64

A64

GND

B65

A65

B66

A66

GND

B67

A67

GND

B68

A68

GND

B69

A69

B70

A70

GND

B71

A71

GND

B72

A72

GND

B73

A73

B74

A74

GND

B75

A75

GND

B76

A76

GND

B77

A77

B78

A78

GND

B79

A79

GND

B80

A80

CLKREQ

B81

A81

NC

B82

A82

GND

Note

Type

Signal

PIN#

Signal

Type

Note

+12V

B1

A1

NC

+12V

B2

A2

+12V

B3

A3

+12V

GND

B4

A4

GND

SMB_CLK

B5

A5

NC

SMB_DATA

B6

A6

NC

GND

B7

A7

NC

+3V3

B8

A8

NC

B9

A9

+3V3

SB3V3

B10

A10

+3V3

WAKE#

B11

A11

RST#

NC

B12

A12

GND

B13

A13

PCIE CLK

PCIE_TXP

B14

A14

PCIE CLK#

PCIE_TXN

B15

A15

GND

B16

A16

PCIE_RXP

NC

B17

A17

PCIE_RXN

GND

B18

A18

GND

KTD-N0882-I Page 60 Slot Connectors

KTQ87/KTH81 Users Guide

miniPCI-Express mPCIe (MPCIE)

(mITX boards only).

The miniPCIe port supports mPCIe and USB 2.0 cards (not mSATA).

Note 1: 10K ohm pull-up to 3V3. Note 2: 2K2 ohm pull-up to 3V3 Dual. Note 3: 100K ohm pull-up to 1V8 (S0 mode)

Note

Type

Signal

Type

Note

WAKE#

1

2

+3V3

PWR

NC

3

4

GND

PWR

NC

5

6

+1.5V

PWR 1

CLKREQ#

7

8

NC

PWR

GND

9

10

NC

PCIE_mini CLK#

11

12

NC

PCIE_mini CLK

13

14

NC

PWR

GND

15

16

NC

17

18

GND

PWR

NC

19

20

W_Disable#

2

PWR

GND

21

22

RST#

PCIE_RXN

23

24

+3V3 Dual

PWR

PCIE_RXP

25

26

GND

PWR

GND

27

28

+1.5V

PWR

GND

29

30

SMB_CLK

PCIE_TXN

31

32

SMB_DATA

PCIE_TXP

33

34

GND

PWR

GND

35

36

U_USB8N

IO

PWR

GND

37

38

U_USB8P

IO

PWR

+3V3 Dual

39

40

GND

PWR

+3V3 Dual

41

42

NC

PWR

GND

43

44

NC

CLK_MPCIE

45

46

NC

DATA_MPCIE

47

48

+1.5V

PWR

RST_MPCIE#

49

50

GND

PWR 3

SEL_MSATA

51

52

+3V3 Dual

PWR

KTD-N0882-I Page 61 Slot Connectors

KTQ87/KTH81 Users Guide

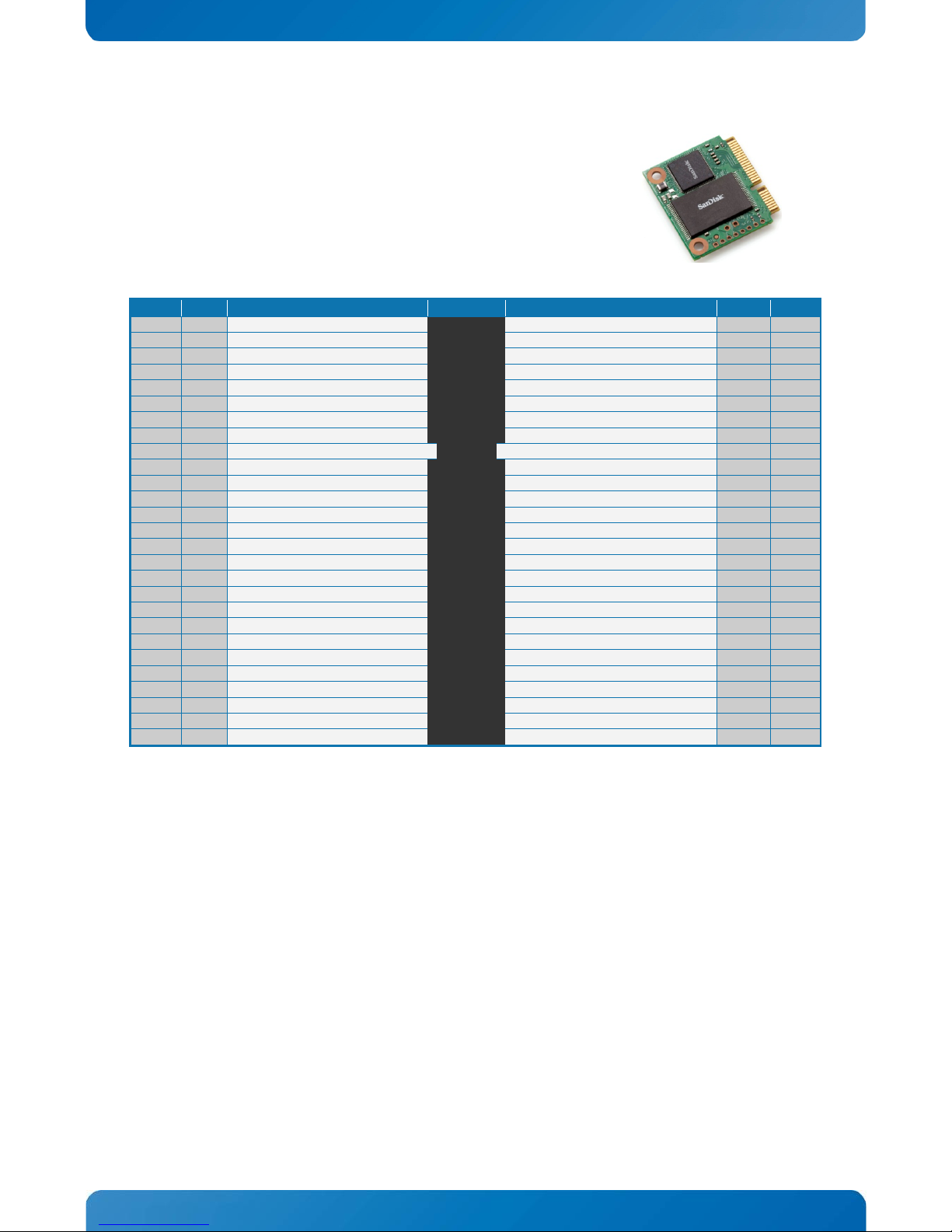

8.2 mSATA (MSATA)

(mITX boards only).

The mSATA port (in mPCIe express connector) supports mSATA and USB 2.0 cards (not PCIe cards).

Note 1: 10K ohm pull-up to 3V3 Dual. Note 2: 2K2 ohm pull-up to 3V3 Dual.

Note

Type

Signal

Type

Note

WAKE#

1

2

+3V3

PWR

NC

3

4

GND

PWR

NC

5

6

+1.5V

PWR

1

CLKREQ#

7

8

NC

PWR

GND

9

10

NC

PCIE_mini CLK#

11

12

NC

PCIE_mini CLK

13

14

NC

PWR

GND

15

16

NC

17

18

GND

PWR

NC

19

20

W_Disable#

2

PWR

GND

21

22

RST#

PCIE_RXN

23

24

+3V3 Dual

PWR

PCIE_RXP

25

26

GND

PWR

GND

27

28

+1.5V

PWR

GND

29

30

SMB_CLK

PCIE_TXN

31

32

SMB_DATA

PCIE_TXP

33

34

GND

PWR

GND

35

36

U_USB9N

IO

NC

37

38

U_USB9P

IO

NC

39

40

GND

PWR

NC

41

42

NC

43

44

NC

45

46

NC

47

48

+1.5V

PWR

NC

49

50

GND

PWR

NC

51

52

+3V3

PWR

KTD-N0882-I Page 62 Slot Connectors

KTQ87/KTH81 Users Guide

8.3 PCI Slot Connector

Flex board only.

Note Type Signal

Terminal

S C

Signal Type Note

PWR

-12V

F01

E01

TRST# O

O TCK

F02

E02

+12V

PWR

GND

F03

E03

TMS O

NC I TDO

F04

E04

TDI O

PWR

+5V

F05

E05

+5V

PWR

+5V

F06

E06

INTA# I I

INTB#

F07

E07

INTC# I I

INTD#

F08

E08

+5V

PWR

NC - -

F09

E09 - -

NC

NC - -

F10

E10

+5V (I/O)

PWR NC - -

F11

E11 - -

NC PWR

GND

F12

E12

GND

PWR

GND

F13

E13

GND

PWR

NC - -

F14

E14

GNT3#

OT

PWR

GND

F15

E15

RST# O

O CLKB

F16

E16

+5V (I/O)

PWR

GND

F17

E17

GNT0#

OT I REQ0#

F18

E18

GND

PWR

+5V (I/O)

F19

E19

PME# I

IOT

AD31

F20

E20

AD30

IOT

AD29

F21

E21

+3.3V

PWR

GND

F22

E22

AD28

IOT

AD27

F23

E23

AD26

IOT

AD25

F24

E24

GND

PWR

+3.3V

F25

E25

AD24

IOT

C/BE3#

F26

E26

GNT1#

OT

IOT

AD23

F27

E27

+3.3V

PWR

GND

F28

E28

AD22

IOT

AD21

F29

E29

AD20

IOT

AD19

F30

E30

GND

PWR

+3.3V

F31

E31

AD18

IOT

AD17

F32

E32

AD16

IOT

C/BE2#

F33

E33

+3.3V

PWR

GND

F34

E34

FRAME#

IOT

IRDY#

F35

E35

GND

PWR

+3.3V

F36

E36

TRDY#

IOT

DEVSEL#

F37

E37

GND

PWR

GND

F38

E38

STOP#

IOT

LOCK#

F39

E39

+3.3V

PWR

IOT

PERR#

F40

E40

SDONE

IO

PWR

+3.3V

F41

E41

SB0#

IO

IOC

SERR#

F42

E42

GND

PWR

+3.3V

F43

E43

PAR

IOT

C/BE1#

F44

E44

AD15

IOT

AD14

F45

E45

+3.3V

PWR

GND

F46

E46

AD13

IOT

AD12

F47

E47

AD11

IOT

AD10

F48

E48

GND

PWR

GND

F49

E49

AD09

IOT

SOLDER SIDE

COMPONENT SIDE

IOT

AD08

F52

E52

C/BE0#

IOT

AD07

F53

E53

+3.3V

PWR

+3.3V

F54

E54

AD06

IOT

AD05

F55

E55

AD04

IOT

AD03

F56

GND

PWR

GND

F57

E57

AD02

IOT

AD01

F58

E58

AD00

IOT

PWR

+5V (I/O)

F59

E59

+5V (I/O)

PWR

IOT

ACK64#

F60

E60

REQ64#

IOT

PWR

+5V

F61

E61

+5V

PWR

+5V

F62

E62

+5V

PWR

KTD-N0882-I Page 63 Slot Connectors

KTQ87/KTH81 Users Guide

Signal Description – PCI Slot Connector

SYSTEM PINS

CLK

Clock provides timing for all transactions on PCI and is an input to every PCI device. All other PCI signals, except

RST#, INTA#, INTB#, INTC#, and INTD#, are sampled

on the risingedge of CLK and all other timing parameters are

defined with respect to this edge. PCI operates at 33MHz.

PME#

Power Management Event interrupt signal. Wake up signal.

RST#

Reset is used to bring PCI-specific registers, sequencers, and signals to a consistent state. What effect RST# has on

a device beyond the PCI sequencer is beyond the scope of this specification, except for reset states of required PCI

configuration registers. Anytime RST# is asserted, all PCI output signals must be driven to their benign state. In general, this means they must be asynchronously tri-stated. SERR# (open drain) is floated. REQ# and GNT# must both be tri-

stated (they cannot be driven low or high during reset). To prevent AD, C/BE#, and PAR signals from

floating during reset, the central resource may drive these lines during reset (bus parking) but only to a logic low level–they may not be driven high. RST# may be asynchronous to CLK when asserted or deasserted. Although asynchronous, deassertion is guaranteed to be a clean, bounce-

free edge. Except for configuration accesses, only devices that are required to boot the

system will respond after reset.

ADDRESS AND DATA

AD[31::00]

Address and Data are multiplexed on the same PCI pins. A bus transaction consists of an address phase followed by

one or more data phases. PCI supports both read and write bursts.

The address phase is the clock cycle in which FRAME# is asserted. During the address phase AD[31::00] contain a

physical address (32 bits). For I/O,

this is a byte address; for configuration and memory, it is a DWORD address.

During data phases AD[07::00] contain the least significant byte (lsb) and AD[31::24] contain the most significant byte (msb). Write data is stable and valid when IRDY# is asserte

d and read data is stable and valid when TRDY# is

asserted. Data is transferred during those clocks where both IRDY# and TRDY# are asserted.

C/BE[3::0]#

Bus Command and Byte Enables are multiplexed on the same PCI pins. During the address phase of a transaction, C/BE[3::0]# define the bus command. During the data phase C/BE[3::0]# are used as Byte Enables. The Byte Enables are valid for the entire data phase and determine which byte lanes carry meaningful data. C/BE[0]# applies to byte 0 (lsb) and C/BE[3]# applies to byte 3 (msb).

PAR

Parity is even parity across AD[31::00] and C/BE[3::0]#. Parity generation is required by all PCI agents. PAR is

stable and valid one clock after the address phase. For data phases, PAR is stable and valid one clock after either

IRDY# is asserted on a write transaction or TRDY# is asserted on a read transaction. Once PAR is valid, it remains valid until one clock after the completion of the current data phase. (PAR has the same timing as AD[31::00], but it

is delayed by one

clock.) The master drives PAR for address and write data phases; the target drives PAR for read

data phases.

INTERFACE CONTROL PINS

FRAME#

Cycle Frame is driven by the current master to indicate the beginning and duration of an access. FRAME# is asserted to indicate a bus transaction is beginning. While FRAME# is asserted, data transfers continue. When FRAME# is deasserted, the transaction is in the final data phase or has completed.

IRDY#

Initiator Ready indicates the initiating agent’s (bus master’s) ability to complete the current data phase of the

transaction. IRDY# is used in conjunction with TRDY#. A data phase is completed on any clock both IRDY# and TRDY# are sampled asserted. During a write, IRDY# indicates that valid data is present on AD[31::00]. During a

read, it indicates the master is prepared to accept data. Wait cycles are inserted until both IRDY# and TRDY# are asserted together.

TRDY#

Target Ready indicates the target agent’s (selected device’s) ability to complete the current data phase of the

transaction. TRDY# is used in conjunction with IRDY#. A data phase is completed on any clock both TRDY# and

IRDY# are sampled asserted. During a read, TRDY# indicates that valid data is present on AD[31::00]. During a

write, it indicates

the target is prepared to accept data. Wait cycles are inserted until both IRDY# and TRDY# are

asserted together.

STOP#

Stop indicates the current target is requesting the master to stop the current transaction.

LOCK#

Lock indicates an atomic operation that may require multiple transactions to complete. When LOCK# is asserted,

non-exclusive transactions may proceed to an address that is not currently locked. A grant to start a transaction on PCI does not guarantee control of LOCK#. Control of LOCK# is obtained under its own protocol in conjunction with

GNT#. It is possible for different agents to use PCI while a single master retains ownership of LOCK#. If a device

implements Executable Memory, it should also implement LOCK# and guarantee complete access exclusion in that memory. A target of an access that supports LOCK# must provide exclusion to a minimum of 16 bytes (aligned). Host bridges that have system memory behind them should implement LOCK# as a target from the PCI bus point of

view and optionally as a master.

IDSEL

Initialization Device Select is used as a chip select during configuration read and write transactions.

DEVSEL#

Device Select, when actively driven, indicates the driving device has decoded its address as the target of the current access. As an input, DEVSEL# indicates whether any device on the bus has been selected.

KTD-N0882-I Page 64 Slot Connectors

KTQ87/KTH81 Users Guide

ARBITRATION PINS (BUS MASTERS ONLY)

REQ#

Request indicates to the arbiter that this agent desires use of the bus. This is a point to point signal. Every master has its own REQ# which must be tri-stated while RST# is asserted.

GNT#

Grant indicates to the agent that access to the bus has been granted. This is a point to point signal. Every master

has its own GNT# which must be ignored while RST# is asserted. While RST# is asserted, the arbiter must ignore all REQ# lines since they are tri-stated and do not contain a valid

request. The arbiter can only perform arbitration after RST# is deasserted. A master must ignore its GNT# while

RST# is asserted. REQ# and GNT# are tri-state signals due to power sequencing requirements when 3.3V or 5.0V

only add-in boards are used with add-in boards that use a universal I/O buffer.

ERROR REPORTING PINS.

The error reporting pins are required by all devices and maybe asserted when enabled

PERR#

Parity Error is only for the reporting of data parity errors during all PCI transactions except a Special Cycle. The

PERR# pin is sustained tri-

state and must be driven active by the agent receiving data two clocks following the data

when a

data parity error is detected. The minimum duration of PERR# is one clock for each data phase that a data

parity error is detected. (If sequential data phases each have a data parity error, the PERR# signal will be asserted

for more than a single clock.) PERR# must be driven high for one clock before being tri-stated as with all sustained tri-

state signals. There are no special conditions when a data parity error may be lost or when reporting of an error

may be delayed. An agent cannot report a PERR# until

it has claimed the access by asserting DEVSEL# (for a target)

and completed a data phase or is the master of the current transaction.

SERR#

System Error is for reporting address parity errors, data parity errors on the Special Cycle command, or any other

system error where the result will be catastrophic. If an agent does not want a non-maskable interrupt (NMI) to be

generated, a different reporting mechanism is required. SERR# is pure open drain and is actively driven for a single

PCI clock by the agent reporting the error. The assertion of SERR# is synchronous to the clock and meets the setup and hold times of all bused signals. However, the restoring of SERR# to the deasserted state is accomplished by a weak pullup (same value as used for s/t/s) which is provided by the system designer and not by the 64signaling agent or central resource. This pull-

up may take two to three clock periods to fully restore SERR#. The agent that

reports SERR#s to the operating system does so anytime SERR# is sampled asserted.

INTERRUPT PINS (OPTIONAL).

Interrupts on PCI are optional and defined as “level sensitive,” asserted low (negative true), using open drain output drivers. The assertion and deassertion of INTx# is asynchronous to CLK. A device asserts its INTx# line when requesting attention from its device driver. Once the INTx# signal is asserted, it remains asserted until the device driver clears the pending request. When the request is cleared, the device deasserts its INTx# signal. PCI defines one interrupt line for a single function device and up to four interrupt lines for a multi-function device or connector. For a single function device, only INTA# may be used while the other three interrupt

lines have no meaning.

INTA#

Interrupt A is used to request an interrupt.

INTB#

Interrupt B is used to request an interrupt and only has meaning on a multi-function device.

INTC#

Interrupt C is used to request an interrupt and only has meaning on a multi-function device.

INTD#

Interrupt D is used to request an interrupt and only has meaning on a multi-function device.

KTQ81/Flex & KTH81/Flex PCI IRQ & INT routing

REQ

GNT

IDSEL

INTA

INTB

INTC

INTD

REQ0

GNT0

17

INTA

INTB

INTC

INTD

KTD-N0882-I Page 65 On-board and Mating connectors

KTQ87/KTH81 Users Guide

9 On-board - & mating connector types

The Mating connector(s) / Cable Kits(s) which are fitting the On-board connectors are listed in below table. The highlighted cable kits are included in the “KTQ87 Cable & Driver Kit” PN 826602 / 0200000002. (Different quantity of each cable kit included, depending on the quantity of onboard connectors).

Connector

On-board Connectors

Mating Connectors / Cables

Manufacturer

Type no.

Manufacturer

Type no.

CPU_FAN

Foxconn

HF0804E-M2

AMP

1375820-4 (4-pole)

SYS_FAN1

SYS_FAN2

Mighty 21-013-00222-1 AMP 1375820-3 (3-pole)

KBD/MSE

Molex

22-23-2061

Molex

22-01-2065

SATA

FOXCONN

LD1807V-S5BA1DH

Molex

67489-8005

WINNING

WATM-

7DBN4B2B8UW4

Kontron PN 821035 (cable)

ATX24P

CVILUX

CP-01324130

Molex

5557-24R

ATX4P

CHERNGWEEI

CR-W421S-24

Molex

39-01-2045

LVDS

Don Connex

C44-40BSBC1-G

Don Connex

A32-40-C-G-B-1

SAMTEC

SHF-120-01-F-D-

SM-K-TR

Kontron KT 910000005

Hon Kon

Technology inc

HB12-220-VFS-20 Kontron KT 821515 (cable)

Kontron

KT 821155 (cable)

COM1,2

CHERNGWEEI

CHEB254010S

Molex

90635-1103

Kontron

PN 821017 (cable)

Kontron

PN 821016 (cable)

USB4/5

FOXCONN

HC1105H-P9

Kontron

PN 821401 (cable)

USB10/11 *

(FRONTPNL)

-

Kontron

PN 821401 (cable)

LPC

PINREX

210-92-10GB04 - -

Always On

Load default

CVILUX CH11032VA00 - -

Front Speaker

SPDIF

CHERNGWEEI

P101-SGN-

060/030-03

- -

SPI

CHERNGWEEI

P201-SGN-060/030-12

-

FRONTPNL

PINREX

510-90-24GB03

Molex

90635-1243

Kontron

PN 821042 (cable)

FEATURE

PINREX

CH74442V100

Don Connex

A05c-44-B-G-A-1-G

Kontron

PN 1052-5885

(Cable)

* USB10/USB11 is located in FRONTPNL connector. Depending on application KT TBD cable kit can be used.

Note: In above table, more than one connector can be listed for each type of on-board connector, if they all have same fit, form and function and are approved by Kontron as an alternative. Please notice that standard connectors like DP, PCI, PCIe, miniPCIe, Audio Jack, Ethernet and USB are not included in the list.

KTD-N0882-I Page 66 BIOS - Main

KTQ87/KTH81 Users Guide

10 BIOS

The BIOS Setup is used to view and configure BIOS settings for the board. The BIOS Setup is accessed by pressing the <Del> -key after the Power-On Self-Test (POST) memory test begins and before the operating system boot begins.

The BIOS settings will be loaded automatically when loading “Restore Default” see “Save & Exit” menu. In this Users Guide the default settings are indicated by bold. Please notice that “Restore User Defaults” might have different set of default values.

10.1 Main

Sub Menu available. White text for actual selected function which can be modified. Blue text for functions (not all can be modified). Black background for actual selection. Black text actual settings.

Feature

Options

Description

System Date

MM/DD/YYYY

Set the system date.

System Time

HH:MM:SS

Set the system time.

The following table describes the changeable settings:

Phoenix SecureCore Technology Setup

Main

Advanced

Security

Boot

Exit

BIOS Information

BIOS Vendor Core Version Compliancy Version BIOS Version Build Date and Time EC Firmware Version

Board Information Product Name PCB ID Serial # Boot Count

System Date System Time

► System Information ► Boot Features ► Error Manager

Phoenix Technologies Ltd. KTQ8718 UEFI 2.31; PI 0.9 18 Jun 30 2014 14:22:57 V1.23 12/09/13

KTQ87/Flex 08 01205252 6438

[07/07/2014] [14:21:40]

Item Specific Help

View or set system date.

F1

Help

↑↓

Select Item

+/-

Change Values

F9

Setup Defaults

Esc

Exit

←→

Select Menu

Enter

Select ►Sub-Menu

F10

Save and Exit

KTD-N0882-I Page 67 BIOS - Main

KTQ87/KTH81 Users Guide

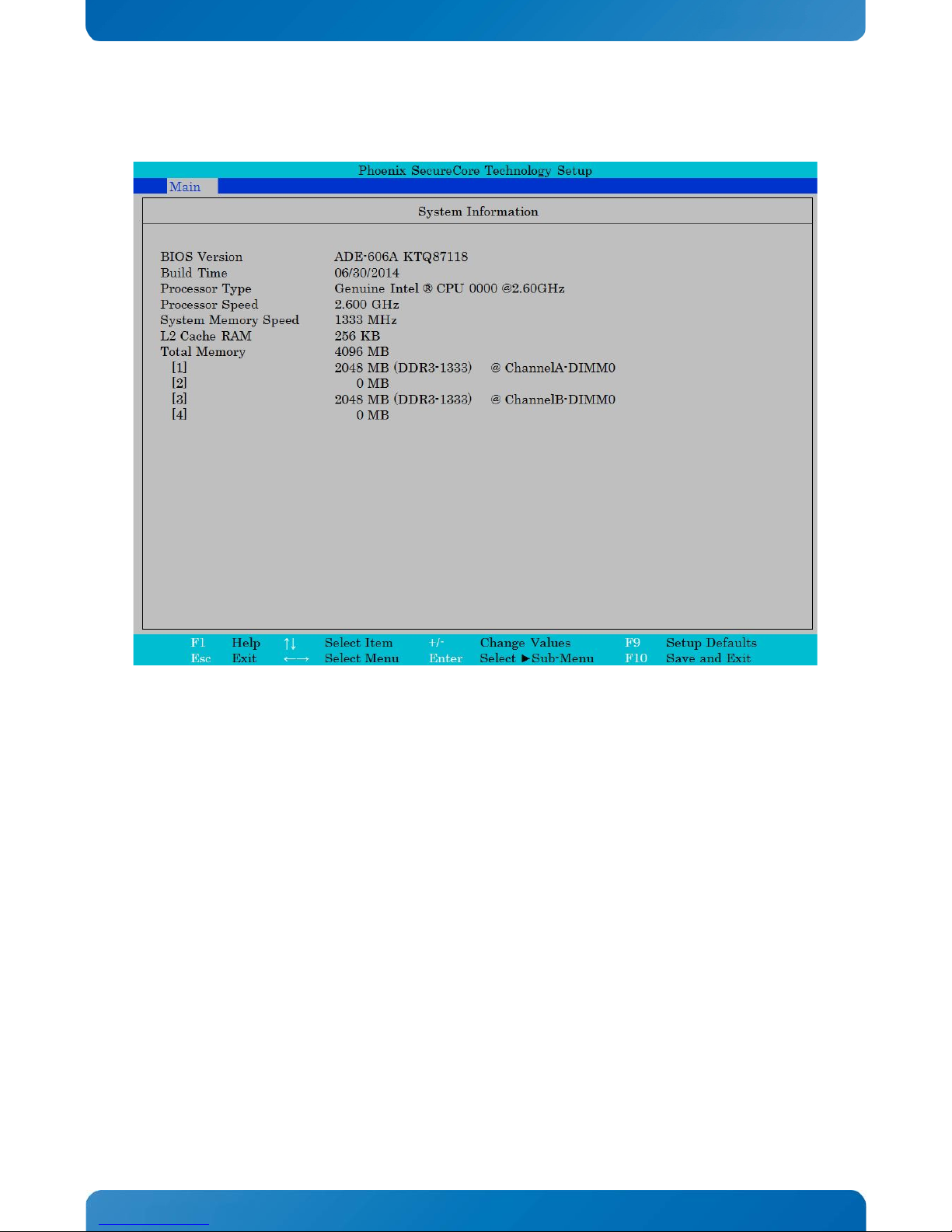

System Information

Phoenix SecureCore Technology Setup

Main

System Information

BIOS Version Build Time Processor Type Processor Speed System Memory Speed L2 Cache RAM Total Memory [1] [2] [3] [4]

ADE-606A KTQ87118 06/30/2014 Genuine Intel ® CPU 0000 @2.60GHz

2.600 GHz 1333 MHz 256 KB 4096 MB 2048 MB (DDR3-1333) @ ChannelA-DIMM0 0 MB 2048 MB (DDR3-1333) @ ChannelB-DIMM0 0 MB

F1

Help

↑↓

Select Item

+/-

Change Values

F9

Setup Defaults

Esc

Exit

←→

Select Menu

Enter

Select ►Sub-Menu

F10

Save and Exit

KTD-N0882-I Page 68 BIOS - Main

KTQ87/KTH81 Users Guide

Boot Features

Phoenix SecureCore Technology Setup

Main

Boot Features Item Specific Help

NumLock:

Timeout CSM Support Diagnostic Splash Screen Diagnostic Summary Screen UEFI Boot Legacy Boot

[On] [ 2] [Yes] [Disabled] [Disabled] [Disabled] [Enabled]

Select Power-on state for NumLock.

F1

Help

↑↓

Select Item

+/-

Change Values

F9

Setup Defaults

Esc

Exit

←→

Select Menu

Enter

Select ►Sub-Menu

F10

Save and Exit

Function

Selection

Description

NumLock:

On

Off

Select Power-on state for NumLock.

Timeout 2 Note 1

Number of seconds that P.O.S.T will wait for the user input before booting.

CSM Support

No

Yes

Compatibility Support Module that provides backward

compatibility services for legacy BIOS services, like

int10/int13, dependent OS.

Diagnostic Splash Screen

Disabled

Enabled

If you select ‘Enabled’ the diagnostic splash screen

always displays during boot. If you select ‘Disabled’ the diagnostic splash screen does not display unless

you press HOTKEY during boot.

Diagnostic Summary Screen

Disabled

Enabled

Display the diagnostic summary screen during boot.

UEFI Boot

Disabled

Enabled

Enable the UEFI boot.

Legacy Boot

Disabled

Enabled

Enable the Legacy boot.

Note 1: Use either digit keys to enter value (0 – 99) or +/- keys to increase/decrease value.

KTD-N0882-I Page 69 BIOS - Main

KTQ87/KTH81 Users Guide

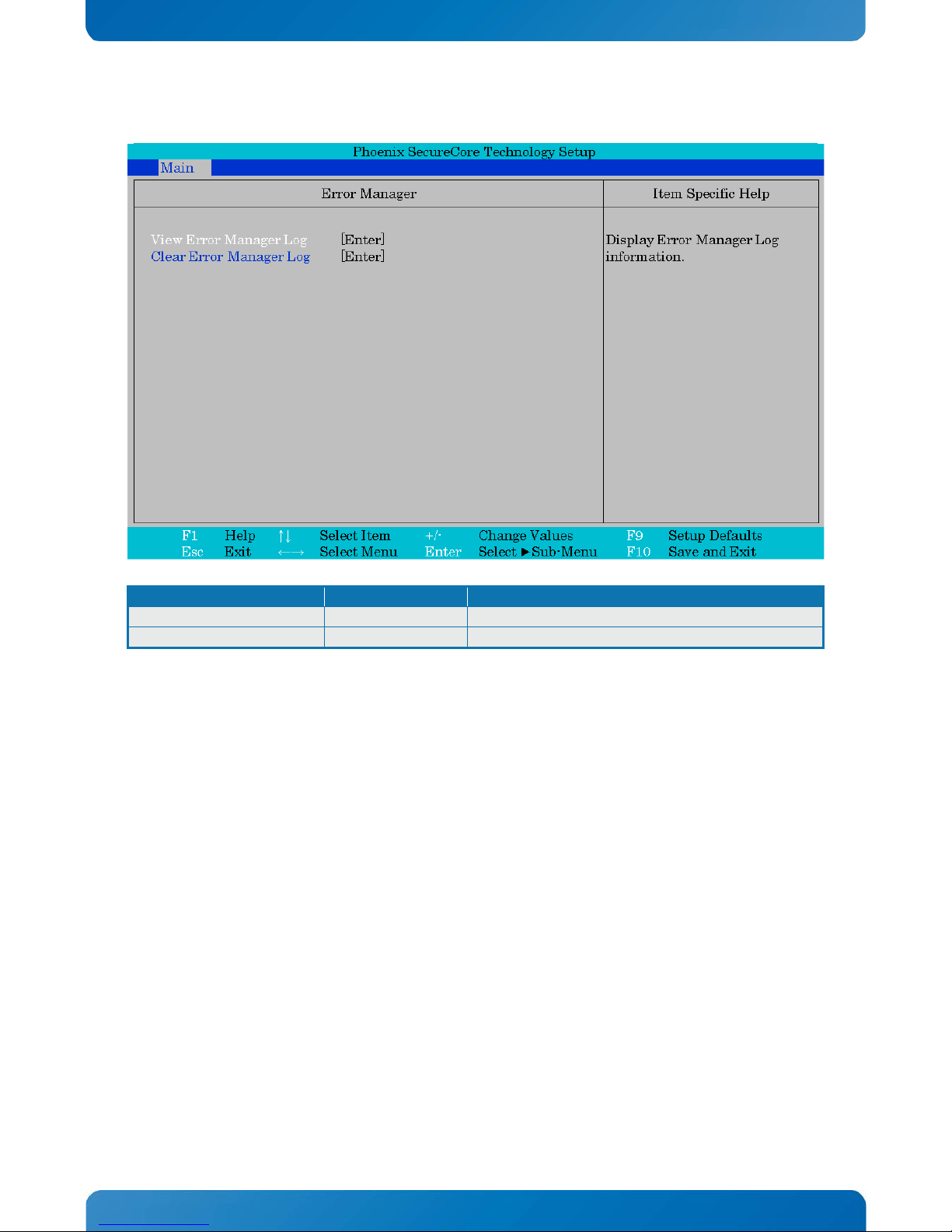

Error Manager

Phoenix SecureCore Technology Setup

Main

Error Manager Item Specific Help

View Error Manager Log

Clear Error Manager Log

[Enter] [Enter]

Display Error Manager Log information.

F1

Help

↑↓

Select Item

+/-

Change Values

F9

Setup Defaults

Esc

Exit

←→

Select Menu

Enter

Select ►Sub-Menu

F10

Save and Exit

Function

Selection

Description

View Error Manager Log

Enter

Display Error Manager Log information.

Clear Error Manager Log

Enter

Clear Error Manager Log.

KTD-N0882-I Page 70 BIOS - Advanced

KTQ87/KTH81 Users Guide

10.2 Advanced

Phoenix SecureCore Technology Setup

Main

Advanced

Security

Boot

Exit

Select Language

► Silicon Information ► Processor Configuration ► HDD Configuration ► System Agent (SA) Configuration ► South Bridge Configuration ► LAN Configuration ► PCI bridge Configuration ► Hardware Health Configuration ► SMBIOS Event Log ► AMT Configuration ► MEBx Configuration ► ME Configuration ► Intel ® Rapid Start Technology

Setup Warning:

Setting items on this screen to incorrect Values may cause the system to malfunction!

[English]

Item Specific Help

Select Language.

F1

Help

↑↓

Select Item

+/-

Change Values

F9

Setup Defaults

Esc

Exit

←→

Select Menu

Enter

Select ►Sub-Menu

F10

Save and Exit

The Advanced (main) menu contains only submenu selections which will be described in more details on the following pages.

In order to make a selection of a submenu activated the ↑↓ keys until the requested submenu becomes white color, then activate the <Enter>.

Function

Selection

Description

Select Language

English

Francais

Etc.

Select Language.

KTD-N0882-I Page 71 BIOS - Advanced

KTQ87/KTH81 Users Guide

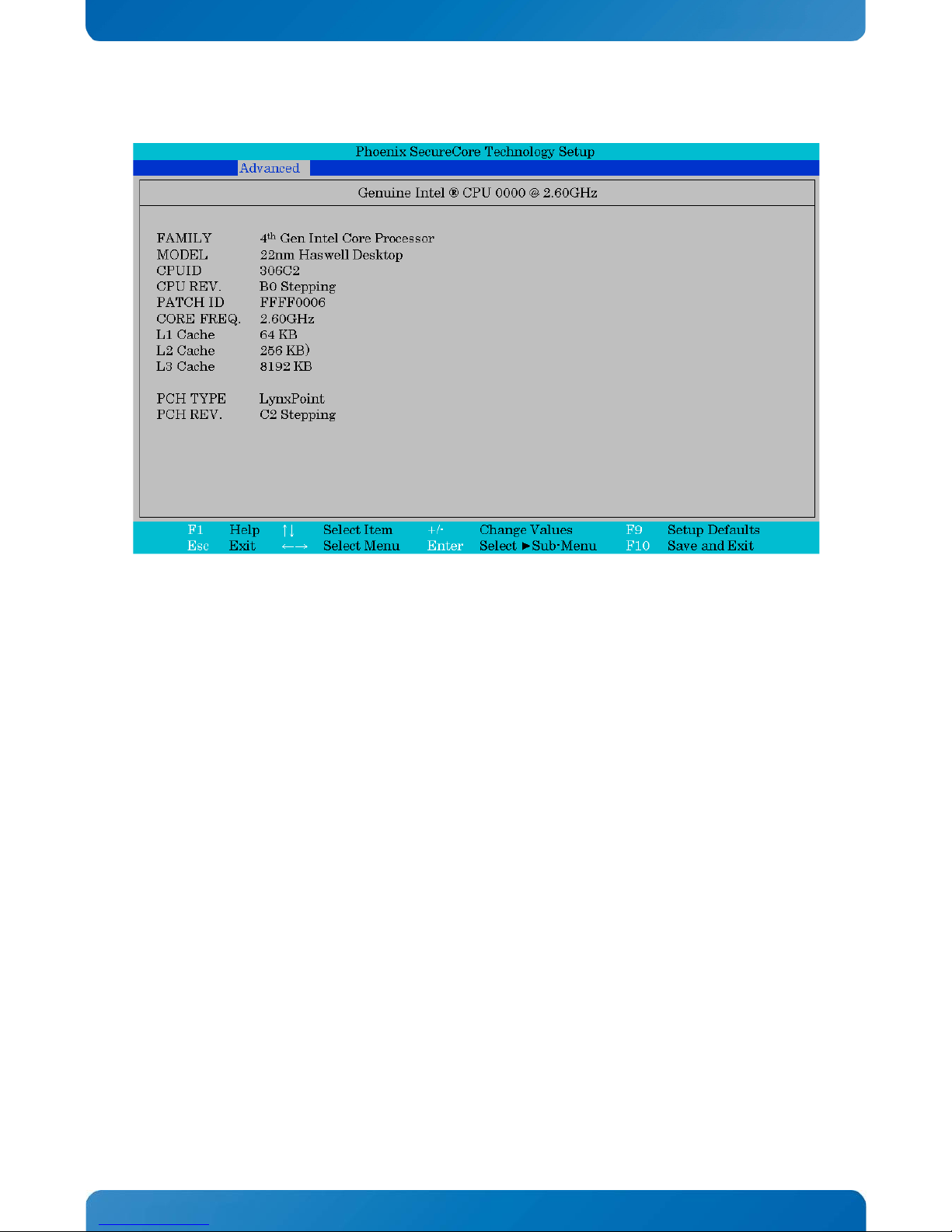

Silicon Information

Phoenix SecureCore Technology Setup

Advanced

Genuine Intel ® CPU 0000 @ 2.60GHz

FAMILY MODEL CPUID CPU REV. PATCH ID CORE FREQ. L1 Cache L2 Cache L3 Cache

PCH TYPE PCH REV.

4th Gen Intel Core Processor 22nm Haswell Desktop 306C2 B0 Stepping FFFF0006

2.60GHz 64 KB 256 KB) 8192 KB

LynxPoint C2 Stepping

F1

Help

↑↓

Select Item

+/-

Change Values

F9

Setup Defaults

Esc

Exit

←→

Select Menu

Enter

Select ►Sub-Menu

F10

Save and Exit

KTD-N0882-I Page 72 BIOS - Advanced

KTQ87/KTH81 Users Guide

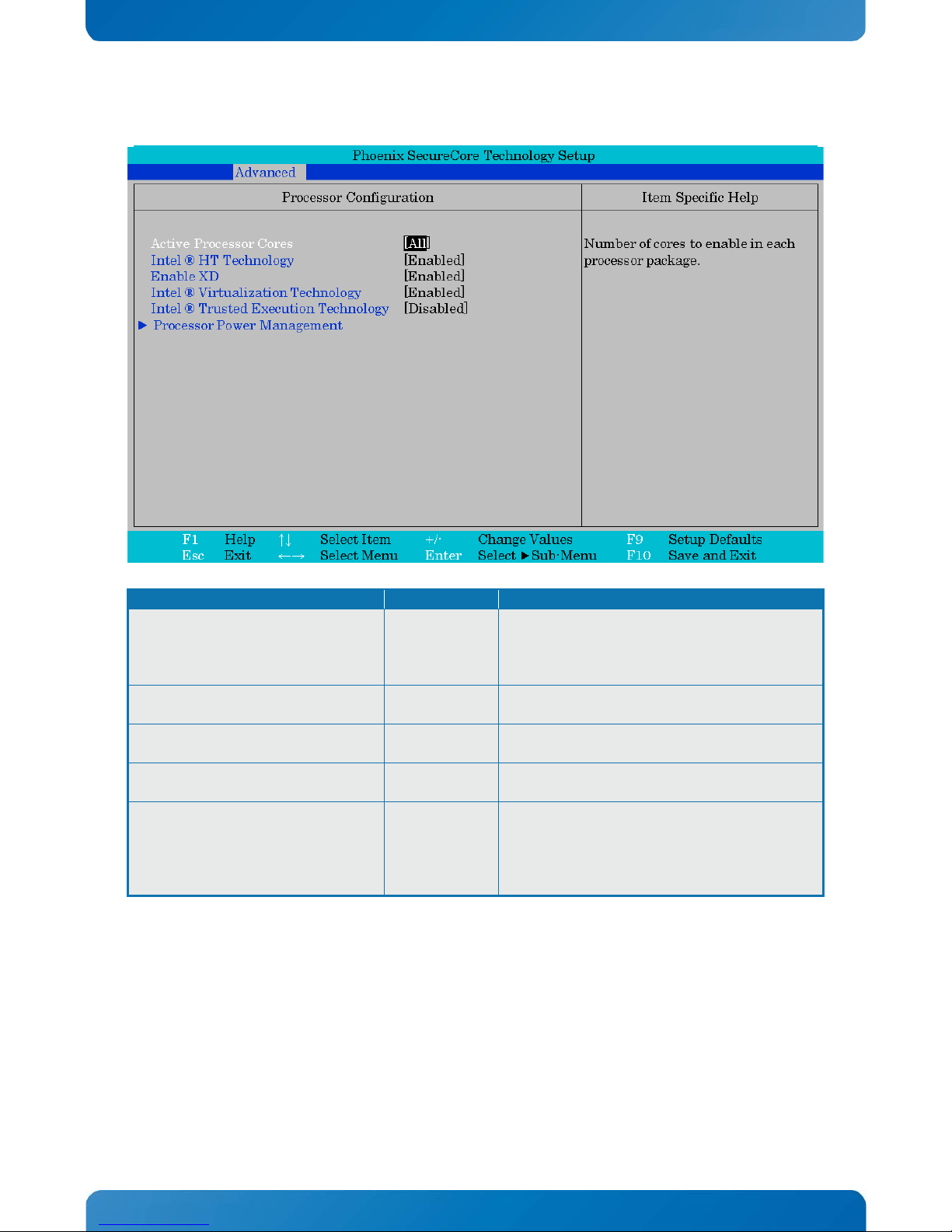

Processor Configuration

Function

Selection

Description

Active Processor Cores

All

1 2

3

Number of cores to enable in each processor package.

Intel ® HT Technology

Disabled

Enabled

When Disabled only one thread per enabled core

is enabled.

Enable XD

Disabled

Enabled

Enabled Execute Disabled functionality. Also known as Data Execution Prevention (DEP).

Intel ® Virtualization Technology

Disabled

Enabled

When enabled. A VMM can utilize the additional

hardware capabilities.

Intel ® Trusted Execution Technology

Disabled

Enabled

Enables utilization of additional hardware

capabilities provided by Intel ® Trusted Execution Technology.

Changes require a full power cycle to take effect.

Phoenix SecureCore Technology Setup

Advanced

Processor Configuration Item Specific Help

Active Processor Cores

Intel ® HT Technology Enable XD Intel ® Virtualization Technology Intel ® Trusted Execution Technology ► Processor Power Management

[All]

[Enabled] [Enabled] [Enabled] [Disabled]

Number of cores to enable in each processor package.

F1

Help

↑↓

Select Item

+/-

Change Values

F9

Setup Defaults

Esc

Exit

←→

Select Menu

Enter

Select ►Sub-Menu

F10

Save and Exit

KTD-N0882-I Page 73 BIOS - Advanced

KTQ87/KTH81 Users Guide

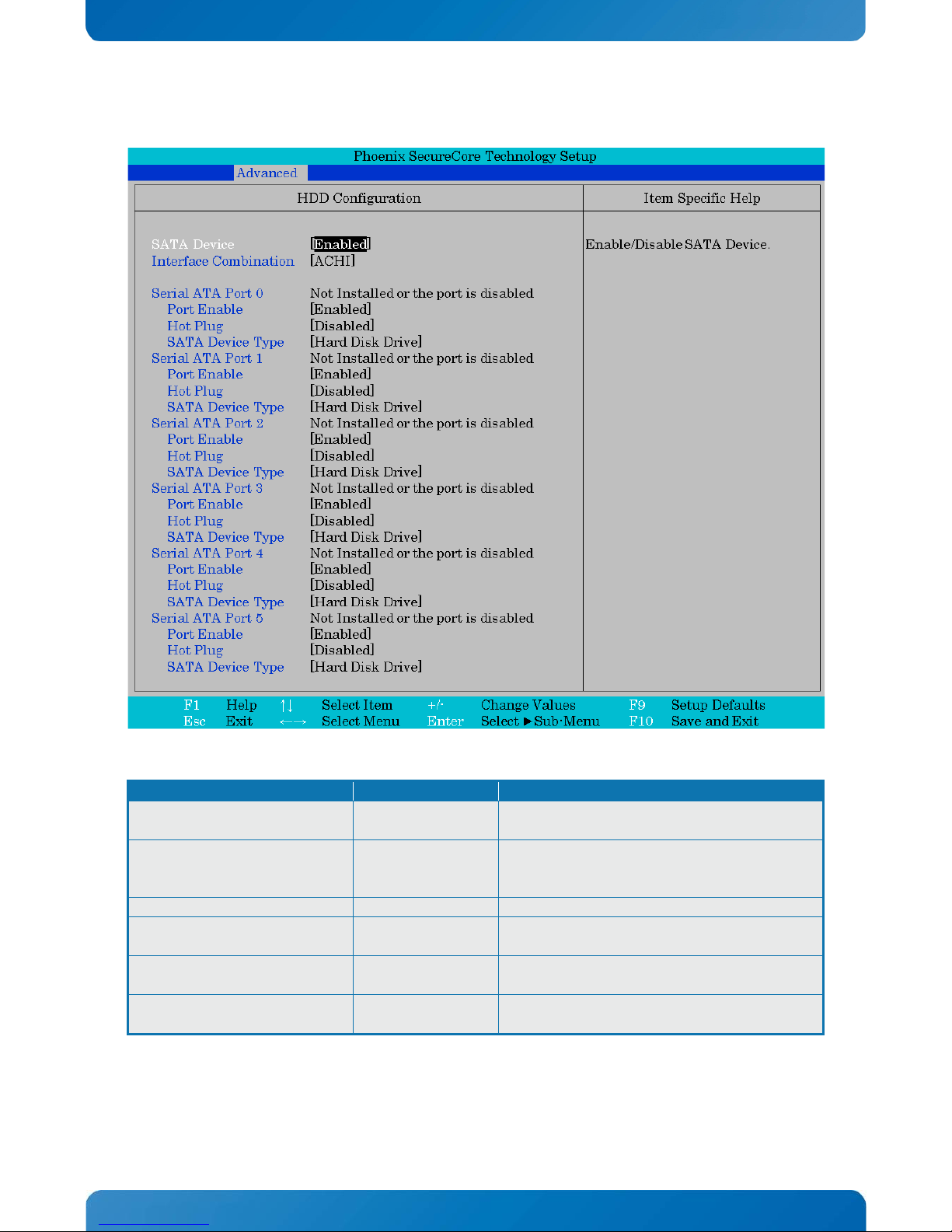

HDD Configuration

Phoenix SecureCore Technology Setup

Advanced

HDD Configuration Item Specific Help

SATA Device

Interface Combination

Serial ATA Port 0 Port Enable Hot Plug SATA Device Type Serial ATA Port 1 Port Enable Hot Plug SATA Device Type Serial ATA Port 2 Port Enable Hot Plug

SATA Device Type

Serial ATA Port 3 Port Enable Hot Plug SATA Device Type Serial ATA Port 4 Port Enable Hot Plug

SATA Device Type

Serial ATA Port 5 Port Enable Hot Plug SATA Device Type

[Enabled] [ACHI]

Not Installed or the port is disabled [Enabled] [Disabled] [Hard Disk Drive] Not Installed or the port is disabled [Enabled] [Disabled] [Hard Disk Drive] Not Installed or the port is disabled [Enabled] [Disabled] [Hard Disk Drive] Not Installed or the port is disabled [Enabled] [Disabled] [Hard Disk Drive] Not Installed or the port is disabled [Enabled] [Disabled] [Hard Disk Drive] Not Installed or the port is disabled [Enabled] [Disabled] [Hard Disk Drive]

Enable/Disable SATA Device.

F1

Help

↑↓

Select Item

+/-

Change Values

F9

Setup Defaults

Esc

Exit

←→

Select Menu

Enter

Select ►Sub-Menu

F10

Save and Exit

Function

Selection

Description

SATA Device

Disabled

Enabled

Enable/Disable SATA Device.

Interface Combination

IDE

AHCI

RAID

Select the SATA controllers operation mode.

Serial ATA Port x (x = 0 – 5)

(Device if installed)

Port Enable

Disabled

Enabled

Enable/Disable this port.

Hot Plug

Disabled

Enabled

Designates the port as Hot Pluggable. Note: Requires hardware support.

SATA Device Type

Hard Disk Drive Solid State Drive

KTD-N0882-I Page 74 BIOS - Advanced

KTQ87/KTH81 Users Guide

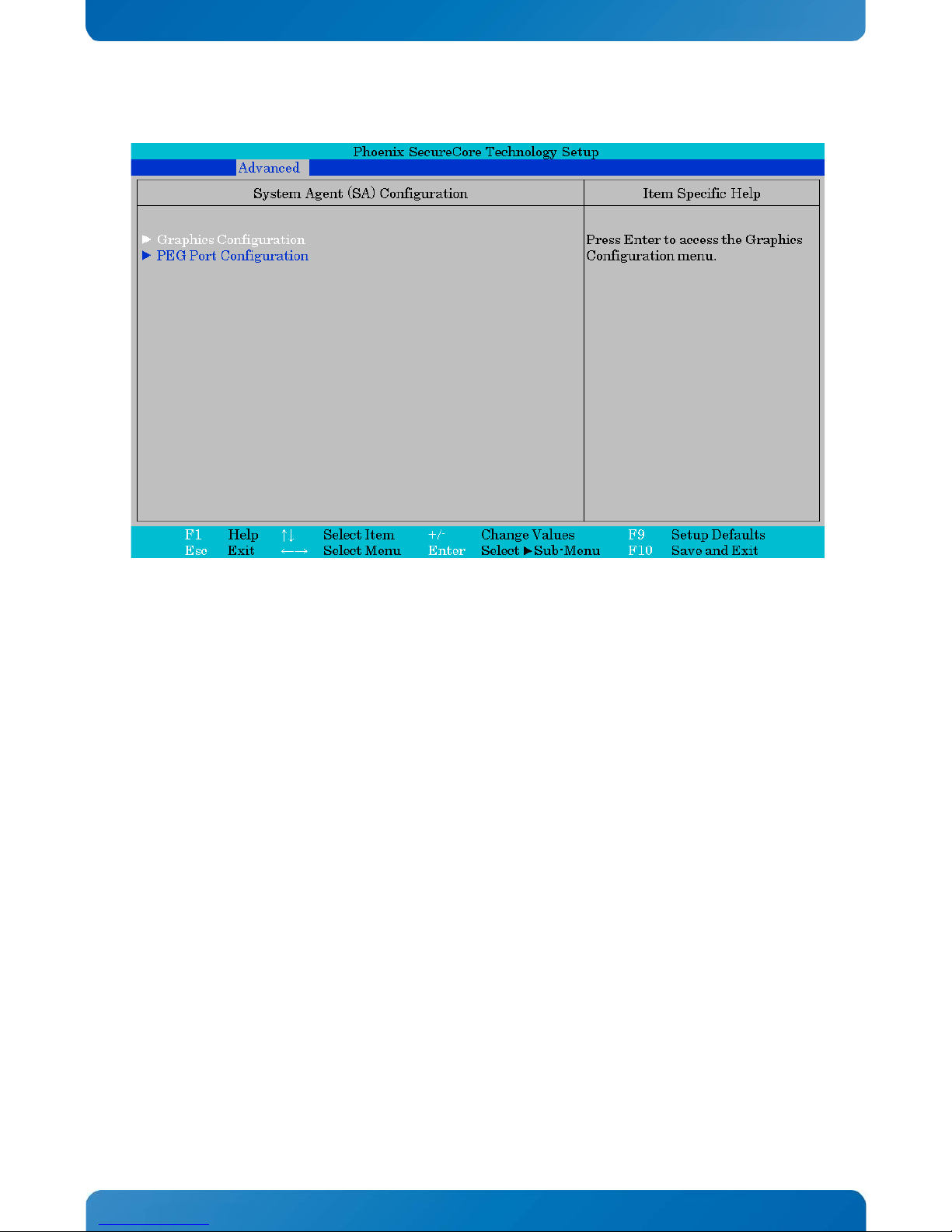

System Agent (SA) Configuration

Phoenix SecureCore Technology Setup

Advanced

System Agent (SA) Configuration Item Specific Help

► Graphics Configuration

► PEG Port Configuration

Press Enter to access the Graphics Configuration menu.

F1

Help

↑↓

Select Item

+/-

Change Values

F9

Setup Defaults

Esc

Exit

←→

Select Menu

Enter

Select ►Sub-Menu

F10

Save and Exit

KTD-N0882-I Page 75 BIOS - Advanced

KTQ87/KTH81 Users Guide

Graphics Configuration

Function

Selection

Description

Primary Display Selection

IGD

PEG

Auto

Select the primary display device.

Internal Graphics

Disabled

Enabled

Auto

Enable/Disable the Internal Graphics Device.

This has no effect if external graphics are present.

DVMT Pre-Allocated

32MB

64MB

128MB

Select Pre-Allocated Graphics Memory size used by the Internal Graphics Device. This has no

effect if external graphics are present.

DVMT Total Gfx Mem

128MB

256MB

MAX

DVMT5.0 DVMT Graphic Memory Size. This has no effect if external graphics are present.

Phoenix SecureCore Technology Setup

Advanced

Graphics Configuration Item Specific Help

Primary Display Selection

Internal Graphics DVMT Pre-Allocated DVMT Total Gfx Mem

► LVDS Configuration ► IGD Configuration

[Auto] [Auto] [32MB] [256MB]

Select the primary display device.

F1

Help

↑↓

Select Item

+/-

Change Values

F9

Setup Defaults

Esc

Exit

←→

Select Menu

Enter

Select ►Sub-Menu

F10

Save and Exit

KTD-N0882-I Page 76 BIOS - Advanced

KTQ87/KTH81 Users Guide

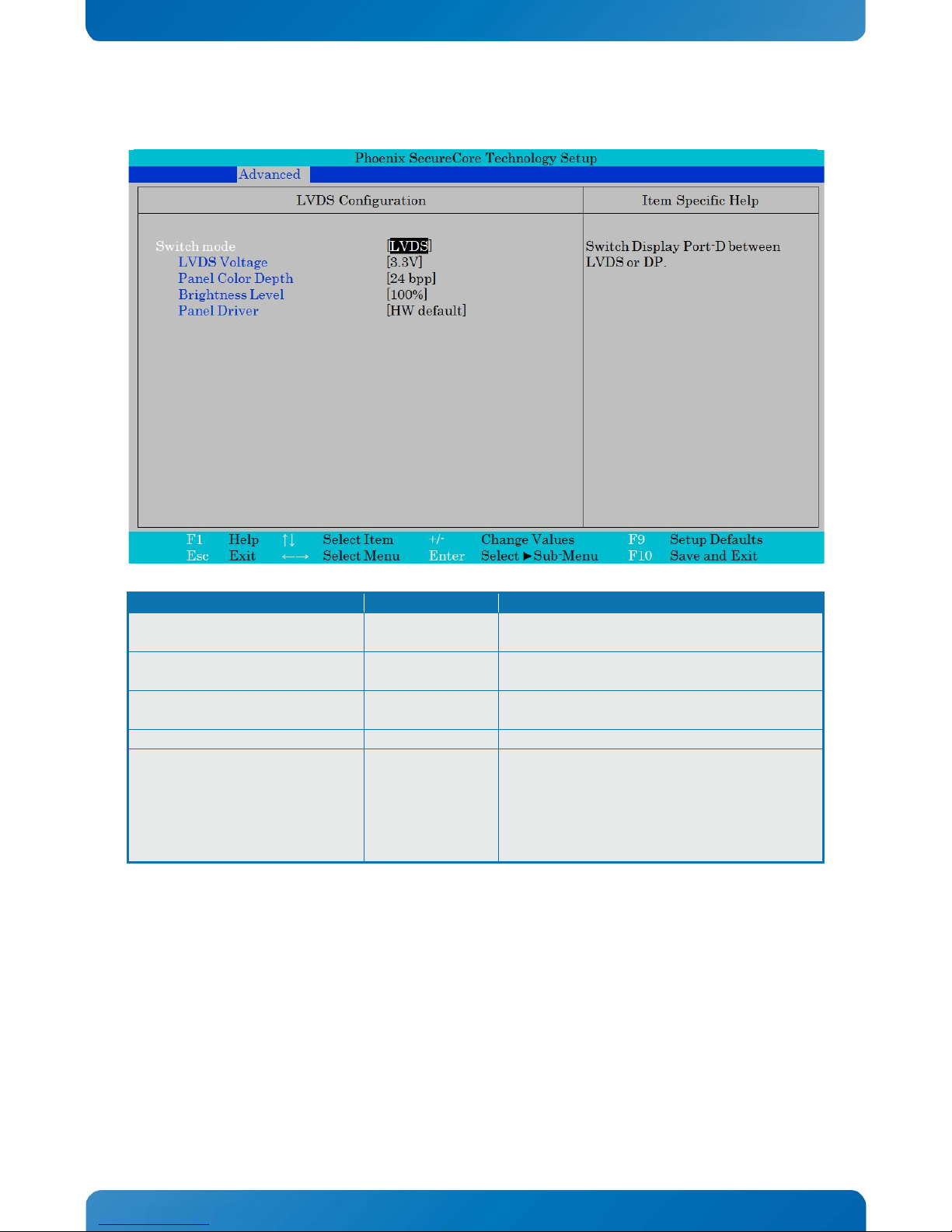

LVDS Configuration

Function

Selection

Description

Switch mode

LVDS

DP

Switch Display Port-D between LVDS or DP.

LVDS Voltage Note1

3.3V

5V

Select the LVDS Voltage.

Panel Color Depth Note1

18 bpp

24 bpp

Select the LVDS Panel Color Depth.

Brightness Level Note1

0%, 10%, … 100%

Select the LVDS Brightness Level.

Panel Driver Note1

HW default

LG 1600x1200 . . . Test 3

Select the Panel (EDID)

Note 1, only when Switch mode = LVDS.

Phoenix SecureCore Technology Setup

Advanced

LVDS Configuration Item Specific Help

Switch mode

LVDS Voltage Panel Color Depth Brightness Level Panel Driver

[LVDS] [3.3V] [24 bpp] [100%] [HW default]

Switch Display Port-D between LVDS or DP.

F1

Help

↑↓

Select Item

+/-

Change Values

F9

Setup Defaults

Esc

Exit

←→

Select Menu

Enter

Select ►Sub-Menu

F10

Save and Exit

KTD-N0882-I Page 77 BIOS - Advanced

KTQ87/KTH81 Users Guide

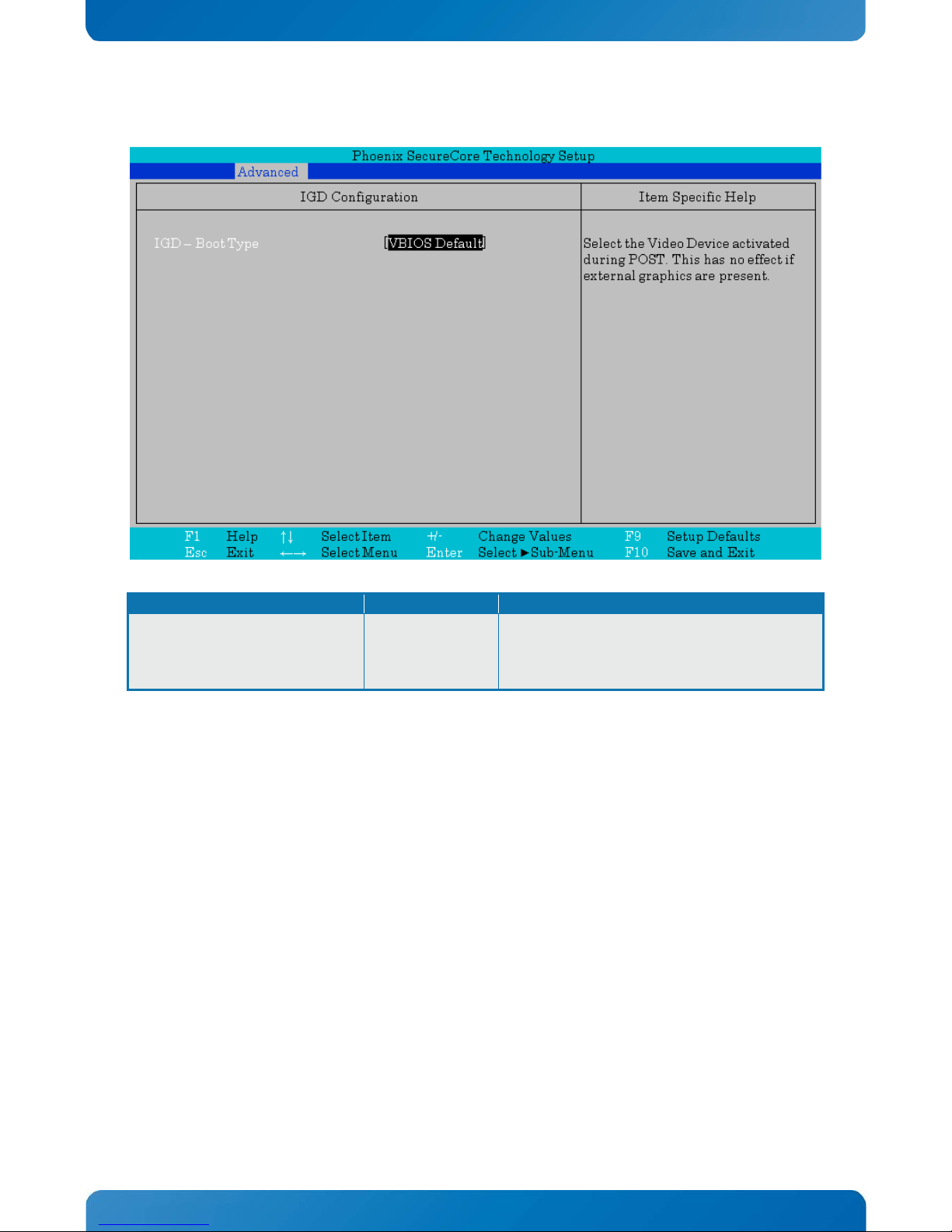

IGD Configuration

Function

Selection

Description

IGD – Boot Type

VBIOS Default

EFP EFP3

EFP2

Select the Video Device activated during POST. This has no effect if external graphics are present.

Phoenix SecureCore Technology Setup

Advanced

IGD Configuration Item Specific Help

IGD – Boot Type

[VBIOS Default]

Select the Video Device activated during POST. This has no effect if external graphics are present.

F1

Help

↑↓

Select Item

+/-

Change Values

F9

Setup Defaults

Esc

Exit

←→

Select Menu

Enter

Select ►Sub-Menu

F10

Save and Exit

KTD-N0882-I Page 78 BIOS - Advanced

KTQ87/KTH81 Users Guide

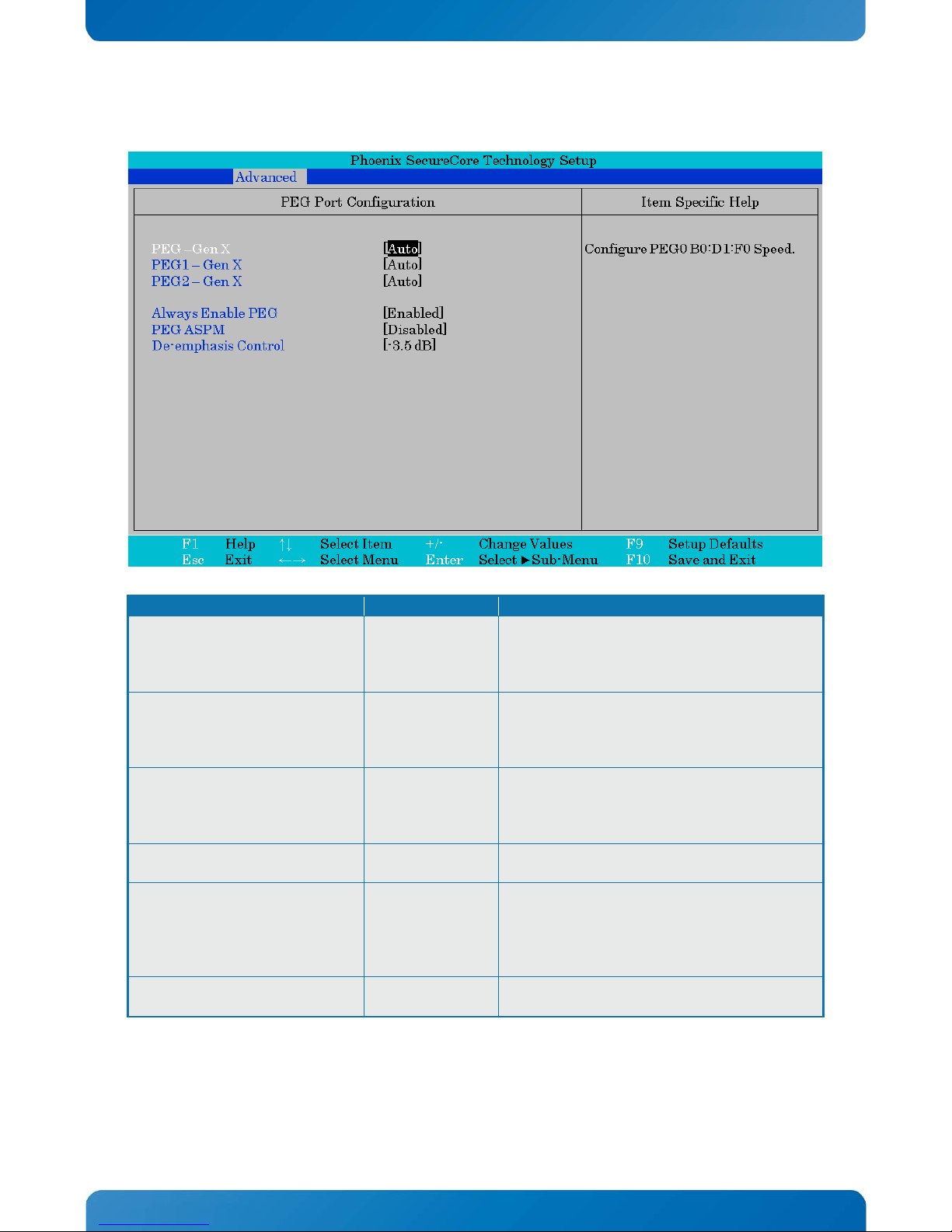

PEG Port Configuration

Function

Selection

Description

PEG –Gen X

Auto

Gen1 Gen2

Gen3

Configure PEG0 B0:D1:F0 Speed.

PEG1 – Gen X

Auto

Gen1 Gen2

Gen3

Configure PEG1 B0:D1:F1 Speed.

PEG2 – Gen X

Auto

Gen1 Gen2

Gen3

Configure PEG2 B0:D1:F2 Speed.

Always Enable PEG

Disabled

Enabled

Enable PEG.

PEG ASPM

Disabled

L0S L1 L0S And L1

Auto

PEG ASPM Settings.

De-emphasis Control

-6 dB

-3.5 dB

DeEmphasis control for PEG

Phoenix SecureCore Technology Setup

Advanced

PEG Port Configuration Item Specific Help

PEG –Gen X

PEG1 – Gen X PEG2 – Gen X

Always Enable PEG PEG ASPM De-emphasis Control

[Auto] [Auto] [Auto]

[Enabled] [Disabled] [-3.5 dB]

Configure PEG0 B0:D1:F0 Speed.

F1

Help

↑↓

Select Item

+/-

Change Values

F9

Setup Defaults

Esc

Exit

←→

Select Menu

Enter

Select ►Sub-Menu

F10

Save and Exit

KTD-N0882-I Page 79 BIOS - Advanced

KTQ87/KTH81 Users Guide

South Bridge Configuration

Function

Selection

Description

Port 80h Cycles

LPC Bus

PCI Bus

Control where the Port 80h cycles are sent.

State After G3

State S5

State S0

Specify what state to switch to when power is

re-applied after a power failure (G3 state).

PS/2 Legacy device wake

Disabled

Wake from S3 Only Wake from S4 Only Wake from S3 and S4 Wake from S5 Only

Wake from S3, S4 and S5

Allow wake and/or power-on with PS/2 keyboard or mouse.

Phoenix SecureCore Technology Setup

Advanced

South Bridge Configuration Item Specific Help

Port 80h Cycles

State After G3 PS/2 Legacy device wake

► SB PCI Express Config ► SB USB Config ► SB Azalia Config

[LPC Bus]

[State S0] [Wake from S3 Only]

Control where the Port 80h cycles are sent.

F1

Help

↑↓

Select Item

+/-

Change Values

F9

Setup Defaults

Esc

Exit

←→

Select Menu

Enter

Select ►Sub-Menu

F10

Save and Exit

KTD-N0882-I Page 80 BIOS - Advanced

KTQ87/KTH81 Users Guide

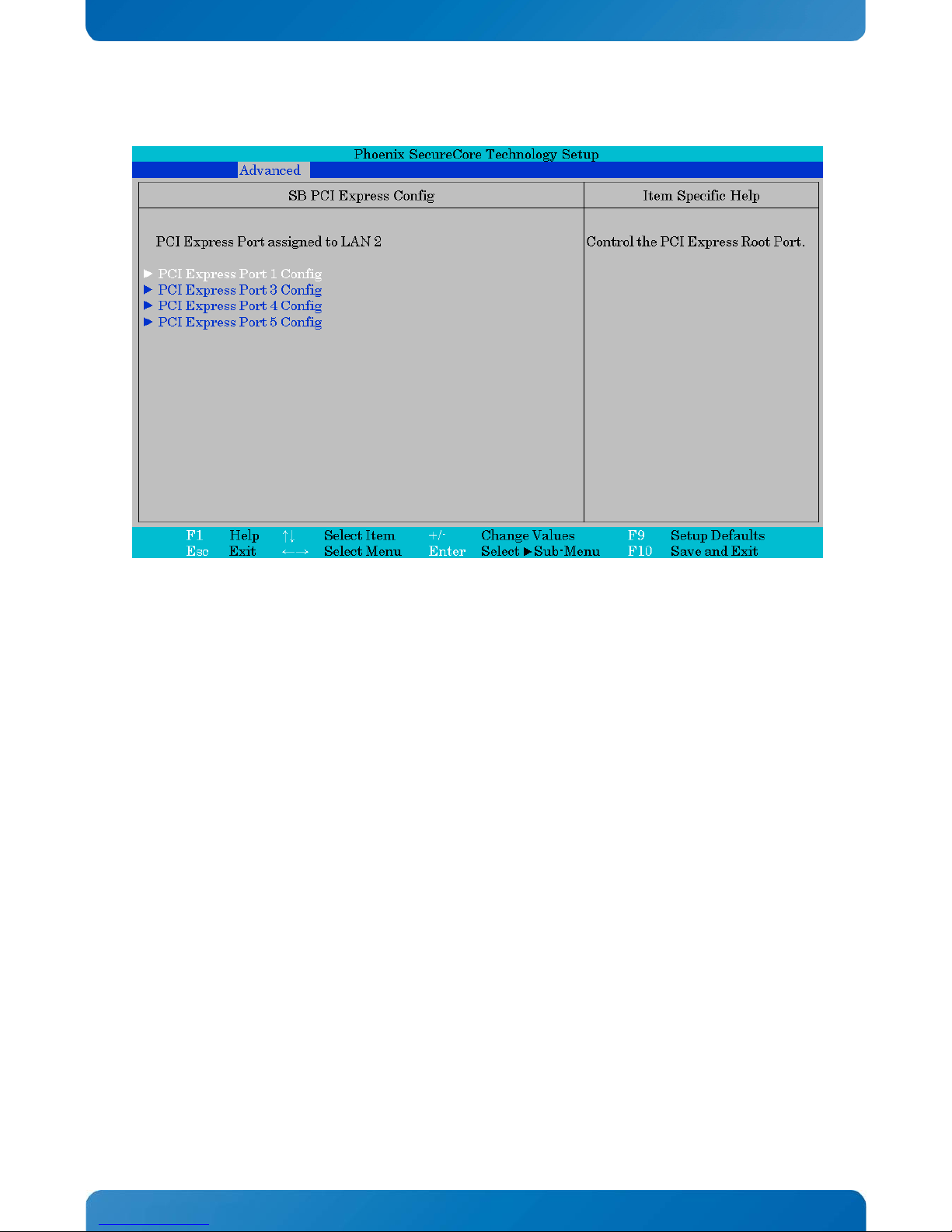

SB PCI Express Config

Phoenix SecureCore Technology Setup

Advanced

SB PCI Express Config Item Specific Help

PCI Express Port assigned to LAN 2

► PCI Express Port 1 Config

► PCI Express Port 3 Config ► PCI Express Port 4 Config ► PCI Express Port 5 Config

Control the PCI Express Root Port.

F1

Help

↑↓

Select Item

+/-

Change Values

F9

Setup Defaults

Esc

Exit

←→

Select Menu

Enter

Select ►Sub-Menu

F10

Save and Exit

KTD-N0882-I Page 81 BIOS - Advanced

KTQ87/KTH81 Users Guide

PCI Express Root Port 1 (3, 4 & 5)

Phoenix SecureCore Technology Setup

Advanced

PCI Express Root Port 1 (3, 4 & 5) Item Specific Help

PCI Express Root Port 1 (3&4)

PCIe Speed

[Enabled] [Auto]

Control the PCI Express Root Port.

F1

Help

↑↓

Select Item

+/-

Change Values

F9

Setup Defaults

Esc

Exit

←→

Select Menu

Enter

Select ►Sub-Menu

F10

Save and Exit

Function

Selection

Description

PCI Express Root Port x

(x= 1, 3,4 or 5)

Disabled

Enabled

Control the PCI Express Root Port.

PCIe Speed

Auto

Gen1

Gen2

Select PCIe Speed to Gen1 or Gen2.

KTD-N0882-I Page 82 BIOS - Advanced

KTQ87/KTH81 Users Guide

SB USB Configuration

Function

Selection

Description

xHCI Mode

Disabled

Enabled Auto

Smart Auto

Mode of operation of xHCI controller.

EHCI2

Disabled

Enabled

Control the USB EHCI (USB 2.0) functions.

USB Per-Port Disable Control

Disabled

Enabled

Control each of the USB ports (0~13)

enable/disable.

Phoenix SecureCore Technology Setup

Advanced

SB USB Configuration Item Specific Help

xHCI Mode

EHCI2 USB Per-Port Disable Control

[Smart Auto] [Enabled] [Disabled]

Mode of operation of xHCI controller.

F1

Help

↑↓

Select Item

+/-

Change Values

F9

Setup Defaults

Esc

Exit

←→

Select Menu

Enter

Select ►Sub-Menu

F10

Save and Exit

KTD-N0882-I Page 83 BIOS - Advanced

KTQ87/KTH81 Users Guide

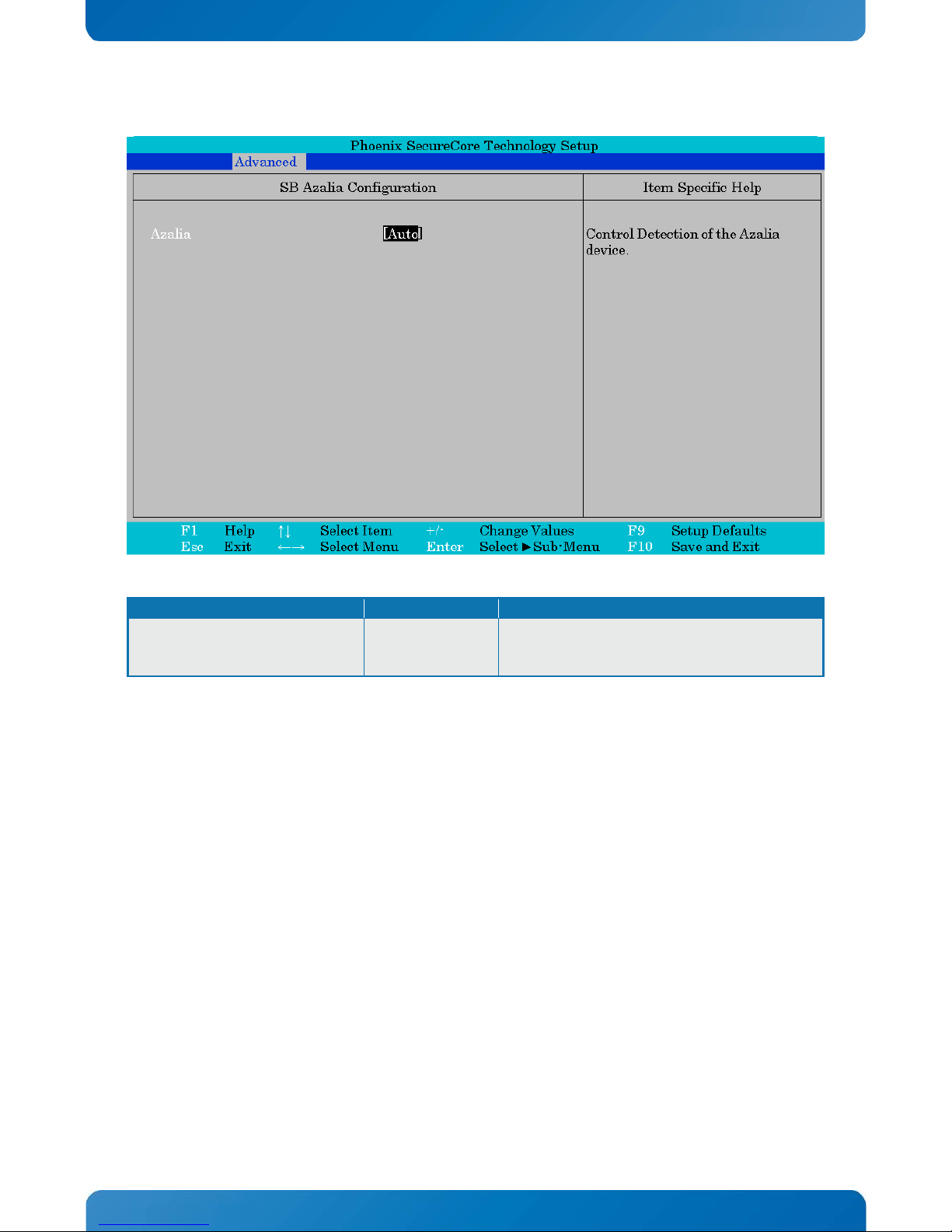

SB Azalia Configuration

Function

Selection

Description

Azalia

Disabled

Enabled

Auto

Control Detection of the Azalia device.

Phoenix SecureCore Technology Setup

Advanced

SB Azalia Configuration Item Specific Help

Azalia

[Auto]

Control Detection of the Azalia device.

F1

Help

↑↓

Select Item

+/-

Change Values

F9

Setup Defaults

Esc

Exit

←→

Select Menu

Enter

Select ►Sub-Menu

F10

Save and Exit

KTD-N0882-I Page 84 BIOS - Advanced

KTQ87/KTH81 Users Guide

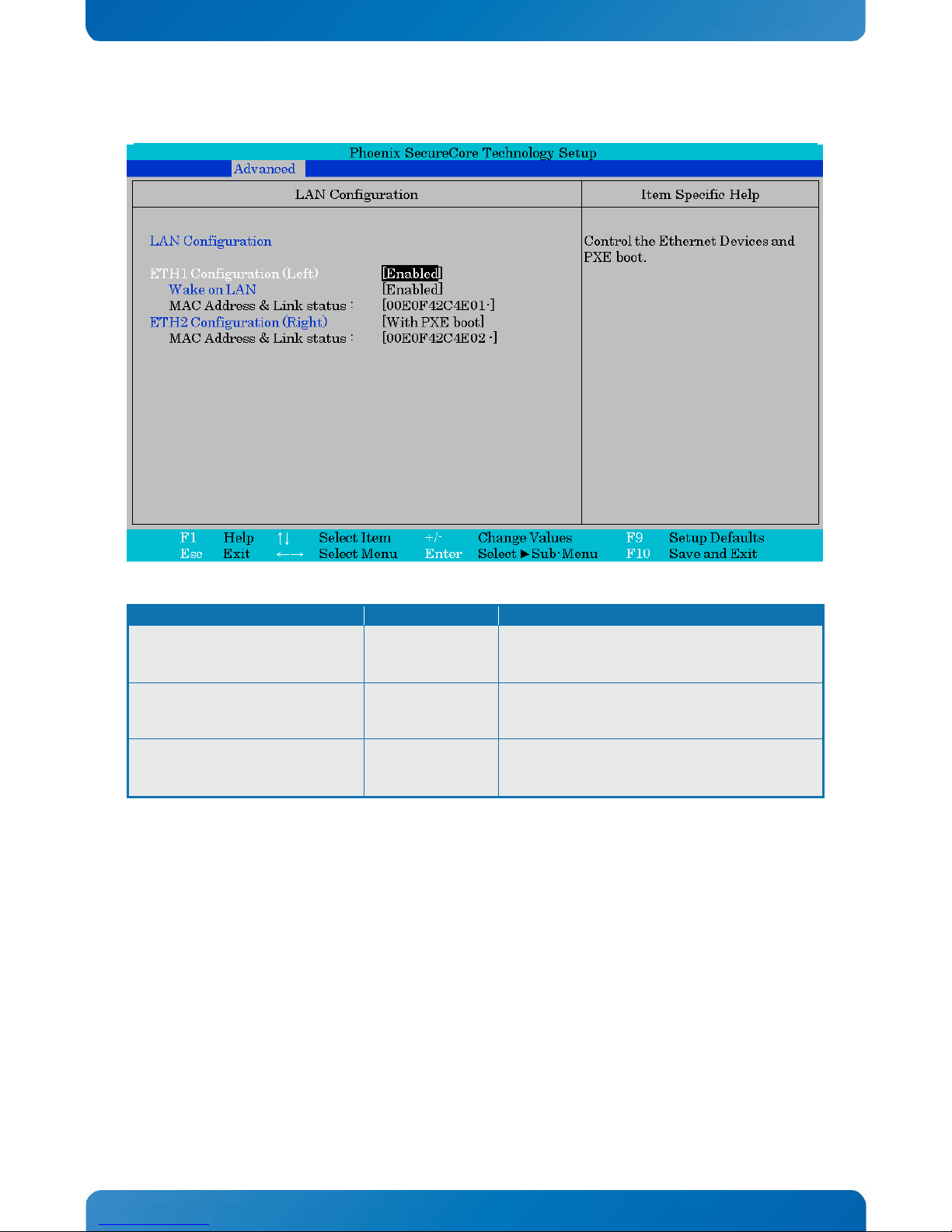

LAN Configuration

Note: The “+” and “-“ (to the right of the MAC address) indicates respectively if link is established or not.

Function

Selection

Description

ETH1 Configuration (Left)

Disabled

Enabled

With PXE boot

Control the Ethernet Devices and PXE boot.

Wake on LAN

Disabled

Enabled

Enable or disable integrated LAN to wake the

system. (The Wake On LAN cannot be disabled if

ME is on at Sx state).

ETH2 Configuration (Right)

Disabled

Enabled

With PXE boot

Control the Ethernet Devices and PXE boot.

Phoenix SecureCore Technology Setup

Advanced

LAN Configuration Item Specific Help

LAN Configuration

ETH1 Configuration (Left)

Wake on LAN

MAC Address & Link status :

ETH2 Configuration (Right)

MAC Address & Link status :

[Enabled]

[Enabled] [00E0F42C4E01-] [With PXE boot] [00E0F42C4E02 -]

Control the Ethernet Devices and PXE boot.

F1

Help

↑↓

Select Item

+/-

Change Values

F9

Setup Defaults

Esc

Exit

←→

Select Menu

Enter

Select ►Sub-Menu

F10

Save and Exit

KTD-N0882-I Page 85 BIOS - Advanced

KTQ87/KTH81 Users Guide

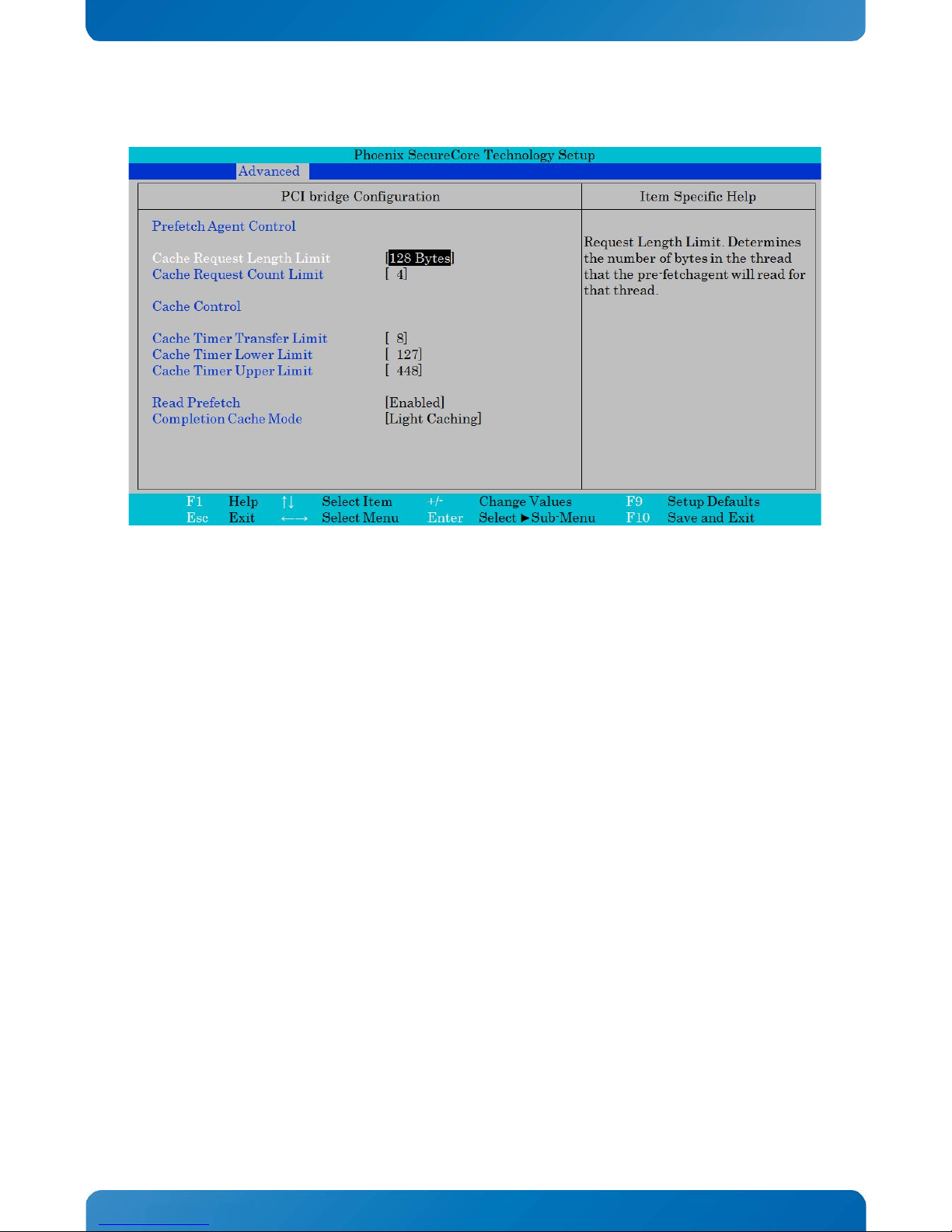

PCI bridge Configuration

Phoenix SecureCore Technology Setup

Advanced

PCI bridge Configuration Item Specific Help

Prefetch Agent Control

Cache Request Length Limit

Cache Request Count Limit

Cache Control

Cache Timer Transfer Limit Cache Timer Lower Limit Cache Timer Upper Limit

Read Prefetch Completion Cache Mode

[128 Bytes] [ 4]

[ 8] [ 127] [ 448]

[Enabled] [Light Caching]

Request Length Limit. Determines the number of bytes in the thread that the pre-fetchagent will read for that thread.

F1

Help

↑↓

Select Item

+/-

Change Values

F9

Setup Defaults

Esc

Exit

←→

Select Menu

Enter

Select ►Sub-Menu

F10

Save and Exit

KTD-N0882-I Page 86 BIOS - Advanced

KTQ87/KTH81 Users Guide

Function

Selection

Description

Cache Request Length Limit

64 Bytes

128 Bytes

256 Bytes 512 Bytes 1Kbytes 2Kbytes 4Kbytes 8Kbytes

Request Length Limit. Determines the number of bytes in the thread that the pre-fetchagent will read for that thread.

Cache Request Count Limit

0, 1, … 3, 4, 5, …, 15

Set the number of PCI cycle starts that have to

occur without a read hit on the completion data

buffer, before the cache data can be discarded.

Cache Timer Transfer Limit 0, 1, … 7, 8, 9, …, 15

Number of PCI cycle starts that have to occur

without a read hit on the completion data

buffer, before the cache data can be discarded.

Cache Timer Lower Limit

0, 1,… 127, … 4096

Minimum number of clock cycles that must have

passed without a read hit on the completion data buffer, before the ‘cache miss limit’ check

can be triggered.

Cache Timer Upper Limit

0, 1,… 448, … 4096

Discard cache data after this number of clock

cycles have passed without a read hit on the

completion data buffer.

Read Prefetch

Enabled

Disabled

Control the pre-fetch functionality on PCI memory read transactions.

Completion Cache Mode

No Caching

Light Caching

Full Caching

Determines the rules for completing the caching

process.

Light caching: All remaining read completion data will be discarded after any of the data has been returned to the PCI master.

Light & Full caching: Pre-fetching is enabled. All remaining read completion data will be cached after data has been returned to the PCI master and the PCI master terminated the transfer with RETRY.

Full caching: All remaining read completion data will be cached after data has been returned to the PCI master and the PCI master terminated the transfer.

KTD-N0882-I Page 87 BIOS - Advanced

KTQ87/KTH81 Users Guide

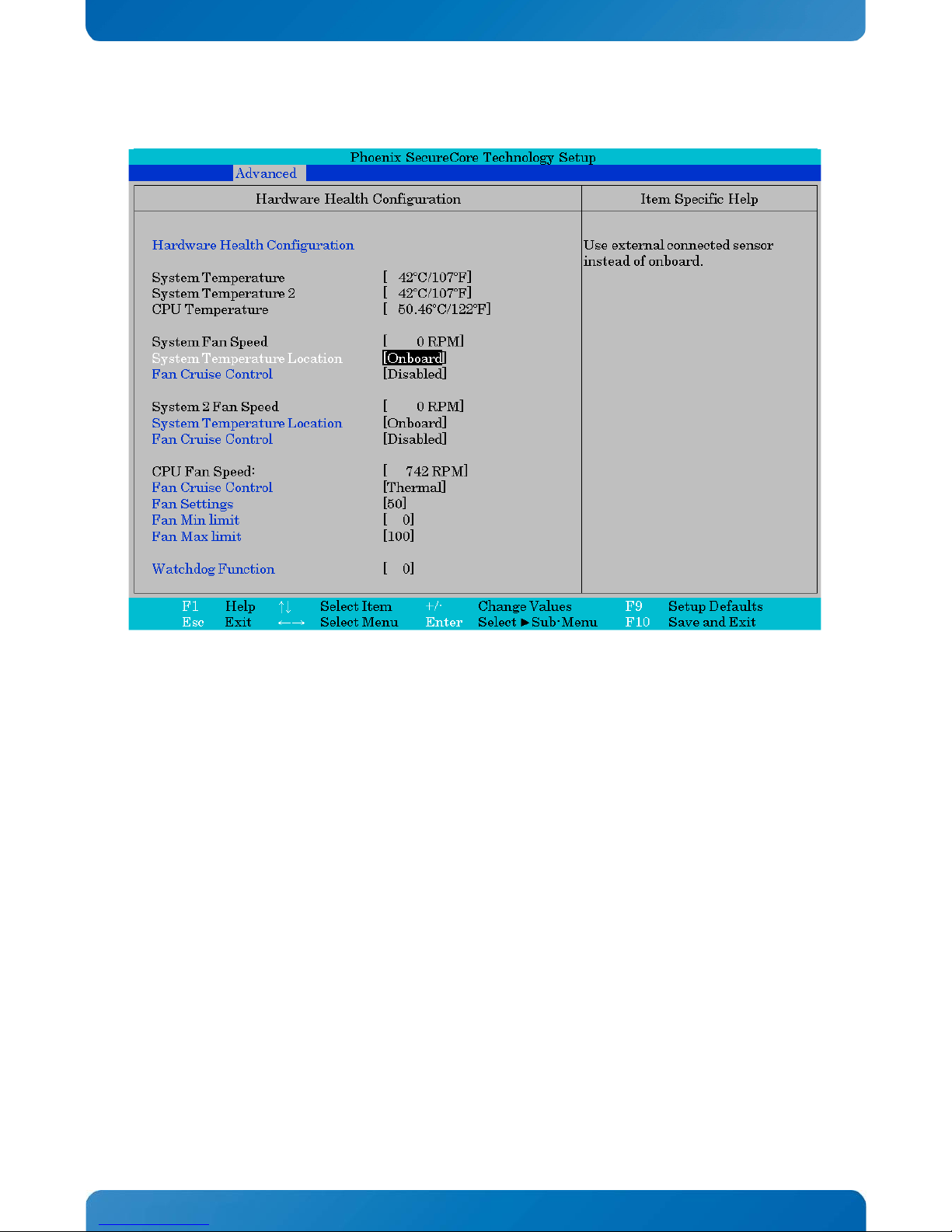

Hardware Health Configuration

Note: System Temperature readout is the temperature measured by the selected sensor via System Temperature Location. Example, if using same System Temperature Location selection for both System Fan and System 2 Fan then System Temperature and System Temperature2 readout will be identical.

Phoenix SecureCore Technology Setup

Advanced

Hardware Health Configuration Item Specific Help

Hardware Health Configuration

System Temperature System Temperature 2 CPU Temperature

System Fan Speed System Temperature Location

Fan Cruise Control

System 2 Fan Speed

System Temperature Location Fan Cruise Control

CPU Fan Speed:

Fan Cruise Control Fan Settings Fan Min limit Fan Max limit

Watchdog Function

[ 42ºC/107ºF] [ 42ºC/107ºF] [ 50.46ºC/122ºF]

[ 0 RPM]

[Onboard]

[Disabled]

[ 0 RPM] [Onboard] [Disabled]

[ 742 RPM] [Thermal] [50] [ 0] [100]

[ 0]

Use external connected sensor instead of onboard.

F1

Help

↑↓

Select Item

+/-

Change Values

F9

Setup Defaults

Esc

Exit

←→

Select Menu

Enter

Select ►Sub-Menu

F10

Save and Exit

KTD-N0882-I Page 88 BIOS - Advanced

KTQ87/KTH81 Users Guide

Function

Selection

Description

System Temperature Location

Onboard

LM75 @ 0x90 (Note 1)

Use external connected sensor instead of onboard.

Fan Cruise Control (Note 2)

Disabled

Thermal

Speed

Disabled = Full speed.

Thermal: Regulate according to specified ºC.

Speed: Regulate according to specified RPM.

Fan Settings

30 – 90 (note3) 1000 – 10000 (note4)

Fan Min limit (Note 5) 0 (note6)

Minimum PWM %, can be used to make sure

fan is always active. Make sure Min limit <

Max limit.

Fan Max limit (Note 5) 100 (note6)

Maximum PWM %, can be used to limit the fan noise. Make sure Min limit < Max limit.

Watchdog Function 0 - 255 (note7)

0 = Disabled.

Enter the service interval in seconds before

system will reset.

Note 1: When selecting LM75 @ 0x90 then the System Temperature and/or System Temperature 2 readout will only be valid if the sensor is physically connected to the Feature connector.

Note 2: Three sets of settings (Fan Cruse Control, Fan Settings, Fan Min limit, Fan Max limit), one set for System Fan, one set for System 2 Fan and one set for CPU Fan. The Fan Cruise Control is by default Disabled for System Fan and System 2 Fan and by default Thermal for CPU Fan.

Note 3: ºC (if Fan Cruise Control is Thermal) use either digit keys to enter value or +/- keys to increase/decrease value. Don’t use mix of digit keys and +/- keys.

Note 4: RPM (if Fan Cruise Control is Speed) use either digit keys to enter value or +/- keys to increase/decrease value by 100. Don’t use mix of digit keys and +/- keys.

Note 5: Only visible if Fan Cruise Control is Thermal.

Note6: Use number keys to enter value.

Note 7: Seconds, use digit keys to enter value. Value 0 means Watchdog is disabled. Refer to “KT-API-V2 User Manual” to control the Watchdog via API or refer to “KT-API-V2 User Manual DLL” how to control Watchdog via Windows DLL.

KTD-N0882-I Page 89 BIOS - Advanced

KTQ87/KTH81 Users Guide

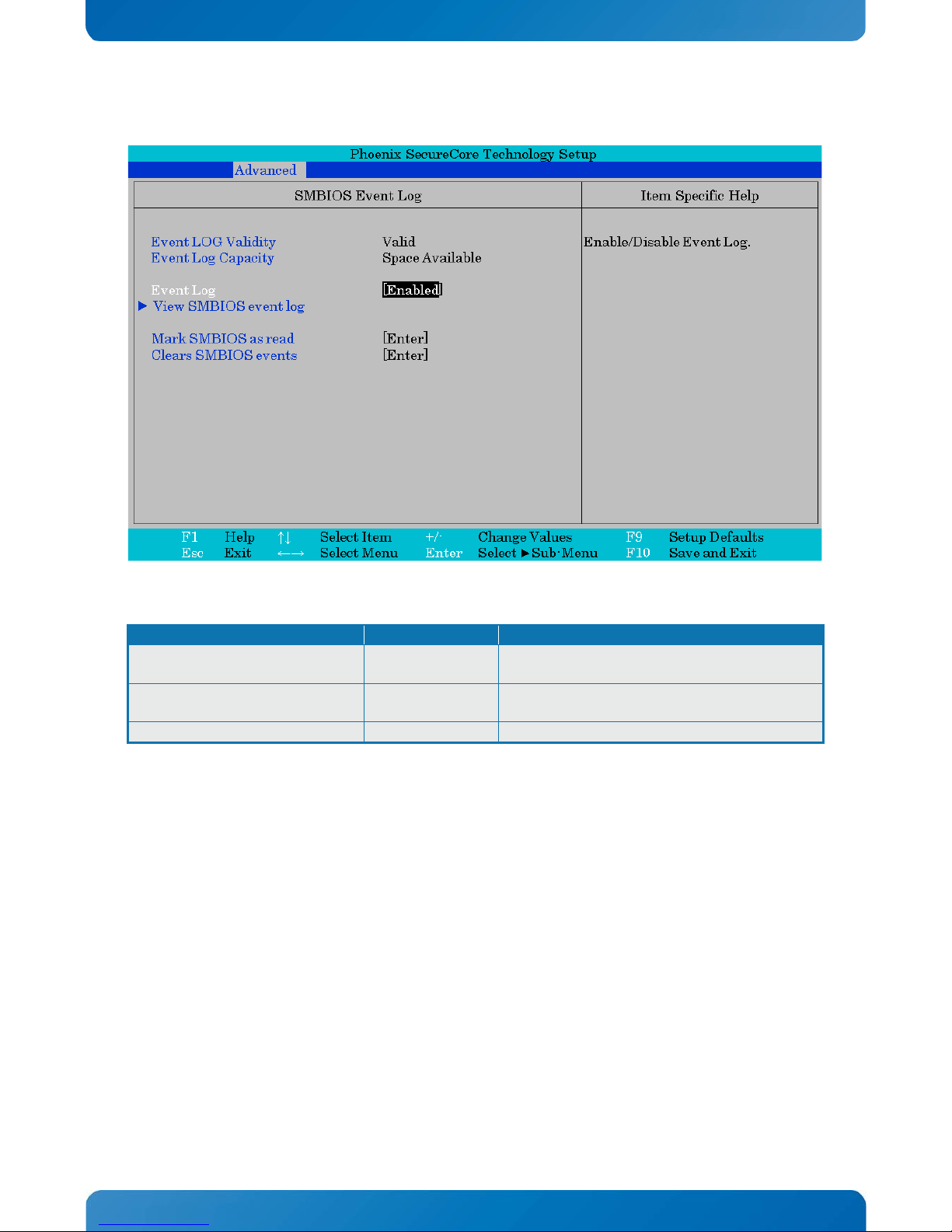

SMBIOS Event Log

Note: Entering View SMBIOS event log will show log only.

Function

Selection

Description

Event Log

Disabled

Enabled

Enable/Disable Event Log.

Mark SMBIOS as read Enter

Mark SMBIOS events as read. Marked SMBIOS events won’t be displayed.

Clears SMBIOS events

Enter

Clears SMBIOS events.

Phoenix SecureCore Technology Setup

Advanced

SMBIOS Event Log Item Specific Help

Event LOG Validity Event Log Capacity

Event Log

► View SMBIOS event log

Mark SMBIOS as read Clears SMBIOS events

Valid Space Available

[Enabled]

[Enter] [Enter]

Enable/Disable Event Log.

F1

Help

↑↓

Select Item

+/-

Change Values

F9

Setup Defaults

Esc

Exit

←→

Select Menu

Enter

Select ►Sub-Menu

F10

Save and Exit

KTD-N0882-I Page 90 BIOS - Advanced

KTQ87/KTH81 Users Guide

AMT Configuration

Phoenix SecureCore Technology Setup

Advanced

AMT Configuration Item Specific Help

Intel ® AMT

Enter Intel ® MEBx Setup Un-Configure ME

[Enabled]

[Disabled] [Disabled]

Enable/Disable Intel ® Active Management Technology BIOS Extension. Note: iAMT H/W is always enabled. This option just controls the BIOS extension execution. If enabled this requires additional firmware in the SPI device.

F1

Help

↑↓

Select Item

+/-

Change Values

F9

Setup Defaults

Esc

Exit

←→

Select Menu

Enter

Select ►Sub-Menu

F10

Save and Exit

Function

Selection

Description

Intel ® AMT

Disabled

Enabled

Enable/Disable Intel ® Active Management

Technology BIOS Extension. Note: iAMT H/W is always enabled. This option just controls the BIOS extension execution. If enabled this requires additional firmware in

the SPI.

Enter Intel ® MEBx Setup

Disabled

Enabled

Enter Intel ® MEBx Setup on the next boot.

Un-Configure ME

Disabled

Enabled

Un-configure ME without a password.

KTD-N0882-I Page 91 BIOS - Advanced

KTQ87/KTH81 Users Guide

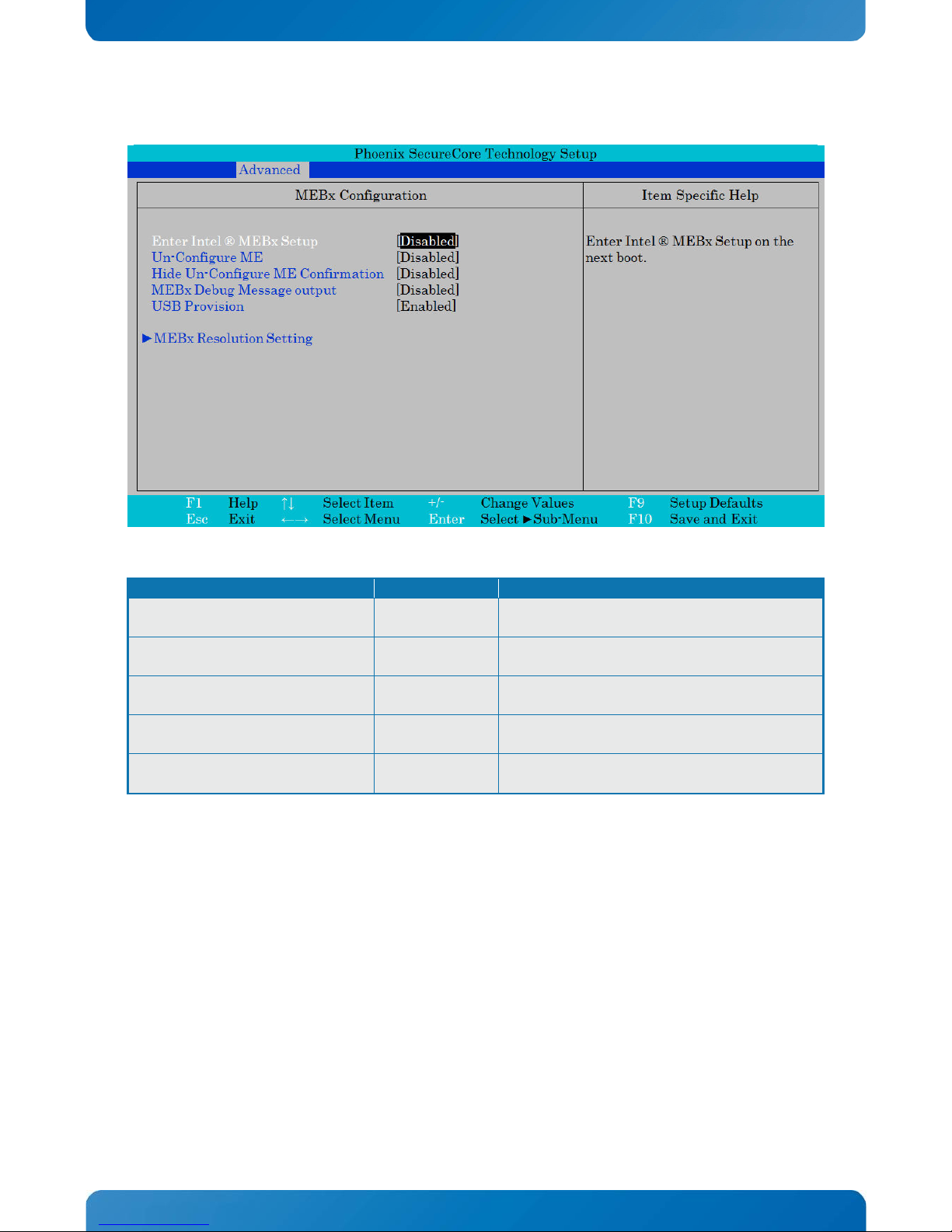

MEBx Configuration

Phoenix SecureCore Technology Setup

Advanced

MEBx Configuration Item Specific Help

Enter Intel ® MEBx Setup

Un-Configure ME Hide Un-Configure ME Confirmation MEBx Debug Message output USB Provision

►MEBx Resolution Setting

[Disabled] [Disabled] [Disabled] [Disabled] [Enabled]

Enter Intel ® MEBx Setup on the next boot.

F1

Help

↑↓

Select Item

+/-

Change Values

F9

Setup Defaults

Esc

Exit

←→

Select Menu

Enter

Select ►Sub-Menu

F10

Save and Exit

Function

Selection

Description

Enter Intel ® MEBx Setup

Disabled

Enabled

Enter Intel ® MEBx Setup on the next boot.

Un-Configure ME

Disabled

Enabled

Un-Configure ME without a password.

Hide Un-Configure ME Confirmation

Disabled

Enabled

Hide Un-Configure ME Confirmation without

password Confirmation Prompt.

MEBx Debug Message output

Disabled

Enabled

Enable/Disable MEBx Debug Message output.

USB Provision

Disabled

Enabled

Enable/Disable USB Provision function.

KTD-N0882-I Page 92 BIOS - Advanced

KTQ87/KTH81 Users Guide

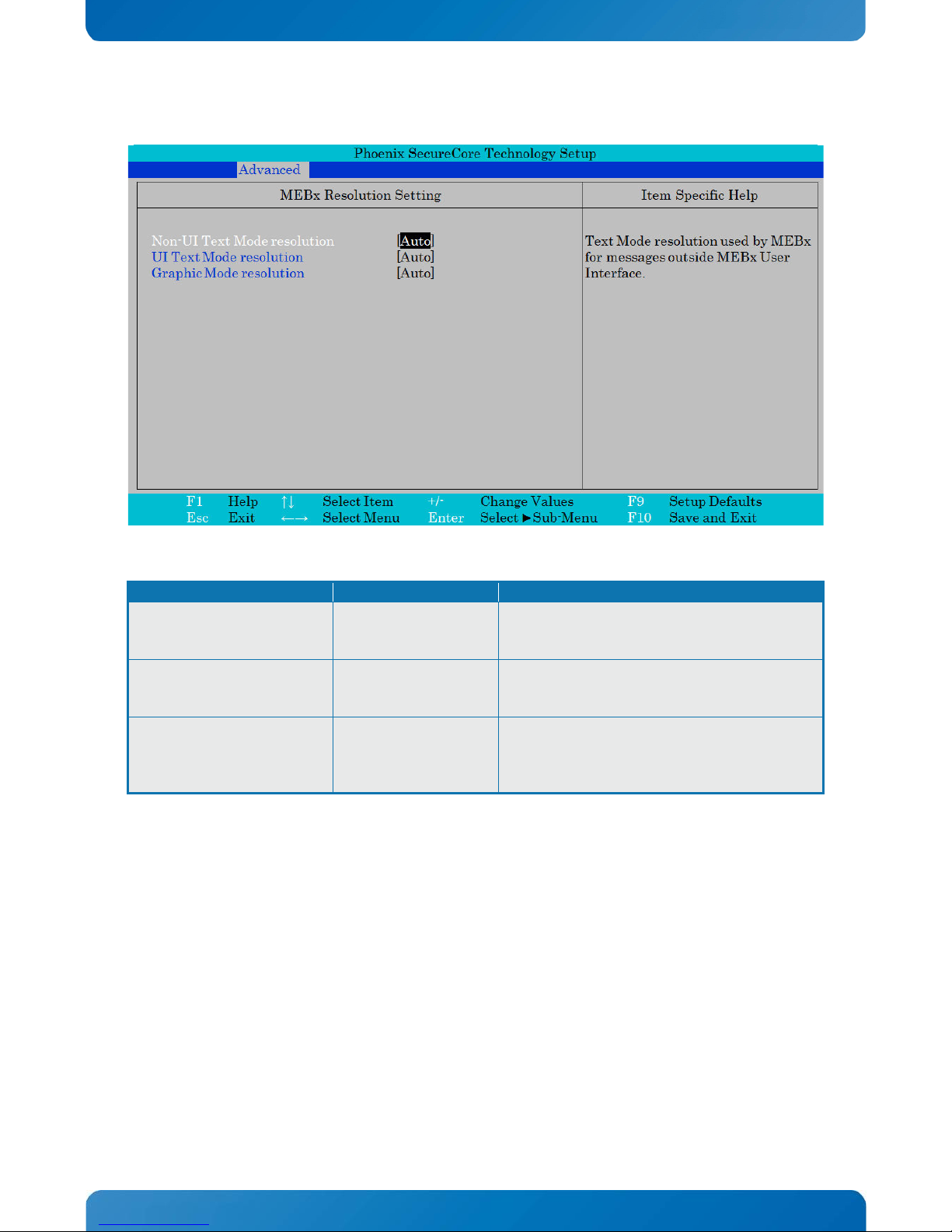

MEBx Resolution Setting

Phoenix SecureCore Technology Setup

Advanced

MEBx Resolution Setting Item Specific Help

Non-UI Text Mode resolution

UI Text Mode resolution Graphic Mode resolution

[Auto] [Auto] [Auto]

Text Mode resolution used by MEBx for messages outside MEBx User Interface.

F1

Help

↑↓

Select Item

+/-

Change Values

F9

Setup Defaults

Esc

Exit

←→

Select Menu

Enter

Select ►Sub-Menu

F10

Save and Exit

Function

Selection

Description

Non-UI Text Mode resolution

Auto

80X25

100X31

Text Mode resolution used by MEBx for messages outside MEBx User Interface.

UI Text Mode resolution

Auto

80X25

100X31

Text Mode resolution used by MEBx to display the User Interface forms.

Graphic Mode resolution

Auto

640X480 800X600

1024X768

Graphic Mode resolution used by MEBx to display boxes like consent sprite.

KTD-N0882-I Page 93 BIOS - Advanced

KTQ87/KTH81 Users Guide

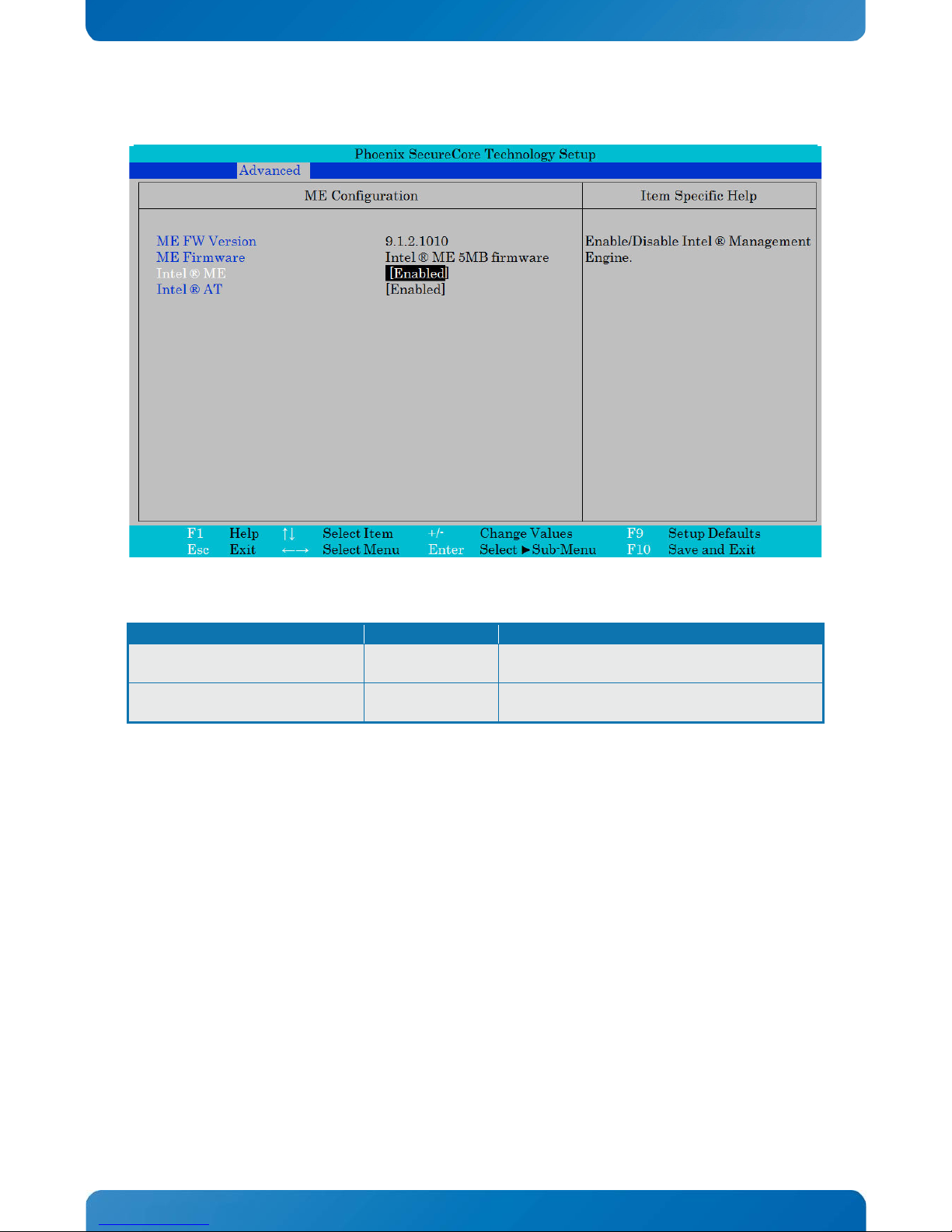

ME Configuration

Phoenix SecureCore Technology Setup

Advanced

ME Configuration Item Specific Help

ME FW Version ME Firmware

Intel ® ME

Intel ® AT

9.1.2.1010 Intel ® ME 5MB firmware

[Enabled]

Enable/Disable Intel ® Management Engine.

F1

Help

↑↓

Select Item

+/-

Change Values

F9

Setup Defaults

Esc

Exit

←→

Select Menu

Enter

Select ►Sub-Menu

F10

Save and Exit

Function

Selection

Description

Intel ® ME

Disabled

Enabled

Enable/Disable Intel ® Management Engine.

Intel ® AT

Disabled

Enabled

Enable/Disable Intel ® Anti-Theft Technology.

KTD-N0882-I Page 94 BIOS - Advanced

KTQ87/KTH81 Users Guide

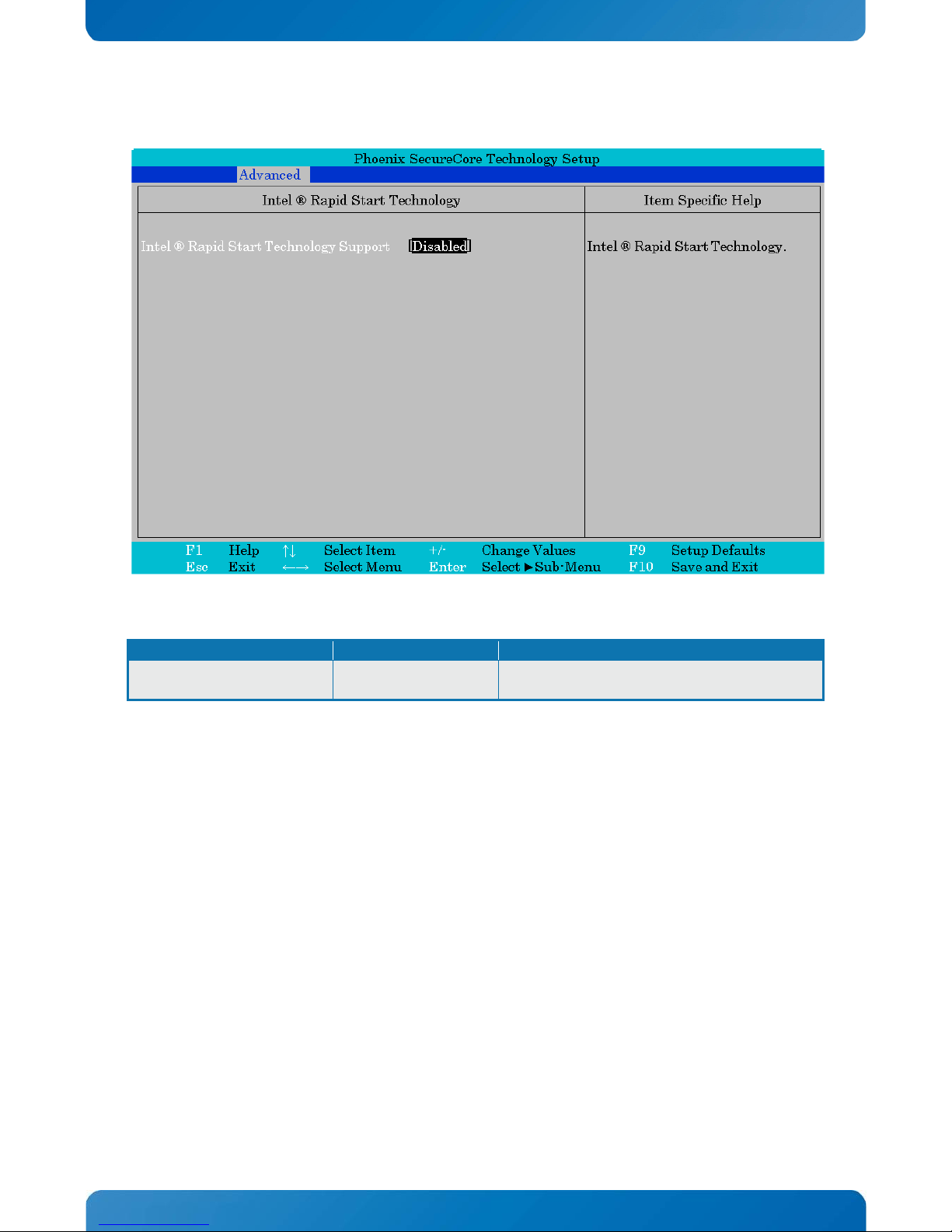

Intel ® Rapid Start Technology

Phoenix SecureCore Technology Setup

Advanced

Intel ® Rapid Start Technology Item Specific Help

Intel ® Rapid Start Technology Support [Disabled]

Intel ® Rapid Start Technology.

F1

Help

↑↓

Select Item

+/-

Change Values

F9

Setup Defaults

Esc

Exit

←→

Select Menu

Enter

Select ►Sub-Menu

F10

Save and Exit

Function

Selection

Description

Intel ® Rapid Start

Technology Support

Disabled

Enabled

Intel ® Rapid Start Technology.

KTD-N0882-I Page 95 BIOS - Security

KTQ87/KTH81 Users Guide

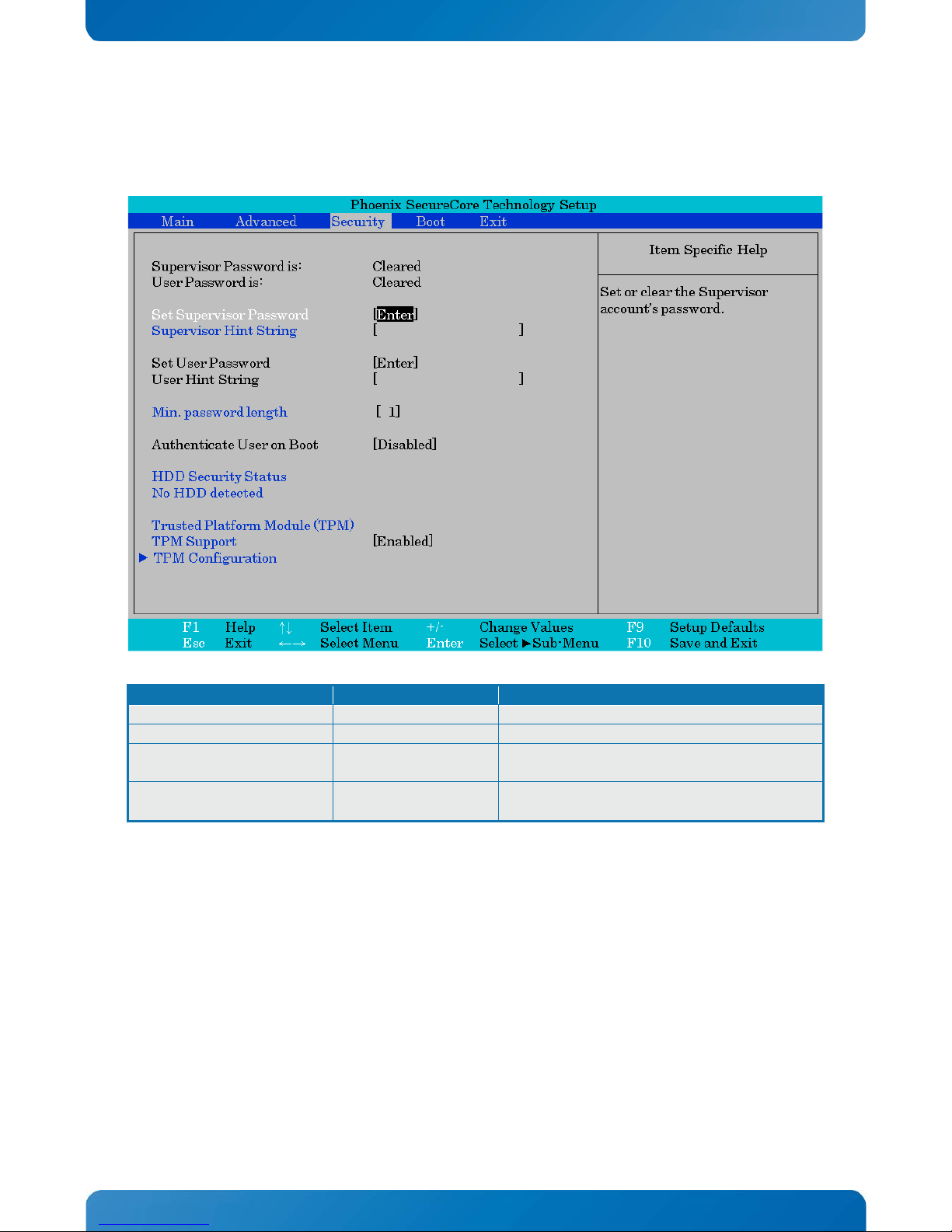

10.3 Security

Phoenix SecureCore Technology Setup

Main

Advanced

Security

Boot

Exit

Supervisor Password is: User Password is:

Set Supervisor Password

Supervisor Hint String

Set User Password User Hint String

Min. password length

Authenticate User on Boot

HDD Security Status No HDD detected

Trusted Platform Module (TPM) TPM Support ► TPM Configuration

Cleared Cleared

[Enter] [ ]

[ 1]

[Disabled]

[Enabled]

Item Specific Help

Set or clear the Supervisor

account’s password.

F1

Help

↑↓

Select Item

+/-

Change Values

F9

Setup Defaults

Esc

Exit

←→

Select Menu

Enter

Select ►Sub-Menu

F10

Save and Exit

Function

Selection

Description

Set Supervisor Password

(up to 20 characters)

Set or clear the Supervisor account’s password.

Supervisor Hint String

(up to 20 characters)

Press Enter to type Supervisor Hint String.

Min. password length 1, 2, …, 20

Set the minimum number of characters for password (1-20).

TPM Support

Disabled

Enabled

This is used to decide whether TPM support should be enabled or disabled.

KTD-N0882-I Page 96 BIOS - Security

KTQ87/KTH81 Users Guide

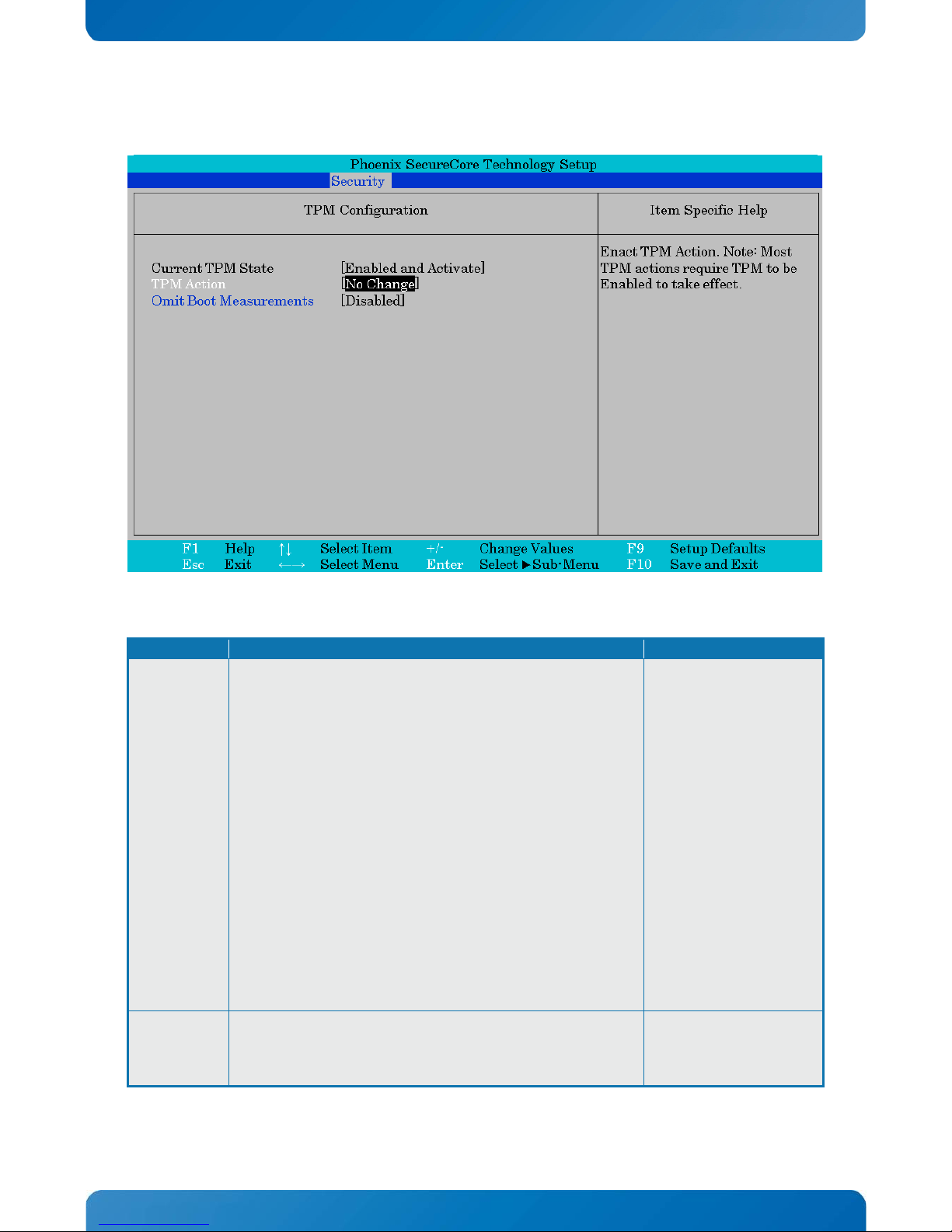

TPM Configuration

Phoenix SecureCore Technology Setup

Security

TPM Configuration

Item Specific Help

Current TPM State

TPM Action

Omit Boot Measurements

[Enabled and Activate] [No Change] [Disabled]

Enact TPM Action. Note: Most

TPM actions require TPM to be Enabled to take effect.

F1

Help

↑↓

Select Item

+/-

Change Values

F9

Setup Defaults

Esc

Exit

←→

Select Menu

Enter

Select ►Sub-Menu

F10

Save and Exit

Function

Selection

Description

TPM Action

No Change

Enable Disable Activate Deactivate Clear Enable and Activate Disable and Deactivate Set Owner Install, with State=True Set Owner Install, with State=False Enable, Activate, and Set Owner Install, with State=True Disable, Deactivate, and Set Owner Install, with State=False Clear, Enable, and Activate Require PP for provisioning Do not require PP for provisioning Require PP for clear Do not require PP for clear Enable, Activate, and Clear

Enable, Activate, Clear, Enable, and Activate

Enact TPM Action. Note: Most TPM actions require TPM to be Enabled to take effect.

TPM Support

Disabled

Enabled

Enabling this option

causes the system to omit recording boot device

attempts in PCR[4].

KTD-N0882-I Page 97 BIOS - Boot

KTQ87/KTH81 Users Guide

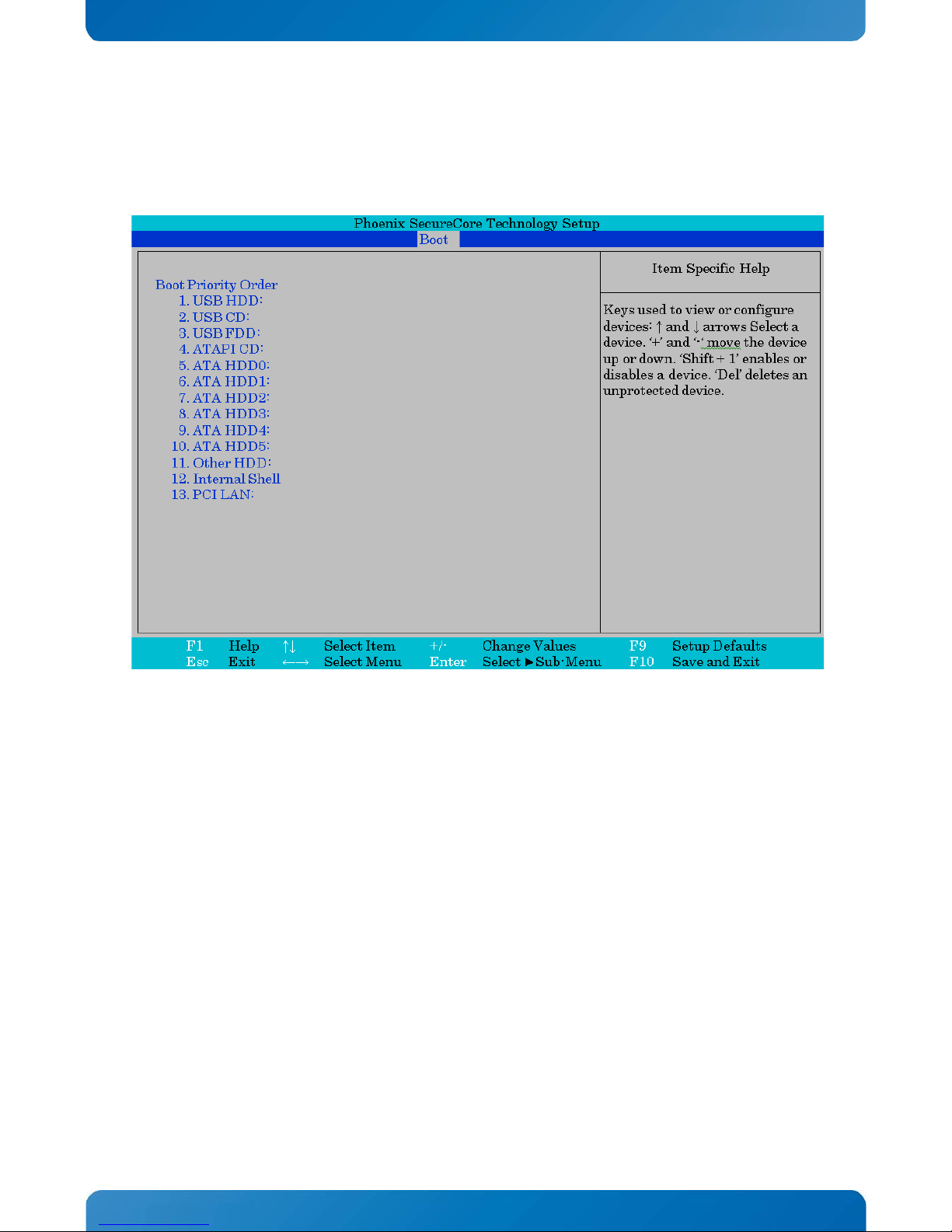

10.4 Boot

Phoenix SecureCore Technology Setup

Boot

Boot Priority Order

1. USB HDD:

2. USB CD:

3. USB FDD:

4. ATAPI CD:

5. ATA HDD0:

6. ATA HDD1:

7. ATA HDD2:

8. ATA HDD3:

9. ATA HDD4:

10. ATA HDD5:

11. Other HDD:

12. Internal Shell

13. PCI LAN:

Item Specific Help

Keys used to view or configure

devices: ↑ and ↓ arrows Select a device. ‘+’ and ‘-‘ move the device up or down. ‘Shift + 1’ enables or disables a device. ‘Del’ deletes an unprotected device.

F1

Help

↑↓

Select Item

+/-

Change Values

F9

Setup Defaults

Esc

Exit

←→

Select Menu

Enter

Select ►Sub-Menu

F10

Save and Exit

KTD-N0882-I Page 98 BIOS - Exit

KTQ87/KTH81 Users Guide

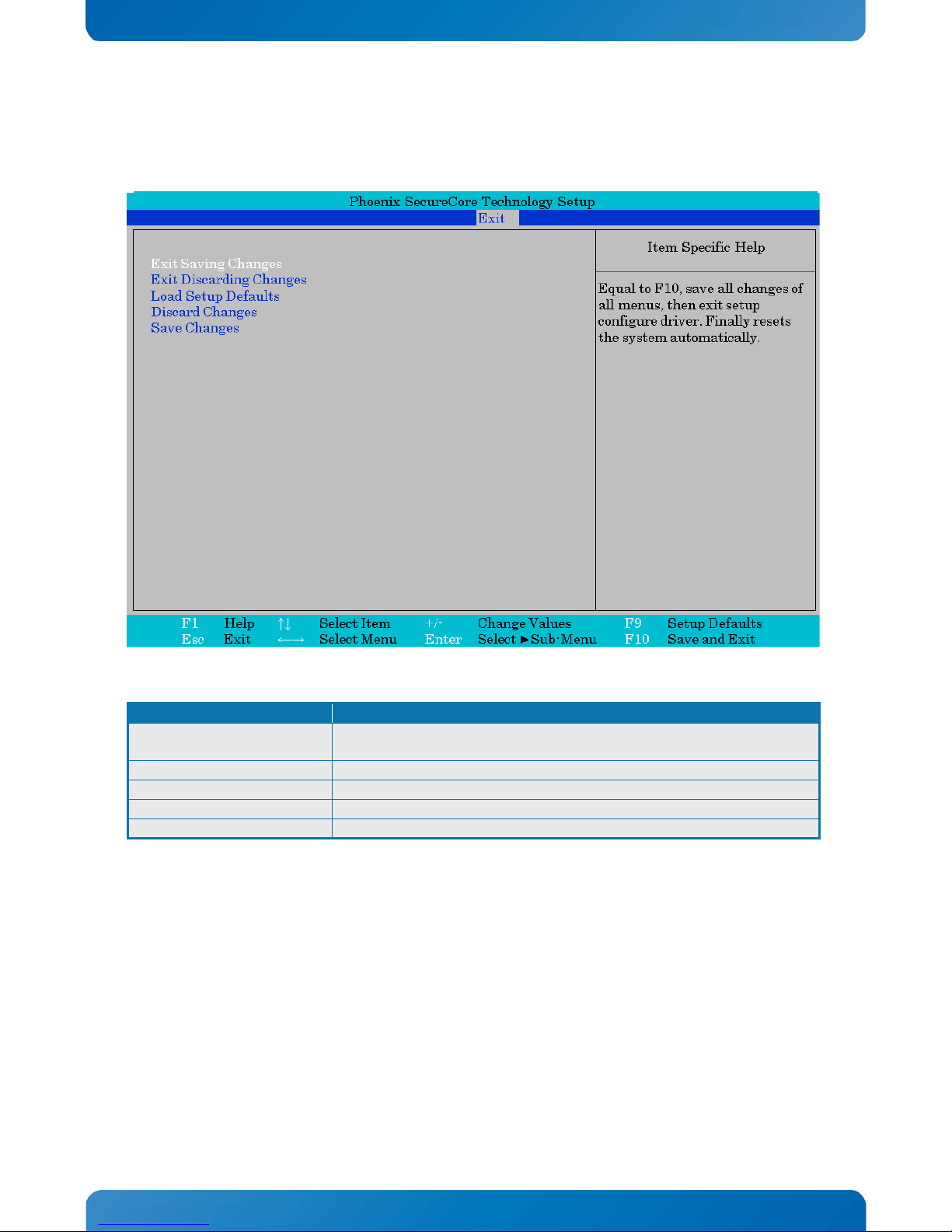

10.5 Exit

Phoenix SecureCore Technology Setup

Exit

Exit Saving Changes

Exit Discarding Changes Load Setup Defaults Discard Changes Save Changes

Item Specific Help

Equal to F10, save all changes of

all menus, then exit setup configure driver. Finally resets the system automatically.

F1

Help

↑↓

Select Item

+/-

Change Values

F9

Setup Defaults

Esc

Exit

←→

Select Menu

Enter

Select ►Sub-Menu

F10

Save and Exit

Function

Description

Exit Saving Changes

Equal to F10, save all changes of all menus, then exit setup configure driver. Finally resets the system automatically.

Exit Discarding Changes

Equal to ESC, never save changes, then exit setup configure driver.

Load Setup Defaults

Equal to F9. Load standard defaults values.

Discard Changes

Load the original value of this boot time. Not the default Setup value.

Save Changes

Save all changes of all menus, but do not reset system.
