Kontron KTA70M-mITX User Manual

KTD-N0861-B

KTA70M/mITX

The pulse of innovation

Error! Use the Home tab to apply Überschrift 1 to the text that you want to appear here.

Table of Contents

KTA70M/mITX Users Guide

» Table of Contents «

1 Introduction ........................................................................................... 1

2 Installation Procedure .............................................................................. 2

2.1 Installing the Board ................................................................................................................ 2

2.2 Requirements IEC60950 ........................................................................................................... 3

3 System Specifications ............................................................................... 4

3.1 Component main data .............................................................................................................. 4

3.2 KTA70M/mITX Block Diagram ..................................................................................................... 8

3.3 Power Consumption ................................................................................................................. 9

3.4 USB ports overview ................................................................................................................ 11

4 Connectors Locations .............................................................................. 13

4.1 KTA70m/mITX Topview ............................................................................................................ 13

4.2 KTA70m/mITX Bottomview ....................................................................................................... 14

5 Connector Signal Definitions .................................................................... 15

6 Rear IO Connectors ................................................................................. 16

6.1 DisplayPort (DP0/DP1/DP2)(J4/J43/J3)..................................................................................... 16

6.2 USB3.0 Connectors (USB10/USB11/USB12/USB13)(J15/J15/J14/J14)............................................ 18

6.3 Ethernet Connectors (ETH1/ETH2) (J8) ....................................................................................... 20

6.4 USB x4 Stack Connector (USB6/USB7/USB8/USB9) (J20) .............................................................. 21

6.5 Audio Interface (J40) ............................................................................................................. 22

6.6 DC Power External Connector (J28) ............................................................................................ 23

7 Pin Connectors ...................................................................................... 24

7.1 DC Power Internal Connector (J19) .......................................................................................... 24

7.1 12V-SB-In Connector (J31) ...................................................................................................... 24

7.2 Audio Header Connector (J41) .................................................................................................. 25

7.3 Power Out Connector (J18) ...................................................................................................... 26

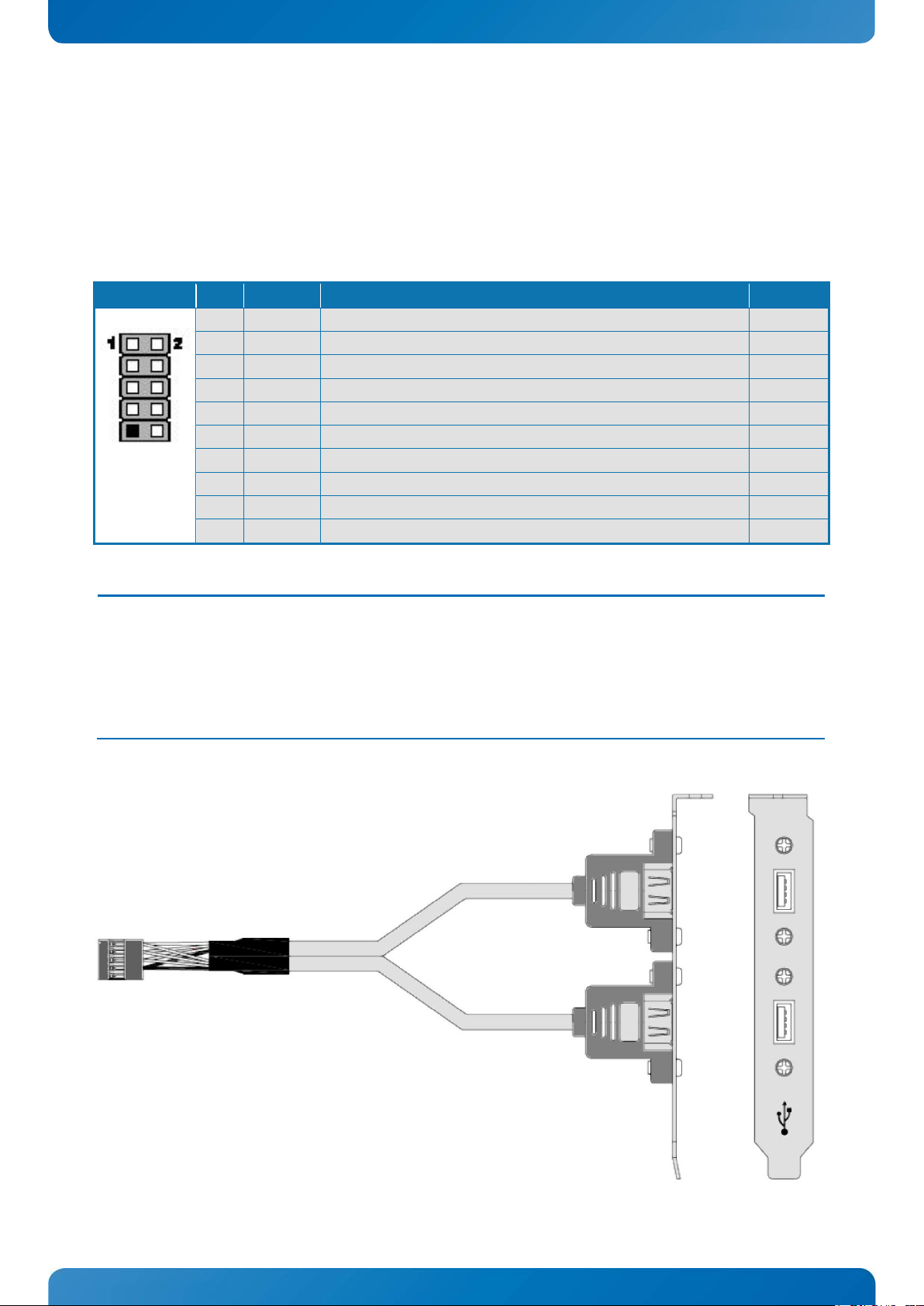

7.4 USB4/5 Connector (J16) ......................................................................................................... 27

7.5 Jumper area (J34, J35, J36, J37) .............................................................................................. 28

7.6 SPI Connector (J21) ............................................................................................................... 29

7.7 COM1/COM2 (J23/J22) ........................................................................................................... 30

7.8 LPC Connector (J29) ............................................................................................................... 31

7.9 Front Panel Connector (J5) ...................................................................................................... 32

7.10 CPU/System Fan Connectors (J25, J24) ...................................................................................... 33

7.11 Feature Connector (J26).......................................................................................................... 34

7.12 KBD/MSE (J27) ..................................................................................................................... 37

8 Slot Connectors (PCI-Express, miniPCIe, SATA, mSATA) .................................. 38

8.1 PCIex8 (in x16 slot) (J7) ......................................................................................................... 38

Error! Use the Home tab to apply Überschrift 1 to the text that you want to appear here.

Table of Contents

KTA70M/mITX Users Guide

8.2 PCIex4 (J6) .......................................................................................................................... 40

8.3 mPCIe connector (J38) ........................................................................................................... 42

8.4 SATA0, SATA1, SATA2, SATA3, SATA4 (J12, J13, J9, J11, J10) .......................................................... 43

8.5 mSATA Connector (J39) .......................................................................................................... 44

9 BIOS .................................................................................................... 45

9.1 Main ................................................................................................................................... 45

9.2 Advanced ............................................................................................................................. 46

9.2.1 Advanced - PCI Subsystem Settings .................................................................................................. 47

9.2.2 Advanced - APCI Settings ............................................................................................................. 50

9.2.3 Advanced - Trusted Computing ...................................................................................................... 51

9.2.4 Advanced - CPU Configuration ....................................................................................................... 52

9.2.5 Advanced - IDE Configuration ........................................................................................................ 54

9.2.6 Advanced - USB Configuration ....................................................................................................... 55

9.2.7 Advanced - Super IO Configuration ................................................................................................. 56

9.2.8 Advanced - Hardware Health Configuration ...................................................................................... 59

9.2.9 Advanced - LAN Configuration ....................................................................................................... 61

9.2.10 Advanced – PCI-E Port .................................................................................................................. 62

9.2.11 Network Stack ............................................................................................................................. 63

9.3 Chipset ................................................................................................................................ 64

9.3.1 South Bridge ............................................................................................................................... 65

9.3.2 North Bridge ............................................................................................................................... 70

9.4 Boot ................................................................................................................................... 74

9.4.1 CSM parameters ........................................................................................................................... 76

9.5 Security ............................................................................................................................... 77

9.6 Save & Exit ........................................................................................................................... 78

10 AMI BIOS Beep Codes .............................................................................. 79

Appendix: Mating Connectors ............................................................................. 80

Appendix: OS Setup .......................................................................................... 81

KTD-N0861-B Page 1 General Information

KTA70M/mITX Users Guide

Rev.

Date

By

Comment

System Specification PCIe info

variants.

A

Feb 22nd 2013

MLA

New Pictures and minor corrections.

0

Jan 7th 2013

MLA

Preliminary version

Document Revision History

B Nov 7th 2013 MLA Correction of footer text in appendix.

improved. Added “Power Consumption” and BIOS part. Updated KTA70M

Copyright Notice

No part of this document may be reproduced or transmitted in any form or by any means, electronically or mechani- cally, for any purpose without the express written permission of KONTRON Technology A/S.

KTD-N0861-B Page 2 General Information

KTA70M/mITX Users Guide

Trademark Acknowledgement

Brand and product names are trademarks or registered trademarks of their respective owners.

Disclaimer

KONTRON Technology A/S reserves the right to make changes without notice to any product, including circuits and/or software described or contained in this manual in order to improve design and/or performance. Specifications listed in this manual are subject to change without notice. KONTRON Technology assumes no responsibility or liability for the use of the described product(s), conveys no license or title under any patent, copyright or mask work rights to these products and makes no representations or warranties that these products are free from patent, copyright or mask work right infringement unless otherwise specified. Applications that are described in this manual are for illustration purposes only. KONTRON Technology A/S makes no representation or warranty that such application will be suitable for the specified use without further testing or modification.

Life Support Policy

KONTRON Technology’s PRODUCTS ARE NOT FOR USE AS CRITICAL COMPONENTS IN LIFE SUPPORT DEVICES OR SYSTEMS WITHOUT EXPRESS WRITTEN APPROVAL OF THE GENERAL MANAGER OF KONTRON Technology A/S.

As used herein: Life support devices or systems are devices or systems which (a) are intended for surgical implant into body or (b) support or sustain life and whose failure to perform when properly used in accordance with instructions for use provided in the labelling can be reasonably expected to result in significant injury to the user. A critical component is any component of a life support device or system whose failure to perform can be reasonably expected to cause the failure of the life support device or system or to affect its safety or effectiveness.

KTD-N0861-B Page 3 General Information

KTA70M/mITX Users Guide

KTA70M/mITX QC 2.0GHz(R-460L) P/N: 66010000

Prod.code:D6P S/N: 01111336

KONTRON Technology Technical Support

If you have questions about installing or using your KONTRON Technology Product, then check this User’s Manual first – you will find answers to most questions here. To obtain support please contact your local Kontron Sales Partner or Kontron Field Application Engineer (FAE).

Before Contacting Support: Please be prepared to provide as much information as possible:

 CPU Board

1. Type and P/N (Part Number), find label like:

2. S/N (Serial Number), find label like:

 Configuration (if relevant)

1. CPU Type and Clock speed

2. DRAM Type and Size.

3. BIOS Revision (find the version info in the BIOS Setup Menu).

4. BIOS Settings different than Default Settings.

 System (if relevant)

1. OS (Operating System) Make and Version.

2. Driver Version numbers: Graphics, Network, and Audio etc.

3. Attached Hardware: Harddisks, CD-Rom, Display Panels etc.

If the Kontron Technology product seems to be defect and you want to return it for repair, please follow the guide lines from the following page:

http://kontron.com/services/rma-information/kontron-technology-a-s/

KTD-N0861-B Page 4 General Information

KTA70M/mITX Users Guide

Warranty

KONTRON Technology warrants its products to be free from defects in material and workmanship during the warranty period. If a product proves to be defective in material or workmanship during the warranty period KONTRON Technology will, at its sole option, repair or replace the product with a similar product. Replacement Product or parts may include remanufactured or refurbished parts or components.

The warranty does not cover:

1. Damage, deterioration or malfunction resulting from:

A. Accident, misuse, neglect, fire, water, lightning or other acts of nature, unauthorized product

modification or failure to follow instructions supplied with the product.

B. Repair or attempted repair by anyone not authorized by KONTRON Technology.

C. Causes external to the product, such as electric power fluctuations or failure.

D. Normal wear and tear.

E. Any other causes which does not relate to a product defect.

2. Removal, installation and set-up service charges.

Exclusion of damages:

KONTRON TECHNOLOGY LIABILITY IS LIMITED TO THE COST OF REPAIR OR REPLACEMENT OF THE PRODUCT. KONTRON TECHNOLOGY SHALL NOT BE LIABLE FOR:

1.DAMAGE TO OTHER PROPERTY CAUSED BY ANY DEFECTS IN THE PRODUCT, DAMAGES BASED UPON INCON- VENIENCE, LOSS OF USE OF THE PRODUCT, LOSS OF TIME, LOSS OF PROFITS, LOSS OF BUSINESS OPPORTUNITY, LOSS OF GOODWILL, INTERFERENCE WITH BUSINESS RELATIONSHIPS OR OTHER COMMERCIAL LOSS, EVEN IF ADVISED OF THEIR POSSIBILITY OF SUCH DAMAGES.

2. ANY OTHER DAMAGES, WHETHER INCIDENTAL, CONSEQUENTIAL OR OTHERWISE.

3. ANY CLAIM AGAINST THE CUSTOMER BY ANY OTHER PARTY.

KTD-N0861-B Page 1 Introduction

KTA70M/mITX Users Guide

KTA70M variants

Sales PN

Processor data

1 Introduction

This manual describes the KTA70M/mITX family of boards made by KONTRON Technology A/S. These board will also be denoted KTA70M within this Users Guide.

The KTA70M family is based on AMD eTrinity platform: AMD BGA FP2 processor APU and AMD Fusion controller Hub A70M (Hudson M3) on a mini ITX form factor. See the chapter System Specifications for more specific details.

The KTA70M family consist on three members having the same functionality except for different BGA processors (soldered to the board). The 3 versions have the same type of active CPU cooler premounted.

KTA70M/mITX QC 1.9GHz(R-460H) 810524-4500 1.9/2.8 GHz – Quad Core – 35W

KTA70M/mITX QC 2.0GHz(R-460L) 810520-4500 2.0/2.8 GHz – Quad Core – 25W

KTA70M/mITX DC 1.9GHz(R-252F) 810522-4500 1.9/2.4 GHz – Dual Core – 17W

Use of this Users Guide implies a basic knowledge of PC-AT hard- and software. This manual is focused on describing the KTA70M board’s special features and is not intended to be a standard PC-AT textbook.

New users are recommended to study the Installation Procedure stated in the following chapter before switching-on the power.

All configuration and setup of the CPU board is either done automatically or manually by the user via the BIOS setup menus. Only exceptions are the Clear CMOS jumper and the Always On jumper.

Latest revision of this manual, datasheet, BIOS, drivers, BSP’s (Board Support Packages), Mechanical drawings (2D and 3D) can be downloaded from here:

http://kontron.com/products/boards+and+mezzanines/embedded+motherboards/miniitx+motherboards /kta70mmitx.html

KTD-N0861-B Page 2 Installation

KTA70M/mITX Users Guide

Warning: Turn off PSU (Power Supply Unit) befor configuring the board and do not hot plug power supply, otherwise components (RAM, LAN cards etc.) might get damaged.

!

Warning: When mounting the board to chassis etc. please notice that the board contains Note:

2 Installation Procedure

2.1 Installing the Board

To get the board running, follow these steps. If the board shipped from KONTRON has already components like RAM mounted, then relevant steps below can be skipped.

1. Turn off the PSU (Power Supply Unit)

2. Insert the DDR3 SODIMM 204pin module(s)

Be careful to push it in the slot(s) before locking the tabs.

3. Connecting Interfaces and PSU

Insert all external cables for hard disk, keyboard etc. A display/monitor must be connected in order to be able change BIOS settings. Connect 12V +/-5% PSU to the board via one of the two types of 4-pin power connectors (both located next to the Audio Jack stack connector).

4. Power Button

Turn on mains power to the PSU. If board doesn’t boot, then PWRBTN_IN must be toggled; this is done by shorting pins 16 (PWRBTN_IN) and pin 18 (GND) on the FRONTPNL connector (see Connector description), by use of a “normally open” switch etc.

5. BIOS Setup

Enter the BIOS setup by pressing the <Del> key during boot up. Enter Exit Menu and Load Optimal Defaults. Refer to the “BIOS Configuration / Setup“ section of this manual for details on BIOS setup.

6. Mounting the board to chassis

To clear all BIOS settings, including Password protection, activate “Clear CMOS” Jumper for ⋲10

sec (without power connected).

components on both sides of the PCB which can easily be damaged if board is handled without reasonable care. A damaged component can result in malfunction or no function at all.

When fixing the Motherboard on a chassis it is recommended using screws with integrated washer and a diameter of ⋲7mm. Do not use washers with teeth, as they can damage the PCB and cause short circuits.

KTD-N0861-B Page 3 Installation

KTA70M/mITX Users Guide

Hersteller empfohlenen gleichwertigen Typ.

Eksplosionsfare ved fejlagtig

Brukte batterier kasseres i

When an interface or connector has a VCC (or other power) pin which is directly connected to a power plane

• That the enclosure of the peripheral device fulfils the fire protecting requirements of IEC60950.

2.2 Requirements IEC60950

Take care when designing chassis interface connectors in order to fulfil the IEC60950 standard.

like the VCC plane: To protect the external power lines of the peripheral devices the customer has to ensure:

• Wires have suitable rating to withstand the maximum available power.

Lithium battery precautions

CAUTION!

Danger of explosion if battery is incorrectly re- placed. Replace only with same or equivalent type recommended by manufacturer. Dispose of used batteries according to the manufacturer’s instruc- tions.

ATTENTION!

Risque d'explosion avec l'échange inadéquat de la batterie. Remplacement seulement par le même ou un type équivalent recommandé par le producteur. L'évacuation des batteries usagées conformément à des indications du fabricant.

ADVARSEL!

Lithiumbatteri – håndtering. Udskiftning må kun ske med batteri af samme fabrikat og type. Levér det brugte batteri tilbage til leverandøren.

VARNING!

Explosionsfara vid felaktigt batteribyte. Använd samma batterityp eller en ekvivalent typ som rekommenderas av apparattillverkaren. Kassera använt batteri enligt fabrikantens instruktion.

VORSICHT!

Explosionsgefahr bei unsachgemäßem Austausch der Batterie. Ersatz nur durch den selben oder einen vom

Entsorgung gebrauchter Batterien nach Anga- ben des Herstellers.

PRECAUCION!

Peligro de explosión si la batería se sustituye incorrectamente. Sustituya solamente por el mismo o tipo equivalente recomendado por el fabricante. Disponga las baterías usadas según las instrucciones del fabricante.

ADVARSEL!

Eksplosjonsfare ved feilaktig skifte av batteri. Benytt samme batteritype eller en tilsvarende type anbefalt av apparatfabrikanten. henhold til fabrikantens instruksjoner.

VAROITUS!

Paristo voi räjähtää, jos se on virheellisesti asennettu. Vaihda paristo ainoastaan lalteval- mistajan suosittelemaan tyyppiln. Hävitä käytetty paristo valmistajan ohjeiden mukaisesti.

KTD-N0861-B Page 4 System Specification

KTA70M/mITX Users Guide

Form factor

mITX ( miniITX): 170,18 x 170,18 mm / 6,7 x 6,7”

Processor

AMD eTrinity FP2 processor:

Companion

AMD A70M Hudson-M3 Controller Hub

3 System Specifications

3.1 Component main data

The table below summarizes the features of the KTA70M/mITX embedded motherboards.

• Quad-Core 2.0/2.8 GHZ with R-460L APU 25W

• Quad Core 1.6/2.4GHz with R-452-L APU 19W

• Dual Core 1.9/2.4GHz, with R-252F APU 17W

• Compatible with Existing 32-Bit x86 and 64-bit AMD64 Code Base

• AMD64 64-bit ISA

• High Performance Floating-Point Unit

• SSE 4.1 & 4.2, AVX 1.0 &1.1, AES, XOP, FMA4

• Secure advanced Virtualization Features

• 64-bit DDR3 SDRAM Controller (1333MT/s,666MHz): PC3-10600

• Compliant with JEDEC DDR3 1.5V and LV-DDR3 1.35V /1.25V SDRAM (not verified)

specifications

• PCIe® Technology

• Integrated Memory Controller

• Integrated Graphics AMD Radeon™ HD 7000G Series graphics.

• Dedicated graphics memory controller

• 2D Acceleration Features

• Open GL 4.2 & 2.0

• DirectX® 11 compliant 3D Acceleration Features

• Adaptive Anti Aliasing, Shader Model 5

• Motion Video Acceleration Features

• Dedicated hardware (UVD 3) for H.264

• VC-1, DivX and MPEG2 decode

• HDCP (High-bandwidth Digital Content Protection) supported on DisplayPort

Interface.

• Display Port 1.2 and DVI/HDMI support via passive adapter.

Device

• Unified Media Interface (UMI) (5.0 GT/s)

• PCI Express® 2.0 Controller

• PCI Host Bus Controller

• USB Controllers with up to 14 USB ports

• SMBus Controller

• SATA Controller with RAID 0,1,10 support

• High Definition Audio

• Real Time Clock (RTC)

• Integrated Clock controller

• ACPI 3.0 compliant

KTD-N0861-B Page 5 System Specification

KTA70M/mITX Users Guide

Memory

Memory controller is integrated in the AMD eTrinity FP2 processor.

Flash (BIOS)

32Mbit SPI Flash for dual System BIOS.

Security

Intel® Integrated TPM 1.2 support

IT8516E

KT Feature Connector.

Audio Codec

Audio, 7.1 Channel High Definition Audio Codec using the VIA VT1708S codec

Seriel ATA

5x SATA port J9 – J13, SATA 3.0

Frontpanel

2xUSB, HDD-LED, SYSRST#, SUSLED, PWRBTN#, AUDIO Line/MIC output.

PCIe

1x PCI Express x8 Slot (in mechanically x16 slot)

DisplayPort

3x DisplayPort connector ( in REAR-IO area)

LVDS

Optionally Add-On card (TBD)

Audio Jack

3x Audiojacks stack J40 (in REAR-IO area)

Audio

Audio Pin header J41

Features are:

• Compliant with JEDEC DDR3 1.5V and LV-DDR3 1.35V / 1.25 SDRAM (not verified) specifications

• Supports DDR3 SODIMM 204pin single ranks up to 4GB DRAM technology

• DDR3 1066/1333MT/s (PC3-8500/PC3-10600)

• From 1GB to 2x 8GB maximum (16GB in total)

Notes: Less than 4GB displayed in System Properties using 32bit OS (Shared Video Memory/PCI resources is subtracted) ECC not supported

Infineon TPM SLB9635TT1.2 (FW 3.17)

Embedded Controller

15 Multiplexed (GPIO, DAC, ADC, PWM & TIMER) Possible 152 GPIO expansion. Software Watchdog.

1x mSATA J39 (mechanically sharing space with mPCIe slot J38), SATA 3.0

• RAID Support (RAID modes 0 and 1)

1x PCI Express x4 Slot (in mechanically x16 slot) 1x mPCIe Slot J38 (mechanically sharing space with mSATA slot J39)

DP1 J43 DP2 J3 DP0 J4 Optionally Add-On card with 1x DisplayPort

Blue Line-In Green Speaker Pink Mic

Line-out Line-in Surround output: SIDE, LFE, CEN, BACK and FRONT Microphone: MIC1 and MIC2 CDROM in SPDIF (electrical Interface only)

KTD-N0861-B Page 6 System Specification

KTA70M/mITX Users Guide

LAN

Two RJ45 connectors J8 (in REAR-IO area)

USB

13x USB ports (9x USB2.0 & 4x USB2.0/USB3.0):

Serial port

2x RS232 pin header (+12V, -12V supply generated by driver circuit)

LPC

LPC connector J29

FAN

CPUFAN 4 pin row J25 12V PWM PS2 Kbd/Mse

1x 6 Pin row Keyboard / Mouse PS2 cable kit interface J27

Power Plug

1x 4 pole External connector J28 (in REAR-IO area)

Battery

Speaker

On-board Speaker Piezo

• 2x 10/100/1000Mbits/s LAN (ETH1/ETH2) using Intel® Pearsonville xGB PCI Express

Ethernet controller (WGI211ATSLJXZ).

• PXE Netboot supported.

• Wake On LAN (WOL) supported

2x USB2.0 in Frontpanel Connector J5 2x USB2.0 in USB Internal USB Connector J16 4x USB2.0, USB stack J20 (in REAR-IO area) 2x USB 2.0/USB3.0, Right USB stack J14 ( in REAR-IO area) 2x USB 2.0/USB3.0, left USB stack J15 (in REAR-IO area) 1x USB 2.0 in mPCIe socket J38

COM1 2x 5 Pin row J23 COM2 2x 5 Pin row J22

SYSFAN 4 pin row J24 12V PWM

1x 4 pole Internal connector J19 (+12V Single Supply , Max 260W) 1x 2 pole Internal 12V Standby power input J31 1x 4 pin row Power Out 12V (4 Amp max.) and 5V (3 Amp max.) J18

Exchangeable 3.0V Lithium battery for on-board Real Time Clock and CMOS RAM. Manufacturer Panasonic / Part-number CR-2032L/BN, CR2032N/BN or CR-2032L/BE. Approximate 6 years retention. Current draw is 4 µA when PSU is disconnected and 0 µA in S0 – S5.

CAUTION: Danger of explosion if the battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer’s instructions.

On-board speaker (Electromagnetic Sound Generator like Hycom HY-05LF)

KTA70M/mITX Users Guide

Environmental

Operating:

BIOS

AMI EFI

OS (planned)

Windows 7 (32 and 64bit)

KTD-N0861-B Page 7 System Specification

0°C – 60°C operating temperature (forced cooling). It is the customer’s responsibility to provide sufficient airflow around each of the components to keep them within allowed temperature range.

10% - 90% relative humidity (non-condensing)

Storage:

-20°C – 70°C; lower limit of storage temperature is defined by specification restriction of

on-board CR2032 battery. Board with battery has been verified for storage temperature down to -40°C by Kontron.

5% - 95% relative humidity (non-condensing)

Electro Static Discharge (ESD) / Radiated Emissions (EMI): All Peripheral interfaces intended for connection to external equipment are ESD/ EMI protected. EN 61000-4-2:2000 ESD Immunity EN55022:1998 class B Generic Emission Standard.

Safety: EN 60950-1: 2006/ A11:2009/ A1:2010/A12:2011 IEC 60950-1(ed.2) CSA C22.2 No. 60950-1 Product Category: Information Technology Equipment Including Electrical Business Equipment Product Category CCN: NWGQ2, NWGQ8 File number: E194252 ( E194252-A21-CB-1)

Theoretical MTBF:

327.518 / 162.430 hours @ 40ºC / 60ºC

Restriction of Hazardous Substances (RoHS): All boards in the KTA70M family are RoHS/RoHS-II compliant.

Capacitor utilization: No Tantalum capacitors on board Only Japanese brand Solid capacitors rated for 100 ºC used on board

SPI Connector J21 (for BIOS Recovery) Clear CMOS J34 Always On J37

Windows 8 (32 and 64bit) Windows XP (32 bit) DOS Windows Embedded 7

KTD-N0861-B Page 8 System Specification

KTA70M/mITX Users Guide

2x SODIMM DDR3 Dual Channel 1067/1333

eTrinity APU

PCIe x8 (x16slot) Graphics

3x DP (DisplayPort 1.2)

4x USB3.0/USB2.0 9x USB2.0

VIA Audio Codec

1x PCIe x4 (x16 slot)

2x 10/100/Gbe Intel Pearsonville I211AT

5x SATA (SATA3.0, RAID0/1) 1x mSATA

TPM (Infineon)

Embedded

ITE8516

Feature connector:

SPI BIOS Flash

2x Fan (CPU/System)

2x COM (RS232)

6-pin PS/2 Keyboard/Mouse

3.2 KTA70M/mITX Block Diagram

Processor

813pin uBGA

1x mPCIe w. USB (USB2.0)

A70M

FCH

Controller

SMBus/I2C

GPIO/DAC/ADC/PWM GPIO expansion (up to 152) Intruder

KTD-N0861-B Page 9 System Specification

KTA70M/mITX Users Guide

Operation

Power Supplied

Windows 7 32bit Idle

840mA

Windows 7 32bit 3Dmark 2005

1680mA

Windows 7 32bit Burn In Test v6

1740mA

+12V

KTA70M

PSU

Gnd

Current Probe

Tektronix TDS5104B

3.3 Power Consumption

Total System power example

More detailed Static Power Consumption

On the following pages the power consumption of the KTA70M mITX Board is measured under:

1- DOS, idle, mean 2- Windows7, Running 3DMARK 2005 & BurnInTest v6, mean 3- S1, mean 4- S3, mean 5- S4, mean

The following items were used in the test setup:

1. Low Power Setup:

Standard system configuration equipped with AMD dual-core 2.1GHz CPU, 1xPCIe card, internal graphics, 2x SATA disks, 1x SODIMM (1GB Module), Monitor, USB Keyboard & Mouse, 1x 8GB USB Stick.

High Power Setup:

Standard system configuration equipped with AMD dual-core 2.1GHz CPU, PCIex4, PCIex8, miniPCIe WLAN, 4x SATA disks, 1x DIMM (4GB Modules), Monitor, Display Port or HDMI Monitor, USB Keyboard & Mouse. 4x 4-8GB USB Sticks

2. 12V active cooler

3. USB Keyboard/Mouse

4. Monitor

5. 3.5” HDD WD WD1600AA

6. ATX Fortron 400W

7. Tektronix TDS5104B

8. Tektronix TCPA300

9. Tektronix TCP312

10. Fluke 289

Note: The Power consumption of Monitor and HDDs is not included.

Warning: Hot Plugging power supply is not supported. Hot plugging might damage the board.

KTD-N0861-B Page 10 System Specification

KTA70M/mITX Users Guide

Current draw

Power consumption

1650mA

19.80W

Windows 7, mean

Current draw

Power consumption

2160mA

25.92W

Current draw

Power consumption

50mA

0.60W

Current draw

Power consumption

46mA

0.55W

Current draw

Power consumption

2017mA

24.20W

Windows 7, mean 3DMARK2005 ( first scene ) & CPUBURN

Current draw

Power consumption

2534mA

30.41W

Current draw

Power consumption

77mA

0.93W

Current draw

Power consumption

55mA

0.66W

Low Power Setup results:

DOS Idle, Mean, No external load

3DMARK2005 ( first scene ) & CPUBURN

S3 Mode, Mean, No external load

S4 Mode, Mean, No external load

High Power Setup results:

DOS Idle, Mean, No external load

S3 Mode, Mean, No external load

S4 Mode, Mean, No external load

KTD-N0861-B Page 11 System Specification

KTA70M/mITX Users Guide

USB #

USB standard

Connector location

HCI

Note

USB0 USB1

USB2.0 /USB1.1

Frontpanel (J5)

OHCI1/EHCI1 USB2

USB2.0 /USB1.1

mPCIe (J38)

OHCI1/EHCI1

No over current detection

USB3

USB2.0 /USB1.1

- - USB3 doesn’t exist

USB4

USB2.0 /USB1.1

Pin row (J16)

OHCI1/EHCI1

USB5

USB2.0 /USB1.1

Pin row (J16)

OHCI2/EHCI2

USB6

USB9

USB2.0 /USB1.1

USB quad stack (J20)

OHCI2/EHCI2

USB10 USB11

USB3.0/USB2.0/USB1.1

USB3.0 dual stack (J15) Left - Rear IO

xHCI1

USB12 USB13

USB3.0/USB2.0/USB1.1

USB3.0 dual stack (J14) Right - Rear IO

xHCI2

3.4 USB ports overview

The KTA70M board contains two pairs of EHCI (Enhanced Host Controller Interface) and OHCI (Open Host Controller Interface) in order to support up to 9 USB1.1/USB2.0 devices and further more two xHCI (Extensible Host Controller Interface) to support up to 4 USB3.0 devices.

The OHCI controllers support USB1.1, Full-Speed (12Mbps) and Low-Speed (1.5Mbps).

The EHCI controllers support USB2.0, High-Speed (480Mbps).

The xHCI controllers support USB3.0, USB2.0 and USB 1.1, Super-Speed (5.0Gbps), High-Speed (480Mbps), Full-Speed (12Mbps) and Low-Speed (1.5Mbps)

Legacy Keyboard/Mouse and wakeup from sleep states are supported. Over-current detection on all USB ports except USB2.

USB7 USB8

Rear IO

Notes: In order to meet the requirements of USB standard, the 5V input supply must be at least 5.00V.

The contacts for USB devices are protected and suitable to supply USB devices with a maximum input current of 1000mA.

Do not supply external USB devices with higher power dissipation through these pinsTo protect the external power lines of peripheral devices make sure that

- the wires have the right diameter to withstand the maximum available current.

- to enclosure of the peripheral device fulfills the fire-protecting conditions of IEC/EN 60950.

KTD-N0861-B Page 12 System Specification

KTA70M/mITX Users Guide

For USB2.0 cabling it is required to use only HiSpeed USB cable, specified in USB2.0 standard:

For USB3.0 cabling it is required to use only HiSpeed USB cable, specified in USB3.0 standard:

KTD-N0861-B Page 13 Connectors Location

KTA70M/mITX Users Guide

COM1 J23

COM2 J22

USB4/5 J16

SysFan J24

Power J19

ClearCMOS J34

Frontpanel J5

CPUFan J25

SATA4 SATA2 SATA0

SATA3 SATA1

SPI J21

PCIex8 J7 PCIex4 J6

(x16 slot)

KBD/MSE J27

Feature J26

SODIMM J1

mSATA J39

mPCIe J38

12V-SB-In J31

PowerOut J18

Audio J41

NC J36

AlwaysOn J37

IMC debug J35

HDT+ J32

SODIMM J2

Bp J33

LPC J29

USB12 J14

LineIn

Power J28

DP1 J43

USB10 J15

ETH1

USB6

J20

4 Connectors Locations

4.1 KTA70m/mITX Topview

(backside)

(not mounted)

(backside)

(not mounted)

(backside)

(x16 slot)

(Internal)

USB11 J15

DP2 J3

USB13 J14

DP0 J4

ETH2

J8

USB7 USB8 USB9

LineOut

Mic J40

(external)

KTD-N0861-B Page 14 Connectors Location

KTA70M/mITX Users Guide

mPCIe J38

mSATA J39

HDT+ J32

Bp J33

4.2 KTA70m/mITX Bottomview

(not mounted)

KTD-N0861-B Page 15 Connector Signal Definition

KTA70M/mITX Users Guide

The mnemonic name of the signal at the current pin. The notation “#” states that the signal

5 Connector Signal Definitions

The following sections provide pin definitions and detailed description of all onboard connectors. The connector definitions follow the following notation:

Column Name Description

Pin Shows the pin numbers in the connector.

Signal

is active low.

Type AI: Analogue Input

AO: Analogue Output

I: Digital Input

IO: Digital Input / Output

IOD: Input / Open Drain output

O: Digital Output

DSO: Differential Signaling Output with complementary signals on two paired wires

DSI: Differential Signaling Input with complementary signals on two paired wires

DSIO: Differential Signaling Input / Output (combined DSO and DSI)

PWR: PoWeR supply or ground reference pins

NC: Pin Not Connected

Additional notations:

-5.0 +5.0V signal voltage level, e.g. I-5.0

-3.3 +3.3V signal voltage level, e.g. O-3.3

-1.8 +1.8V signal voltage level, e.g. IO-1.8

Ioh/Iol Ioh: Typical current in mA flowing out of an output pin through a grounded load while the

output voltage has high level.

Iol: Typical current in mA flowing into an output pin from a VCC connected load while the output voltage has low level.

The abbreviation tbd is used for specifications which are not available yet or which are not sufficiently specified by the component vendors.

KTD-N0861-B Page 16 Rear IO Connectors

KTA70M/mITX Users Guide

19 17 15 13 11 9 7 5 3 1

20 18 16 14 12 10 8 6 4 2

1

Lane 0 (p)

LVDS

2

GND

PWR

3 Lane 0 (n)

LVDS

4

Lane 1 (p)

LVDS

5

GND

PWR

6

Lane 1 (n)

LVDS

7

Lane 2 (p)

LVDS

8

GND

PWR

9

Lane 2 (n)

LVDS

10

Lane 3 (p)

LVDS

11

GND

PWR

12

Lane 3 (n)

LVDS

Internally pull down (1Mohm).

DDC channel on pin 15/17, If HDMI adapter used (3.3V)

14

Config2

(Not used)

O

Internally connected to GND

Aux Channel (+) or DDC Clk

AUX (+) channel used by DP DDC Clk used by HDMI

16

GND

PWR

Aux Channel (-) or DDC Data

AUX (-) channel used by DP DDC Data used by HDMI

18

Hot Plug

I Internally pull down (100Kohm).

19

Return

PWR

Same as GND

20

3.3V

PWR

Fused by 1.5A resetable PTC fuse, common for DP0 and DP1

6 Rear IO Connectors

6.1 DisplayPort (DP0/DP1/DP2)(J4/J43/J3)

The DP (DisplayPort) connectors are based on standard DP type Foxconn 3VD11203-H7AB-4H or similar.

Pin Signal Description Type Note

13 Config1

15 Aux Ch (p)

17 Aux Ch (n)

Note: To protect the external power lines of peripheral devices make sure that

- the wires have the right diameter to withstand the maximum available current.

- to enclosure of the peripheral device fulfills the fire-protecting conditions of IEC/EN 60950.

Aux or DDC selection

I

Aux channel on pin 15/17 selected as default (when NC)

KTD-N0861-B Page 17 Rear IO Connectors

KTA70M/mITX Users Guide

The 3 DisplayPorts (DP0, DP1 and DP2) can be used in a 3 independent display configuration. By use of DP Adapter Converters it is possible to implement a mix of DP, VGA, HDMI and DVI-D outputs and still support 3 independent displays configuration.

Available DP adapters:

DP to VGA DP to HDMI DP to DVI-D

PN 1045-5779 PN 1045-5781 PN 1045-5780

DP Extention Cable:

In order to prevent mechanical conflicts the above DP adapters can be connected to DP#0, DP#1 and DP#2 via the 1051-7619 Cable DP Extender cable 200mm.

The DP to VGA adapter is an “active” converter, meaning that seen from the graphics controller it looks like a DP. The HDMI and DVI converters are passive converters, meaning that they inform the graphics controller about its type and the graphics controller then replace the DP signals with TMDS signals (used in HDMI and DVI).

The HDMI interface supports the HDMI 1.4a specification including audio codec. Limitations to the resolution apply: 2048x1536 (VGA), 1920x1200 (HDMI and DVI).

Four independent (simultaneously) displays (without using PCIe Graphics cards) is a possible configuration under the following conditions:

1. A DP-PCIe passive card or DP-DVI passive card must be used in the outermost PCIe slot.

2. All DP must be converted to DVI-D or HDMI via passive adapters like above adapters.

3. Two of the panels must have the same timing (as if two panels are of the exact same type).

KTD-N0861-B Page 18 Rear IO Connectors

KTA70M/mITX Users Guide

Note

Type

Signal

Type

Note

DSIO-3.3

USB10-

USB10+

DSIO-3.3

1

PWR

5V/SB5V

1 2 3 4 GND

PWR

DSIO-3.3

RX10-

5 6 7 8 9

TX10+

DSIO-3.3

RX10+

TX10-

DSIO-3.3

PWR

GND

DSIO-3.3

USB11-

USB11+

DSIO-3.3

1 PWR

5V/SB5V

1 2 3 4 GND

PWR

DSIO-3.3

RX11-

5 6 7 8 9

TX11+

DSIO-3.3

RX11+

TX11-

DSIO-3.3

PWR

GND

Note

Type

Signal

Type

Note

DSIO-3.3

USB12-

USB12+

DSIO-3.3

1

PWR

5V/SB5V

1 2 3 4 GND

PWR

DSIO-3.3

RX12-

5 6 7 8 9

TX12+

DSIO-3.3

RX12+

TX12-

DSIO-3.3

PWR

GND

DSIO-3.3

USB13-

USB13+

DSIO-3.3

1 PWR

5V/SB5V

1 2 3 4 GND

PWR

DSIO-3.3

RX13-

5 6 7 8 9

TX13+

DSIO-3.3

IO

RX13+

TX13-

DSIO-3.3

PWR

GND

6.2 USB3.0 Connectors (USB10/USB11/USB12/USB13)(J15/J15/J14/J14)

The USB3.0 connectors are based on standard USB3.0 connectors type Lotes ABA-USB-104-K01 or similar.

Thease 4 USB3.0 ports are controlled by the xHCI controllers supporting USB3.0, USB2.0 and USB 1.1, Super-Speed (5.0Gbps), High-Speed (480Mbps), Full-Speed (12Mbps) and Low-Speed (1.5Mbps)

USB Ports 10 and 11 (mounted on top of the DP#2 port):

Signal Description

USB10+ USB10-

RX10+ RX10-

TX10+ TX10-

USB11+ USB11-

RX11+ RX11-

TX11+ TX11-

5V/SB5V

USB Ports 12 and 13 (mounted on top of the DP#0 port):

Differential pair works as Data/Address/Command Bus.

5V supply for external device. SB5V is supplied during powerdown to allow wakeup on device activity. Protected by current limited power distribution switch,1A for each port.

KTD-N0861-B Page 19 Rear IO Connectors

KTA70M/mITX Users Guide

Signal Description

USB12+ USB12-

RX12+ RX12-

TX12+ TX12-

USB13+ USB13-

RX13+ RX13-

TX13+ TX13-

Differential pair works as Data/Address/Command Bus.

5V/SB5V

5V supply for external device. SB5V is supplied during powerdown to allow wakeup on device activity. Protected by current limited power distribution switch,1A for each port.

Notes: In order to meet the requirements of USB standard, the 5V input supply must be at least 5.00V.

The contacts for USB devices are protected and suitable to supply USB devices with a maximum input current of 1000mA.

Do not supply external USB devices with higher power dissipation through these pinsTo protect the external power lines of peripheral devices make sure that

- the wires have the right diameter to withstand the maximum available current.

- to enclosure of the peripheral device fulfills the fire-protecting conditions of IEC/EN 60950.

KTD-N0861-B Page 20 Rear IO Connectors

KTA70M/mITX Users Guide

Signal

Note

LED1

LED Lights when ETH1 Link, Flashing when activity

MDI0+

MDI0-

MDI1+

MDI2+

MDI2-

MDI1-

MDI3+

MDI3-

LED2

LED Lights when ETH2 Link, Flashing when activity

ETH1

8 7 6 5 4 3 2 1

ETH2

1 2 3 4 5 6 7 8

MDI0+

MDI0-

MDI1+

MDI2+

MDI2-

MDI1-

MDI3+

MDI3-

6.3 Ethernet Connectors (ETH1/ETH2) (J8)

The KTA70M supports two 10/100/1000Mb Ethernet RJ45 connetors in a stacked dual LAN connector, type Ude RMT-123AGF1F or sililar. Both ports are driven by Intel® Pearsonville WGI211AT PCI Express controller.

Ethernet connector 1 (ETH1) is mounted above Ethernet connector 2 (ETH2).

In order to achieve the specified performance of the Ethernet port, Category 5 twisted pair cables must be used with 10/100MB and Category 5E, 6 or 6E with 1Gb LAN networks.

Signal Description

MDI[0]+ / MDI[0]-

MDI[1]+ / MDI[1]-

MDI[2]+ / MDI[2]-

MDI[3]+ / MDI[3]-

Note: MDI = Media Dependent Interface.

MDI mode: first pair in 1000Base-T (i.e. the BI_DA+/- pair), transmit pair in 10/100Base-T. MDI crossover mode: acts as the BI_DB+/- pair, receive pair in 10/100Base-TX.

MDI mode: second pair in 1000Base-T (i.e. the BI_DB+/- pair), receive pair in 10/100Base-T. MDI crossover mode: acts as the BI_DA+/- pair, transmit pair in 10/100Base-T.

MDI mode: third pair in 1000Base-T (i.e. the BI_DC+/- pair). MDI crossover mode: acts as the BI_DD+/- pair.

MDI mode: fourth pair in 1000Base-T (i.e. the BI_DD+/- pair). MDI crossover mode: acts as the BI_DC+/- pair.

KTD-N0861-B Page 21 Rear IO Connectors

KTA70M/mITX Users Guide

Note

Type

Signal

Type

Note

PWR

5V/SB5V

1 2 3 4 GND

PWR

DSIO-3.3

USB6-

USB6+

DSIO-3.3

PWR

5V/SB5V

1 2 3 4 GND

PWR

DSIO-3.3

USB7-

USB7+

DSIO-3.3

PWR

5V/SB5V

1 2 3 4 GND

PWR

DSIO-3.3

USB8-

USB8+

DSIO-3.3

PWR

5V/SB5V

1 2 3 4 GND

PWR

DSIO-3.3

USB9-

USB9+

DSIO-3.3

6.4 USB x4 Stack Connector (USB6/USB7/USB8/USB9) (J20)

USB Ports 6, 7, 8 and 9 are mounted in a single stack in the IO Area type Foxconn UB11123-Q8DF-4F or similar. The USB ports are controlled by a single set of OHCI and EHCI controllers (also shared by USB5).

The OHCI controllers support USB1.1, Full-Speed (12Mbps) and Low-Speed (1.5Mbps). The EHCI controllers support USB2.0, High-Speed (480Mbps).

Signal Description

USB6+ USB6USB7+ USB7-

USB8+ USB8-

Differential pair works as Data/Address/Command Bus.

USB9+ USB9-

5V/SB5V

5V supply for external devices. SB5V is supplied during powerdown to allow wakeup on USB device activity. Protected by individual resettable 1A fuse.

Notes: In order to meet the requirements of USB standard, the 5V input supply must be at least 5.00V.

The contacts for USB devices are protected and suitable to supply USB devices with a maximum input current of 1000mA.

Do not supply external USB devices with higher power dissipation through these pinsTo protect the external power lines of peripheral devices make sure that

- the wires have the right diameter to withstand the maximum available current.

- to enclosure of the peripheral device fulfills the fire-protecting conditions of IEC/EN 60950.

KTD-N0861-B Page 22 Rear IO Connectors

KTA70M/mITX Users Guide

Signal

Type

Note

TIP LINE1-L

IA

RING LINE1-R

IA

SLEEVE GND

PWR

TIP

FRONT-OUT-L

OA

SLEEVE GND

PWR

TIP MIC1-L

IA

RING MIC1-R

IA

SLEEVE GND

PWR

6.5 Audio Interface (J40)

The on-board Audio circuit, based on Via VT1708S, implements 7.1+2 Channel High Definition Audio with UAA (Universal Audio Architecture), featuring five 24-bit stereo DACs and three 20-bit stereo ADCs. The Following Audio connector is available in IO Area.

Audio Speakers, Line-in and Microphone are available in the stacked audiojack connector type Lotes ABAJAK-028-K03

RING FRONT-OUT-R OA

Signal Description Note

FRONT-OUT-L Front Speakers (Speaker Out Left).

FRONT-OUT-R Front Speakers (Speaker Out Right).

MIC1-L Microphone 1 - Left Shared with Audio Header

MIC1-R

Microphone 1 - Right Shared with Audio Header

LINE1-L Line 1 signal - Left

LINE1-R Line 1 signal - Right

Shared with Audio Header

KTD-N0861-B Page 23 Rear IO Connectors

KTA70M/mITX Users Guide

Header

Signal

Description

1

12V

Power supply +12V

2

12V

Power supply +12V

3

GND

Ground

4

GND

Ground

6.6 DC Power External Connector (J28)

The KTA70M/mITX board has an external power input connector for supplying voltage in the range from +11.4V to +12.6V. The power connector is a 4 pin Micro-Fit type Molex 0430450402 or similar.

Warning: Hot Plugging power supply is not supported. Hot plugging might damage the board.

Notes: To protect the external power lines of peripheral devices make sure that

- the wires have the right diameter to withstand the maximum available current.

- to enclosure of the peripheral device fulfills the fire-protecting conditions of IEC/EN 60950.

Alternatively the DC Power Internal Connector can be used

Available cable kit:

PN 1052-5814 Cable ATX Power for KTA70M, 200mm long.

KTD-N0861-B Page 24 Pin Connectors

KTA70M/mITX Users Guide

Header

Signal

Description

1

GND

Ground

2

GND

Ground

3

12V

Power supply +12V

4

12V

Power supply +12V

Header

Signal

Description

Type

1

12V

Power +12V

PWR

7 Pin Connectors

7.1 DC Power Internal Connector (J19)

The KTA70M/mITX has an internal power input connector for supplying voltage in the range from +11.4V to +12.6V. The power connector is a 4 pin 12V ATX connector type Lotes ABA-POW-003-K02 or similar.

Warning: Hot Plugging power supply is not supported. Hot plugging might damage the board.

Notes: To protect the external power lines of peripheral devices make sure that

- the wires have the right diameter to withstand the maximum available current.

- to enclosure of the peripheral device fulfills the fire-protecting conditions of IEC/EN 60950.

Alternatively the DC Power External Connector can be used

7.1 12V-SB-In Connector (J31)

The 12V-SB-In (12V StandBy power Input) connector is a 2 pin connector type Molex 22-23-2021or similar. This connector can be used to add 12V Standby Power for use when 12V is not present on DC Power Internal or DC Power External connectors.

2 GND Ground PWR

The 12V (connected to pin 1) is connected to the 12V power rail via a diode to prevent reverse powering. Maximum allowed supplied current is 1A, so power limitation feature must be built in the power circuit connected to the 12V-SB-In connector.

Notes: To protect the external power lines of peripheral devices make sure that

- the wires have the right diameter to withstand the maximum available current.

- to enclosure of the peripheral device fulfills the fire-protecting conditions of IEC/EN 60950.

KTD-N0861-B Page 25 Pin Connectors

KTA70M/mITX Users Guide

Note

Type

Signal

Type

Note

AO

LFE-OUT

1 2 CEN-OUT

AO

PWR

AAGND

3 4 AAGND

PWR

1

AO

FRONT-OUT-L

5 6 FRONT-OUT-R

AO

1

PWR

AAGND

7 8 AAGND

PWR

AO

REAR-OUT-L

9 10 REAR-OUT-R

AO

SIDE-OUT-L

11

12 SIDE-OUT-R

AO

PWR

AAGND

13

14 AAGND

PWR

1

AI

MIC1-L

15

16 MIC1-R

AI 1

PWR

AAGND

17

18 AAGND

PWR

1 LINE1-L

19

20 LINE1-R

1

NC

21

22 AAGND

PWR

GND

23

24 NC

NC

O SPDIF-OUT

25

26 GND

PWR

7.2 Audio Header Connector (J41)

The Audio Header connector is a 26 pin connector type Molex 87832-2620 or similar.

Note 1: Shared with Audio Stack connector (in Rear IO area).

Signal Description

FRONT-OUT-L Front Speakers (Speaker Out Left).

FRONT-OUT-R Front Speakers (Speaker Out Right).

REAR-OUT-L

REAR-OUT-R

SIDE-OUT-L

SIDE-OUT-R

CEN-OUT

LFE-OUT

NC No connection

MIC1 MIC Input 1

LINE1 Line 1 signals

F-SPDIF-OUT S/PDIF Output

AAGND Audio Analogue ground

Available cable kit:

PN 821043 Cable, Audio Open-End (300 mm)

Rear Speakers (Surround Out Left).

Rear Speakers (Surround Out Right).

Side speakers (Surround Out Left)

Side speakers (Surround Out Right)

Center Speaker (Center Out channel).

Subwoofer Speaker (Low Freq. Effect Out).

KTD-N0861-B Page 26 Pin Connectors

KTA70M/mITX Users Guide

7.3 Power Out Connector (J18)

The Power Out connector can be used to power source external devices like HDD. The connector is type Molex 22-23-2041 or similar.

Header Pin Signal Description Type

1 5V Power +5V PWR

2 GND Ground PWR

3 GND Ground PWR

4 12V Power +12V PWR

Warning: Hot Plugging power supply is not supported. Hot plugging might damage the board.

Notes:

- the wires have the right diameter to withstand the maximum available current.

- to enclosure of the peripheral device fulfills the fire-protecting conditions of IEC/EN 60950.

To protect the external power lines of peripheral devices make sure that

Available cable kit:

PN 1027-3669 Cable Power Out

KTD-N0861-B Page 27 Pin Connectors

KTA70M/mITX Users Guide

Header

Signal

Description

Type

1

5V/SB5V

5V (always) protected by separate 1A resettable fuse

PWR

2

5V/SB5V

5V (always) protected by separate 1A resettable fuse

PWR

3

USB4-

Differential pair 4 -

DSIO-3.3

4

USB5-

Differential pair 5 -

DSIO-3.3

5

USB4+

Differential pair 4 +

DSIO-3.3

6

USB4+

Differential pair 5 +

DSIO-3.3

7

GND

Ground

PWR

8

GND

Ground

PWR -

(pin not mounted -Used for keying)

10

KEY NC

7.4 USB4/5 Connector (J16)

USB Ports 4 and 5 are available via Pin Row connector type Foxconn HS1105F-RNP9 or similar.

The USB4 port is controlled by a set of OHCI and EHCI controllers (also shared by USB0/1/2). The USB5 port is controlled by a set of OHCI and EHCI controllers (also shared by USB6/7/8/9).

The OHCI controllers support USB1.1, Full-Speed (12Mbps) and Low-Speed (1.5Mbps). The EHCI controllers support USB2.0, High-Speed (480Mbps).

Notes: In order to meet the requirements of USB standard, the 5V input supply must be at least 5.00V.

The contacts for USB devices are protected and suitable to supply USB devices with a maximum input current of 1000mA.

Do not supply external USB devices with higher power dissipation through these pinsTo protect the external power lines of peripheral devices make sure that

- the wires have the right diameter to withstand the maximum available current.

- to enclosure of the peripheral device fulfills the fire-protecting conditions of IEC/EN 60950.

Available cable kit:

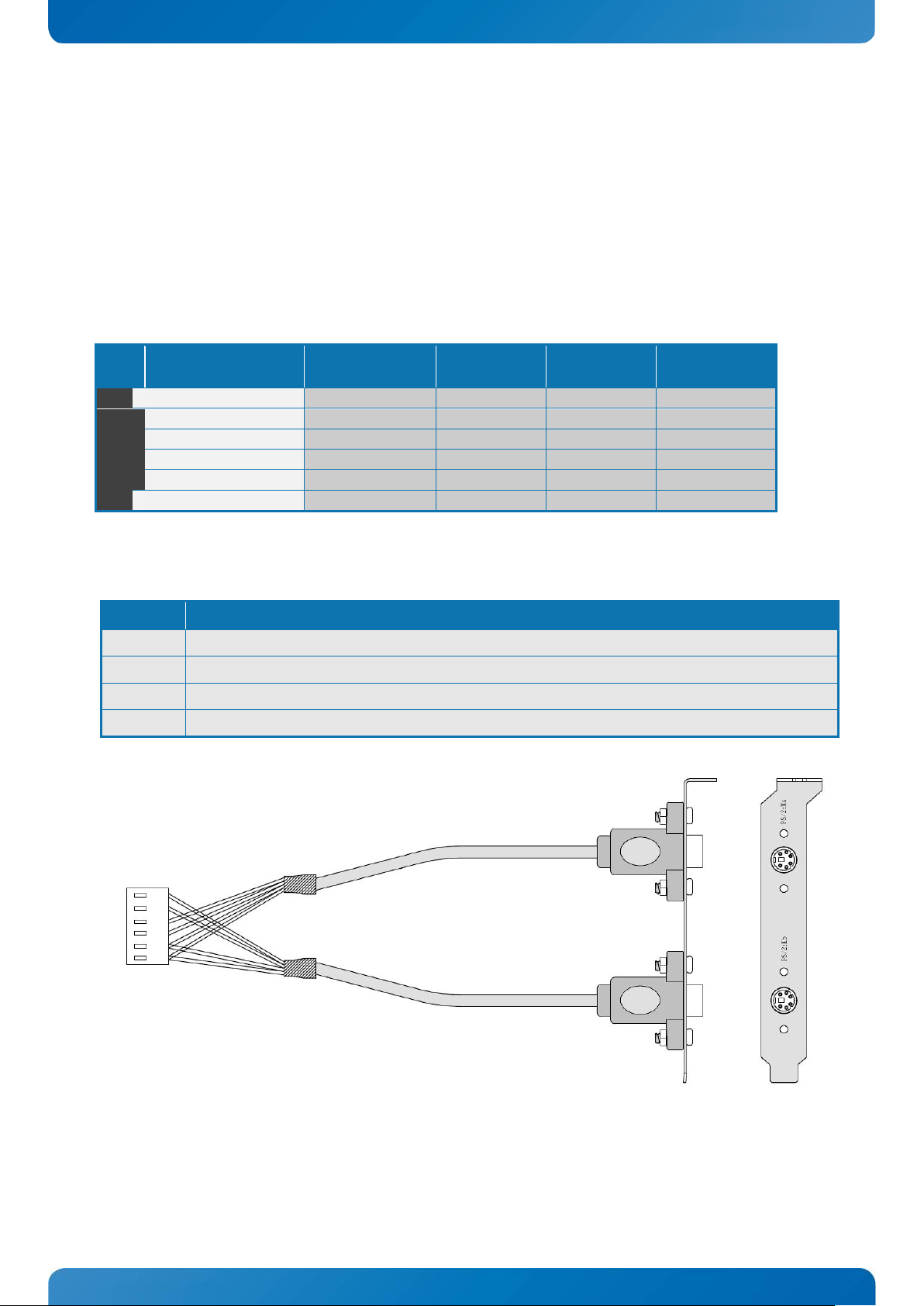

PN 821401 Bracket Dual USB Cable

KTD-N0861-B Page 28 Pin Connectors

KTA70M/mITX Users Guide

!

Jumper in position

3 2 1

Always On

J37

-

Always On

(none – connector not mounted)

J35

-

Clear CMOS

J34

Normal (Default)

Clear CMOS

Audio Short circuit test

J36

Front Left

Front Right

7.5 Jumper area (J34, J35, J36, J37)

The KTA70M has a jumper area containing pin connectors 2.54mm pitch, for up to four jumpers, but normally only one jumper is used (jumper in the J34 pin 2-3 position, as indicated below).

Function J#

Always On: is PT not supported.

(None): Not mounted on final version of board. Only mounted on Early Field Test versions of KTA70M.

Clear CMOS: is used to erase all customised BIOS settings located in the CMOS RAM storage. If the board has a booting problem or is unstabile, then Clearing CMOS by moving the Jumper from default position to the Clear CMOS position for approx. 10 sec. might solve the problem.

Warning

Audio Short Circuit Test: is only used in manufacturing test. No jumper should be installed.

Don’t leave the Clear CMOS jumper in position 1-2, otherwise if power is disconnected, the battery will fully deplete within a few weeks.

2-3

1-2

KTD-N0861-B Page 29 Pin Connectors

KTA70M/mITX Users Guide

Header

Signal

Description

Type

1

SPI_CLK

SPI clock

O-3.3

2

3.3V

Power +3.3V

PWR

3

SPI_CS#

SPI slave select, active low

O-3.3

4

ADDIN

Disable onboard SPI flash

I-3.3 5 RSVD

Reserved (10k pullup to 3.3V)

PWR

6

N.C.

Not connected

NC

7

SPI_MOSI

SPI master output, Slave Input

IO-3.3

8

ISOLATE#

Disable the SPI interface

I-3.3

9

SPI_MISO

SPI master input, Slave Output

IO-3.3

10

GND

Ground

PWR

3.3V Standby Voltage power line. Normally output power, but when Motherboard is turned

The ISOLATE# input, active low, is normally NC, but must be connected to GND when loading SPI flash. Power Supply to the Motherboard must be turned off when loading SPI

1

7.6 SPI Connector (J21)

The KTA70 provides one synchronous full duplex SPI (Serial Peripheral Interface) Bus in a 10 pin header connector. The connector is type Pinrex 512-90-10GBE5 or similar.

Two things should be considered:

1. An onboard SPI

3.3V power connection to the ADDIN signal (e.g. a short circuit jumper between pin 2 and 4).

2. The four SPI output enable pin. For normal operation this signal should be high.

TM

flash coexists on the same interface lines. You must disable this component with a

TM

lines are protected with an additional bus driver and the ISOLATE# signal controls the

Signal Further description

SB3V3

off then the on-board SPI Flash can be 3.3V power sourced via this pin.

ISOLATE#

flash. The pull up resistor is connected via diode to 5VSB.

KTD-N0861-B Page 30 Pin Connectors

KTA70M/mITX Users Guide

Note

Ioh/Iol

Type

Signal

Type

Ioh/Iol

Note

- I

DCD

1 2 DSR I -

- I

RxD

3 4 RTS O

O

TxD

5 6 CTS I -

O

DTR

7 8 RI I -

- PWR

GND

9 10 5V

PWR - 1

7.7 COM1/COM2 (J23/J22)

Two serial ports provide asynchronous serial communication via RS-232 interfaces. The connector is type Pinrex 512-90-10GBE5 or similar.

The pinout of Serial ports COM1 and COM2 is as follows:

Note 1: The COM1 and COM4 5V supply is fused with a common 1.1A resettable fuse.

The typical definition of the signals in the COM ports is as follows:

Signal Description

TxD

Transmitted Data, sends data to the communications link. The signal is set to the marking state (12V) on hardware reset when the transmitter is empty or when loop mode operation is initiated.

RxD Received Data, receives data from the communications link.

DTR

Data Terminal Ready, indicates to the modem etc. that the on-board UART is ready to establish a communication link.

DSR Data Set Ready, indicates that the modem etc. is ready to establish a communications link.

RTS Request To Send, indicates to the modem etc. that the on-board UART is ready to exchange data.

CTS Clear To Send, indicates that the modem or data set is ready to exchange data.

DCD Data Carrier Detect, indicates that the modem or data set has detected the data carrier.

RI Ring Indicator, indicates that the modem has received a ringing signal from the telephone line.

Available cable kit (DB9 adapter cables):

PN 821017 - 100 mm or PN 821016 - 200 mm

KTD-N0861-B Page 31 Pin Connectors

KTA70M/mITX Users Guide

Pull U/D

Pull

U/D

- -

PWR

LPC CLK

1 2 GND

- -

PWR

LPC FRAME#

3 KEY

LPC RST#

5 6 +5V

LPC AD3

7 8 LPC AD2

+3V3

9

10

LPC AD1

LPC AD0

11

12

GND

SMB_CLK

13

14

SMB_DATA

SB3V3

15

16

LPC SERIRQ

GND

17

18

CLKRUN#

SUS_STAT#

19

20

NC

7.8 LPC Connector (J29)

The LPC connector is unsupported. The connector is type Foxconn HC11101-P0 or similar.

Note

Ioh/Iol Type Signal PIN Signal Type Ioh/Iol

Note

KTD-N0861-B Page 32 Pin Connectors

KTA70M/mITX Users Guide

Pull U/D

Ioh/

Iol

Ioh/

Iol

Pull U/D

- -

PWR

USB0_5V

1 2 USB1_5V

PWR - -

- - USB0-

3 4 USB1-

- -

- - USB0+

5 6 USB1+

- -

PWR

GND

7 8 GND

PWR - - - -

NC

9 10 LINE2-L

- -

PWR

+5V

11

12 +5V

PWR - -

- 25/25mA

O

SATA_LED#

13

14 SUS_LED

O

7mA -

- -

PWR

GND

15

16 PWRBTN_IN#

I 1K1

4K7 - I

RSTIN#

17

18 GND

PWR - -

- -

PWR

SB3V3

19

20 LINE2-R

- -

PWR

AGND

21

22 AGND

PWR - - - -

AI

MIC2-L

23

24 MIC2-R

AI - -

5V supply for external devices. SB5V is supplied during powerdown to allow wakeup on USB device activity. Protected by independed resettable 1.1A fuse.

Power Button In. Toggle this signal low to start the ATX / BTX PSU and boot the

Reset Input. When pulled low for a minimum 16ms, the reset process will be initiated.

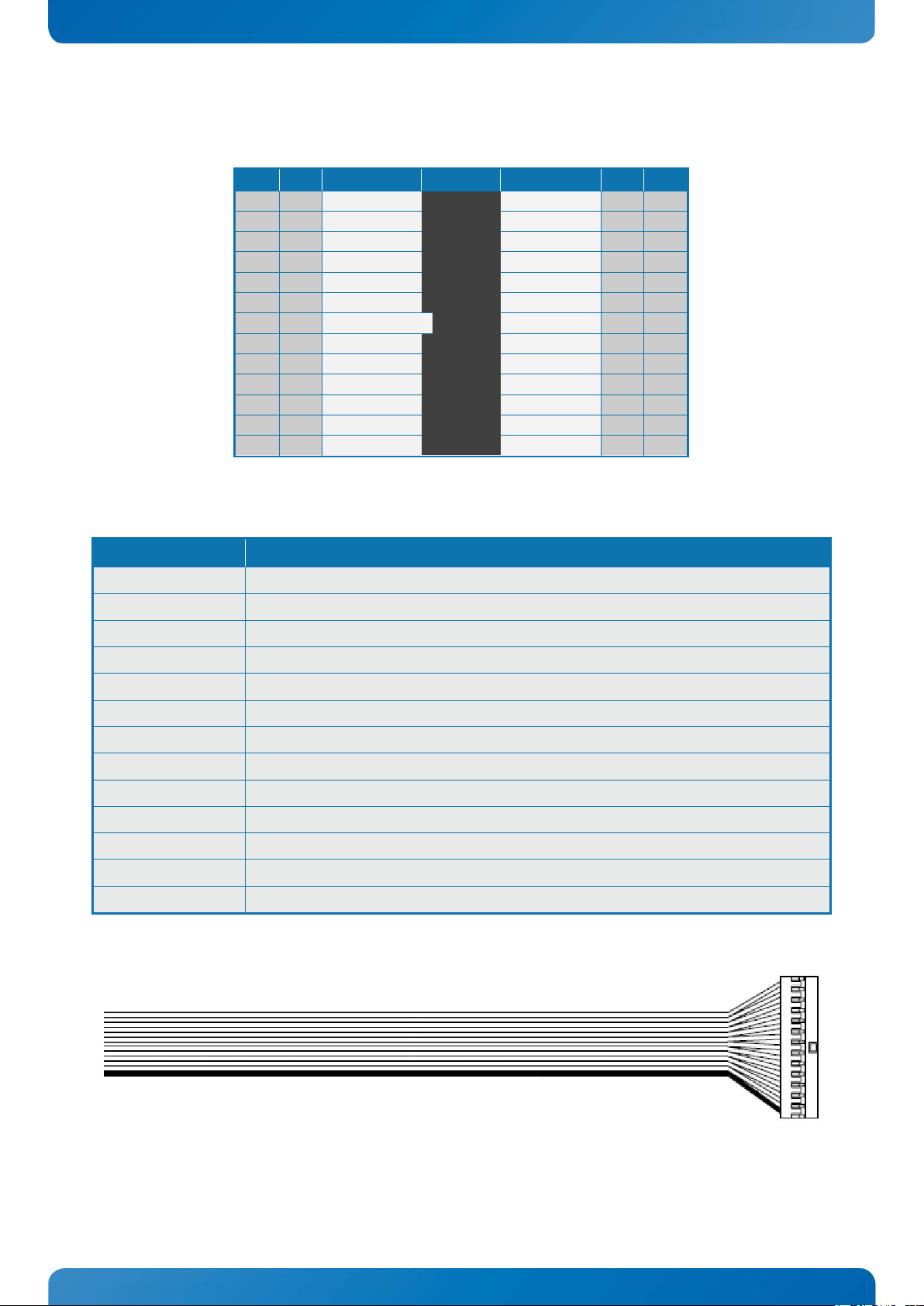

7.9 Front Panel Connector (J5)

The Front Panel connector is a 24 pin connector type Wieson G2120HT0038-016 or similar.

Note

Signal Description

USB0_5V/USB1_5V

USB0+/USB0- Universal Serial Bus Port 0 Differentials: Bus Data/Address/Command Bus.

USB1+/USB1- Universal Serial Bus Port 1 Differentials: Bus Data/Address/Command Bus.

+5V Maximum load is 1A if using IDC connector or 2A if using crimp terminals .

Type Signal PIN Signal Type

Note

SATA_LED# SATA Activity LED (active low signal). 3V3 output when passive.

SUS_LED Suspend Mode LED (active high signal). Output 3.3V via 470Ω.

PWRBTN_IN#

RSTIN#

LINE2

MIC2

SB3V3

AGND Analogue Ground for Audio

Note: In order to meet the requirements of USB standard, the 5V input supply must be at least 5.00V.

Available cable kit:

board.

The reset process continues even though the Reset Input is kept low.

Line2 is second stereo Line signals

MIC2 is second stereo microphone input.

Standby 3.3V voltage

PN 821042 Cable Front Panel Open-End, 300 mm

KTD-N0861-B Page 33 Pin Connectors

KTA70M/mITX Users Guide

Header

Signal

Description

Type

1

PWM

PWM output

O-3.3

2

TACHO

Tacho signal (open drain)

I 3 12V

Power +12V

PWR 4 GND

Ground

PWR

PWM

PWM is output signal used to control the fan speed (only for 4-wire Fans).

Tarcho input signal is used to monitor the rotation speed RPM (Rotation Per Minute). Prepared for two pulses per turn.

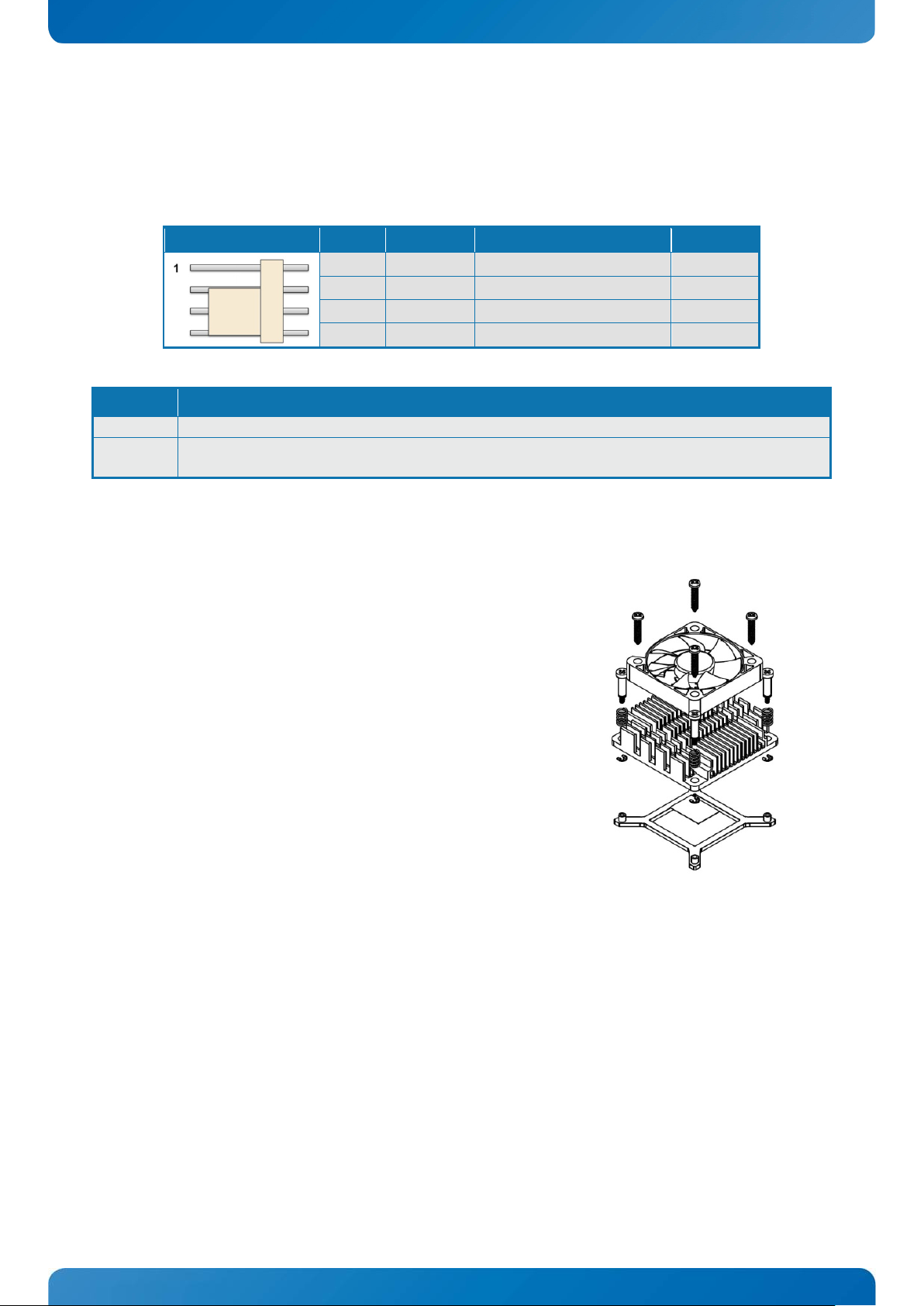

7.10 CPU/System Fan Connectors (J25, J24)

The CPU Fan connector and the System Fan connector are identical 4 pin type connectors. The type is Tyco 1470947-1 or similar.

Signal Description

Tacho

The CPU Fan is premounted on the KTA70M/mITX.

PN 1052-6341

for R-252F and R-460L versions.

PN TBD for R-460H version.

The fan is a 12V Ball Bearing type. PWM 0 – 100% control making speed in range 0 – 7000 RPM (Startup PWM is 30%) Power consumption up to 2,4W MTBF 70000 Hours @ 40ºC

KTD-N0861-B Page 34 Pin Connectors

KTA70M/mITX Users Guide

Note

Pull U/D

Ioh/Iol

Type

Signal

Type

Ioh/Iol

Pull U/D

Note

2

2M/

-

I

CASE_OPEN#

1 2 SMBC

/4mA

10K/

1

- 25/25mA

O

S5#

3 4 SMBD

/4mA

10K/

1

- 25/25mA

O

PWR_OK

5 6 EXT_BAT

PWR - -

4 - O FAN3OUT

7 8 FAN3IN I -

10K/

4

- -

PWR

SB3V3

9 10 SB5V

PWR - -

-

IOT

GPIO0

11

12 GPIO1

IOT - -

IOT

GPIO2

13

14 GPIO3

IOT -

-

IOT

GPIO4

15

16 GPIO5

IOT -

-

IOT

GPIO6

17

18 GPIO7

IOT -

- -

PWR

GND

19

20 GND

PWR - -

- I GPIO8

21

22 GPIO9 I - 3 - NC

GPIO10

23

24 GPIO11

NC -

3

- I GPIO12

25

26 GPIO13

IOT -

-

IOT

GPIO14

27

28 GPIO15

IOT -

-

IOT

GPIO16

29

30 GPIO17

NC -

3

- -

PWR

GND

31

32 GND

PWR - -

- 8/8mA

O

EGCLK

33

34 EGCS#

O

8/8mA

-

- 8/8mA

EGAD

35

36 TMA0 O -

PWR

+12V

37

38 GND

PWR - -

4 - O FAN4OUT

39

40 FAN4IN I -

10K/

4

- -

PWR

GND

41

42 GND

PWR - -

- -

PWR

GND

43

44 S3#

O

25/25mA

-

7.11 Feature Connector (J26)

The Feature Connector is a 44 pin connector, 2 mm pitch, type Foxconn HS5422F or similar.

Notes: 1. Pull-up to SB3V3.

2. Pull-up to on-board Battery.

3. Not connected, used for onboard feature.

4. Not supported.

Available cable kit:

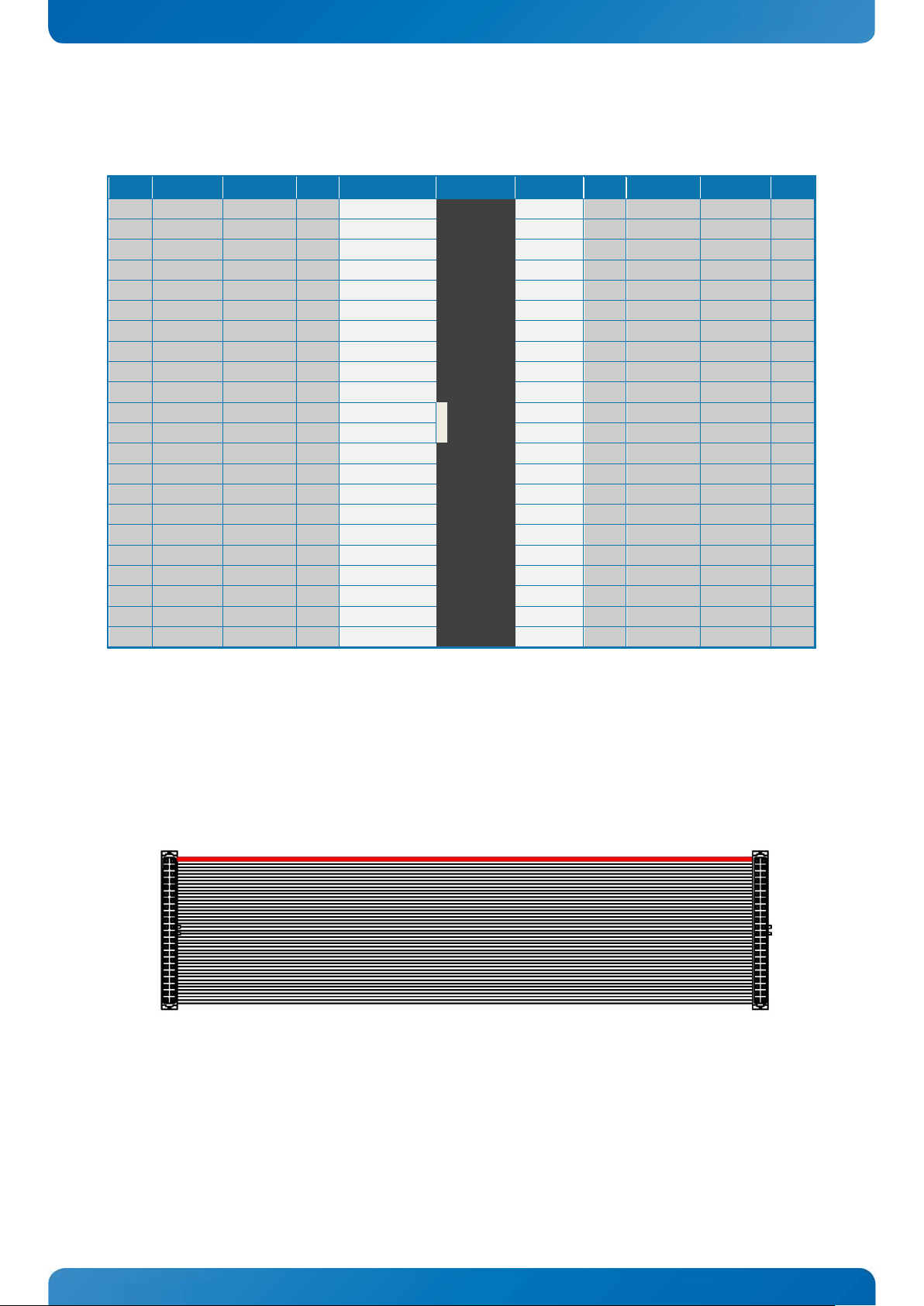

PN 1052-5885 Cable, Feature 44pol 1 to1, 300mm

KTD-N0861-B Page 35 Pin Connectors

KTA70M/mITX Users Guide

CASE OPEN, used to detect if the system case has been opened. This signal’s status is readable, so it may be used like a GPI when the Intruder switch is not required.

PoWeR OK, signal is high if no power failures are detected. (This is not the same as the P_OK signal generated by ATX PSU).

(EXTernal BATtery) option for connecting + terminal of an external primary cell battery

GND). The external battery is protected against

charging and can be used with/without the on-board battery installed.

General Purpose Inputs / Output. These Signals may be controlled or monitored through

GPIO10, GPIO11 and GPIO17 are not supported (not connected).

Signal Description

CASE_OPEN# *

SMBC SMBus Clock signal

SMBD SMBus Data signal

S3#

S5#

S3 sleep mode, active low output, optionally used to deactivate external system.

S5 sleep mode, active low output, optionally used to deactivate external system.

PWR_OK

EXT_BAT *

(2.5 - 4.0 V) (– terminal connected to

FAN3OUT Not Supported

FAN3IN Not Supported

FAN4OUT Not Supported

FAN4IN Not Supported

SB3V3 +3.3V StandBy voltage, max. load 1 Amp

SB5V +5V StandBy voltage

GPIO0..17 *

EGCLK *

the use of the KT-API-V2 (Application Programming Interface).

Extend GPIO Clock signal

EGAD * Extend GPIO Address Data signal

EGCS# * Extend GPIO Chip Select signal, active low

TMA0 Timer Output

+12V +12V, max. load 1 Amp.

(*) = Not verified.

Available Temperature Sensor cable kit (for System Fan Temperature Cruise, selected in BIOS):

Based on Maxim DS18B20, Accurate to ±0.5ºC over the range of -10ºC to +85ºC Feature connector 3.3V (Pin 9), GND (Pin 19) and GPIO16 (Pin 29)

PN1053-4925 Cable Temperature Sensor - 44P, 400 mm

KTD-N0861-B Page 36 Pin Connectors

KTA70M/mITX Users Guide

GPIO0

DAC0/GPJ0

AO/IOS

GPIO1

DAC1/GPJ1

AO/IOS

GPIO2

DAC2/GPJ2

AO/IOS

GPIO3

DAC3/GPJ3

AO/IOS

GPIO4

PWM2/GPA2

O8/IOS

GPIO5

PWM3/GPA3

O8/IOS

GPIO6

PWM4/GPA4

O8/IOS

GPIO7

PWM5/GPA5

O8/IOS

GPIO8

ADC0/GPI0

AI/IS

GPIO9

ADC1/GPI1

AI/IS

GPIO10

ADC2/GPI2

AI/IS

Reserved, used for System Temperature

GPIO11

ADC3/GPI3

AI/IS

Reserved, used for +12V monitoring

GPIO12

ADC4/WUI28/GPI4

AI/IS/IS

GPIO13

RI1#/WUI0/GPD0

IS/IS/IOS

GPIO14

RI2#/WUI1/GPD1

IS/IS/IOS

GPIO15

TMRI0/WUI2/GPC4

IS/IS/IOS

GPIO16

TMRI1/WUI3/GPC6

IS/IS/IOS

Optionally for Cable Temperature sensor

GPIO17

L80HLAT/BAO/WUI24/GPE0

O4/O4/IS/IOS

Reserved, used for Sync

GPIO in more details:

The GPIO’s are controlled via the ITE IT8516F Embedded Controller. Each GPIO has 100pF to ground, clamping Diode to 3V3 and has multiplexed functionality. Some pins can be DAC (Digital to Analogue Converter output), PWM (Pulse Width Modulated signal output), ADC (Analogue to Digital Converter input), TMRI (Timer Counter Input), WUI (Wake Up Input), RI (Ring Indicator Input) or some special function.

Signal IT8516F pin name Type Description

Feature Break-out board:

PN 820978 Feature BOB (Break-Out-Board)

KTD-N0861-B Page 37 Pin Connectors

KTA70M/mITX Users Guide

Pull U/D

1 KBDCLK

IOD

/14mA

2K7

2 KBDDAT

IOD

/14mA

2K7

3

MSCLK

IOD

/14mA

2K7

4

MSDAT

IOD

/14mA

2K7

5 5V/SB5V

PWR

- -

6

GND

PWR

- -

7.12 KBD/MSE (J27)

Attachment of a PS/2 keyboard/mouse can be done through the pinrow connector KBDMSE (J27) type Molex 22-23-2061 or similar.

Both interfaces utilize open-drain signalling with on-board pull-up.

The PS/2 mouse and keyboard is supplied from SB5V when in standby mode in order to enable keyboard or mouse activity to bring the system out from power saving states. The supply is provided through a 1.1A resettable fuse.

PIN Signal Type Ioh/Iol

Signal Description – Keyboard & and mouse Connector (KBDMSE).

Signal Description

MSCLK Bi-directional clock signal used to strobe data/commands from/to the PS/2 mouse.

MSDAT Bi-directional serial data line used to transfer data from or commands to the PS/2 mouse.

KDBCLK Bi-directional clock signal used to strobe data/commands from/to the PC-AT keyboard.

KBDDAT Bi-directional serial data line used to transfer data from or commands to the PC-AT keyboard.

Available cable kit:

PN 1053-2384 Bracket Cable 6-Pin to PS2-Kbd-Mse

Note

KTD-N0861-B Page 38 Slot Connectors

KTA70M/mITX Users Guide

Note

Type

Signal

Type

Note

+12V

B1

A1

GND via 0 Ohm

+12V

B2

A2

+12V

B3

A3

+12V

GND

B4

A4

GND

SMB_CLK

B5

A5

NC

SMB_DATA

B6

A6

SCL5-AUX5P

GND

B7

A7

SCA5-AUX5N

+3V3

B8

A8

NC

DP5 HP

B9

A9

+3V3

SB3V3

B10

A10

+3V3

WAKE#

B11

A11

RST#

NC

B12

A12

GND

B13

A13

PCIE_x16 CLKP

PEG_TXP[0]

B14

A14

PCIE_x16 CLKN

PEG_TXN[0]

B15

A15

GND

B16

A16

PEG_RXP[0]

CLKREQ

B17

A17

PEG_RXN[0]

GND

B18

A18

GND

PEG_TXP[1]

B19

A19

NC

PEG_TXN[1]

B20

A20

GND

B21

A21

PEG_RXP[1]

GND

B22

A22

PEG_RXN[1]

PEG_TXP[2]

B23

A23

GND

PEG_TXN[2]

B24

A24

GND

B25

A25

PEG_RXP[2]

GND

B26

A26

PEG_RXN[2]

PEG_TXP[3]

B27

A27

GND

PEG_TXN[3]

B28

A28

GND

B29

A29

PEG_RXP[3]

NC

B30

A30

PEG_RXN[3]

CLKREQ

B31

A31

GND

B32

A32

NC

PEG_TXP[4]

B33

A33

NC

PEG_TXN[4]

B34

A34

GND

B35

A35

PEG_RXP[4]

8 Slot Connectors (PCI-Express, miniPCIe, SATA, mSATA)

8.1 PCIex8 (in x16 slot) (J7)

The PCIex8 (8-lane PCI Express) is available through a PCIe x16 slot and support PCIe 2.0. The slot can be used for external PCI Express cards inclusive graphics card and dedicated TMDS passive card. The slot is located nearest the edge of the board. Maximum theoretical bandwidth using 8 lanes is 8 GB/s.

KTD-N0861-B Page 39 Slot Connectors

KTA70M/mITX Users Guide

GND

B36

A36

PEG_RXN[4]

PEG_TXP[5]

B37

A37

GND

PEG_TXN[5]

B38

A38

GND

B39

A39

PEG_RXP[5]

GND

B40

A40

PEG_RXN[5]

PEG_TXP[6]

B41

A41

GND

PEG_TXN[6]

B42

A42

GND

B43

A43

PEG_RXP[6]

GND

B44

A44

PEG_RXN[6]

PEG_TXP[7]

B45

A45

GND

PEG_TXN[7]

B46

A46

GND

B47

A47

PEG_RXP[7]

CLKREQ

B48

A48

PEG_RXN[7]

GND

B49

A49

GND

NC

B50

A50

NC

B51

A51

GND

B52

A52

NC

GND

B53

A53

NC

B54

A54

GND

NC

B55

A55

GND

B56

A56

NC

GND

B57

A57

NC

B58

A58

GND

NC

B59

A59

GND

B60

A60

NC

GND

B61

A61

NC

B62

A62

GND

NC

B63

A63

GND

B64

A64

NC

GND

B65

A65

NC

B66

A66

GND

NC

B67

A67

GND

B68

A68

NC

GND

B69

A69

NC

B70

A70

GND

NC

B71

A71

GND

B72

A72

NC

GND

B73

A73

NC

B74

A74

GND

NC

B75

A75

GND

B76

A76

NC

GND

B77

A77

NC

B78

A78

GND

NC

B79

A79

GND

B80

A80

NC

CLKREQ

B81

A81

NC

B82

A82

GND

KTD-N0861-B Page 40 Slot Connectors

KTA70M/mITX Users Guide

Note

Type

Signal

Type

Note

+12V

B1

A1

GND via 0 ohm

+12V

B2

A2

+12V

B3

A3

+12V

GND

B4

A4

GND

SMB_CLK

B5

A5

NC

SMB_DATA

B6

A6

NC

GND

B7

A7

NC

+3V3

B8

A8

NC

B9

A9

+3V3

SB3V3

B10

A10

+3V3

WAKE#

B11

A11

RST#

NC

B12

A12

GND

B13

A13

PCIE_x16 CLK

PEG_TXP[0]

B14

A14

PCIE_x16 CLK#

PEG_TXN[0]

B15

A15

GND

B16

A16

PEG_RXP[0]

CLKREQ

B17

A17

PEG_RXN[0]

GND

B18

A18

GND

PEG_TXP[1]

B19

A19

NC

PEG_TXN[1]

B20

A20

GND

B21

A21

PEG_RXP[1]

GND

B22

A22

PEG_RXN[1]

PEG_TXP[2]

B23

A23

GND

PEG_TXN[2]

B24

A24

GND

B25

A25

PEG_RXP[2]

GND

B26

A26

PEG_RXN[2]

PEG_TXP[3]

B27

A27

GND

PEG_TXN[3]

B28

A28

GND

B29

A29

PEG_RXP[3]

NC

B30

A30

PEG_RXN[3]

CLKREQ

B31

A31

GND

B32

A32

NC

B33

A33

NC

B34

A34

GND

B35

A35

NC

GND

B36

A36

NC

B37

A37

GND

NC

B38

A38

GND

8.2 PCIex4 (J6)

The PCIex4 (4-lane PCI Express) is available through a PCIe x16 slot and support PCIe 2.0. The slot can be used for external PCI Express cards inclusive graphics card. The slot is located nearest the CPU of the board. Maximum theoretical bandwidth using 4 lanes is 4 GB/s.

KTD-N0861-B Page 41 Slot Connectors

KTA70M/mITX Users Guide

GND

B39

A39

NC

GND

B40

A40

NC

B41

A41

GND

NC

B42

A42

GND

B43

A43

NC

GND

B44

A44

NC

B45

A45

GND

NC

B46

A46

GND

B47

A47

NC

CLKREQ

B48

A48

NC

GND

B49

A49

GND

NC

B50

A50

NC

B51

A51

GND

B52

A52

NC

GND

B53

A53

NC

B54

A54

GND

NC

B55

A55

GND

B56

A56

NC

GND

B57

A57

NC

B58

A58

GND

NC

B59

A59

GND

B60

A60

NC

GND

B61

A61

NC

B62

A62

GND

NC

B63

A63

GND

B64

A64

NC

GND

B65

A65

NC

B66

A66

GND

NC

B67

A67

GND

B68

A68

NC

GND

B69

A69

NC

B70

A70

GND

NC

B71

A71

GND

B72

A72

NC

GND

B73

A73

NC

B74

A74

GND

NC

B75

A75

GND

B76

A76

NC

GND

B77

A77

NC

B78

A78

GND

NC

B79

A79

GND

B80

A80

NC

CLKREQ

B81

A81

NC

B82

A82

GND

KTD-N0861-B Page 42 Slot Connectors

KTA70M/mITX Users Guide

Header

Signal

Description

Type

Signal

Description

Type

1

Wake#

Wake event

I-3.3 2 3.3V

Power +3.3V

PWR

5

N.C.

-

NC 6 1.5V

Power +1.5V

PWR

7

Clkreq#

Clock request

I-3.3 8 N.C. - NC

13

PE_Clk+

PCIe® clock+

DSO

14

N.C. - NC

15

GND

Ground

PWR

16

N.C. - NC

19

N.C.

-

NC

20

W_Disable#

Wireless disable

O-3.3

21

GND

Ground

PWR

22

PE_RST#

PCIe® reset

O-3.3

25

PE_RX+

PCIe® receive+

DSI

26

Gnd

Ground

PWR

27

Gnd

Ground

PWR

28

1.5V

Power +1.5V

PWR

33

PE_TX+

PCIe® transmit+

DSO

34

Gnd

Ground

PWR

35

Gnd

Ground

PWR

36

USB2-

Diff. pair USB2 -

DSIO-3.3

39

3.3V

Power +3.3V

PWR

40

Gnd

Ground

PWR

41

3.3V

Power +3.3V

PWR

42

N.C. - NC

45

N.C.

-

NC

46

N.C. - NC

47

N.C.

-

NC

48

1.5V

Power +1.5V

PWR

1

8.3 mPCIe connector (J38)

The mPCIE (mini PCI Express) port is available through connector located on the backside of the board. The mPCI is PCIe 2.0 compliant.

3 N.C. - NC 4 Gnd Ground PWR

9 GND Ground PWR 10 N.C. - NC

11 PE_Clk- PCIe® clock- DSO 12 N.C. - NC

17 N.C. - NC 18 Gnd Ground PWR

23 PE_RX- PCIe® receive- DSI 24 3.3V Power +3.3V PWR

29 Gnd Ground PWR 30 I2C_Clk I2CTM clock O-3.3 31 PE_TX- PCIe® transmit- DSO 32 I2C_Data I2CTM data IO-3.3

37 Gnd Ground PWR 38 USB2+ Diff. pair USB2 +

43 Gnd Ground PWR 44 N.C. - NC

49 N.C. - NC 50 Gnd Ground PWR 51 N.C. - NC 52 3.3V Power +3.3V PWR

KTD-N0861-B Page 43 Slot Connectors

KTA70M/mITX Users Guide

Header

Signal

Description

Type

1

GND

Ground

PWR 2 TX+

Transmit (positive)

DSO 3 TX-

Transmit (negative)

DSO 4 GND

Ground

PWR 5 RX-

Receive (negative)

DSI 6 RX+

Receive (positive)

DSI 7 GND

Ground

PWR

1

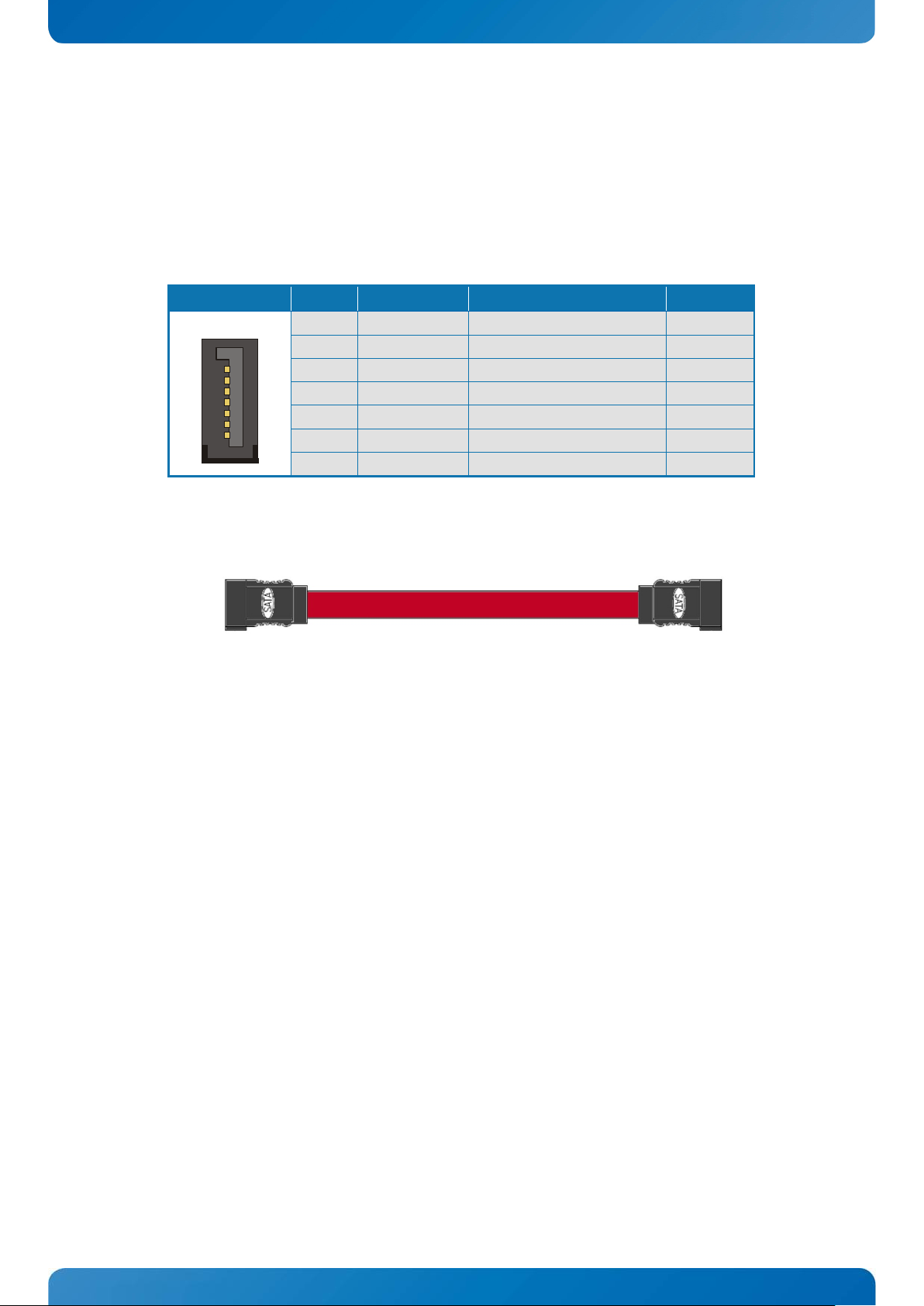

8.4 SATA0, SATA1, SATA2, SATA3, SATA4 (J12, J13, J9, J11, J10)

The five SATA ports comply with SATA 3.0 and supports IDE emulation mode, AHCI (Advanced Host Controller Interface) 1.3 mode and RAID mode (RAID 0 and RAID 1) across all 5 ports.

The SATA 3.0 supports transfer rates up to 6 Gbit/s, but also SATA 1.0 and SATA 2.0 transfer rates are supported, 1.5 Gbit/s and 3.0 Gbit/s respectively.

The S-ATA

®

interface is available through standard L-type connector (7 pins).

Available cable kit:

PN 821035 Cable SATA 500mm

KTD-N0861-B Page 44 Slot Connectors

KTA70M/mITX Users Guide

1

8.5 mSATA Connector (J39)

The mSATA port is located on the backside of the KTA70M. The mSATA interface comply with SATA 3.0 and it supports USB (port USB2)

Header Pin Signal Description Type Pin Signal Description Type

1 Wake# Wake event I-3.3 2 3.3V Power +3.3V PWR

3 N.C. - NC 4 Gnd Ground PWR

5 N.C. - NC 6 1.5V Power +1.5V PWR

7 Clkreq# Clock request I-3.3 8 N.C. - NC

9 Gnd Ground PWR 10 N.C. - NC

11 PE_CLK- PCIe® clock- DSO 12 N.C. - NC

13 PE_CLK+ PCIe® clock+ DSO 14 N.C. - NC

15 Gnd Ground PWR 16 N.C. - NC

17 N.C. - NC 18 Gnd Ground PWR

19 N.C. - NC 20 W_Disable# Wireless disable O-3.3

21 Gnd Ground PWR 22 PE_RST# PCIe® reset O-3.3

23 SATA_RX+ S-ATA® receive+ DSI 24 3.3V Power +3.3V PWR

25 SATA_RX- S-ATA® receive- DSI 26 Gnd Ground PWR

27 Gnd Ground PWR 28 1.5V Power +1.5V PWR

29 Gnd Ground PWR 30 I2C_Clk I2CTM clock IO-3.3

31 SATA_TX- S-ATA® transmit- DSO 32 I2C_Data I2CTM data IO-3.3

33 SATA_TX+ S-ATA® transmit+ DSO 34 Gnd Ground PWR

35 Gnd Ground PWR 36 N.C. - NC

37 Gnd Ground PWR 38 N.C. - NC

39 3.3V Power +3.3V PWR 40 Gnd Ground PWR

41 3.3V Power +3.3V PWR 42 N.C. - NC

43 Gnd Ground PWR 44 N.C. - NC

45 N.C. - NC 46 N.C. - NC

47 N.C. - NC 48 1.5V Power +1.5V PWR

49 N.C. - NC 50 Gnd Ground PWR

51 Sel_SATA# S-ATA® identification I-1.8 52 3.3V Power +3.3V PWR

KTD-N0861-B Page 45 BIOS

KTA70M/mITX Users Guide

Main

Advanced

Chipset

Boot

Security

Save & Exit

BIOS Information

Choose the system default

→← : Select Screen

Feature

Options

Description

System Language

English

(only English available)

System Date

MM/DD/YYYY

Set the system date.

System Time

HH:MM:SS

Set the system time.

9 BIOS

The BIOS Setup is used to view and configure BIOS settings for the board. The BIOS Setup is accessed by pressing the <Del> -key after the Power-On Self-Test (POST) memory test begins and before the operating system boot begins.

The BIOS settings will be loaded automatically when loading “Restore Default” see “Save & Exit” menu. In this Users Guide the default settings are indicated by bold. Please notice that “Restore User Defaults” might have different set of default values.

9.1 Main

BIOS Vendor Core Version Compliancy Project Version Build Date and Time

Memory Information Total Memory EC Firmware Version

Board Information Product Name PCB ID Serial # Part # Boot Count

System Language

System Date

System Time

Access Level

American Megatrends

4.6.5.3 UEFI 2.3; PI 1.2 KTA7X025 x64 09/26/2013 09:12:19

8176 MB (DDR3) V1.21 07/05/13

KTA70/mITX 02 01140641 66020300 78

[English]

[Mon 11/04/2013] [11:21:40]

Administrator

language.

↑↓ : Select Item Enter: Select +/- : Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Blue text for settings that can be changed. White text for actual setting to be changed via the control keys. Black text for settings that cannot be changed via control keys.

The following table describes the changeable settings:

KTD-N0861-B Page 46 BIOS - Advanced

KTA70M/mITX Users Guide

Main

Advanced

Chipset

Boot

Security

Save & Exit

► PCI Subsystem Settings

► ► ► ► ► ► ► ► ► ►

PCI, PCI-X and PCI Express Settings.

→← : Select Screen ↑↓

Enter: Select +/ F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

9.2 Advanced

ACPI Settings Trusted Computing CPU Configuration IDE Configuration USB Configuration Super IO Configuration Hardware Health Configuration LAN Configuration PCI-E Port Network Stack

The Advanced (main) menu contains only submenu selections which will be described in more details on the following pages.

In order to make a selection of a submenu activated the ↑↓ keys until the requested submenu becomes white color, then activate the <Enter>.

: Select Item

- : Change Opt.

KTD-N0861-B Page 47 BIOS - Advanced

KTA70M/mITX Users Guide

Advanced

PCI Bus Driver Version

►

V 2.05.02

Value to be programmed into PCI

→← : Select Screen

9.2.1 Advanced - PCI Subsystem Settings

PCI Common Settings

PCI Latency Timer

VGA Palette Snoop PERR# Generation SERR# Generation

PCI Express Settings

[32 PCI Bus Clocks]

[Disabled] [Disabled] [Disabled]

Latency Timer Register.

↑↓ : Select Item Enter: Select +/- : Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Function Selection Description

PCI Latency Timer

VGA Palette Snoop

PERR# Generation

SERR# Generation

Note: The selection in bold is the default selection.

32 PCI Bus Clocks 64 PCI Bus Clocks 96 PCI Bus Clocks 128 PCI Bus Clocks 160 PCI Bus Clocks

Value to be programmed into PCI Latency Timer

Register. 192 PCI Bus Clocks 224 PCI Bus Clocks 248 PCI Bus Clocks

Disabled Enabled

Disabled

Enabled

Enables or Disables VGA Palette Registers

Snooping.

Enables or Disables PCI Device to Generate PERR#.

Enables or Disables PCI Device to Generate SERR#.

KTD-N0861-B Page 48 BIOS - Advanced

KTA70M/mITX Users Guide

Advanced

PCI Express Device Register Settings

Enables or Disables PCI Express

→← : Select Screen

PCI Express Settings

Relaxed Ordering

Extended Tag No Snoop Maximu Payload Maximum Read Request

PCI Express Link Register Settings

ASPM Support

WARNING: Enabling ASPM may cause

Extended Synch

Link Training Retry Link Training Timeout (uS) Unpopulated Links

some PCI-E devices to fail

[Disabled]

[Disabled] [Enabled] [Auto] [Auto]

[Disabled]

[5] 100 [Keep Link ON]

Device Relaxed Ordering.

↑↓ : Select Item Enter: Select +/- : Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

KTD-N0861-B Page 49 BIOS - Advanced

KTA70M/mITX Users Guide

Function Selection Description

Relaxed Ordering

Extended Tag

No Snoop

Maximum Payload

Maximum Read Request

Disabled

Enabled

Disabled

Enabled

Disabled

Enabled Auto

128 Bytes 256 Bytes 512 Bytes 1024 Bytes 2048 Bytes 4096 Bytes

Auto

128 Bytes 256 Bytes 512 Bytes 1024 Bytes 2048 Bytes 4096 Bytes

Enables or Disables PCI Express Device Relaxed

Ordering.

If Enabled allows Device to use 8-bit Tag field as a

requester.

Enables or Disables PCI Express Device No Snoop

option.

Set Maximum Payload of PCI Express Device or

allow System BIOS to select the value.

Set Maximum Read Request Size of PCI Express

Device or allow System BIOS to select the value.

Disabled

ASPM Support

Auto Force L0s

Extended Synch

Disabled

Enabled

Disabled

Link Training Retry

2 3

5

Link Training Timeout (uS) 100

Unpopulated Links

Keep Link ON

Disabled

Set the ASPM Level:

Force L0s - Force all links to L0s State.

Auto – BIOS auto configure

Disable – Disabled ASPM

If Enabled allows generation of Extended

Syncronization patterns.

Defines number of Retry Attempts software will

take to retrain the link if previous training

attempt was unsuccessful.

Defines number of Microseconds software will

wait before polling ´Link Training´ bit in Link

Status register. Value range from 10 to 1000uS.

In order to save power, software will disable

unpopulated PCI Express links, if this option set

to Disabled.

KTD-N0861-B Page 50 BIOS - Advanced

KTA70M/mITX Users Guide

Advanced

ACPI Settings

Enables or Disables BIOS APCI

→← : Select Screen

9.2.2 Advanced - APCI Settings

Enable ACPI Auto Configuration

Enable Hibernation ACPI Sleep State

Lock Legacy Resources

[Disabled]

[Enabled] [S3 only (Suspend to …] [Disabled]

Auto Configuration.

↑↓ : Select Item Enter: Select +/- : Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Function Selection Description

Enable ACPI Auto Configuration

Enable Hibernation

ACPI Sleep State

Lock Legacy Resources

Disabled

Enabled

Disabled

Enabled

Suspend Disabled S3 only(Suspend to RAM)

Disabled

Enabled

Enables or Disables BIOS APCI Auto Configuration.

Enables or Disables System ability to Hibernate (OS/S4 Sleep State). This option may be not effective with some OS.

Select ACPI sleep state the system will enter when the SUSPEND button is pressed.

Enables or Disables Lock Legacy Resources.

KTD-N0861-B Page 51 BIOS - Advanced

KTA70M/mITX Users Guide

Advanced

Configuration

Enables or Disables BIOS support

→← : Select Screen

Schedule an Operation for the Security Device.

9.2.3 Advanced - Trusted Computing

Security Device Support

TPM State

Pending operation

Current Status Information

TPM Enabled Status: TPM Active Status: TPM Owner Status:

[Enable]

[Enabled] [None]

[Enabled] [Activated] [Unowned]

for security device. O.S. will not show Security Device. TCG EFI protocol and INT1A interface will not be available.

↑↓ : Select Item Enter: Select +/- : Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Function Selection Description

Security Device Support

TPM State

Pending operation

Note: TPM State and Pending operation are only visible if Security Device Support is Enabled followed by

Save and Exit.

Disabled

Enabled

Disabled Enabled

None

Enable Take Ownership Disable Take Ownership TPM Clear

Enables or Disables BIOS support for security device. O.S. will not show Security Device. TCG EFI protocol and INT1A interface will not be available.

Enable/Disable Security Device. NOTE: Your Computer will reboot during restart in order to change State of the Device.

NOTE: Your Computer will reboot during restart in order to change State of Security Device.

KTD-N0861-B Page 52 BIOS - Advanced

KTA70M/mITX Users Guide

Advanced

CPU Configuration

►

Enable/disable the generation of

→← : Select Screen

9.2.4 Advanced - CPU Configuration

Module Version: 4.6.5.1 TrinityPI 018

AGESA Vesrion: 1.0.0.8

PSS Support

PSTATE Adjustment PPC Adjustment NX Mode SVM Mode CPB Mode C6 Mode Node 0 Information

[Enabled]

[PState 0] [PState 0] [Enabled] [Enabled] [Auto] [Enabled]

ACPI _PPC, _PSS, and _PCT objects.

↑↓ : Select Item Enter: Select +/- : Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Function Selection Description

PSS Support

PSTATE Adjustment PState 0 – Pstate 7 Provide to adjust startup P-state level.

PPC Adjustment

NX Mode

SVM Mode

CPB Mode

C6 Mode

Disabled

Enabled

PState 0 – Pstate 4

Disabled

Enabled

Disabled

Enabled Auto

Disabled

Enabled

Enable/disable the generation of ACPI _PPC,

_PSS, and _PCT objects.

Provide to adjust _PPC object.

Enable/disable Ni-execute page protection

Function.

Enable/disable CPU Virtualization.

Auto/disable CPB.

Enable/disable C6.

KTD-N0861-B Page 53 BIOS - Advanced

KTA70M/mITX Users Guide

Advanced

Socket0: AMD R-452L APU with Radeon™ HD Graphics

→← : Select Screen

Node 0 Information

Quad Core Running @1639 MHz 375mV Max Speed: 1600 MHz Intended Speed: 1600 MHz Min Speed: 900 MHz Microcode Patch Level: 6001116

----------- Cache per Core ------------L1 Instruction Cache: 32 KB/2-way

L1 Data Cache: 16 KB/4-way

No L3 Cache Present

L2 Cache: 1024 KB/16-way

↑↓ : Select Item Enter: Select +/- : Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

KTD-N0861-B Page 54 BIOS - Advanced

KTA70M/mITX Users Guide

Advanced

IDE Configuration

→← : Select Screen

9.2.5 Advanced - IDE Configuration

SATA Port0 SATA Port1 SATA Port2 SATA Port3 SATA Port4 SATA Port5

Maxtor 6L120M0 (122.9GB) Not Pressent Not Pressent Not Pressent Not Pressent Not Pressent

↑↓ : Select Item Enter: Select +/- : Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

KTD-N0861-B Page 55 BIOS - Advanced

KTA70M/mITX Users Guide

Advanced

USB Configuration

Enables Legacy USB support. AUTO option disables legacy support if no USB devices are connected. DISABLE option keep EFI applications.

→← : Select Screen ↑↓

Enter: Select +/ F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

9.2.6 Advanced - USB Configuration

USB Devices:

1 Keyboard, 1 Mouse

Legacy USB Support

USB3.0 Support

XHCI Hand-off

EHCI Hand-off

USB hardware delays and time-outs:

USB transfer time-out Device reset time-out Device power-up delay

[Enabled]

[Disabled] [Enabled] [Disabled]

[20 sec} [20 sec] [Auto]

Function Selection Description

will

USB devices available only for

: Select Item

- : Change Opt.

Legacy USB Support

USB3.0 Support

XHCI Hand-off

EHCI Hand-off

USB transfer time-out

Device reset time-out

Device power-up delay

Enabled

Disabled Auto

Enabled

Disabled

Enabled

Disabled

Enabled Disabled

1, 5, 10, 20 sec

10, 20 sec, 30, 40

Enables Legacy USB support. AUTO option disables legacy support if no USB devices

are connected. DISABLE option will keep USB devices available only for EFI applications.

Enable/Disable USB3.0 (XHCI) Controller support.

This is a workaround for OSes without XHCI hand-off support. The XHCI ownership change should be claimed by XHCI driver.

This is a workaround for OSes without EHCI hand-off support. The EHCI ownership change should be claimed by EHCI driver.

The time-out value for Control, Bulk, and Interrupt transfers.

USB mass storage device Start Unit command time-out.

Maximum time the device will take before it properly

Auto

Manual

reports itself to the Host Controller. ´Auto´ uses default value: for a Root port it is 100 ms, for a Hub port the delay is taken from Hub descriptor.

KTD-N0861-B Page 56 BIOS - Advanced

KTA70M/mITX Users Guide

Advanced

Super IO Configuration

►

Set Parameters of Serial Port 1 (COMA)

→← : Select Screen ↑↓

Enter: Select +/ F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

9.2.7 Advanced - Super IO Configuration

Super IO Chip

Serial Port 1 Configuration

Serial Port 2 Configuration

IT8516F

: Select Item

- : Change Opt.

The 2 submenus are shown and described on the following pages.

KTD-N0861-B Page 57 BIOS - Advanced

KTA70M/mITX Users Guide

Advanced

Serial Port 1 Configuration

Enable or Disable Serial Port (COM)

→← : Select Screen ↑↓

Enter: Select +/ F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Serial Port 1 Configuration

Serial Port

Device Settings

Change Settings

[Enabled]

IO=3F8h; IRQ=4;

[Auto]

: Select Item

- : Change Opt.

Function Selection Description

Serial Port

Change Settings (Note1)

Note1: only if Serial Port = Enabled

Disabled Enabled

Enable or Disable Serial Port (COM)

Auto

IO=3F8h; IRQ=4; IO=3F8h; IRQ=3,4,5,6,7,10,11,12; IO=2F8h; IRQ=3,4,5,6,7,10,11,12;

Select an optimal setting for Super IO device.

IO=3E8h; IRQ=3,4,5,6,7,10,11,12; IO=2E8h; IRQ=3,4,5,6,7,10,11,12;

KTD-N0861-B Page 58 BIOS - Advanced

KTA70M/mITX Users Guide

Advanced

Serial Port 2 Configuration

Enable or Disable Serial Port (COM)

→← : Select Screen ↑↓

Enter: Select +/ F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Serial Port 2 Configuration

Serial Port

Device Settings

Change Settings

[Enabled]

IO=2F8h; IRQ=3;

[Auto]

: Select Item

- : Change Opt.

Function Selection Description

Serial Port

Change Settings (Note1)

Note1: only if Serial Port = Enabled

Disabled Enabled

Enable or Disable Serial Port (COM)

Auto

IO=2F8h; IRQ=3; IO=3F8h; IRQ=3,4,5,6,7,10,11,12; IO=2F8h; IRQ=3,4,5,6,7,10,11,12;

Select an optimal setting for Super IO device.

IO=3E8h; IRQ=3,4,5,6,7,10,11,12; IO=2E8h; IRQ=3,4,5,6,7,10,11,12;

KTD-N0861-B Page 59 BIOS - Advanced

KTA70M/mITX Users Guide

Advanced

Hardware Health Configuration

Use external connected sensor instead of onboard.

→← : Select Screen ↑↓

Enter: Select +/ F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

9.2.8 Advanced - Hardware Health Configuration

System Temperature CPU Temperature

System Fan Speed

System Temperature Ext Type

Fan Cruise Control

Fan Settings Fan Min limit Fan Max limit

CPU Fan Speed

Fan Cruise Control

Fan Settings Fan Min limit Fan Max limit

12V Supply

Watchdog Function

: 30ºC/86ºF : 49.10ºC/120ºF

: 3134 RPM

[ OneWire @ GPIO16]

[Thermal] 35 25 80

: 1374 RPM

[Thermal] 50 0 100

: 11.70 V

0

.

: Select Item

- : Change Opt.

KTD-N0861-B Page 60 BIOS - Advanced

KTA70M/mITX Users Guide

Minimum PWM %, can be used to make sure fan is

Maximum PWM %, can be used to limit the fan

Function Selection Description

System Temperature Ext Type

(note1)

Fan Cruise Control (System Fan)

Fan Settings (System Fan)

Fan Min limit (System Fan) (note5)

Fan Max limit (System Fan) (note5)

Fan Cruise Control (CPU Fan)

Fan Settings (CPU Fan)

Fan Min limit (CPU Fan) (note7)

Disabled

LM75 @ 0x90 OneWire @ GPIO16

Disabled

Thermal (note2) Speed

30 – 90 (note2,note3) 1000 – 9999 (note4)

0 (note6)

100 (note6)

Disabled

Thermal Speed

30 – 90 (note3) 1000 – 9999 (note4)

0

(note6)

Disabled = Full speed.

Thermal: Regulate according to specified ºC.

Speed: Regulate according to specified RPM.

Minimum PWM %, can be used to make sure fan is

always active. Make sure Min limit < Max limit.

Maximum PWM %, can be used to limit the fan

noise. Make sure Min limit < Max limit.

Disabled = Full speed.

Thermal: Regulate according to specified ºC.

Speed: Regulate according to specified RPM.

always active. Make sure Min limit < Max limit.

Fan Max limit (CPU Fan) (note7)

100

(note6)

noise. Make sure Min limit < Max limit.

0 = Disabled. Enter the service interval in seconds

Watchdog Function 0 - 255 (note8)

before system will reset.

Refer to manual how to reload the timer.

Note1: Only visible if external temperature sensor is connected.

(Example PN1053-4925 “Cable Temperature Sensor - 44P, 400 mm”).

Note2: Only visible if external temperature sensor is connected and selected.

Note3: ºC (if Fan Cruise Control = Thermal) use either digit keys to enter value or +/- keys to

increase/decrease value. Don’t use mix of digit keys and +/- keys.

Note4: RPM (if Fan Cruise Control = Speed) use either digit keys to enter value or +/- keys to

increase/decrease value by 100. Don’t use mix of digit keys and +/- keys.

Note5: Only visible if external temperature sensor is connected and if System Fan Cruise Control is Thermal.

Note6: Use number keys to enter value.

Note7: Only visible if CPU Fan Cruise Control is Thermal.

Note8: Seconds, use digit keys to enter value. Value 0 means Watchdog is disabled. Refer to “KT-API-V2

User Manual” to control the Watchdog via API or refer to “KT-API-V2 User Manual DLL” how to control Watchdog via Windows DLL.

KTD-N0861-B Page 61 BIOS - Advanced

KTA70M/mITX Users Guide

Advanced

LAN Configuration

Control of Ethernet Devices and PXE boot.

ETH1 Configuration (Upper)

[Enabled]

→← : Select Screen ↑↓

Enter: Select +/ F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

9.2.9 Advanced - LAN Configuration

MAC Address & Link status: ETH2 Configuration (Lower) MAC Address & Link status:

00E0F42A935F+

[Enabled]

00E0F42 A9360-

: Select Item

- : Change Opt.

Function Selection Description

ETH1 Configuration (Upper)

ETH2 Configuration (Lower)

Disabled

Enabled

Control of Ethernet Devices and PXE boot.

With PXE boot

Disabled

Enabled

Control of Ethernet Devices and PXE boot.

With PXE boot

KTD-N0861-B Page 62 BIOS - Advanced

KTA70M/mITX Users Guide

Advanced

PCU-E Port

Enable/Disable UEFI network stack.

→← : Select Screen ↑↓

Enter: Select +/ F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Deafult Settings

9.2.10 Advanced – PCI-E Port

Display port 0 Output Mode

Display port 1 Output Mode Display port 2 Output Mode Display port 3 Output Mode

[DP]

[DP] [DP] [Disabled]

: Select Item

- : Change Opt.

Function Selection Description

Display port # Output Mode

(# = 0, 1, 2, 3)

Defaults: Port 0, 1, 2 = DP and Port 3 = Disabled.

DP eDP Single Link DVI-D Dual Link DVI-D HDMI Travis DP-to-VGA Travis DP-to-LVDS

NB PCIE Connect Type (Display device). Nutmeg DP-to-VGA Single Link DVI-I CRT (VGA) LVDS Auto Detect Disabled

KTD-N0861-B Page 63 BIOS - Advanced

KTA70M/mITX Users Guide

Advanced

Network stack

[Enable]

Enable/Disable UEFI network stack.

→← : Select Screen ↑↓

Enter: Select +/ F1: General Help F2: F3: Optimized Defaults F4: Save & Exit ESC: Exit

9.2.11 Network Stack

Ipv4 PXE Support Ipv6 PXE Support

[Enable] [Enable]

: Select Item

- : Change Opt.

Previous Values

Function Selection Description

Network stack

Ipv4 PXE Support (Note1)

Ipv6 PXE Support (Note1)

Note1: Only if Network stack = Enabled.

Disable

Enabled Enabled

Disabled Enabled

Disabled

Enable/Disable UEFI network stack.

Enable Ipv4 PXE Boot Support. If disabled IPV4

PXE boot option will not be created.

Enable Ipv6 PXE Boot Support. If disabled IPV6

PXE boot option will not be created.

KTD-N0861-B Page 64 BIOS - Chipset

KTA70M/mITX Users Guide

Main

Advanced

Chipset

Boot

Security

Save & Exit

► South Bridge

►

South Bridge Parameters

→← : Select Screen ↑↓

Enter: Select +/ F1: General Help F2: F3: Optimized Defaults F4: Save & Exit ESC: Exit

9.3 Chipset

North Bridge

: Select Item

- : Change Opt.

Previous Values

KTD-N0861-B Page 65 BIOS - Chipset

KTA70M/mITX Users Guide

Chipset

AMD Reference code Version:

►

► ►

Trinity PI 1.0.0.8

Options for SATA Configuration.

→← : Select Screen ↑↓

Enter: Select +/ F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

9.3.1 South Bridge

SB SATA Configuration

SB USB Configuration SB HD Azalia Configuration

Restore AC Power Loss

[Power On]

: Select Item

- : Change Opt.

Please find description of the “SB SATA Configuration”, “SB USB Configuration” and “SB HD Azalia Configuration” on the following pages.

Function Selection Description

Restore AC Power Loss

Power Off

Power On

Select AC Power state when power is re-applied after a power failure.

Last State

KTD-N0861-B Page 66 BIOS - Chipset

KTA70M/mITX Users Guide

Chipset

OnChip SATA Channel

[Enabled]

→← : Select Screen ↑↓

Enter: Select +/ F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

SB SATA Configuration

OnChip SATA Type

OnChip IDE Mode

SATA IDE Combined Mode

[AHCI] [Legacy mode] [Enabled]

: Select Item

- : Change Opt.

Function Selection Description

OnChip SATA Channel

OnChip SATA Type

OnChip IDE mode

SATA IDE Combined Mode

Disabled

Enabled

Native IDE RAID

AHCI

Native IDE /n RAID Native IDE /n AHCI /n Legacy IDE /n IDE ->AHCI /n AHCI as ID 7804 /n IDE>AHCI as ID 7804

Legacy IDE IDE ->AHCI AHCI as ID 7804 IDE->AHCI as ID 7804

Legacy mode

Native mode

Disabled

Enabled

KTD-N0861-B Page 67 BIOS - Chipset

KTA70M/mITX Users Guide

Chipset

XHCI Controller 0

[Enabled]

░ ░

XHCI Enable Help.

→← : Select Screen ↑↓

Enter: Select +/ F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

XHCI Controller 1

OHCI HC (Bus 0 Dev 18 Fn 0)

EHCI HC (Bus 0 Dev 18 Fn 2)

OHCI HC (Bus 0 Dev 19 Fn 0)

EHCI HC (Bus 0 Dev 19 Fn 2)

OHCI HC (Bus 0 Dev 20 Fn 5)

USB PORT 0

USB PORT 1

USB PORT 2

USB PORT 3

USB PORT 4

USB PORT 5

USB PORT 6

USB PORT 7

USB PORT 8

USB PORT 9

XHCI0 PORT 0

XHCI0 PORT 1

XHCI1 PORT 0

XHCI1 PORT 1

[Enabled]

[Enabled] [Enabled] [Enabled] [Enabled] [Enabled]

[Enabled] [Enabled] [Enabled] [Enabled]

: Select Item

- : Change Opt.

Scroll to see further settings.

KTD-N0861-B Page 68 BIOS - Chipset

KTA70M/mITX Users Guide

SB USB Configuration

Function Selection Description

XHCI Controller 0

XHCI Controller 1

OHCI HC (Bus 0 Dev 18 Fn 0)

EHCI HC (Bus 0 Dev 18 Fn 2)

OHCI HC (Bus 0 Dev 19 Fn 0)

EHCI HC (Bus 0 Dev 19 Fn 2)

OHCI HC (Bus 0 Dev 20 Fn 5)

USB PORT 0 - 9

XHCI0 PORT 0

Disabled Enabled

Disabled

Enabled

Disabled

Enabled

Disabled

Enabled

Disabled

Enabled

Disabled Enabled

XHCI Enable Help.

XHCI0 PORT 1

XHCI1 PORT 0

XHCI1 PORT 1

USB PORT FL0

USB PORT FL1

Disabled Enabled

KTD-N0861-B Page 69 BIOS - Chipset

KTA70M/mITX Users Guide

Chipset

HD Audio Azalia Device

[Enabled]

→← : Select Screen ↑↓

Enter: Select +/ F1: General Help F2: Previous Values F3: Optimized Defaults F4: ESC: Exit

SB HD Azalia Configuration

Audio Front Panel

Audio Jack Sensing

Azalia Snoop

[Auto] [Auto] [Disabled]

: Select Item

- : Change Opt.

Save & Exit

Function Selection Description

HD Audio Azalia Device

Audio Front Panel

Audio Jack Sensing

Azalia Snoop

Auto Disabled

Enabled Auto

Disabled Enabled

Auto: The insertions of audio jacks are auto

Disabled Auto

determined. Disabled: Driver assumes that all jacks are

inserted (useful when using the Audio pinrow)

Disabled

Enabled

Enable or disable internal HDMI codec for Azalia.

KTD-N0861-B Page 70 BIOS - Chipset

KTA70M/mITX Users Guide

Chipset

North Bridge Configuration

►

► ►

GFX Configuration.

→← : Select Screen ↑↓

Enter: Select +/ F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

9.3.2 North Bridge

Graphics Configuration

Memory Information

Total Memory: 8176 MB (DDR3)

Memory Configuration Socket 0 Information

: Select Item

- : Change Opt.

KTD-N0861-B Page 71 BIOS - Chipset

KTA70M/mITX Users Guide

Chipset

GFX Configuration

Select Primary Video Device that BIOS will use

→← : Select Screen ↑↓

Enter: Select +/ F1: F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Graphics Configuration

Primary Video Device

Brightness Control Mode Switch

Integrated Graphics

PSPP Policy

[IGD Video]

[Control by Driver] [Auto] [Performance]

as output.

: Select Item

- : Change Opt. General Help

Function Selection Description

Primary Video Device

Brightness Control Mode Switch

Integrated Graphics

PSPP Policy

IGD Video

NB PCIe slot Video

Select Primary Video Device that BIOS will use as output.

SB PCIe slot Video

Control by VBIOS

Control by Driver Auto

Switch Brightness Control Mode between VBIOS/DRIVER.

Enable Integrated Graphics controller. Disabled Force

Disabled

PCIe speed power policy

Performance

Balanced-High Balanced-Low Power Saving

KTD-N0861-B Page 72 BIOS - Chipset

KTA70M/mITX Users Guide

Chipset

Memory Configuration

This option Allows User to select different Memory Clock. value is 800MHz.

→← : Select Screen ↑↓

Enter: Select +/ F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Memory Configuration

Memory Clock

Memory Hole Remapping Bank Interleaveing Channel Interleaving Memory Clear

[Auto]

[Enabled] [Enabled] [Enabled] [Disabled]

: Select Item

- : Change Opt.

Default

Function Selection Description

Memory Clock

Memory Hole Remapping

Bank Interleaveing

Channel Interleaving

Memory Clear

Auto

800MHz

This option Allows User to select different

Memory Clock. Default value is 800MHz

1066MHz 1333MHz 1600MHz 1866MHz

Disabled

Memory Hole Remapping.

Enabled

Disabled

Bank Interleaveing Enabled

Disabled

Channel Interleaving

Enabled Disabled

Enable/Disable Memory Clear function. Enabled

KTD-N0861-B Page 73 BIOS - Chipset

KTA70M/mITX Users Guide

Chipset

Socket 0 Information

This option Allows User to select different Memory Clock. Default value is 800MHz.

→← : Select Screen ↑↓

Enter: Select +/ F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Socket 0 Information

Starting Address: 0 KB

Ending Address: 8388607 KB

Dimm0: size=8192 MB, speed=800 MHz Dimm1: Not Present

: Select Item

- : Change Opt.

KTD-N0861-B Page 74 BIOS - Boot

KTA70M/mITX Users Guide

Main

Advanced

Chipset

Boot

Security

Save & Exit

Boot Configuration

►

Number of seconds to wait for setup activation key.

65535

waiting.

→← : Select Screen ↑↓

Enter: Select +/ F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

9.4 Boot

Setup Prompt Timeout

Bootup NumLock State

Quit Boot Fast Boot

CSM16 Module Version

GateA20 Active Option ROM Message INT19 Trap Response

Boot Option Priorities

Boot Option #1 Boot Option #2

CSM parameters

1

[On]

[Disabled] [Disabled]

07.69

[Upon Request] [Force BIOS] [Immediate]

[P0: Maxtor 6L120M0 …] [UEFI: Built-in EFI …]

(0xFFFF) means indefinite

: Select Item

- : Change Opt.

Note: When pressing <F7> while booting it is possible manually to select boot device.

KTD-N0861-B Page 75 BIOS - Boot

KTA70M/mITX Users Guide

Upon Request: GA20 can be disabled

Postponed: execute the trap during

Function Selection Description

Number of seconds to wait for setup activation

Setup Prompt Timeout

1, 2 - 65535 (Note)

key. 65535 (0xFFFF) means indefinite waiting.

Bootup NumLock State

Quit Boot

Fast Boot

GateA20 Active

Option ROM Message

INT19 Trap Response

On

Off

Disabled

Enabled

Disabled

Enabled

Upon Request

Always

Force BIOS

Keep Current

Immediate

Postponed

Select the Keyboard Numlock state.

Enables or disables Quiet Boot option.

Enables or disables boot with initialization of a minimal set of devices required to launch active boot option. Has no effect for BBS boot options.

using BIOS services. Always: do not allow disabling GA20; this

option is useful when any RT code is executed above 1MB.

Set display mode for Option ROM.

BIOS reaction on INT19 trapping by Option ROM.

Immediate: execute the trap right away.

legacy boot.

Boot Option #1 (list of bootable devices) Sets the system boot order.

Note: To enter number use digit keys and/or +/- keys.

KTD-N0861-B Page 76 BIOS - Boot

KTA70M/mITX Users Guide

Main

Advanced

Chipset

Boot

Security

Save & Exit

Launch CSM

[Enabled]

This option controls if CSM will be launched.

→← : Select Screen ↑↓

Enter: Select +/ F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Legacy only

9.4.1 CSM parameters

Boot option filter Launch PXE OpROM policy Launch Storage OpROM policy Launch Video OpROM policy

Other PCI device ROM priority

[UEFI and Legacy] [Legacy only] [Legacy only] [Legacy only]

[Legacy OpROM]

Function Selection Description

Launch CSM

Boot option filter

Launch PXE OpROM policy

Launch Storage OpROM policy

Enabled

Disabled

UEFI and Legacy

Legacy only UEFI only

Do not launch UEFI only

This option controls if CSM will be launched.

This option controls what devices system can

boot to.

Controls the execution of UEFI and Legacy PXE

OpROM.

Controls the execution of UEFI and Legacy

Storage OpROM.

: Select Item

- : Change Opt.

Launch Video OpROM policy

Other PCI device ROM priority

Do not launch UEFI only Legacy only

UEFI OpROM

Legacy OpROM

Controls the execution of UEFI and Legacy

Video OpROM.

For PCI devices other than Network, Mass

storage or Video defines which OpROM to

launch.

KTD-N0861-B Page 77 BIOS - Security

KTA70M/mITX Users Guide

Main

Advanced

Chipset

Boot

Security

Save & Exit

Password Description

░ ░

Set Administrator Password

Administrator Password

→← : Select Screen

9.5 Security

If ONLY the Administrator’s password is set, then this only limits access to Setup and is only asked for when entering Setup. If ONLY the User’s password is set, then this is a power on password and must be entered to boot or enter Setup. In Setup the User will have Administrator rights. The password length must be in the following range: Minimum length 3 Maximum length 20

User Password

System Mode state Secure Boot state

Secure Boot Secure Boot Mode

Setup Disabled

[Enabled] [Standard]

↑↓ : Select Item Enter: Select +/- : Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Function Selection Description

Administrator Password

User Password

Secure Boot

Secure Boot Mode

(See Password description above)

Disabled

Enabled

Set Administrator Password

Set User Password

Secure Boot flow control.

Secure Boot is possible only if System runs in

User Mode.

Secure Boot mode selector.

Standard

Custom

Standard: fixed Secure boot policy.

Custom: changeable Image Execution policy and

Secure Boot Key databases.

KTD-N0861-B Page 78 BIOS - Save & Exit

KTA70M/mITX Users Guide

Main

Advanced

Chipset

Boot

Security

Save & Exit

Save Changes and Exit

Exit system setup after saving the changes.

→← : Select Screen ↑↓

Enter: Select +/ F1: General Help F2: F3: Optimized Defaults F4: Save & Exit ESC: Exit

9.6 Save & Exit

This Menu is special; having no “selections” for each function, or in other words, the function is the same as the selection.

Discard Changes and Exit Save Changes and Reset Discard Changes and Reset

Save Options

Save Changes Discard Changes

Restore Defaults Save as User Defaults Restore User Defaults

Boot Override

UEFI: Built-in EFI Shell P0: Maxtor 6L120M0

: Select Item

- : Change Opt.

Previous Values

Note: When pressing <F7> while booting it is possible manually to select boot device.

Function Description

Save Changes and Exit Exit system setup after saving the changes.

Discard Changes and Exit Exit system setup without saving any changes.

Save Changes and Reset Reset the system after saving the changes.

Discard Changes and Reset Reset the system without saving any changes.

Save Changes Save Changes done so far to any of the setup options.

Discard Changes Discard Changes done so far to any of the setup options.

Restore Defaults Restore/Load Default values for all the setup options.

Save as User Defaults Save the Changes done so far as User Defaults.

Restore User Defaults Restore the User Defaults to all the setup options.

(possible list of boot devices)

Selection table of bootable devices. When selected system will boot on selected device.

KTD-N0861-B Page 79 Beep Codes

KTA70M/mITX Users Guide

Beeps

Description

1

Insert diskette in floppy drive A:

2

‘AMIBOOT.ROM’ file not found in root directory of diskette in A:

3

Base Memory error

4

Flash Programming successful

5

Floppy read error

6

Keyboard controller BAT command failed

7

No Flash EPROM detected

8

Floppy controller failure

9

Boot Block BIOS checksum error

10

Flash Erase error

11

Flash Program error

12

‘AMIBOOT.ROM’ file size error

13

BIOS ROM image mismatch (file layout does not match image present in flash device)

Beeps

Description

1

Memory refresh timer error.

2

Parity error in base memory (first 64KB block)

3

Base memory read/write test error

4

Motherboard timer not operational

5

Processor error

6

8042 Gate A20 test error (cannot switch to protected mode)

7

General exception error (processor exception interrupt error)

8

Display memory error (system video adapter)

9

AMIBIOS ROM checksum error

10

CMOS shutdown register read/write error

11

Cache memory test failed

Beeps

Troubleshooting Action

1, 2 or 3

Reset the memory, or replace with known good modules.

4-7, 9-11

Fatal error indicating a serious problem with the system. Consult your system manufacturer.

the problem happens again. This will reveal the malfunctioning card.

8

If the system video adapter is an add-in card, replace or reset the video adapter. If the video adapter is an integrated part of the system board, the board may be faulty.

10 AMI BIOS Beep Codes

Boot Block Beep Codes:

POST BIOS Beep Codes:

Troubleshooting POST BIOS Beep Codes:

Before declaring the motherboard beyond “all hope”, eliminate the possibility of interference due to a malfunctioning add-in card. Remove all expansion cards, except the video adapter.

• If beep codes are generated when all other expansion cards are absent, consult your system

manufacturer’s technical support.

• If beep codes are not generated when all other expansion cards are absent, one of the addin cards is causing the malfunction. Insert the cards back into the system one at a time until

KTD-N0861-B Page 80 Appendix

KTA70M/mITX Users Guide

Kontron

1052-5814 (Kit)

Power (Internal)

J19

Lotes

ABA-POW-003-K02

Molex

39-01-2045

Kontron

821043 (kit)

Kontron

1027-3669 (Kit)

Kontron

821017 (kit)

Molex Kontron

90635-1243 821042 (kit)

CPU Fan/System Fan

J24/J25

Tyco

1470947-1

Molex

47054-1000

Don Connex

Kontron

1053-2384 (kit)

Appendix: Mating Connectors

The Mating connectors / Cables are connectors or cable kits which are fitting the On-board connector.

Connector

Onboard Connectors Mating Connectors

Manufacturer P/N Manufacturer P/N

DisplayPort J3/J4/J43 Foxconn 3VD11203-H7AB-4H

USB10/USB11/USB12/USB13 J14/J15 Lotes ABA-USB-104-K01

ETH1/ETH2 J8 Ude RMT-123AGF1F

USB6/USB7/USB8/USB9 J20 Foxconn UB11123-Q8DF-4F

Audio stack J40 Lotes ABA-JAK-028-K03

Power (External) J28 Molex 0430450402

12V-SB-In J31 Molex 22-23-2021 Molex 22-01-2025

Audio Header J41 Molex 87832-2620

Power Out J18 Molex 22-23-2041

USB4/USB5 J16 Foxconn HS1105F-RNP9

SPI J21 Pinrex 512-90-10GBE5

COM1/COM2 J22/J23 Pinrex 512-90-10GBE5

LPC J29 Foxconn HC11101-P0

Molex

43025-0400

51110-2651

22-01-2045

90635-1103

Frontpanel J5 Wieson G2120HT0038-016

Feature J26

KBD/MSE J27

Pinrex 52C-90-44GB00

Foxconn HS5422F

Molex

22-23-2061

Cable & Driver Kit KTA70M/KTA75 (PN 826600-R11) contains:

2x PN 821017 Cable, COM, 2.54mm, 100mm 1x PN 1052-5885 Cable, Feature 44pol 1 to1, 300mm 1x PN 1053-2384 Bracket Cable 6-Pin to PS2-Kbd-Mse 1x PN 821042 Cable, Front Panel Open-End 1x PN 821043 Cable, Audio Open-End 6x PN 821035 Cable, SATA, 500mm 1x PN 1052-5814 Cable, ATX Power for KTA70M 1x PN 1027-3669 Cable Power Out 1x PN 821401 Cable+Bracket, USB, 10poled 1x PN 1052-5818 SW,Man&Driver CD,KTA70M/KTA75

A05c-44-B-G-A-1-G

Kontron 1052-5885 (kit)

Molex

22-01-2065

KTD-N0861-B Page 81 Appendix

Appendix: OS Setup

Use the Setup.exe files for all relevant drivers. The drivers can be found on KTA7x Driver CD or they can be downloaded from the homepage http://www.kontron.com/

For some OS like Win7 when installing OS via USB DVD, USB Keyboard/Mouse, please connect the USB DVD, USB Keyboard/Mouse to USB2.0 ports only or disable USB3.0 in BIOS.

Corporate Offices

Europe, Middle East & Africa

Oskar-von-Miller-Str. 1 85386 Eching/Munich Germany Tel.: +49 (0) 8165/ 77 777 Fax: +49 (0) 8165/ 77 219

info@kontron.com

North America

14118 Stowe Drive Poway, CA 92064-7147 USA Tel.: +1 888 294 4558 Fax: +1 858 677 0898

info@us.kontron.com

KTA70M/mITX Users Guide

Asia Pacific

17 Building,Block #1,ABP 188 Southern West 4th Ring Road Beijing 100070, P.R.China Tel.: + 86 10 63751188 Fax: + 86 10 83682438

info@kontron.cn

Kontron KTA70M-mITX User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

1 Introduction

2 Installation Procedure

2.1 Installing the Board

2.2 Requirements IEC60950

3 System Specifications

3.1 Component main data

3.2 KTA70M/mITX Block Diagram

3.3 Power Consumption

3.4 USB ports overview

4 Connectors Locations

4.1 KTA70m/mITX Topview

4.2 KTA70m/mITX Bottomview

5 Connector Signal Definitions

6 Rear IO Connectors

6.1 DisplayPort (DP0/DP1/DP2)(J4/J43/J3)

6.2 USB3.0 Connectors (USB10/USB11/USB12/USB13)(J15/J15/J14/J14)

6.3 Ethernet Connectors (ETH1/ETH2) (J8)

6.4 USB x4 Stack Connector (USB6/USB7/USB8/USB9) (J20)

6.5 Audio Interface (J40)

6.6 DC Power External Connector (J28)

7 Pin Connectors

7.1 DC Power Internal Connector (J19)

7.1 12V-SB-In Connector (J31)

7.2 Audio Header Connector (J41)

7.3 Power Out Connector (J18)

7.4 USB4/5 Connector (J16)

7.5 Jumper area (J34, J35, J36, J37)

7.6 SPI Connector (J21)

7.7 COM1/COM2 (J23/J22)

7.8 LPC Connector (J29)

7.9 Front Panel Connector (J5)

7.10 CPU/System Fan Connectors (J25, J24)

7.11 Feature Connector (J26)

7.12 KBD/MSE (J27)

8 Slot Connectors (PCI-Express, miniPCIe, SATA, mSATA)

8.1 PCIex8 (in x16 slot) (J7)

8.2 PCIex4 (J6)

8.3 mPCIe connector (J38)

8.4 SATA0, SATA1, SATA2, SATA3, SATA4 (J12, J13, J9, J11, J10)

8.5 mSATA Connector (J39)

9 BIOS

9.1 Main

9.2 Advanced

9.2.1 Advanced - PCI Subsystem Settings

PCI Express Settings

9.2.2 Advanced - APCI Settings

9.2.3 Advanced - Trusted Computing

9.2.4 Advanced - CPU Configuration

Node 0 Information

9.2.5 Advanced - IDE Configuration

9.2.6 Advanced - USB Configuration

9.2.7 Advanced - Super IO Configuration

Serial Port 1 Configuration

Serial Port 2 Configuration

9.2.8 Advanced - Hardware Health Configuration

9.2.9 Advanced - LAN Configuration

9.2.10 Advanced – PCI-E Port

9.2.11 Network Stack

9.3 Chipset

9.3.1 South Bridge

SB SATA Configuration

SB USB Configuration

SB HD Azalia Configuration

9.3.2 North Bridge

Graphics Configuration

Memory Configuration

Socket 0 Information

9.4 Boot

9.4.1 CSM parameters

9.5 Security

9.6 Save & Exit

10 AMI BIOS Beep Codes

Appendix: Mating Connectors

Appendix: OS Setup
