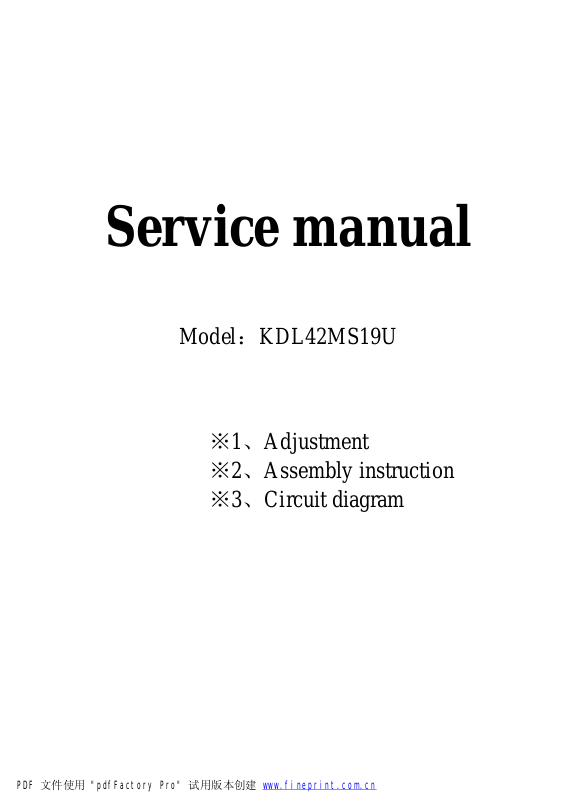

Service manual
Model：KDL42MS19U
※1、Adjustment
※2、Assembly instruction
※3、Circuit diagram
PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn
Connect Power to check whether
ight or
Please refer to appendix 4.1/4.2/4.3
5 if there is
5 if there is
HDCP
if there is
1.Preface
1.1 Applicable area
This test manual is applicable for KL32GT611 LCD TV.
1.2调试注意事项及要求
1.2.1 请按下列调试步骤和指定的测试仪器进行调试，否则将不能调好电视机，为了保证满意
的测试结果，在调试中必须保证所指定的偏压值。
1.2.2调试之前请务必戴好静电手套。
1.2 Test notes
1.2.1 Please follow the pointed test steps and choose the proper test equipment to
conduct adjustment, otherwise good effect of TV set could not be obtained. Pointed
bias voltage value should be ensured during test to get satisfied test result.
1.2.2 Be sure that you have the static electricity –protective glove in before test.
3 Test equipment
1) Computer 1 set
2) Multi-meter (VICTOR VC9801) 1 set
3)Video Signal Generator(ChromaModel2227/2327/VG859) 1 set
4) Color Analyzer (Chroma Model 7120 ) 1 set
5) TV Video Signal Generator (FLUKE PM54200) 1 set
6) Remote controller with factory keys 1 set
7）TV,VGA, HDMI ,Component ,AV Signal line etc 1 set
8）ALL－11C2 1 set
9）BeeProg 1 set
4.Test item and method
ITEM
Program
Menu.
M/B
Voltage
confirmation
1
Update NVRAM
2
Update HDMI
EDID
3
4
Update
KEY
Equipments Requirements Procedure and SPEC
Digital Multimeter
PC
BeeProg
Debug Tool
PC,ALL-11 Debug
Tool
JSK3178-006
Min Board
Please refer to appendix 5
1.
Power LED displays the green l
not.
2.
if there is abnormal phenomenon.
Please refer to appendix
abnormal phenomenon.
Please refer to appendix
abnormal phenomenon.
abnormal phenomenon.
PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn
5
Enter factory
MENU
button on the remote control, then
in
to
Generator
.
balance calibrate
gray step
black
calibration
,
Video
gray step
Video
gray step
menu
Enter factory menu : Press
Press digital button “2，0，0，8”
order
Restore the
factory setting
default value
6
Auto color HDTV Video
7
Color Temp.
adjust and
white-balance
8
calibrate
AV :Color Temp
and white-
adjust
a
1. Enter factory menu, Select Reset
Signal Generator
HDTV Video
Signal Generator
VG859
Color Signal
TV Signal
Generator
ColorSignal
Generator
VG859
Inpujt
signal
TV ，Wait about 5-8 seconds,
reset will ok, then the TV will
restart.
1.Enter factory menu, Select“ADC
Adjust”, then Select “Component”
under the “INPUT SOURCE” state,
then select “AUTO ADC”, press
RIGHT arrow key to adjust .TV
displays “OK” means adjustment is
successful, if it displays “FAIL” means
it need adjust again.
If you do the auto color after
calibrating the white balance ,You
need check the white balance again.
1. Enter factory menu, Select “W/B
Adjust”,select “TEMPERATURE”
to “Natural” .
2. Adjustment R/G/B Gain to get
white calibration;
Adjustment R/G/B Offset to get
YPbPr
（Component） :
Color Temp and
white-balance
b
calibrate adjust
VGA Color Temp
and
white-balance
calibrate adjust
c
HDTV
Signal Generator
VG859
Color Signal
Generator
HDTV
Signal Generator
VG859;
Color Signal
Generator
Input
signal
Input
signal
1. Enter factory menu, Select
“COLOR TEMP”,select
“COLOR TEMP NORMAL” .
2. Adjustment R/G/B Gain to get
white calibration;
Adjustment R/G/B Offset to get
black calibration,
1. Enter factory menu, Select
“COLOR TEMP”,select
“COLOR TEMP NORMAL”.
2. Adjustment R/G/B Gain to get
white calibration;
Adjustment R/G/B Offset to get
black calibration,
PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn
9. TV mode check
1.Enter User menu, Check whether
blue screen
15
Manual
to
Audio
ATSC HDTV
Audio
Please
refer to appendix
Screen is clear and
Screen is clear and
if the output is
or HDMI of
Select
output
if the
,Please check the
Earphone Output
Key Set the sound
if the output
TV Signal
Generator
VCD or play DVD
About Burn Mode
So it will be no signal ,Then Go to
s Function Page and set
off, then Go to Main
Factory TV Signal
or TV Signal
Generator
the pictures normal or not,
l or snowflake points coming forth，it
would enter standby state in
minutes if no signal
2. Check Auto Tuning /
tuning、etc right or not.
10
VIDEO check
11 Y,Pb,Pr
（Component）
SDTV:
576P/480P
HDTV:
12
VGA INPUT
13
HDMI check
DVD
Video cable
HDTV Receiver
Tuner
Component cable
PC
VGA Cable
TV BOX
D-SUB cable
SAMSUNG
DVD-HD948
Gdbbk DVD（or
HDMI of DVD）
HDMI cable
Play DVD
Set DVD
interlaced output
Play DVD
SDTV/HDTV
(Y,Pr,Pb)
PC Mode
6.1
HDMI Mode
Please refer to
appendix 6.2
1.Screen is clear and fluent,
checks if the output is normal。
1.Screen is clear and fluent,
checks if the output is normal。
1.Apiece Mode
fluent。
2. Play TV BOX
fluent, Audio checks
1.Select “SOURCE”Eand Select
“HDMI”
2.Apiece Mode: Screen is clear and
fluent, Audio checks if the output is
normal。
HDCP check
14
15
16.
17
function
check
remote control
function check
1.Select “SOURCE”E and
DVD（
DVD）
HDMI cable
VGA859
Earphone、DVD
PC、DVD Pattern
Generator
In TV Source, Don’t plug the antenna.
TV or play DVD IN
IN
“HDMI”
2.check Signal Generator
HDMI/HDCP Signal, checks
output is”PASS”
3.if not “PASS”
HDCP key.
1. plug into Earphone ， speaker
aphonia，Earphone Audio is normal，
Press VOL+volume..，Audio checks
is normal
1. Check if the apiece mode function
normal。
Main Menu ‘
the Blue screen
PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn
4.1 Accessories
4.1.1 The input and output characteristic test of power
Number
Item Test Point Standard
1 The port of AC input XS901 No short circuit
2 The resistance of 12V output VDW961 No short circuit
3 The resistance of 5Vstb output L802 No short circuit
4 The resistance of 3.3STB output N810 No short circuit
5 The resistance of 5VA output V812 No short circuit
6 The resistance of 1.25V output L801 No short circuit
7 The resistance of 2.5V output N812 No short circuit
8 The resistance of 3.3VA output N811 No short circuit
9 The resistance of 3.3Vtuner output N810 No short circuit
10 The resistance of Panel Vcc output V808 No short circuit
11 The resistance of LED VCC output VDW951 No short circuit
4.1.2 HI-POT confirmation
Short-circuit power input L / N-terminal, plus 3000V AC between the L / N-side and power
secondary side to hold for six seconds. The leakage current between the primary and
secondary side must be ≤ 10 mA..
4.2 Signal Board part
4.2.1 Signal board power part
Signal Board power distribution
PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn
Turn on the
S
upply
Turn on back
4.2.2 Verify the state of TV set
Power On ,Then verify the LED ，light state is POWER ON state.
4.2.3 Checking Supply Power.
Numb
er
Item Test Point Standard
Standby Power on
1 12V VDW961 6.5V 12V
2 5Vstb L802 5V 5V
3 3.3stb N810 3.3V 3.3V
4 5VA V812 0V 5V
5 1.25V L801 0V 1.25V
6 2.5V N812 0 2.5V
7 3.3VA N811 0 3.3V
8 3.3Vtuner N180 0 3.3V
9 Panel Vcc V808 0 12V
4.2.4 Digital signal part
start order：
power
N501 RESET and
IO port initialize
power for LCD
light lamp
Successful start
and picture display
PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn
4.2.5 After turning on the power, if blank screen appears (no back light lamp), just press
POWER button several times,
4.2.6 if blank screen is still there，you must check that the voltage of every power supply is
right or not.
4.2.7 Check if the crystal oscillator Z501 (27MHz) oscillate or not, and oscillate frequency
is right or not.
4.2.8 Back light control signal (BKLT_EN) of R704 has high level (above 3V)
or not, if not, check whether fault soldered or short circuit happened。
4.5 White calibration adjustment
4.5.1Receive gray step signal, adjusting picture mode to standard.
4.5.2Adjust white balance. Enter factory menu, select W/B Adjust Menu,
Adjust Gain Red 0-255
Gain Green 0-255
Gain Blue 0-255
Offset Red 0-255
Offset Green 0-255
Offset Blue 0-255
4.5.3 Adjusting color temp of every step to 9300（u`=0.189,v`=0.447;误差+/- 0.020）。
5.1 Use PG4UW To Program The Firmware
1) Firstly,Download the PG4UW which version is V2.33d.
PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn
2) Run the program PG4UW , click “Found Programmer” and set it as below photo.
3) click”Device àSelect Device ”,and select “S25FL032P[SO8]”,,then click ok.
PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn
4)Click
“
File
à
Open
”
,and Select the MERGE.bin(The bellow photo is a little different ,please
open the MERGE.bin)
5) Then select “Burn ”page, and click “Yes”
PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn
If it’s program correct,it will show a photo as bellow.
5.2 Burn The HDMI EDID.
For there is no Program Device on hand,please refer to 5.3 section. The operation steps
is same with burn HDCP KEY,only the file to be programmed is different.
5.3 Burn The HDCP KEY
MT8227 platform HDCP KEY is burning in the storage of main program Flash ( a, N504 ),
PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn
must use the online upgrade way to burn, the concrete steps:
1 HDCP KEY cutting: will contain a number of KEY file cut into containing a single KEY
file to write.
(1)the first contains a number of KEY file ( file name is 421605-423143 ) copy to the burn tool
directory, run directory in HDCP_Key_20080114.exe file, select a KEY file ( 421605423143 ), the following chart:
( 2 ) By Key KEY Offset to set the cutting start position (i.e., from the first few KEY began
cutting ), Output # is to cut out a single KEY number ( recommended when cutting the
number of < 1000 ). If you select" Output Single File" will output a single KEY file ( this option
applies to a large KEY files ( such as 10000) cut into a smaller number of ( such as 1000)
KEY file ). If you want to cut into the containing a single KEY file, then uncheck the option.
PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn
( 3) After the completion of installation, click the Gen HDCP button, in the recording file
directory to generate an output_keys_0 directory, directory with a plurality of containing a
single KEY file.
PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn
2 HDCP
KEY burning
( 1) To edit the configuration file, right click the burn tool folder in the hdcptool.bat, select
"Edit", using a text editor to open the file, set ser following numerical into serial debugging
tools port number ( in the operating system of the" device manager" -" port" view, different
computer port number may not be the same as the other ), keeping the default can be
modified, save and exit ( the same computer, with a recording tool usually needs only
once ).
( 2) In the WindowsXP" start" menu, select "run"," CMD" type and" confirmation", enter
the DOS command line mode. Type "CD \ HDCPKeytool " and hit enter (assuming the
burn tool directory in the root directory of C ), into the" HDCPKeytool" directory.
PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn
( 3) using a serial recording tool connected to the television motherboard XS510 socket,
the television starting, type hdcptool and press enter to start burning, burning time,
burning about 1 ~ 2S, after the success will prompt" write success", and indicate the
burning to KEY file name. If the" write fail" failure prompt, according to the direction of the
keyboard keys "on the" out of hdcptool command and press again to burn again.
PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn
( 4) writing is completed, unplug the burn line, change a machine inserted serial line, run
the hdcptool command to burn ( do not need to type hdcptool, requires only the cursor
prompt state by direction key" on" to make a type hdcptool command ). Write successful
KEY will be automatically deleted, to ensure that the same KEY won't be repeated
burning.
Appendix A: the burn tool use ( through the XS510 on-line burn recording flash -- ( corresponding to board
a number is N506 ) program and upgrade )
1) recording equipment problems, cannot burn
2) recording apparatus cooked flash film after welding the motherboard can not work
normally, to burn the main program verification
MTKtool burning program method:
PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn
( 1) the above chart, at position 1 anthology 8223, position 2 for the com, can be in the
task manager to view Uart uses is which. 3 baud, 115200. 4 if the red that not even on
Uart, may be the COM port by other local accounted for, such as terminal, not with other
local conflicts. If the icon for the red point this icon green, has said that connect to Uart,
you can upgrade. Open the program, the default is to upgrade program, so the 5 need
not choose. But if we are not careful to point to the other place, 5 points to upgrade
interface.
( 2) and then click on the " load bin file", browse in the local computer chose to upgrade the
bin file, upgrade can upgrade.
Interface elsewhere do not set, the default.
Upgrade blue transfer progress will run two times, first time to erase flash data, second is
written. The progress of the following text, there are corresponding to the log display
upgrade status, when the burning state by 100%, update complete. The power to restart the
television can.
Appendix B: USB upgrade method ( through the USB interface upgrade TV program )
The method is applicable to a television capable of normal case of boot upgrade program:
Upgrade steps:
( 1) the BIN program files are copied to the U root directory, and changed its name to
MTKDTV.BIN
( 2 ) in the television starting condition, the U disk inserted into any USB port, and press"
source" key tangential to the USB input.
( 3 ) select the U disk drive icon, press any key to enter the U disk, this will be detected
including procedure documents, and eject the upgrade tips (see diagram below ), press
PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn
