Page 1

7915/

7920

Page 2

Energy Star

As an ENERGY STAR® Partner, we have determined that this machine meets the ENERGY STAR

*The ENE RGY STAR® Guidelines are not met if printer controller Fiery Z4 is installed.

Guidelines for energy efficiency.

What is an ENERGY STAR® Product?

An ENERGY STAR automatically switch to a “low-power mode” after a period of inactivity. An ENERGY STAR

product has a special feature that allows it to

product uses energy more efficiently, saves you money

on utility bills and helps protect the environment.

Trademarks and Registered Trademarks

Fiery and the Fiery logo are registered trademarks of Electronics for Imaging, Inc.

Fiery X3e and Fiery Z4 are trademarks of Electronics for Imaging, Inc.

All other product names mentioned are trademarks or registered trademarks of their respective companies.

Page 3

CONTENTS

1 Introduction

1.1 We Want You to Be a Satisfied Customer ..................................1-1

1.2 SAFETY INFORMATION................................................................1-1

Warning and Precaution Symbols...................................................1-1

Meaning of Symbols........................................................................1-2

WARNING....................................................................................... 1-2

CAUTION ........................................................................................1-4

Precautions for Routine Use ...........................................................1-5

CE Marking (Declaration of Conformity)

for Users of the European Union (EU) ............................................1-6

For users in countries subject to Class B regulations .....................1-6

For users in countries not subject to Class B regulations ...............1-6

LED Radiation Safety ......................................................................1-7

Ozone Release ...............................................................................1-7

CAUTION LABEL............................................................................1-8

1.3 Guide to Manuals ..........................................................................1-9

Enclosed Manuals...........................................................................1-9

Explanation of Manual Conventions................................................1-9

1.4 Explanation of Basic Concepts and Symbols .......................... 1-11

Paper Feeding...............................................................................1-11

“Width” and “Length” .....................................................................1-12

Paper Orientation..........................................................................1-12

Display Icons .................................................................................1-12

1.5 Features ....................................................................................... 1-13

2Precautions

2.1 Installation Precautions................................................................2-1

Installation site ................................................................................ 2-1

Power source .................................................................................. 2-1

Space requirements........................................................................2-2

2.2 Operation Precautions..................................................................2-3

Operating environment....................................................................2-3

Acoustic noise ................................................................................2-3

Proper use.......................................................................................2-3

Transporting the copier ...................................................................2-4

Care of copier supplies ...................................................................2-4

Storage of copies ............................................................................2-5

2.3 Legal Restrictions on Copying ....................................................2-6

Page 4

3 Before Making Copies

3.1 Available Features ........................................................................ 3-1

3.2 Components and Their Functions .............................................. 3-6

3.3 Parts Names and Their Functions ............................................ 3-10

Outside of Copier .......................................................................... 3-10

Inside of Copier ............................................................................ 3-12

Supplies and Parts ....................................................................... 3-13

Duplexing Document Feeder (Optional)....................................... 3-14

Duplex Unit (Optional) .................................................................. 3-15

10-Mailbin Sorter (Optional) ......................................................... 3-16

Finisher (Optional) ........................................................................ 3-17

Paper Feed Unit (Optional)........................................................... 3-18

Large Capacity Tray (Optional) .................................................... 3-19

Printer Controller Fiery Z4 ............................................................ 3-19

Printer Controller Fiery X3e .......................................................... 3-19

3.4 Names of Control Panel Parts and Their Functions................ 3-20

Names of Control Panel Parts and Their Functions ..................... 3-20

3.5 Using the Touch Panel............................................................... 3-22

Description of Touch Panel .......................................................... 3-22

Organization of Screens ............................................................... 3-22

Operating the Touch Panel........................................................... 3-24

3.6 Useful Operations....................................................................... 3-25

Cancelling Settings....................................................................... 3-25

Auto Panel Reset.......................................................................... 3-25

Energy Saver Mode ...................................................................... 3-26

Delayed Copy Jobs ...................................................................... 3-26

Sleep Mode .................................................................................. 3-26

Interrupting Copy Jobs ................................................................. 3-27

To interrupt a copy job.................................................................. 3-27

Auto Paper Source Change Feature ............................................ 3-27

Access Codes............................................................................... 3-28

To enter an access code .............................................................. 3-28

Printing From the Computer ......................................................... 3-28

Scanning From the Computer ...................................................... 3-28

3.7 Power Switch and Default Settings .......................................... 3-29

Turning the copier on and off........................................................ 3-29

To turn the copier on .................................................................... 3-29

To turn the copier off .................................................................... 3-29

Turning On the Copier .................................................................. 3-30

Default Settings ............................................................................ 3-30

CONTENTS

Page 5

CONTENTS

4 Copy Paper

4.1 Paper Specifications .....................................................................4-1

Paper Types....................................................................................4-1

Paper Sizes.....................................................................................4-2

Paper Types To Be Avoided ...........................................................4-4

4.2 Print Area ....................................................................................... 4-5

4.3 Paper Storage ................................................................................ 4-5

4.4 Loading Paper ...............................................................................4-6

To load paper into the 1st drawer (250-sheet multipurpose tray) ...4-6

To set the paper size for the 1st drawer........................................4-10

To load paper into the 2nd drawer or the 500-sheet

paper feed unit..............................................................................4-12

To load paper into the large capacity tray.....................................4-14

To load paper into the manual bypass tray...................................4-16

5 Original Documents

5.1 Feeding the Document .................................................................5-1

Document Paper Types ..................................................................5-2

Precautions for Multi-Sheet Feeding and Single-Sheet Feeding....5-2

Precautions for Manual Feeding .....................................................5-3

5.2 Feeding the Document Through the Duplexing

Document Feeder..........................................................................5-4

Multi-Sheet Feeding (Sheet Documents)........................................5-4

To make copies using multi-sheet feeding (sheet documents).......5-4

Multi-Sheet Feeding (Documents of Mixed Sizes)..........................5-5

To make copies using multi-sheet feeding (documents

of mixed sizes) ................................................................................ 5-6

Single-Sheet Feeding (Standard Paper/Thick Paper).....................5-7

To make copies using single-sheet feeding ...................................5-7

Single-Sheet Feeding (Thin Paper).................................................5-9

To make copies using single-sheet feeding ....................................5-9

5.3 Positioning the Document on the Original Glass ....................5-10

Manual Feeding (Sheet Documents) ............................................5-11

To make copies using manual feeding (sheet documents)...........5-11

Manual Feeding (Transparent or Translucent Documents) ..........5-12

To make copies using manual feeding (transparent or translucent

documents) ................................................................................... 5-12

Manual Feeding (Books)...............................................................5-13

To make copies using manual feeding (books).............................5-13

Manual Feeding (“A3Wide” Paper) ...............................................5-14

To make copies using manual feeding (“A3Wide” paper).............5-14

iii

Page 6

6 Basic Operations

6.1 Making Copies .............................................................................. 6-1

To copy a document (To make a basic copy)................................. 6-1

6.2 Selecting the Paper Source ......................................................... 6-4

To select the paper source before copying ....................................6-4

6.3 Making Copies on Paper Loaded into the 1st Drawer

(Multipurpose Paper Drawer) ...................................................... 6-5

To copy a document ....................................................................... 6-6

6.4 Feeding Paper Manually .............................................................. 6-7

To feed the paper manually............................................................ 6-7

To make copies onto overhead projector transparencies...............6-9

To make copies onto postcards.................................................... 6-11

To make copies onto thick paper.................................................. 6-12

6.5 Specifying a Zoom Setting ........................................................ 6-14

To specify the zoom ratio before copying ..................................... 6-15

To record a zoom ratio ................................................................. 6-16

To recall a recorded zoom ratio.................................................... 6-17

6.6 Selecting the Original Image Type ............................................ 6-18

To select the document type before copying ................................ 6-19

6.7 Specifying the Copy Density ..................................................... 6-20

To specify the copy density before copying.................................. 6-20

6.8 Interrupting a Copy Job ............................................................. 6-22

To interrupt a copy job.................................................................. 6-22

CONTENTS

7 Advanced Operations

7.1 Making Single-Sided/Double-Sided Copies ............................... 7-1

Single-Sided Ö Single-Sided: .......................................................... 7-1

Single-Sided Ö Double-Sided:......................................................... 7-1

Single-Sided Ö Single–2in1:............................................................ 7-1

Single-Sided Ö Double–2in1: .......................................................... 7-2

Double-Sided Ö Single-Sided:......................................................... 7-2

Double-Sided Ö Double-Sided: .......................................................7-2

Book (Separation) Ö Single-Sided: ................................................. 7-2

Book (Spread) Ö Single-Sided: ....................................................... 7-3

Book (either Standard Book or RightBound) Ö Book Erase:........... 7-3

To make settings for single- or double-sided documents

and copies ...................................................................................... 7-4

To make settings for copying a book .............................................. 7-5

Page 7

CONTENTS

7.2 Finishing (“Sort” and “Group” settings) ....................................7-8

Non-Sort:.........................................................................................7-8

Sort:................................................................................................. 7-8

Group: .............................................................................................7-9

Sorting/Grouping ...........................................................................7-10

To select the finishing settings ...................................................... 7-11

7.3 Staple Binding .............................................................................7-12

Types of stapling ........................................................................... 7-12

Staple position...............................................................................7-13

7.4 Hole Punching (“Hole-Punch” Setting) ..................................... 7-15

Types of hole punching.................................................................7-15

Punched hole position:..................................................................7-15

7.5 Feeding Documents of Different Sizes (“Mixed

Orig Detection” Function)..........................................................7-17

To set the “Mixed Orig Detection” function....................................7-17

7.6 Erasing Edges (“Frame Erase” Function) ................................7-19

To set the “Frame Erase” function ................................................ 7-19

7.7 Creating Mirror Image Copy (“Mirror Image” Function)..........7-21

To set the “Mirror Image” function .................................................7-21

7.8 Improving Copy Quality (“Color Adjustment” Function)........7-23

To make color adjustments ........................................................... 7-23

To make test prints........................................................................7-24

To adjust the hue .......................................................................... 7-25

To adjust the saturation.................................................................7-25

To adjust the brightness................................................................7-26

To adjust the sharpness................................................................7-27

To adjust the contrast.................................................................... 7-27

To adjust the color balance ...........................................................7-28

To adjust the density.....................................................................7-29

7.9 Inserting Pages Between Copies of Overhead

Transparencies (“OHP Interleaving” Function) .......................7-30

To set the “OHP Interleaving” function.......................................... 7-30

7.10 Specifying Different Vertical and Horizontal Scaling

Proportions (“X/Y Zoom” Function)..........................................7-32

To specify the vertical and horizontal scaling proportions.............7-32

7.11 Reducing the Document to Postcard Size and Printing Multiple

Copies on One Page (“Postcard” Function).............................7-33

To set the “Postcard” function .......................................................7-33

7.12 Tiling Copies (“Image Repeat” Function) ................................. 7-35

To set the “Image Repeat” function............................................... 7-35

Page 8

8 Utility Mode Operations

8.1 Resetting the Copier (“Default Settings” Function).................. 8-1

To specify the default settings ........................................................ 8-1

8.2 Viewing Counters (“Meter Count” Function) ............................. 8-2

To view the meter counts ............................................................... 8-3

8.3 Storing and Recalling Jobs (“Job Memory Input” Function) ... 8-4

To store a job.................................................................................. 8-4

To delete a job................................................................................ 8-5

To recall a stored job ...................................................................... 8-6

8.4 Specifying Default Settings (“User’s Choice” Function).......... 8-8

To change the User’s Choice settings ............................................ 8-8

To set the “Language selected” parameter .................................... 8-9

To set the “2in1copy zoom” parameter......................................... 8-10

To set the “Intelligent Sorting” parameter ..................................... 8-11

To set the “ACS Determination level Adjust.” parameter.............. 8-12

To set the “Confirmation Beep” parameter ................................... 8-13

To set the “Mail Bin Assignment” parameter ................................ 8-14

To set the “Auto Panel Reset” parameter ..................................... 8-15

To set the “Energy Save Mode” parameter .................................. 8-16

To set the “Sleep Mode” parameter.............................................. 8-17

To set the “1st Drawer Paper Select” parameter .......................... 8-18

CONTENTS

9 Administrator Mode Operations

9.1 Supervising Copier Use (“Copy Track” Function) ....................9-1

To change the Administrator Mode settings................................... 9-1

To register access codes................................................................ 9-3

To change the account numbers registered................................... 9-4

To reset Copy Track mode ............................................................. 9-6

To check the number of copies made by each account .................9-7

To reset the counters for each account.......................................... 9-8

To limit the type of copies for an account ....................................... 9-9

To limit the number of copies for an account................................ 9-11

9.2 Adjusting the Gradation Levels (“Gradation Adjust”

Function) ..................................................................................... 9-13

To adjust the gradation levels....................................................... 9-13

9.3 Turning off the Sleep function (“Disable Sleep Mode”

Function) ..................................................................................... 9-15

To turn off the Sleep function ....................................................... 9-15

9.4 Erasing Copy Edges (“Erase” Function).................................. 9-18

To set the “Erase” function ........................................................... 9-18

Page 9

CONTENTS

9.5 Specifying the Expert Settings (“Expert User’s Mode”

Function)......................................................................................9-20

To change the Expert User’s Mode settings .................................9-20

To set the “Thick Paper and OHP Film Image Density”

parameter......................................................................................9-22

To set the “Color Shift Correction” parameters .............................9-23

To set the “Stabilizer” parameter...................................................9-26

To set the “PRT Area (Top Margin)” parameter ............................9-27

To set the “PRT Area (Left Margin)” parameter ............................9-29

To set the “PRT Area (Dup. Left Margin)” parameter....................9-31

To set the “Thin Orig.” parameter.................................................. 9-33

9.6 Registering Scan Save Locations (“Scanner Addr. Input”

Function)......................................................................................9-34

10 Touch Panel Messages

10.1 When the Message “Replenish paper.” Appears .....................10-1

To load paper into the 1st drawer (250-sheet multipurpose

paper drawer)................................................................................10-2

To load paper into the 500-sheet paper feed unit.........................10-3

To load paper into the large-capacity cabinet ...............................10-5

10.2 When the Message “Please add Toner.” Appears ...................10-6

To add toner..................................................................................10-8

10.3 When the Message “Replace Staple Cartridge X.” Appears.10-11

To replace the staple cartridge....................................................10-11

10.4 When the Message “Misfeed detected.” Appears..................10-16

Paper Misfeed in the Manual Bypass Tray .................................10-19

To clear a paper misfeed in the manual bypass tray ..................10-19

Paper Misfeed in the Duplex Unit................................................10-21

To clear a paper misfeed in the duplex unit ................................10-21

Paper Misfeed in the Paper Feed Unit........................................10-22

To clear a paper misfeed in the paper feed unit..........................10-22

Paper Misfeed in the Copier........................................................10-24

To clear a paper misfeed in the copier........................................10-24

Paper Misfeed in the Duplexing Document Feeder ....................10-28

To clear a paper misfeed in the duplexing document feeder ......10-28

Paper Misfeed in Finisher FS-134/FS-133..................................10-30

To clear a paper misfeed in finisher FS-134/FS-133 ..................10-30

Paper Misfeed in the 10-Mailbin Sorter.......................................10-34

To clear a paper misfeed in the 10-mailbin sorter.......................10-34

10.5 When the Message “Cannot staple.” Appears ....................... 10-37

To clear jammed staples ............................................................. 10-37

10.6 When the Inspection Mark “” Appears ...............................10-41

vii

Page 10

10.7 When the Message “Malfunction detected.” Appears .......... 10-42

10.8 When the Message “Need to Replace XXXXX.” Appears ..... 10-43

10.9 Other Messages........................................................................ 10-44

11 Troubleshooting

11.1 When Incorrect Copies are Produced ...................................... 11-1

11.2 When the Copier Is Not Operating Correctly ........................... 11-3

12 Appendix

12.1 Specifications ............................................................................. 12-1

Copier Konica 7915/Konica 7920 ................................................. 12-1

Duplexing Document Feeder DF-331........................................... 12-3

500-sheet Paper Feed Unit PF-231.............................................. 12-3

Large Capacity Tray DB-431........................................................ 12-4

Duplex Unit AD-231 ...................................................................... 12-4

10-Mailbin Sorter ST-134 ............................................................. 12-5

Finisher FS-134 ............................................................................ 12-6

Finisher FS-133 ............................................................................ 12-7

12.2 Care of the Copier ...................................................................... 12-8

Cleaning ....................................................................................... 12-8

Housing cover............................................................................... 12-8

Original glass ................................................................................ 12-8

Operation panel............................................................................ 12-8

Document transfer belt ................................................................. 12-9

12.3 Function Combination Table................................................... 12-10

Function combination table......................................................... 12-10

Function combination code keys ................................................ 12-12

12.4 Paper Size and Zoom Ratio Tables......................................... 12-13

Paper sizes................................................................................. 12-13

Zoom ratios................................................................................. 12-14

CONTENTS

viii

INDEX

Page 11

Introduction

1 Introduction

1.1 We Want You to Be a Satisfied Customer

Thank you for choosing a Konica 7915/7920.

To ensure the best performance and effective use of your copier, this manual will provide information on the following topics:

Getting to Know Your Copier.

Initial Steps . . .

Settings for Making Copies.

Setting the Utility Mode.

Troubleshooting.

Please read this manual carefully before using your copier and keep it handy at all times. Store the manual in the holder on the rear side of the copier.

1.2 SAFETY INFORMATION

This section contains detailed instructions on the operation and maintenance of this machine. To achieve optimum utility of this device, all operators should carefully read and follow the instructions in this manual. Please keep this manual in a handy place near the machine.

Please read the next section before using this device. It contains important information related to user safety and preventing equipment problems.

Make sure you observe all of the precautions listed in this manual.

* Please note that some parts of the contents of this section may not correspond with the pu r-

chased product.

Warning and Precaution Symbols

WARNING:

Ignoring this warning could cause serious injury or even death.

CAUTION:

Konica 7915/7920 1-1

Ignoring this caution could cause injury or damage to property.

Page 12

Meaning of Symbols

A triangle indicates a danger against which you should take precaution.

This symbol warns against possible electrical shock.

A diagonal line indicates a prohibited course of action.

This symbol warns against dismantling the device.

A black circle indicates an imperative course of action.

This symbol indicates you must unplug the device.

WARNING

• Do not modify this product, as a fire, electrical shock, or breakdown could result.

• Do not attempt to remove the covers and panels which have been fixed to the product. Some products have a high-voltage part source inside that could cause an electrical shock.

• Only use the power cord supplied in the package. Failure to use this cord could result in a fire or electrical shock.

• Use only the specified power source voltage. Failure to do tha t could result in a fire or electrical shock.

• Do not use a multiple outlet adap ter to connect any other appliances or machines. Use of a power outlet for more than the marked current value could result in a fire or electrical shock.

Do not unplug and p lug in the power cord with a wet hand, as an electrical shock could result.

Introduction

Plug the power cord all the way into the power outlet. Failure to do this could result in a fire or electrical shock.

• Do not scratch, abrade, place a heavy object on, h eat, twist, bend, pull on, or damage the power cord. Use of a damaged power cord (exposed core wire, broken wire, etc.) could result in a fire or breakdown. Should any of these conditions be found, immediately turn OFF the power switch, unplug the p ower cord from the power outlet, and then call your authorized service representative.

• In principle, do not use an extension cord. Use of an extension cord could cause a fire or electrical shock. Contact your authorized service representative if an extension cord is required.

Do not place a flower vase or other container that contains water, or metal clips or other small metallic objects on this product. Spilled water or metallic objects dropped inside the product could result in a fire, electrical shock, or break-down. Should a piece of m etal, water, or any other similar foreign mat ter get inside the product, immed iately turn OFF the power switch, unplug the p ower cord from the power outlet, and then call your authorized service representative.

1-2 Konica 7915/7920

Page 13

Introduction

• If this produ ct becomes inordinately hot or emits smoke, or unusual odor or noise, immediately turn OFF the power switch, unplug the power cord from the power outlet, and then call your authorized service representative. If you keep on using it as is, a fire or electrical shock could result.

• If this product has been dropped or its cover damaged, immediately turn OFF the power switch, unplug the power cord from the power outlet, and then call your authorized service representative. If you keep on using it as is, a fire or electrical shock could result.

Do not throw the tone r cartridge or toner into an open flame. The ho t toner may scatter and cause burns or other damage.

Connect the power cord to an electrical outlet that is equipped with a grounding terminal.

Konica 7915/7920 1-3

Page 14

CAUTION

Introduction

• Do not use flammable sprays, liquids, or gases near this product, as a fire could result.

• Do not leave a toner bottle or drum unit in a place within easy reach of children. Licking or ingesting any of these things could injure your health.

• Do not let any object plug the ventilation holes of this product. Heat could accumulate inside the p roduct, resulting in a fire or malfunction.

• Do not install this product at a site that is exposed to direct sunlight, or near an air conditioner or heating apparatus. The resultant temperature changes inside the product could cause a malfunction, fire, or electrical shock.

• Do not place th e product in a dusty place, or a site exposed t o soot or steam, near a kitchen table, bath, or a humidifier. A fire, electrical shock, or breakdown could result.

• Do not place this product on an unstable or tilted bench, or in a location subject to a lot of vibration and shock. It could drop or fall, causing personal injury or mechanical breakdown.

• After installing this product, mount it on a secure base. If the unit moves or falls, it may cause pe rsonal injury.

• Do not store to ner bottles and imaging units near a flopp y disk or watch that are susceptible to mag netism. They could cause these products to m alfunction.

The inside of this product has areas subject to high temperature, which may cause burns. When checking the inside of the u nit for malfunctions such as a paper misfeed, do not touch the locations (around the fusing unit, etc.) which are indicated by a “Caution! High Temperature!” warning label.

Do not place any objects around the power plug as the power plug may be difficult to pull out when an emergency occurs.

• Always use this product in a well ventilated location. Operating the product in a poorly ventilated room for an extended period of time could injure your health. Ventilate the room at regular intervals.

• Whenever moving this product, be sure to disconnect the power cord and other cables. Failure to do this could damage the cord or cable, resulting in a fire, electrical shock, or breakdown.

• When moving this product, always hold it by the locations specified in the instruction manual or other documents. If the unit falls it may cause severe personal injury. The product may also be damaged or malfunction.

• Remove the power plug from the outlet more than one time a year and clean the area bet ween the plug terminals. Dust that accumulates between the plug terminals may cause a fire.

• When unplugging the power cord, be sure to hold onto the plug. Pulling on the power cord could damage the cord, resulting in a fire or electrical shock.

1-4 Konica 7915/7920

Page 15

Introduction

Precautions for Routine Use

• Do not store toner bottles, imaging units, and other supplies and consumables in a place subject to direct sunlight and high t emperature and humidity, as poor image quality and malfunction could result.

• Do not attempt to replace the toner bottle and imaging unit in a place exposed to direct sunlight. If the imaging unit is exposed to intense light, poor image quality could result.

• Do not unpack a toner bottle or imaging unit until the very time of use. Do not leave an unpacked unit standing. Install it immediately or poor image quality could result.

• Do not keep toner bottles and imaging units in an upright position or upside down, as poor image quality could result.

• Do not throw or drop a toner bottle or imaging unit as poor image quality could result.

• Do not use this product in an area where ammonia or other gases or chemicals are present. Failure to do so may shorten the service life of the product, cause damage or decrease performance.

• Do not use this product in an environment with a tempe rature outside the range specified in the Instruction Manual, as a breakdown or malfunction could result.

• Do not attempt to feed stapled paper, carbon paper or aluminum foil through this product, as a malfunction or fire could result.

Do not touch or scratch the surface of imaging unit developing roller and the PC drum, as poor image quality could result.

Use the supplies and consumables recommended by the dealer. Use of any supply or consuma ble not recommended could result in poor image quality and breakdown.

Konica 7915/7920 1-5

Page 16

Introduction

CE Marking (Declaration of Conformity) for Users of the European Union (EU)

This product complies with the following EU directives: 89/336/EEC, 73/23/EEC and 93/68/EEC directives.

This declaration is valid for the area of the European Union.

This device must be used with a shielded interface (Parallel) cable and shielded network (10/100BaseT) cable. The use of non-shield cables is likely to result in interference with radio communications and is prohibited under 89/336/EEC rules.

For users in countries subject to Class B regulations

This device must be used with shielded interface (Parallel) cable and shielded network (10/100Base-T) cable. The use of non-shield cables is likely to result in interference with radio communications and is prohibited under CISPR 22 and local rules.

For users in countries not subject to Class B regulations

WARNING

This is a Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.

1-6 Konica 7915/7920

Page 17

Introduction

LED Radiation Safety

This product is a copier which operates by means of a LED (light emitting diodes) exposure system. There is no possibility of danger from the LED optical radiation, because the LED optical radiation level does not exceed the accessible radiation limit of class 1 under all conditions of operation, maintenance, service and failure.

Ozone Release

Locate the machine in a Well Ventilated Room A negligible amount of ozone is generated during normal operation of this machine. An unpleasant odor may, however, be created in poorly ventilated rooms during extensive machine operations. For a comfortable, healthy and safe operating environment, it is recommended that the room be well ventilated.

Placer l’appareil dans une pièce largement ventilée Une quantité d’ozone négligable est dégagée pendant le fonctionnement de l’appareil quand celui-ci est utilisé normalement. Cependant, une odeur désagréable peut être ressentie dans les pièces dont l’aération est insuffisante et lorsque une utilisation prolongée de l’appareil est effectuée. Pour avoir la certitude de travailler dans un environnment réunissant des conditions de confort, santé et de sécurité, il est préférable de bien aérer la pièce ou se trouve l’appareil.

Konica 7915/7920 1-7

Page 18

Introduction

CAUTION LABEL

Do not remove caution label or indicators.

CAUTION

Install this machine so that it can quickly be unplugged from the electrical outlet in case of an emergency.

The socket-outlet shall be installed near the machine and shall be eas-

➜

ily accessible.

1-8 Konica 7915/7920

Page 19

Introduction

1.3 Guide to Manuals

Enclosed Manuals

The manuals listed below are enclosed with this copier. In order to refer to the Instruction Manual quickly when necessary, store it near the copier.

Instruction Manual

The Instruction Manual describes the functions, operating procedures, precautions, and basic troubleshooting for this copier. Before using this copier, be sure to read the Instruction Manual thoroughly in order to ensure that the copier operates properly and is used efficiently.

Quick Guide

The Quick Guide provides basic operating procedures, maintenance, precautions, and basic troubleshooting for this copier in an easy-to-understand format. Refer to the Quick Guide if you do not understand an operation or if a problem occurs.

Explanation of Manual Conventions

The marks and text formats used in this manual are described below.

WARNING

Failure to observe instructions highlighted in this manner may result in fatal or critical injuries.

Observe all warnings in order to ensure safe use of the copier.

➜

CAUTION

Failure to observe instructions highlighted in this manner may result in serious injuries or property damage.

Observe all cautions in order to ensure safe use of the copier.

➜

✎

Note

(*May also appear as “Important” or “Tip”) Text highlighted in this manner contains useful information and tips to ensure safe use of the copier.

Konica 7915/7920 1-9

Page 20

Introduction

The number 1 as formatted here indicates the first step of a sequence of actions.

Subsequent numbers as formatted here indicate subsequent steps of a sequence of actions.

Text formatted in this style pro-

vides additional assistance.

Text formatted in this style describes the action that will ensure the

➜

desired results are achieved.

[Copy] key The names of keys on the control panel are written as shown above.

An illustration inserted here shows what operations must be performed.

1-10 Konica 7915/7920

Page 21

Introduction

1.4 Explanation of Basic Concepts and Symbols

The use of words and symbols in this manual are explained below.

Paper Feeding

During printing, paper is supplied from the right side of the copier and fed into the output tray on top or the output option at the left with the printed surface of the page facing down. The paper feed direction is shown by the arrows in the diagram below.

During copying, paper is supplied from the right side of the copier and fed into the copy tray on the top or the output option at the left with the printed surface of the copy facing down. The paper feed direction is shown by the arrows in the diagram below.

Konica 7915/7920 1-11

Page 22

Introduction

“Width” and “Length”

Whenever paper dimensions are mentioned in this manual, the first value always refers to the width of the paper (shown as “A” in the illustration) and the second to the length (shown as “B”).

Paper Orientation

Lengthwise ( ) If the width (A) of the paper is shorter than the length (B), the paper has a vertical or portrait orientation, indicated by either “L” or .

Crosswise ( ) If the width (A) of the paper is longer than the length (B), the paper has a horizontal or landscape orientation, indicated by either “C” or .

Display Icons

The icons shown below are displayed when the corresponding paper is loaded or copy is made.

: Overhead projector transparencies

: Thick paper 1

: Second side of a double-sided copy

: Second side of a double-sided copy on thick paper

1-12 Konica 7915/7920

Page 23

Introduction

1.5 Features

The Konica 7915/7920 is a high-speed, high-quality full-color copier/printer, combining the functionality and compactness best suited for any office.

Delivers high-speed, high-quality full-color copies:

High-quality, business-standard images with a resolution of 600 dpi (true) × 1800 dpi (simulated)/256 variations High-speed full-color printing (Letter landscape/continuous copying) at 20 sheets per minute with the Konica 7920 (15 sheets per minute with the Konica 7915) Makes multiple copies from one scan

Combines handling of a large paper capacity in a compact design:

Lightweight, space-saving full-color copier Maximum paper capacity of 3,250 sheets (including optional paper cassettes)

Can be combined with a wide variety of options:

Duplexing document feeder, 10-mailbin sorter, paper feed unit, and duplex unit, etc., providing even more features Internal/external controller enables use as a network printer or scanner

Konica 7915/7920 1-13

Page 24

Introduction

1-14 Konica 7915/7920

Page 25

Precautions

2 Precautions

2.1 Installation Precautions

Installation site

To ensure utmost safety and prevent possible malfunctions, install the copier in a location that meets the following requirements.

A location away from curtains, etc. that may catch fire and burn easily

A location that is not exposed to water or other liquids

A location free from direct sunlight

A location out of the direct airflow of an air conditioner or heater, and not exposed to extremely high or low temperatures

A well-ventilated location

A location that is not exposed to high humidity

A location that is not extremely dusty

A location not subjected to undue vibrations

A stable and level location

A location where ammonia or other organic gases are not generated

A location that does not put the operator in the direct airflow of exhaust from the copier

A location that is not near any kind of heating devices

Power source

The power source requirements are as follows.

Voltage fluctuation: Maximum ±10%

Frequency fluctuation: Maximum ±0.3%

Use a power source with as little voltage or frequency fluctuations as

❍

possible.

Konica 7915/7920 2-1

Page 26

Precautions

Space requirements

To ensure easy copier operation, supply replacement, and maintenance, adhere to the recommended space requirements detailed below.

1,707 (67-1/4)

275

(10-3/4) (8-1/4)

1,222 (48)

210

✎

Note

Be sure to allow a clearance of 100 mm (4 in.) or more at the back of the copier for the ventilation duct.

510 (20) 787 (31)

285(11-1/4)

1,477 (58-1/4)

1,192 (47)

1,397 (55)

Unit: mm (inch)

100

(4)

2-2 Konica 7915/7920

Page 27

Precautions

2.2 Operation Precautions

Operating environment

The environmental requirements for correct operation of the copier are as follows.

Temperature: 10°C to 30°C with fluctuations of no more than 10°C

within an hour

Humidity: 10% to 80% with fluctuations of no more than 20% within an

hour

Acoustic noise

Machine Noise Regulation 3 GSGV, 18.01.1991 : The sound pressure level at the operator position according to EN 27779 is equal to or less than 70dB(A).

Proper use

To ensure the optimum performance of the copier, follow the precautions listed below.

Never place heavy objects on the original glass or subject it to shocks.

Never open any copier doors or turn off the copier while it is making copies; otherwise, a paper jam will occur.

Never bring any magnetized object or use flammable sprays or liquids near the copier.

Always make sure that the power plug is completely plugged into the

✚

electrical outlet.

Always make sure that the copier’s power plug is visible and not hidden by the copier.

Always unplug the copier from the electrical outlet if the unit is not to

✚

be used for a long period of time.

Always provide good ventilation when making a large number of con-

✚

tinuous copies.

CAUTION

A negligible amount of ozone is generated during normal operation of this copier. An unpleasant odor may, however, be detected in poorly ventilated rooms during extensive copier operations.

For a comfortable operating environment, it is recommended that the

➜

room be well ventilated.

Konica 7915/7920 2-3

Page 28

Precautions

CAUTION

If the ventilation duct at the top of the copier becomes blocked, the inside of the copier will accumulate heat, resulting in a malfunction or fire.

Do not place any objects over the ventilation duct.

➜

CAUTION

The area around the fusing unit is extremely hot.

Be careful not to touch any parts around the fusing unit, other than

➜

those indicated in this manual, in order to reduce the risk of burns. Be especially careful not to touch parts marked with warning labels, and their surrounding areas.

If you get burnt, immediately cool the skin under cold water, and then

➜

seek professional medical advice.

Transporting the copier

If you need to transport the copier over a long distance, consult your service representative.

Care of copier supplies

Use the following precautions when handling the copier supplies (toner, paper, etc.).

Store the supplies in a location that meets the following requirements:

✚

free from direct sunlight away from any heating apparatus not subjected to high humidity not extremely dusty

Store in a sealed plastic bag in a cool, dark place paper that has been

✚

removed from its wrapper but not loaded into the copier.

Only use toner that has been manufactured specifically for this copier. Never use other types of toner.

Keep all supplies out of the reach of children.

2-4 Konica 7915/7920

Page 29

Precautions

CAUTION

Precautions for handling toner:

➜

Storage of copies

✚

Be careful not to spill toner inside the copier or get toner on your clothes or hands.

If your hands become soiled with toner, immediately wash them with soap and water.

If toner gets in your eyes, immediately flush them with water, and then seek professional medical advice.

Copies that are to be kept for a long time should be kept where they are not exposed to light in order to prevent them from fading.

Copies pasted together using adhesive that contains solvent (e.g., spray glue) may dissolve the toner on the copies.

Color copies have a thicker layer of toner than normal black-and-white copies. Therefore, when a color copy is folded, the toner at the fold may peel off.

Konica 7915/7920 2-5

Page 30

2.3 Legal Restrictions on Copying

Certain types of documents must never be copied with the purpose or intent to pass copies of such documents off as the originals.

The following is not a complete list, but is meant to be used as a guide to responsible copying.

Personal checks

Travelers checks

Money orders

Certificates of deposit

Bonds or other certificates of indebtedness

Stock certificates

Food stamps

Postage stamps (canceled or uncanceled)

Checks or drafts drawn by government agencies

Internal revenue stamps (canceled or uncanceled)

Passports

Immigration papers

Motor vehicle licenses and titles

House and property titles and deeds

Identification cards, badges, or insignias

Copyrighted works without permission of the copyright owner

In addition, it is prohibited under any circumstances foreign currencies, or works of art without permission of the copyright owner.

When in doubt about the nature of a document, consult with legal counsel.

Precautions

to copy domestic or

2-6 Konica 7915/7920

Page 31

Before Making Copies

3 Before Making Copies

3.1 Available Features

The main copy settings available with this copier are listed below. For details on their operation, refer to the pages indicated.

Orig. Ö Copy (Refer to page 7-1.)

Single-Sided Ö Single-Sided

Single-Sided Ö Double-Sided

Double-Sided Ö Single-Sided

Double-Sided Ö Double-Sided

Single-Sided Ö Single–2in1

Konica 7915/7920 3-1

Page 32

Before Making Copies

Double-Sided Ö Double–2in1

Book Ö Separation

Book Ö Spread

✎

Note

The “Double-Sided” Original setting is only available if the duplexing document feeder is installed. The “Double-Sided” and the “Double–2in1” Copy settings are only available if the duplex unit and the memory are installed.

Zoom settings (Refer to page 6-14.)

Reduced/Full Size/Enlarged

Finishing (Refer to page 7-8, page 7-12, and page 7-15.)

“Sort” setting

3-2 Konica 7915/7920

Page 33

Before Making Copies

“Group” setting

“Staple” setting

(Front staple)

❍

(Rear staple)

❍

(Double stapling)

❍

“Hole-Punch” setting

* Only with finisher FS-134 installed

✎

Note

The “Sort” and “Group” settings are only available if the 10-mailbin sorter is installed. The “Staple” and “Hole-Punch” settings are only available if both the finisher and the printer controller are installed, and the print job is sent from the computer.

Konica 7915/7920 3-3

Page 34

Applications

“OHP Interleaving” function (Refer

to page 7-30.)

“Frame Erase” function (Refer to

page 7-19.)

“Mirror Image” function (Refer to

page 7-21.)

Before Making Copies

“X/Y Zoom” function (Refer to

page 7-32.)

“Postcard” function (Refer to

page 7-33.)

“Image Repeat” function (Refer to

page 7-35.)

3-4 Konica 7915/7920

Page 35

Before Making Copies

✎

Note

The “X/Y Zoom”, “Postcard” and “Image Repeat” functions are only available if the memory is installed. (7915 only)

“Mixed Orig Detection” function (Refer to page 7-17.)

Mixed originals

✎

Note

The “Mixed Orig Detection” function is only available if the duplexing document feeder is installed.

Konica 7915/7920 3-5

Page 36

3.2 Components and Their Functions

The following describes each of the units that the copier is composed of as well as their functions.

Copier scanner section <scanner>

Scans the document

Copier printer section <printer>

Prints the image scanned with the scanner

Original cover CV-131 (optional)

Presses down on the loaded document

Before Making Copies

Duplexing document feeder DF-331

(optional) Automatically feeds and scans one document sheet at a time, and automatically turns over double-sided documents and scans them

3-6 Konica 7915/7920

Page 37

Before Making Copies

10-Mailbin sorter ST-134 (optional)

When printing from the computer, automatically sorts or groups pages and feeds them into the mailbin specified at the computer

Finisher FS-134/FS-133 (optional)

When printing from the computer, finishes pages according to the mode (sorting, grouping, stapling, or hole-punching [Only with finisher FS-134 installed.]) selected at the computer, then feeds out the pages

Duplex unit AD-231 (optional)

Automatically turns over copies, allowing double-sided copies to be made

Konica 7915/7920 3-7

Page 38

Paper feed unit PF-231 (optional)

Can supply 500 sheets of paper; up to two paper feed units can be installed

Large capacity tray DB-431 (option-

al) Can supply 2,500 sheets of paper

Copier stand (optional)

Decreases the equipment area by installing the scanner above the copier

Before Making Copies

Copy desk (optional)

Used when the optional 10-mailbin sorter (ST-134) or an optional finisher (FS-134/FS-133) is installed without an optional paper feed unit

Copy table (optional)

Used when the optional 10-mailbin sorter (ST-134) or an optional finisher (FS-134/FS-133) is installed with two optional paper feed units installed

3-8 Konica 7915/7920

Page 39

Before Making Copies

Printer controller Fiery X3e (optional)

Internal printer controller that allows the copier to be used as both a color printer and a color scanner on a network

Printer controller Fiery Z4 (optional)

Allows the copier to be used as a color printer or color scanner configured into a computer network; provides higher productivity than printer controller Fiery X3e and enables use as a multifunctional printer

Memory (256 MB: 128 MB × 2) MU-431

(optional with 7915; standard installation with 7920) Increases the memory of the copier, allowing functions such as double-sided and 2in1 copying to be performed

Konica 7915/7920 3-9

Page 40

3.3 Parts Names and Their Functions

Outside of Copier

Before Making Copies

1617

* The original cover, copier stand, and copy desk shown installed in the illustration are optional.

3-10 Konica 7915/7920

Page 41

Before Making Copies

No. Part Name Description

1 Copy output tray Holds copies fed out of the copier

2 Toner supply door Opened when adding toner

3 Front door Opened when replacing the imaging unit

4 1st drawer Holds 250 sheets of paper

5 2nd drawer Holds 500 sheets of paper

6 Power switch Used to turn the copier on and off

7 Right-side door Opened when servicing the copier and clearing misfeeds

8 Right-side door releas e

lever

9 Manual bypass tray Used for manual feeding of paper

10 Lower right-side door Opened when clearing misfeeds

11 Left-side door Opened when servicing the copier

12 Original cover (option-

al)

13 Document scale Used to align the document

14 Original glass When manually feeding the document, place it on the glass

15 Control panel Used to start copying or to ma ke settings

16 Duplexing docume nt

feeder connector

17 Scanner connector Used for connecting the scanner hookup cord

18 Scanner power cord

socket (inlet)

19 Scanner power cord

socket (outlet)

20 Scanner connector Used for connecting the scanner hookup cord

21 Printer power cord

socket

22 Sorter/finisher connec-

tor

See p. 10-43.

The paper size can be adjusted freely. Special paper can be used. See p. 4-6.

The paper size can be adjusted freely. Se e p. 4-12.

See p. 3-29.

Used to open and close the right-side door

The paper is fed one sheet at a time. Special paper can be used. See p. 4-16.

Presses the docume nt against the original glass

See p. 5-11.

so the document can be scanned. Place the documen t face down on the glass. See p. 5-10.

See p. 3-20.

Used for connecting the duplexing document feeder hookup cord

Used for connecting the scanner’s power cord

Used for connecting the printer’s power cord

Used for connecting the sorter or finisher hookup cord

Konica 7915/7920 3-11

Page 42

Before Making Copies

Inside of Copier

No. Part Name Description

1 Toner hopper lid Opened when adding toner

2 Imaging unit release le-

ver

3 Imaging unit removing

bracket

4 Upper right-side door Opened when replacing the fusing unit or clearing misfeeds

Used to install and replace the imaging unit

Used to remove the imaging unit

3-12 Konica 7915/7920

Page 43

Before Making Copies

Supplies and Parts

No. Part Name Description

1 Imaging unit Generates the copied image

2 Image transfer belt unit Layers onto the image transfer belt each of th e single

3 Image transfer roller

unit

4 Waste toner bottle Collects waste toner

5 Oil-roller unit Supplies oil to the fusing roller

6 Fusing web unit Supplies oil to the fusing belt

7 Fusing unit Fuses the transferred toner to the paper

8 Ozone filter Collects the ozone generated in the copier

9 LED cleaning tool Used to clean the surface of the LED unit, for example

colors of the image generated by the imaging unit in order to create a full-color image

Transfers onto the pa per a full-color image g enerated by the image transfer belt unit

when replacing the image transfer belt unit Store in a safe place for later use.

Konica 7915/7920 3-13

Page 44

Before Making Copies

Duplexing Document Feeder (Optional)

No. Part Name Description

1 Document output tray Collects documents that have been copied

2 Document guide Align one side of the document along the fixed document

3 Document feed tray Load the documents to be copied. See p. 5-4.

4 Misfeed clearing cover

F1/F2

5 Single-sheet feed tray Open to feed one sheet of the document at a time

guide, and then adjust the other guide to the width of the document. See p. 5-4.

Opened when clearing a misfed document

3-14 Konica 7915/7920

Page 45

Before Making Copies

Duplex Unit (Optional)

No. Part Name Description

1 Duplex un it door Opened when clearing paper misfed within the duplex unit

Konica 7915/7920 3-15

Page 46

Before Making Copies

10-Mailbin Sorter (Optional)

3, 4

No. Part Name Description

1 Mailbins Collects copies that a re sorted

2 Upper door/Lower door Opened when clearing paper misfed within the sorter

3 Horizontal transport

unit

4 Horizontal transport

unit cover

Transports copies to the sorter or finisher

Opened when clearing paper misfed within the horizontal transport unit

3-16 Konica 7915/7920

Page 47

Before Making Copies

Finisher (Optional)

No. Part Name Description

1 Upper cover Opened when clearing paper misfed within the finisher

2 Upper pape r output

tray

3 Lower pape r output

tray

4 Front door Opened when clearing paper misfed within the finisher

5 Right-side door

(FS-134 only)

Collects copies that are not sorted (made with the “Non- Sort” setting)

Collects copies that are sorted

Opened when replacing the staple cartridge or clearing p aper misfeeds

Konica 7915/7920 3-17

Page 48

Paper Feed Unit (Optional)

No. Part Name Description

1 3rd drawer Holds 500 sheets of paper

2 4th drawer

The paper size can be adjusted freely. As many as two units can be installed. See p. 4-12.

Before Making Copies

3-18 Konica 7915/7920

Page 49

Before Making Copies

Large Capacity Tray (Optional)

No. Part Name Description

1 3rd drawer Holds 2,500 sheets of paper

See p. 4-14.

Printer Controller Fiery Z4

For more details, refer to the manual of the printer controller.

Printer Controller Fiery X3e

For more details, refer to the manual of the printer controller.

Konica 7915/7920 3-19

Page 50

Before Making Copies

3.4 Names of Control Panel Parts and Their Functions

Names of Control Panel Parts and Their Functions

4678

No. Part Name Description

1 Touch panel contrast-

adjusting dial

2 Utility key • Press to display the Utility screen, which allows you to

3 Job Recall key • Press to display the Job Recall screen, which allows you

4 Touch panel • Displays various screens and messages

5 Auto Color, Full Color,

and Black keys

• Adjusts the contrast of the touch panel

select the following functions: Default Settings Meter Count Job Memory Input User’s Choice Administrator Mode Scanner Addr. Input Refer to “8 Utility Mode Operations” and “9 Administrator Mode Operations”.

to recall and check stored copy jobs. Refer to “To re call a stored job” on page 8-6.

Refer to “Using the Touch Panel” on page 3-22.

• Auto Color: The copier automatically determines whether the document is in color or in black and white, and then makes a full-color or black-and-whit e copy depending on the color of the document.

• Full Color: The copier makes a full-color copy of the document.

• Black: The copier makes a black-and-white copy regardless of the color of the document.

3-20 Konica 7915/7920

Page 51

Before Making Copies

No. Part Name Description

6 Start key • Press to start the copy operation.

7 Stop key • P ress to stop a continuous copy operation.

8 C (clear) key • Press to reset the number of copies to “1”.

9 Panel Reset key • Press to reset all copy functions and settings to their de-

10 Interrupt key • Press to interrupt a copy job. (The [Interrupt] key indica-

11 Energy Saver key • Press to enter Energy Saver mode. See p. 3-26.

12 Access key • Press when making copies using an access code.

13 Copy key • Press to enter Copy mode and use th e copier as a cop-

14 Scan key • Press to enter Scanner mode and use the copier as a

15 Keypad • Use to type in the number of copies to be made.

• If this key is pressed while the copier is warming up, the copy job is delayed until the copier is finished warming up. See p. 3-26.

• The [Start] key indicator lights up in green to indicate that the copier can begin copying. The [Start] key indicator lights up in orange to indicate that the copier cannot make cop ies.

• Press to erase a setting, such as the zoom ratio or size, selected using the keypad.

faults. (All selected settings are cancelled.) See p. 3-25.

* Stored zoom ratios, stored job settings, and interrupted

or delayed copy jobs are not cancelled.

tor lights up in green to indicate that the copier is in Interrupt mode.)

• Press again to cancel Interrupt mode or to return the copier to the mod e before it entered Interrupt mode. See p. 3-27.

See p. 3-28.

ier.

• The [Copy] key indicator lights up in green to indicate that the copier is in Copy mode.

color scanner.

• The [Scan] key indicator lights up in green to indicate that the copier is in Scanner mode.

• Use to type in the zoom ratio.

• Use to type in the various settings.

Konica 7915/7920 3-21

Page 52

3.5 Using the Touch Panel

Description of Touch Panel

When the copier is turned on (1), the Basic screen appears in the touch panel. It shows, with messages and graphics, the currently selected settings, the settings that are available, and the copier status.

✎

Note

The screen illustrations in this manual may be slightly different from the screens that appear on your copier’s touch panel.

Organization of Screens

Before Making Copies

Screen tabs

Message display

Available functions/settings

Selected settings

3-22 Konica 7915/7920

Page 53

Before Making Copies

No. Part Name Description

1 Screen tabs These are the tabs for the Basic, Orig.

2 Message display The current copier status, operating instructions, warnings/

3 Available functions/set-

tings

Copy, Finishing, and Auxiliary screens. Touch a tab to display the corresponding screen.

Example) The Auxiliary screen is selected above. * Touch “Basic” to display the Basic screen (the default screen).

precautions, and o ther data including the number of copies selected are displayed here.

Example) The message “Add paper.” appears in the message display of the screen shown above.

Selecting a function displays a screen that allows you to select the desired setting. Select a different function to display the corresponding screen.

Example) The available zoom ratio settings are shown above. * The currently selected setting appears in the tab.

4 Selected settings The current settings are shown by messages and graphics.

Konica 7915/7920 3-23

Page 54

Before Making Copies

Operating the Touch Panel

To activate a function or to select a setting, lightly touch the desired function or setting shown on the touch panel.

CAUTION

Be careful not to damage the touch panel.

Never push on the touch panel, and never push on it using a hard or

➜

pointed object.

3-24 Konica 7915/7920

Page 55

Before Making Copies

3.6 Useful Operations

Cancelling Settings

Press the [Panel Reset] key to cancel all modes and functions (zoom ratio, number of copies, etc.) and reset them to their defaults. (All selected settings are cancelled.)

If the duplexing document feeder is being used and a document has been fed onto the original glass, the document will automatically be fed out.

✎

Tip

Pressing the [Panel Reset] key is the easiest way to cancel all selected settings at one time. In order to avoid accidentally using settings from a previous copy job, press the [Panel Reset] key to return all functions and settings to their defaults, and then select the desired settings.

Auto Panel Reset

Without pressing the [Panel Reset] key, the copier automatically resets all functions and settings to their defaults one minute after copying is finished or after a key or the touch panel is pressed.

✎

Tip

The length of time until the copier automatically resets itself can be set between 1 and 9 minutes. The “Auto Panel Reset” parameter can even be turned off. For more details, refer to “Specifying Default Settings (“User’s Choice” Function)” on page 8-8 and page 8-15.

Konica 7915/7920 3-25

Page 56

Before Making Copies

Energy Saver Mode

Instead of turning off the copier, it can be put into a standby mode (Energy Saver mode).

Turn the Energy Saver mode on by pressing the [Energy Saver] key. In addition, if the copier is not used for a set length of time, it automatically enters Energy Saver mode. The default length of time is 15 minutes.

To cancel Energy Saver mode, press any key in the control panel.

✎

Note

If the copier enters Sleep mode while it is in Energy Saver mode, the copier will automatically turn itself off.

✎

Tip

The length of time until the copier enters Energy Saver mode can be set between 1 and 240 minutes. For more details, refer to “Specifying Default Settings (“User’s Choice” Function)” on page 8-8 and page 8-16.

Delayed Copy Jobs

If a document is loaded and the [Start] key is pressed during the period after the copier is turned on but before it is ready to begin copying, the copier will automatically begin copying after it has finished warming up.

Sleep Mode

When the printer controller is not installed: If the copier is not used for a set length of time, it can automatically turn itself off in order to save energy. The default length of time is 30 minutes.

When the printer controller is installed: If the copier is not used for a set length of time, it will automatically enter a standby mode (Energy Saver mode) in order to save energy. The default length of time is 30 minutes. To cancel this mode, press any key in the control panel.

✎

Tip

The length of time until the copier enters Sleep mode can be set between 15 and 240 minutes. The “Sleep Mode” parameter can even be turned off. For more details, refer to “Specifying Default Settings (“User’s Choice” Function)” on page 8-8 and page 8-17.

3-26 Konica 7915/7920

Page 57

Before Making Copies

Interrupting Copy Jobs

During long continuous copy operations or print jobs, the copier may be needed to quickly copy a different document.

To interrupt a copy job

Press the [Interrupt] key to temporarily stop the current copy opera-

➜

tion.

Press the [Interrupt] key again to continue the previously stopped copy operation.

✎

Note

The Interrupt mode is also cancelled when the copier automatically resets itself 1 minute after the last key is pressed (“Auto Panel Reset” parameter). However, the Interrupt mode is not cancelled if a copy job is still interrupted. The length of time until the copier automatically resets itself can be set between 1 and 9 minutes. The “Auto Panel Reset” parameter can even be turned off. By turning off the “Auto Panel Reset” parameter, the In- terrupt mode will not be cancelled automatically. For more details, refer to “Specifying Default Settings (“User’s Choice” Function)” on page 8-8 and page 8-15. Some functions cannot be interrupted. In addition, some settings are not available while a copy job is interrupted. For more details, refer to “Function Combination Table” on page 12-10.

✎

Tip

Pressing the [Interrupt] key resets all functions and settings to their defaults and selects the “Non-Sort” setting on the Finishing screen. For more details, refer to “Resetting the Copier (“Default Settings” Function)” on page 8-1. Settings cannot be stored during Interrupt mode. In addition, the “OHP Interleaving” and “Job Recall” functions are not available.

Auto Paper Source Change Feature

If the tray or drawer runs out of paper while copying, the copier will automatically switch to a different paper source and continue copying provided that the new tray or drawer contains paper of the same type and size in the same orientation. If the large-capacity cabinet (DB-431) is also installed, up to 3,250 sheets of “A4C” paper can be fed continuously.

Konica 7915/7920 3-27

Page 58

Before Making Copies

Access Codes

If access codes have been specified, use of the copier can be limited to certain people or to a specified number of copies for each account.

✎

Note

If access codes have been specified, the copier cannot be used unless the access code/account number is entered first. <Access # Input screen> The access codes can be specified using the “Copy Track” function of the Administrator mode. (Refer to page 9-1.)

To enter an access code

Using the keypad, enter the fourdigit access code, and then press the [Access] key.

Do you wish to correct the en-

tered access code?

➜

Press the [C] (clear) key to erase the entered access code, and then enter the correct access code.

The Basic screen appears and printing can begin. Select the desired settings.

After you are finished making your copies, press the [Access] key.

Printing From the Computer

If the optional printer controller is installed, the copier can be used as an A3 full-color printer configured into a computer network.

For operating details, refer to the manual for the printer controller.

Scanning From the Computer

If the optional printer controller is installed, the copier can be used as an A3 full-color scanner configured into a computer network.

For operating details, refer to the manual for the printer controller.

3-28 Konica 7915/7920

Page 59

Before Making Copies

3.7 Power Switch and Default Settings

Turning the copier on and off

To turn the copier on

Set the power switch to “1”.

➜

To turn the copier off

Set the power switch to “2”.

➜

✎

Note

Do not turn off the copier while it is making copies, otherwise a paper misfeed may occur. Make sure that all copy operations are finished before turning off the copier. When the copier is turned off, all settings except the stored zoom ratios and other stored settings in addition to the Utility mode settings are reset to their defaults.

✎

Note

If the copier is not used for 15 minutes, it automatically enters Energy Saver mode. In addition, after the copier is not used for 30 minutes, it automatically turns itself off (Sleep mode). The length of time until the copier enters Energy Saver mode or Sleep mode can be set using the “User’s Choice” function. For more details, refer to “Specifying Default Settings (“User’s Choice” Function)” on page 8-8, page 8-16, and page 8-17.

Konica 7915/7920 3-29

Page 60

Before Making Copies

Turning On the Copier

A few seconds after the copier is turned on, the indicator on the [Start] key lights up in green and the message “Warming up. Pre-program a job.” appears on the touch panel. At this time, a delayed copy job can be specified. (For more details, refer to page 3-26.) However, even though the [Start] key is pressed, the copy operation is not performed until the copier has finished warming up (after about 5 minutes at normal room temperature (68°F/20°C)).

Default Settings

The Basic screen, which appears on the touch panel when the copier is turned on, displays the default settings. The Basic screen serves as a reference for all settings that are to be made.

Default settings

Number of copies: 1

Original Image Type: Text&Photo

Zoom: Full Size (×1.000)

Paper: Auto Paper

Orig. Ö Copy: Single-Sided Ö Single-Sided

Finishing: Non-Sort

✎

Tip

The default settings can be customized using the “User’s Choice” function. (Refer to page 8-1.)

3-30 Konica 7915/7920

Page 61

Copy Paper

4 Copy Paper

4.1 Paper Specifications

Use paper that meets the following specifications.

Paper Types

Weight (g/m2)

Manual Bypass Tray

1st Drawer

2nd Drawer

Paper Feed

Unit

Large Capacity

Tray

Double-Sided

Copies

Finished Cop-

ies

* 1: The paper feed unit and large capacity tray are optional.

Standard Paper

64 g/m2 to 90 g/m

22222

Special Paper

Thick Paper1

91 g/m2 to

163 g/m

————

Thick Paper2

164 g/m2 to

209 g/m

—

Overhead Projector Transparencies

Postcards

Konica 7915/7920 4-1

Page 62

Paper Sizes

Non-standard paper:

Paper Source Paper Width Paper Length

Manual Bypass Tray 90 mm to 311 mm 140 mm to 457 mm

1st Drawer

2nd Drawer

Paper Feed Unit

Large Capacity Tray

* 1: The paper feed unit and large capacity tray are optional.

——

Standard paper:

Copy Paper

Paper Size

Paper Source, Etc.

Manual Bypass Tray

1st Drawer

2nd Drawer —

Paper Feed

Unit

Large Capacity

Tray

Double-Sided

Copies

Finished Cop-

ies

* 1: The paper feed unit and large capacity tray are optional.

2: If the optional d uplex unit is used to make double -sided copies, only certain types of pa per can be used. 3: If the optional 10-mailbin sorter is used to sort or group copies, only certain types of paper can be used. 4: The size should be entered using the “User’s Choice” function. 5: The paper size should be changed by your service representative.

A3Wide L

2 222222

222

—

— —————

2 222222

A3L

22*52

8-1/4 × 13L

8 × 13L B4L A4L A4C

222

4-2 Konica 7915/7920

Page 63

Copy Paper

* 1: The paper feed unit and large capacity tray are optional.

Paper capacity:

Paper Size

Paper Source, Etc.

Manual Bypass Tray

1st Drawer

2nd Drawer

Paper Feed

Unit

Large Capacity

Tray

Double-Sided

Copies

Finished Cop-

ies

2: If the optional duplex unit is used to make double -sided copies, only certain types of pa per can be used. 3: If the optional 10-mailbin sorter is used to sort or group copies, only certain types of paper can be used. 4: The size should be entered using the “User’s Choice” function. 5: The paper size should be changed by your service representative.

B5L B5C A5L A5C A6L B6L Postcard

2222222

—

222

222222

—————

————

—

Paper Type

Paper Source, Etc.

Manual Bypass Tray

1st Drawer 250 sheets 20 sheets — 20 sheets 20 sheets

2nd Drawer 500 sheets ————

Paper Feed Unit

Large Capacity

Tray

* 1: The paper feed unit and large capacity tray are optional.

Standard Paper

1 sheet 1 sheet 1 sheet 1 sheet 1 sheet

500 sheets ————

2,500 sheets

Special Paper

Overhead Thick Paper1

————

Thick Paper2

Projector

Transpar-

encies

Postcards

Konica 7915/7920 4-3

Page 64

Copy Paper

Paper Types To Be Avoided

The following types of paper should not be used, otherwise decreased print quality, paper misfeeds or damage to the copier may occur.

Overhead transparencies that have already been fed through the cop-

ier (even if the transparency is still blank)

Paper that has been printed on by a heat-transfer printer or an inkjet

printer

Paper that is either extremely thick or extremely thin

Folded, rolled, wrinkled, or torn paper

Perforated paper or paper with holes punched in it

Extremely smooth or extremely rough paper, or paper with an uneven

surface

Paper that has been treated, such as carbon-backed paper, or heat-

sensitive or pressure-sensitive paper

Paper that has been decorated with foil or embossing

Paper of various sizes

Paper of a non-standard shape (not rectangular)

Paper that is bound with glue, staples, or clips

Paper with labels attached

Paper with ribbons, hooks, buttons, etc. attached

4-4 Konica 7915/7920

Page 65

Copy Paper

4.2 Print Area

Any part of the image within the area shown below is not copied.

A margin 5 mm from the leading edge of the paper (A)

A margin 3 mm from the trailing edge of the paper (B)

A margin 3 mm on both sides of the paper (C)

When using the printer controller to print from a computer, the image cannot be printed within the area 5 mm from all edges of the paper.

Paper output direction

4.3 Paper Storage

Observe the following precautions when storing the paper.

Store the paper in a location that meets the following requirements.

✚

Not exposed to direct sunlight Not exposed to fire Not exposed to high humidity Not extremely dusty

Unwrapped paper should be stored in a plastic bag in a cool, dry loca-

✚

tion.

Keep paper out of the reach of children.

A: 5 mm (0.2 in.) B: 3 mm (0.12 in.)

C: 3 mm ( 0.12 in.)

Konica 7915/7920 4-5

Page 66

4.4 Loading Paper

To load paper into the 1st drawer (250-sheet multipurpose tray)

Pull out the paper drawer for the 1st drawer.

Has the paper take-up roller

been touched?

Be careful not to touch the sur-

➜

face of the paper take-up roller with your hands. If the roller has been touched, wipe it with a dry cloth.

Press down on the paper-lifting plate until it locks into place.

Copy Paper

Paper takeup roller

Slide the lateral guides to fit the size of paper to be loaded.

For paper of a non-standard

❍

size, first load the paper, and then adjust the lateral guides to the size of the loaded paper.

4-6 Konica 7915/7920

Page 67

Copy Paper

For “A3Wide” paper, adjust the

❍

trailing-edge guides as shown in the illustration.

Load the paper into the drawer so that the front side of the paper (the side facing up when the package was unwrapped) faces up.

Has the paper been loaded cor-

rectly?

If the paper is not loaded correctly, a paper misfeed may occur.

Do not load so much paper that the top of the stack is higher than

➜

the Ä mark.

Do not load more than 20 sheets of thick paper 1, overhead pro-

➜

jector transparencies, or postcards.

Do not load thick paper 2 into the 1st drawer. If you wish to make

➜

copies onto thick paper 2, feed it through the manual bypass tray.

When loading additional paper, remove any paper remaining in the

➜

drawer, place it on the new paper, and then align the paper in the stack well before loading it into the drawer.

We recommend replenishing the paper only after all of the paper

➜

in the drawer has been used.

Konica 7915/7920 4-7

Page 68

Copy Paper

Are postcards loaded?

When loading postcards, load

➜

them as shown.

Do not load postcards cross-

➜

wise, as shown.

Are the recommended overhead projector transparencies loaded?

When loading the recommend-

➜

ed overhead projector transparencies, load them as shown in the illustration.

4-8 Konica 7915/7920

Page 69

Copy Paper

Slide the lateral guides against the edges of the paper.

Make sure that the paper is not

❍

curled when it is loaded. Check that the lateral guides are pushed up against the edges of the paper.

Close the paper drawer.

Turn the media type selection dial on the drawer to the setting for the type of paper loaded.

Are postcards loaded into the

1st drawer?

If postcards are loaded into the

➜

1st drawer, set the paper type dial to “Thick 1”.

✎

Setting the Paper Size

The default setting for the paper size of the 1st drawer is “Auto Detect”. For postcards, non-standard or inch paper sizes, change the paper size according to the procedure in the following section.

Konica 7915/7920 4-9

Page 70

To set the paper size for the 1st drawer

Press the [Utility] key to enter Utility mode.

Touch [User’s Choice].

Touch [2/2] to view the next page.

Copy Paper

Touch [1st Drawer Paper Select].

4-10 Konica 7915/7920

Page 71

Copy Paper

Touch [Input Size].

Select the desired paper size, and then touch [Enter].

Will postcards be loaded into the

1st drawer?

If postcards are to loaded into

➜

the 1st drawer, select [A6Card].

To specify a paper size other than those listed, touch [Custom Size], touch [X] and [Y], and use the keypad to specify the desired size, and then touch [Enter].

In the Input Size screen, touch [Enter].

In the 1st Drawer Paper Size screen, touch [Enter].

In the User’s Choice screen, touch [Exit].

Konica 7915/7920 4-11

Page 72

Copy Paper

To load paper into the 2nd drawer or the 500-sheet paper feed unit

Pull out the paper drawer.

Has the paper take-up roller

been touched?

Be careful not to touch the sur-

➜

face of the paper take-up roller with your hands. If the roller has been touched, wipe it with a dry cloth.

Press down on the paper-lifting plate until it locks into place.

Remove the trailing-edge guide, and then re-install it for the size of paper to be loaded.

Paper takeup roller

Slide the lateral guides to fit the size of paper to be loaded.

4-12 Konica 7915/7920

Page 73

Copy Paper

Load the paper into the drawer so that the front side of the paper (the side facing up when the package was unwrapped) faces up.

Has the paper been loaded cor-

rectly?

If the paper is not loaded correctly, a paper misfeed may occur.

Do not load so much paper that the top of the stack is higher than

➜

the Ä mark.

Special paper cannot be fed from the 2nd drawer or optional paper

➜

feed units. If you wish to make copies onto special paper, feed it through the manual bypass tray or the 1st drawer.

When loading additional paper, remove any paper remaining in the

➜

drawer, place it on the new paper, and then align the paper in the stack well before loading it into the drawer.

We recommend replenishing the paper only after all of the paper

➜

in the drawer has been used.

Slide the lateral guides against the edges of the paper.

Make sure that the paper is not

❍

curled when it is loaded. Check that the lateral guides are pushed up against the edges of the paper.

Close the paper drawer.

Konica 7915/7920 4-13

Page 74

To load paper into the large capacity tray

Pull out the paper drawer.

Load paper into the right side of the drawer so that the front side of the paper (the side facing up when the package was unwrapped) faces up.

Has the paper been loaded cor-

rectly?

If the paper is not loaded correctly, a paper misfeed may occur.

Make sure that the paper is not curled when it is loaded.

➜

Do not load so much paper that the top of the stack is higher than

➜

the Ä mark.

Special paper cannot be fed from the 2nd drawer or optional paper

➜

feed units. If you wish to make copies onto special paper, feed it through the manual bypass tray or the 1st drawer.

When loading additional paper, remove any paper remaining in the

➜

drawer, place it on the new paper, and then align the paper in the stack well before loading it into the drawer.

We recommend replenishing the paper only after all of the paper

➜

in the drawer has been used.

Copy Paper

4-14 Konica 7915/7920

Page 75

Copy Paper

Load paper into the left side of the drawer so that the front side of the paper (the side facing up when the package was unwrapped) faces up.

Has the paper been loaded cor-

rectly?

If the paper is not loaded correctly, a paper misfeed may occur.

Make sure that the paper is not curled when it is loaded.

➜

Do not load so much paper that the top of the stack is higher than

➜

the Ä mark.

Special paper cannot be fed from the 2nd drawer or optional paper

➜

feed units. If you wish to make copies onto special paper, feed it through the manual bypass tray or the 1st drawer.

When loading additional paper, remove any paper remaining in the

➜

drawer, place it on the new paper, and then align the paper in the stack well before loading it into the drawer.

We recommend replenishing the paper only after all of the paper

➜

in the drawer has been used.

Close the paper drawer.

Konica 7915/7920 4-15

Page 76

Copy Paper

To load paper into the manual bypass tray

Paper can be fed manually through the manual bypass tray if you wish to copy onto paper that is not loaded into a drawer or if you wish to copy onto special paper, such as overhead transparencies, postcards, or thick paper 1 or 2.

Open the manual bypass tray.

Adjust the paper guides to the size of the paper, and then load the paper so that the front side of the paper (the side facing up when the package was unwrapped) faces down. Lightly slide the paper into the feed slot as much as possible so that it is ready to be fed into the copier.

Do you need more information

on feeding paper through the manual bypass tray?

Feed only one sheet of paper at a time.

➜

Copies will be made on the surface of the paper facing down when

➜

it is loaded into the manual bypass tray.

4-16 Konica 7915/7920

Page 77

Copy Paper

Is a postcard loaded?

When loading a postcard, load it

➜

as shown.

Do not load the postcard cross-

➜

wise, as shown.

Is the recommended overhead projector transparency loaded?

When loading the recommend-

➜

ed overhead projector transparency, load it as shown in the illustration.

Konica 7915/7920 4-17

Page 78

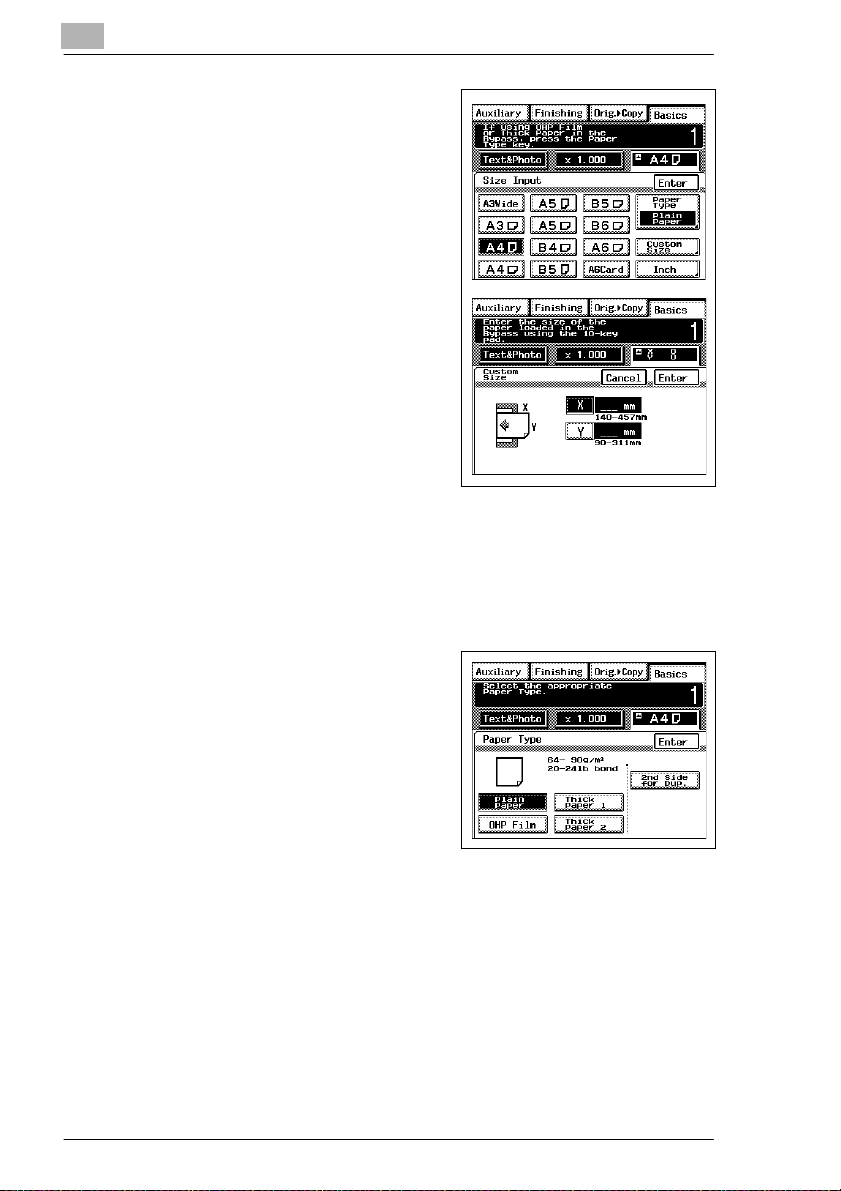

Make sure that the screen that allows you to select the manual bypass tray paper size is displayed, and then select the desired paper size.

For paper sizes in inch measurements, touch [Inch] to display a screen containing inch paper size settings.

For a paper size other than the standard sizes listed on the screen, touch [Custom Size] to display a screen that allows you specify a size.

Do you wish to return to the

screen displaying paper sizes in inches?

Touch [Metric] to display the metric paper size settings.

➜

Do you wish to specify a non-standard paper size?

Touch [X] and [Y], and use the keypad to specify the desired size,

➜

and then touch [Enter].

Copy Paper

Touch [Paper Type], select the setting for the type of paper loaded, and then touch [Enter].

4-18 Konica 7915/7920

Page 79

Original Documents

5 Original Documents

5.1 Feeding the Document

The document can be fed in three different ways. Depending on the type of document being fed, position the document correctly so that it is fed using the appropriate feed method.

Document Feed Method Features

Multi-sheet feeding Using the duplexing document feeder, a multi-page document

Single-sheet feeding Using the duplexing document feeder, the document is fed one

Manual feeding The document is placed directly on the original glass, then

can be fed automa tically. This feed method can also be used with double-sided documents, and is best with multi-page double-sided documents. See p. 5-4, p. 5-5, p. 7-17.

page at a time. This feed method cannot be used with doublesided documents (however, they can be scanned one side at a time). This feed me thod is best with a document consisting of a few single-sided pages. In addition, thick paper and thin paper can be scanned using this feed method. See p. 5-7, p. 5-9.

scanned. Each document must be positioned manually (the previous one must be removed and the next one placed on the original glass). This method is best with books and other documents that cannot be fed through the duplexing document feeder. See p. 5-11, p. 5-12, p. 5-13, p. 5-14 .

Konica 7915/7920 5-1

Page 80

Original Documents

Document Paper Types

✎

Note

Be sure to use the document paper type appropriate for the feed method being used. If the correct paper type is not used, a paper misfeed or damage to the document may occur.

Document Feed Method

Multi-sheet feeding Sheet documents

Single-sheet feeding Sheet documents

Manual feeding Documents, book s, large objects

Document Paper Type Document Paper Size

Document width: 139.7 mm to

• Capacity of single-sided documents: 50 g/m

• Capacity of double-sided documents: 60 g/m

• Capacity of documents of mixed sizes: 60 g/m

• Capacity of single-sided documents: 35 g/m

up to a weight of 2 kg

to 110 g/m

to 90 g/m

to 90 g/

to 200 g/m

297 mm

Document length: 210 mm to 432 mm

Document width: 139.7 mm to 297 mm

Document length: 210 mm to 432 mm

Document width: Less than 297 mm Document length : Less than 432 mm

Precautions for Multi-Sheet Feeding and Single-Sheet Feeding

The following types of documents should not be used for multi-sheet feeding or single-sheet feeding, otherwise paper misfeeds or damage to the document may occur. Instead, these types of documents should be fed manually.

Thin documents such as typewriter paper or paraffin paper

Thick documents

Standard size documents larger than A3 or smaller than A5

Documents that are transparent or translucent, such as overhead transparencies or diazo photosensitive paper

Wrinkled, folded, rolled, or torn documents

Documents bound with clips or staples

Coated documents such as carbon-backed paper

5-2 Konica 7915/7920

Page 81

Original Documents

Precautions for Manual Feeding

The following precautions should be observed when manually feeding the types of documents listed.

For non-standard sized documents:

The document size cannot be detected automatically, therefore, the Paper setting “Auto Paper” and the Zoom setting “Auto Size” cannot be used together. Select a different Paper setting by touching “Paper” on the Basic screen, then selecting the paper size of the document, or select a different Zoom setting by touching [Zoom] on the Basic screen, then selecting a zoom ratio. (Refer to page 6-14 for more details.)

For documents that are transparent or translucent, such as overhead

transparencies or diazo photosensitive paper: Place a blank sheet of paper of the same size as the document over the document. (Refer to page 5-12 for more details.)

For thick objects, such as books:

Scan without closing the original cover or duplexing document feeder. In addition, do not press down extremely hard on the document, otherwise the copier may be damaged. (The original glass can only resist a weight of up to 2 kg.)

Konica 7915/7920 5-3

Page 82

Original Documents

5.2 Feeding the Document Through the Duplexing Document Feeder

The duplexing document feeder feeds in, scans, then automatically feeds out each page in a multi-page document, one page at a time. The correct types of documents must be loaded in order for the duplexing document feeder to function properly.

Multi-Sheet Feeding (Sheet Documents)

A stack of documents of different sizes can be copied as a set using the duplexing document feeder. (Refer to “Feeding Documents of Different Sizes (“Mixed Orig Detection” Function)” on page 7-17.)

To make copies using multi-sheet feeding (sheet documents)

A maximum of 50 document pages can be loaded.

When loading the documents:

Be sure to adjust the paper guide to the size of the document, other-

✔

wise the documents may not be fed in straight.

Slide the adjustable document guide to fit the size of the documents.

Load the documents face up into the document feed tray.

5-4 Konica 7915/7920

Page 83

Original Documents

Press the [Start] key to start feeding and copying the documents from the top page.

Multi-Sheet Feeding (Documents of Mixed Sizes)

With this feature, a stack of documents of different sizes can be copied as a set using the duplexing document feeder. (For more details, refer to “Feeding Documents of Different Sizes (“Mixed Orig Detection” Function)” on page 7-17.)

Konica 7915/7920 5-5

Page 84

Original Documents

To make copies using multi-sheet feeding (documents of mixed sizes)

A maximum of 50 document pages can be loaded.

When loading the documents:

Be sure to adjust the paper guide to the size of the document, other-

✔

wise the documents may not be fed in straight.

Slide the adjustable document guide to fit the size of the documents.

Load the documents face up into the document feed tray, making sure that one side of all loaded documents are aligned along the fixed document guide.

Slide the adjustable document guide to the edge of the largest document.

Press the [Start] key to start feeding and copying the documents from the top page.

5-6 Konica 7915/7920

Page 85

Original Documents

Single-Sheet Feeding (Standard Paper/Thick Paper)

With single-sheet feeding, the following are not available:

“Double-Sided” setting, “2in1” setting, “Book” setting, “Sort” setting, “OHP Interleaving” function, manual feeding

To make copies using single-sheet feeding

When loading the documents:

Be sure to load the documents one sheet at a time.

✔

Be sure the documents are not folded or curled when they are fed.

✔

Specify the settings that can be used with single-sheet feeding (for example, the Zoom setting and the number of copies).

Do you need more information about the settings?

Refer to “6 Basic Operations” and “7 Advanced Operations”.

➜

Open the single-sheet feed tray, and then slide the adjustable document guide to fit the size of the document.

Konica 7915/7920 5-7

Page 86

Original Documents

When the indicator on the [Start] key lights up in green, insert one page of the document face down into the single-sheet feed tray.

The indicator on the [Start] key lights up in orange and the document is fed and copied.

Is the document inserted correct-

ly?

Insert the document pages one at

➜

a time.

Be sure the documents are not

➜

folded or curled when they are fed.

Make sure the indicator on the [Start] key lights up in green before feeding the next page of the document.

5-8 Konica 7915/7920

Page 87

Original Documents

Single-Sheet Feeding (Thin Paper)

With single-sheet feeding, the following are not available:

“Double-Sided” setting, “2in1” setting, “Book” setting, “Sort” setting, “OHP” Interleaving function, manual feeding

Before loading documents printed on thin paper (thickness: 35 g/m

g/m

), set the “Thin Orig.” parameter of the Expert User’s mode to “ON”. For more details, refer to the section “To set the “Thin Orig.” parameter” of “Specifying the Expert Settings (“Expert User’s Mode” Function)” on page 9-33.

To make copies using single-sheet feeding

When loading the documents:

Be sure to load the documents one sheet at a time.

✔

Be sure the documents are not folded or curled when they are fed.

✔

Touch [Orig. Ö Copy].

Touch [Thin Orig.]

to 50

Select the desired settings for functions that can be used with singlesheet feeding (such as the zoom ratio and the number of copies). For more details, refer to “6 Basic Operations” and “7 Advanced Operations”.

Continue with steps 2 through 4 of “Single-Sheet Feeding (Standard Paper/Thick Paper)” on page 5-7.

Konica 7915/7920 5-9

Page 88

Original Documents

5.3 Positioning the Document on the Original Glass

The method for positioning the document differs depending on the type of document being copied, therefore be sure the document is positioned correctly. For information on using the duplexing document feeder, refer to page 5-4.

✎

Note

Lift open the original cover, or the duplexing document feeder if it is installed, 15° or more, otherwise the document size will not be detected and the correct paper size or zoom ratio may not be selected automatically.

15°

5-10 Konica 7915/7920

Page 89

Original Documents

A3Wide

Manual Feeding (Sheet Documents)

To make copies using manual feeding (sheet documents)

Lift open the original cover, or the duplexing document feeder if it is installed.

Position the document face down onto the original glass.

Does the object that is placed on

the original glass exceed the maximum weight allowable?

Do not place a document heavier

➜

than 2 kg on the original glass.

Align the corner of the document with the arrow marks on the document scales above and to the left of the original glass.

Close the original cover, or the duplexing document feeder if it is installed.

Select the desired settings.

Do you need more information about the settings?

Refer to “6 Basic Operations” and “7 Advanced Operations”.

➜

Press the [Start] key to copy the document.

Konica 7915/7920 5-11

Page 90

A3Wide

Original Documents

Manual Feeding (Transparent or Translucent Documents)

To make copies using manual feeding (transparent or translucent documents)

When copying a transparent or translucent document, such as overhead transparencies, tracing paper or diazo photosensitive paper, position it as described below.

Lift open the original cover, or the duplexing document feeder if it is installed.

Position the document face down onto the original glass.

Align the corner of the document with the arrow marks on the document scales above and to the left of the original glass.

Place a blank sheet of paper of the same size as the document over the document.

Close the original cover, or the duplexing document feeder if it is installed.

5-12 Konica 7915/7920

Page 91

Original Documents

Select the desired settings.

Do you need more information about the settings?

Refer to “6 Basic Operations” and “7 Advanced Operations”.

➜

Press the [Start] key to copy the document.

Manual Feeding (Books)

✎

Note

Do not place objects weighing more than 2 kg on the original glass. In addition, do not press down extremely hard on the document. Apply-

ing a strong force to the original glass may damage it.

To make copies using manual feeding (books)

When copying a document spread over two facing pages, such as in a book or magazine, position it as described below.

Lift open the original cover, or the duplexing document feeder if it is installed.

Position the book face down onto the original glass, with the top of the book toward the rear of the copier and with the centre of the book aligned with the book mark ( ) on the document scale.

Close the original cover, or the duplexing document feeder if it is installed.

Is a thick book or object being copied?

Make the copy without closing the original cover or duplexing doc-

➜

ument feeder.

Konica 7915/7920 5-13

Page 92

A3Wide

Original Documents

Is the document being scanned without closing the original cover

or duplexing document feeder?

Do not look directly at the bright light that may shine through the

➜

original glass. Although the light that shines through the glass is bright, it is not a laser beam and, therefore, is not as dangerous.

Select the desired settings.

Do you need more information about the settings?

Refer to “6 Basic Operations” and “7 Advanced Operations”.

➜

Press the [Start] key to copy the document.

Manual Feeding (“A3Wide” Paper)

✎

Note

Do not place objects weighing more than 2 kg on the original glass. In addition, do not press down extremely hard on the document. Applying a strong force to the original glass may damage it.

To make copies using manual feeding (“A3Wide” paper)

When copying A3-size documents onto “A3Wide” paper, position the document as described below.

Lift open the original cover, or the duplexing document feeder if it is installed.

Position the document face down onto the original glass, aligning it with the “A3Wide” mark on the top docu- ment width scale as shown in the illustration.

Close the original cover, or the duplexing document feeder if it is installed.

5-14 Konica 7915/7920

Page 93

Original Documents

Select the desired settings.

Do you need more information about the settings?

Refer to “6 Basic Operations” and “7 Advanced Operations”.

➜

Press the [Start] key to copy the document.

Konica 7915/7920 5-15

Page 94

Original Documents

5-16 Konica 7915/7920

Page 95

Basic Operations

6 Basic Operations

6.1 Making Copies

The following procedure describes how to insert the document and make a basic copy of it.

To copy a document (To make a basic copy)

The default settings (specified during manufacturing of the copier) of the Basic screen are: the “Full Color” copy mode selected, Original Image Type set to “Text&Photo”, Zoom set to “×1.000”, Paper set to “Auto Paper”, and the number of copies set to “1”.

Press the [Copy] key to enter Copy mode.

Position the document(s) to be copied. (Refer to page 5-1 for more details.)

Konica 7915/7920 6-1

Page 96

Select the desired color mode (Auto Color, Full Color, or Black). (Refer to page 3-20 for more details.)

Make sure that the Basic screen is displayed.

Basic Operations

Specify any other necessary settings.

Paper (Refer to page 6-4 for more details.)

❍

Zoom (Refer to page 6-14 for more details.)

❍

Original Image Type (Refer to page 6-18 for more details.)

❍

Density (Refer to page 6-20 for more details.)

❍

Using the keypad, enter the number of copies you wish to make.

Does the wrong number of cop-

ies appear?

Press the [C] (clear) key, and

➜

then enter the correct number of copies.

The number of copies can only

➜

be set to a number between 1 and 100.

6-2 Konica 7915/7920

Page 97

Basic Operations

Press the [Start] key. The set number of copies are made.

➜

✎

Note

During the process of successive copying jobs, the machine may stop printing temporarily to maintain the copy quality.

Do you wish to stop copying before the set number of copies are made?

Press the [Stop] key.

Konica 7915/7920 6-3

Page 98

6.2 Selecting the Paper Source

Before making a copy, the tray or drawer containing the paper that will be used must be selected. Either the paper source is selected automatically when the size of the document is detected, or the desired paper source can be selected manually.

Auto Paper:

If “Auto Paper” is selected, the tray or drawer containing the most suit- able size of paper is selected based on the size of the document and the specified Zoom setting.

Manual paper selection:

The tray or drawer containing the paper that you wish to use can be selected.

To select the paper source before copying

Position the document(s) to be copied. (Refer to page 5-1 for more details.)

Select the desired color mode. (Refer to page 3-20 for more details.)

Make sure that the Basic screen is displayed, and then touch [Paper].

A screen that allows you to select the paper source appears.

Basic Operations

Select the tray or drawer containing the paper that you wish to use.

Specify any other necessary settings.

Zoom (Refer to page 6-14 for more details.)

❍

Original Image Type (Refer to page 6-18 for more details.)

❍

Density (Refer to page 6-20 for more details.)

❍

Using the keypad, enter the number of copies you wish to make, and then press the [Start] key.

6-4 Konica 7915/7920

Page 99

Basic Operations

6.3 Making Copies on Paper Loaded into the 1st Drawer (Multipurpose Paper Drawer)

When making continuous copies onto special paper, such as overhead projector transparencies, postcards or thick paper, whether a standard or non-standard size, load the paper into the 1st drawer (the multipurpose paper drawer).

Sizes and types of paper that can be used:

Automatically detected paper sizes:

A6L, B6L, A5L, A5C, B5L, B5C, A4L, A4C, A3L, FLS L, 4 × 6, A3Wide (311 mm × 457 mm)

Manually set paper sizes:

5-1/2 × 8-1/2L, 5-1/2 × 8-1/2C, ExecutiveL, ExecutiveC, LetterL, LetterC, LegalL, 11 × 14L, 11 × 17L, B4L, A6 Card Refer to the section “To set the “1st Drawer Paper Select” parameter” on page 8-18 for more details.

Selectable paper sizes

Width: 90 to 311 mm Length: 140 to 457 mm Refer to the section “To set the “1st Drawer Paper Select” parameter” on page 8-18 for more details.

Paper types:

Standard paper (thickness: 64 to 90 g/m Thick paper 1 (thickness: 91 to 163 g/m Overhead projector transparencies Second side of a double-sided copy on standard paper Second side of a double-sided copy on thick paper 1

)

Konica 7915/7920 6-5

Page 100

Basic Operations

To copy a document

Position the document(s) to be copied. (Refer to page 5-1 for more details.)

Turn the media type selection dial on the 1st drawer to the setting for the type of paper loaded. (Refer to page 4-6 for more details.)

Select the desired color mode. (Refer to page 3-20 for more details.)

Make sure that the Basic screen is displayed, and then touch [Paper]. A screen that allows you to select the paper source appears.

Select the 1st drawer. (In the example screen shown at the right, overhead projector transparencies have been loaded into the 1st drawer.)

Specify any other necessary settings.

Zoom (Refer to page 6-14 for more details.)

❍

Original Image Type (Refer to page 6-18 for more details.)

❍

Density (Refer to page 6-20 for more details.)

❍

Using the keypad, enter the number of copies you wish to make, and then press the [Start] key.

6-6 Konica 7915/7920
