Konica Minolta 1350W User Manual

www.konicaminolta.com/printer

PagePro 1350W

Technical guide

Sales
Guide

Trademark Statement

All rights reserved. Specifications are subject to change without notice. The Konica Minolta logos, used
trademarks, are trademarks or registered trademarks of Konica Minolta Holdings, Inc. All other trademarks or
registered trademarks are the property of their respective owners or manufacturers.

Version 1.0 - November 2004
© 2004 Konica Minolta Holdings, Inc.

2

Contents

Introduction 4
Specs at a glance 5
Engine

Duty cycle
Print speeds
First page out time
Physical dimensions
Operating environment conditions

Controller

Printer memory
Host computer requirements

Paper handling

Print media
Non-printable regions
Supported media sizes
Paper path

Printer control

Printer driver
Status Display
Printer control panel
Cancel button

Consumables

Toner cartridge
OPC drum cartridge

On-line support 23
Information 24

6

6
6
6
7
7

9

9
9

10

10
10
11
12

13

13
14
15
15

16

16
16

3

Introduction

The PagePro™ 1350W is a simple­to-use, low-cost, reliable printing
solution for users needing to print
professional business documents
efficiently.

The PagePro 1350W is a compact yet very fast personal laser printer.
At 20 pages per minute, this printer rivals the speed and print quality of
much larger laser printers that customers may have used in the past.
Most printers of comparable size to the PagePro 1350W cannot match
its speed.

KONICA MINOLTA has designed the PagePro 1350W to be extremely
easy to use. It functions seamlessly with computers running Windows
XP, 2000, Me, and 98SE. It includes all drivers and utilities necessary
for installing and operating the printer in any small or medium-sized
office, including home offices. Maintaining the PagePro 1350W is
simple and straightforward. The toner cartridge and photoconductive
drum (OPC) are separately replaceable for more economic use.

This Technical Guide is intended for use by KONICA MINOLTA sales
personnel and our reseller partners. It includes complete information
about the PagePro 1350W and provides helpful data that can help
sales personnel explain the features of the printer to customers

4

Specs at a glance

An overview of the PagePro 1350W
printer features

Print method Electrophotographic monochrome laser Processor Naltec N-1 Paper size Up to A4 Print speed Up to 20 pages per minute Paper input 150 sheet multipurpose tray Paper output 100 sheet face-down tray Print resolution True 1200x1200 dpi Memory 8 MB on controller board Interfaces  Bidirectional IEEE 1284 parallel

First page out 13 seconds or less
Print media types Plain paper, thick stock, OHP

Duty cycle Up to 15,000 prints per month
Software utilities Printer drivers for Windows XP, 2000, ME

Warranty One year swap service (local law applies)
Special features  Midnight mode for silent printing

The PagePro 1350W is based on the Minolta NC-L701L laser printer
engine. The engine features selectable resolutions of 600 x 600, 1200 x
600, and 1200 x 1200 dpi. (At 1200 x 1200 dpi, the print speed reduces
by approximately half.)

 USB 1.1

transparencies, laser-quality labels,
envelopes

and 98SE

 Hooks for convenient cable leading
 Paper trays fixable in different

positions

5

Engine

Excellent print quality and durability
are hallmarks of the PagePro
1350W print engine.

Duty cycle

The PagePro 1350W produces high
quality prints like the one above at
full speed in both 600 dpi and 1200
x 600 dpi resolutions. Get 1200 x
1200 dpi resolution prints at 8 ppm.

The PagePro 1350W is based on the Minolta NC-L701L laser printer
engine. The engine features selectable resolutions of 600 x 600, 1200 x
600, and 1200 x 1200 dpi. (At 1200 x 1200 dpi, the print speed reduces
by approximately half.)

15,000 prints (A4 size) per month maximum.

Print speeds by page size and resolution

Page size* 600x600 dpi

1200x600 dpi Letter 16 ppm 8 ppm Legal 12 ppm 6 ppm A4 16 ppm 8 ppm A5 16 ppm 8 ppm B5 16 ppm 8 ppm

* Normal paper

Note: print speeds for 1200x600 dpi are the same as 600x600 dpi

1200x1200 dpi

First page out times

Page size* Letter 13 seconds 22 seconds Legal 14 seconds 24 seconds A4 13 seconds 22 seconds A5 13 seconds 22 seconds B5 13 seconds 22 seconds

* Normal paper

Note: First page out time for 1200x600 dpi is the same as 600x600 dpi

600x600 dpi

1200x600 dpi

1200x1200 dpi

6

Physical dimensions

Packaging
Width Depth Height
496 mm (19.5”) 396 mm (15.6”) 393 mm (15.5”)

Printer (multipurpose tray extended)
Width Depth Height

386.8 mm (15.2”) 405 mm (15.9”) 348 mm (13.7”)
Weight

Shipping 9.3 kg (20.5 lbs)
Printer w/ consumables 7.8 kg (17.2 lbs)
Printer w/o consumables 7 kg (15.4 lbs)

Operating environment conditions

Power supply 100/120VAC, 50/60 Hz Power consumption

Temperature (operating) 10° -35° C (50°-95° F) Humidity (operating) 15 - 85% RH Noise

• 900W maximum

• 400W or less (printing)

• 15W (Energy Saver)

• 54 dB (printing)

• 52 dB (Midnight Mode)

• 35 dB (standby)

Use the Status Display to enable “Midnight Mode” quieter printing for all
times or selected times during the day:

7

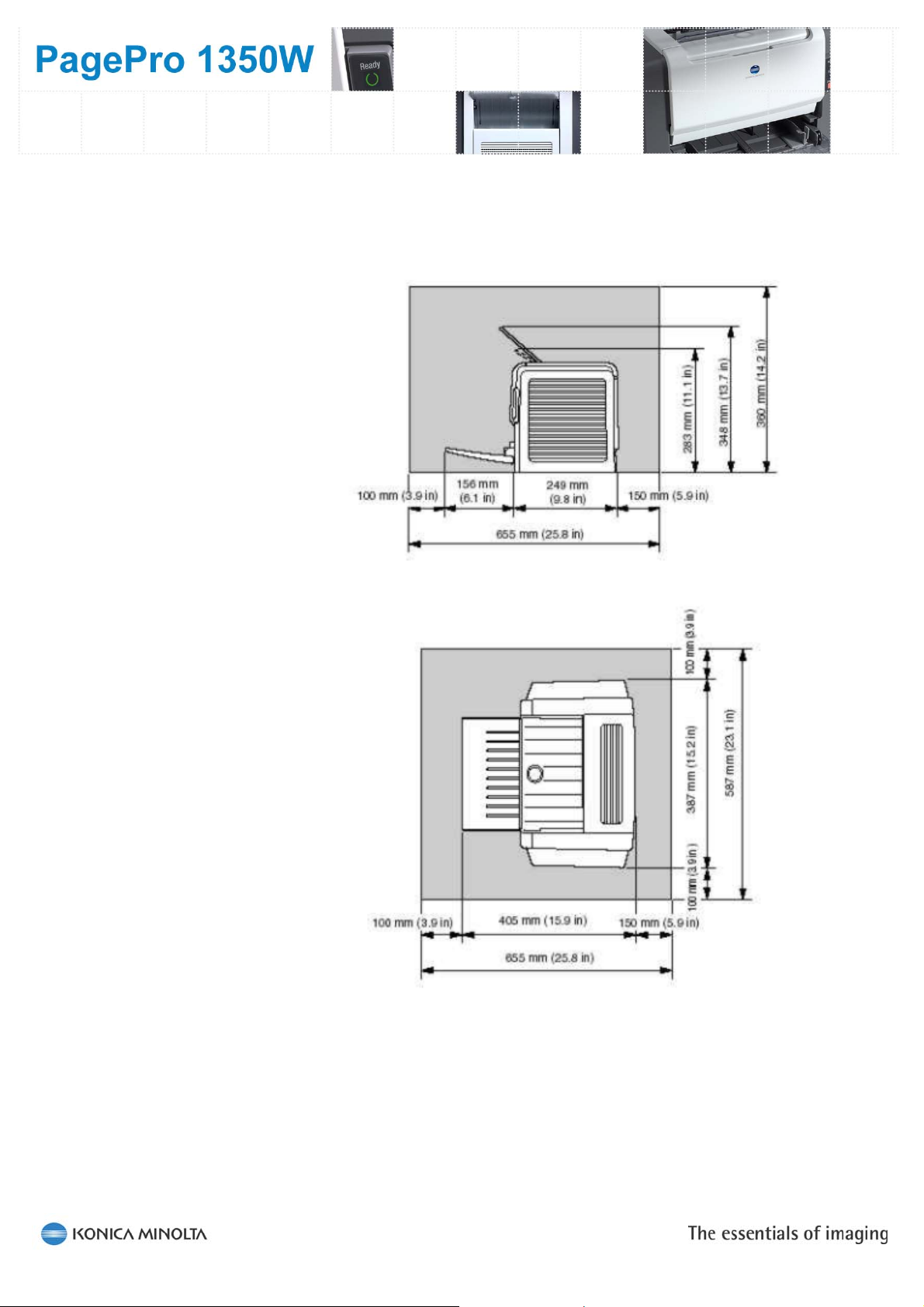

Clearance dimensions
(side view)

Clearance dimensions
(top view)

8

Controller

The PagePro 1350W uses the
power of the Windows operating
system to deliver great performance
for less cost.

The PagePro 1350W supports the Graphical Display Interface (GDI) for
Windows and, as such, utilizes the power of the host computer’s Pentium­class CPU for processing documents prior to printing. The printer’s
controller features a Naltec N-1 ASIC for imaging the document.

Printer memory

The PagePro 1350W includes 8 MB of RAM on the controller. This
memory is sufficient for printing all supported page sizes at all supported
resolutions. There is no need for installing additional memory in the
printer. Increasing memory of the host computer may improve
transmission speed and overall performance of the printer.

Host computer requirements

PC Hardware 300 MHz Pentium-class CPU Operating System

PC memory

Hard disk space 36 MB or more CD-ROM For installation of drivers and utilities Interface USB 1.1

• Windows XP

• Windows 2000

• Windows ME

• Windows 98 SE

• 128 MB (XP)

• 64 MB (2000)

• 32 MB (ME)

• 16 MB (98 SE)

IEEE 1284 parallel
(ECP, Nibble, or compatible)

9

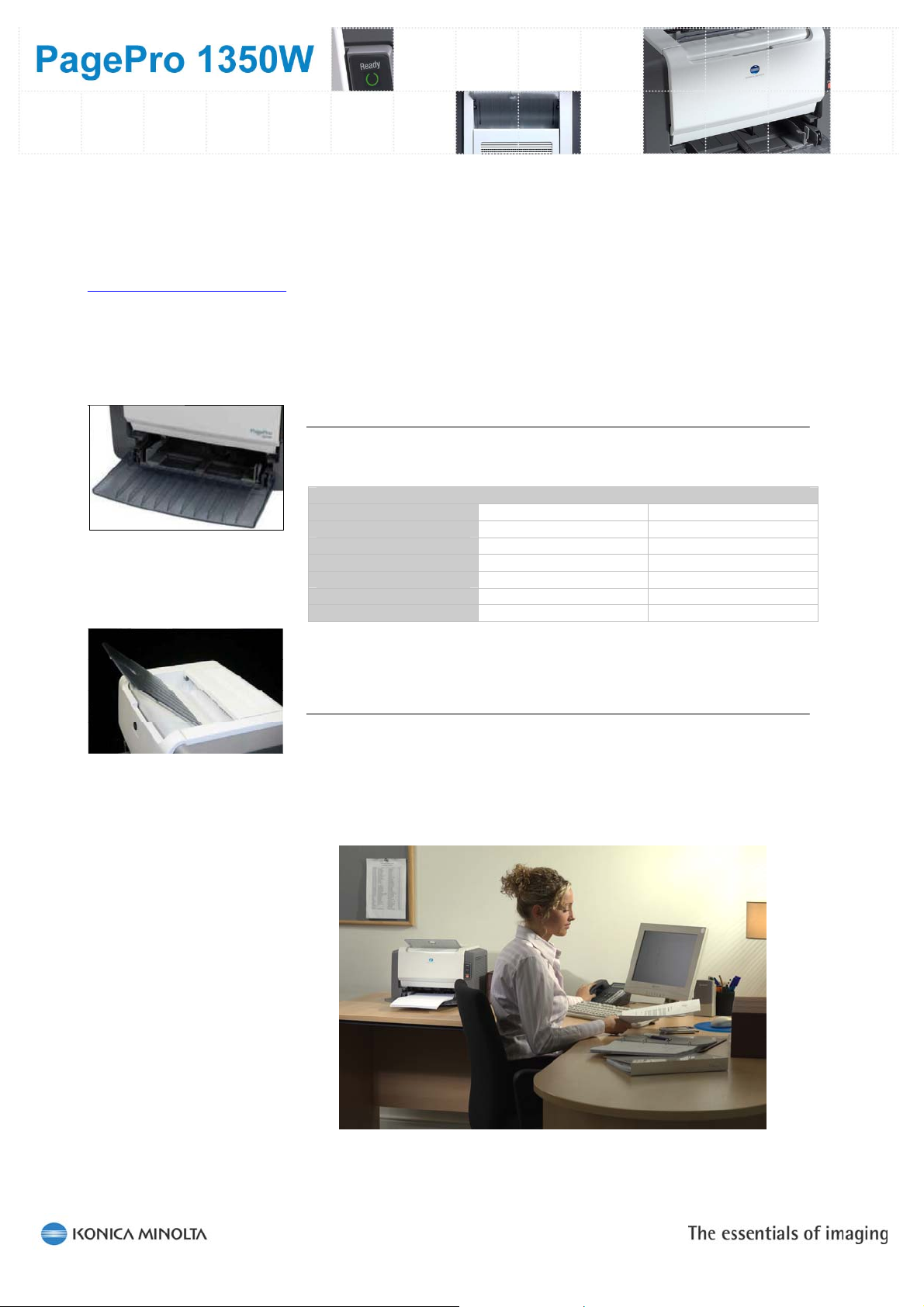

Paper handling

The PagePro 1350W supports a
wide range of paper sizes to meet
the needs of busy offices.

The multipurpose tray holds up to
150 sheets of paper.

The output tray must be fully
extended for proper stacking and full
100-sheet capacity.

The PagePro 1350W includes a 150-sheet multipurpose tray for paper
and other print media. The tray accommodates all supported page sizes
up to 216 mm x 356 mm.

Print media

The PagePro 1350W supports a range of print media to handle a variety
of applications.

Supported media Normal paper 60 – 90 gsm 16 – 24 lb Recycled paper 60 – 90 gsm 16 – 24 lb OHP transparency * * Envelopes * * Letterhead 60 – 90 gsm 16 – 24 lb Labels (sheet) * * Thick stock 90 – 163 gsm 24 – 90 lb

* Must be certified for laser printer and capable of withstanding fusing temperature
of 205° C (401° F)

Non-printable regions

The PagePro 1350W has a non-printable area of 4mm (0.16") from all
page edges.

10

The PagePro 1350W’s design motto
was “Easy to own, easier to use”.

The table at right refers to
X and Y dimensions of the
media as diagrammed
above.

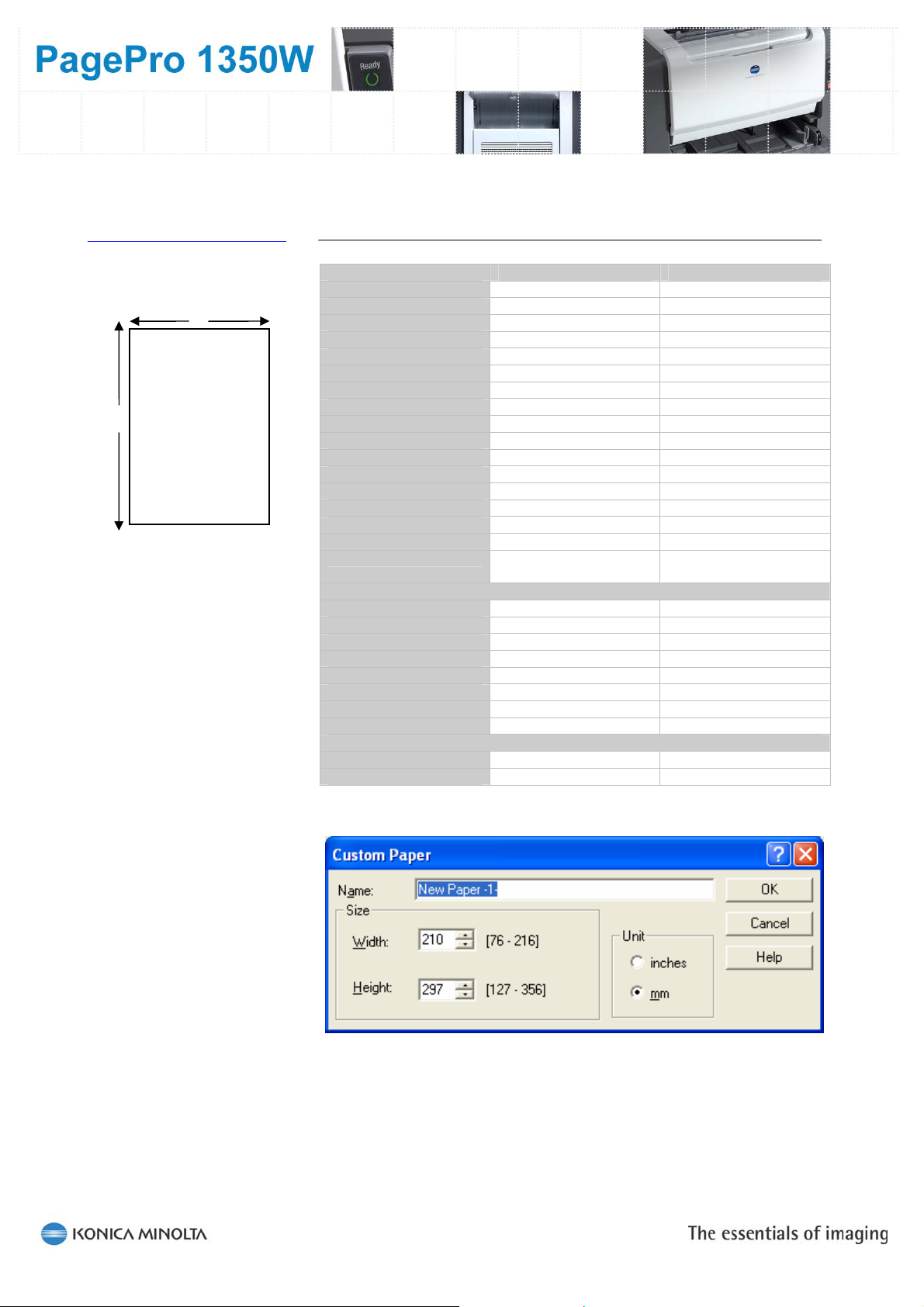

Supported media sizes

Cut sheet x-dimension y-dimension

A4 210 mm 297 mm B5 (JIS) 182 mm 257 mm A5 148 mm 210 mm Legal 8.5” 14” Letter 8.5” 14” G. Letter 8” 10.5” Statement 5.5” 8.5” Executive 7.25” 10.5” Folio 210 mm 330 mm Letter plus 8.5” 12.69” UK Quarto 8” 10” Foolscap 8” 13” G. Legal 8.5” 13” Chinese 16K 185 mm 260 mm Chinese 32K 130 mm 185 mm 16K 195 mm 270 mm Custom 76 mm (min)

216 mm (max)

Envelope

B5 (ISO) 176 mm 250 mm #10 4.125” 9.5” C5 162 mm 229 mm DL 110 mm 220 mm Monarch 3.875” 7.5” C6 114 mm 162 mm Cho #3 120 mm 235 mm Cho #4 90 mm 205 mm

Postcard

Japanese postcard 100 mm 148 mm Double postcard 148 mm 200 mm

127 mm (min)

356 mm (max)

Define custom page sizes from the PagePro

1350W driver

11

The PagePro 1350W
handles both standard
weight and thick stock
through the paper path.

Lift the printer’s rear cover
to remove a paper jam.

Paper path

12

Printer control

The drivers and utilities included with
the PagePro 1350W give the user
complete control of all printer
functions.

The PagePro 1350W offers these convenient tools for printer control
included on a CD-ROM shipped with the printer:

Printer driver

The driver for the PagePro 1350W is very easy to use – see below for
descriptions of each tab.

 Printer drivers for all supported versio n of Windows
 User documentation (PDF format)
 Status Display

The PagePro 1350W features a tabbed layout that conforms to Microsoft
standards making it very simple to understand. Use Easy Set to save
often-used settings for various documents.

13

All paper handling settings are found under the “Paper” tab.

Status Display

The Status Display provides detailed information about the printer
including current levels for consumables and explanations of any errors
that may occur.

The Status Display automatically establishes communication with the
printer whenever the host PC powers on.

14

Select duplex printing for

manually printing on both sides

of the page. Use the Cancel

button as directed.

Printer control panel

The PagePro 1350W has two LEDs that indicate the status of the printer.

Ready Error Printer condition

Off Off Printer power off
On Off Printer ready
On On Initializing (or cancelling

job)

Off On Printer cover open

Blink Blink Communication error

Off Slow blink Paper out Off Blink Paper jam Off Rapid blink Service call required

Rapid blink Rapid blink Paper size error (or

waiting for manual

duplex)

Blink Off Printing

Rapid blink Off Warming up

Slow blink Off Power save

On Slow blink Toner cartridge low On Blink Toner cartridge empty On Rapid blink Incorrect toner cartridge

installed

Cancel button

Press and hold the Cancel button for more than 5 seconds to cancel the
current job. In the event of a paper mismatch error (a paper size
requested by the job is not loaded in the printer) or when manually duplex
printing (using the PagePro 1350W driver), press the Cancel button for
less than 5 seconds after reloading paper in the printer.

15

Consumables

PagePro 1350W consumables are
easy to replace and help keep
printing costs down.

Use the Status Display to check the
current level of toner in the PagePro
1350W. Click on “Order Supplies” to
connect directly to the Q-Shop,
Konica Minolta’s site for purchasing
consumables (Internet connection
must be enabled)

Toner cartridge

The PagePro 1350W includes a starter cartridge that holds eno ugh toner
for an average of 1,500 prints (5% coverage, A4-size, continuous printing).
Two different replacement toner cartridges are available:

OPC drum cartridge

The printer includes one full-capacity OPC cartridge

 Standard capacity (3,000 A4-size pages)
 High capacity (6,000 A4-size pages)

 20,000 pages (5% coverage, A4-size, continuous printing)

16

On-line Support

Konica Minolta provides the
following on-line tools for marketing,
sales, and end-user support:

GLOBAL SITE

Visit

http://printer.konicaminolta.com/

for the latest news, updates and
drivers for the PagePro 1350W,
and information about other
printers.

PRODUCT CONFIGURATOR

To configure your PagePro
1350W to suit your specific
printing requirements, use our
Product Configurator – located
at

http://printer.konicaminoltaeurope.
com/configurator

COMPARISON TOOL

For competitive product
specification overviews and
competitive knock-offs visit our
product comparison tool at

http://printer.konicaminoltaeurop
e.com/comparison

AWARDS SITE

A collection of some of the
many awards our printers have
won is available on:

http://printer.konicaminoltaeurop
e.com/awards

TCO CALCULATOR

Calculate the total cost of
ownership of a printer, based on
your own printing behaviour, at:

http://printer.konicaminoltaeurop
e.com/tco

17

Information

Belgium and Luxemburg

Konica Minolta
Printing Solutions Europe B.V.
Tel: (+32) 2 – 479 64 23
Fax: (+32) 2 – 479 97 42

Denmark

Konica Minolta
Business Solutions Denmark a/s
Tel: (+45) 72 – 21 21 21
Fax: (+45) 72 – 21 21 22

Finland

Renatus OY
Tel: [phone]
Fax: [phone]

France

Konica Minolta
Printing Solutions France S.a.r.l
Tel: [phone]
Fax: [phone]

Germany and Austria

Konica Minolta
Printing Solutions Deutschland
GmbH
Tel: [phone]
Fax: [phone]

Italy

Konica Minolta
Business Solutions Italia S.p.a
Tel: [phone]
Fax: [phone]

Middle East

Konica Minolta
Printing Solutions Europe B.V.
Tel: [phone]
Fax: [phone]

Norway

Konica Minolta
Business Solutions Norway AS
Tel: [phone]
Fax: [phone]

Portugal

Konica Minolta
Business Solutions Portugal Lda
Tel: [phone]
Fax: [phone]

South Africa

Konica Minolta
Printing Solutions Europe B.V.
Tel: (+27) 011 – 249 4000
Fax: (+27) 011 – 249 4039

Spain

Konica Minolta
Business Solutions Spain S.A.
Tel: [phone]
Fax: [phone]

Sweden

Konica Minolta Business Solutions
Nordic AB
Tel: (+46) 8 – 622 51 00
Fax: (+46) 8 – 622 51 24

Switzerland

Konica Minolta Printing Solutions
B.V.
Tel: [phone]
Fax: [phone]

The Netherlands

Konica Minolta Printing Solutions
B.V.
Tel: (+31) 30 – 248 1200
Fax: (+31) 30 – 248 1211

United Kingdom and Ireland

Konica Minolta
Printing Solutions (UK) Ltd.
Tel: (+44) 1784 – 442255
Fax: (+44) 1784 – 461641

For all other countries

Konica Minolta
Printing Solutions Europe B.V.
Tel: (+31) 30 – 248 1200
Fax: (+31) 30 – 248 1211

18
