USER GUIDE

Konftel Cam20

SAFETY PRECAUTIONS

Carefull installation

This product should be placed stable and securely. The product should not come in
contact with any liquid, gas or solid material that may cause corrosion to the shell.

Unauthorized disassembly

This product has no parts which can be repaired by the user. Damage caused by the user’s
own disassembly is not covered by warranty.

Warning!

Electromagnetic fields at specific frequencies may aect the image.

Warning!

Do not expose the Konftel Cam20 to water or moisture.

Warning!

Do not open the casing of the Konftel Cam20.

Konftel AB hereby declares that this conference camera is in conformity with all the
essential requirements and other relevant provisions of Directive 1999/5/EC.

Please visit www.konftel.com to view the complete declaration of conformity.

2

TABLE OF CONTENTS

Packing list 4

Installation 5

Remote control 6-7

Service and Warranty 8

3

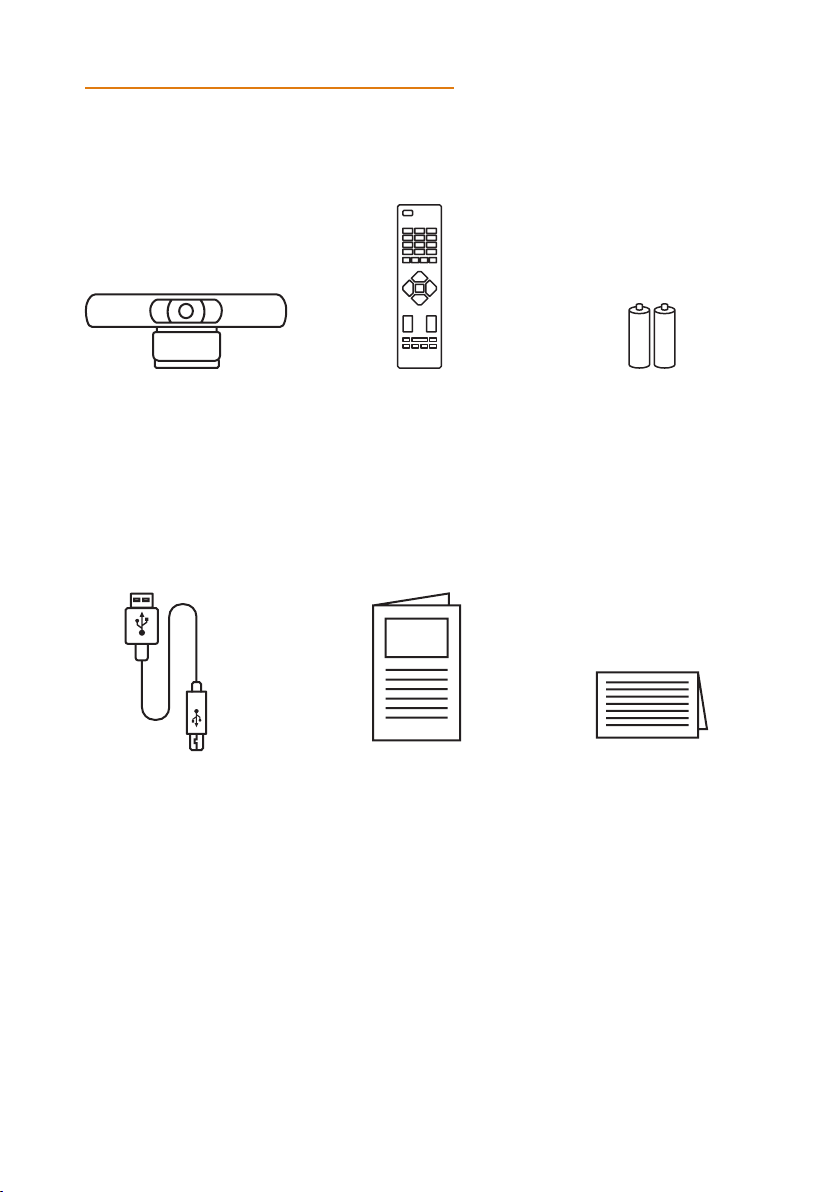

PACKING LIST

Konftel Cam20

5 m USB 2.0 Type-A/Type -B Quick Guide

Remote Control

2x Batteries AAA

Safety declaration

4

INSTALL ATION

Add a second
HDMI screen

USB 3.0HDMI

HDMI cable

(not included)

USB cable

5

1

CAMERA SELECT

2 3 4

STD REV

PRESET

RESET

1

CAMERA SELECT

2 3 4

STD REV

PRESET

RESET

REMOTE CONTROL

1

CAMERA SELECT

1

2 3 4

STD REV

10

2

CAMERA SELECT

1

2 3 4

STD REV

3

4

5

6

7

8

9

PRESET

PRESET

RESET

RESET

11

12

13

14

15

16

17

6

REMOTE CONTROL

No. Name Function Description

1 Standby Button Enter into standby mode (not supported)

2 Position Buttons To set preset or call preset

3 * Button Used with other buttons

4 Set Preset Button

5 Pan-Tilt Control Button Press [HOME] back to the middle position.

6 Back Button Press to return to previous

7 Zoom Buttons

8 Set Pan Left/Right

9 Focus Buttons

10 Camera Select Buttons

11 # Button Used with other buttons

Set Camera IR

12

Address Buttons

Store a preset position.
[PRESET] + Numeric button (0-9):
Setting a corresponding numeric key preset position.

Slow Zoom: Zoom In [+] or Zoom Out [-] slowly
Fast Zoom: Zoom In [+] or Zoom Out [-] fast

Setting the direction of the pan.

• Simultaneously press [L/R SET] + 1 [STD]: set the pan turn the same
direction as the L/R Set.

• Simultaneously press [L/R SET] + 2 [REV]: set the pan turn the opposite
direction as the L/R Set.

Used for focus adjustment.
Press [AUTO] to adjust the focuses on the center of the object
automatically.
Press [MANUAL] to adjust the focus on the center of the object manually.
Adjust it with [FAR] (Focus on far object) and [NEAR] (Focus on near
object).

Press the button corresponding to the camera you want to operate with the
remote controller.

[*]+[#]+[F1]: Address 1
[*]+[#]+[F2]: Address 2
[*]+[#]+[F3]: Address 3
[*]+[#]+[F4]: Address 4

13 Clear Preset Buttons

14 Pan/Tilt Control Buttons

15 Menu Button Press [MENU] to enter or exit menu.

BLC (Backlight

16

Compensation)
ON/OFF Button

17 PTZ Reset Button Not supported

Clear preset: Erase a preset position.
[RESET] + Numeric button (0-9)

Press arrow buttons to perform panning and tilting.
Press [HOME] button to return to original position.

Press [BLC ON/OFF] to enable the backlight compensation. Press it again
to disable the backlight compensation.
NOTE:

• Eective only in auto exposure mode.

• If a light is behind the subject, the subject will become dark. In this case,
press the [BACKLIGHT ON/OFF] button. To cancel this function,
press [BACKLIGHT ON/OFF] button.

7

SERVICE AND WARRANT Y

Warranty

We give a two-year warranty on our conference devices.

Service

Service is oered after the expiration of the warranty. Please contact your reseller and
ask for a cost estimate.

Konftel support

If you have any questions about the warranty and service, please contact your Konftel
support centre.

Europe:

[phone] (Monday-Friday 8.00 AM-5.00 PM GMT-1)

[phone] (Monday–Friday 8.00–17.00 GMT+1)

E-mail: [e-mail]

Website: www.konftel.com/contact-support

USA and Canada:

[phone] (Monday–Friday 08.00–17.00 GMT-8)

E-mail: [e-mail]

Website: www.konftel.com/contact-support
