KOMPERNASS LHL 2000 B1 User manual [it]

TERMOVENTILATOR LHL 2000 B1
TERMOVENTILATOR
TERMOVENTILADOR
Manual de instruções
FAN HEATER
Operating instructions
IAN 100108
HEIZLÜFTER
Bedienungsanleitung
Prima di leggere aprire la pagina con le immagini e prendere confi denza con le diverse funzioni dell’apparecchio.
Antes de começar a ler abra na página com as imagens e, de seguida, familiarize-se com todas as funções do aparelho.
Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.
Klappen Sie vor dem Lesen die Seite mit den Abbildungen aus und machen Sie sich anschließend mit allen Funktionen des Gerätes vertraut.
IT / MT Istruzioni per l‘uso Pagina 1 PT Manual de instruções Página 13 GB / MT Operating instructions Page 25 DE / AT / CH Bedienungsanleitung Seite 37
Indice
Introduzione . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Informazioni sul presente manuale di istruzioni . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Diritto d'autore . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Limitazione di responsabilità . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Avvertenze . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Uso conforme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Sicurezza . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Avvertenze di sicurezza di base . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Messa in funzione . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Volume della fornitura e ispezione per eventuali danni da trasporto . . . . . . . . . . . . . . . . . 6
Smaltimento della confezione . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Requisiti del luogo di installazione . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Prima della prima messa in funzione . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Connessione elettrica . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Elementi di comando. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Comandi e funzionamento . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Interruttore di esercizio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Regolatore della temperatura . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Funzionamento ventilatore . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Funzionamento di riscaldamento . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Impostare la temperatura . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Protezione dal surriscaldamento . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Bloccaggio antirovesciamento . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Pulizia . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Conservazione . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Smaltimento . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Eliminazione dei guasti . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Cause ed eliminazione dei guasti . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Appendice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Dati tecnici . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Indicazioni sulla dichiarazione di conformità CE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Assistenza . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Importatore . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
IT
MT
LHL 2000 B1
1
IT
MT
Introduzione
Informazioni sul presente manuale di istruzioni
Congratulazioni per l'acquisto del nuovo apparecchio. È stato acquistato un prodotto di alta qualità. Il manuale di istruzioni è parte
integrante del presente prodotto. Esso contiene importanti indicazioni per la sicurezza, l'uso e lo smaltimento. Prima di utilizzare il prodotto, familiarizzarsi con tutte le indicazioni relative ai comandi e alla sicurezza. Utilizzare l'apparecchio solo come descritto e per i campi d'impiego indicati. In caso di cessione del prodotto a terzi, consegnare anche tutta la documentazione relativa.
Diritto d'autore
La presente documentazione è tutelata dal diritto d'autore. Qualsiasi riproduzione o ristampa, anche parziale, ovvero la riproduzione delle
immagini, anche se modifi cate, è consentita solo previo permesso scritto del produttore.
Limitazione di responsabilità
Tutte le informazioni tecniche contenute nel presente manuale di istruzioni, così come tutti i dati e le indicazioni relativi al collegamento e all'uso, corrispondono alle ultime informazioni disponibili al momento dell'invio in stampa, fornite in buona fede tenendo conto delle nostre attuali esperienze e conoscenze.
I dati, le illustrazioni e le descrizioni contenute nel presente manuale di istruzioni non costituiscono una base valida per alcun tipo di rivendicazione.
Il produttore declina ogni responsabilità per i danni derivanti dalla mancata osservanza delle istruzioni, dall'uso non conforme, dalle riparazioni non eseguite in modo professionale, dalle modifi che eseguite senza permesso o dall'impiego di pezzi di ricambio non omologati.
2
LHL 2000 B1
Avvertenze
Nel presente manuale di istruzioni vengono utilizzate le seguenti avvertenze:
PERICOLO
Un'avvertenza contrassegnata da questo livello di pericolo indica una situazione pericolosa.
Qualora non si eviti tale situazione pericolosa, essa può dare luogo a decesso o a gravi lesioni.
Seguire le avvertenze contenute in questo elenco per evitare il pericolo
di morte o gravi lesioni personali.
AVVERTENZA
Un avvertimento appartenente a questo livello di pericolo indica una situazione potenzialmente pericolosa.
Qualora sia impossibile evitare tale situazione pericolosa, essa può dare luogo a lesioni.
Seguire le istruzioni contenute in questa avvertenza per evitare lesioni
personali.
ATTENZIONE
Un'avvertenza contrassegnata da questo livello di pericolo indica la possibilità di riportare danni materiali.
Qualora sia impossibile evitare tale situazione pericolosa, essa può dare luogo a danni materiali.
Seguire le indicazioni di questa avvertenza per evitare danni materiali.
IT
MT
LHL 2000 B1
NOTA
Una nota contrassegna ulteriori informazioni volte a facilitare l'uso
dell'apparecchio.
3
IT
MT
Uso conforme
Questo apparecchio è idoneo unicamente a riscaldare ambienti chiusi ed è destinato solo all'uso privato. L'apparecchio non è destinato all'uso in ambienti nei quali vi sono particolari condizioni, come ad esempio atmosfera corrosiva o esplosiva (polvere, vapore o gas). Non utilizzare l'apparecchio all'aperto. Un uso diverso o esulante da quanto sopra è considerato non conforme.
AVVERTENZA
Pericolo derivante da uso non conforme!
In caso di uso non conforme o diverso da quello previsto, possono verifi carsi situazioni di pericolo.
L'apparecchio deve essere impiegato esclusivamente per l'uso previsto.Attenersi alle procedure descritte nel presente manuale di istruzioni.
Sono escluse le rivendicazioni di qualsiasi genere in caso di danni derivanti da uso non conforme. Il rischio è esclusivamente a carico dell'utente.
Sicurezza
In questo capitolo sono riportate importanti indicazioni di sicurezza per l'uso dell'apparecchio.
Questo apparecchio corrisponde alle disposizioni di sicurezza prescritte. L'uso non conforme può comportare danni a persone e a cose.
Non coprire l'apparecchio!
Se l'apparecchio viene coperto può surriscaldarsi e dare luogo a un incendio!
Avvertenze di sicurezza di base
Per l'uso sicuro dell'apparecchio, rispettare le seguenti avver­tenze di sicurezza:
Controllare l'apparecchio prima dell'uso per rilevare even-
tuali danni visibili. Non mettere in funzione un apparecchio danneggiato o caduto.
In caso di danni al cavo di collegamento dell'apparecchio,
farlo sostituire dal produttore o dal servizio di assistenza clienti o da personale altrettanto qualifi cato per evitare peri­coli.
4
LHL 2000 B1
Questo apparecchio può essere utilizzato dai bambini a
partire dall’età di 8 anni e da persone con capacità fi siche, sensoriali o mentali ridotte ovvero prive di esperienze e/o conoscenze in merito qualora siano sorvegliati o siano stati adeguatamente istruiti sull’uso sicuro dell’apparecchio e ne abbiano compreso i relativi rischi. I bambini non devono gio­care con l’apparecchio. La pulizia e la manutenzione a cura dell’utente non devono essere eseguiti dai bambini se non sorvegliati.
Fare eseguire le riparazioni solo da aziende specializzate
o dall'assistenza ai clienti. Le riparazioni eff ettuate in modo non conforme possono causare gravi pericoli per l'utente. Inoltre la garanzia decade.
I componenti guasti devono essere sostituiti esclusivamente
da pezzi di ricambio originali. Solo con questi pezzi di ricam­bio è garantita la conformità ai requisiti di sicurezza.
Proteggere l'apparecchio dall'umidità e dalla penetrazione
di liquidi.
Tirare sempre dalla spina e mai dal cavo per disconnettere
dalla presa di rete.
Non utilizzare l'apparecchio nelle vicinanze di fi amme libere.
Non collocare l'apparecchio direttamente sotto o sopra una
presa a parete.
In caso di comparsa di guasti e in presenza di un temporale,
scollegare la spina dalla presa.
Non utilizzare l'apparecchio nelle immediate vicinanze di
una vasca, di una doccia o di una piscina.
Non collocare l'apparecchio in modo che l'interruttore o
altri dispositivi di regolazione possano essere toccati da una persona che si trova nella vasca o sotto la doccia.
Non esporre l'apparecchio a spruzzi o gocce d'acqua e non
collocare sull'apparecchio o accanto a esso vasi o bevande aperte.
IT
MT
LHL 2000 B1
5
IT
MT
Messa in funzione
Volume della fornitura e ispezione per eventuali danni da trasporto
La fornitura standard dell'apparecchio comprende i seguenti componenti:
TermoventilatoreLe presenti istruzioni per l'uso
AVVERTENZA
Controllare se la fornitura è integra e se presenta danni visibili.
► ► In caso di fornitura incompleta o in presenza di danni da trasporto o da
imballaggio insuffi ciente, rivolgersi alla hotline di assistenza (v. il capitolo Assistenza).
Smaltimento della confezione
L'imballaggio protegge l'apparecchio dai danni da trasporto. I materiali di imballaggio sono stati selezionati in relazione alla loro ecocompatibilità e alle caratteristiche di smaltimento e pertanto sono riciclabili.
Il riciclo dell'imballaggio consente di risparmiare materie prime e riduce la genera­zione di rifi uti. Smaltire il materiale di imballaggio inutilizzato in conformità alle norme vigenti localmente.
AVVERTENZA
Durante il periodo di validità della garanzia, se possibile, conservare
l'imballaggio originale per poter imballare adeguatamente l'apparecchio in caso di intervento in garanzia.
Requisiti del luogo di installazione
Per l'uso sicuro e privo di guasti dell'apparecchio, il luogo di installazione deve adempiere ai seguenti requisiti:
L'apparecchio deve trovarsi su una superfi cie stabile, piana e orizzontale.
Si devono rispettare distanze minime dall'alloggiamento di 50 cm di lato,
50 cm verso l'alto, 50 cm dietro e 100 cm in avanti.
Non collocare l'apparecchio in un ambiente surriscaldato, bagnato o molto
umido, o nelle vicinanze di materiale infi ammabile.
La presa di rete deve essere facilmente accessibile per consentire la disconnes-
sione immediata del cavo di rete in caso di emergenza.
Intervallo di temperatura ambientale: da 0 a +40°C
Umidità dell'aria (nessuna condensa): 5 - 75 %
6
LHL 2000 B1
PERICOLO
Pericolo di incendio in caso di contatto con materiali! Il contatto dell'apparecchio con materiali infi ammabili può
dare luogo a un incendio!
Non collocare l'apparecchio nelle vicinanze di tende o altri materiali
infi ammabili.
Evitare il contatto dell'apparecchio con materiali infi ammabili (ad es. tessuti).Non coprire mai l'apparecchio!
Prima della prima messa in funzione
Rimuovere tutto il materiale di imballaggio e i blocchi di trasporto dall'apparecchio.
AVVERTENZA
Durante il primo impiego si può verifi care una leggera formazione di
odore. Si tratta di un evento normale e completamente innocuo.
Connessione elettrica
Per un impiego sicuro e privo di guasti dell'apparecchio rispettare le seguenti indicazioni per la connessione alla rete elettrica:
ATTENZIONE
Prima di connettere l'apparecchio, confrontare i dati di connessione
(tensione e frequenza) sulla targhetta dell'apparecchio con quelli della rete
elettrica. Questi dati devono corrispondere, per evitare di arrecare danni
all'apparecchio.
Assicurarsi che il cavo di rete non sia danneggiato e non venga posato
su superfi ci bollenti e/o bordi acuminati.
Assicurarsi che il cavo di rete non sia in tensione o non sia schiacciato.
Inserire la spina elettrica in una presa di corrente.
IT
MT

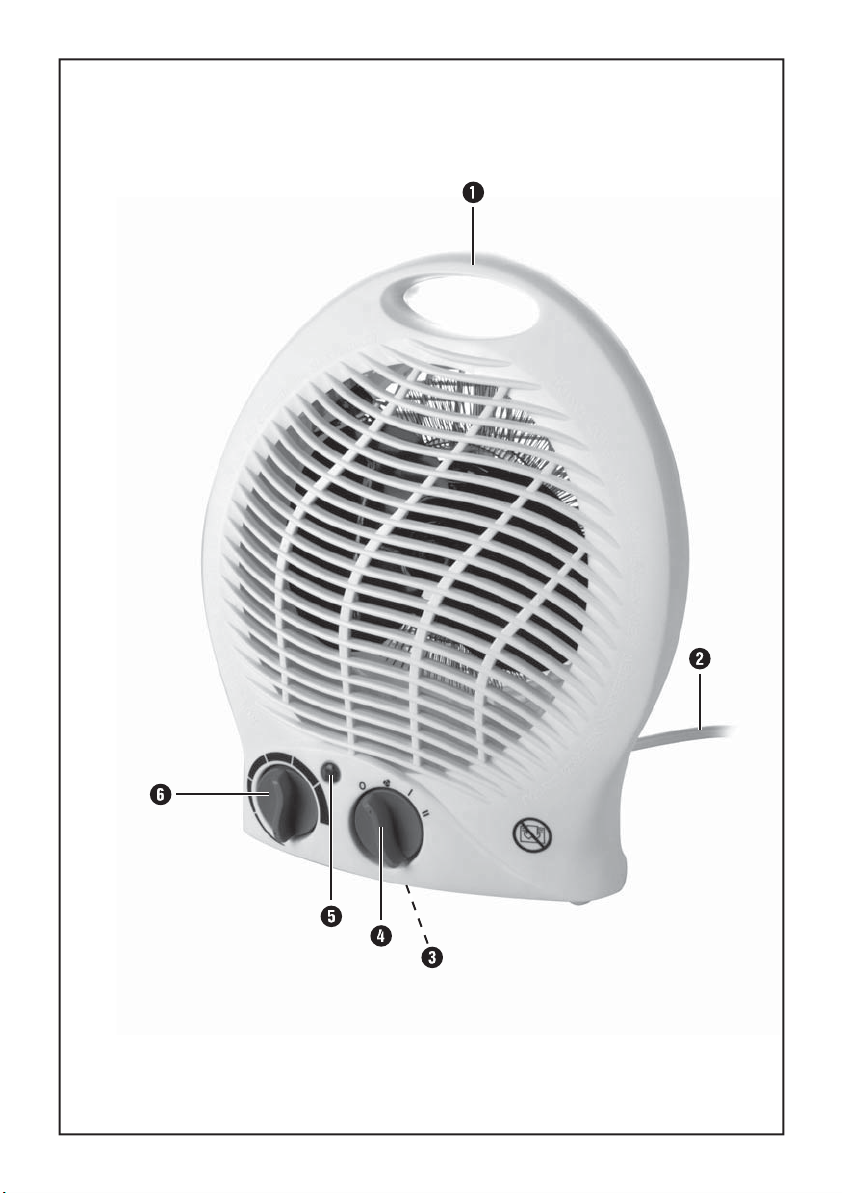

Elementi di comando
Maniglia di trasporto
2
Connessione di rete
3
Interruttore di sicurezza
4
Interruttore di esercizio
5
Spia di esercizio
6
Regolatore della temperatura
LHL 2000 B1
7
IT
MT
Comandi e funzionamento
In questo capitolo sono riportate indicazioni importanti relative ai comandi e al funzionamento dell'apparecchio.
Interruttore di esercizio
L'interruttore di esercizio 4 ha 4 posizioni e accende e spegne il ventilatore e le fasi di riscaldamento.
= apparecchio spento = solo ventilatore = ventilatore e fase di riscaldamento 1 = ventilatore e fase di riscaldamento 2
Regolatore della temperatura
Il regolatore della temperatura 6 è impostabile gradual­mente. Ruotando in senso orario viene impostata una temperatura maggiore, ruotando in senso antiorario viene impostata una temperatura minore.
Funzionamento ventilatore
Assicurarsi che l'interruttore di esercizio 4 si trovi in posizione 0 (off ). ♦ Ruotare completamente il regolatore della temperatura 6 in senso orario
verso destra.
Portare l'interruttore di esercizio 4 nella posizione . ♦ Il ventilatore si avvia e la spia di esercizio si accende 5 con luce rossa.
Funzionamento di riscaldamento
Se l'apparecchio viene messo in funzione per la prima volta o se si desidera
reimpostare la temperatura desiderata, ruotare completamente il regolatore
della temperatura
Impostare con l'interruttore di esercizio 4 la modalità di esercizio deside-
rata (I o II).
8
6
in senso orario verso destra.
LHL 2000 B1
Impostare la temperatura
Ruotare dapprima completamente il regolatore della temperatura 6 in
senso orario verso destra.
Se l'ambiente ha raggiunto la temperatura desiderata, ruotare lentamente il
regolatore della temperatura
un lieve clic: ciò signifi ca che l'elemento di riscaldamento è disattivato.
L'elemento di riscaldamento viene ora attivato e disattivato automaticamente
dal regolatore della temperatura
costante.
6
in senso antiorario fi no a quando si sente
6
e la temperatura viene mantenuta
Protezione dal surriscaldamento
L'apparecchio è dotato di un dispositivo di protezione dal surriscaldamento. Quando l'apparecchio si surriscalda internamente, l'elemento riscaldante si spe­gne automaticamente. Non appena l'apparecchio viene di nuovo raff reddato, l'elemento riscaldante si riaccende automaticamente.
AVVERTENZZA
In genere vi è un motivo per il surriscaldamento! Può signifi care pericolo di incendio!
Controllare se l'apparecchio può scaricare adeguatamente il calore:
L'apparecchio è coperto o se è collocato troppo vicino a una parete o un altro ostacolo? Le griglie sul lato anteriore e sul retro sono libere? Il ventilatore è bloccato?
Eliminare se possibile il problema o rivolgersi al servizio di assistenza
(vedere capitolo Assistenza).
Anche se non riuscite a trovare la causa, ma la protezione contro il
surriscaldamento si attiva di nuovo, è necessario far controllare o riparare l'apparecchio dal servizio clienti.
IT
MT
Bloccaggio antirovesciamento
L'apparecchio è dotato di un interruttore di protezione 3. Se il termoventilatore di sicurezza dovesse rovesciarsi, si spegnerebbe automaticamente. Il termo­ventilatore si riaccende quando si trova in posizione verticale e l'interruttore di protezione 3 è azionato.
LHL 2000 B1
9
IT
MT
Pulizia
AVVERTENZZA
Rispettare le seguenti indicazioni di sicurezza per evitare pericoli e danni materiali:
Pulire l'apparecchio esclusivamente quando è spento e raff reddato.
ATTENZIONE
Possibile danneggiamento dell'apparecchio.
L'infi ltrazione di umidità può provocare danni all'apparecchio.
Assicurarsi che durante la pulizia non penetri umidità nell'apparecchio,
per evitarne l'irreparabile danneggiamento.
Pulire l'alloggiamento esclusivamente con un panno leggermente inumidito e un
detergente delicato.
Rimuovere depositi di polvere sulla griglia di protezione con un aspirapolvere.
Conservazione
Staccare la spina dalla presa se l'apparecchio non viene usato per un lungo
periodo di tempo.
Conservare l'apparecchio in un ambiente asciutto.
Smaltimento
Non smaltire per alcun motivo l'apparecchio assieme ai normali rifi uti domestici. Questo prodotto è soggetto alla Direttiva euro­pea 2012/19/EU-RAEE (Rifi uti da apparecchiature elettriche ed elettroniche).
Smaltire l'apparecchio attraverso un'azienda di smaltimento autorizzata o attra­verso l'ente di smaltimento comunale. Rispettare le norme attualmente in vigore. In caso di dubbi mettersi in contatto con l'ente di smaltimento competente.
Eliminazione dei guasti
In questo capitolo sono riportate importanti informazioni per l'individuazione ed eliminazione dei guasti.
AVVERTENZZA
Rispettare le seguenti indicazioni di sicurezza per evitare pericoli e danni materiali:
Le riparazioni agli apparecchi elettrici devono essere eseguite solo da
personale specializzato addestrato dal produttore. Le riparazioni non eseguite a regola d'arte possono causare gravi pericoli per l'utente e danni all'apparecchio.
10
LHL 2000 B1
Cause ed eliminazione dei guasti
La seguente tabella è di ausilio nella localizzazione ed eliminazione dei guasti minori:
Guasto Possibile causa Rimedio
IT
MT
L'appa­recchio non si accende
L'apparecchio non riscalda.
AVVERTENZA
Se non si riesce a risolvere il problema con le istruzioni precedentemente
riportate, rivolgersi al servizio di assistenza ai clienti.
Appendice
Dati tecnici
Generalità
Tensione di ingresso 220 - 240 V
Frequenza di rete 50 Hz
Classe di protezione
Assorbimento di potenza Livello di riscaldamento 1 Livello di riscaldamento 2 Funzionamento ventilatore
La spina non è stata inserita nella presa di rete.
La presa di rete non ha tensione. Controllare i fusibili domestici.
L'interruttore di esercizio è acceso. Il regolatore della temperatura 6 è nella posizione MIN. Elemento di riscaldamento difettoso.
4
Inserire la spina di rete nella presa di rete.
non
Portare l'interruttore di esercizio 4 nella modalità di esercizio desiderata. Posizionare il regolatore della tempe-
6
ratura Rivolgersi al servizio clienti.
nella posizione MAX
II /
ca. 1000 W ca. 2000 W
ca. 20 W
~
LHL 2000 B1
Umidità (nessuna condensa) da 5 a 75 %
Dimensioni (L x P x A) ca. 22,5 x 25,5 x 13,2 cm
Peso ca. 920 g
11
IT
MT
Indicazioni sulla dichiarazione di conformità CE
Il presente apparecchio corrisponde ai requisiti fondamentali in relazione alla conformità e alle relative prescrizioni della Direttiva basse tensioni 2006/95/EC e della Direttiva per la compatibilità elettromagnetica 2004/108/EC.
La dichiarazione di conformità originale e completa è a disposizione presso l'importatore.
Assistenza
Assistenza Italia
Tel.: 02 36003201 E-Mail: kompernass@lidl.it
IAN 100108
Assistenza Malta
Tel.: 80062230 E-Mail: kompernass@lidl.com.mt
IAN 100108
Raggiungibilità della hotline: dal lunedì al venerdì, dalle 8.00 alle 20.00 (CET)
Importatore
KOMPERNASS HANDELS GMBH BURGSTRASSE 21 44867 BOCHUM GERMANY www.kompernass.com
12
LHL 2000 B1
Índice
Introdução . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Informações acerca deste manual de instruções . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Direitos de autor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Limitação da responsabilidade . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Indicações de aviso . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Utilização correta . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Segurança . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Indicações básicas de segurança . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Colocação em funcionamento . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Material fornecido e inspeção de transporte . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Eliminação da embalagem . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Requisitos em relação ao local de instalação . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Antes da primeira utilização . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Ligação elétrica . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Elementos de comando . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Operação e funcionamento . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Interruptor de funcionamento . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Regulador de temperatura . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Funcionamento do ventilador . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Modo de aquecimento . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Ajustar a temperatura . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Proteção contra sobreaquecimento . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Proteção contra viragem . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Limpeza . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Armazenamento . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Eliminação . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Resolução de avarias . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Causas e resolução de avarias . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Anexo. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Dados técnicos . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Indicações relativamente à declaração de conformidade CE . . . . . . . . . . . . . . . . . . . . . . 24
Assistência Técnica . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Importador . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
PT
LHL 2000 B1
13
PT
Introdução
Informações acerca deste manual de instruções
Parabéns pela compra do seu novo aparelho. Optou por um produto de elevada qualidade. O manual de instruções é parte
integrante deste produto. Este contém indicações importantes para a segurança, utilização e eliminação. Antes de utilizar o produto, familiarize-se com todas as indicações de operação e segurança. Utilize o produto apenas como descrito e nas áreas de aplicação indicadas. Ao entregar o produto a terceiros, entregue também todos os documentos.
Direitos de autor
Esta documentação está protegida por direitos de autor. Qualquer distribuição ou cópia, mesmo que parcial, bem como a reprodução de
imagens, mesmo editadas, apenas podem ser realizadas mediante autorização escrita do fabricante.
Limitação da responsabilidade
Todas as informações técnicas, dados e indicações presentes neste manual de instruções relativas à ligação e operação correspondem ao estado mais recente aquando da altura de impressão e são realizadas tendo em consideração, tanto quanto sabemos, as nossas experiências e conhecimentos até ao momento.
Excluem-se os direitos relativos a dados, ilustrações e descrições presentes neste manual de instruções.
O fabricante não assume qualquer responsabilidade por danos resultantes da inobservância do manual de instruções, de uma utilização incorreta, de repara­ções inadequadas, alterações não autorizadas ou da utilização de peças de reposição não aprovadas.
14
LHL 2000 B1
Indicações de aviso
No presente manual de instruções são utilizadas as seguintes indicações de aviso:
PERIGO
Uma indicação de aviso deste nível de perigo indica uma situação de perigo iminente.
Se a situação de perigo não for evitada, existe perigo de morte ou de ferimentos graves.
Seguir as instruções desta indicação de aviso para evitar o perigo de
morte ou ferimentos graves de pessoas.
AVISO
Uma indicação de aviso deste nível de perigo identifi ca uma possível situação perigosa.
Se esta situação perigosa não for evitada, existe o perigo de ferimentos.
Seguir as instruções desta indicação de aviso para evitar ferimentos
de pessoas.
ATENÇÃO
Uma indicação de aviso deste nível de perigo identifi ca possí­veis danos materiais.
Se esta situação não for evitada, existe o perigo de danos materiais.
Seguir as instruções desta indicação de aviso para evitar danos materiais.
INDICAÇÃO
Uma indicação fornece informações adicionais que facilitam o manusea-
mento do aparelho.
PT
LHL 2000 B1
15
PT
Utilização correta
Este aparelho foi concebido apenas para o aquecimento de espaços fechados e para o uso privado. O aparelho não está previsto para a utilização em espaços, em que existam condições especiais como, por exemplo, uma atmosfera corro­siva ou potencialmente explosiva (pó, vapor ou gás). Não utilize o aparelho ao ar livre. Qualquer utilização para além da descrita é considerada incorreta.
AVISO
Perigo devido à utilização incorreta!
Podem surgir riscos resultantes de uma utilização incorreta e/ou não adequada do aparelho.
O aparelho deve ser utilizado apenas para a fi nalidade descrita.Cumprir os procedimentos descritos neste manual de instruções.
Estão excluídos quaisquer direitos de garantia relativos a danos resultantes de uma utilização incorreta. O risco é unicamente da responsabilidade do proprietário.
Segurança
Este capítulo contém indicações de segurança importantes para o manuseamento do aparelho.
Este aparelho encontra-se em conformidade com as normas de segurança em vigor. Uma utilização incorreta pode provocar danos pessoais e materiais.
Não cobrir o aparelho!
Tapar o aparelho pode causar um sobreaquecimento do mesmo e, assim, ter como consequência um incêndio!
Indicações básicas de segurança
Para um manuseamento seguro do aparelho, respeite as seguintes indicações de segurança:
Antes da utilização, verifi que o aparelho quanto a danos
exteriores visíveis. Não tente colocar em funcionamento um aparelho avariado ou que tenha sido sujeito a uma queda.
Se o cabo de alimentação deste aparelho fi car/estiver
danifi cado, este deve ser substituído pelo fabricante, pelo seu serviço de apoio ao cliente ou outra pessoa igualmente qualifi cada, de modo a evitar perigos.
16
LHL 2000 B1
Este aparelho pode ser utilizado por crianças a partir dos
8 anos e pessoas com capacidades físicas, sensoriais ou men­tais reduzidas ou inexperientes e/ou sem conhecimentos, se o fi zerem com supervisão ou forem instruídas relativamente à utilização segura do aparelho e se tiverem compreendido os perigos daí resultantes. As crianças não podem brincar com o aparelho. A limpeza e a manutenção pelo utilizador não podem ser realizadas por crianças não supervisionadas.
Solicite a reparação do aparelho apenas a empresas auto-
rizadas ou ao serviço de assistência ao cliente. Reparações indevidas podem provocar perigos consideráveis para o utilizador. Além disso, a garantia extingue-se.
Os componentes avariados devem ser substituídos apenas
por peças de reposição originais. Apenas a utilização destas peças garante o cumprimento dos requisitos de segurança.
Proteja o aparelho da humidade e da infi ltração de líquidos.
Retire o cabo de alimentação da tomada sempre pela fi cha,
nunca puxando pelo cabo.
Não utilize o aparelho nas proximidades de chamas abertas.
O aparelho não pode ser posicionado diretamente por
baixo ou por cima de uma tomada de parede.
Em caso de ocorrências de avarias e de trovoada, retire a
fi cha de ligação da tomada.
O aparelho não pode ser utilizado na proximidade de
banheiras, duches ou piscinas.
O aparelho deve ser colocado de forma que o interruptor e
outros reguladores não entrem em contacto com a pessoa que se encontra na banheira ou no duche.
Não expor o aparelho a salpicos e/ou gotas de água e
não coloque objetos que contenham líquidos como jarras ou bebidas em cima, ou na proximidade, do aparelho.
PT
LHL 2000 B1
17
PT
Colocação em funcionamento
Material fornecido e inspeção de transporte
Por norma, o aparelho é fornecido com os seguintes componentes:
TermoventiladorEste manual de instruções
NOTA
Verifi que o fornecimento quanto à sua integridade e danos visíveis.No caso de um fornecimento incompleto ou de danos resultantes de
uma embalagem defeituosa ou do transporte, contacte a linha direta de Assistência Técnica (ver capítulo Assistência Técnica).
Eliminação da embalagem
A embalagem protege o aparelho contra danos durante o transporte. Os materiais da embalagem são selecionados, tendo em conta os aspetos ambientais e técnicos relativamente à eliminação e são, por isso, recicláveis.
A reciclagem da embalagem permite a preservação de matérias-primas e reduz a formação de resíduos. Elimine os materiais da embalagem, que já não são necessários, de acordo com as prescrições locais em vigor.
NOTA
Se possível, conserve a embalagem original durante o período de garantia
do aparelho, para que possa embalar o aparelho corretamente em caso de acionamento da garantia.
Requisitos em relação ao local de instalação
Para um funcionamento seguro e sem falhas do aparelho, o local de instalação tem que cumprir as seguintes condições:
O aparelho deve ser colocado sobre uma base fi rme, plana e nivelada.
Relativamente à estrutura devem manter-se as distâncias mínimas de 50 cm na
lateral, 50 cm para cima, 50 cm para trás e 100 cm para a frente.
Não coloque o aparelho num ambiente quente, molhado ou muito húmido ou
na proximidade de material infl amável.
A tomada deve ser facilmente acessível de modo a que o cabo de alimentação
possa ser retirado facilmente em caso de emergência.
Gama de temperatura ambiente: 0 a +40°C
Humidade atmosférica (sem condensação): 5 - 75 %
18
LHL 2000 B1
PERIGO
Perigo de incêndio devido a contacto com materiais! Em caso de contacto do aparelho com materiais infl amáveis
existe o perigo de incêndio!
Não coloque aparelho na proximidade de cortinas e outros materiais
infl amáveis.
Evite o contacto de materiais infl amáveis (por ex. têxteis) com o aparelho.Não cubra o aparelho.
Antes da primeira utilização
Remova todos os materiais de embalagem e dispositivos de proteção para o
transporte do aparelho.
NOTA
Durante a primeira utilização pode surgir, por breves instantes, uma ligeira
formação de odores. Isto é normal e totalmente inofensivo.
Ligação elétrica
Para um funcionamento seguro e sem avarias do aparelho, durante a ligação elétrica, respeite as seguintes instruções:
ATENÇÃO
Antes de ligar o aparelho compare os dados de ligação (tensão e frequên-
cia) na placa de identifi cação com os da sua rede elétrica. Estes dados têm que coincidir, para que não ocorram danos no aparelho.
Certifi que-se de que o cabo de alimentação à rede não apresente danos
e que não seja colocado sobre superfícies quentes e/ou arestas afi adas.
Certifi que-se que o cabo de alimentação não fi que demasiado esticado
ou dobrado.
Insira a fi cha de alimentação numa tomada.
PT
Elementos de comando
Pega
2
Cabo de alimentação
3
Interruptor de segurança
4
Interruptor de funcionamento
5
Luz de funcionamento
6
Regulador de temperatura
LHL 2000 B1
19
Operação e funcionamento
Neste capítulo obtém indicações importantes acerca da operação e do funcio­namento do aparelho.
PT
Interruptor de funcionamento
O interruptor de funcionamento 4 tem 4 posições e liga e desliga o ventilador e os níveis de aquecimento.
= Aparelho desligado = apenas ventilador = Ventilador e nível de aquecimento 1 = Ventilador e nível de aquecimento 2
Regulador de temperatura
O regulador de temperatura 6 é regulável progressi­vamente. Rodando no sentido dos ponteiros do relógio, é ajustada uma temperatura mais elevada, rodando no sentido contrário dos ponteiros do relógio é ajustada uma temperatura mais baixa.
Funcionamento do ventilador
Certifi que-se de que o interruptor de funcionamento 4 está na posição 0
(desligado).
Rode o regulador de temperatura 6, completamente para a direita, no
sentido dos ponteiros do relógio.
Coloque o interruptor de funcionamento 4 na posição . ♦ O ventilador liga-se e a luz de funcionamento 5 acende a vermelho.
Modo de aquecimento
Se o aparelho for colocado em funcionamento pela primeira vez ou se
pretender ajustar novamente a temperatura desejada, rode o regulador de
temperatura 6, completamente para a direita, no sentido dos ponteiros do
relógio.
Com o interruptor de funcionamento 4 ajuste o modo de funcionamento
(I ou II) desejado.
20
LHL 2000 B1
Ajustar a temperatura
Primeiro rode o regulador de temperatura 6 completamente para a direita. ♦ Se o espaço tiver atingido a temperatura desejada, rode o regulador de
temperatura
ouça um ligueiro clique. Isto signifi ca que o elemento de aquecimento está
desligado.
Agora o elemento de aquecimento é ligado e desligado automaticamente,
pelo regulador de temperatura
6
lentamente no sentido dos ponteiros do relógio, até que
6
, e a temperatura é mantida constante.
Proteção contra sobreaquecimento
O aparelho está equipado com uma proteção contra sobreaquecimento. Se o aparelho fi car internamente muito quente, o elemento de aquecimento desliga-se automaticamente. Logo que o aparelho tenha arrefecido, o elemento de aqueci­mento volta a ligar-se automaticamente.
AVISO
Geralmente o sobreaquecimento tem um motivo! Este pode signifi car perigo de incêndio!
Verifi que se o aparelho consegue emitir o seu calor de forma sufi ciente:
O aparelho está coberto ou encontra-se demasiado próximo de uma parede ou outro obstáculo? As grelhas na frente e no verso encontram-se desimpedidas? O ventilador é bloqueado?
Se possível, elimine o problema ou entre em contacto com a linha de
apoio ao cliente (ver capítulo Assistência técnica).
Mesmo que não encontre qualquer causa, mas a proteção contra sobrea-
quecimento volta a ser acionada, deverá enviar o aparelho ao serviço de apoio ao cliente para controlo ou reparação.
PT
Proteção contra viragem
O aparelho está equipado com um interruptor de segurança 3. Assim que o termoventilador cair, este desliga-se automaticamente. O termoventilador apenas se volta a ligar, quando este se encontrar novamente na vertical e o interruptor de segurança 3 estiver, por esse motivo, acionado.
LHL 2000 B1
21
PT
Limpeza
AVISO
Respeite as seguintes indicações de segurança, a fi m de evitar perigos e danos materiais:
Limpe o aparelho apenas quando este se encontrar desligado e frio.
ATENÇÃO
Possibilidade de danos no aparelho.
Humidade infi ltrada pode causar danos no aparelho.
Certifi que-se de que, durante a limpeza, não se infi ltra humidade no
aparelho para evitar danos irreparáveis no mesmo.
Limpe a estrutura apenas com um pano ligeiramente humedecido e um detergente
suave.
Remova o pó depositado na grelha de proteção com um aspirador.
Armazenamento
Retire a fi cha de rede caso não utilize o aparelho durante um período prolongado.
Guarde o aparelho num ambiente seco.
Eliminação
Nunca deposite o aparelho no lixo doméstico comum. Este produto é abrangido pela Diretiva Europeia 2012/96/EU REEE (Resíduos de Equipamentos Elétricos e Eletrónicos).
Elimine o aparelho através de uma instituição de recolha de resíduos autorizada ou através da instituição de recolha do seu município. Respeite os regulamentos atualmente em vigor. Em caso de dúvida, entre em contacto com a sua institui­ção de recolha.
Resolução de avarias
Neste capítulo obtém indicações importantes acerca da deteção de avarias e da respetiva resolução.
AVISO
Respeite as seguintes indicações de segurança, a fi m de evitar perigos e danos materiais:
As reparações em aparelhos elétricos apenas devem ser efetuadas por
técnicos especializados, instruídos pelo fabricante. Podem surgir perigos para o utilizador e danos no aparelho resultantes de reparações incorretas.
22
LHL 2000 B1
Causas e resolução de avarias
A seguinte tabela permite determinar e eliminar com mais facilidade anomalias de menor dimensão:
Avaria Causa possível Resolução
Não é pos­sível ligar o aparelho.
O aparelho não aquece.
A fi cha de alimentação não está inserida.
A tomada não fornece tensão. Verifi que os fusíveis de casa.
O interruptor de funciona-
4
mento O regulador de temperatura 6 encontra-se na posição MIN. Elemento de aquecimento avariado.
NOTA
Caso não seja possível resolver o problema com os passos acima
mencionados, contacte o serviço de assistência técnica.
não está ligado.
Insira a fi cha de rede na tomada.
Colocar o interruptor de funciona­mento 4 no modo de funciona­mento desejado. Colocar o regulador de tempera­tura 6 na posição MAX. Informar o serviço de assistência técnica.
Anexo
Dados técnicos
Informações gerais
Tensão de entrada 220 - 240 V
Frequência 50 Hz
PT
~
LHL 2000 B1
Classe de proteção
Consumo de energia Nível de aquecimento 1 Nível de aquecimento 2 Funcionamento do ventilador
Humidade (sem condensação) 5 a 75 %
Dimensões (L x A x P) aprox. 22,5 x 25,5 x 13,2 cm
Peso aprox. 920 g
II /
aprox. 1000 W aprox. 2000 W
aprox. 20 W
23
PT
Indicações relativamente à declaração de conformidade CE
Este aparelho encontra-se em conformidade com os requisitos básicos e outros regulamentos relevantes da Diretiva de Baixa Tensão 2006/95/EC e da Diretiva de Compatibilidade Eletromagnética 2004/108/EC.
Pode obter a versão completa e original da Declaração de Conformidade junto do importador.
Assistência Técnica
Assistência Portugal
Tel.: 70778 0005 (0,12 EUR/Min.) E-Mail: kompernass@lidl.pt
IAN 100108
Horário de atendimento da linha de apoio:
Segunda a sexta das 8:00 horas – 20:00 horas (HEC)
Importador
KOMPERNASS HANDELS GMBH BURGSTRASSE 21 44867 BOCHUM GERMANY www.kompernass.com
24
LHL 2000 B1
Index
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Information for these operating instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Copyright . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Limited liability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Safety. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Basic Safety Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Initial use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Items supplied and transport inspection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Disposal of the packaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Requirements on the set-up location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Before initial use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Electrical connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Operating components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Handling and operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Operating switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Temperature regulator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Ventilator operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Heating operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Setting the temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Overheating protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Tilt cut-out . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34
Malfunction causes and remedies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Appendix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Information regarding the EC declaration of Conformity . . . . . . . . . . . . . . . . . . . . . . . . . 35
Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Importer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
GB MT
LHL 2000 B1
25
GB MT
Introduction
Information for these operating instructions
Congratulations on the purchase of your new appliance. You have clearly decided in favour of a quality product. These operating instruc-
tions are a part of this product. They contain important information in regard to safety, use and disposal. Before using the product, familiarise yourself with all of these operating and safety instructions. Use the product only as described and only for the specifi ed areas of application. In addition, pass these documents on, together with the product, to any future owner.
Copyright
This documentation is copyright protected. Any copying and/or reproduction, wholly or partially, including reproduction of
the illustrations, also in a modifi ed format is only permitted with written consent from the manufacturer.
Limited liability
All technical information, data and instructions for the installation, connection and operation contained in these operating instructions correspond to the latest available at the time of printing and, to the best of our knowledge, take into account our previous experience and know-how.
No claims can be derived from the details, illustrations and descriptions in these instructions.
The manufacturer assumes no responsibility for damage caused by failure to observe these instructions, improper use, incompetent repairs, making unauthorised modi­fi cations or for using unapproved replacement parts.
26
LHL 2000 B1
Warnings
In these extant operation instructions the following warnings are used:
A warning at this risk level indicates a threateningly dangerous situation
If the risk situation is not avoided, it could lead to death or serious physical injury.
Pay heed to the instructions given in this warning to avoid the death of or
A warning at this risk level signifi es a possible dangerous situation.
If the risk situation is not avoided it could lead to physical injuries.
Pay heed to the instructions given in this warning to avoid personal injuries.
TAKE NOTE
A warning at this risk level signifi es possible property damage.
If the situation is not avoided it could lead to property damage.
Pay heed to the instructions given in this warning to avoid property damage.
NOTICE
DANGER
GB MT
serious physical injury to people.
WARNING
A notice indicates additional information that assists in the handling of the appliance.
LHL 2000 B1
27
Intended use
This appliance is intended only for the heating of indoor living spaces and only for domestic use. This appliance is not intended for use in areas where special conditions may apply, such as corrosive or potentially explosive atmospheres (dust, vapour or gas). Do not use the appliance outdoors. This appliance is not intended for any other use or for uses beyond those mentioned.
GB MT
WARNING
Risks from unintended use!
Risks can be engendered if the appliance is used for unintended purposes and/or other types of use.
Use the appliance exclusively for intended purposes.Observe the procedures described in these operating instructions.
Claims of any kind for damage resulting from unintended use will not be accepted. The operator alone bears liability.
Safety
In this chapter you will receive important safety information regarding the handling of the appliance.
This appliance complies with the statutory safety regulations. Incorrect usage can lead to personal injury and property damage.
Do not cover the appliance!
Covering the appliance can lead to overheating and thus result in a fi re!
Basic Safety Instructions
For safe handling of the appliance observe the following safety information:
Before use check the appliance for visible external damage.
Do not put into operation an appliance that is damaged or has been dropped.
If the appliance‘s mains power cable is damaged, it must be
replaced by the manufacturer, the manufacturer‘s customer service department or by a qualifi ed technician, so that risks can be prevented.
28
LHL 2000 B1
This appliance may be used by children aged 8 over and by
persons with reduced physical, sensory or mental capabili­ties or lack of experience and knowledge, provided that they are under supervision or have been told how to use of the appliance safely and are aware of the potential risks. Chil­dren must not play with the appliance. Cleaning and user maintenance tasks must not be carried out by children unless they are supervised.
Repairs should only be carried out by authorised specialist
companies or by the Customer Service Department. Incom­petent repairs can result in signifi cant risks for the user. In addition, warranty claims become void.
Defective components may only be replaced with original
replacement parts. Only by using original replacement parts can it be assured that the safety requirements are being com­plied with.
Protect the appliance against moisture and liquid penetration.
Always disconnect the power cable from the mains power
socket with the plug, never pull on the cable.
Do not use the appliance in the vicinity of open fl ames.
The appliance must not be placed immediately under or over
a mains power socket.
In the event of malfunctions and during thunderstorms dis-
connect the plug from the mains power socket.
The appliance must not be used in the immediate vicinity of
a bath, a shower or a swimming pool.
The appliance is to be installed so that a person in the bath
or shower is unable to touch the switch and other controls.
Do not subject the appliance to spray and/or dripping water
and do not place any objects fi lled with liquid, such as vases or open drink containers, on or near the appliance.
GB MT
LHL 2000 B1
29
GB MT
Initial use
Items supplied and transport inspection
The appliance is delivered with the following components as standard:
Fan heaterThis operating manual
NOTICE
Check the contents to ensure everything is available and for signs of visible
damage.
If the delivery is not complete or is damaged due to defective packaging
or through transportation contact the Service Hotline (see chapter Service).
Disposal of the packaging
The packaging protects the appliance from transport damage. The packaging materials are selected from the point of view of their environmental friendliness and disposal technology and are therefore recyclable.
The recirculation of packaging into the material circuit saves on raw material and reduces generated waste. Dispose of packaging material that is no longer needed according to the regionally established regulations.
NOTICE
If possible, preserve the appliance's original packaging during the warranty
period so that, in the event of a warranty claim, you can package the appli­ance ideally for its return.
Requirements on the set-up location
For safe and faultless operation of the appliance the set-up location must satisfy the following criteria:
The appliance must be placed on a fi rm, fl at and horizontal surface.
Minimum spacings to the housing of 50 cm to the sides, 50 cm above, 50 cm
to the rear and 100 cm to the front must be maintained.
Do not place the appliance in a hot, wet or very moist environment or in the
vicinity of fl ammable materials.
The mains power socket must be easily accessable so that, in an emergency,
the mains power cable can be easily disconnected.
Environment temperature range: 0 to +40°C
Humidity (no condensation): 5 - 75 %
30
LHL 2000 B1
DANGER
Fire risk through contact with materials! The risk of fi re exists if the heating elements come into contact
with fl ammable materials!
Do not place the appliance in the vicinity of curtains and other fl ammable
materials.
Do not allow fl ammable materials (i.e. draperies) to come into contact
with the appliance.
Do not cover the appliance.
Before initial use
Remove all packaging materials and all transport securing appliances from the
appliance.
NOTICE
With initial use, for a brief period, a light odour accumulation can occur.
This is normal and completely harmless.
Electrical connection
For safe and faultless operation of the appliance after electrical connection observe the following advice:
TAKE NOTE
Before connecting the appliance compare the connection data (voltage
and frequency) on the rating plate with that of your mains power supply. This data must be in agreement so as to avoid damage to the appliance.
Make sure that the mains power cable is not damaged and is not running
over hot surfaces and/or sharp edges.
Make sure that the mains power cable is not stretched or knotted.
Insert the plug into a mains power socket.
GB MT
Operating components
Carry handle
2
Mains power cable
3
Safety switch
4
Operating switch
5
Operating light
6
Temperature regulator
LHL 2000 B1
31
GB MT
Handling and operation
In this chapter you receive important information for the handling and operation of the appliance.
Operating switch
The operating switch 4 has 4 positions and switches the ventilator and the heating levels on and off .
= Appliance switched off = only ventilator = Ventilator and heating level 1 = Ventilator and heating level 2
Temperature regulator
The temperature regulator 6 is steplessly adjustable. By turning it clockwise a higher temperature is set, by turning it anticlockwise a lower temperature will be set.
Ventilator operation
Ensure that the operating switch 4 is at position 0 (off ). ♦ Turn the temperature regulator 6 clockwise to the right. ♦ Set the operating switch 4 to the position . ♦ The fan heater turns on and the operating light 5 is red.
Heating operation
If the appliance is being taken into service for the fi rst time or if you want
to reset the desired temperature, turn the temperature regulator wise to the right.
Set the operating switch 4 to the desired operating mode (I or II).
Setting the temperature
Turn the temperature regulator 6 clockwise to the right. ♦ When the room has reached the desired temperature, slowly turn the
temperature regulator 6 anti-clockwise until a slight click sound is heard. This means that the heating element is now switched off .
The heating element is now switched on and off automatically by the
temperature regulator
32
6
and the temperature is kept constant.
6
clock-
LHL 2000 B1
Overheating protection
The appliance is fi tted with a overheating protector. Should the appliance become too hot internally, the heating element switches itself off automatically. Once the appliance has cooled itself down, the heating element switches back on automatically.
WARNING
As a general rule, overheating has a reason! It can mean a risk of fi re!
Check that the appliance can suffi ciently disburse the heat generated:
Is the appliance covered or is it too close to a wall or other obstacle? Are the grilles on the front or back clear? Is the ventilator blocked?
If possible, eliminate the problem or contact the Service Hotline
(see Chapter Service).
Even if you cannot fi nd a cause, but the overheating protection triggers
a second time, you must return the appliance to Customer Services for inspection or repair.
Tilt cut-out
This Fan Heater is fi tted with a safety switch 3. Should the Fan Heater tip over, it switches itself off automatically. The Fan Heater fi rst switches itself on again when it is in an upright position and the safety switch 3 is actuated.
Cleaning
GB MT
LHL 2000 B1
WARNING
Observe the following safety information to avoid risks and property damage:
Only clean the appliance when it is switched off and cold.
IMPORTANT
Possible damage to the appliance.
Penetrating moisture can lead to the appliance becoming damaged.
When you are cleaning the appliance ensure that no moisture can get
inside, so as to avoid irreparable damage to it.
Clean the housing exclusively with a soft damp cloth and a mild dishwashing liquid.
Remove dust deposits on the protective screen with a vacuum cleaner.
33
GB MT
Storage
Disconnect the mains power plug if you do not intend to use the appliance for an
extended period of time.
Store the appliance in a dry environment.
Disposal
Do not dispose of this appliance in your normal domestic waste. This product is subject to the provisions of European Directive 2012/19/EU WEEE (Waste Electrical and Electronic Equipment)
Dispose of the appliance through an approved disposal centre or at your com­munity waste facility. Observe the currently applicable regulations. In case of doubt, please contact your waste disposal centre.
Troubleshooting
In this chapter you will receive important information for malfunction localisation and remedies.
WARNING
Observe the following safety information to avoid risks and property damage:
Repairs to electrical appliances may only be carried out by specialists who
have been trained by the manufacturer. Considerable risks for the user and damage to the appliance can occur as a result of incompetent repairs.
Malfunction causes and remedies
The following table will help with localising and eliminating minor malfunctions:
Defect Possible cause Solution
The appliance will not switch on
The appliance is not provid­ing heat.
The plug is not connected.
The mains power socket is not providing power
4
Operating switch switched on. Temperature regulator 6 is at the MIN position. The heating element is defective.
NOTICE
If you cannot solve the problem with the aforementioned methods please
contact customer service.
is not
34
Connect the plug with a mains power socket.
Check the house fuses
Set the operating switch 4 at the desired mode. Set the temperature regulator 6 at the MAX position Get in touch with Customer Services.
LHL 2000 B1
Appendix
Technical data
General
Input voltage 220 - 240 V
Mains voltage frequency 50 Hz
Protection class
Power consumption Heating level 1 Heating level 2 Ventilator operation
Humidity (no condensation) 5 to 75 %
Dimensions incl. stand (W x H x D)
Weight approx. 920 g
approx. 22.5 x 25.5 x 13.2 cm
II /
approx. 1000 W approx. 2000 W
approx. 20 W
Information regarding the EC declaration of Conformity
This appliance conforms, with regard to compliance with the basic requirements and other relevent provisions, with the Low Voltage Directive 2006/95/EC and the Electromagnetic Compatibility Directive 2004/108/EC.
The complete original Declaration of Conformity can be obtained from the importer.
~
GB MT
LHL 2000 B1
35
GB MT
Service
Service Great Britain
Tel.: 0871 5000 720 (£ 0.10/Min.) E-Mail: kompernass@lidl.co.uk
IAN 90944
Service Malta
Tel.: 80062230 E-Mail: kompernass@lidl.com.mt
IAN 90944
Hotline availability: Monday to Friday 08:00 - 20:00 (CET)
Importer
KOMPERNASS HANDELS GMBH BURGSTRASSE 21 44867 BOCHUM GERMANY www.kompernass.com
36
LHL 2000 B1
Inhaltsverzeichnis
Einführung . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Informationen zu dieser Bedienungsanleitung . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Urheberrecht . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Haftungsbeschränkung . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Warnhinweise . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Bestimmungsgemäße Verwendung . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Sicherheit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Grundlegende Sicherheitshinweise . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Inbetriebnahme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Lieferumfang und Transportinspektion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Entsorgung der Verpackung . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Anforderungen an den Aufstellort . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Vor dem Erstgebrauch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Elektrischer Anschluss . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Bedienelemente . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Bedienung und Betrieb . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Betriebsschalter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Temperaturregler . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Ventilatorbetrieb . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Heizbetrieb . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Temperatur einstellen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Überhitzungsschutz . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Kippsicherung . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Reinigung . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Lagerung . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Entsorgung. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Fehlerbehebung . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Fehlerursachen und -behebung . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Anhang . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Technische Daten . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Hinweise zur EG-Konformitätserklärung . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Importeur . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
DE AT
CH
LHL 2000 B1
37
DE
AT
CH
Einführung
Informationen zu dieser Bedienungsanleitung
Herzlichen Glückwunsch zum Kauf Ihres neuen Gerätes. Sie haben sich damit für ein hochwertiges Produkt entschieden. Die Bedie-
nungsanleitung ist Bestandteil dieses Produkts. Sie enthält wichtige Hinweise für Sicherheit, Gebrauch und Entsorgung. Machen Sie sich vor der Benutzung des Produkts mit allen Bedien- und Sicherheitshinweisen vertraut. Benutzen Sie das Produkt nur wie beschrieben und für die angegebenen Einsatzbereiche. Händigen Sie alle Unterlagen bei Weitergabe des Produkts an Dritte mit aus.
Urheberrecht
Diese Dokumentation ist urheberrechtlich geschützt. Jede Vervielfältigung, bzw. jeder Nachdruck, auch auszugsweise, sowie die
Wiedergabe der Abbildungen, auch im veränderten Zustand, ist nur mit schriftlicher Zustimmung des Herstellers gestattet.
Haftungsbeschränkung
Alle in dieser Bedienungsanleitung enthaltenen technischen Informationen, Daten und Hinweise für den Anschluss und die Bedienung entsprechen dem letzten Stand bei Drucklegung und erfolgen unter Berücksichtigung unserer bisherigen Erfahrungen und Erkenntnisse nach bestem Wissen.
Aus den Angaben, Abbildungen und Beschreibungen in dieser Bedienungsanlei­tung können keine Ansprüche hergeleitet werden.
Der Hersteller übernimmt keine Haftung für Schäden aufgrund von Nichtbe­achtung der Bedienungsanleitung, nicht bestimmungsgemäßer Verwendung, unsachgemäßen Reparaturen, unerlaubt vorgenommener Veränderungen oder Verwendung nicht zugelassener Ersatzteile.
38
LHL 2000 B1
Warnhinweise
In der vorliegenden Bedienungsanleitung werden folgende Warnhinweise verwendet:
GEFAHR
Ein Warnhinweis dieser Gefahrenstufe kennzeichnet eine drohende gefährliche Situation.
Falls die gefährliche Situation nicht vermieden wird, kann dies zum Tod oder zu schweren Verletzungen führen.
Die Anweisungen in diesem Warnhinweis befolgen, um die Gefahr des
Todes oder schwerer Verletzungen von Personen zu vermeiden.
WARNUNG
Ein Warnhinweis dieser Gefahrenstufe kennzeichnet eine mögliche gefährliche Situation.
Falls die gefährliche Situation nicht vermieden wird, kann dies zu Verletzungen führen.
Die Anweisungen in diesem Warnhinweis befolgen, um Verletzungen von
Personen zu vermeiden.
ACHTUNG
Ein Warnhinweis dieser Gefahrenstufe kennzeichnet einen möglichen Sachschaden.
Falls die Situation nicht vermieden wird, kann dies zu Sachschäden führen.
Die Anweisungen in diesem Warnhinweis befolgen, um Sachschäden zu
vermeiden.
DE AT
CH
LHL 2000 B1
HINWEIS
Ein Hinweis kennzeichnet zusätzliche Informationen, die den Umgang mit
dem Gerät erleichtern.
39
DE
AT
CH
Bestimmungsgemäße Verwendung
Dieses Gerät ist nur zum Beheizen von geschlossenen Räumen bestimmt und nur für den privaten Gebrauch vorgesehen. Das Gerät ist nicht zur Verwendung in Räumen vorgesehen in denen besondere Bedingungen vorherrschen, wie z. B. korrosive oder explosionsfähige Atmosphäre (Staub, Dampf oder Gas). Verwen­den Sie das Gerät nicht im Freien. Eine andere oder darüber hinausgehende Benutzung gilt als nicht bestimmungsgemäß.
WARNUNG
Gefahr durch nicht bestimmungsgemäße Verwendung!
Von dem Gerät können bei nicht bestimmungsgemäßer Verwendung und/oder andersartiger Nutzung Gefahren ausgehen.
Das Gerät ausschließlich bestimmungsgemäß verwenden.Die in dieser Bedienungsanleitung beschriebenen Vorgehensweisen einhalten.
Ansprüche jeglicher Art wegen Schäden aus nicht bestimmungsgemäßer Verwen­dung sind ausgeschlossen. Das Risiko trägt allein der Betreiber.
Sicherheit
In diesem Kapitel erhalten Sie wichtige Sicherheitshinweise im Umgang mit dem Gerät.
Dieses Gerät entspricht den vorgeschriebenen Sicherheitsbestimmungen. Ein unsachgemäßer Gebrauch kann zu Personen- und Sachschäden führen.
Gerät nicht abdecken!
Abdecken des Gerätes kann zur Überhitzung und somit zur Entstehung eines Brandes führen!
Grundlegende Sicherheitshinweise
Beachten Sie für einen sicheren Umgang mit dem Gerät die folgenden Sicherheitshinweise:
Kontrollieren Sie das Gerät vor der Verwendung auf äußere
sichtbare Schäden. Nehmen Sie ein beschädigtes oder herun­tergefallenes Gerät nicht in Betrieb.
Wenn die Netzanschlussleitung dieses Gerätes beschädigt
ist/wird, muss sie durch den Hersteller oder seinen Kunden­dienst oder eine ähnlich qualifi zierte Person ersetzt werden, um Gefährdungen zu vermeiden.
40
LHL 2000 B1
Dieses Gerät kann von Kindern ab 8 Jahren und darüber
sowie von Personen mit verringerten physischen, sensori­schen oder mentalen Fähigkeiten oder Mangel an Erfahrung und Wissen benutzt werden, wenn sie beaufsichtigt oder bezüglich des sicheren Gebrauchs des Gerätes unterwiesen wurden und die daraus resultierenden Gefahren verstehen. Kinder dürfen nicht mit dem Gerät spielen. Reinigung und Benutzer-Wartung dürfen nicht von Kindern ohne Beaufsichti­gung durchgeführt werden.
Lassen Sie Reparaturen am Gerät nur von autorisierten
Fachbetrieben oder dem Kundenservice durchführen. Durch unsachgemäße Reparaturen können erhebliche Gefahren für den Benutzer entstehen. Zudem erlischt der Garantiean­spruch.
Defekte Bauteile dürfen nur gegen Original-Ersatzteile
ausgetauscht werden. Nur bei diesen Teilen ist gewährleistet, dass die Sicherheitsanforderungen erfüllt werden.
Schützen Sie das Gerät vor Feuchtigkeit und dem Eindringen
von Flüssigkeiten.
Die Netzanschlussleitung immer am Anschlussstecker aus
der Steckdose ziehen, nicht an der Anschlussleitung.
Das Gerät nicht in der Nähe von off enen Flammen betreiben.
Das Gerät darf nicht unmittelbar unter oder über einer Wand-
steckdose platziert werden.
Bei auftretenden Störungen und bei Gewitter den Anschluss-
stecker aus der Steckdose ziehen.
Das Gerät darf nicht in unmittelbarer Nähe einer Bade-
wanne, einer Dusche oder eines Schwimmbeckens benutzt werden.
Das Gerät ist so anzubringen, dass Schalter und andere
Regler nicht von einer sich in der Badewanne oder unter der Dusche befi ndlichen Person berührt werden können.
Das Gerät keinem Spritz- und/oder Tropfwasser aussetzen
und keine mit Flüssigkeit gefüllten Gegenstände wie Vasen oder off ene Getränke auf oder neben das Gerät stellen.
DE AT
CH
LHL 2000 B1
41
DE
AT
CH
Inbetriebnahme
Lieferumfang und Transportinspektion
Das Gerät wird standardmäßig mit folgenden Komponenten geliefert:
HeizlüfterDiese Bedienungsanleitung
HINWEIS
Prüfen Sie die Lieferung auf Vollständigkeit und auf sichtbare Schäden.Bei einer unvollständigen Lieferung oder Schäden infolge mangelhafter
Verpackung oder durch Transport wenden Sie sich an die Service-Hotline (siehe Kapitel Service).
Entsorgung der Verpackung
Die Verpackung schützt das Gerät vor Transportschäden. Die Verpackungsmate­rialien sind nach umweltverträglichen und entsorgungstechnischen Gesichtspunk­ten ausgewählt und deshalb recyclebar.
Die Rückführung der Verpackung in den Materialkreislauf spart Rohstoff e und ver­ringert das Abfallaufkommen. Entsorgen Sie nicht mehr benötigte Verpackungs­materialien gemäß den örtlich geltenden Vorschriften.
HINWEIS
Heben Sie wenn möglich die Originalverpackung während der Garantiezeit
des Gerätes auf, um das Gerät im Garantiefall ordnungsgemäß verpacken zu können.
Anforderungen an den Aufstellort
Für einen sicheren und fehlerfreien Betrieb des Gerätes muss der Aufstellort folgende Voraussetzungen erfüllen:
Das Gerät muss auf einem festen, fl achen und waagerechten Boden aufgestellt
werden.
Es sind zum Gehäuse Mindestabstände von 50 cm seitlich, 50 cm nach oben,
50 cm nach hinten und 100 cm nach vorne einzuhalten.
Stellen Sie das Gerät nicht in einer heißen, nassen oder sehr feuchten Umgebung
oder in der Nähe von brennbarem Material auf.
Die Steckdose muss leicht zugänglich sein, so dass die Netzanschlussleitung
notfalls leicht abgezogen werden kann.
Umgebungs-Temperaturbereich: 0 bis +40°C
Luftfeuchtigkeit (keine Kondensation): 5 - 75 %
42
LHL 2000 B1
GEFAHR
Brandgefahr durch Materialkontakt! Beim Kontakt des Gerätes mit brennbaren Materialien besteht
Brandgefahr!
Stellen Sie das Gerät nicht in der Nähe von Vorhängen und anderen
brennbaren Materialien auf.
Vermeiden Sie Berührungskontakt von brennbaren Materialien
(z.B. Textilien) mit dem Gerät.
Decken Sie das Gerät nicht ab.
Vor dem Erstgebrauch
Entfernen Sie sämtliches Verpackungsmaterial und alle Transportsicherungen vom
Gerät.
HINWEIS
Beim Erstgebrauch kann es kurzzeitig zu leichter Geruchsbildung kommen.
Dies ist normal und völlig unbedenklich.
Elektrischer Anschluss
Beachten Sie für einen sicheren und fehlerfreien Betrieb des Gerätes beim elektri­schen Anschluss folgende Hinweise:
ACHTUNG
Vergleichen Sie vor dem Anschließen des Gerätes die Anschlussdaten
(Spannung und Frequenz) auf dem Typenschild mit denen Ihres Elektro­netzes. Diese Daten müssen übereinstimmen, damit keine Schäden am Gerät auftreten.
Vergewissern Sie sich, dass die Netzanschlussleitung unbeschädigt ist und
nicht über heiße Flächen und/oder scharfe Kanten verlegt wird.
Achten Sie darauf, dass die Netzanschlussleitung nicht straff gespannt
oder geknickt wird.
Stecken Sie den Netzstecker in eine Steckdose.
DE AT
CH
Bedienelemente
Tragegriff
2
Netzanschlussleitung
3
Sicherheitsschalter
4
Betriebsschalter
5
Betriebsleuchte
6
Temperaturregler
LHL 2000 B1
43
DE
AT
CH
Bedienung und Betrieb
In diesem Kapitel erhalten Sie wichtige Hinweise zur Bedienung und Betrieb des Gerätes.
Betriebsschalter
Der Betriebsschalter 4 hat 4 Positionen und schaltet den Ventilator und die Heizstufen ein und aus.
= Gerät ausgeschaltet = nur Ventilator = Ventilator und Heizstufe 1 = Ventilator und Heizstufe 2
Temperaturregler
Der Temperaturregler 6 ist stufenlos einstellbar. Durch Drehen im Uhrzeigersinn wird eine höhere Temperatur eingestellt, durch Drehen gegen den Uhrzeigersinn wird eine niedrigere Temperatur eingestellt.
Ventilatorbetrieb
Stellen Sie sicher, dass der Betriebsschalter 4 auf der Position 0 (aus) steht. ♦ Drehen Sie den Temperaturregler 6 im Uhrzeigersinn ganz nach rechts. ♦ Stellen Sie den Betriebsschalter 4 auf die Position . ♦ Der Ventilator schaltet sich ein und die Betriebsleuchte 5 leuchtet rot.
Heizbetrieb
Wenn das Gerät zum ersten Mal in Betrieb genommen wird oder wenn
Sie die gewünschte Temperatur erneut einstellen möchten, drehen Sie den Temperaturregler 6 im Uhrzeigersinn ganz nach rechts.
Stellen Sie mit dem Betriebsschalter 4 die gewünschte Betriebsart (I oder II) ein.
Temperatur einstellen
Drehen Sie den Temperaturregler 6 zuerst ganz nach rechts. ♦ Hat der Raum die gewünschte Temperatur erreicht, drehen Sie langsam den
Temperaturregler 6 gegen den Uhrzeigersinn, bis ein leichtes Klick-Geräusch zu hören ist. Dies bedeutet, dass das Heizelement abgeschaltet ist.
Das Heizelement wird jetzt vom Temperaturregler 6 automatisch ein- und
ausgeschaltet und die Temperatur wird konstant gehalten.
44
LHL 2000 B1
Überhitzungsschutz
Das Gerät ist mit einem Überhitzungsschutz ausgestattet. Wenn das Gerät intern zu heiß wird, schaltet sich das Heizelement automatisch aus. Sobald sich das Gerät wieder abgekühlt hat, schaltet sich das Heizelement selbstständig wieder ein.
WARNUNG
Überhitzung hat in der Regel einen Grund! Sie kann Brandgefahr bedeuten!
Kontrollieren Sie, ob das Gerät seine Wärme ausreichend abgeben kann:
Ist das Gerät abgedeckt oder steht es zu dicht an einer Wand oder einem anderen Hindernis? Sind die Gitter an der Vorder- oder Rückseite frei? Wird der Ventilator blockiert?
Beseitigen Sie, wenn möglich, das Problem oder wenden Sie sich an die
Service-Hotline (siehe Kapitel Service).
Auch wenn Sie keine Ursache fi nden können, aber der Überhitzungsschutz
ein weiteres Mal auslöst, müssen Sie das Gerät zur Kontrolle bzw. Reparatur an den Kundendienst schicken.
Kippsicherung
Das Gerät ist mit einem Sicherheitsschalter 3 ausgestattet. Sobald der Heizlüfter umfällt, schaltet er sich automatisch aus. Der Heizlüfter schaltet sich erst wieder ein, wenn dieser in aufrechter Position steht und der Sicherheitsschalter 3 dadurch betätigt ist.
DE AT
CH
Reinigung
LHL 2000 B1
WARNUNG
Beachten Sie die folgenden Sicherheitshinweise, um Gefahren und Sachschäden zu vermeiden:
Reinigen Sie das Gerät ausschließlich im ausgeschaltetem und kalten
Zustand.
ACHTUNG
Mögliche Beschädigung des Gerätes.
Eindringende Feuchtigkeit kann zu einer Beschädigung des Gerätes führen.
Stellen Sie sicher, dass bei der Reinigung keine Feuchtigkeit in das Gerät
eindringt, um eine irreparable Beschädigung des Gerätes zu vermeiden.
Reinigen Sie das Gehäuse ausschließlich mit einem leicht feuchten Tuch und
einem milden Spülmittel.
Entfernen Sie Staubablagerungen am Schutzgitter mit einem Staubsauger.
45
DE
AT
CH
Lagerung
Ziehen Sie den Netzstecker, wenn Sie das Gerät längere Zeit nicht verwenden.
Lagern Sie das Gerät in einer trockenen Umgebung.
Entsorgung
Werfen Sie das Gerät keinesfalls in den normalen Hausmüll. Dieses Produkt unterliegt der europäischen Richtlinie 2012/19/EU WEEE (Waste Electrical and Electronic Equipment).
Entsorgen Sie das Gerät über einen zugelassenen Entsorgungsbetrieb oder über Ihre kommunale Entsorgungseinrichtung. Beachten Sie die aktuell geltenden Vorschriften. Setzen Sie sich im Zweifelsfall mit Ihrer Entsorgungseinrichtung in Verbindung.
Fehlerbehebung
In diesem Kapitel erhalten Sie wichtige Hinweise zur Störungslokalisierung und Störungsbehebung.
WARNUNG
Beachten Sie die folgenden Sicherheitshinweise, um Gefahren und Sachschäden zu vermeiden:
Reparaturen an Elektrogeräten dürfen nur von Fachleuten durchgeführt werden,
die vom Hersteller geschult sind. Durch unsachgemäße Reparaturen können erhebliche Gefahren für den Benutzer und Schäden am Gerät entstehen.
Fehlerursachen und -behebung
Die nachfolgende Tabelle hilft bei der Lokalisierung und Behebung kleinerer Störungen:
Fehler Mögliche Ursache Behebung
Das Gerät lässt sich nicht einschalten.
Das Gerät heizt nicht.
Der Netzstecker ist nicht einge­steckt.
Steckdose liefert keine Spannung. Überprüfen Sie die Haussicherungen.
4
Betriebsschalter eingeschaltet. Temperaturregler 6 steht auf MIN-Position. Heizelement defekt.
HINWEIS
Wenn Sie mit den vorstehend genannten Schritten das Problem nicht lösen
können, wenden Sie sich bitte an den Kundendienst.
ist nicht
46
Stecken Sie den Netzstecker in die Steckdose.
Betriebsschalter 4 auf die gewünschte Betriebsart stellen. Temperaturregler 6 auf MAX-Position stellen. Kundendienst benachrichtigen.
LHL 2000 B1
Anhang
Technische Daten
Allgemeines
Eingangsspannung 220 - 240 V
Netzfrequenz 50 Hz
Schutzklasse
Leistungsaufnahme Heizstufe 1 Heizstufe 2 Ventilatorbetrieb
Feuchtigkeit (keine Kondensation) 5 bis 75 %
Abmessungen (B x H x T)
Gewicht ca. 920 g
ca. 1000 W ca. 2000 W
ca. 22,5 x 25,5 x 13,2 cm
Hinweise zur EG-Konformitätserklärung
Dieses Gerät entspricht hinsichtlich Übereinstimmung mit den grundlegenden Anforderungen und den anderen relevanten Vorschriften der Niederspannungsrichtlinie 2006/95/EC und der Richtlinie zur elektromagnetischen Verträglichkeit 2004/108/EC.
Die vollständige Original-Konformitätserklärung ist beim Importeur erhältlich.
II /
ca. 20 W
~
DE AT
CH
LHL 2000 B1
47
DE
AT
CH
Service
Service Deutschland
Tel.: 0800 5435111 (Kostenfrei aus dem dt. Festnetz/Mobilfunknetz) E-Mail: kompernass@lidl.de
IAN 100108
Service Österreich
Tel.: 0820 201 222 (0,15 EUR/Min.) E-Mail: kompernass@lidl.at
IAN 100108
Service Schweiz
Tel.: 0842 665566 (0,08 CHF/Min., Mobilfunk max. 0,40 CHF/Min.) E-Mail: kompernass@lidl.ch
IAN 100108
Erreichbarkeit Hotline: Montag bis Freitag von 8:00 Uhr – 20:00 Uhr (MEZ)
Importeur
KOMPERNASS HANDELS GMBH BURGSTRASSE 21 44867 BOCHUM DEUTSCHLAND / GERMANY www.kompernass.com
48
LHL 2000 B1
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21 44867 BOCHUM DEUTSCHLAND / GERMANY www.kompernass.com
Versione delle informazioni · Estado das informações Last Information Update · Stand der Informationen: 04 / 2014 · Ident.-No.: LHL2000B1-042014-1
IAN 100108
5
Loading...
