Kompernass KH 6502 User Manual

DVD PLAYER/RADIO

Operating instructions

DVD-SPILLER/RADIO

Bruksanvisning

KH 6502

KOMPERNASS GMBH · BURGSTRASSE 21 · D-44867 BOCHUM

www.kompernass.com

ID-Nr.: KH6502/16-10/07-V2

KH 6502

;

ghk;2!

s d

2( 2* 2&

2& 3!

INDEX PAGE

1. Technical Data 2

2. Applications and functions 2

3. Package contents 2

4. Operating elements 3

5. Setting up of the DVD player 3

6. Safety instructions 3

7. Inserting batteries into the remote control and DVD player 4

8. Connecting to a television via the video output (Composite Video) 5

9. Connecting audio components to the DVD player 5

10. Operation 6

11. Radio functions 7

12. DVD player functions 7 Setup menu in DVD mode 7

13. Initial operation of the DVD player 10

14. Playing back DVDs, VCDs or S-VCDs 11

Playback start, stop, pause 12 SKIP function (Chapter/Title forward/backward) 12 Search forward/backwards 12 Slow motion function (DVD, VCD, S-VCD and DivX only) 12 Image enlargement (Zoom) 13 Camera position (DVD only) 13 Repeat function for DVDs, VCDs, S-VCDs and Audio CDs 13 Direct Title/Track selection 13 Direct chapter,title or time selection via the search function 13

Display functions 14

Display disc information 14 Accessing the DVD menu 14 Playback Control (PBC) with VCDs/S-VCDs 14 Superimpose and fade out subtitles (DVDs/VCDs/S-VCDs only) 14 Changing playback language (DVDs/VCDs/S-VCDs only) 15 Programme function 15

15. Display of MP3/WMA/JPEG/AVI/MPEG and DivX data 15

Playback of MP3/ WMA/MPEG and DivX discs 16 Repeat function with MP3/WMA/MPEG/ JPEG/DivX discs 16 Playback of JPEG discs 16

16. Cleaning of the DVD player 17

17. Disposal 177

18. Troubleshooting 17

19. Glossary / Key Word Index 18

20. Warranty & Service 19

21. Importer 19

Read these operating instructions carefully before using the appliance for the first time and preserve this manual for later reference. Pass this manual on to

whoever might acquire the appliance at a future date.

- 1 -

DVD-PLAYER/RADIO KH6502

1. Technical Data

This device has been tested and approved in accordance with the basic requirements and other relevent regulations of the EMC guidelines 2004/108/EG as well as the guidelines for low voltage appliances 2006/95/EG. Power supply: AC 220 V - 240 V ~50 Hz Power consumption : 25 Watt Power consumption: Standby: 0,7 W TV standard: PAL/NTSC Output level: 2 x 2,5 W Operating temperature: +5 ~+35°C Humidity: 5 ~90% (no condensation) Measurements (L x W x H): 241 x 430 x 50 mm Weight : 2,1 kg approx. Protection class: II

Frequency range radio:

MW (AM): 540 – 1600 kHz UHF (FM): 88 – 108 MHz

Battery operation

8 x 1,5 V, Type CR14/LR14 (Button cell)

Remote Control

Batteries : Type AAA/R03 (Micro cell)

Video Output

Composite video cinch socket

Audio Output

2 Stereo audio cinch sockets

2. Applications and functions

The SilverCrest KH 6502 DVD player is intended exclusively for stationary use in enclosed spaces. The device is intended exclusively for private, noncommercial use. This device is intended for use as an electronic entertainment device for the playback …

• ...of DVD videos in 12 cm and 8 cm (diameter) formats with Country/ Regional code 2 or , designated by the Logo .

- ...of MPEG-4/MPEG-4 ASP video formats and with DivX 3.11, DivX 4.x, DivX 5.x, DivX 6.x, multichannel DivX and DivX Pro.

• ... of video-CDs (VCDs) and Super video-CDs (S-VCDs) in 12 cm and 8 cm (diameter) formats, designated by the Logo .

• ... of audio-CDs in 12 cm and 8 cm (diameter) formats, designated by the Logo .

• ... generally of the data formats CD Audio (.cda), MP3 (.mp3), Windows Media Audio (.wma), DivX (.avi), Nero Digital (.mp4) und JPEG (.jpg) on the storage mediums CD-R, CD-RW, USB memory sticks as well as memory cards of the types SD and MMC.

For image output with the playback of DVDs, VCDs, S-VCDs, Audio CDs and the data format MP3, Windows Media Audio and JPEG you can connect to the SilverCrest KH 6502 DVD player …

• Stereo and Mono televisions with the formats PAL or NTSC and the picture formats 4:3/16:9.

• LCD/Plasma picture screens or video-projectors, if for this the corresponding connection potential is available and the connection of a DVD player is provided for/allowed by the manufacturer of the playback device

For the output of sound and/or music you can use and/or connect to the Silvercrest KH 6502 DVD-Player …

• from the speaker of one of the televisions connected to the DVD player

• external audio components such as a HiFi system or receiver

Attention!

No liability/warranty will be assumed for damage resulting from improper use of the device!

Audio input

3,5 mm Stereo jack

Microphone input

3,5 mm Stereo jack

USB slot

Readable USB memory sticks: USB1.1 and 2.0 up to a capacity of 1 GB

Memory card slot

Readable memory cards: SD (1 GB), MMC (1 GB)

3. Package contents

– DVD-Player – Power cord – Infrared remote control – 2 Batteries for remote control, type AAA/R03 (Micro cells) – Operating manual

- 2 -

4. Operating elements

A. DVD player front panel

Volume control

Headphone output 3,5 mm

FUNCTION switch: Switch the device off, switch to DVD or radio operation

DISPLAY button: Display playback information

LCD display

STOP button

USB/SD/MMC CARD button: Stop playback/Display USB/

Memory card contents

Carrying handle

Band selection switch

Frequency control

PLAY/PAUSE button

SKIP UP button: move forward a title/chapter, fast forward

SKIP DOWN button: move back a title/chapter, fast rewind

Loud speaker

IR sensor for the remote control

Memory card slot for SD and MMC cards

Disc tray

USB slot

OPEN/CLOSE: Open/Close the disc tray

MIC VOL: Microphone volume control

;

MIC: Microphone input 3,5 mm

AUDIO IN: Stereo audio input 3,5 mm

FM ST.: Indicator for FM stereo reception (green light shows stereo reception)

POWER: Power indicator (green light shows when device is switched on)

AUDIO button: Set the audio language/channel

REPEAT button: Set the repeat function

MENU button: Access disc menu

B. DVD player rear panel

Rear speaker

Telescopic antenna

Battery compartment

VIDEO: Composite video output

AUDIO OUT R: Right audio output

AUDIO OUT L: Left audio output

Power cable connector

C. Remote control

OPEN/CLOSE: Open/Close the disc tray

MENU: Access disc menu

SETUP: Access the OSD menu

DISPLAY: Superimpose disc information

STOP: Stop playback

PLAY/PAUSE button, OK button: Start/Pause playback, confirm input

SUBTITLE: Set the sub-title

Number buttons

AUDIO: Set the audio language/channel

SEARCH: Access the search function

REPEAT: Set the repeat function

ZOOM/SLOW: Set image enlargement, slow motion function

USB/CARD: Playback of USB or memory cards

Battery compartment (on the rear panel)

MUTE: Switch the sound on/off

ANGLE/PROGRAM: Change the camera perspective/

Access the programme function

Control buttons

 SKIP UP: move forward a title/chapter, fast forward



SKIP DOWN: move back a title/chapter, fast rewind

TITLE: Access the title menu

;

SCREEN ON/OFF: Switch the LCD display on and off/

set the brightness and colour

5.Setting up of the DVD player

1. Carefully remove the DVD player and the supplied accessories from

the packing.

2. Remove the protective foil from the LCD display.

3. Place the DVD player on a flat, even and firm base.

4. Plug the DVD player's power cord in the power cord connector on

the rear panel of the DVD player.

Attention!

If you want to connect the DVD player to other devices do not plug the power cord into the mains power at this time. Wait until you have connected the other devices.

In the event that you wish to change the type of video or audio connection you must first pull the power plug from the power socket! Otherwise the DVD player and possibly equipment connected to it could become irreparably damaged through voltage peak strikes!

6. Safety instructions

• This device is not suitable for children or other persons, whose physical, sensorial or mental abilities, without assistance or supervision, impede the safe operation of the device. Children should be watched-over to ensure that they do not play with the device

• To avoid unintentionally switching on the device pull the power cord from the mains supply after use and before cleaning.

• Check the appliance and all parts for visible damage.The safety concept can work only if the appliance is in a faultless condition.

• The power plug must always be easily accessible, so that the appliance can be quickly separated from the mains in the event of an emergency.

Risk of electrical shocks.

• Connect the appliance only to correctly installed and earthed mains sockets. Ensure that the rating of the local power supply tallies completely with the details given on the rating plate of the appliance.

• Arrange for defective power plugs and/or cables to be replaced at once by qualified technicians or our Customer Service Department.

• Arrange for customer service to repair or replace connecting cables and/or appliances that are not functioning properly or have been damaged.

NEVER submerse the appliance in water. Wipe it only with a slightly damp cloth.

• Do not expose the appliance to rain and never use it in a humid or wet environment.

• Ensure that the power cable never becomes wet during operation.

• You must not open the housing or repair the appliance yourself. Should you do so, appliance safety can no longer be assured and the warranty will become void.

• Protect the appliance against drip and spray water. Do not place any water-filled vessels (e.g. flower vases) on or near the appliance.

- 3 -

Risk of fire!

• Do not use the appliance in the vicinity of hot surfaces.

• Do not locate the appliance in places exposed to direct sunlight, If you do, it may overheat and become irreparably damaged.

• Do not leave the appliance unattended when in use.

• Never cover the ventilation slots of the appliance while it is being used.

• Do not place open fire sources, such as candles, on or near the device.

Injury hazard

• Keep children away from the connecting cable and the appliance. Children frequently underestimate the dangers of electrical appliances.

• Ensure that the appliance stands with a safe and secure positioning.

• Do not operate the appliance if it has sustained a fall or is damaged. Arrange for the appliance to be checked and/or repaired by qualified technicians.

• Keep batteries away from children. Children can put batteries into their mouths and swallow them.

Danger! Laser radiation!

The appliance is fitted with a „Class 1 Laser“.

• Never open the device.

• Never attempt to repair the device.

• There is invisible laser radiation inside the device. Do not expose yourself to the laser beam.

Information regarding the handling of batteries

The device and the remote control are operated by batteries. For the handling of batteries please observe the following:

Risk of explosion!

Do not throw batteries into a fire. Do not recharge the batteries.

• Never open batteries, never solder or weld batteries. The risk of explosions and injuries exists!

• Regularly check the condition of the batteries. Leaking batteries can cause damage to the appliance.

• If you do not intend to use the appliance for an extended period, remove the batteries.

• In the event of the batteries leaking acids, wear protective gloves.

• Clean the battery compartment and the battery contacts with a dry cloth.

Attention!

No liability/warranty will be considered for damage to the DVD player caused by the effects of moisture, water penetration or overheating!

7. Inserting batteries into the remote control

and DVD player

Note:

Some aggressive furniture finishes can have a destructive influence on the device's rubber feet. If necessary, place the device on a nonslip pad.

Thunderstorms!

Equipment connected to a power supply can be damaged during a thunderstorm. You should therefore always pull the power plug from the power socket when there is a storm.

Notice regarding surge voltages

(FEO / fast electrical overloads):

In a case of malfunction due to an electrical fast transient (power surge) the product must be returned to default settings in order to re-establish normal operation. Possibly the power supply must be separated and then reconnected. The batteries (if present) must be removed and then reinserted.

Notice regarding separation from mains-power

The FUNCTION switch for this appliance does NOT completely separate it from the mains-power source. Additionally, the appliance consumes power when in standby-mode. To completely separate the appliance from mains-power, the power plug MUST be removed from the wall socket.

7.1. Inserting the Batteries into the Remote Control

1. Open the battery compartment on the rear of the remote control.

2. Place the two, supplied in the package, batteries type AAA/R03

(Micro cells) in the battery compartment. Make sure that the batteries are inserted in accordance with the correct polarity.

3. Replace the battery compartment cover.

Using the remote control

In order to guarantee faultless operation when using the remote control…

• Always point the remote control, during use, directely at the DVD player

• Make sure that there are no obstructions between the remote control and the DVD player that will hinder reception

• When using the remote control place yourself not more than 5 metres from the DVD player

Otherwise interferences can occur during operation of the DVD player functions with the remote control.

7.2 Inserting the batteries into the DVD player

The DVD player can be operated by batteries. As soon as the DVD player is connected to a power source via the power cable, power supply from the batteries is switched off.

1. Open the battery compartment on the underside of the DVD player.

2. Now place 8 batteries type CR14/LR14 (Button cells) into the battery

compartment. Make sure that the batteries are inserted in accordance with the correct polarity.

3. Replace the battery compartment cover.

7.3. Replacing the batteries

If the operation of the DVD player via the remote control does not function properly or does not function at all the batteries must be replaced

• Always renew all batteries in order to return the DVD player and the remote control to their full performance ability.

- 4 -

8. Connecting to a television via the video output (Composite Video)

For this connection variant the television must be equipped with Audio/Video cinch sockets (Composite Video). To connect the DVD player to a television via composite video you will need an audio/video RCA (cinch) cable.

• Connect the yellow socket marked

VIDEO socket via an audio/video cinch cable.

• Insert the white audio/video cinch cable plug into the cinch socket inscribed

AUDIO OUT L on the rear panel of the DVD player.

• Then insert the white plug on the other end of the audio/video cinch cable

into the left channel audio socket on the television.

• Insert the red audio/video cinch cable plug into the cinch socket inscribed

AUDIO OUT R on the rear panel of the DVD player.

• Then insert the red plug on the other end of the audio/video cinch cable

into the right channel audio socket on the television

• For playback select the matching channel on your television Check with

the television's instruction manual on how you can set the AV channel.

VIDEO-OUT to the television's yellow

9. Connecting audio components to the DVD player

9.1 Connecting a HiFi system or receiver to the DVD player

Besides sound playback of DVDs, VCDs/S-VCDs and audio and MP3 CDs via the speaker of the television, to which the DVD player is connected, sound can also be played back via external audio components such as a HiFi system or receivers.

Requirements for the connection of a HiFi system

In order to enjoy a full sound experience when playing DVDs with the DVD player you can connect a HiFi system to the player. Before connecting check with the HiFi system's instruction manual to verify...

• if the HiFi system is suitable for connection to a DVD player. If yes…

• if the HiFi system is equipped with cinch sockets; if yes, you can connect

the HiFi system to the DVD player via cinch cables.

Connecting a HiFi system:

• Insert the white audio/video cinch cable plug into the cinch socket inscribed

AUDIO OUT L on the rear panel of the DVD player.

• Then insert the white plug on the other end of the audio/video cinch

cable into the left channel audio socket of the HiFi system.

• Insert the red audio/video cinch cable plug into the

cinch socket on the rear panel of the DVD player.

• Then insert the red plug on the other end of the audio/video cinch cable

into the right channel audio socket of the HiFi system.

• Check with the instruction manual which settings on the HiFi system may

be necessary in order to reproduce sound via the HiFi system during the playback of a DVD, VCD/S-VCD, Audio or MP3 CD from the DVD player.

AUDIO OUT R inscribed

Note:

For an optimal sound experience place your HiFi's speakers to the left and right of the DVD player.

- 5 -

9.2 Playback of external devices sound signals

You can playback the sound signals of external devices, for example a portable CD/MP3 player, via the DVD player's speaker. For this you connect the right and left audio outputs of the external device with a 3.5 mm jack plug to the As soon as you have inserted the jack plug into the player to playback the sound signals from the external device.

• Insert the jack plug into the

• To play the sound of the DVD player pull the jack plug from the

AUDIO IN socket on the front panel of the DVD player.

AUDIO IN socket set the DVD

AUDIO IN socket.

Note:

As soon as you have inserted the jack plug into the AUDIO IN socket, the LCD display switches off automatically.

10. Operation

10.1 Switching the appliance on/off and sound source

selection

You switch the device on by selecting a sound source with the FUNCTION switch:

• DVD/USB/CARD

• OFF

• RADIO

1. Slide the FUNCTION switch to the position of the sound source that you

want.

2. To switch the device off slide the FUNCTION switch to the OFF position.

9.3 Using headphones

You can connect headphones with a 3.5 mm stereo jack plug to the DVD player. The headphone connection DVD player. When you have connected the headphones, the loudspeakers are disconnected and you will only hear sound via the headphones.

• Before you connect headphones turn the volume down to the lowest level.

• Insert the jack plug of the headphones into the headphone connection.

Important!

Listening to music with headphones for long periods and at high volume levels can lead to hearing damage!

PHONES is located on the top panel of the

9.4 Connecting a microphone

You can connect a microphone with a 3.5 mm stereo jack plug to the DVD player. The microphone connection is located on the front panel of the DVD player. When you have connected the microphone you can control the volume of the microphone via the With the microphone you can, for example, use the karaoke function of DVDs.

• Insert the microphones jack plug into the socket

MIC VOL control on the front panel of the DVD player.

MIC.

10.2 Adjusting the volume

You can adjust the sound volume with the volume regulator.

1. To increase the sound level, turn the volume controller clockwise.

2. To reduce the sound level, turn the volume controller counterclockwise.

10.3 Switch off sound

1. Press the MUTE button to switch the sound off. The message MUTE appears

on the display.

2. To switch the sound on again press the MUTE button once more.

Note:

During operation of the radio the sound can not be switched off with the

MUTE button.

10.4 Display functions

• You set the display up by flipping it open.

The display can be turned 270° by means of the swivel joint.

Switching the display on and off

1. Hold the SCREEN ON button down briefly to switch off the LCD display.

2. To switch the LCD display back on hold the SCREEN ON button down briefly

once more.

Display settings

1. Press the SCREEN ON button several times to alternate between the messages

BRI (Brightness) and COL (Colour).

2. With the control buttons  you can set the brightness and colour

values.

3. If you do not press any button for a period of 5 seconds the display

settings will again fade out.

- 6 -

11. Radio functions

SYSTEM SETUP

TV SYSTEM LCD MODE TV TYPE PASSWORD RATING DEFAULT

EXIT SETUP

12. DVD player functions

The LCD display remains switched off during operation of the radio.

1. Set the FUNCTION switch to the RADIO position.

2. Lift the telescopic antenna and pull apart. Adjust the antenna positioning

so that radio reception is optimal. A reception antenna for receiving MW (AM) transmissions is built into the unit. In radio operation, turn the whole appliance to a position where the best radio reception is obtained.

3. Adjust the reception range (AM/FM/FM ST.) with the waveband selector.

With the adjustment to FM ST FM ST, radio programmes transmitted in

stereo will be played back in stereo. If the programme is received in

stereo with full signal strength the FM stereo message

FM ST. lights up.

Note:

Should the stereo signal in the reception range FM ST be too weak, you can improve it by selecting the adjustment FM. In this adjustment the sound is played in Mono.

4. Set to the desired radio station by turning the frequency knob.

• Set the FUNCTION switch to the DVD/USB/CARD position. The LCD display switches on and the background image appears.

Setup menu in DVD mode

Note:

In these instructions the English setup menu is described. At any time you can set the menu to your countrys language as described in "Language Setup > OSD Language".

In the DVD mode you can access a settings menu, in which you can implement image and sound settings as well as activate other functions. When you carry out changes in the setup menu, these changes are saved even when the device is switched off.

• You can set the default settings at any time in the SYSTEM SETUP > DEFAULT

menu.

• The setup menu can be accessed during playback. The setup menu subdivides into the following menus:

• SYSTEM SETUP

• LANGUAGE SETUP

• VIDEO SETUP

• SPEAKER SETUP

Navigating in the menu

Press the SETUP button to access the Setup menu. The main menu SYSTEM SETUP appears.

• With the control buttons  and the OK button you can carry

out all the settings in the menu.

2. With the control buttons  you can select a menu by moving the yellow

mark under the corresponding menu symbol.

3. With the control buttons  you can select an input in a menu by moving

the yellow bar over an input.

4. With the control button  you can alternate in the sub menu of an in-

put and with the control button

 you can move back a menu level.

5. To confirm a selection press the OK button.

All navigation possibilities in a current menu are displayed at the lower edge of the menu.

Exiting the Setup menu (EXIT SETUP)

• You can exit the Setup menu at any time by pressing the SETUP button again.

- 7 -

SYSTEM SETUP menu

SYSTEM SETUP

TV SYSTEM LCD MODE TV TYPE PASSWORD RATING DEFAULT

EXIT SETUP

SYSTEM SETUP

TV SYSTEM LCD MODE TV TYPE PASSWORD RATING DEFAULT

EXIT SETUP

1 KID SAFE 2 G 3 PG 4 PG13 5 PG-R 6 R 7 NC-17 8 ADULT

SYSTEM SETUP

TV SYSTEM LCD MODE TV TYPE PASSWORD RATING DEFAULT

EXIT SETUP

When you access the Setup menu of the disc drive with the button SETUP the SYSTEM SETUP menu appears. Here you can set the video output and video format.

TV SYSTEM

Here you set the television standard for the video output. PAL NTSC AUTO

LCD MODE

In this menu you can set height and width image settings of the LCD display. 4:3: Playback in 4:3 format 16:9: Playback in 16:9 format

PAL television standard. NTSC television standard. Automatic setting.

The open lock symbol appears behind the input position. You can now set the age release class in the menu item RATING. When you operate the device for the first time the password lock is already switched off.

You switch the password lock on as follows:

1. With the control button move to the input position.

2. With the number buttons enter the factory default password 8200 and

confirm with the

The closed lock symbol appears behind the input position. The age release class in the menu item RATING now can not be set again.

OK button.

You change the password as follows:

In order to change the password the password lock must be switched off.

1. With the control button move to the input position.

2. With the number buttons enter a new four figure password and confirm

with the

OK button.

The closed lock symbol appears behind the input position. With the new password you can again switch off the password lock. In the event that you forget the new password you can switch the password lock on or off at any time with the factory default password.

RATING

Some DVDs and CDs (predominantly DVDs obtained on the US market) are coded with encryption signals. In this way DVDs can be divided into eight different approval classes.

TV TYPE

Here you can match the vertical and horizontal image display to the playback device in use. 4:3/PS

: Select this setting to display broadcasts in the usual 4:3 format

on a 4:3 television set. Broadcasts in the 16:9 format will be displayed in full screen without the distracting bars although the side edges of the image will be trimmed.

4:3/LB

: Display of a film in 16:9 format on a traditional 4:3 format

television. The image is displayed with black bars on the lower and upper edges of the screen.

16:9

: This setting is recommended when using the built in LCD display

or for the output of the image on a wide screen television in the 16:9 format.

PASSWORD

Select this menu item to switch the password lock on and off. To set the child lock in the next menu item RATING the password lock must be switched off.

• When the password lock is switched off the open lock symbol appears

behind the four input positions.

• When the password lock is switched on the closed lock symbol appears

behind the four input positions.

Note:

In order to change the age release class the password lock must be switched off.

1. With the control button move to the right column.

2. Select one of the following age release classes to safeguard the playback

of this type of media with a password request and confirm with the button:

8 ADULT: for adults only; 7 NC -17: not for teenagers under 18 years of age; 6 R: for teenagers under 16, adult supervision is strongly

recommended;

5 PG-R: for teenagers under 16, adult supervision is recom-

mended;

4 PG 13: adult supervision strongly recommended; some scenes

are not suitable for children under 12;

3 PG: adult supervision recommended; 2 G.: for all age groups; 1 KID SAFE: also suitable for small children.

You switch the password lock off as follows:

1. With the control button  move to the input position.

2. With the number buttons enter the factory default password 8200 and

confirm with the

OK button.

Example

If a DVD was encoded with, for example, approval class 7 or 8 and you have an approval class setting between 1 and 6 then a message follows and the password must be entered.

Also only parts of the DVD, that is to say certain film scenes, may be encoded with an approval class or various approval classes.

- 8 -

3. Subsequently switch the password lock on in the menu item PASSWORD.

LANGUAGE SETUP

OSD LANGUAGE AUDIO LANG SUBTITLE LANG MENU LANG

EXIT SETUP

SPEAKER SETUP

DOWNMIX

EXIT SETUP

VIDEO SETUP

BRIGHTNESS CONTRAST HUE SATURATION

EXIT SETUP

The age release class is now set and can be changed only if the password lock is previously switched off.

DEFAULT

Select the menu item DEFAULT and confirm with the OK button to reset the DVD mode settings to the factory default settings.

EXIT SETUP

Select this menu item to exit the Setup menu.

VIDEO SETUP menu

In this menu you set the Brightness, Contrast, Hue and Saturation for disc playback.

LANGUAGE SETUP menu

In this menu you can set the language settings for menus and subtitles.

OSD LANGUAGE

Here you set the language, in which the OSD Menu will be shown on the display.

AUDIO LANG

Set the audio language here, which should be used as standard when playing back the film.

SUBTITLE LANG

Set the subtitle language here, which should be used as standard when playing back the film.

MENU LANG

BRIGHTNESS

With the help of the control buttons you can set the brightness.

• Subsequently press the

OK button to continue.

CONTRAST

With the help of the control buttons  you can set the contrast.

• Subsequently press the

OK button to continue.

HUE

With the help of the control buttons  you can set the hue. The further the controller is pushed up the warmer the entire image becomes. On the other hand when pushed down the image radiates a cooler mood.

• Subsequently press the

OK button to continue.

SATURATION

With the help of the control buttons  you can set the colour saturation.

• Subsequently press the

OK button to continue.

EXIT SETUP

Select this menu item to exit the Setup menu.

SPEAKER SETUP menu

In this menu you set the stereo output for the system's loud speaker.

Set the disc menu language here, which should be used as standard when playing back the film.

EXIT SETUP

Select this menu item to exit the Setup menu.

DOWNMIX

LT/RT

: Select this setting if the film was recorded in Pro Logic Dolby

Digital and you want to hear the sound in cinema quality.

STEREO

: Select this option to output the left and right sound channels of the

DVD. The output with CD playback is a traditional stereo signal.

EXIT SETUP

Select this menu item to exit the Setup menu.

- 9 -

13. Initial operation of the DVD player

After you have …

• placed the DVD player in a suitable location

• connected the DVD player, if desired, to a television by one of the

designated connection options

• connected the DVD player, if desired, to a HiFi system and/or a receiver

• made the remote control ready for operation by inserting the batteries

• and know how to activate and operate the OSD menu with the remote

control … the DVD player is ready for operation.

13.1 Inserting the DVD

To play a disc with the DVD player:

• Make sure that the DVD player is ready for operation.

• Switch the DVD player on. When the DVD player and other potentially connected devices (i.e. an audio component) are ready for operation and are switched on you will now see the Silvercrest logo in the display. If no disc is inserted into the DVD player's disc tray: No Disc will appear in the display.

• Open the disc tray by pressing the button "Open/Close" on the remote

control or on the front panel of the DVD player. Open will appear in

the display.

• Insert the disc in the disc tray with the inscribed/labled side up.

For twin-sided discs: The side you would like to play must face down.

• After you have inserted the disc press the button "Open/Close" on

the remote control or on the front panel of the DVD player again to close

the disc tray.

• The contents of the disc will now be loaded; this may take a few seconds.

In the meantime Loading will appear in the display.

13.2 Inserting memory cards/USB memory sticks with MP3/WMA/ DivX/JPEG data

Note:

The DVD-Player always starts in DVD mode. In order to read memory cards press the button the button CARD appears in the display. The DVD player recognizes the data formats JPEG, MP3, WMA und MPEG4 (DivX).

In order to insert memory cards of the types SD and MMC into the DVD player:

• Make sure that the DVD player is ready for operation.

• Switch the DVD player on.

When the DVD player is switched on and ready for operation you will see the Silvercrest logo in the display. If no disc is inserted into the DVD player's disc tray: No Disc will appear in the display.

• Slide the memory card into the memory card slot. Then proceed with

the following steps depending on the type of memory card that you want the device to read.

USB/SD/MMC CARD on the device until the message READ

USB/CARD several times on the remote control or

Warning!

Always make sure that you insert memory cards into the memory card slot as described hereafter! Under no circumstances bend or buckle the memory card when inserting into the memory card slot! Slide the memory card up to the stop in the memory card slot, with a light pressure.

Allow the memory card to slide in without force:

• Check to make sure that the memory card is one that the DVD player is

capable of reading. Do not attempt to insert memory cards of another type in the memory card slot!

• Make sure that you have inserted the memory card into the memory

card slot in the correct manner.

• Under no circumstances attempt to force the memory card into the memory

card slot! Otherwise the DVD player, memory card and the data on the memory card could be damaged!

Supported memory card types and capacities

Memory cards of the types SD (1 GB) and MMC (1 GB) can be played back.

Supported file structure and file formats

– 2 file levels are supported – The total file count should be not more than 10

(max. 5 files on each of the 2 file levels) – A max. of 100 files are supported on the memory media – Files with mixed file formats are not supported – A JPEG file larger than 1 MB can lead to faulty images

- 10 -

MultiMediaCard- /SecureDigital memory cards (MMC/SD)

MultiMediaCard/SecureDigital memory cards must be inserted into the memory card slot. Insert the MMC/SD memory cards with the contacts forward and slide them straight into the memory card slot. Thereby...

- the side of the memory card with the contacts must face down and

- the slanted corner of the memory card must be on the right side

USB memory sticks (USB)

The DVD player supports USB memory sticks 1.1 and 2.0 up to a capacity of 1GB. USB memory sticks must be inserted into the USB port.

14. Playing back DVDs, VCDs or S-VCDs

To play back a DVD/VCD/S-VCD with the DVD player...

• Make sure that the DVD player is ready for operation.

• Open the disc tray on the front panel of the DVD player by pressing the

button "Open/Close" on the front panel of the DVD player or on the

remote control. Open will appear in the display.

• Press the

button on the device until the message READ USB appears in the display.

This procedure also applies to particular memory cards.

USB/CARD button on the remote control or the USB/SD/MMC CARD

Note:

If the memory card or USB memory stick does not contain any playable data the memory card and/or USB function is not selectable.

13.3 Removing memory cards/USB memory sticks

Memory cards/USB Memory sticks should only be removed after the memory card/USB slot is deactivated. Thus avoiding the possibility of damage or data loss.

• Press the

USB/SD/MMC CARD button on the device until the message DVD appears

in the display to return to the DVD mode.

• You can now remove the memory card/USB memory stick from the memory card/USB slot.

USB/CARD button on the remote control several times or the

• Insert a DVD/VCD/S-VCD disc in the disc tray with the inscribed/labled side up.

• Press the the remote control again to close the disc tray.

Close shows in the display while the disc tray is closing.

• The contents of the inserted DVD/VCD/S-VCD will now be loaded; this may take a few seconds. In the meantime Loading will appear in the display.

• Playback of the inserted DVD/VCD/S-VCD starts automatically.

OPEN/CLOSE button on the front panel of the DVD player or on

Note:

DVDs, VCDs and S-VCDs, that you want to playback with the DVD player possibly have a country code, which is printed on the DVD cover.

The DVD player can only playback DVDs/VCDs/S-VCDs with the country code 2.

If no country code is printed on the cover of a DVD/VCD/S-VCD...

• but instead the symbol , then the DVD/VCD/S-VCD can be played back with the DVD player

• then the DVD/VCD/S-VCD can possibly not be played back with the DVD player. You can check this by attempting to play back the DVD.

Depending on the inserted DVD/VCD/S-VCD it is possible that the contents of the DVD/VCD/s-VCD will not playback immediately, rather first a selection menu appears in the display.

In this event select the menu option which will start the playback of the film with the control button on the remote control.

• To begin playback of the film press the Play is shown briefly in the display.

- 11 -

PLAY/PAUSE button.

Playback start, stop, pause

Depending on the inserted disc it is possible that the contents do not immediately play back, but first a selection menu appears in the display.

• In this case select with the control buttons which starts playback of the film.

• To start playback of the film press the

 the menu item,

PLAY/PAUSE button.

SKIP function (Chapter/Title forward/backward)

Note:

This function may not be available on all DVDs/VCDs/S-VCDs! If you attempt to carry out functions that are not available the message "INVALID KEY“ appears in the display.

Pause playback

To pause the playback:

• During playback press the button

appears in the display.

The display shows a freeze frame of the scene you have just paused.

• To contine playback of the film press the

PLAY/PAUSE. The message PAUSE

PLAY/PAUSE button.

Stop playback (STOP)

To stop playback press the STOP button.

Resume function

If you have cancelled playback of the inserted DVD/VCD/S-VCD by pressing the

STOP button once the DVD automatically saves the position where

playback was interrupted. This function is called the "resume function". PRE STOP (Preliminary Stop) is shown in the display.

• As soon as you press the

from the saved position.

• If you press the

you stopped playback, is deleted.

• As soon as you press the

DVD/VCD/S-VCD will start from the beginning.

STOP button a second time the saved position, at which

PLAY/PAUSE button again, playback will continue

PLAY/PAUSE button again playback of the inserted

• With the buttons the film on the inserted DVD/VCD/S-VCD backwards to the previous chapter/ title or to the start of the next chapter/title. The display will show PREV and/or NEXT.

The respectively selected chapter/title will playback immediately.

SKIP DOWN/SKIP UP you can skip, during playback, within

Search forward/backwards

• Hold the SKIP DOWN/SKIP UP button down briefly during playback to start a backwards/forwards search.

• Hold the search speeds:

• To continue playback of the film at normal speed from the selected position press the

SKIP DOWN/SKIP UP button down repeatedly to apply the following

Note:

During the search no sound will play.

PLAY/PAUSE button during the search.

Note:

With playback of MPEG4 files the speed of search forward and search backwards can be limited. This is data dependent and not a device malfunction.

Slow motion function (DVD, VCD, S-VCD and DivX only)

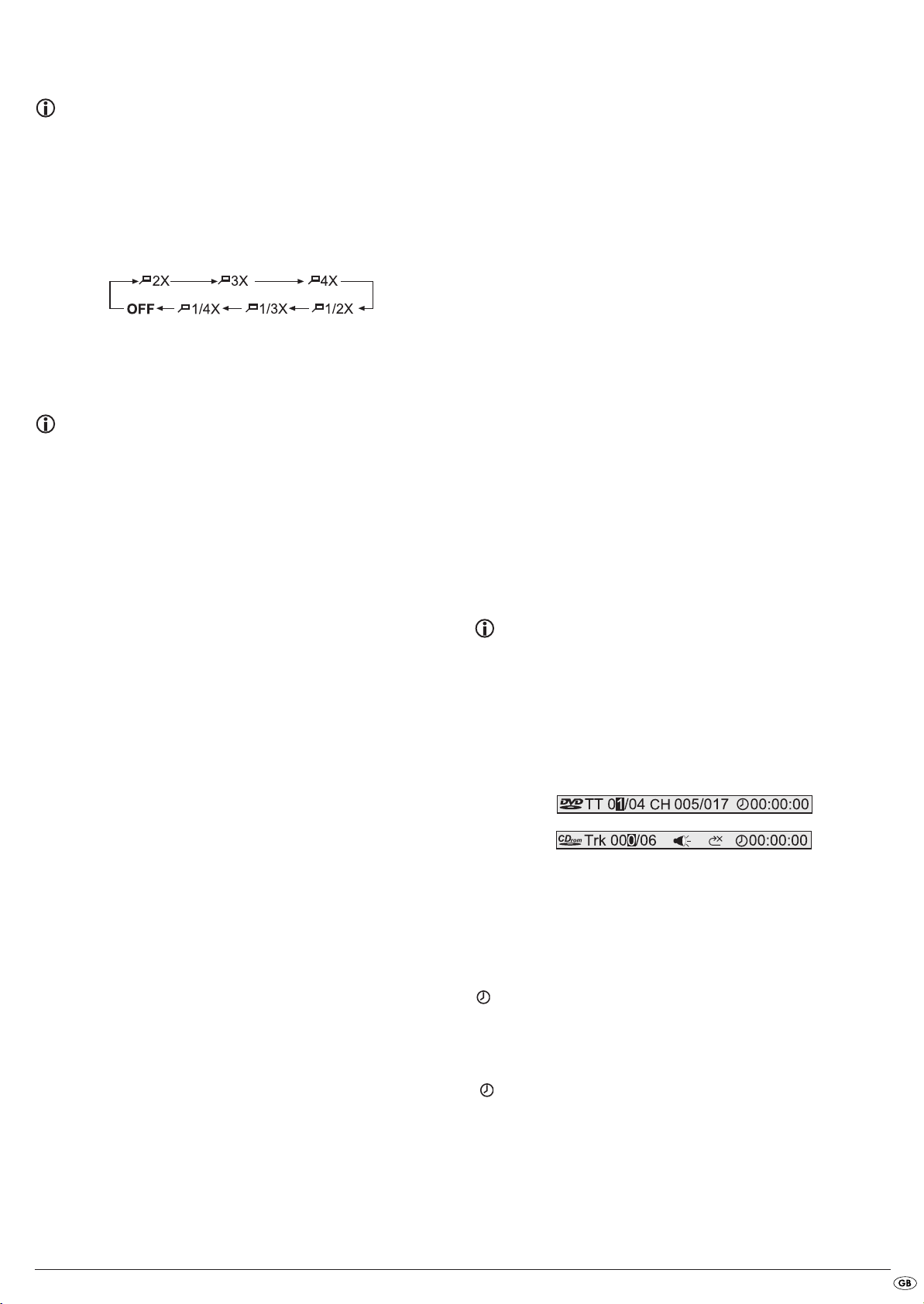

• Hold the ZOOM/SLOW, button down briefly during playback to set playback to slow motion. Hold the following slow motion speeds:

Note:

During slow motion playback no sound will be played.

• To continue playback at normal speed press the slow motion playback.

Note:

With VCDs, S-VCDs and MPEG4 files slow motion backwards is not supported.

ZOOM/SLOW button down repeatedly to apply the

PLAY/PAUSE button during

- 12 -

+ 32 hidden pages
