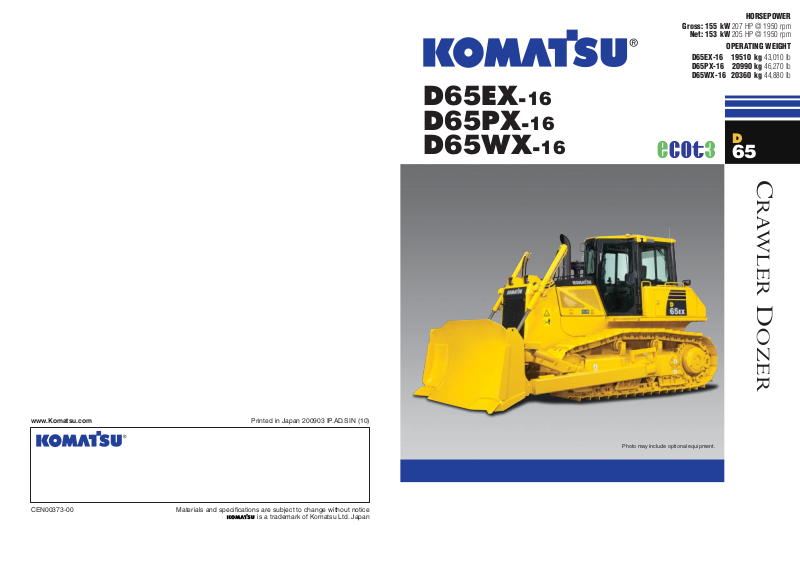

komatsu D65PX-16, D65EX-16, D65WX-16 SPECIFICATIONS

www.Komatsu.com Printed in Japan 200903 IP.AD.SIN (10)

CEN00373-00 Materials and specifications are subject to change without notice

is a trademark of Komatsu Ltd. Japan

HORSEPOWER

Gross: 155 kW

207 HP @ 1950 rpm

Net: 153 kW 205 HP @ 1950 rpm

OPERATING WEIGHT

D65EX-16 19510 kg

43,010 lb

D65PX-16 20990 kg 46,270 lb
D65WX-16 20360 kg 44,880 lb

CRAWLER DOZER

Photo may include optional equipment.

D65EX-16
D65PX-16
D65WX-16

D

65

Photo may include optional equipment.

W

ALK

-A

ROUND

D65-16

CRAWLER DOZER

D65EX/PX/WX-16 C RAWLER D OZER

32

Complete operator control with
PCCS (Palm Command Control System)

● Electronic controlled PCCS travel control

● Hydraulic controlled PCCS blade/ripper control

● Fuel control dial

● Automatic/manual gearshift selectable mode

● Gearshift pattern preset function

● ECMV controlled transmission

See page 7.

Gull-wing engine side covers

for easy and efficient engine servicing

See page 9.

Photos may include optional equipment.

New integrated ROPS cab includes:

● Large quiet operator environment

● Comfortable ride with new cab damper

● Excellent visibility without ROPS post

● Automatic high capacity air conditioning

● Pressurized cab

● Adjustable armrest and suspension seat

See page 8.

Hydraulic drive radiator cooling
fan controlled automatically, reduces

fuel consumption and operating noise
levels. See page 6.

Automatic adjusted
idler support provides long

life of wear plate without gap
and vibration. See page 9.

Modular power train for increased

serviceability and durability. Forward mounted
pivot shafts isolate final drives from blade loads.

See page 9.

Blade tilt lines completely protected

High-rigidity, simple
hull frame

and monocoque track frame
with pivot shaft for greater
reliability. See page 9.

Wet, multiple-disc brakes adjustment free

for excellent service life. See page 9.

PAT (Power Angle and Tilt Dozer) expands

productivity in a variety of applications. The
manually adjustable blade pitch further expands
versatility and productivity. See page 8.

PLUS (Parallel Link
Undercarriage System)

provides
longer wear life and lower repair &
maintenance costs with new rotating
bushings and other key enhancements.

See page 9.

Extra-low machine profile

provides excellent machine
balance and low center of gravity.

Increased-track length for EX/WX

ensures outstanding grading ability and stability.

SAA6D114E turbocharged after-cooled
diesel engine provides an output of 155 kW 207 HP

with excellent fuel economy, while meeting EPA Tier 3
and EU stage 3A emissions certified. See page 6.

HSS (Hydrostatic Steering System)

provides smooth, quick, and powerful control
in various ground conditions.

See page 7.

Automatic transmission with lockup torque
converter

improves fuel consumption. See page 5.

Innovative SIGMADOZER reduces digging

resistance and smoothly rolls material up for
increased blade loads.
Blade capacity

5.6 m37.3 yd3(for EX)

5.9 m37.7 yd3(for WX) See page 4.

OUTSTANDING PRODUCTIVITY &
FUEL ECONOMY

HORSEPOWER

Gross: 155 kW 207 HP @ 1950 rpm

Net: 153 kW 205 HP @ 1950 rpm

OPERATING WEIGHT

D65EX-16: 19510 kg 43,010 lb
D65PX-16:

20990 kg 46,270 lb

D65WX-16:

20360 kg 44,880 lb

BLADE CAPACITY

SIGMADOZER:

D65EX-16:

5.61 m37.34 yd

3

D65WX-16: 5.90 m37.72 yd

3

Straight Tilt Dozer:

D65EX-16:

3.89 m35.09 yd

3

D65PX-16: 3.69 m34.83 yd

3

Power Angle and Tilt Dozer:

D65EX-16:

4.25 m35.56 yd

3

D65PX-16: 4.42 m35.78 yd

3

D65 WX-16: 4.42 m35.78 yd

3

Large TFT LCD monitor

● Easy-to-read and use 7" large multi-color
monitor

● Choice of 10 languages for global support

TFT : Thin Film Transistor
LCD : Liquid Crystal Display

See page 8.

4 5

SIGMADOZER – The next generation blade

Based on a completely new digging theory, SIGMADOZER
dramatically improves dozing performance and increases
productivity. A new frontal design concept adopted for
digging and rolling up at the center of the blade increases
soil holding capacity while simultaneously reducing sideway
spillage. It also reduces digging resistance producing a

smoother flow of earth, enabling the dozing of larger
quantities of soil with less power.

Outstanding productivity

New fuel efficient bulldozer

The new D65 has achieved both high levels of
productivity and fuel economy through the usage of
SIGMADOZER and automatic transmission with
lockup torque converter. SIGMADOZER developed
based on completely new digging theory dramatically
increases production. New transmission with high
power transmission efficiency greatly reduces fuel
consumption. This bulldozer significantly improves
fuel efficiency compared with our conventional model.

SIGMADOZER Straight tilt blade

Shape of
dozed material

Shape of
dozed material

SIGMADOZER (D65-16) Straight tilt blade (D65-15E0)

SIGMADOZER

Automatic transmission with
lockup torque converter

15

%

increase

25

%

increase

10

%

decrease

(Compared with
our conventional model)

FUEL
CONSUMPTION:

PRODUCTION:

FUEL
EFFICIENCY:

Production increased by

15%

(compared with our conventional model)

Lockup mechanism of the
torque converter is
automatically actuated to
transfer engine power directly
to the transmission in
travelling and usual dozing
speed ranges. Locking up the
torque converter eliminates
loss of power by 10%.
Because the electronically
controlled engine is extremely
efficient, a decrease in fuel
consumption is realized while
also maintaining machine
power.

Automatic transmission with lockup torque
converter

A sharp reduction in fuel consumption and greater power
train efficiency is achieved by the new automatic gearshift
transmission and lockup torque converter. The automatic
transmission selects the optimal gear range depending on
the working conditions and load placed on the machine.
This means the machine is always operating at maximum
efficiency.

Fuel consumption decreased by

10%

(compared with our conventional model)

Outstanding fuel economy

Automatic/manual gearshift selectable mode

Automatic or manual gearshift modes can be selected with ease to suit the work at hand by simply pressing the switch on
the multi-monitor (selection at neutral).

● Automatic gearshift mode

Select for all general dozing. When a load is applied, the transmission automatically shifts down, and when the load is off,
it automatically shifts up to a set maximum gear speed. This mode economizes both fuel and production further where the
torque converter lockup mechanism is actuated according to load, providing a one to one drive.

● Manual gearshift mode

Select for dozing and ripping rough ground. When loaded, the transmission automatically shifts down, but does not shift up
when the load is off.

Selectable working mode

Working mode P is the mode aiming for powerful operation and maximum production and mode E for general dozing
applications with adequate speed and power while saving energy. For CO

2 reduction and energy saving, the monitor panel

allows for switching the working mode with ease, depending on the work at hand.

● P mode (Power mode)

With P mode, the engine outputs its full power, allowing the machine to perform the work requiring large production,
heavy-load work, and uphill work.

● E mode (Economy mode)

With E mode, the engine outputs enough power for the work without delivering unnecessary power. This mode allows for
energy saving operation and is suitable for the work on a ground where the machine may cause shoe slip and the work
not requiring large power such as downhill dozing, leveling and light-load work.

Automatic gearshift
mode screen

Manual gearshift
mode screen

WA380-6

P

RODUCTIVITY &

F

UEL

E

CONOMY

F

EATURES

D65-16

CRAWLER DOZER

D65EX/PX/WX-16 C RAWLER D OZER

Automatic transmission with
lockup torque converter

KOMATSU
SAA6D114 engine

SIGMADOZER

Engine

Torque
converter

Transmission

Lockup “OFF”

Lockup “ON”

50

Tra vel performance curve

40

30

20

Drawbar pull (tons)

10

0

0510

Automatic gearshift mode
Manual gearshift mode

Fuel economy through effective usage
of engine power (Decreased by 10%)

F1

Increased power transmission
efficiency by torque converter lockup

Automatic lockup ON in
the speed range for travel
and practical dozing

F2

F3L

Tr av el speed (km/h)

F3

76

WA380-6

E

COLOGY

F

EATURES

D65-16

CRAWLER DOZER

D65EX/PX/WX-16 C RAWLER D OZER

C

ONTROL

F

EATURES

Fuel efficient electronic controlled engine

The Komatsu SAA6D114E engine delivers 155 kW 207 HP
at 1950 rpm. The fuel-efficient, powerful Komatsu engine
makes the D65 superior in both ripping and dozing
operations. The engine is EPA Tier 3 and EU stage 3A
emissions certified. The engine is turbocharged and features
direct fuel injection and air-to-air aftercooling to maximize
power, fuel efficiency and emission compliance.
To minimize noise and vibration, the engine is mounted to
the main frame with rubber cushions.

Hydraulic drive radiator cooling fan

The engine cooling fan rotation speed is electronically
controlled. The fan rotation speed depends on engine
coolant and hydraulic oil temperatures, the higher the
temperature the higher the fan speed. This system increases
fuel efficiency, reduces the operating noise levels and
requires less horsepower than belt driven fan.

Engine

Komatsu develops and produces all major components,
such as engines, electronics and hydraulic components in
house.
Since all components can be matched, efficiencies are
increased achieving high levels of productivity and ecology.
With this "Komatsu Technology", and adding customer
feedback, Komatsu is achieving great advancements in
technology.
The result is a new generation of high performance and
environment friendly machines.

Palm command hydraulic controlled blade/ripper
joystick

Hydraulically-controlled palm command joystick is equipped
for blade/ ripper control. Combined with the highly reliable
Komatsu hydraulic system, superb control is the result.

Komatsu’s ergonomically designed control system “PCCS” creates an operating environment with “complete operator control”.

Human-Machine Interface PCCS (Palm Command Control System)

Gearshift pattern preset function

When the gearshift pattern is set to either <F1-R2>,
<F2-R1>, <F2-R2>, <F2-R3L> or <F3L-R3L> in the
automatic gearshift mode, the gear automatically shifts to
the preset gear when the travel control joystick is set to
Forward or Reverse position, reducing round trip repetition
work time and operator’s efforts. Gearshift pattern
<F2-R3L> and <F3L-R3L> are newly added for high speed
leveling operation.

F1-R1 MODE

Automatic
gearshift mode

F1-R2 MODE

F2-R1 MODE

Press DOWN switch

Press DOWN switch

Press UP switch

Press UP switch

F2-R2 MODE

Press DOWN switch

Press UP switch

F2-R3L MODE

Press DOWN switch

Press UP switch

F3L-R3L MODE

Press DOWN switch

Press UP switch

F1-R1 MODE

Manual
gearshift mode

F1-R2 MODE

F2-R1 MODE

Press DOWN switch

Press DOWN switch

Press UP switch

Press UP switch

F2-R2 MODE

Press DOWN switch

Press UP switch

F2-R3 MODE

Press DOWN switch

Press UP switch

UP

DOWN

ECMV (Electronic Controlled Modulation Valve)
controlled transmission

A controller automatically adjusts each clutch engagement
depending on travel conditions, providing smooth shockless
clutch engagement, improved component life and operator
ride comfort.

Hydrostatic Steering System—smooth, powerful
turning

The engine power is transmitted to both tracks without
power interruption on the inside track for smooth, powerful
turns. Counter-rotation is available for minimum turning
radius enhancing maneuverability.

Palm command electronic controlled travel
joystick

Palm command travel joystick
provides the operator with a relaxed
posture and superb fine control
without operator fatigue.
Tr ansmission gear shifting is
simplified with thumb push buttons.

RH

DOWN SHIFT

UP SHIFT

F

LH

R

8 9

WA380-6

W

ORKING

E

NVIRONMENT

D65-16

CRAWLER DOZER

D65EX/PX/WX-16 C RAWLER D OZER

M

AINTENANCE

F

EATURES

New integrated ROPS cab

A newly designed cab is integrated with ROPS according to
the latest computer analysis. High rigidity and superb sealing
performance sharply reduce noise and vibration for the
operator and prevent dust from entering the cab. Relaxed
operation in comfortable environment. In addition, side
visibility is increased because external ROPS structure and
posts are not required. Outstanding visibility has been
achieved.

Power angle power tilt dozer (Optional)

A power angle and power tilt dozer blade with highly
durable box-structure frame is optionally available. This
dozer is available for the EX, WX and PX machines. The
hydraulic blade tilt and angling function expands versatility
and productivity in a variety of applications. The manually
adjustable blade pitch further expands the versatility and
productivity.

Comfortable ride with cab damper mounting

The D65’s cab mount uses a cab damper which provides
excellent shock and vibration absorption capacity. The long
stroke cab damper mounts soften shocks and vibration
while traveling over adverse conditions, which conventional
rubber mounting systems are unable to absorb. The cab
damper spring isolates the cab from the machine body,
suppressing vibration and providing a quiet, comfortable
operating environment.

Air conditioner
switches

Basic operation
switches

Function
switches

Indicators

Large multi-lingual LCD color monitor

A large user-friendly color monitor enables safe, accurate
and smooth work. Excellent screen visibility is achieved by
use of TFT liquid crystal display that can easily be read at
various angles and lighting conditions. Simple and easy to
operate switches. Plus function keys facilitate multi-function
operations.

Display data in 10 languages to globally support operators
around the world.

Multi-monitor with troubleshooting function to
prevent critical machine troubles

Var ious meters, gauges and warning functions are centrally
arranged on the multi-monitor.The monitor simplifies start­up inspection and promptly warns the operator with a lamp
and buzzer if any abnormalities should occur. In addition,
countermeasures are
indicated in 4 levels to
ensure safety and prevent
the machine from major
problems. Replacement times
for oil and filters are also
indicated.

Easy radiator cleaning with hydraulic drive fan

The radiator can be cleaned by utilization of the reversible,
hydraulically driven cooling fan. The fan can be reversed
from inside the cab by simply activating a switch.

Oil pressure check ports

Pressure check ports for power train components are
centralized to promote quick and simple diagnosis.

Gull-wing engine side covers

The engine side covers are gull-wing
type with a gas spring, and the opening
angle of the cover is further increased to
facilitate engine maintenance and filter
replacement.

Preventative maintenance

Preventative maintenance is the only way to ensure long service life from your equipment.That’s why Komatsu designed the
D65 with conveniently located maintenance points to make necessary inspections and maintenance quick and easy.

Parallel Link Undercarriage System (PLUS)
(Optional)

Komatsu’s innovative Parallel Link Undercarriage System
features a rotary bushing that demonstrates high durability
in any working conditions. Allowing the bushing to rotate
virtually eliminates bushing wear, resulting in doubled
service life of the undercarriage
when compared with the
conventional undercarriage. In
addition, wear limits of the link and
carrier roller are increased to
balance with the extended service
life of the bushing.

Self-adjusting idler support

Self-adjusting idler support applies a constant spring force to
the wear plate of the idler guide to eliminate the play of the
idler.This results in reduced noise and vibration as well as
extends the service life of the wear plate.

Reliable simple hull frame

Simple hull structure main frame design increases durability
and reduces stress concentration at critical areas. The track
frame has a large cross section and utilizes pivot shaft
mounting for greater reliability.

Sealed DT connectors

Main harnesses and controller connectors are equipped with
sealed DT connectors providing high reliability, as well as
water and dust resistance.

Flat face O-ring seals

Flat face O-ring seals are used to securely seal all hydraulic
hose connections preventing leakage.

Enclosed hydraulic piping

Hydraulic piping for the blade tilt cylinder is completely
housed in the push arm, protecting it from damage.

Modular power train design

Power train components are
sealed in a modular design that
allows the components to be
removed and installed without
oil spillage, making servicing
work clean, smooth and easy.

Adjustment-free disc brakes

Wet disc brakes are adjustment-free and provide excellent
service life.

Rotating Bushing

Low maintenance costs

Engine

Power train unit

Hull frame

Pivot shaft

Tra c k frame

Shoe

Final drive

Rubber Boot

SpringSilicon oil

10 11

S

PECIFICATIONS

D65EX/PX/WX-16 C RAWLER D OZER

D65EX-16 D65PX-16 D65WX-16

Type of dozer SIGMADOZER

Straight Tilt Dozer

SIGMADOZER
Number of track rollers (each side) 7 8 7
Type of shoes (standard)

Single grouser Single grouser Single grouser
Number of shoes (each side) 42 45 42
Grouser height mm in 65 2.6" 65 2.6" 65 2.6"
Shoe width (standard) mm in 510 20" 915 36" 760 30"
Ground contact area cm230395 (30295) 60115 (59935) 45295 (45145)

in24,711 (4,696) 9,318 (9,290) 7,021 (6,997)

Ground pressure kPa 55.2 (56.4) 30.8 (31.4) 38.6 (39.4)
(tractor) kgf/cm20.56 (0.58) 0.31 (0.32) 0.39 (0.40)

psi 8.01 (8.18) 4.47 (4.56) 5.61 (5.73)
Track gauge mm ft.in 1880 6'2" 2050 6'9" 2050 6'9"
Length of track on ground mm 2980 (2970) 3285 (3275) 2980 (2970)

ft.in 9'9" (9'9") 10'9" (10'9") 9'9" (9'9")

COOLANT AND LUBRICANT
CAPACITY (REFILL)

Fuel tank. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 415 ltr 109.6 U.S. gal

Coolant. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36 ltr 9.5 U.S. gal

Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 ltr 7.4 U.S. gal

Torque converter, transmission,

bevel gear, and steering system . . . . . . . . . . 48 ltr 12.7 U.S. gal

Final drive (each side)

D65EX-16 . . . . . . . . . . . . . . . . . . . 24 ltr 6.3 U.S. gal

D65EX-16 with PAT . . . . . . . . . . . . 27 ltr 7.1 U.S. gal

D65PX-16 . . . . . . . . . . . . . . . . . . . 27 ltr 7.1 U.S. gal

D65WX-16 . . . . . . . . . . . . . . . . . . . 27 ltr 7.1 U.S. gal

D65EX-16 D65PX-16 D65WX-16

Type of dozer Power Angle Power Angle Power Angle

Power Tilt Dozer Power Tilt Dozer Power Tilt Dozer
Number of track rollers (each side) 7 8 7
Type of shoes (standard)

Single grouser Single grouser Single grouser
Number of shoes (each side) 42 45 42
Grouser height mm in 65 2.6" 65 2.6" 65 2.6"
Shoe width (standard) mm in 560 22" 760 30" 760 30"
Ground contact area cm233375 (33265) 49930 (49780) 45295 (45145)

in25,173 (5,156) 7,739 (7,716) 7,021 (6,997)

Ground pressure kPa 52.9 (54.0) 37.0 (37.8) 40.9 (41.7)
(tractor) kgf/cm20.54 (0.55) 0.38 (0.39) 0.42 (0.43)

psi 7.68 (7.84) 5.38 (5.49) 5.94 (6.05)
Track gauge mm ft.in 2050 6'9" 2230 7'4" 2230 7'4"
Length of track on ground mm 2980 (2970) 3285 (3275) 2980 (2970)

ft.in 9'9" (9'9") 10'9" (10'9") 9'9" (9'9")

ENGINE

Model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Komatsu SAA6D114E-3

Type. . . . . . . . . . . . . . . . . . . . . 4-cycle, water-cooled, direct injection

Aspiration . . . . . . . . . . . . . . . . . . Turbocharged, air-to-air aftercooled

Number of cylinders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Bore x stroke . . . . . . . . . . . . . . . . . 114 mm x 135 mm 4.49" x 5.31"

Piston displacement. . . . . . . . . . . . . . . . . . . . . . . . . . 8.27 ltr 505 in

3

Governor . . . . . . . . . . . . . . . . . . All-speed and mid-range, electronic

Horsepower

SAE J1995 . . . . . . . . . . . . . . . . . . . . . . . . Gross 155 kW 207 HP

(ISO 14396 . . . . . . . . . . . . . . Maximum Gross 163.7 kW 219 HP)

ISO 9249 / SAE J1349* . . . . . . . . . . . . . . . . . Net 153 kW 205 HP

Rated rpm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1950 rpm

Fan drive type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Hydraulic

Lubrication system

Method . . . . . . . . . . . . . . . . . . . . . . . Gear pump, force lubrication

Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Full-flow

*Net horsepower at the maximum speed of

radiator cooling fan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

139 kW 186 HP

TORQFLOW TRANSMISSION

Komatsu TORQFLOW transmission consists of a water-cooled,
3-element, 1-stage, 2-phase, torque converter with lockup clutch,
and a planetary gear, multiple-disc clutch transmission which is
hydraulically actuated and force-lubricated for optimum heat
dissipation. Gearshift lock lever and neutral safety switch prevent
machine from accidental starts.

STEERING SYSTEM

PCCS lever controls for all directional movements. Pushing the
PCCS lever forward results in forward machine travel, while pulling it
rearward reverses the machine. Simply tilt the PCCS lever to left to
make a left turn. Tilt it to the right for a right turn.
Hydrostatic Steering System (HSS) is powered by steering planetary
units and a hydraulic pump and motor. Counter-rotation turns are
also available.Wet, multiple-disc, pedal-controlled service brakes are
spring-actuated and hydraulically released. Gear shift lock lever also
applies parking brake.

Minimum turning radius D65EX-16 . . . . . . . . . . . . . . 1.9 m 6'3"

D65EX-16 with PAT . . . . . . . 2.0 m 6'7"

D65PX-16 . . . . . . . . . . . . . . 2.2 m 7'3"

D65WX-16 . . . . . . . . . . . . . 2.1 m 6'11"

UNDERCARRIAGE

Suspension . . . . . . . . . . . . . Oscillating equalizer bar and pivot shaft

Tr ack roller frame . . . . . . . . . . . . . . . . . . . Monocoque, large section,

durable construction

Rollers and idlers. . . . . . . . . . . . . . . . . . . . . . Lubricated track rollers

Tr ack shoes

Lubricated tracks. Unique seals prevent entry of foreign
abrasive material into pin to bushing clearances to provide
extended service life.Track tension is easily adjusted with grease
gun.

FINAL DRIVES

Double-reduction final drive of spur and planetary gear sets to
increase tractive effort and reduce gear tooth stresses for long final
drive life. Segmented sprocket teeth are bolt-on for easy replacement.

50

50

40

30

20

10

0

40

30

20

10

0

0

01234567mph

Travel Speed

Drawbar Pull

24681012km/h

US ton tonkN

400

300

200

100

0

F1

F2

F3

F3L

Manual
gearshift mode

Automatic
gearshift mode

D65EX/PX/WX-16

Power Shift

DRAWBAR PULL VS SPEED.

MAXIMUM USABLE PULL

DEPENDS ON TRACTION AND

WEIGHT OF TRACTOR INCLUDING

MOUNTED EQUIPMENT.

Travel speed Forward Reverse

1st 3.6 km/h 2.2 mph 4.4 km/h 2.7 mph
2nd 5.5 km/h 3.4 mph 6.6 km/h 4.1 mph

3rdL 7.2 km/h 4.5 mph 8.6 km/h 5.3 mph

3rd 11.2 km/h 7.0 mph 13.4 km/h 8.3 mph

Overall Length Blade Blade Max. Lift Max. Drop Max. Tilt Weight Ground

With Dozer

Capacity

Width x Height Above Ground Below Ground Adjustment Dozer equipment Pressure*

mm ft.in m3yd3mm ft.in mm ft.in mm ft.in mm ft.in kg lb kPa kg/cm2psi

D65EX-16 5490 5.61 3410 x 1425 1130 (1135) 505 [phone] 62.9/0.64/9.13
SIGMADOZER 18'0" 7.34 11'2" x 4'8" 3'8" (3'9") 1'8" (1'8") 2'10" 5,270 (64.1/0.65/9.31)

D65EX-16 5330 3.89 3415 x 1225 1100 (1105) 435 [phone] 61.8/0.63/8.98
Straight Tilt Dozer 17'6" 5.09 11'2" x 4'0" 3'7" (3'8") 1'5" (1'5") 2'10" 4,540 (63.0/0.64/9.15)

D65EX-16

5790 4.25 3870 x 1235 1165 (1170) 700 [phone] 61.6

/0.63/8.95

Power Angle
Power Tilt Dozer

19'0" 5.56 12'8" x 4'1" 3'10" (3'10") 2'4" (2'3") 1'8" 6,530 (

62.8/0.64/9.11)

D65EX-16 5540 3.55 3970 x 1100 1175 (1180) 445 [phone] 62.3/0.64/9.04
Angle Dozer 18'2" 4.64 13'0" x 3'7" 3'10" (3'10") 1'6" (1'5") 1'4" 4,850 (63.5/0.65/9.22)

D65PX-16 5680 3.69 3970 x 1100 1125 (1130) 540 [phone] 34.2/0.35/4.97
Straight Tilt Dozer 18'8" 4.83 13'0" x 3'7" 3'8" (3'8") 1'9" (1'9") 2'11" 4,630 (34.8/0.36/5.06)

D65PX-16

5790 4.42 4010 x 1235 1165 (1170) 700 [phone] 42.9

/0.44/6.23

Power Angle
Power Tilt Dozer

19'0" 5.78 13'2" x 4'1" 3'10" (3'10") 2'4" (2'3") 1'8" 6,590 (

43.7/0.45/6.34)

D65WX-16 5500 5.90 3580 x 1425 1130 (1135) 505 [phone] 44.1/0.45/6.39
SIGMADOZER 18'1" 7.72 11'9" x 4'8" 3'8" (3'9") 1'8" (1'8") 2'6" 5,510 (44.9/0.46/6.51)

D65WX-16

5790 4.42 4010 x 1235 1165 (1170) 700 [phone] 47.4

/0.48/6.87

Power Angle
Power Tilt Dozer

19'0" 5.78 13'2" x 4'1" 3'10" (3'10") 2'4" (2'3") 1'8" 6,590 (48.2/0.49/7.00)

DOZER EQUIPMENT

Blade capacities are based on the SAE recommended practice J1265.
Use of high tensile strength steel in moldboard for strengthened blade construction.

HYDRAULIC SYSTEM

Closed-center load sensing system (CLSS) designed for precise and
responsive control, and for efficient simultaneous operation.

Hydraulic control units:
All spool valves externally mounted beside the hydraulic tank.
Plunger type hydraulic pump with capacity (discharge flow) of 248
ltr/min 65.5 U.S. gal/min at rated engine rpm.

Relief valve setting . . . . . . . . . . . . . 27.9 MPa 285 kg/cm24,050 psi

Control valves:
Spool control valves for SIGMADOZER or straight tilt dozer

Positions: Blade lift . . . . . . . . . . . . . . Raise, hold, lower, and float

Blade tilt. . . . . . . . . . . . . . . . . . . . . Right, hold, and left

Spool control valves for power angle power tilt dozer

Positions: Blade lift . . . . . . . . . . . . . . Raise, hold, lower, and float

Blade tilt. . . . . . . . . . . . . . . . . . . . . Right, hold, and left

Blade angle . . . . . . . . . . . . . . . . . . Right, hold, and left

Additional control valve required for multi-shank ripper (EX, WX)

Positions: Ripper lift . . . . . . . . . . . . . . . . . . Raise, hold, and lower

Hydraulic cylinders . . . . . . . . . . . . . . . . . . . . . . Double-acting, piston

Hydraulic oil capacity (refill): . . . . . . . . . . . . . . .

55 ltr 14.5 U.S. gal

Ripper equipment (additional volume):

Multi-shank ripper . . . . . . . . . . . . . . . . . . . . . 7 ltr 1.8 U.S. gal

Number of

Bore

cylinders

SIGMADOZER Power Angle

Straight Tilt Dozer Power Tilt Dozer

Blade lift 2 85 mm 3.3

"

90 mm 3.5

"

Blade tilt 1 125 mm 4.9

"

130 mm 5.1

"

Blade angle 2 — 110 mm 4.3

"

Ripper lift 1 125 mm 4.9

"

125 mm 4.9

"

*Ground pressure shows tractor, ROPS cab, operator, standard equipment and applicable blade.

for PAT Dozer

( ) ... PLUS spec.

( ) ... PLUS spec.

12

D65-16

CRAWLER DOZER

DIMENSIONS

OPERATING WEIGHT

Tr actor weight:

Including ROPS cab, rated capacity of lubricant, hydraulic control
unit, coolant, full fuel tank, operator, and standard equipment.

D65EX-16. . . . . . . . . . . . . . . 17120 kg 37,740 lb (17430 kg 38,430 lb)

D65PX-16 . . . . . . . . . . . 18890 kg 41,640 lb (19210 kg 42,350 lb)

D65WX-16 . . . . . . . . . . 17860 kg 39,370 lb (18170 kg 40,060 lb)

for PAT dozer

D65EX-16. . . . . . . . . . . . . . . 18030 kg 39,750 lb (18340 kg 40,430 lb)

D65PX-16 . . . . . . . . . . . 18870 kg 41,600 lb (19210 kg 42,350 lb)

D65WX-16 . . . . . . . . . . 18900 kg 41,670 lb (19210 kg 42,350 lb)

( ) ... PLUS spec.

Operating weight

Including SIGMADOZER (EX/WX) or straight tilt dozer (PX) or
power angle power tilt dozer, ROPS cab, operator, standard
equipment, rated capacity of lubricant, hydraulic control unit,
coolant, and full fuel tank.

D65EX-16 . . . . . . . . . . . 19510 kg 43,010 lb (19820 kg 43,690 lb)

D65PX-16 . . . . . . . . . . . 20990 kg 46,270 lb (21310 kg 46,980 lb)

D65WX-16 . . . . . . . . . . 20360 kg 44,880 lb (20670 kg 45,570 lb)

for PAT dozer

D65EX-16. . . . . . . . . . . . . . . 20990 kg 46,270 lb (21300 kg 46,960 lb)

D65PX-16 . . . . . . . . . . . 21860 kg 48,190 lb (22200 kg 48,940 lb)

D65WX-16 . . . . . . . . . . 21890 kg 48,260 lb (22200 kg 48,940 lb)

( ) ... PLUS spec.

D65EX-16 D65PX-16 D65WX-16

SIGMADOZER Straight Tilt Dozer SIGMADOZER
A 5490 mm 18'0" 5680 mm 18'8" 5500 mm 18'1"
B 1880 mm 6'2" 2050 mm 6'9" 2050 mm 6'9"
C 3155 mm 10'4" 3155 mm 10'4" 3155 mm 10'4"

(3160 mm 10'4") (3160 mm 10'4") (3160 mm 10'4")

D 3080 mm 10'1" 3080 mm 10'1" 3080 mm 10'1"

(3085 mm 10'1") (3085 mm 10'1") (3085 mm 10'1")

E 2980 mm 9'9" 3285 mm 10'9" 2980 mm 9'9"

(2970 mm 9'9") (3275 mm 10'9") (2970 mm 9'9")
F 510 mm 20" 915 mm 36" 760 mm 30"
G 65 mm 2.6" 65 mm 2.6" 65 mm 2.6"

Ground clearance . . . .410 mm 1'4" (415 mm 1'4")

Dimension with SIGMADOZER (D65EX-16) single grouser shoe.

D65EX-16 D65PX-16 D65WX-16

PAT Dozer PAT Dozer PAT Dozer
A 5790 mm 19'0" 5790 mm 19'0" 5790 mm 19'0"
B 2050 mm 6'9" 2230 mm 7'4" 2230 mm 7'4"
C 3155 mm 10'4" 3155 mm 10'4" 3155 mm 10'4"

(3160 mm 10'4") (3160 mm 10'4") (3160 mm 10'4")

D 3080 mm 10'1" 3080 mm 10'1" 3080 mm 10'1"

(3085 mm 10'1") (3085 mm 10'1") (3085 mm 10'1")

E 2980 mm 9'9" 3285 mm 10'9" 2980 mm 9'9"

(2970 mm 9'9") (3275 mm 10'9") (2970 mm 9'9")
F 560 mm 22" 760 mm 30" 760 mm 30"
G 65 mm 2.6" 65 mm 2.6" 65 mm 2.6"
H 3545 mm 11'8" 3670 mm 12'0" 3670 mm 12'0"

Ground clearance . . . .410 mm 1'4" (415 mm 1'4")

Dimension with Power angle power tilt dozer (D65EX-16) single grouser shoe.

for PAT Dozer

( ) ... PLUS spec.

( ) ... PLUS spec.

D

G.L

E

A

B

F

C

G

25

25

H

D

G.L

E

A

B

F

C

G

● Air cleaner, double element with
dust indicator

● Alternator, 60 ampere/24V

● Backup alarm

● Batteries, 140 Ah/2 x 12V

● Color monitor

● Decelerator pedal

● Engine hood

● Engine side covers, gull-wing

● Fenders

● High mount foot rests

● Hydraulic drive radiator cooling fan with

clean mode

● Locks, filler caps and covers

● Muffler with curved exhaust pipe

● Oil pressure check ports for power train

● Radiator mask, heavy-duty, hinged

● Radiator reserve tank

● Rear counterweight (EX, WX with PAT)

● Rear cover

● Seat, adjustable

● Starting motor, 7.5 kW/24V

● Steering system:

HSS (Hydrostatic Steering System)

●

Tr ack roller guard, center and end section
(PX)

● Track roller guard, end sections (EX, WX)

● Track shoe assembly

—Heavy-Duty sealed and lubricated track

● 510 mm 20" single grouser shoe

(EX)

● 560 mm 22" single grouser shoe

(EX with PAT)

● 760 mm 30" single grouser shoe

(WX)

● 760 mm 30" single grouser shoe

(PX, WX with PAT)

● 915 mm 36" single grouser shoe

(PX)

● Underguards:
oil pan and transmission
heavy-duty

● Water separator

● ROPS cab*

● Air conditioner

● Air-conditioner intake precleaner

● Cab accessories

—12V power supply
—Cup holder
—Rear view mirror
—Sun visor

* Meets ISO 3471, SAE J1040 APR88 ROPS

standards, and ISO 3449 FOPS standard.

STANDARD EQUIPMENT FOR BASE MACHINE

OPTIONAL EQUIPMENT

● Air suspension seat with turn, high-back

● Alternator, 90 ampere/24V

● AM-FM radio

● Batteries 200 Ah/2 x 12 V

● Engine intake precleaner

● Front pull hook

● Hinged underguards

● Hitch type drawbar

● Hydraulics for ripper (EX, WX)

● Light working, cab additional

● Rear view monitoring system

● ROPS canopy

● Rotary bushing link track (PLUS)

● Starting motor 11.0 kW/24 V

● Suspension seat with high-back

● Tool kit

● Track roller guard, full length

Multi-shank ripper
(for D65EX/WX):

Weight (including hydraulic

control unit) . . . . . . . . . 1770 kg 3,900 lb

Beam length . . . . . . . . . . . . 2170 mm 7'1"

Maximum lift above ground . . . 640 mm 2'1"

Maximum digging depth . . . . 590 mm 1'11"

Models Shoe Additional weight

Ground contact Additional ground

area pressure to tractor

560 mm 22"

+130 kg (+130 kg) 33375 cm2(33265 cm2)

-4.5 kPa (-4.7 kPa)

single-grouser

+290 lb (+290 lb) 5,173 in2(5,156 in2)

-0.05 kg/cm2(-0.05 kg/cm2)

shoe -0.66 psi (-0.68 psi)

610 mm 24"

+250 kg (+260 kg) 36355 cm2(36235 cm2)

-8.4 kPa (-8.5 kPa)

D65EX single-grouser

+550 lb (+570 lb) 5,635 in2(5,616 in2)

-0.09 kg/cm2(-0.09 kg/cm2)

shoe -1.22 psi (-1.24 psi)

660 mm 26"

+380 kg (+390 kg) 39335 cm2(39205 cm2)

-11.6 kPa (-11.8 kPa)

single-grouser

+840 lb (+860 lb) 6,097 in2(6,077 in2)

-0.12 kg/cm2(-0.12 kg/cm2)

shoe -1.68 psi (-1.72 psi)

940 mm 37"

+30 kg 61760 cm

2

-0.8 kPa

D65PX circular-arc

+70 lb 9,573 in

2

-0.01 kg/cm

2

shoe -0.11 psi

SHOES

D65-16

CRAWLER DOZER

( ) ... PLUS spec.

13
