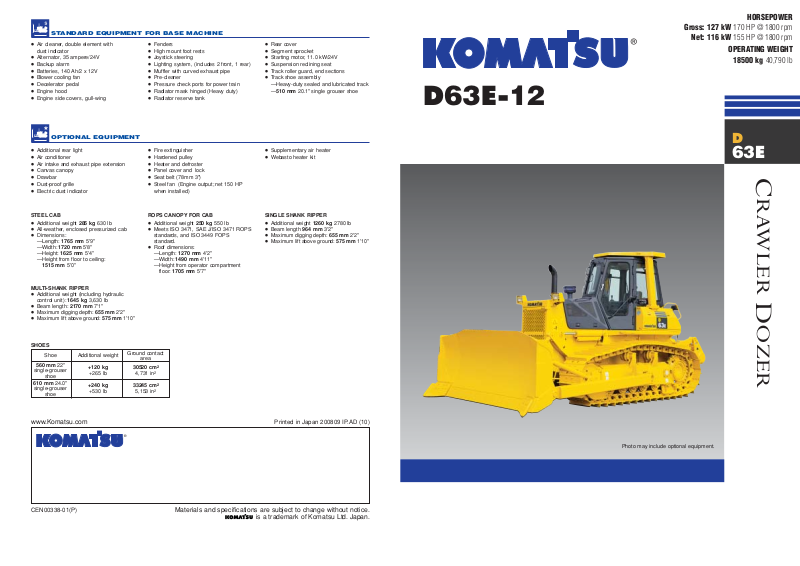

komatsu D63E-12P SPECIFICATIONS
OPTIONAL EQUIPMENT
STANDARD EQUIPMENT FOR BASE MACHINE
Photo may include optional equipment.
www.Komatsu.com Printed in Japan 200809 IP.AD (10)
CEN00338-01(P)
Materials and specifications are subject to change without notice.
is a trademark of Komatsu Ltd. Japan.
HORSEPOWER
Gross: 127 kW
170 HP @ 1800 rpm
Net: 116 kW 155 HP @ 1800 rpm
OPERATING WEIGHT
18500 kg
40,790 lb
D
63E
D63E-12
● Air cleaner, double element with
dust indicator
● Alternator, 35 ampere/24V
● Backup alarm
● Batteries, 140 Ah/2 x 12V
● Blower cooling fan
● Decelerator pedal
● Engine hood
● Engine side covers, gull-wing
● Fenders
● High mount foot rests
● Joystick steering
● Lighting system, (includes 2 front, 1 rear)
● Muffler with curved exhaust pipe
● Pre-cleaner
● Pressure check ports for power train
● Radiator mask hinged (Heavy duty)
● Radiator reserve tank
● Rear cover
● Segment sprocket
● Starting motor, 11.0 kW/24V
● Suspension reclining seat
● Tr ack roller guard, end sections
● Tr ack shoe assembly
—Heavy-duty sealed and lubricated track
—510 mm 20.1" single grouser shoe
● Additional rear light
● Air conditioner
● Air intake and exhaust pipe extension
● Canvas canopy
● Drawbar
● Dust-proof grille
● Electric dust indicator
● Fire extinguisher
● Hardened pulley
● Heater and defroster
● Panel cover and lock
● Seat belt (78mm 3")
● Steel fan (Engine output; net 150 HP
when installed)
● Supplementary air heater
● Webasto heater kit
SHOES
Shoe Additional weight
Ground contact
area
560 mm 22"
+120 kg 30520 cm
2
single-grouser
+265 lb 4,731 in
2
shoe
610 mm 24.0"
+240 kg 33245 cm
2
single-grouser
+530 lb 5,153 in
2
shoe
MULTI-SHANK RIPPER
● Additional weight (including hydraulic
control unit): 1645 kg 3,630 lb
● Beam length: 2170 mm 7'1"
●
Maximum digging depth: 655 mm 2'2"
●
Maximum lift above ground: 575 mm 1'10"
STEEL CAB
● Additional weight 285 kg 630 lb
● All-weather, enclosed pressurized cab
● Dimensions:
—Length: 1765 mm 5'9"
—Width: 1720 mm 5'8"
—Height: 1625 mm 5'4"
—Height from floor to ceiling:
1515 mm 5'0"
ROPS CANOPY FOR CAB
● Additional weight 250 kg 550 lb
● Meets ISO 3471, SAE J/ISO 3471 ROPS
standards, and ISO 3449 FOPS
standard.
● Roof dimensions:
—Length: 1270 mm 4'2"
—Width: 1490 mm 4'11"
—Height from operator compartment
floor: 1705 mm 5'7"
SINGLE SHANK RIPPER
● Additional weight 1260 kg 2780 lb
● Beam length 964 mm 3'2"
●
Maximum digging depth: 655 mm 2'2"
●
Maximum lift above ground: 575 mm 1'10"
C
RAWLER
D
OZER
HORSEPOWER
Gross: 127 kW 170 HP @ 1800 rpm
Net: 116 kW 155 HP @ 1800 rpm
OPERATING WEIGHT
18500 kg 40,790 lb
BLADE CAPACITY
Semi-U Dozer:
4,4 m35.8 yd
3
Straight Tilt Dozer:
3.0 m33.9 yd
3
32
Photo may include optional equipment.
W
ALK
-A
ROUND
D63E
CRAWLER DOZER
D63E-12 C RAWLER D OZER
Electronic monitoring system prevents
minor problems from developing into major ones.
All of the track shoes, idlers, carrier rollers and
track rollers meet the extreme cold region specifications.
Wet, multiple-disc brakes
eliminates brake-band adjustments
for maintenance-free operation.
Modular power train for increased
serviceability and durability.
Bolt-on segmented sprocket teeth
for ease of maintenance.
Hexagonal pressurized cab and ROPS canopy
with viscous damping mounts provides unsurpassed
operator comfort and visibility
Rippers
● Single-shank (standard)
● Multi-shank (optional)
Gull-wing engine side covers
for easy and safer servicing.
The Komatsu SA6D114E-2 diesel engine
provides an output of 116 kW 155 HP with excellent
productivity.
High capacity
Semi-U dozer,
Straight tilt dozer combined the
highest power in its class with
outstanding productivity.
Komatsu torqflow transmission
offers single lever control of speed (3 forward
and 3 reverse) and directional changes.
Forward-mounted
pivot shafts
isolate final drives from blade loads.
Left hand
joystick controls all tractor motion.
Right hand joystick controls all blade movements.
