TORQUE TESTER

mini K1/S mini K5/S

mini K20/S

mini Ke/S

OPERATOR’S HANDBOOK

KOLVER S.r.l - Via Corner, 19/21 - 36016 THIENE - ITALY - tel. +39 0445 371068 fax. +39 0445 371069

kolver@kolver.it - www.kolver.it

1. APPLICATIONS

Recommended for all hand screwdrivers, wrenches, or power tools.

2. FEATURES

Model

Torque range Nm

Accuracy

miniK1/S

0,05 – 1

± 1 cNm

miniK5/S

0,3 – 5

± 2 cNm

miniK20/S

0,5 – 20

± 3 cNm

minike/5/S

0,5 - 5

± 3 cNm

minike/25/S

2 - 25

± 10 cNm

minike/50/S

5 - 50

± 10 cNm

 Built-in transducer to measure on joint simulator.  External transducer (miniKe/S).  Three units of torque measurements: Nm, Kgf.cm, lbf.in.  Battery powered (9V) and AC adapter cord. 9V batteries provide 20 hours of continuous operation.  Manual and auto reset functions to clear displayed values.  Automatic shut down.  Better performances on hard joint  Correction factor (FATC): to connect more ext. transducers on the same tester.  RS232C serial port as option with date and hour.  Certificate of calibration.

3. DESCRIPTION

1. Mounting holes

2. Display 4 digit / 8 lines

3. “ON/OFF” key : press for 3 seconds to switch tester on or off

4. “CLEAR” key : press to reset the displayed value

5. “UNIT” key : press to select the unit of torque measurements

6. Internal transducer or port for external transducer

4. MOUNTING

It is strongly recommended securing the tester through slots “1” to a workbench before operating.

Immobilizing the tester when checking torque values over 1 Nm is critical for the safety the operator as well as for the accuracy of torque measurements during operation.

5. JOINT SIMULATOR

The Joint Simulator (JS) consists of a screw compressing a series of washers. The way the washers are mounted can simulate soft or hard joint. The screw comes with a ¼” hex male head for proper fit to any ¼” hex female screwdriver drive. Hardened thread components increase accuracy and life. Since a joint simulator cannot duplicate actual joints, the torque values displayed on the minik may vary from the actual torque that a screwdriver will apply to the actual assembly.

When critical applications are involved, we recommend to verify the torque output of the power tool being used on the actual assembly through an external transducer. Minik1 is supplied with a built-in joint simulator.

NB. We recommend to grease the JS each 1000 cycles.

6. STARTING AND OPERATING THE TESTER

1. Immobilize the tester when checking torque values over 1 Nm. This is critical for the safety the operator as well as for the accuracy of torque measurements during operation.

2. Switch the tester on pushing the ON/OFF key. If used only with battery check its status. If the tester does not switch on or the display is not clear enough, please replace the battery. When used it the AC adapter, this will disable the battery. The battery is not rechargeable. The display will show the main screen:

3. Insert the joint simulator into its 13mm hex seat and make sure the screw is in its upper position (if not run the driver anticlockwise to unscrew it). The tester is ready for a measuring cycle. In minik1, only unscrew before measuring.

4. Run the joint simulator screw all the way down until it stops and read the torque value on the display. Run the screw up to be ready for the next cycle.

5. Press the “ON/ESC” key for 3 seconds to switch the tester off. The tester features a built-in auto shut off mode function to save power when not in use. If there is no activity for 3 minutes, such as key press or no torque input, the tester will shut down. To restore power press the “ON/ESC” key for 3 seconds

NB. Before starting, always check that the screen displays 0.000. Instead push CLEAR.

7. SELECTING THE UNIT

MEASURING UNIT: Nm, kgf.cm and lbf.in

To change unit: press Unit key until the desired unit has been selected. Each unit is indicated by a LED of different color: red for Nm, green for kgf.cm and yellow for lbf.in .

8. SELECTING MANUAL OR AUTO RESET

The flow chart below shows how to select Manual or Auto Reset. Sens, Cal and Fatc functions (sensitivity, calibration and correction factor) can be modified only by

authorized personnel.

When you select Manual Reset “Coff”: you need to push “CLEAR” to remove readings from the display and reset all values to zero. When you select Auto reset “Con”: any new measure will replace the previous one without resetting the value to zero.

Push ON/OFF

Push UNIT

Pr Push emere

Push at the same time

CLEAR+UNIT for 5 sec.

See

“Prg”

Push “UNIT” per scorrere la lista.

-TRACK: Track Mode active.

-OFF : Automatic reset off.

-ON : Automatic reset on .

Push “ON/OFF” to save or “CLEAR” to

exit

After 3 sec. see

“SEnS”

Push UNIT

Push ON/OFF

See

“rST”

Automatic detection of FATC. Once finished, remove the weight and push “ON/OFF” to save or “UNIT” to go to Manual Mode to improve the calibration.

Push UNIT

See

“CAL”

Push UNIT

MANUAL Mode: Push on “UNIT” and “CLEAR” to modify the FATC. Remove the weight and push “ON/OFF” to save.

See

“DATE”

Set date and hour:

Push “UNIT” to set hour.min

(24hours, day.month.year.

At each digit push “ON/OFF” to save or

“CLEAR” to exit.

Push ON/OFF

Push UNIT

See

“FATC”

Return to the main

screen

Push UNIT

Push ON/OFF

9. EXTERNAL TRANSDUCER for miniKe

The minike readouts support an external rotary or non rotary transducer. The minike can read torque up to 500 Nm. The external transducer must be calibrated together with the minike here at Kolver before shipment. The following transducers are always available ex stock:

Model

Torque range Nm

KTE5

0.5 – 5.0

KTE25

2.0 – 25.0

Rotary and non rotary transducers for lower or higher torque ranges available on request.

10. SERIAL PRINT

It is possible to print the results through the serial port placed near the power supplyconnector. The serial print has the following settings:

VALUE - UNIT OF MEASUREMENT

Example of serial print:

0,247 Nm 0,249 Nm 0,255 Nm 0,254 Nm 0,249 Nm 0,255 Nm 0,247 Nm

11. MAINTENANCE

The minike testers are maintenance free. The electronics and the internal transducers have no wearing parts except the battery once its charge is over. The internal transducer should be calibrated every 12 to 30 months, depending on the frequency of use. WARNING: The overload protection of the internal transducer is limited to 125% of nominal value. Damages due to overloading will result in inaccurate readings and will not be covered by our warranty.

FUNCTION

Serial transmission

GND

0Vdc

12. WARRANTY

1. This KOLVER product is guaranteed against defective workmanship or materials, for a maximum period of 12 months following the date of purchase from KOLVER, provided that its usage is limited to single shift operation throughout that period. If the usage rate exceeds of single shift operation, the guarantee period shall be reduced on a prorata basis.

2. If, during the guarantee period, the product appears to be defective in workmanship or materials, it should be returned to KOLVER or its distributors, transport prepaied, together with a short description of the alleged defect. KOLVER shall, at its sole discretion, arrange to repair or replace free of charge such items.

3. This guarantee does not cover repair or replacement required as a consequence of products which have been abused, misused or modified, or which have been repaired using not original KOLVER spare parts or by not authorized service personnel.

4. KOLVER accepts no claim for labour or other expenditure made upon defective products.

5. Any direct, incidental or consequential damages whatsoever arising from any defect are expressly excluded.

6. This guarantee replaces all other guarantees, or conditions, expressed or implied, regarding the quality, the marketability or the fitness for any particular purpose.

7. No one, whether an agent, servant or employee of KOLVER, is authorized to add to or modify the

terms of this limited guarantee in any way. However it’s possible to extend the warranty with an

extra cost. Further information at kolver@kolver.it

EXPLODED VIEWS AND PART LISTS Minik1/S

REF

DESCRIPTION

CODE

Plastic support (4 pcs)

800016

Internal transducer 1Nm (miniK1)

240505

Washer M4 (7 pcs)

241015

Screw M4 x 20

241014

Flat washer M3 (4 pcs)

800042

Nut 6,3 mm (4 pcs)

241003

Metal housing miniK../S

240001/BCU

Membrane miniK

241008

Battery 9V not rechargeable

241010

Battery seat miniK

241005

Board miniK + display

241002/N

Screw M3 (5 pcs)

800056

Washer M3

800041

Base miniKe

240001/BF2

Screw M3 x 6 TSP (6 pcs)

210068

Screw M3 x 22

241012

Screw M4 x 8 (3 pcs)

241011

Bit - hex 1/4", L=50 mm, diam. 4 mm

FE-13040

Case

241000

Power supply 12V

241009/N

minik5/S – minik20/S

REF

DESCRIPTION

CODE

Plastic support (4 pcs)

800016

Internal transducer 5Nm (miniK5/s)

240503

Internal transducer 20Nm (miniK20/s)

240504

Washer M3 (5 pcs)

800041

Flat washer M3 (4 pcs)

800042

Nut 6,3 mm (4 pcs)

241003

Metal housing miniK../S

240001/BCU

Membrane miniK

241008

Battery 9V not rechargeable

241010

Battery seat miniK

241005

Board miniK + display

241002/N

Screw M3 (5 pcs)

800056

Base miniKe

240001/BF2

Screw M3 x 6 TSP (6 pcs)

210068

Screw M3 x 22

241012

Screw M4 x 8 (3 pcs)

241011

Joint simulator M6 (miniK5)

240600

Joint simulator M8 (miniK20)

240800

Case

241000

Power supply 12V

241009/N

Minike/xx/S

REF

DESCRIPTION

CODE

Plastic support (4 pcs)

800016

Washer M3 (3 pcs)

800041

Flat washer M3 (4 pcs)

800042

Nut 6,3 mm (4 pcs)

241003

Metal housing miniK../S

240001/BCU

Membrane miniK

241008

Connector M 5 pin

231666

Battery 9V not rechargeable

241010

Battery seat miniK

241005

Board miniK + display

241002/N

Screw M3 (5 pcs)

800056

Base miniKe

240001/BF2

Screw M3 x 6 TSP (6 pcs)

210068

Screw M3 x 22

241012

Screw M4 x 8 (3 pcs)

241011

Case

241000

Power supply 12V

241009/N

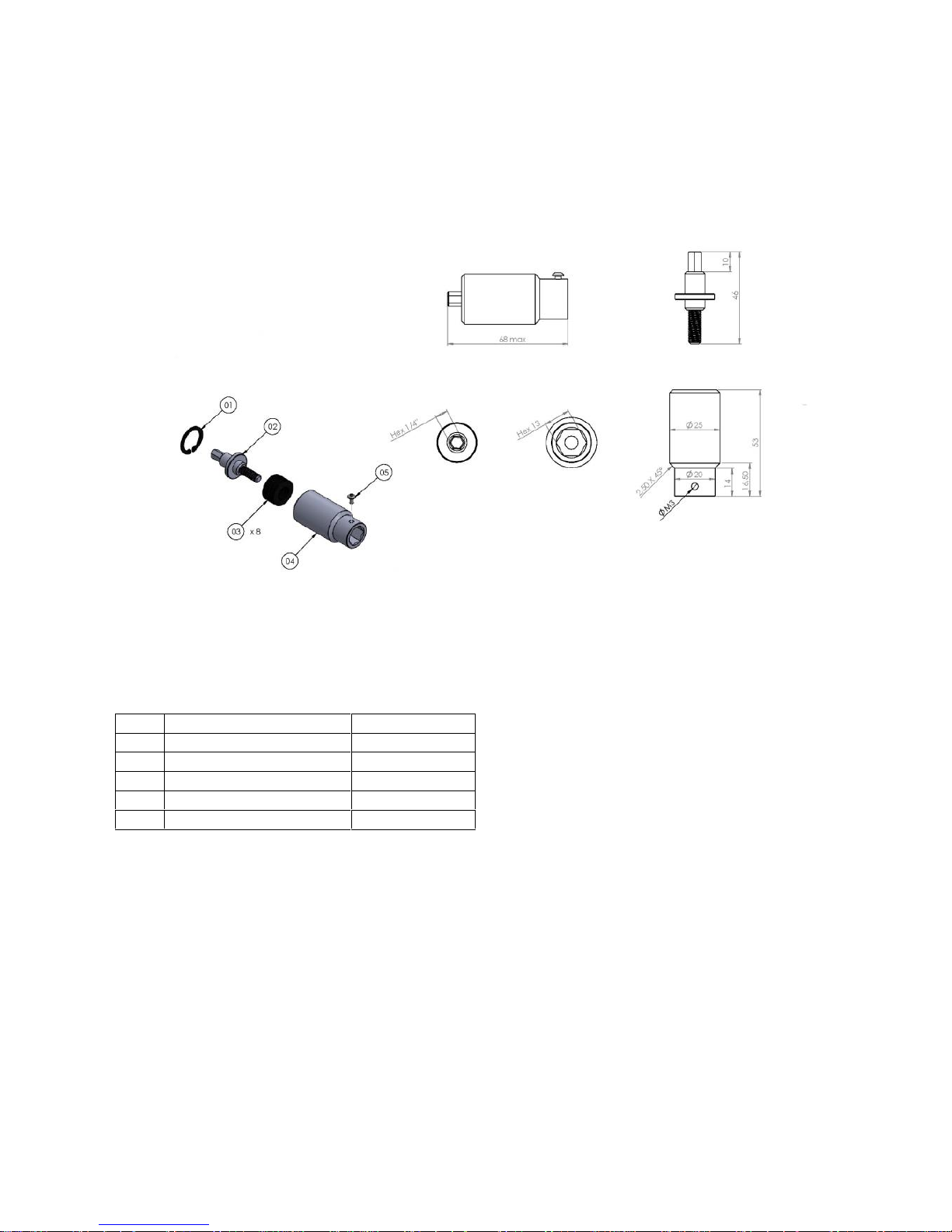

M6 (code 240600)

Pos.

Description

Code

Seiger

240601

Joint shaft

240602

Washer spring (8)

240603

Joint housing

240604

Screw M3x5

872443/ZN

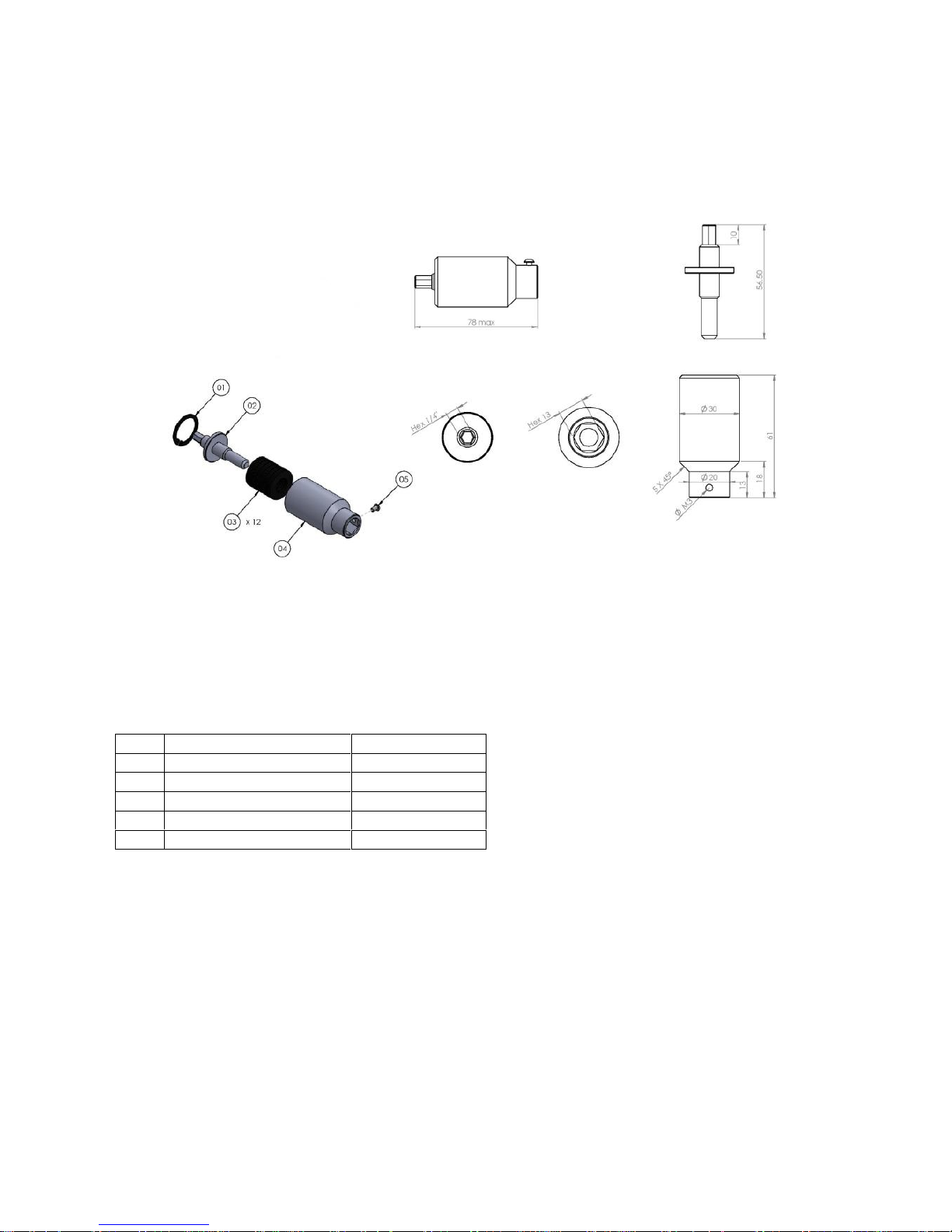

M8 (code 240800)

Pos.

Description

Code

Seiger

240801

Joint shaft

240802

Washer spring (12)

240803

Joint housing

240804

Screw M3x5

872443/ZN

DECLARATION OF CONFORMITY

KOLVER S.r.l.

VIA MARCO CORNER, 19/21

36016 THIENE (VI) ITALIA

Declare that the new tool here described: Torque tester:

mini K1/S

021402/S

Mini KE/5/S

021405/5/S

Mini K5/S

021403/S

Mini KE/25/S

021405/25/S

Mini K20/S

021404/S

Mini KE/50/S

021405/50/S

Is in conformity with the following standards and other normative documents: 2006/42/CE, 2006/95/CE, 2004/108/CE, EN 60745-1, EN 60204-1, EN 61000-6-1, EN 61000-6-3. It is also in conformity with RoHS II normative.

Name: Giovanni Colasante Position: General Manager

Person authorized to compile the technical file in Kolver

Thiene, July 1st2017 Giovanni Colasante
