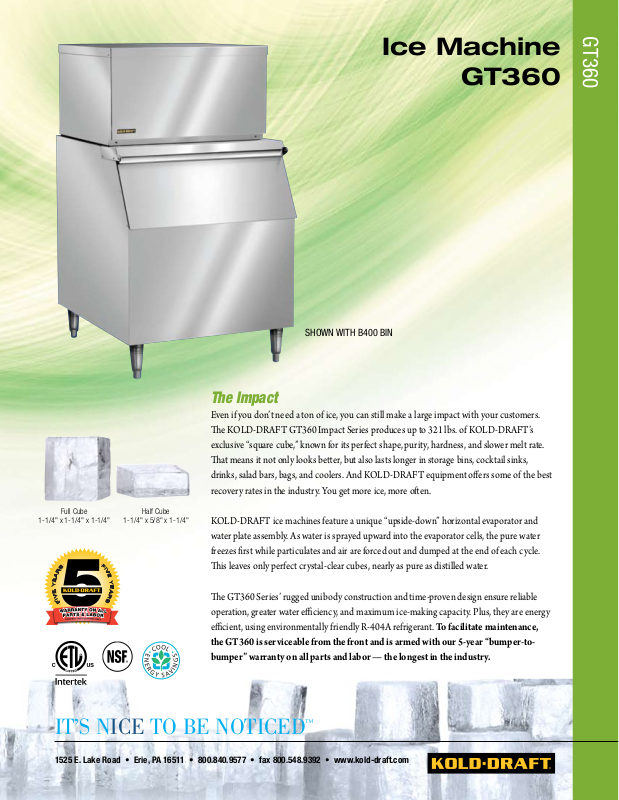

Kold-Draft GT360 Specifications

Ice Machine

GT360

SHOWN WITH B400 BIN

GT360

Full Cube

1-1/4" x 1-1/4" x 1-1/4"

Half Cube

1-1/4" x 5/8" x 1-1/4"

The Impact

Even if you don’t need a ton of ice, you can still make a large impact with your customers.
e KOLD-DFT GT360 Impact Series produces up to 321 lbs. of KOLD-DFT’s
exclusive “square cube,” known for its perfect shape, purity, hardness, and slower melt rate.
at means it not only looks beer, but also lasts longer in storage bins, cocktail sinks,
drinks, salad bars, bags, and coolers. And KOLD-DFT equipment oers some of the best
recovery rates in the industry. You get more ice, more oen.

KOLD-DFT ice machines feature a unique “upside-down” horizontal evaporator and
water plate assembly. As water is sprayed upward into the evaporator cells, the pure water
freezes rst while particulates and air are forced out and dumped at the end of each cycle.
is leaves only perfect crystal-clear cubes, nearly as pure as distilled water.

e GT360 Series’ rugged unibody construction and time-proven design ensure reliable
operation, greater water eciency, and maximum ice-making capacity. Plus, they are energy
ecient, using environmentally friendly R-404A refrigerant. To facilitate maintenance,

the GT360 is serviceable from the front and is armed with our 5-year “bumper-to­bumper” warranty on all parts and labor — the longest in the industry.

It’s NIce to be NotIced

™

1525 E. Lake Road • Erie, PA 16511 • 800.840.9577 • fax [phone] • www.kold-draft.com

H

W

D

General Specifications for GT360 Series

Plumbing:

3/8" FPT potable water inlet.
1" FPT bin drain.
3/4" I.D. flex tubing cuber drain.
3/8" FPT condenser (liquid-cooled) inlet.
1/2" FPT condenser (liquid-cooled)
outlet.

Exterior Finish:

300 Series stainless steel.

Refrigeration System:

Thermostatic expansion valve­controlled R-404A-HFC.

Clearance Requirements:

Allow 4" left side, 4" right side and
back, and 1" top for ventilation and
utility connections.

Condenser Heat Rejection:

Recommended Operating Requirements:

Min. Max.
Room Air Temp. 45ºF (7ºC) 110ºF (43ºC)
Water Temp. 45ºF (7ºC) 90ºF (32ºC)
Voltage 208-230 198V 253V
115 104V 126V
Potable Water Pressure 20 PSIG (137 kPa) 100 PSIG (689 kPa)
Liquid-Cooled Condenser

Pressure 20 PSIG (137 kPa) 100 PSIG (689 kPa)

BTUH/kW/Ton
4,700/1.38/0.39 avg.
5,850/1.71/0.49 peak

GT360 Series Daily Capacities: Lbs. of ice per 24 hours per unit

Description Capacity and Energy Input Ratings

Model

Number

GT361AC

GT361AHK Half Cube 255 (116) 7.31 (581) 1 332 (150.59) 5.12 (406) 23.6 (1.97) n/a 12 15

GT361LC

GT361LHK Half Cube 316 (143) 5.18 (411) 2 373 (169.19) 4.25 (337) 22.9 (1.91) 180.7 (15.08) 11.1 15

GT364AC

GT364AHK Half Cube 255 (116) 6.91 (548) 2 332 (150.59) 4.84 (384) 23.6 (1.97) n/a 6.5 15

GT364LC

GT364LHK Half Cube 303 (137) 5.34 (424) 2 358 (162.38) 4.38 (347) 23.2 (1.94) 188.5 (15.73) 6 15

Volt/

Hz/Ph Condenser

Air Cooled

115/60/1

Liquid

Cooled

Air Cooled

208-

230/60/1

Liquid

Cooled

Cube

Size

90/70

Ambient/Water

kWh/100#

(kJ/kg) Tier

70/50

Ambient/Water

Full Cube 216 (98) 7.95 (631) 1 270 (122.47) 5.96 (473) 22 (1.84) n/a 12 15

Full Cube 262 (119) 5.56 (441) 2 309 (140.16) 4.56 (362) 22.2 (1.85) 165.3 (13.79) 11.1 15

Full Cube 215 (97) 7.57 (601) 2 269 (122.01) 5.68 (450) 22.1 (1.8) n/a 6.5 15

Full Cube 255 (115) 5.76 (457) 1 301 (136.53) 4.72 (374) 22 (1.8) 163.4 (13.63) 6 15

1

Water Use1 gal/100# (l/kg)

kWh/100#

(kJ/kg) Potable Condenser

Min.

Circuit

Amp

2

Max.
Fuse

Amps

Note 1: 90/70 ratings based on 90°F (32.2°C) ambient and 70°F (21.1°C) water Standard Rating temperature operation. 70/50 estimated ratings based on 70°F (21.1°C)

ambient and 50°F (10°C) water Standard Rating temperature operation.

Note 2: Minimum circuit Amps does not supersede the minimum circuit rating required by any code regulation for the branch circuit supplying the ice maker.

Energy-performance data are derived from testing in accordance with AHRI 810 and CAN/CSA C742 Standards for Performance Rating of Automatic Commercial
Ice Makers and veried by Intertek/ETL.

All models are certied in compliance with ANSI/UL 563 and CAN/CSA C22.2 No. 120 Standards for Safety by Intertek/ETL.

Please observe minimum circuit ampacity and maximum fuse size listed above. Fuse or HACR-type
circuit breaker branch circuit protection within the range of minimum ampacity and maximum fuse
size shall be provided or warranty may be voided. We reserve the right to make product
improvements at any time. Specifications and design are subject to change without notice.

Dimensions/Weight

Condenser

Dimensions - inches (cm)

W D H

Air Cooled 30.1 (76.5) 25.7 (65.3) 16.9 (42.9) 180 (82)

Liquid Cooled 30.1 (76.5) 25.7 (65.3) 16.9 (42.9) 174 (79)

Ship Weight

# (kg)

Quality US-Made Commercial Ice Machines ©2010 KDIndustries, Erie, PA Printed in U.S.A KD-LIT 03/10
