Features
•
Automatic opening/closing lid for cleaner control.
•
Stainless-steel wand auto-cleanses before and after each use.
•
Hybrid heater technology provides instant and unlimited warm
water for consistent comfort.
•
Separate front and rear nozzles for maximum comfort and
personalization.
•
Adjustable nozzle position, water temperature, and water
pressure.
•
Oscillating wash covers a wider area of cleansing.
•
Turbo setting produces a massaging effect as water moves
back and forth.
•
Air bubble wash offers a soft, gentle wash with effective
cleansing.
•
Auto/child cleansing setting is convenient for the elderly or
children.
•
Heated seat with adjustable temperature levels and warm air
dryer.
•
Soft-close seat and lid prevent slamming.
•
Powerful, chemical-free, carbon filter air deodorizer
automatically minimizes odors.
Technology
•
Blue LED lighting illuminates the bowl to serve as a night-light.
•
Backlit easy-touch remote control with LCD screen; can be
wall-mounted.
•
Infrared (IR) occupied seat sensor with auto shutoff (includes
override for use with adaptive devices).
•
Two-stage energy-saving feature.

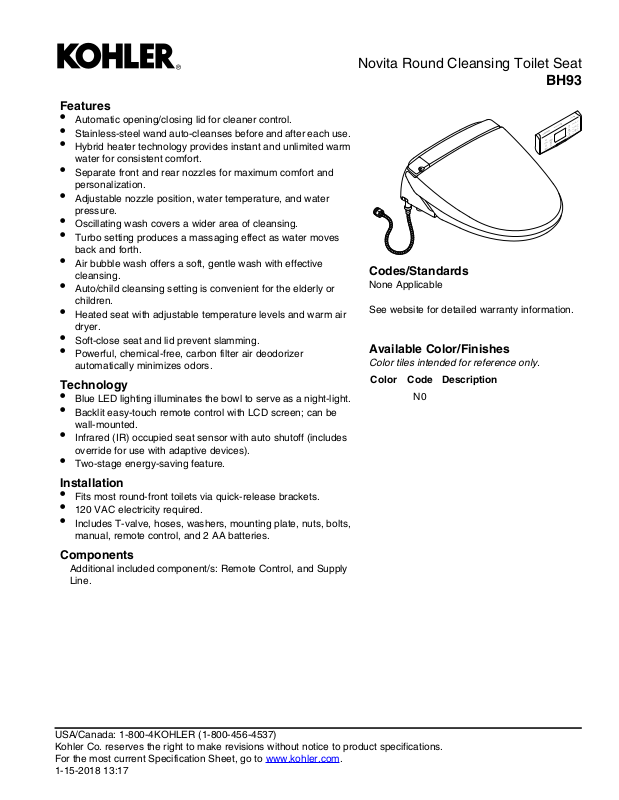

Novita Round Cleansing Toilet Seat
BH93
Codes/Standards
None Applicable
See website for detailed warranty information.
Available Color/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
N0
Installation
•
Fits most round-front toilets via quick-release brackets.
•
120 VAC electricity required.
•
Includes T-valve, hoses, washers, mounting plate, nuts, bolts,
manual, remote control, and 2 AA batteries.
Components
Additional included component/s: Remote Control, and Supply
Line.
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
1-15-2018 13:17
32"
Novita Round Cleansing Toilet Seat
BH93
Required Electrical Service
One circuit required, protected with Class A Ground-Fault
Circuit-Interrupter (GFCI) or Residual Current Device (RCD).
120 V, 15 A, 60 Hz
Technical Information
All product dimensions are nominal.
5-1/2" (140 mm)Seat-mounting holes:
51" (1295 mm)Power cord length:
Notes
Install this product according to the installation
instructions.
Connect the seat to a cold water supply of
drinking quality water at a pressure of 20 psi - 80
psi (139 kPa - 551 kPa).
Do not install this seat in a location where: (1)
water might be splashed on the product or (2)
excessive moisture, high humidity levels, or
condensation is present. This will avoid damage
to the electronic components.
NOTICE: Do not use an extension cord with this
product.
NOTICE: Do not plug in the seat until instructed
to do so in the installation guide. This will avoid
possible product malfunction.
Locate the receptacle at least 6" (152 mm) above
the floor, and within a 32" (813 mm) radius
measured 2" (51 mm) from the bowl ledge.
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
1-15-2018 13:17
