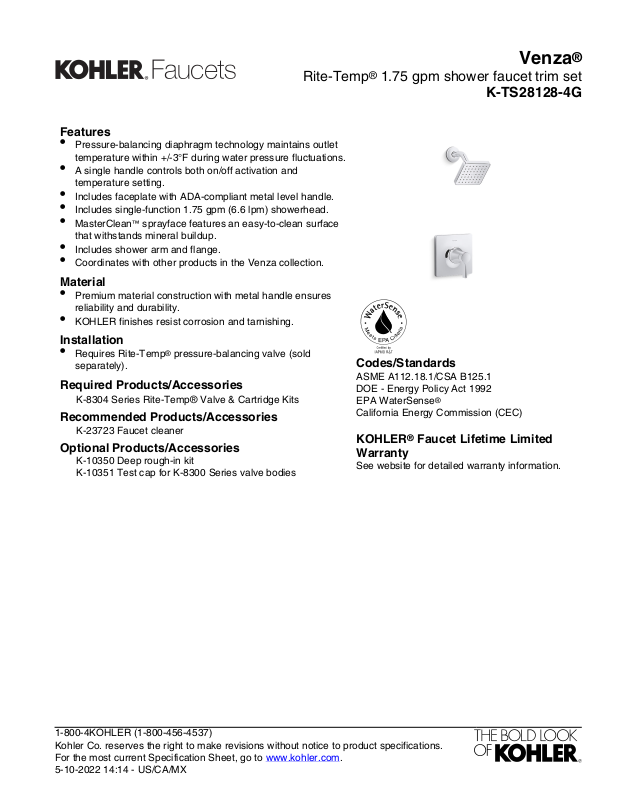

Page 1
Venza
Features
•
Pressure-balancing diaphragm technology maintains outlet
temperature within +/-3°F during water pressure fluctuations.
•
A single handle controls both on/off activation and
temperature setting.
•
Includes faceplate with ADA-compliant metal level handle.
•
Includes single-function 1.75 gpm (6.6 lpm) showerhead.
•
MasterClean™ sprayface features an easy-to-clean surface
that withstands mineral buildup.
•
Includes shower arm and flange.
•
Coordinates with other products in the Venza collection.
Material
•
Premium material construction with metal handle ensures
reliability and durability.
•
KOHLER finishes resist corrosion and tarnishing.
Installation
•
Requires Rite-Temp® pressure-balancing valve (sold
separately).
Required Products/Accessories
K-8304 Series Rite-Temp® Valve & Cartridge Kits
Recommended Products/Accessories
K-23723 Faucet cleaner
Optional Products/Accessories
K-10350 Deep rough-in kit
K-10351 Test cap for K-8300 Series valve bodies
Codes/Standards
ASME A112.18.1/CSA B125.1
DOE - Energy Policy Act 1992
EPA WaterSense
®
California Energy Commission (CEC)
KOHLER® Faucet Lifetime Limited
Warranty
See website for detailed warranty information.
®
Rite-Temp® 1.75 gpm shower faucet trim set
K-TS28128-4G
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
5-10-2022 14:14 - US/CA/MX
Page 2
Venza
K-2971-KS,
K-304 Valves
K-8300 Valve
Series
1/2 NPT
Finished Wall
*If 3-1/2" (89 mm) to
4-1/4" (108 mm) use
deep roughing-in kit.
3-1/8"
(79 mm)
Ø 2-3/8"
(60 mm)
3-3/16"
(81 mm)
4-5/16"
(110 mm)
6-1/2"
(165 mm)
6-1/2"
(165 mm)
6-5/16"
(160 mm)
Typical
Technical Information
All product dimensions are nominal.
Drain included: No
Showerhead/Body Spray:
Rated maximum
flow:
1.75 gal/min (6.6 l/min)
Pressure: 45 psi (3.1 bar)
Notes
Install this product according to the installation
instructions.
®
Rite-Temp® 1.75 gpm shower faucet trim set
K-TS28128-4G
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
5-10-2022 14:14 - US/CA/MX
