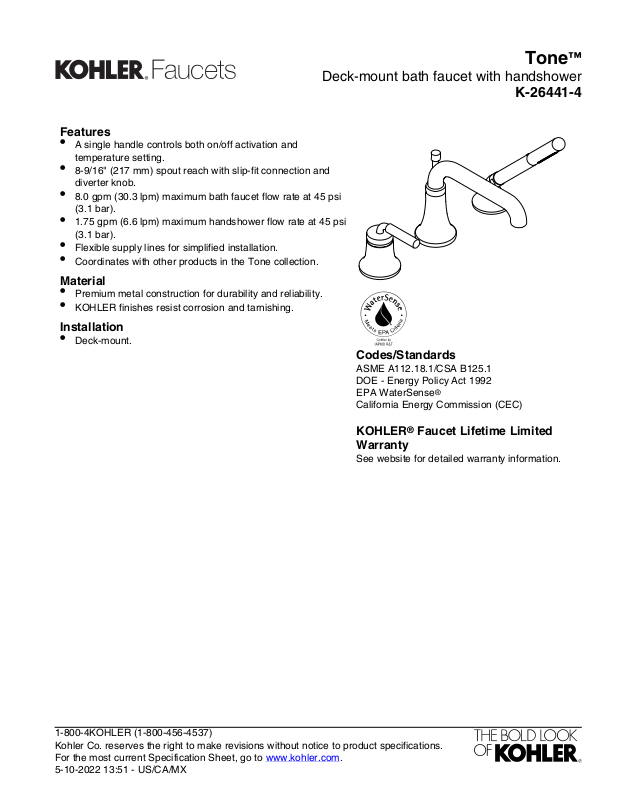

Page 1
Tone
Features
•
A single handle controls both on/off activation and
temperature setting.
•
8-9/16" (217 mm) spout reach with slip-fit connection and
diverter knob.
•
8.0 gpm (30.3 lpm) maximum bath faucet flow rate at 45 psi
(3.1 bar).
•
1.75 gpm (6.6 lpm) maximum handshower flow rate at 45 psi
(3.1 bar).
•
Flexible supply lines for simplified installation.
•
Coordinates with other products in the Tone collection.
Material
•
Premium metal construction for durability and reliability.
•
KOHLER finishes resist corrosion and tarnishing.
Installation
•
Deck-mount.
Codes/Standards
ASME A112.18.1/CSA B125.1
DOE - Energy Policy Act 1992
EPA WaterSense
®
California Energy Commission (CEC)
KOHLER® Faucet Lifetime Limited
Warranty
See website for detailed warranty information.
™
Deck-mount bath faucet with handshower
K-26441-4
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
5-10-2022 13:51 - US/CA/MX
Page 2
Tone
Ø 1-3/8"
(35 mm)
Ø 1-5/16"
(33 mm)
Ø 1-1/8"
(29 mm)
Ø 3-1/16"
(78 mm)
5-3/4"
(146 mm)
Ø 3-1/16"
(78 mm)
5-3/4"
(146 mm)
Ø 2-13/16"
(71 mm)
7-5/16"
(186 mm)
5-3/8"
(137 mm)
8-9/16" (217 mm)
9-1/16"
(230 mm)
3"
(76 mm) Max
4-5/16"
(110 mm)
Technical Information
All product dimensions are nominal.
Drain included: No
Handshower:
Rated maximum
flow:
1.75 gal/min (6.6 l/min)
Notes
Install this product according to the installation
instructions.
™
Deck-mount bath faucet with handshower
K-26441-4
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
5-10-2022 13:51 - US/CA/MX
