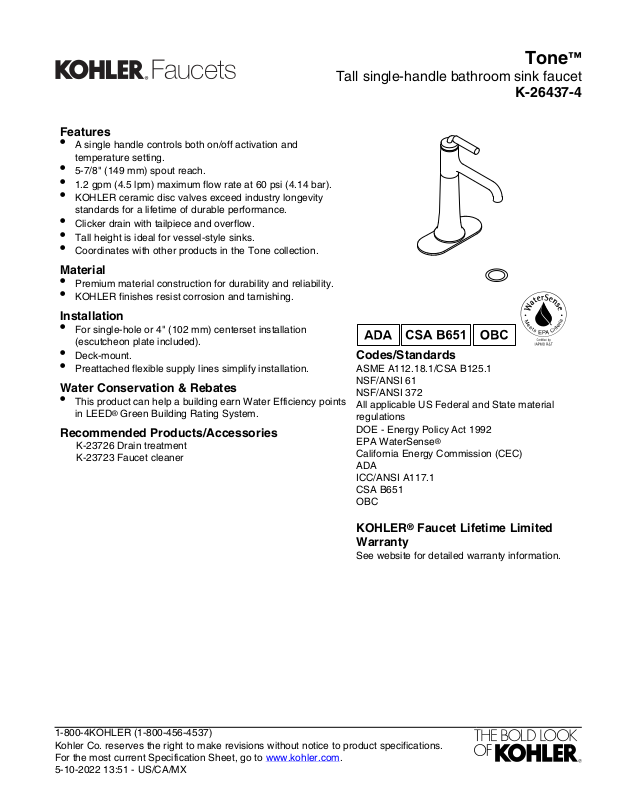

Page 1
Tone
Features
•
A single handle controls both on/off activation and
temperature setting.
•
5-7/8" (149 mm) spout reach.
•
1.2 gpm (4.5 lpm) maximum flow rate at 60 psi (4.14 bar).
•
KOHLER ceramic disc valves exceed industry longevity
standards for a lifetime of durable performance.
•
Clicker drain with tailpiece and overflow.
•
Tall height is ideal for vessel-style sinks.
•
Coordinates with other products in the Tone collection.
Material
•
Premium material construction for durability and reliability.
•
KOHLER finishes resist corrosion and tarnishing.
Installation
•
For single-hole or 4" (102 mm) centerset installation
(escutcheon plate included).
•
Deck-mount.
•
Preattached flexible supply lines simplify installation.
Water Conservation & Rebates
•
This product can help a building earn Water Efficiency points
in LEED® Green Building Rating System.
Recommended Products/Accessories
K-23726 Drain treatment
K-23723 Faucet cleaner
Codes/Standards
ASME A112.18.1/CSA B125.1
NSF/ANSI 61
NSF/ANSI 372
All applicable US Federal and State material
regulations
DOE - Energy Policy Act 1992
EPA WaterSense
®
California Energy Commission (CEC)
ADA
ICC/ANSI A117.1
CSA B651
OBC
KOHLER® Faucet Lifetime Limited
Warranty
See website for detailed warranty information.
™
Tall single-handle bathroom sink faucet
K-26437-4
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
5-10-2022 13:51 - US/CA/MX
Page 2
Tone
Ø 1-3/8"
(35 mm) Min
22"
(559 mm)
11-1/16"
(281 mm)
6-7/8"
(175 mm)
5-7/8"
(149 mm)
2" (51 mm)
Max
1-1/4" OD
8-1/2"
(216 mm)
Ø 2-1/8"
(54 mm)
3/8" Compression Fitting
6-13/16"
(173 mm)
2-13/16"
(71 mm)
Technical Information
All product dimensions are nominal.
Faucet:
Flow rate: 1.2 gal/min (4.5 l/min)
Pressure: 60 psi (4.1 bar)
Drain included: Yes
Notes
ADA, OBC, CSA B651 compliant when
installed to the specific requirements of these
regulations.
™
Tall single-handle bathroom sink faucet
K-26437-4
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
5-10-2022 13:51 - US/CA/MX
