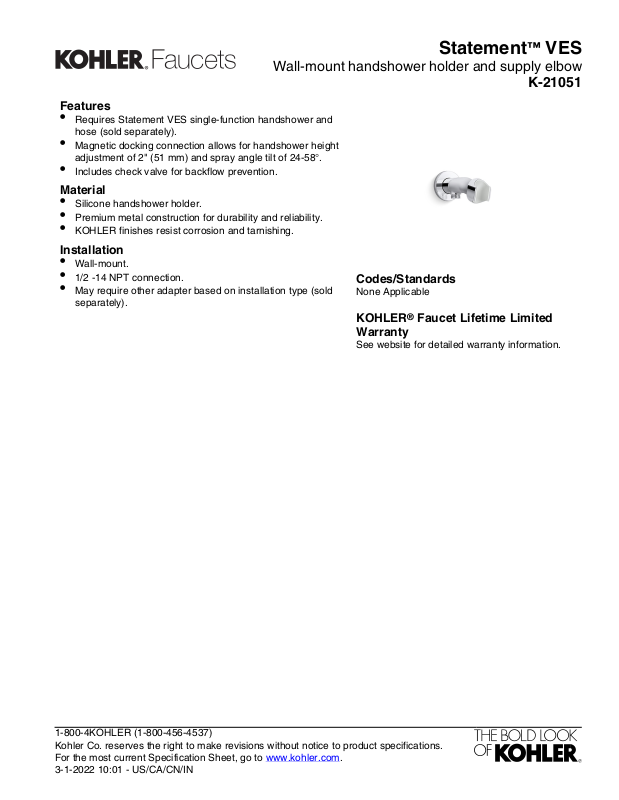

Page 1
Statement™ VES
Features
•
Requires Statement VES single-function handshower and
hose (sold separately).
•
Magnetic docking connection allows for handshower height
adjustment of 2" (51 mm) and spray angle tilt of 24-58°.
•
Includes check valve for backflow prevention.
Material
•
Silicone handshower holder.
•
Premium metal construction for durability and reliability.
•
KOHLER finishes resist corrosion and tarnishing.
Installation
•
Wall-mount.
•
1/2 -14 NPT connection.
•
May require other adapter based on installation type (sold
separately).
Codes/Standards
None Applicable
KOHLER® Faucet Lifetime Limited
Warranty
See website for detailed warranty information.
Wall-mount handshower holder and supply elbow
K-21051
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
3-1-2022 10:01 - US/CA/CN/IN
Page 2
Statement™ VES
9/16"
(14 mm)
Hole
5/16"
(8 mm) Max
6-1/4" (159 mm)
6-7/16" (164 mm)
5-1/16" (129 mm)
1-1/2"
(38 mm)
2-7/8"
(73 mm)
G1/2
Ø 2-1/2"
(64 mm)
1/2 NPT
Technical Information
All product dimensions are nominal.
Notes
For NPT connection, nipple must extend
9/16" (14 mm) beyond finished wall.
Wall-mount handshower holder and supply elbow
K-21051
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
3-1-2022 10:01 - US/CA/CN/IN
