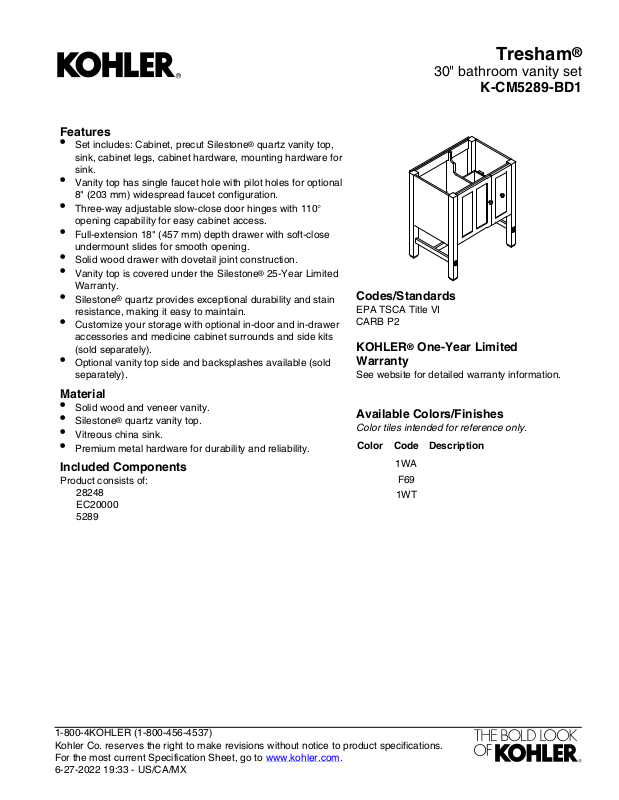

Tresham
Features
•
Set includes: Cabinet, precut Silestone® quartz vanity top,
sink, cabinet legs, cabinet hardware, mounting hardware for
sink.
•
Vanity top has single faucet hole with pilot holes for optional
8" (203 mm) widespread faucet configuration.
•
Three-way adjustable slow-close door hinges with 110°
opening capability for easy cabinet access.
•
Full-extension 18" (457 mm) depth drawer with soft-close
undermount slides for smooth opening.
•
Solid wood drawer with dovetail joint construction.
•
Vanity top is covered under the Silestone® 25-Year Limited
Warranty.
•
Silestone® quartz provides exceptional durability and stain
resistance, making it easy to maintain.
•
Customize your storage with optional in-door and in-drawer
accessories and medicine cabinet surrounds and side kits
(sold separately).
•
Optional vanity top side and backsplashes available (sold
separately).
Material
•
Solid wood and veneer vanity.
•
Silestone® quartz vanity top.
•
Vitreous china sink.
•
Premium metal hardware for durability and reliability.
Included Components
Product consists of:
28248
EC20000
5289
Codes/Standards
EPA TSCA Title VI
CARB P2
KOHLER® One-Year Limited
Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
Color Code Description
1WA
F69
1WT
®
30" bathroom vanity set
K-CM5289-BD1
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
6-27-2022 19:33 - US/CA/MX
Tresham
15-1/2"
(394 mm)
9" (229 mm)
30" (762 mm)
9" (229 mm)
21"
(533 mm)
General
Roughing-In
Area
39-3/4"
(1010 mm)
15-7/16"
(392 mm)
21-7/8"
(556 mm)
14"
(356 mm)
6-1/8"
(156 mm)
34-1/2"
(876 mm)
5/8"
(16 mm)
Technical Information
All product dimensions are nominal.
Notes
Install this product according to the installation
instructions.
®
30" bathroom vanity set
K-CM5289-BD1
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
6-27-2022 19:33 - US/CA/MX
