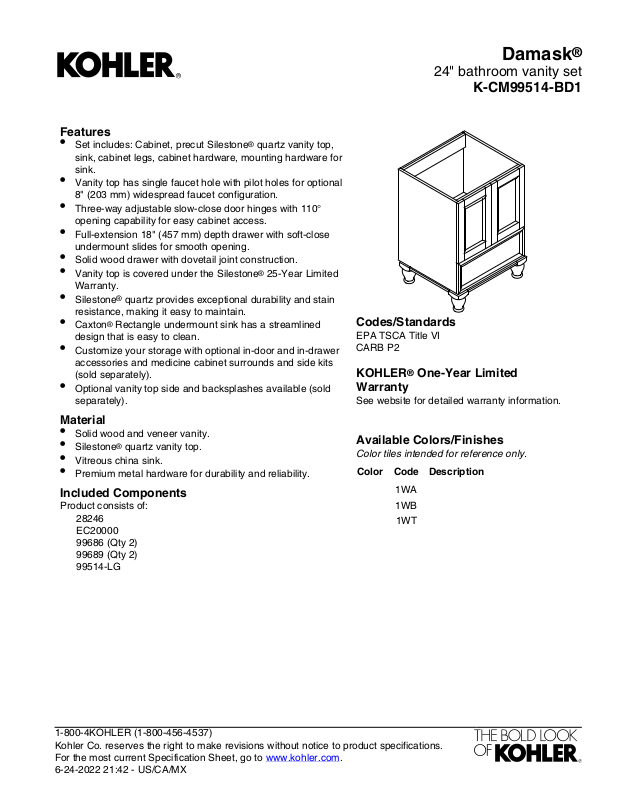

Damask
Features
•
Set includes: Cabinet, precut Silestone® quartz vanity top,
sink, cabinet legs, cabinet hardware, mounting hardware for
sink.
•
Vanity top has single faucet hole with pilot holes for optional
8" (203 mm) widespread faucet configuration.
•
Three-way adjustable slow-close door hinges with 110°
opening capability for easy cabinet access.
•
Full-extension 18" (457 mm) depth drawer with soft-close
undermount slides for smooth opening.
•
Solid wood drawer with dovetail joint construction.
•
Vanity top is covered under the Silestone® 25-Year Limited
Warranty.
•
Silestone® quartz provides exceptional durability and stain
resistance, making it easy to maintain.
•
Caxton® Rectangle undermount sink has a streamlined
design that is easy to clean.
•
Customize your storage with optional in-door and in-drawer
accessories and medicine cabinet surrounds and side kits
(sold separately).
•
Optional vanity top side and backsplashes available (sold
separately).
Material
•
Solid wood and veneer vanity.
•
Silestone® quartz vanity top.
•
Vitreous china sink.
•
Premium metal hardware for durability and reliability.
Included Components
Product consists of:
28246
EC20000
99686 (Qty 2)
99689 (Qty 2)
99514-LG
Codes/Standards
EPA TSCA Title VI
CARB P2
KOHLER® One-Year Limited
Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
Color Code Description
1WA
1WB
1WT
®
24" bathroom vanity set
K-CM99514-BD1
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
6-24-2022 21:42 - US/CA/MX
Damask
21-7/8"
(556 mm)
3-1/2"
(89 mm)
24-3/4" (629 mm)
22-1/4"
(565 mm)
7/8"
(22 mm)
24" (610 mm)
32"
(812 mm)
18"
(457 mm)
6"
(152 mm)
12-3/8"
(314 mm)
20"
(508 mm)
21"
(533 mm)
9" (229 mm)
General
Roughing-In
Area
34-1/2"
(876 mm)
Technical Information
All product dimensions are nominal.
Notes
Install this product according to the installation
instructions.
®
24" bathroom vanity set
K-CM99514-BD1
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
6-24-2022 21:42 - US/CA/MX
