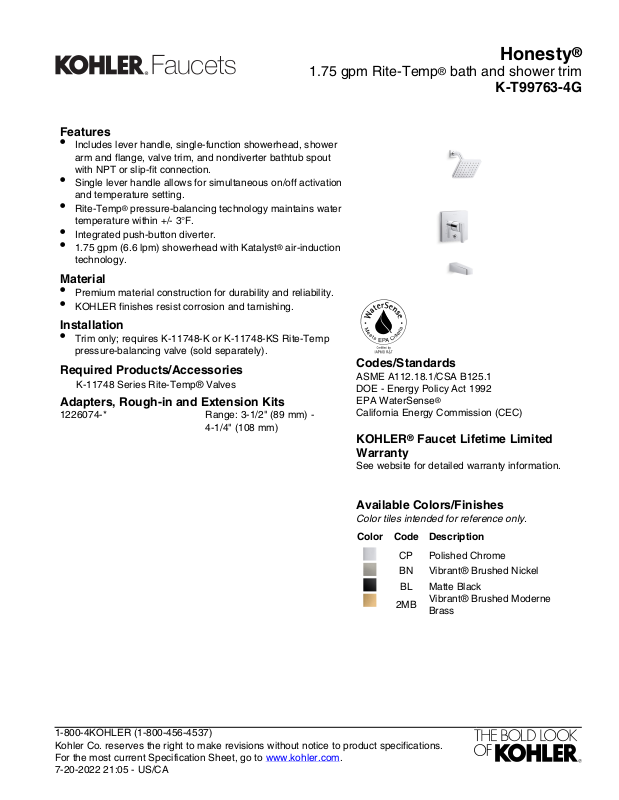

Page 1
Honesty
Features
•
Includes lever handle, single-function showerhead, shower
arm and flange, valve trim, and nondiverter bathtub spout
with NPT or slip-fit connection.
•
Single lever handle allows for simultaneous on/off activation
and temperature setting.
•
Rite-Temp® pressure-balancing technology maintains water
temperature within +/- 3°F.
•
Integrated push-button diverter.
•
1.75 gpm (6.6 lpm) showerhead with Katalyst® air-induction
technology.
Material
•
Premium material construction for durability and reliability.
•
KOHLER finishes resist corrosion and tarnishing.
Installation
•
Trim only; requires K-11748-K or K-11748-KS Rite-Temp
pressure-balancing valve (sold separately).
Required Products/Accessories
K-11748 Series Rite-Temp® Valves
Adapters, Rough-in and Extension Kits
1226074-* Range: 3-1/2" (89 mm) -
4-1/4" (108 mm)
Codes/Standards
ASME A112.18.1/CSA B125.1
DOE - Energy Policy Act 1992
EPA WaterSense
®
California Energy Commission (CEC)
KOHLER® Faucet Lifetime Limited
Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
Color Code Description
CP Polished Chrome
BN Vibrant® Brushed Nickel
BL Matte Black
2MB
Vibrant® Brushed Moderne
Brass
®
1.75 gpm Rite-Temp® bath and shower trim
K-T99763-4G
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
7-20-2022 21:05 - US/CA
Page 2
Honesty
Threaded Spout:
Extend 5/8" OD Tube
5-9/16" (141 mm) from finished wall
6-1/2"
(165 mm)
3-3/16"
(81 mm)
1-5/8"
(41 mm)
Threaded Spout:
Extend 5/8" OD Tube
5-9/16" (141 mm) from finished wall
Slip-fit Spout:
Extend 5/8" OD Tube
5-9/16" (141 mm) from finished wall
6-3/16"
(157 mm)
Typical
1-13/16"
(46 mm)
3-1/2"
(89 mm)
1/2"-14 NPT
Ø 1-1/8"
(29 mm) Max
6-5/8" (168 mm)
4-1/2" (114 mm)
6-1/2"
(165 mm)
Technical Information
All product dimensions are nominal.
Drain included: No
Showerhead/Body Spray:
Rated maximum
flow:
1.75 gal/min (6.6 l/min)
Pressure: 80 psi (5.5 bar)
Notes
For use with automatic compensating valves
rated at 1.6 gal/min (6.1 l/min) or less.
Install this product according to the installation
instructions.
Install straight pipe or tube drop of 7" (178 mm)
to 18" (457 mm) with single elbow between the
valve and the wall-mount spout.
®
1.75 gpm Rite-Temp® bath and shower trim
K-T99763-4G
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
7-20-2022 21:05 - US/CA
