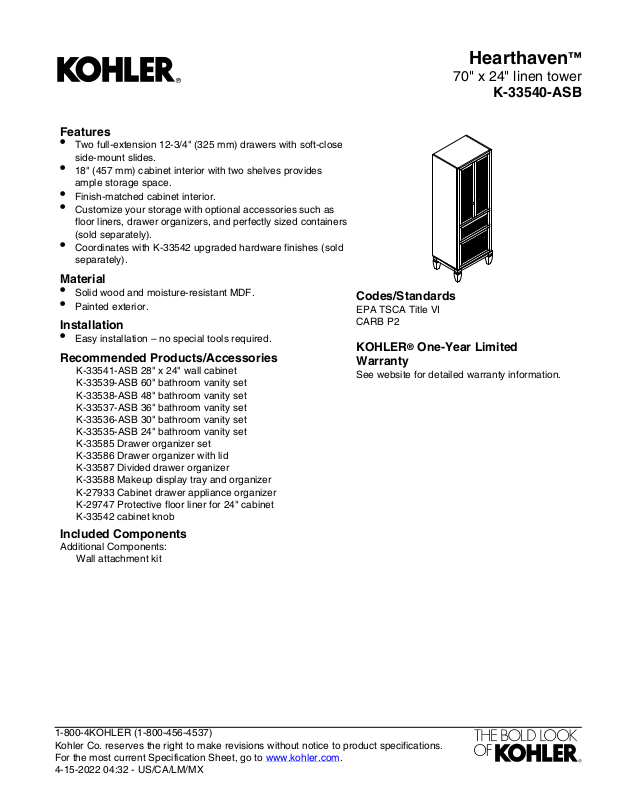

Page 1
Hearthaven
Features
•
Two full-extension 12-3/4" (325 mm) drawers with soft-close
side-mount slides.
•
18" (457 mm) cabinet interior with two shelves provides
ample storage space.
•
Finish-matched cabinet interior.
•
Customize your storage with optional accessories such as
floor liners, drawer organizers, and perfectly sized containers
(sold separately).
•
Coordinates with K-33542 upgraded hardware finishes (sold
separately).
Material
•
Solid wood and moisture-resistant MDF.
•
Painted exterior.
Installation
•
Easy installation – no special tools required.
Recommended Products/Accessories
K-33541-ASB 28" x 24" wall cabinet
K-33539-ASB 60" bathroom vanity set
K-33538-ASB 48" bathroom vanity set
K-33537-ASB 36" bathroom vanity set
K-33536-ASB 30" bathroom vanity set
K-33535-ASB 24" bathroom vanity set
K-33585 Drawer organizer set
K-33586 Drawer organizer with lid
K-33587 Divided drawer organizer
K-33588 Makeup display tray and organizer
K-27933 Cabinet drawer appliance organizer
K-29747 Protective floor liner for 24" cabinet
K-33542 cabinet knob
Included Components
Additional Components:
Wall attachment kit
Codes/Standards
EPA TSCA Title VI
CARB P2
KOHLER® One-Year Limited
Warranty
See website for detailed warranty information.
™
70" x 24" linen tower
K-33540-ASB
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
4-15-2022 04:32 - US/CA/LM/MX
Page 2
Hearthaven
6-3/8"
(162 mm)
21-15/16"
(557 mm)
18"
(457 mm)
100°
32-1/4"
(819 mm)
69-7/8"
(1775 mm)
14-7/8"
(378 mm)
24" (610 mm)
Technical Information
All product dimensions are nominal.
™
70" x 24" linen tower
K-33540-ASB
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
4-15-2022 04:32 - US/CA/LM/MX
