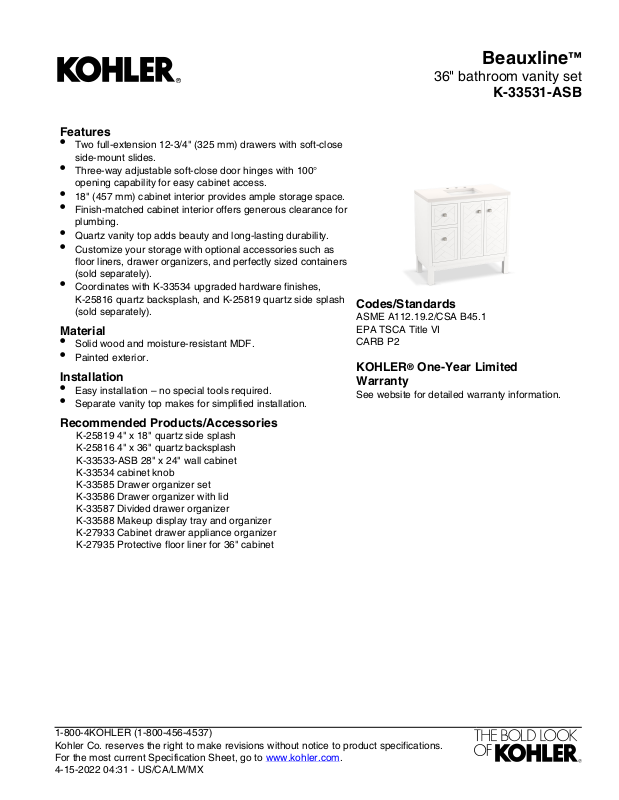

Page 1
Beauxline
Features
•
Two full-extension 12-3/4" (325 mm) drawers with soft-close
side-mount slides.
•
Three-way adjustable soft-close door hinges with 100°
opening capability for easy cabinet access.
•
18" (457 mm) cabinet interior provides ample storage space.
•
Finish-matched cabinet interior offers generous clearance for
plumbing.
•
Quartz vanity top adds beauty and long-lasting durability.
•
Customize your storage with optional accessories such as
floor liners, drawer organizers, and perfectly sized containers
(sold separately).
•
Coordinates with K-33534 upgraded hardware finishes,
K-25816 quartz backsplash, and K-25819 quartz side splash
(sold separately).
Material
•
Solid wood and moisture-resistant MDF.
•
Painted exterior.
Installation
•
Easy installation – no special tools required.
•
Separate vanity top makes for simplified installation.
Recommended Products/Accessories
K-25819 4" x 18" quartz side splash
K-25816 4" x 36" quartz backsplash
K-33533-ASB 28" x 24" wall cabinet
K-33534 cabinet knob
K-33585 Drawer organizer set
K-33586 Drawer organizer with lid
K-33587 Divided drawer organizer
K-33588 Makeup display tray and organizer
K-27933 Cabinet drawer appliance organizer
K-27935 Protective floor liner for 36" cabinet
Codes/Standards
ASME A112.19.2/CSA B45.1
EPA TSCA Title VI
CARB P2
KOHLER® One-Year Limited
Warranty
See website for detailed warranty information.
™
36" bathroom vanity set
K-33531-ASB
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
4-15-2022 04:31 - US/CA/LM/MX
Page 2
Beauxline
14"
(356 mm)
1-1/4" OD
3/8" Cold
3/8" Hot
Waste Pipe Location Information
Top Of Counter
13-1/8"
(333 mm)
4" (102 mm)
7-3/8"
(187 mm)
1-3/16"
(30 mm)
36-1/8"
(918 mm)
18-1/16"
(459 mm)
10"
(254 mm)
21-15/16"
(557 mm)
100°
4" (102 mm)
18-1/8"
(460 mm)
32-5/16"
(821 mm)
33-15/16" (862 mm)
16-5/8"
(422 mm)
13-5/16"
(338 mm)
6"
(152 mm)
15-1/4"
(387 mm)
General
Rough-In Area
2-7/16"
(62 mm)
36-1/4" (921 mm)
Technical Information
All product dimensions are nominal.
Notes
Install this product according to the installation
instructions.
™
36" bathroom vanity set
K-33531-ASB
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
4-15-2022 04:31 - US/CA/LM/MX
