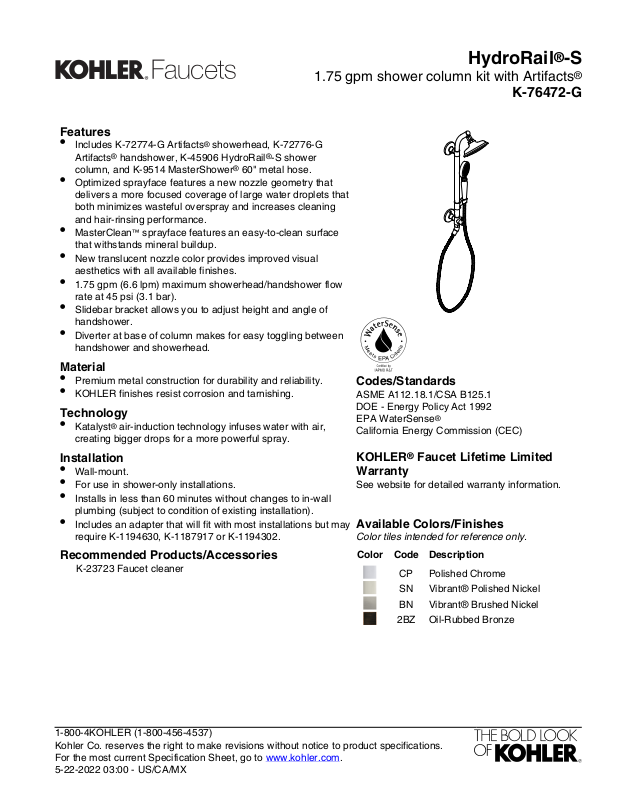

Page 1
HydroRail®-S
Features
•
Includes K-72774-G Artifacts® showerhead, K-72776-G
Artifacts® handshower, K-45906 HydroRail®-S shower
column, and K-9514 MasterShower® 60" metal hose.
•
Optimized sprayface features a new nozzle geometry that
delivers a more focused coverage of large water droplets that
both minimizes wasteful overspray and increases cleaning
and hair-rinsing performance.
•
MasterClean™ sprayface features an easy-to-clean surface
that withstands mineral buildup.
•
New translucent nozzle color provides improved visual
aesthetics with all available finishes.
•
1.75 gpm (6.6 lpm) maximum showerhead/handshower flow
rate at 45 psi (3.1 bar).
•
Slidebar bracket allows you to adjust height and angle of
handshower.
•
Diverter at base of column makes for easy toggling between
handshower and showerhead.
Material
•
Premium metal construction for durability and reliability.
•
KOHLER finishes resist corrosion and tarnishing.
Technology
•
Katalyst® air-induction technology infuses water with air,
creating bigger drops for a more powerful spray.
Installation
•
Wall-mount.
•
For use in shower-only installations.
•
Installs in less than 60 minutes without changes to in-wall
plumbing (subject to condition of existing installation).
•
Includes an adapter that will fit with most installations but may
require K-1194630, K-1187917 or K-1194302.
Recommended Products/Accessories
K-23723 Faucet cleaner
Codes/Standards
ASME A112.18.1/CSA B125.1
DOE - Energy Policy Act 1992
EPA WaterSense
®
California Energy Commission (CEC)
KOHLER® Faucet Lifetime Limited
Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
Color Code Description
CP Polished Chrome
SN Vibrant® Polished Nickel
BN Vibrant® Brushed Nickel
2BZ Oil-Rubbed Bronze
1.75 gpm shower column kit with Artifacts
K-76472-G
®
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
5-22-2022 03:00 - US/CA/MX
Page 2
HydroRail®-S
40°
40°
3-5/16"
(84 mm)
6-1/4" (159 mm)
18"
(457 mm)
7-3/8"
(187 mm)
Min
75" (1905 mm)
Recommended
72" (1829 mm)
Minimum To Floor
Ø 3"
(76 mm)
Ø 3"
(76 mm)
1/2"
NPT
Elbow
1"
(25 mm)
Max
1-3/8" (35 mm) Min
2-7/8" (73 mm) Max
Finished Wall Offset
Technical Information
All product dimensions are nominal.
Drain included: No
Showerhead/Body Spray:
Rated maximum
flow:
1.75 gal/min (6.6 l/min)
Notes
Install this product according to the installation
instructions.
IMPORTANT! The slidebar must be mounted
to stud framing at both the top and bottom
mounting locations. Do not use or depend on
plastic wall anchors to attach the slidebar.
Plumbing codes may require that an
atmospheric vacuum breaker be installed in-line
to handshowers. Consult with local codes.
1.75 gpm shower column kit with Artifacts
K-76472-G
®
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
5-22-2022 03:00 - US/CA/MX
