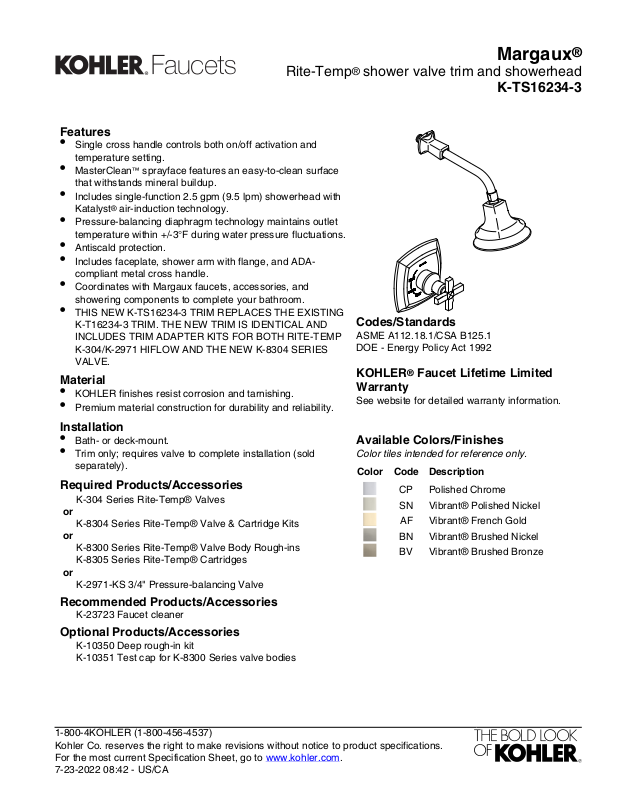

Page 1
Features
•
Single cross handle controls both on/off activation and
temperature setting.
•
MasterClean™ sprayface features an easy-to-clean surface
that withstands mineral buildup.
•
Includes single-function 2.5 gpm (9.5 lpm) showerhead with
Katalyst® air-induction technology.
•
Pressure-balancing diaphragm technology maintains outlet
temperature within +/-3°F during water pressure fluctuations.
•
Antiscald protection.
•
Includes faceplate, shower arm with flange, and ADAcompliant metal cross handle.
•
Coordinates with Margaux faucets, accessories, and
showering components to complete your bathroom.
•
THIS NEW K-TS16234-3 TRIM REPLACES THE EXISTING
K-T16234-3 TRIM. THE NEW TRIM IS IDENTICAL AND
INCLUDES TRIM ADAPTER KITS FOR BOTH RITE-TEMP
K-304/K-2971 HIFLOW AND THE NEW K-8304 SERIES
VALVE.
Material
•
KOHLER finishes resist corrosion and tarnishing.
•
Premium material construction for durability and reliability.
Installation
•
Bath- or deck-mount.
•
Trim only; requires valve to complete installation (sold
separately).
Required Products/Accessories
K-304 Series Rite-Temp® Valves
or
K-8304 Series Rite-Temp® Valve & Cartridge Kits
or
K-8300 Series Rite-Temp® Valve Body Rough-ins
K-8305 Series Rite-Temp® Cartridges
or
K-2971-KS 3/4" Pressure-balancing Valve
Recommended Products/Accessories
K-23723 Faucet cleaner
Optional Products/Accessories
K-10350 Deep rough-in kit
K-10351 Test cap for K-8300 Series valve bodies
Codes/Standards
ASME A112.18.1/CSA B125.1
DOE - Energy Policy Act 1992
KOHLER® Faucet Lifetime Limited
Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
Color Code Description
CP Polished Chrome
SN Vibrant® Polished Nickel
AF Vibrant® French Gold
BN Vibrant® Brushed Nickel
BV Vibrant® Brushed Bronze
Margaux
®
Rite-Temp® shower valve trim and showerhead
K-TS16234-3
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
7-23-2022 08:42 - US/CA
Page 2
Margaux
4-7/16" (113 mm)
6-1/2"
(165 mm)
10-5/16"
(262 mm)
Typical
6-1/2"
(165 mm)
2-1/8"
(54 mm)
K-2971-KS,
K-304 Valves
K-8300 Valve
Series
Finished Wall
*If 3-1/2" (89 mm) to
4-1/4" (108 mm) use
deep roughing-in kit.
1/2"
NPT
7-3/16"
(183 mm)
3-9/16"
(90 mm)
Threaded Spout:
Extend 1/2" NPT pipe 7/16"
(11 mm) from finished wall.
Technical Information
All product dimensions are nominal.
Drain included: No
Showerhead/Body Spray:
Rated maximum
flow:
2.5 gal/min (9.5 l/min)
Pressure: 80 psi (5.5 bar)
Notes
Install the product according to the installation
guide.
NOTICE: Risk of product damage. Long
screws, for installing trim, can damage the
K-2971-KS valve. Consult the trim installation
guide to verify if the thin wall installation kit
(88526) is needed.
®
Rite-Temp® shower valve trim and showerhead
K-TS16234-3
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
7-23-2022 08:42 - US/CA
