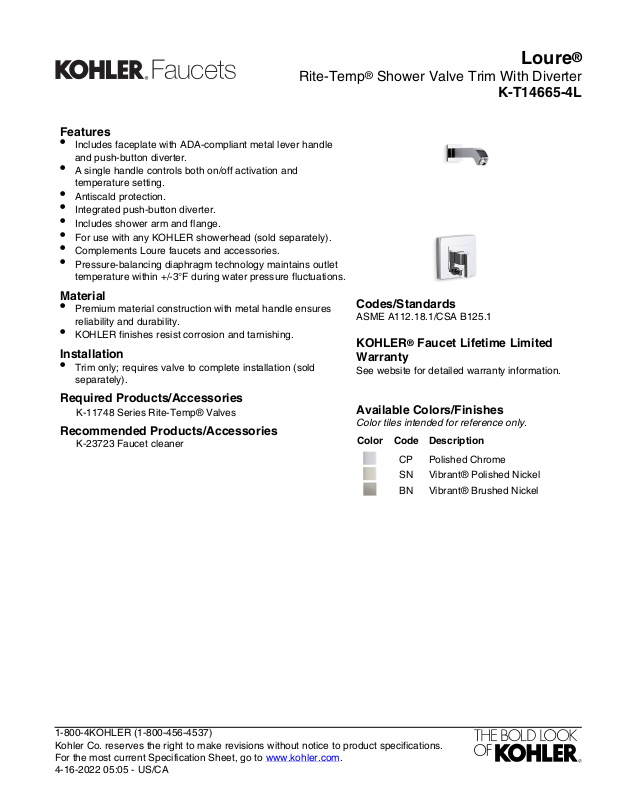

Page 1
Loure
Features
•
Includes faceplate with ADA-compliant metal lever handle
and push-button diverter.
•
A single handle controls both on/off activation and
temperature setting.
•
Antiscald protection.
•
Integrated push-button diverter.
•
Includes shower arm and flange.
•
For use with any KOHLER showerhead (sold separately).
•
Complements Loure faucets and accessories.
•
Pressure-balancing diaphragm technology maintains outlet
temperature within +/-3°F during water pressure fluctuations.
Material
•
Premium material construction with metal handle ensures
reliability and durability.
•
KOHLER finishes resist corrosion and tarnishing.
Installation
•
Trim only; requires valve to complete installation (sold
separately).
Required Products/Accessories
K-11748 Series Rite-Temp® Valves
Recommended Products/Accessories
K-23723 Faucet cleaner
Codes/Standards
ASME A112.18.1/CSA B125.1
KOHLER® Faucet Lifetime Limited
Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
Color Code Description
CP Polished Chrome
SN Vibrant® Polished Nickel
BN Vibrant® Brushed Nickel
®
Rite-Temp® Shower Valve Trim With Diverter
K-T14665-4L
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
4-16-2022 05:05 - US/CA
Page 2
Loure
1/2" NPT
1-5/8"
(41 mm)
2-1/2"
(64 mm)
6-1/4"
(159 mm)
3-1/2"
(89 mm)
8-5/8"
(219 mm)
Typical
Technical Information
All product dimensions are nominal.
Drain included: No
Notes
Install this product according to the installation
instructions.
Avoid cross-flow conditions. Do not install shutoff device on either valve outlet.
®
Rite-Temp® Shower Valve Trim With Diverter
K-T14665-4L
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
4-16-2022 05:05 - US/CA
