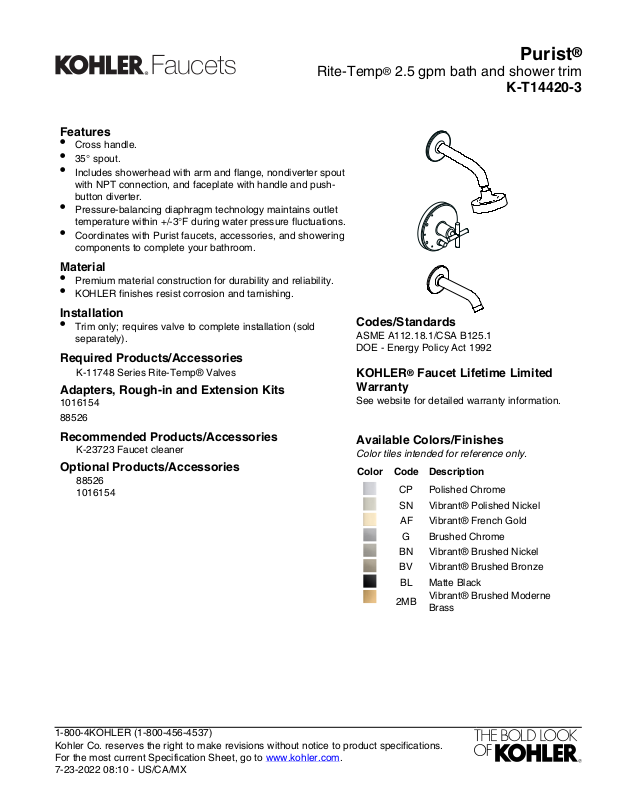

Page 1
Purist
Features
•
Cross handle.
•
35° spout.
•
Includes showerhead with arm and flange, nondiverter spout
with NPT connection, and faceplate with handle and pushbutton diverter.
•
Pressure-balancing diaphragm technology maintains outlet
temperature within +/-3°F during water pressure fluctuations.
•
Coordinates with Purist faucets, accessories, and showering
components to complete your bathroom.
Material
•
Premium material construction for durability and reliability.
•
KOHLER finishes resist corrosion and tarnishing.
Installation
•
Trim only; requires valve to complete installation (sold
separately).
Required Products/Accessories
K-11748 Series Rite-Temp® Valves
Adapters, Rough-in and Extension Kits
1016154
88526
Recommended Products/Accessories
K-23723 Faucet cleaner
Optional Products/Accessories
88526
1016154
Codes/Standards
ASME A112.18.1/CSA B125.1
DOE - Energy Policy Act 1992
KOHLER® Faucet Lifetime Limited
Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
Color Code Description
CP Polished Chrome
SN Vibrant® Polished Nickel
AF Vibrant® French Gold
G Brushed Chrome
BN Vibrant® Brushed Nickel
BV Vibrant® Brushed Bronze
BL Matte Black
2MB
Vibrant® Brushed Moderne
Brass
®
Rite-Temp® 2.5 gpm bath and shower trim
K-T14420-3
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
7-23-2022 08:10 - US/CA/MX
Page 2
Purist
Ø 4"
(102 mm)
8" (203 mm)
Ø 6-13/16"
(173 mm)
10-5/8"
(270 mm) Typical
4-13/16"
(122 mm)
Ø 1-1/2"
(38 mm)
Max
Threaded Spout:
Extend 1/2" NPT pipe 1-1/8"
(29 mm) from finished wall.
Ø 4"
(102 mm)
3-1/2"
(89 mm)
1/2" NPT
5-1/8" (130 mm)
Technical Information
All product dimensions are nominal.
Drain included: No
Showerhead/Body Spray:
Rated maximum
flow:
2.5 gal/min (9.5 l/min)
Pressure: 80 psi (5.5 bar)
Notes
Install this product according to the installation
guide.
Avoid cross-flow conditions. Do not install shutoff device on either valve outlet.
Cap the shower outlet if deck-mount spout,
diverter, or handshower is connected to the
spout outlet.
®
Rite-Temp® 2.5 gpm bath and shower trim
K-T14420-3
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
7-23-2022 08:10 - US/CA/MX
