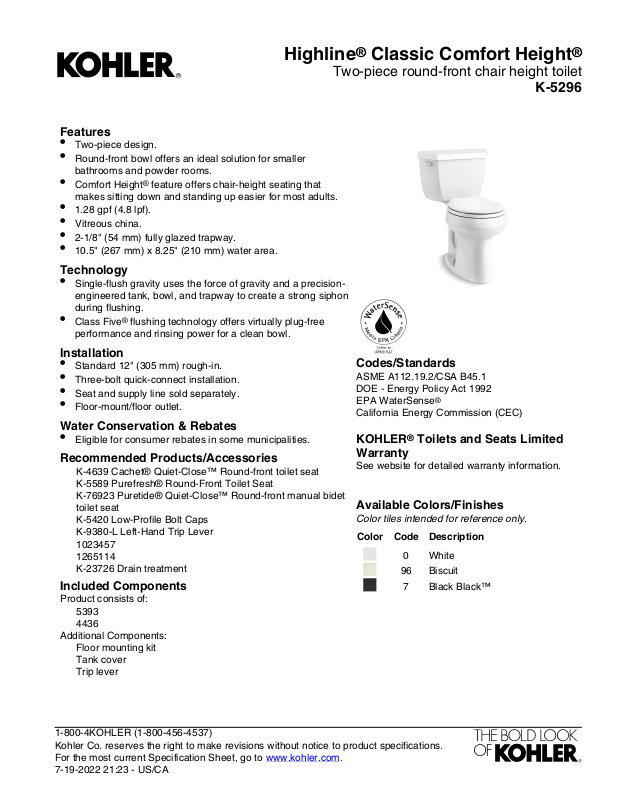

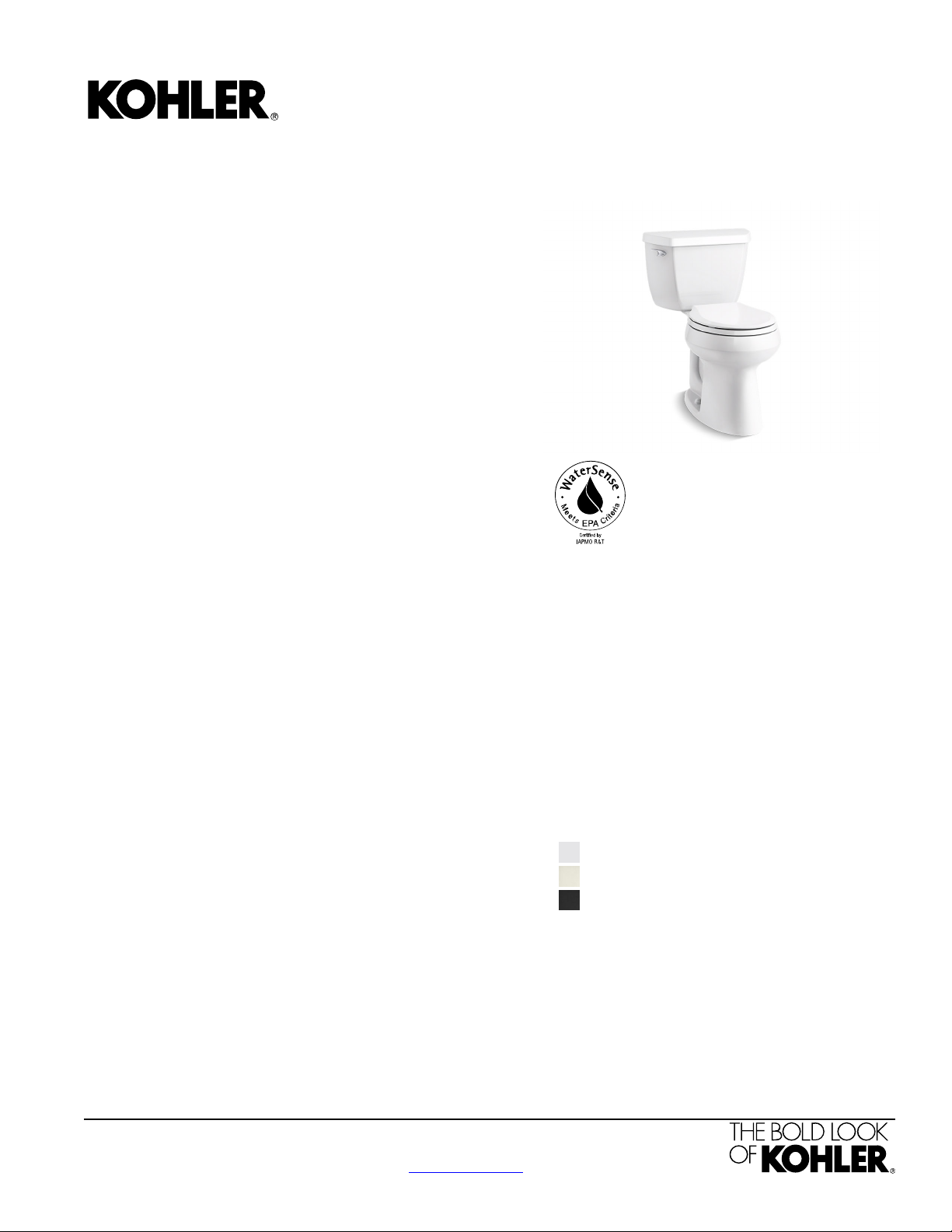

Features
•
Two-piece design.
•
Round-front bowl offers an ideal solution for smaller
bathrooms and powder rooms.
•
Comfort Height® feature offers chair-height seating that
makes sitting down and standing up easier for most adults.
•
1.28 gpf (4.8 lpf).
•
Vitreous china.
•
2-1/8" (54 mm) fully glazed trapway.
•
10.5" (267 mm) x 8.25" (210 mm) water area.
Technology
•
Single-flush gravity uses the force of gravity and a precisionengineered tank, bowl, and trapway to create a strong siphon
during flushing.
•
Class Five® flushing technology offers virtually plug-free
performance and rinsing power for a clean bowl.
Installation
•
Standard 12" (305 mm) rough-in.
•
Three-bolt quick-connect installation.
•
Seat and supply line sold separately.
•
Floor-mount/floor outlet.
Water Conservation & Rebates
•
Eligible for consumer rebates in some municipalities.
Recommended Products/Accessories
K-4639 Cachet® Quiet-Close™ Round-front toilet seat
K-5589 Purefresh® Round-Front Toilet Seat
K-76923 Puretide® Quiet-Close™ Round-front manual bidet
toilet seat
K-5420 Low-Profile Bolt Caps
K-9380-L Left-Hand Trip Lever
1023457
1265114
K-23726 Drain treatment
Included Components
Product consists of:
5393
4436
Additional Components:
Floor mounting kit
Tank cover
Trip lever
Codes/Standards
ASME A112.19.2/CSA B45.1
DOE - Energy Policy Act 1992
EPA WaterSense
®
California Energy Commission (CEC)
KOHLER® Toilets and Seats Limited
Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
Color Code Description
0 White
96 Biscuit
7 Black Black™
Highline® Classic Comfort Height
Two-piece round-front chair height toilet
K-5296
®
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
7-19-2022 21:23 - US/CA
Page 2

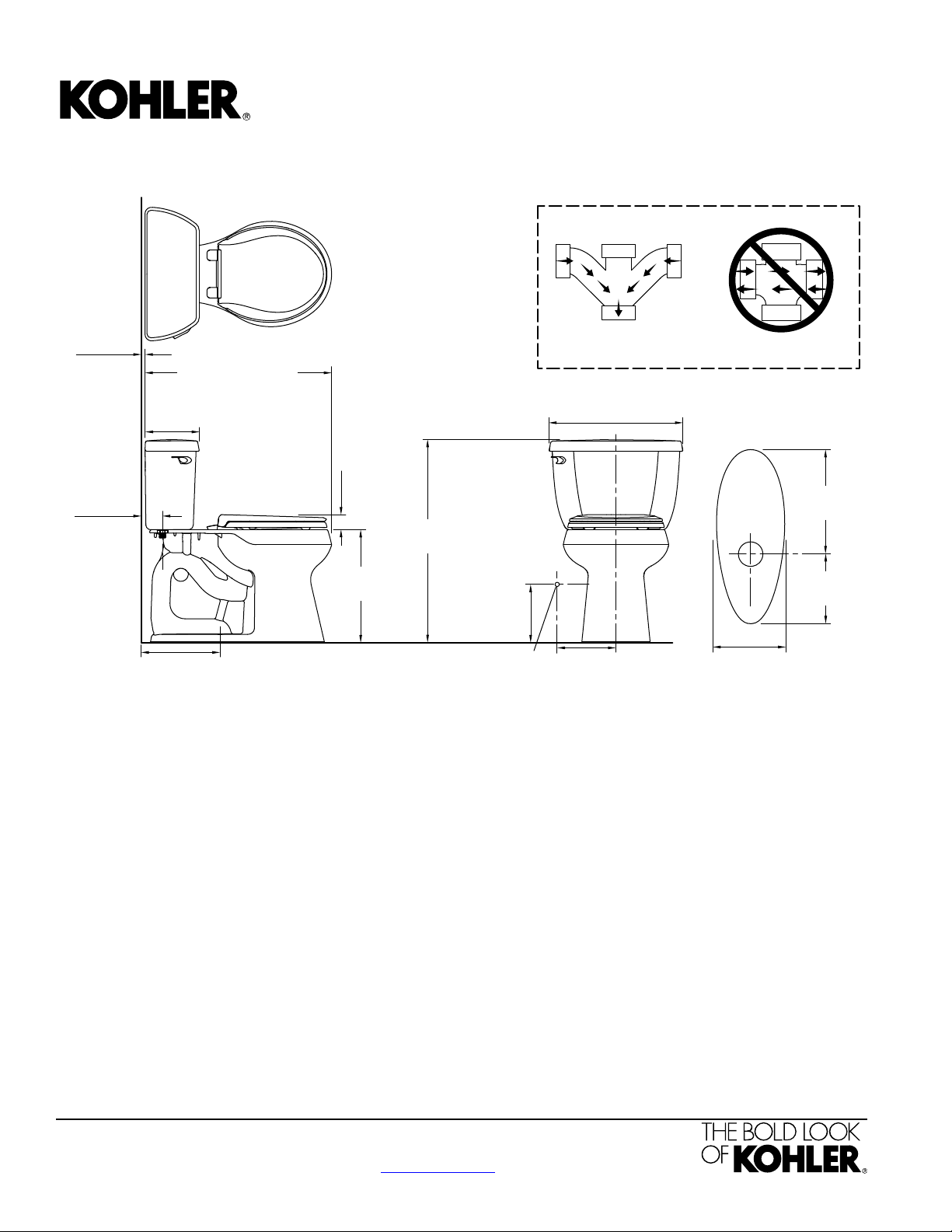

Highline® Classic Comfort Height
Front of Bowl
3/8" NPT
Supply
4-5/8"
(117 mm)
5"
(127 mm)
10"
(254 mm)
8"
(203 mm)
16-1/2"
(419 mm)
12" (305 mm)
1"
(25 mm)
Do not use a
double sanitary tee.
Use a 45° double
wye fitting.
For Back-to-Back Toilet Installations
27-3/4" (705 mm)
3"
(76 mm)
30-3/8"
(772 mm)
15-5/16"
(389 mm)
10-3/16"
(259 mm)
1-15/16"
(49 mm)
19-5/8" (498 mm)
Technical Information
All product dimensions are nominal.
Toilet type: Floor-mount
Waste Outlet: Floor
Bowl shape: Round-front
Flush type: Class Five
®
Trap passageway: 2-1/8" (54 mm)
Water Consumption
Full: 1.28 gpf (4.8 lpf)
Water surface size: 10-1/2" x 8-1/4" (267 mm x 210 mm)
Rim to water
surface:
5-3/8" (137 mm)
Rough-in: 12" (305 mm)
Seat-mounting
holes:
5-1/2" (140 mm)
Notes
Install this product according to the installation
instructions.
For back-to-back toilet installations: Use only a
45° double wye fitting.
Two-piece round-front chair height toilet
K-5296
®
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
7-19-2022 21:23 - US/CA
