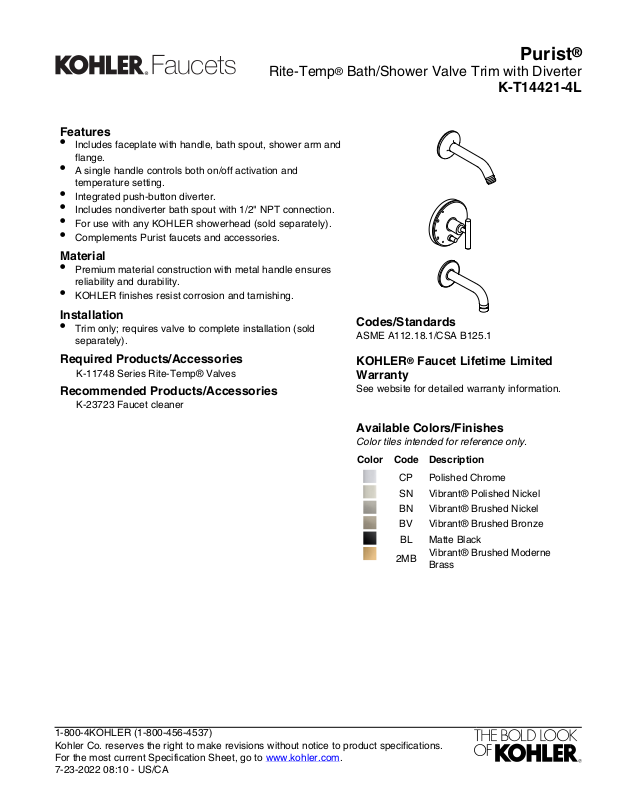

Page 1
Purist
Features
•
Includes faceplate with handle, bath spout, shower arm and
flange.
•
A single handle controls both on/off activation and
temperature setting.
•
Integrated push-button diverter.
•
Includes nondiverter bath spout with 1/2" NPT connection.
•
For use with any KOHLER showerhead (sold separately).
•
Complements Purist faucets and accessories.
Material
•
Premium material construction with metal handle ensures
reliability and durability.
•
KOHLER finishes resist corrosion and tarnishing.
Installation
•
Trim only; requires valve to complete installation (sold
separately).
Required Products/Accessories
K-11748 Series Rite-Temp® Valves
Recommended Products/Accessories
K-23723 Faucet cleaner
Codes/Standards
ASME A112.18.1/CSA B125.1
KOHLER® Faucet Lifetime Limited
Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
Color Code Description
CP Polished Chrome
SN Vibrant® Polished Nickel
BN Vibrant® Brushed Nickel
BV Vibrant® Brushed Bronze
BL Matte Black
2MB
Vibrant® Brushed Moderne
Brass
®
Rite-Temp® Bath/Shower Valve Trim with Diverter
K-T14421-4L
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
7-23-2022 08:10 - US/CA
Page 2
Purist
2-1/8"
(54 mm)
1/2" NPT pipe nipple must
extend 1-1/8" (29 mm)
beyond finished wall.
5" (127 mm)
3"
(76 mm)
Ø 6-13/16"
(173 mm)
7-3/4" (197 mm)
8-7/16" (214 mm)
Ø 4"
(102 mm)
Ø 4"
(102 mm)
Threaded Spout:
Extend 1/2"-14 NPT pipe 1-1/8"
(29 mm) from finished wall.
Technical Information
All product dimensions are nominal.
Notes
Install this product according to the installation
instructions.
Avoid cross-flow conditions. Do not install shutoff device on either valve outlet.
Cap the shower outlet if deck-mount spout,
diverter, or handshower is connected to the
spout outlet.
®
Rite-Temp® Bath/Shower Valve Trim with Diverter
K-T14421-4L
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
7-23-2022 08:10 - US/CA
