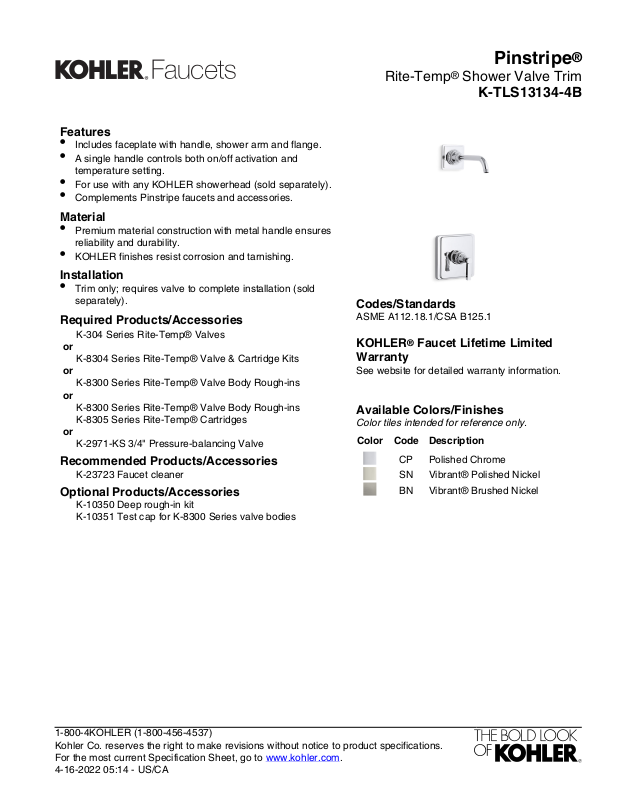

Pinstripe
Features
•
Includes faceplate with handle, shower arm and flange.
•
A single handle controls both on/off activation and
temperature setting.
•
For use with any KOHLER showerhead (sold separately).
•
Complements Pinstripe faucets and accessories.
Material
•
Premium material construction with metal handle ensures
reliability and durability.
•
KOHLER finishes resist corrosion and tarnishing.
Installation
•
Trim only; requires valve to complete installation (sold
separately).
Required Products/Accessories
K-304 Series Rite-Temp® Valves
or
K-8304 Series Rite-Temp® Valve & Cartridge Kits
or
K-8300 Series Rite-Temp® Valve Body Rough-ins
or
K-8300 Series Rite-Temp® Valve Body Rough-ins
K-8305 Series Rite-Temp® Cartridges
or
K-2971-KS 3/4" Pressure-balancing Valve
Recommended Products/Accessories
K-23723 Faucet cleaner
Optional Products/Accessories
K-10350 Deep rough-in kit
K-10351 Test cap for K-8300 Series valve bodies
Codes/Standards
ASME A112.18.1/CSA B125.1
KOHLER® Faucet Lifetime Limited
Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
Color Code Description
CP Polished Chrome
SN Vibrant® Polished Nickel
BN Vibrant® Brushed Nickel
®
Rite-Temp® Shower Valve Trim
K-TLS13134-4B
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
4-16-2022 05:14 - US/CA
Page 2
Pinstripe

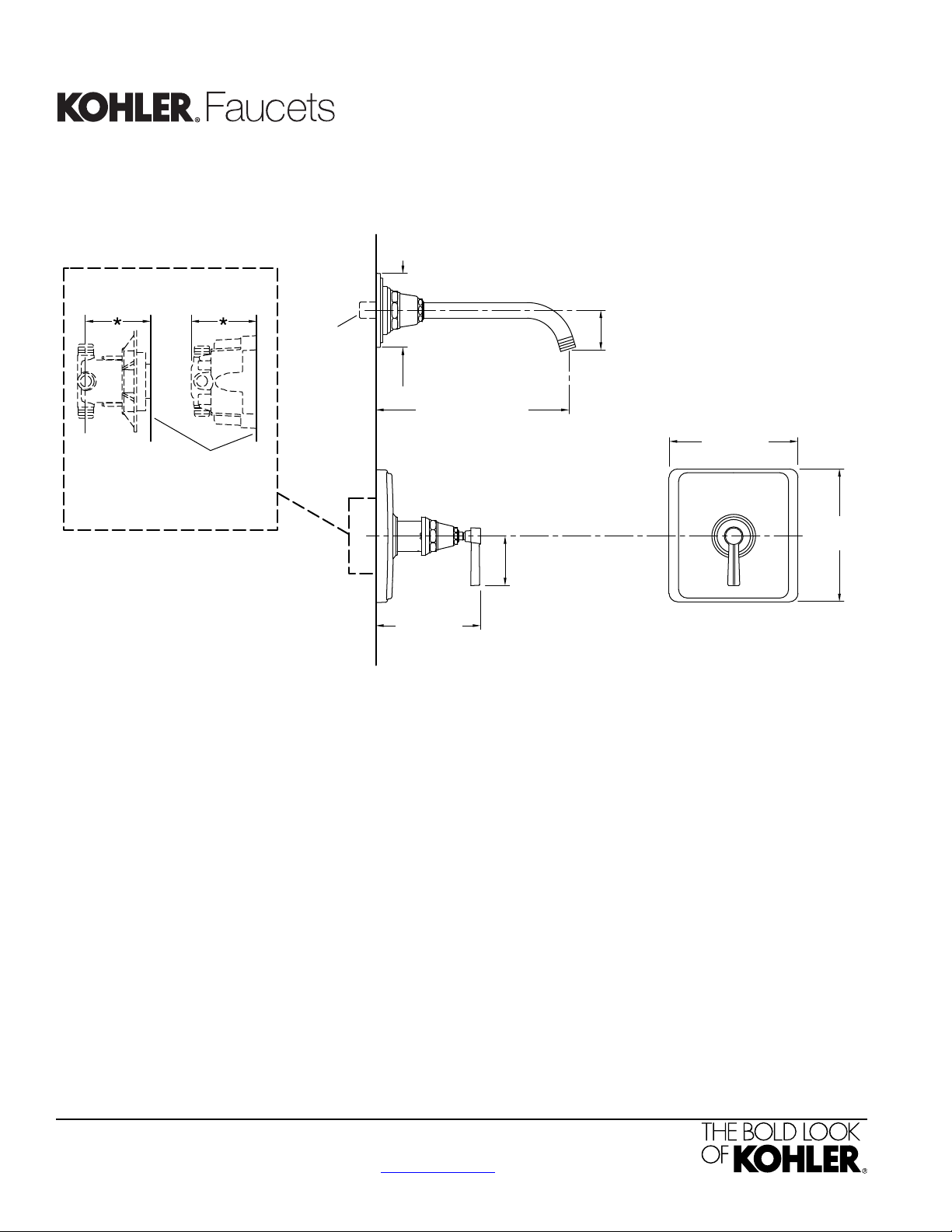

5-1/8"
(130 mm)
*If 3-1/2" (89 mm) to
4-1/4" (108 mm) use
deep roughing-in kit.
Finished Wall
K-8300 Valve
Series
K-2971-KS,
K-304 Valves
3"
(76 mm)
1/2"
NPT
6-11/16"
(170 mm)
6-15/16"
(176 mm)
3-7/8"
(98 mm)
2"
(51 mm)
9-5/8" (244 mm)
Typical
Technical Information
All product dimensions are nominal.
Notes
Install this product according to the installation
instructions.
NOTICE: Risk of product damage. Long screws
for installing trim can damage the K-2971-KS
valve. Consult the trim installation guide to
verify if the thin wall installation kit (88526) is
needed.
®
Rite-Temp® Shower Valve Trim
K-TLS13134-4B
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
4-16-2022 05:14 - US/CA
