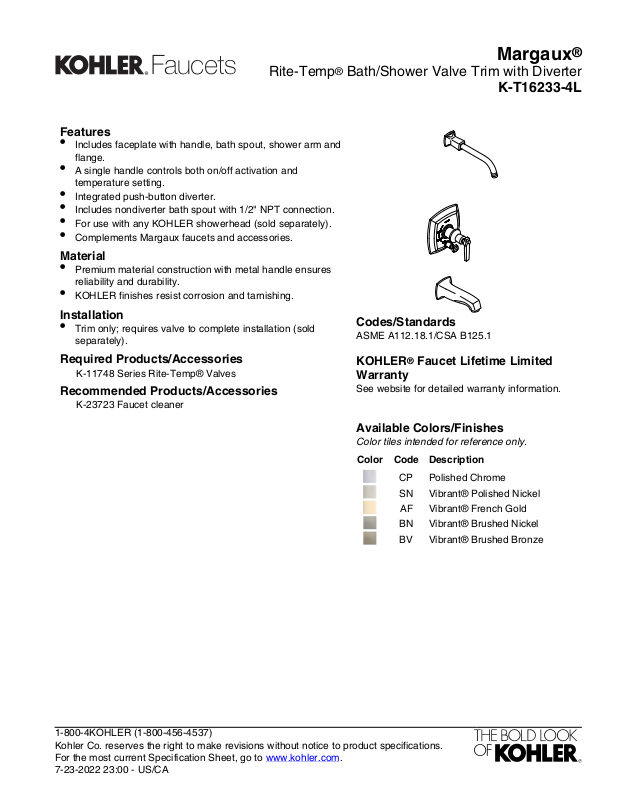

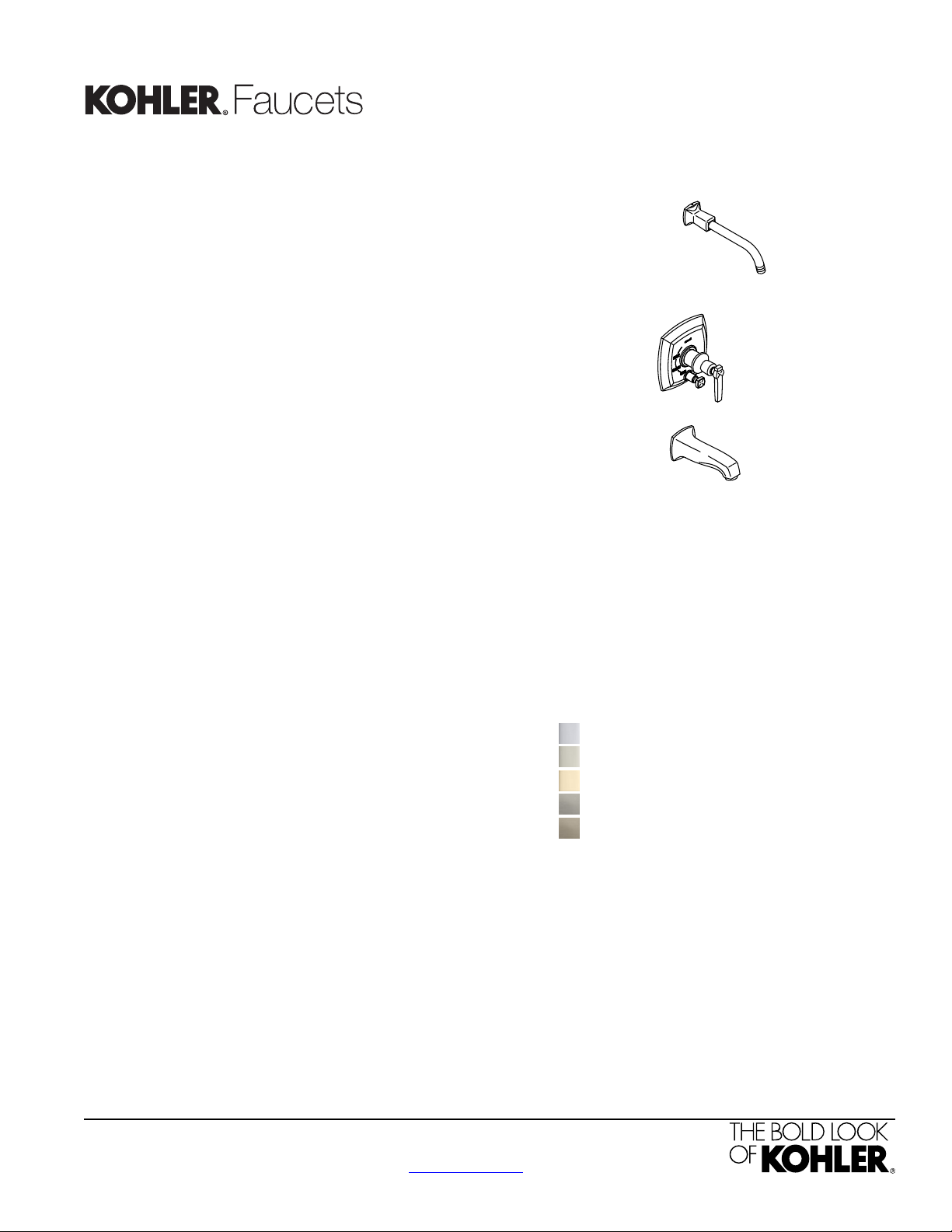

Page 1
Margaux
Features
•
Includes faceplate with handle, bath spout, shower arm and
flange.
•
A single handle controls both on/off activation and
temperature setting.
•
Integrated push-button diverter.
•
Includes nondiverter bath spout with 1/2" NPT connection.
•
For use with any KOHLER showerhead (sold separately).
•
Complements Margaux faucets and accessories.
Material
•
Premium material construction with metal handle ensures
reliability and durability.
•
KOHLER finishes resist corrosion and tarnishing.
Installation
•
Trim only; requires valve to complete installation (sold
separately).
Required Products/Accessories
K-11748 Series Rite-Temp® Valves
Recommended Products/Accessories
K-23723 Faucet cleaner
Codes/Standards
ASME A112.18.1/CSA B125.1
KOHLER® Faucet Lifetime Limited
Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
Color Code Description
CP Polished Chrome
SN Vibrant® Polished Nickel
AF Vibrant® French Gold
BN Vibrant® Brushed Nickel
BV Vibrant® Brushed Bronze
®
Rite-Temp® Bath/Shower Valve Trim with Diverter
K-T16233-4L
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
7-23-2022 23:00 - US/CA
Page 2

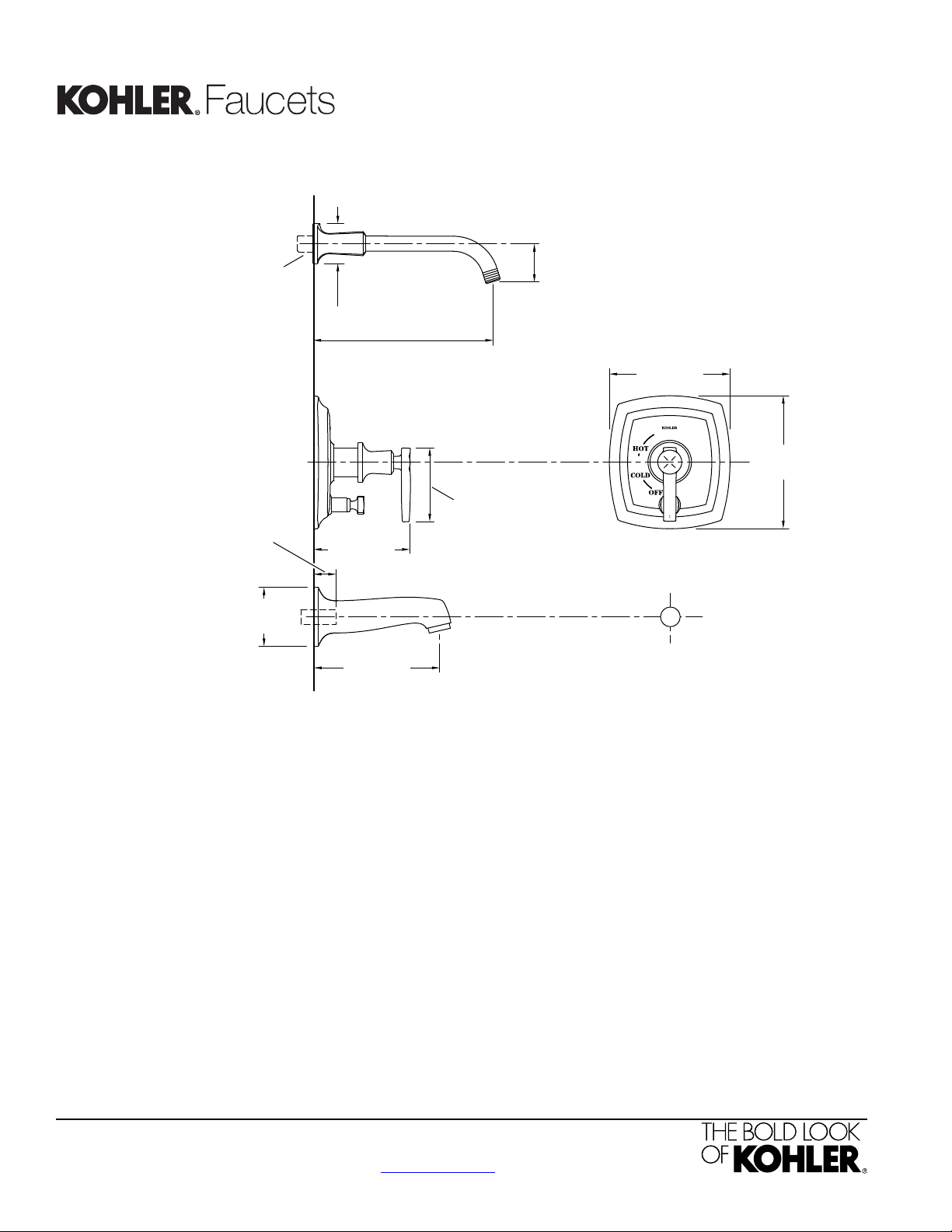

Margaux
1/2" NPT
Threaded Spout:
Extend 1/2"-14 NPT pipe 7/16"
(11 mm) from finished wall.
6-1/2"
(165 mm)
7-3/16"
(183 mm)
4"
(102 mm)
9-5/8" (244 mm) Typical
2-1/16"
(52 mm)
2-1/8"
(54 mm)
6-13/16"
(173 mm)
3-3/16"
(81 mm)
4-7/16"
(113 mm)
Technical Information
All product dimensions are nominal.
Notes
Install this product according to the installation
instructions.
Avoid cross-flow conditions. Do not install shutoff device on either valve outlet.
Install straight pipe or tube drop of 7" (178 mm)
to 18" (457 mm) with single elbow between the
valve and wall-mount spout.
®
Rite-Temp® Bath/Shower Valve Trim with Diverter
K-T16233-4L
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
7-23-2022 23:00 - US/CA
