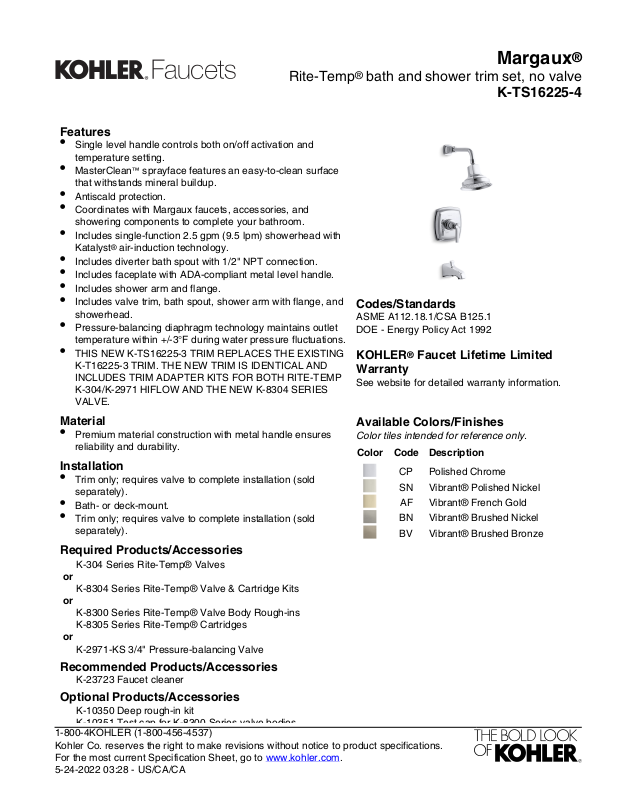

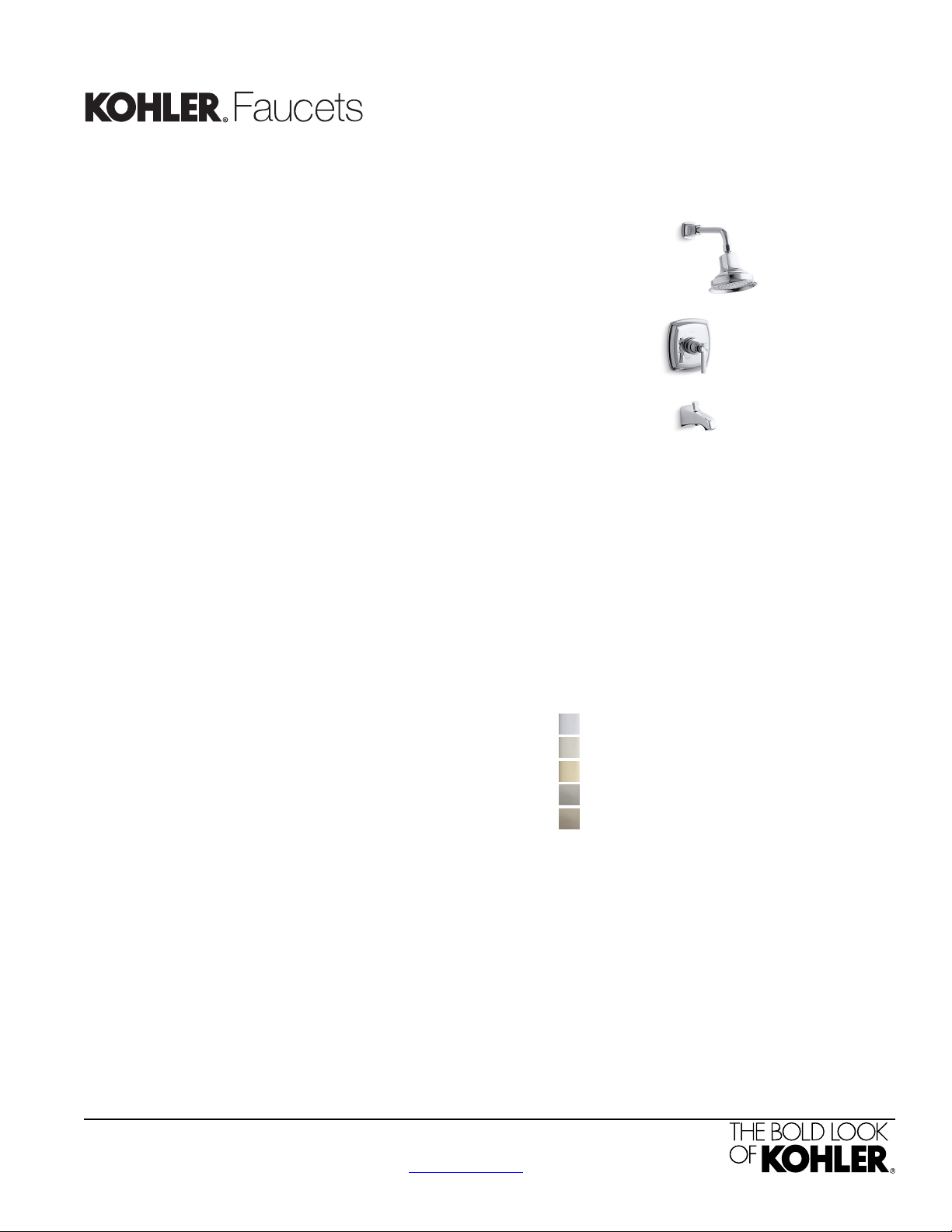

Features
•
Single level handle controls both on/off activation and
temperature setting.
•
MasterClean™ sprayface features an easy-to-clean surface
that withstands mineral buildup.
•
Antiscald protection.
•
Coordinates with Margaux faucets, accessories, and
showering components to complete your bathroom.
•
Includes single-function 2.5 gpm (9.5 lpm) showerhead with
Katalyst® air-induction technology.
•
Includes diverter bath spout with 1/2" NPT connection.
•
Includes faceplate with ADA-compliant metal level handle.
•
Includes shower arm and flange.
•
Includes valve trim, bath spout, shower arm with flange, and
showerhead.
•
Pressure-balancing diaphragm technology maintains outlet
temperature within +/-3°F during water pressure fluctuations.
•
THIS NEW K-TS16225-3 TRIM REPLACES THE EXISTING
K-T16225-3 TRIM. THE NEW TRIM IS IDENTICAL AND
INCLUDES TRIM ADAPTER KITS FOR BOTH RITE-TEMP
K-304/K-2971 HIFLOW AND THE NEW K-8304 SERIES
VALVE.
Material
•
Premium material construction with metal handle ensures
reliability and durability.
Installation
•
Trim only; requires valve to complete installation (sold
separately).
•
Bath- or deck-mount.
•
Trim only; requires valve to complete installation (sold
separately).
Required Products/Accessories
K-304 Series Rite-Temp® Valves
or
K-8304 Series Rite-Temp® Valve & Cartridge Kits
or
K-8300 Series Rite-Temp® Valve Body Rough-ins
K-8305 Series Rite-Temp® Cartridges
or
K-2971-KS 3/4" Pressure-balancing Valve
Recommended Products/Accessories
K-23723 Faucet cleaner
Optional Products/Accessories
K-10350 Deep rough-in kit
Codes/Standards
ASME A112.18.1/CSA B125.1
DOE - Energy Policy Act 1992
KOHLER® Faucet Lifetime Limited
Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
Color Code Description
CP Polished Chrome
SN Vibrant® Polished Nickel
AF Vibrant® French Gold
BN Vibrant® Brushed Nickel
BV Vibrant® Brushed Bronze
Margaux
®
Rite-Temp® bath and shower trim set, no valve
K-TS16225-4
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
5-24-2022 03:28 - US/CA/CA
Page 2

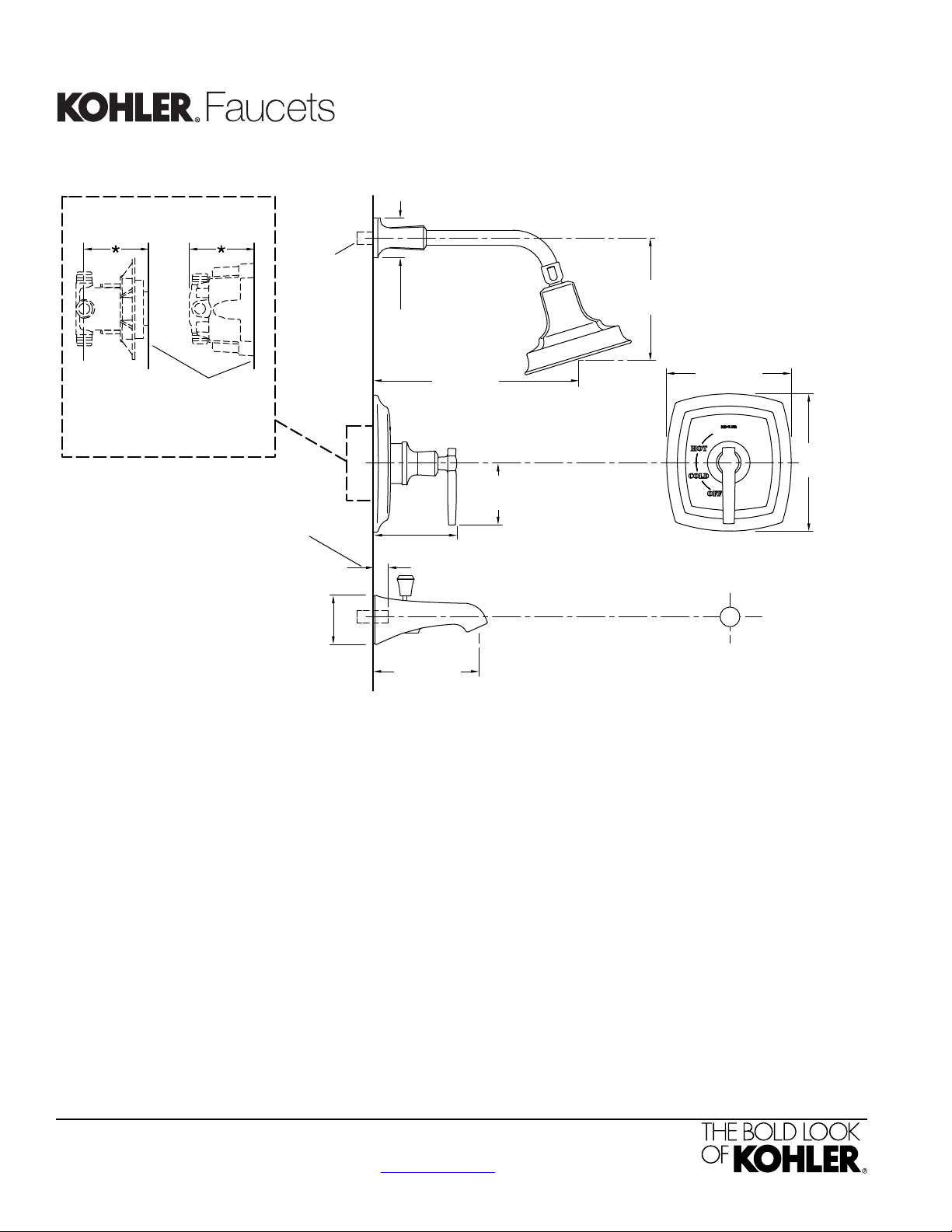

Margaux
4-7/16" (113 mm)
10-5/16"
(262 mm)
Typical
6-1/2"
(165 mm)
6"
(152 mm)
2-1/8"
(54 mm)
K-2971-KS,
K-304 Valves
K-8300 Valve
Series
Finished Wall
*If 3-1/2" (89 mm) to
4-1/4" (108 mm) use
deep roughing-in kit.
1/2"
NPT
2-7/8"
(73 mm)
7-3/16"
(183 mm)
3-3/16"
(81 mm)
Threaded Spout:
Extend 1/2" NPT pipe 7/16"
(11 mm) from finished wall.
6-1/2"
(165 mm)
Technical Information
All product dimensions are nominal.
Drain included: No
Showerhead/Body Spray:
Rated maximum
flow:
2.5 gal/min (9.5 l/min)
Pressure: 80 psi (5.5 bar)
Notes
Install the product according to the installation
guide.
NOTICE: Risk of product damage. Long
screws, for installing trim, can damage the
K-2971-KS valve. Consult the trim installation
guide to verify if the thin wall installation kit
(88526) is needed.
Install straight pipe or tube drop of 7" (178 mm)
to 18" (457 mm) with single elbow between the
valve and wall-mount spout.
®
Rite-Temp® bath and shower trim set, no valve
K-TS16225-4
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
5-24-2022 03:28 - US/CA/CA
