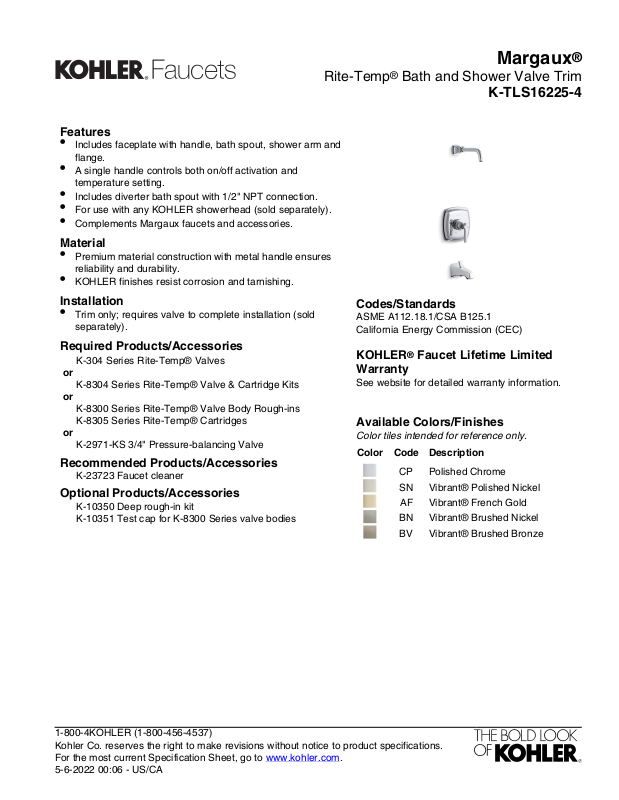

Margaux
Features
•
Includes faceplate with handle, bath spout, shower arm and
flange.
•
A single handle controls both on/off activation and
temperature setting.
•
Includes diverter bath spout with 1/2" NPT connection.
•
For use with any KOHLER showerhead (sold separately).
•
Complements Margaux faucets and accessories.
Material
•
Premium material construction with metal handle ensures
reliability and durability.
•
KOHLER finishes resist corrosion and tarnishing.
Installation
•
Trim only; requires valve to complete installation (sold
separately).
Required Products/Accessories
K-304 Series Rite-Temp® Valves
or
K-8304 Series Rite-Temp® Valve & Cartridge Kits
or
K-8300 Series Rite-Temp® Valve Body Rough-ins
K-8305 Series Rite-Temp® Cartridges
or
K-2971-KS 3/4" Pressure-balancing Valve
Recommended Products/Accessories
K-23723 Faucet cleaner
Optional Products/Accessories
K-10350 Deep rough-in kit
K-10351 Test cap for K-8300 Series valve bodies
Codes/Standards
ASME A112.18.1/CSA B125.1
California Energy Commission (CEC)
KOHLER® Faucet Lifetime Limited
Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
Color Code Description
CP Polished Chrome
SN Vibrant® Polished Nickel
AF Vibrant® French Gold
BN Vibrant® Brushed Nickel
BV Vibrant® Brushed Bronze
®
Rite-Temp® Bath and Shower Valve Trim
K-TLS16225-4
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
5-6-2022 00:06 - US/CA
Margaux
6-1/2"
(165 mm)
Threaded Spout:
Extend 1/2" NPT pipe 7/16"
(11 mm) from finished wall.
3-3/16"
(81 mm)
7-3/16"
(183 mm)
2-7/8"
(73 mm)
1/2"
NPT
*If 3-1/2" (89 mm) to
4-1/4" (108 mm) use
deep roughing-in kit.
Finished Wall
K-8300 Valve
Series
K-2971-KS,
K-304 Valves
2-1/8"
(54 mm)
6"
(152 mm)
4-7/16" (113 mm)
2-1/16"
(52 mm)
9-5/8" (244 mm)
Typical
2-1/8"
(54 mm)
Technical Information
All product dimensions are nominal.
Notes
Install the product according to the installation
guide.
NOTICE: Risk of product damage. Long
screws, for installing trim, can damage the
K-2971-KS valve. Consult the trim installation
guide to verify if the thin wall installation kit
(88526) is needed.
Install straight pipe or tube drop of 7" (178 mm)
to 18" (457 mm) with single elbow between the
valve and wall-mount spout.
®
Rite-Temp® Bath and Shower Valve Trim
K-TLS16225-4
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
5-6-2022 00:06 - US/CA
